Q4000 - Pool POLARIS - Free user manual and instructions

Product Type	Hydraulic automatic pool cleaner
Brand	Polaris
Model	Q4000
Usage	In-ground and above-ground pools with vinyl, tile, fiberglass, etc. liners
Power Source	Water pressure (requires booster pump)
Dimensions (L x W x H)	Approximately 40 x 35 x 30 cm
Weight	Approximately 5.8 kg
Optimal Wheel Rotation Speed	28 to 32 revolutions per minute (RPM)
Wall Climbing Ability	Yes, depending on pool shape and adjustment
Filtration System	All-purpose filter bag + In-line filter
Hose Length	Adjustable, to be cut 15 cm from farthest point
Connection	Universal wall fitting (UWF) with flow restrictor discs (blue and red)
Main Functions	Suction, sweeping, scrubbing of surfaces, random cycle
Cleaning Cycle Duration	1 to 2 hours for most pools
Maintenance	Regular cleaning of filter bag and in-line filter strainer
Safety	Do not use when people are in the pool; remove before chemical treatments; do not handle while operating
Spare Parts and Accessories	PosiTrax tires, ladder guard kit, safety valve, swivels, floaters
Winter Storage	Drain water, remove UWF, store frost-free
Warranty	See terms (not covered for frost damage)
Vinyl Liner Compatibility	Caution: some patterns may wear from contact; not covered by warranty

Frequently Asked Questions - Q4000 POLARIS

Why does my Polaris Q4000 hose get tangled?

First check that the hose length is adjusted to the correct size for your pool (should be 15 cm from the farthest point). Make sure the swivels and fittings turn freely, and that the floaters are properly spaced (30 to 90 cm). Finally, check the wheel rotation speed (28 to 32 RPM) and straighten the hose by laying it out in the sun.

What should I do if the cleaner does not climb the walls?

First check the wheel rotation speed (28-32 RPM). If it's good, check that the filter bag is not clogged, that the floaters are correctly positioned, and adjust the thrust jet (see Section 8). For smooth liner pools, replace the rear tires with PosiTrax tires to improve traction.

How do I adjust the wheel rotation speed?

The optimal speed is 28 to 32 revolutions per minute. If it is too low (<28 RPM), remove the blue flow restrictor disc, or check that there are no debris in the in-line filter or skimmer. If it is too high (>32 RPM), install the red disc instead of the blue one, or loosen the pressure relief valve.

How do I clean the filter bag of the Polaris Q4000?

Press the cover release button, lift the handle to remove the bag, then press the plunger to take it out. Empty debris and rinse the bag with clean water. Put it back in place making sure it is properly locked.

Why is the cleaner slow or not moving?

Check wheel rotation speed (28-32 RPM). Clean the filter bag, in-line filter strainer, skimmer basket, pump basket, and pool filter. Also inspect hoses and fittings for any leaks that would reduce pressure.

How do I adjust the hose length?

Connect the hose end to the return jet, extend it to the farthest point in the pool (not counting steps or seats). The hose should reach 15 cm from that point. If too long, cut it; if too short, add a section with floaters, swivel, and nuts.

What should I do if the thrust jet splashes a lot out of the pool?

Check the position of the thrust jet (standard at 3 o'clock). Adjust its flow by turning left to decrease or right to increase, until satisfactory operation is achieved.

How do I store the Polaris Q4000 for winter?

Remove the cleaner from the pool and drain all water to avoid frost damage (not covered by warranty). Remove the universal wall fitting (UWF) from the wall using the removal tool if necessary. Store everything frost-free and away from sunlight.

Can I use the Q4000 on a vinyl pool?

Yes, but caution: some patterned vinyl liners may wear or scratch from contact with the cleaner. This wear is not covered by warranty. It is recommended to test on a small inconspicuous area before regular use.

Where can I find spare parts for my Polaris Q4000?

Spare parts (PosiTrax tires, safety valve, swivels, floaters, etc.) are available from your authorized Polaris dealer. You can also order online from the manufacturer's website or consult the accessory list in the manual.

USER MANUAL Q4000 POLARIS

Line drawing of a robotic arm with visible wheels and a 'MPolaris' logo on the head (no text or symbols beyond branding)

Works with Polaris Booster Pump

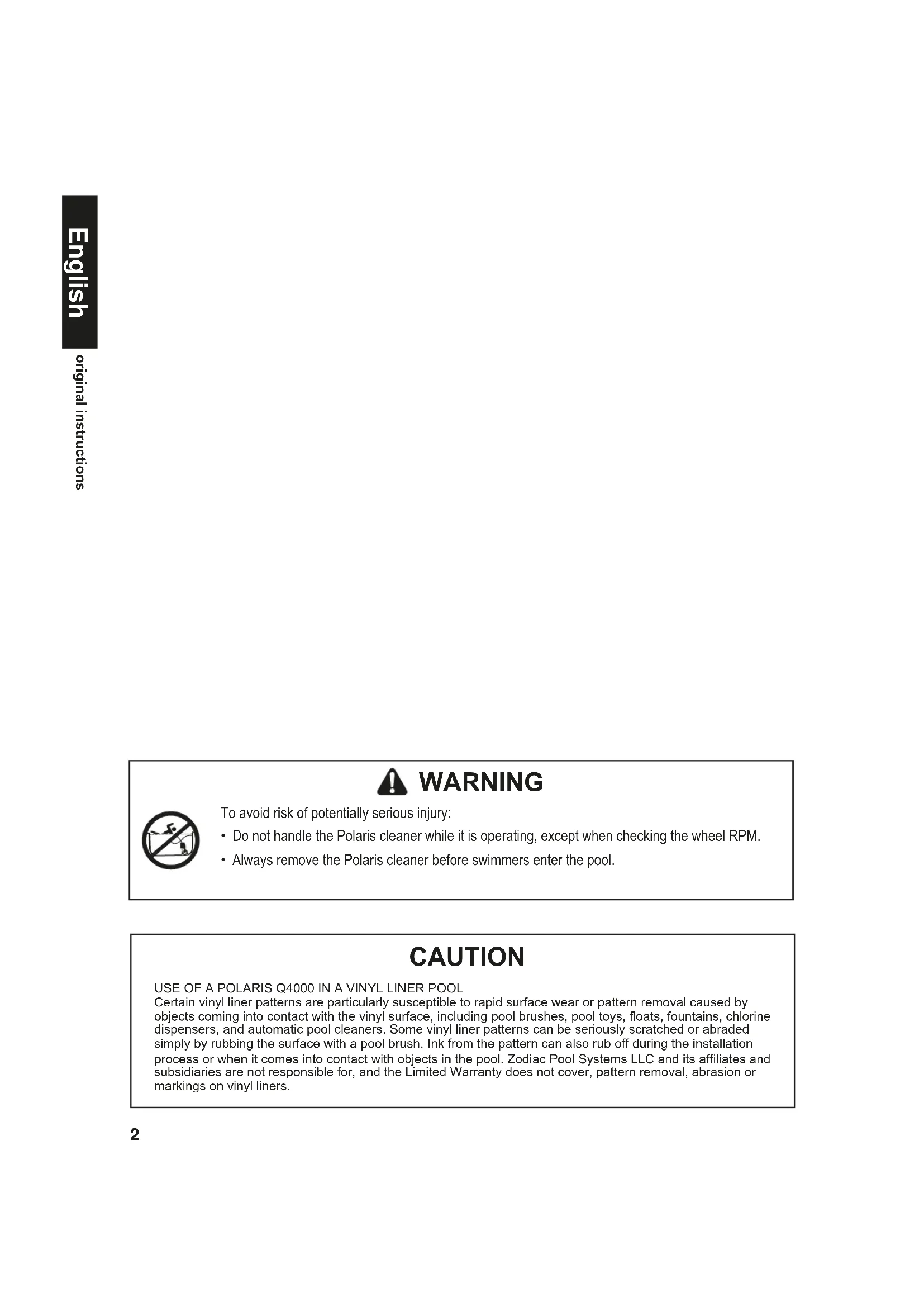

To avoid risk of potentially serious injury:

• Do not handle the Polaris cleaner while it is operating, except when checking the wheel RPM.
  • Always remove the Polaris cleaner before swimmers enter the pool.

CAUTION

USE OF A POLARIS Q4000 IN A VINYL LINER POOL

Certain vinyl liner patterns are particularly susceptible to rapid surface wear or pattern removal caused by objects coming into contact with the vinyl surface, including pool brushes, pool toys, floats, fountains, chlorine dispensers, and automatic pool cleaners. Some vinyl liner patterns can be seriously scratched or abraded simply by rubbing the surface with a pool brush. Ink from the pattern can also rub off during the installation process or when it comes into contact with objects in the pool. Zodiac Pool Systems LLC and its affiliates and subsidiaries are not responsible for, and the Limited Warranty does not cover, pattern removal, abrasion or markings on vinyl liners.

Before You Start: Important Information

• Before installing the Polaris ^ cleaner, make sure the pool filter is clean.
• New plumbing lines should be flushed out before installing the cleaner.
• The cleaner should not be used to remove plaster dust in new pools.
• Except when checking the wheel RPM, do not handle the cleaner while it is operating.
  • Always remove the cleaner before swimmers enter the pool.
• Disconnect the cleaner from the pool wall when cleaning or backwashing the pool filter.
  • Always remove the cleaner from the pool before chemical shock treatments.
• After cleaning or backwashing, let the filtration system run for at least five minutes before re-connecting the cleaner.

For customer service or support:

Zodiac Pool Systems LLC

2882 Whiptail Loop # 100

Carlsbad, CA 92010

1.800.822.7933 | PolarisPool.com

Zodiac Pool Systems Canada, Inc.

2-3365 Mainway

Burlington, ON L7M 1A6

1.800.822.7933 | PolarisPool.ca

Fluidra Group Australia Pty Ltd

PO Box 7238, Wetherill Park NSW 2164

ABN: 87 002 641 965

1300 763 021 | PolarisPool.com.au

Zodiac Pool Care Europe

ZA de la Balme - BP 42

31450 Belberaud FRANCE

PolarisPool.eu

Fluidra NZ Ltd

13 Douglas Alexander Parade

Rosedale, Auckland 0632

NZBN: 942 903 181 70759

0800 807 665 | Fluidra.co.nz

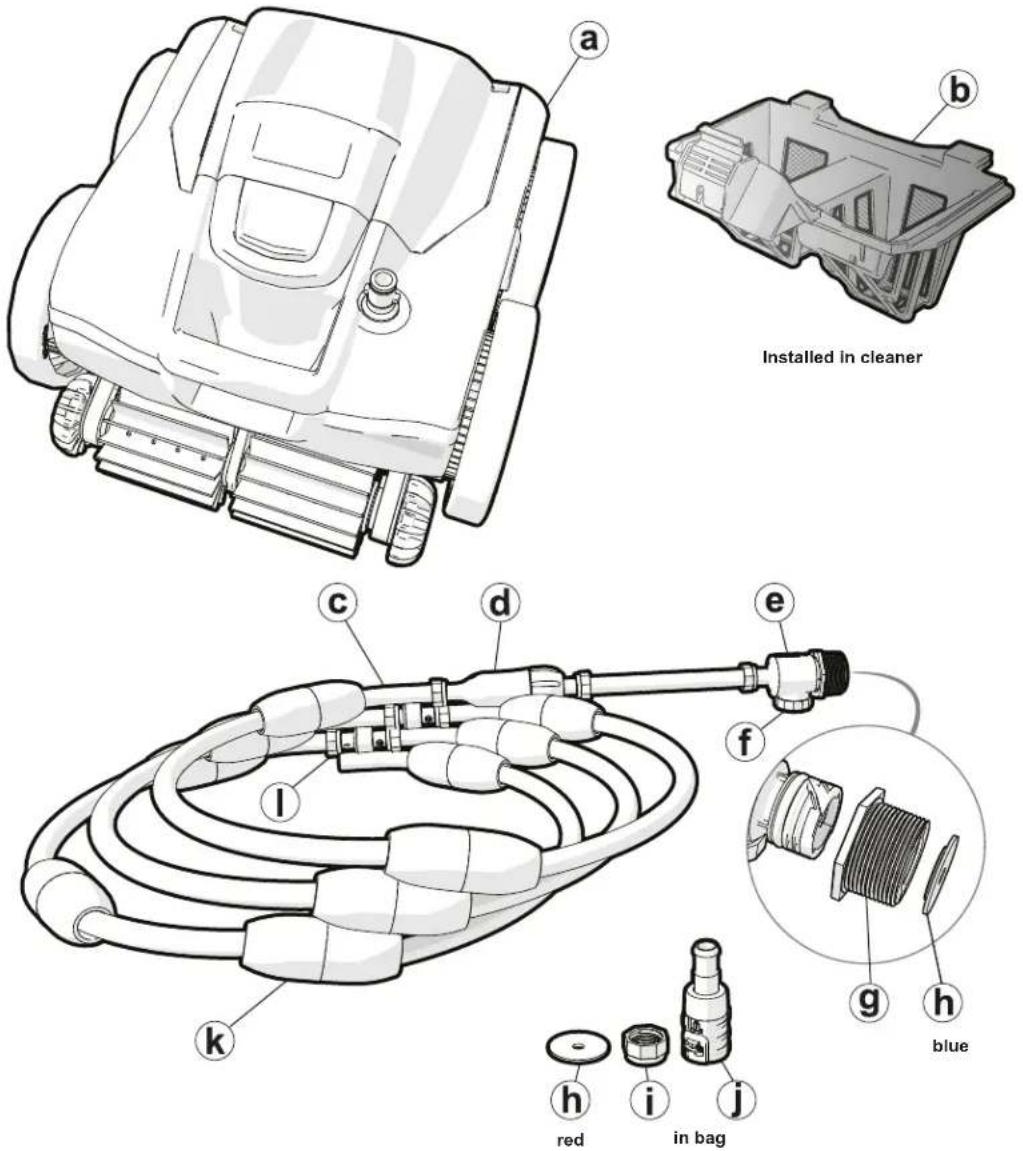

Included in the Box

a - Cleaner Body
b - Filter Canister - All-Purpose Debris
c - Hose Assembly
d - In-Line Filter Assembly
e - Quick Disconnect
f - Pressure Relief Valve

g - Universal Wall Fitting (UWF®)
h - Retrictor Disks (Blue and Red)
i - Hose Nuts
j - Feed Hose Connector
k - Hose Floats
I - Hose Swivels

1 Prepare the Pool

1. Turn on the filtration pump, allow to prime.
2. Turn on the booster pump and flush plumbing lines for five minutes.
3. Turn off both pumps.

2 Install the Universal Wall Fitting

The UWF installs on pools with a dedicated cleaner return line and a threaded 1-1/2" female pipe fitting.

1. Remove the Universal Wall Fitting (UWF) (g) from the Quick Disconnect (e).
2. Thread the UWF (g) with Blue Restrictor Disk (h) in place, into the dedicated cleaner return line.
3. Attach the Quick Disconnect (e) and hose to the UWF (g). Turn clockwise then pull away to secure.

dedicated cleaner return line

3

Adjust Hose Length

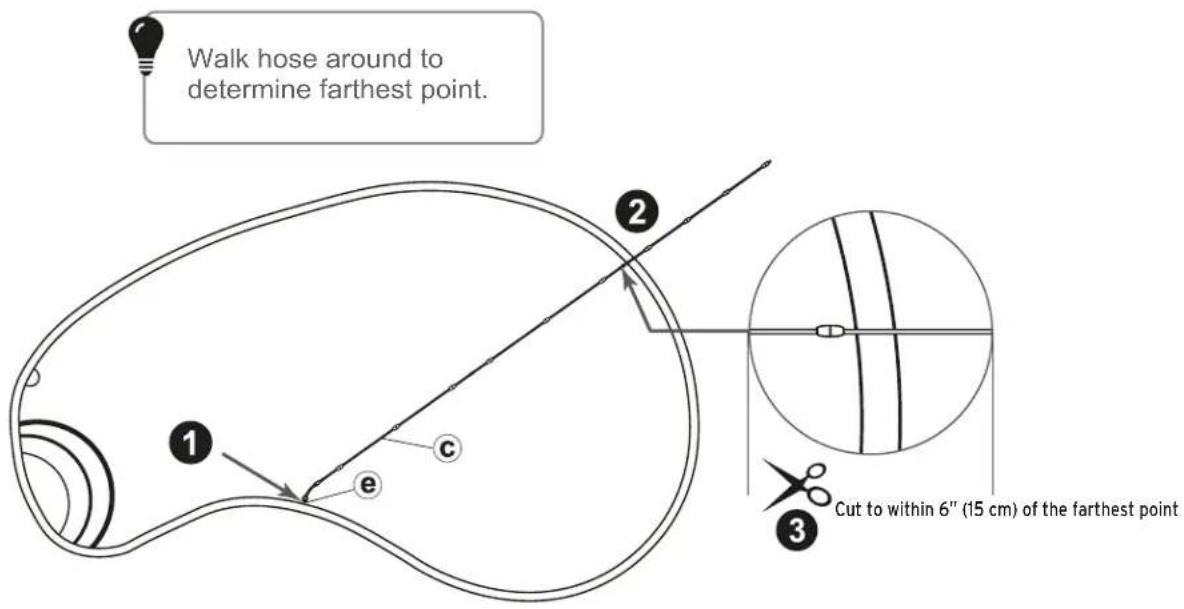

1. With the hose assembly (c) connected at the cleaner return line, extend the end of the hose to the farthest point of the pool. Do not include steps or seating areas.
2. The end of the hose should be within 6" (15 cm), longer or shorter, of farthest point.
3. If hose is too short, add a feed hose section with floats, a swivel and two hose nuts, available through your local Polaris dealer. Adjust to proper length.
4. Cut the hose so that it is within 6" (15 cm) of the farthest point.

Walk hose around to determine farthest point. ① ② ③ Cut to within 6" (15 cm) of the farthest point ④ ⑤ e

4

Connect Hose Fitting and Adjust Floats

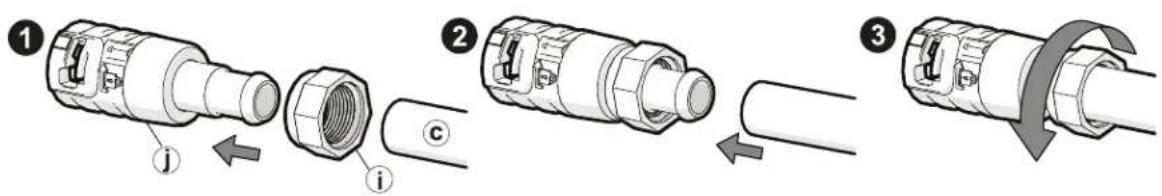

1. Place the hose nut (i) onto the end of the feed hose connector (j).
2. Push the hose assembly (c) onto the feed hose connector (j). Water can be used to lubricate the hose.
3. Tightly secure the hose nut (i) onto the hose assembly (c).

Diagram illustrating three-step assembly of a pipe fitting with labeled parts and directional arrows indicating process flow.

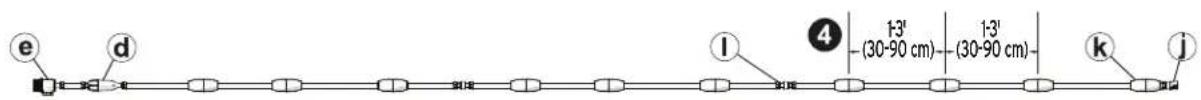

1. Position the first hose float (k) up against the feed hose connector (j) and then space hose floats 1-3 ft (30-90 cm) apart.

e d l 4 1-3' (30-90 cm) 1-3' (30-90 cm) k j

WARNING

To avoid risk of potentially serious injury, do not swim or use the pool when the cleaner is submerged or operating.

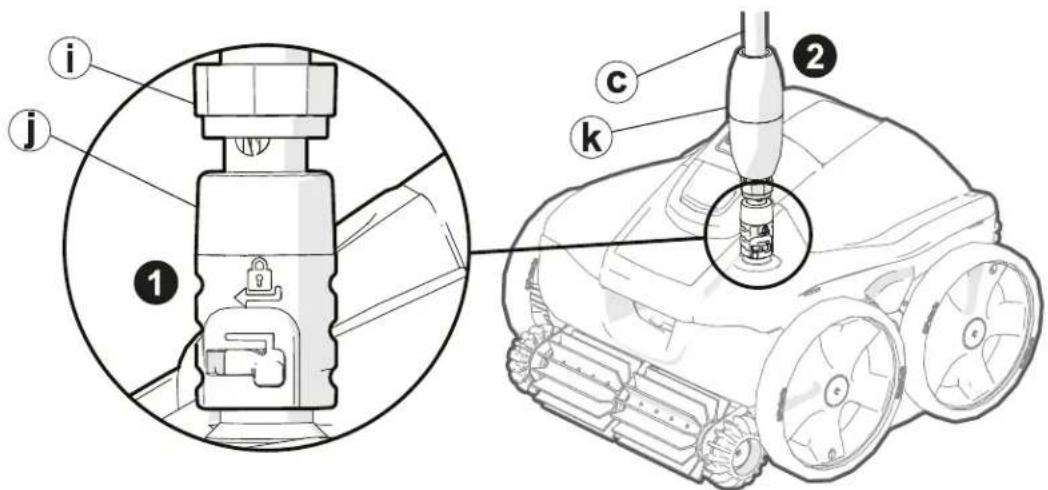

1. Attach the feed hose connector (j) to the cleaner.
2. Confirm the first hose float (k) is up against the feed hose connector (j).
3. Submerge the cleaner, allow it to sink to the bottom of the pool.

Technical diagram showing a mechanical assembly with labeled parts (i, j, k, c) and a close-up of a device component.

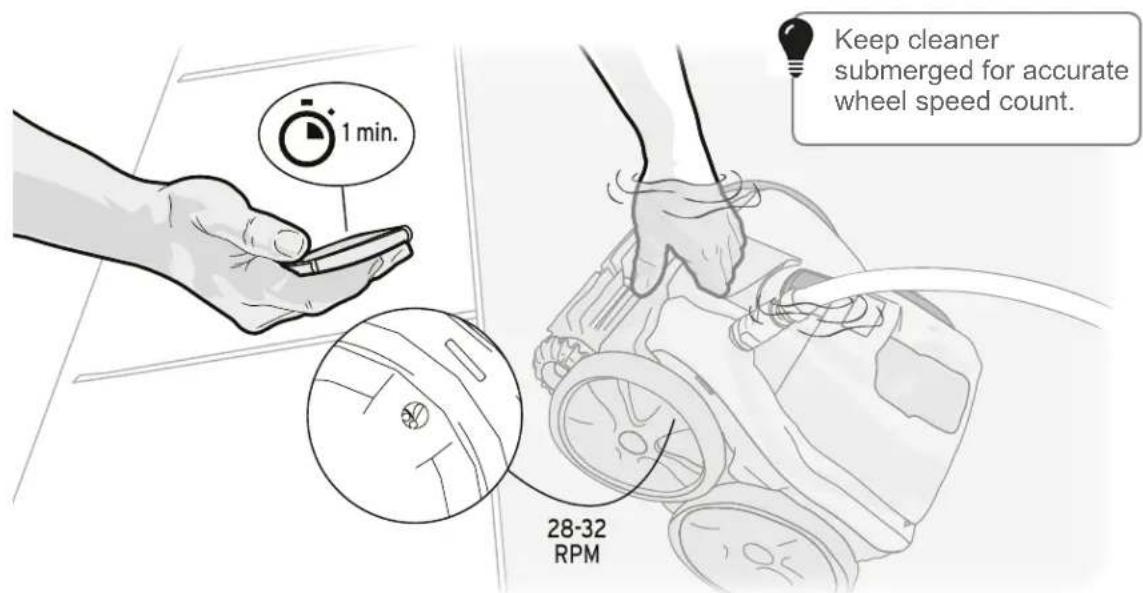

Before operating the cleaner, check for proper wheel revolutions per minute (RPM). For maximum efficiency, the cleaner should operate between 28 and 32 RPM.

IMPORTANT: Keep the cleaner submerged for accurate wheel speed count.

1. Turn on the filtration pump and allow it to prime.
2. Turn on the booster pump, the cleaner will begin to move.

3. With both pumps on, pull the cleaner to the waterline and keep submerged. CAUTION: Always lift the cleaner using the handle and take care to avoid possible hair entanglement when leaning over. NOTE: The Polaris® logo latch is not a handle.

4. Using the Polaris logo on the left-front wheel as a reference, count wheel revolutions (RPM) for 1 minute. If wheels change direction during timing, start over.

5. Target wheel speed is 28 to 32 RPM. If wheel speed is not in target range, refer to Section 7 Adjust Wheel Speed.

1 min. Keep cleaner submerged for accurate wheel speed count. 28-32 RPM

7

Adjust the Wheel Speed

< 28 RPM

Technical illustration of a mechanical connector or fitting with labeled part 'd' (no text or symbols beyond label)

Flow direction arrow ( ) toward the cleaner

Diagram showing a pipe fitting with a magnified inset highlighting the component's direction and angle.

• Check the filter screen in the in-line filter assembly (d) for debris that restricts water flow.
• Clean the skimmer, filter, and pump basket, clearing debris that restricts water flow.

- Check the hoses and connections for leaks that cause loss of water pressure.

- Check hose swivels (l) for for excessive leaking or spraying. Verify flow direction arrow (=) is toward the cleaner.

- Remove the blue restrictor disk (h) from the UWF ^ (g).

> 32 RPM

Technical diagram of a mechanical component with threaded end and circular feature, no visible text or symbols

- Replace the blue restrictor disk with the red restrictor disk (h).

- Loosen the pressure relief valve (f) until proper RPM is reached.

NOTE: The Pressure Relief Valve should only be adjusted when a restrictor disk is installed.

8

Fine Tuning

When operating correctly, the Polaris® cleaner vacuums, sweeps and scrubs all surfaces randomly throughout the pool. The climbing ability depends on the pool's shape and water pressure or flow. The cleaner climbs best in pools without sharp angles or curves in the transition from the pool floor to the pool wall. Fine tune your cleaner for optimal operation, as necessary.

Thrust Jet Position

Pushes Cleaner Left 12 Pushes Cleaner Right Increases Climbing 9 3 Decreases Climbing 6 The thrust jet power the cleaner. Factory (3) o'clock, but, dep other thrust jet posi to improve cleaner If needed, use a wr square nut, fine tun to secure.

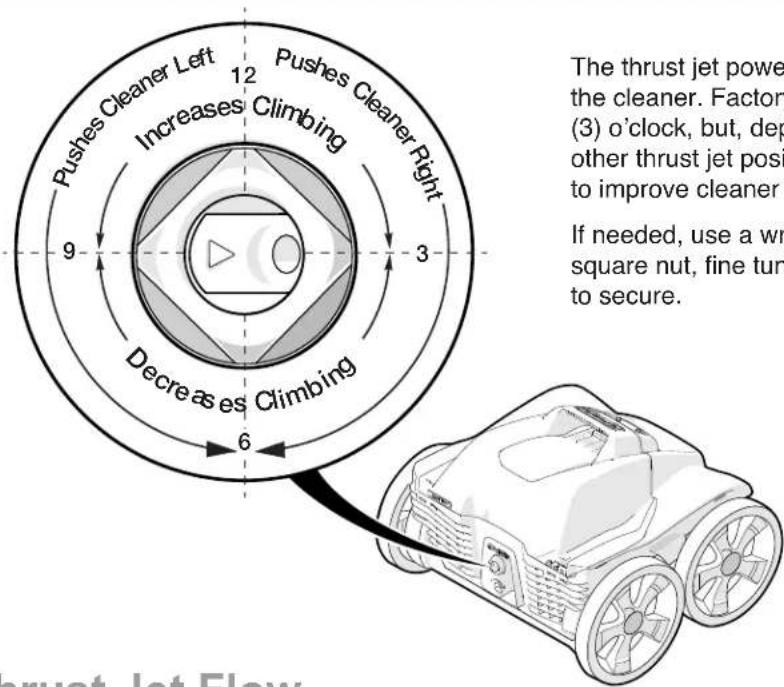

The thrust jet powers the direction of the cleaner. Factory position is three (3) o'clock, but, depending on the pool, other thrust jet positions can be helpful to improve cleaner coverage.

If needed, use a wrench to loosen the square nut, fine tune and then tighten to secure.

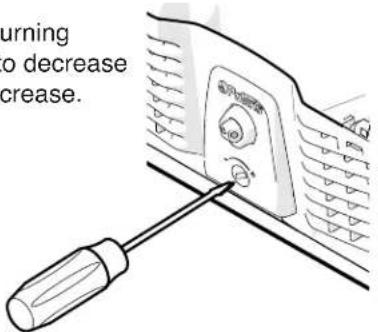

Thrust Jet Flow

Adjust the flow by turning counter-clockwise to decrease and clockwise to increase.

turning to decrease crease.

Cleaning Schedule

The cleaner's quick and efficient pool coverage may allow for a reduced cleaning schedule and runtime. The Polaris Q4000 cleans most pools in one to two hours or less.

Perform routine maintenance to prolong the life of your cleaner.

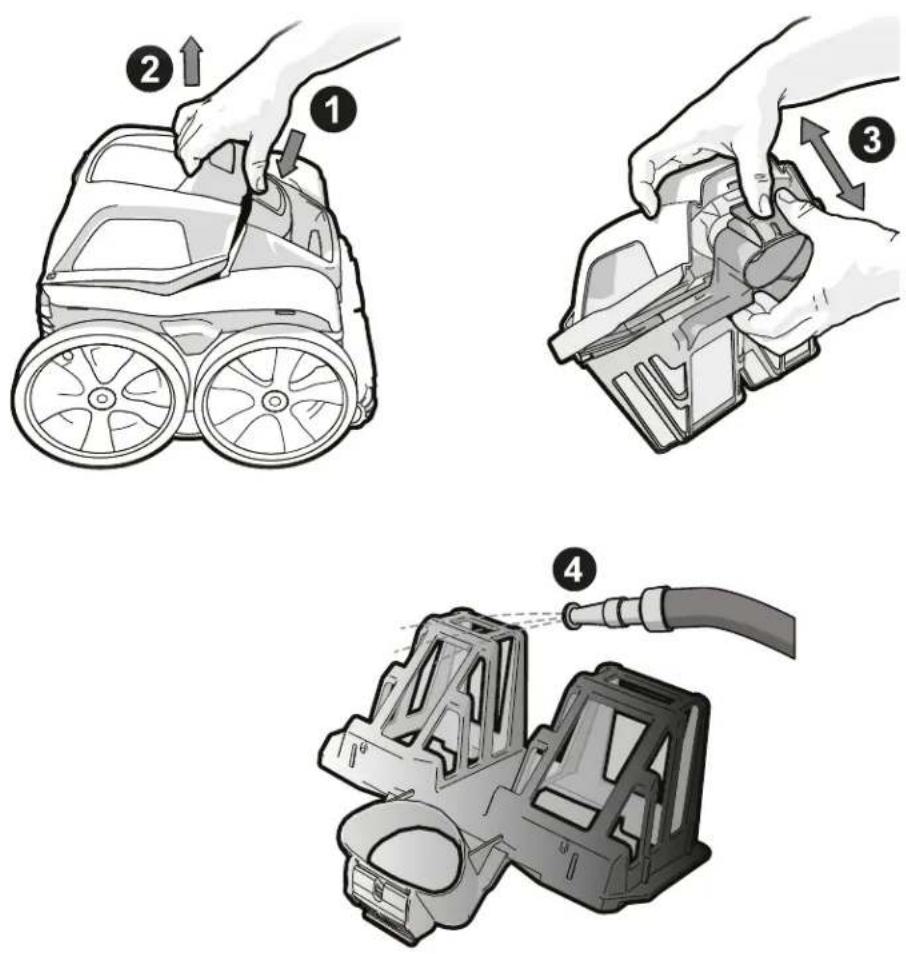

Clean the Filter Canister

NOTE: To ensure the cleaner is running efficiently, the filter canister should be emptied regularly.

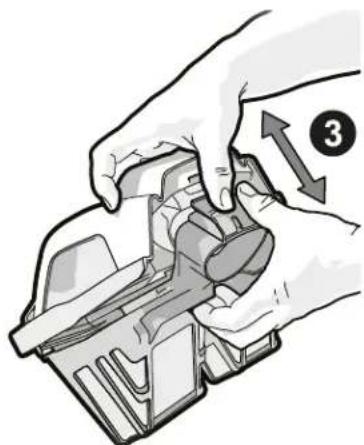

1. Press the lid release latch.
2. Lift the handle to remove the filter canister.
3. Press the filter cover release to remove the filter canister.

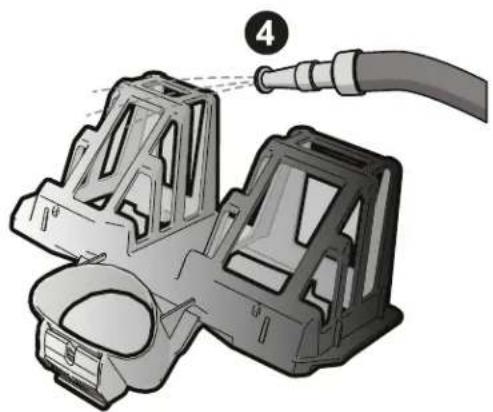

4. Empty debris and rinse the filter canister with fresh water.

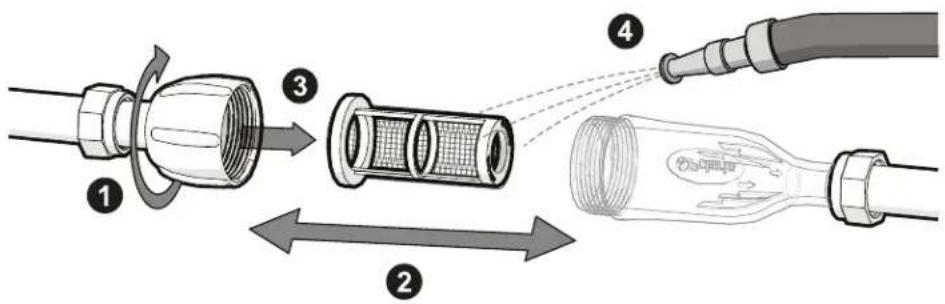

Clean the In-Line Filter Screen

1. Turn off the booster pump.
2. Loosen the in-line filter cap.
3. Separate the in-line filter body from the filter cap.
4. Remove the filter screen.
5. Rinse with fresh water.

Diagram illustrating the process of a mechanical or fluidic device with numbered components and directional arrows indicating flow.

Storage/Winterizing

NOTE: Never store the cleaner in direct sunlight.

To store the cleaner for the winter:

1. Remove cleaner from the pool and drain all water to avoid freezing water damage (freeze damage is not covered under the warranty).
2. Remove the UWF from the pool wall using the Quick Disconnect. Use a pulling pressure as you unscrew. If necessary, use the UWF Removal Tool (part #10-102-00) available from any Polaris® dealer.

Troubleshooting

Problem Solution
Hose assemblybecomes tangled.	1. Remeasure the hose to verify that it is adjusted to the proper length for the pool shape.2. With the cleaner operating, check that the hose swivels and the hose connections turn freely.3. Ensure the hose is floating and the hose floats are positioned properly. Position the first float (k) up against the feed hose connector (j) and then space hose floats 1-3 ft (30-90 cm) apart.4. Check the wheel RPM. Target wheel speed is 28-32 RPM. If wheel speed is not in target range, refer to Section 7 Adjust Wheel Speed.5. Straighten the hose assembly by laying it out flat in the sun.
Cleaner hangs up on steps or other obstacles for longer than 3 minutes.	1. Check the wheel RPM. Target wheel speed is 28-32 RPM. If wheel speed is not in target range, refer to Section 7 Adjust Wheel Speed.2. Check for debris in the filter canister and clean, if necessary.3. Ensure the hose is floating and the hose floats are positioned properly. Position the first float (k) up against the feed hose connector (j) and then space hose floats 1-3 ft (30-90 cm) apart.4. Adjust the thrust jet. Refer to Section 8 Fine Tuning.5. Remove unnecessary pool hardware or install a Ladder Guard Kit (part # G21) from a Polaris® dealer.6. Install a Back-Up Valve accessory (part # G62, black or part # G52, white) from a Polaris dealer. Additional hose nuts and swivel may be required. Position the back-up valve and its adjacent hose float 6-8 ft (1.8 - 2.4m) away from the cleaner.
Thrust jet sprays too much water out of pool.	Check the thrust jet position and adjust thrust jet flow, if necessary. Refer to Section 8 Fine Tuning.
Cleaner does not clean the entire pool.	1. Ensure the hose length is adjusted to the proper length for the pool shape. Refer to Section 3 Adjust Hose Length.2. Adjust the thrust jet to improve coverage. Refer to Section 8 Fine Tuning.
Cleaner is sluggish, running with less power than normal or not moving.	1. Check the wheel RPM. Target wheel speed is 28-32 RPM. If wheel speed is not in target range, refer to Section 7 Adjust Wheel Speed.2. Check for debris in the filter canister and clean, if necessary.3. Check the filter screen and the in-line filter and clean, if necessary.4. Clean the skimmer basket, pump basket, and pool filter.5. Check all of the hoses, connections, and swivels for leaks that could cause loss of water pressure.
Cleaner does not climb walls.	1. Check the wheel RPM. Target wheel speed is 28-32 RPM. If wheel speed is not in target range, refer to Section 7 Adjust Wheel Speed.2. Ensure the hose is floating and the hose floats are positioned properly. Position the first float (k) up against the feed hose connector (j) and then space hose floats 1-3 ft (30-90 cm) apart.3. Check for debris in the filter canister and clean, if necessary.4. Adjust the thrust jet. Refer to Section 8 Fine Tuning.5. For smooth surface pools (tile, fiberglass, etc.), replace both rear tires with PosiTrax® tires for more traction (available from a Polaris® dealer).
Smooth Surface Pools (tile, fiberglass, etc.)
Problem Solution
Not enough traction on smooth surface pools (tile, fiberglass, etc.).	Replace both rear tires with PosiTrax tires for more traction (available from a Polaris dealer).

Zodiac Pool Systems LLC

2882 Whiptail Loop # 100

Carlsbad, CA 92010

1.800.822.7933 | PolarisPool.com

Fluidra Group Australia Pty Ltd

PO Box 7238, Wetherill Park NSW 2164

ABN: 87 002 641 965

1300 763 021 | PolarisPool.com.au

Fluidra NZ Ltd

13 Douglas Alexander Parade

Rosedale, Auckland 0632

NZBN: 942 903 181 70759

0800 807 665 | Fluidra.co.nz

Zodiac Pool Systems Canada, Inc.

2-3365 Mainway

Burlington, ON L7M 1A6

1.800.822.7933 | PolarisPool.ca

Zodiac Pool Care Europe

ZA de la Balme - BP 42

31450 Belberaud FRANCE

PolarisPool.eu

©2022 Zodiac Pool Systems LLC. All rights reserved. Polaris ^® and the Polaris 3-wheeled cleaner design are registered trademarks of Zodiac Pool Systems LLC. All other trademarks referenced herein are the property of their respective owners.

Line drawing of a robotic arm with visible wheels and a 'Polaris' logo on the head (no text or symbols beyond branding)

Zodiac Pool Systems LLC

2882 Whiptail Loop # 100

Carlsbad, CA 92010

1.800.822.7933 | PolarisPool.com

Zodiac Pool Systems Canada, Inc.

2-3365 Mainway

Burlington, ON L7M 1A6

1.800.822.7933 | PolarisPool.ca

Fluidra Group Australia Pty Ltd

PO Box 7238, Wetherill Park NSW 2164

ABN: 87 002 641 965

1300 763 021 | PolarisPool.com.au

Zodiac Pool Care Europe

ZA de la Balme - BP 42

31450 Belberaud FRANCE

PolarisPool.eu

Fluidra NZ Ltd

13 Douglas Alexander Parade

Rosedale, Auckland 0632

NZBN: 942 903 181 70759

0800 807 665 | Fluidra.co.nz

2 Installer le raccord mural universel

Diagram illustrating three-step assembly steps of a mechanical connector, labeled with numbered components and directional arrows.

Technical diagram showing mechanical assembly with labeled parts (i, j, 1, c, k) and a close-up of a device component.

6

Technical illustration of a mechanical connector or fitting with labeled part 'd' (no text or symbols beyond label)

Diagram showing a pipe fitting with a magnified inset highlighting the connector and component, labeled with number ①.

Technical diagram of a mechanical component with threaded end and circular feature, no visible text or symbols

Diagram showing a hand operating a robotic device with numbered instructions and directional arrows indicating action steps.

Illustration of hands assembling a mechanical component with an arrow indicating direction (no text or symbols)

Diagram of a car engine component with a hose and spray nozzle, no text or symbols present

Diagram illustrating the process of a cable or hose assembly with labeled components and directional arrows indicating flow.

Stockage/hivernage

Zodiac Pool Systems LLC

2882 Whiptail Loop # 100

Carlsbad, CA 92010

1.800.822.7933 | PolarisPool.com

Fluidra Group Australia Pty Ltd

PO Box 7238, Wetherill Park NSW 2164

ABN: 87 002 641 965

1300 763 021 | PolarisPool.com.au

Fluidra NZ Ltd

13 Douglas Alexander Parade

Rosedale, Auckland 0632

NZBN: 942 903 181 70759

0800 807 665 | Fluidra.co.nz

Zodiac Pool Systems Canada, Inc.

2-3365 Mainway

Burlington, ON L7M 1A6

1.800.822.7933 | PolarisPool.ca

Zodiac Pool Care Europe

ZA de la Balme - BP 42

31450 Belberaud FRANCE

PolarisPool.eu

©2022 Zodiac Pool Systems LLC. All rights reserved. Polaris ^® and the Polaris 3-wheeled cleaner design are registered trademarks of Zodiac Pool Systems LLC. All other trademarks referenced herein are the property of their respective owners.

Line drawing of a robotic arm with visible wheels and a 'Polaris' logo on the head (no text or symbols beyond branding)

Zodiac Pool Systems LLC

2882 Whiptail Loop # 100

Carlsbad, CA 92010

1.800.822.7933 | PolarisPool.com

Zodiac Pool Systems Canada, Inc.

2-3365 Mainway

Burlington, ON L7M 1A6

1.800.822.7933 | PolarisPool.ca

Fluidra Group Australia Pty Ltd

PO Box 7238, Wetherill Park NSW 2164

ABN: 87 002 641 965

1300 763 021 | PolarisPool.com.au

Zodiac Pool Care Europe

ZA de la Balme - BP 42

31450 Belberaud FRANCE

PolarisPool.eu

Fluidra NZ Ltd

13 Douglas Alexander Parade

Rosedale, Auckland 0632

NZBN: 942 903 181 70759

0800 807 665 | Fluidra.co.nz

Diagram illustrating three-step installation of a mechanical connector, showing pipe connection and cable termination steps.

Technical diagram showing a mechanical assembly with labeled parts (i, j, k, c) and a close-up of a device component.

6

Technical illustration of a mechanical connector or pipe assembly (no text or symbols visible)

Diagram showing a pipe fitting with a magnified inset highlighting the component's direction and angle.

Technical diagram of a mechanical component with threaded end and circular feature, no visible text or symbols

Diagram illustrating the process of a cable or hose assembly with labeled components and directional arrows indicating flow.

Zodiac Pool Systems LLC

2882 Whiptail Loop # 100

Carlsbad, CA 92010

1.800.822.7933 | PolarisPool.com

Fluidra Group Australia Pty Ltd

PO Box 7238, Wetherill Park NSW 2164

ABN: 87 002 641 965

1300 763 021 | PolarisPool.com.au

Fluidra NZ Ltd

13 Douglas Alexander Parade

Rosedale, Auckland 0632

NZBN: 942 903 181 70759

0800 807 665 | Fluidra.co.nz

Zodiac Pool Systems Canada, Inc.

2-3365 Mainway

Burlington, ON L7M 1A6

1.800.822.7933 | PolarisPool.ca

Zodiac Pool Care Europe

ZA de la Balme - BP 42

31450 Belberaud FRANCE

PolarisPool.eu

©2022 Zodiac Pool Systems LLC. All rights reserved. Polaris ^® and the Polaris 3-wheeled cleaner design are registered trademarks of Zodiac Pool Systems LLC. All other trademarks referenced herein are the property of their respective owners.
