| Product type | Refrigerator-freezer |
| Brand | NEVIR |
| Model | NVR5500SDC |
| Dimensions (W x D x H) | 48 x 45 x 83.1 cm |
| Net weight | 19 kg |
| Power supply | 220-240 V ~ 50 Hz |
| Protection class | I (grounded) |
| Rated current | 0.7 A |
| Refrigerant | R600a (isobutane) / 21 g |
| Insulation gas | Cyclopentane |
| Energy class | F |
| Annual consumption | 107 kWh/year |
| Total capacity | 91 L |
| Defrosting | Manual |
| Climate class | N/ST (16°C to 38°C) |
| Noise level | 41 dB(A) |
| Interior lighting | Bulb 10 W (class G) |
| Freezer | Yes, top compartment |
| Temperature adjustment | Thermostat knob positions 0 to 5 |
| Adjustable feet (front) | Yes |
| Door reversal | Possible (instructions provided) |
| Recyclable materials | Yes |
Frequently Asked Questions - NVR5500SDC NEVIR
User questions about NVR5500SDC NEVIR
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Fridge in PDF format for free! Find your manual NVR5500SDC - NEVIR and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. NVR5500SDC by NEVIR.
USER MANUAL NVR5500SDC NEVIR


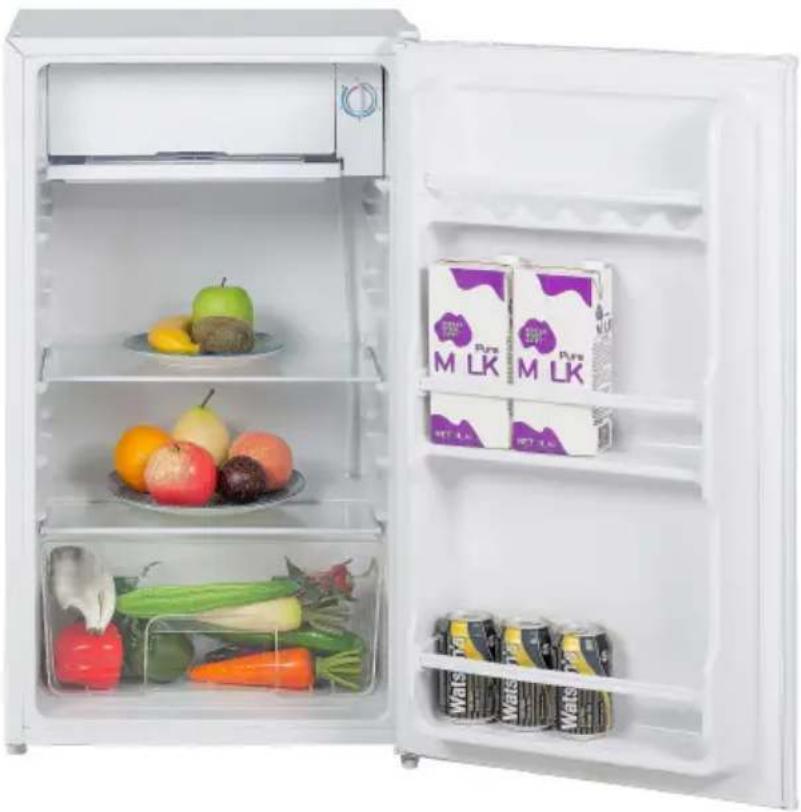

White refrigerator with open door showing shelves of fresh fruits and beverage cans (no visible text or symbols)
This appliance is intended to be used in household and similar applications such as staff kitchen areas in shop, offices and other working environments; farm houses and by guests in hotels, motels and other residential environments; bed and breakfast type environments; catering and similar non-retail applications.
If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance. The appliance has to be unplugged after use and before carrying out user maintenance on the appliance.
Warning: Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of obstruction.
Warning: Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.
Warning: Do not damage the refrigerator circuit.
Warning: Do not use electrical appliances inside the food storage compartments of the appliance, unless they are of the type recommended by the manufacturer.
Warning: Please dispose the refrigerator according to local regulations because it uses flammable blowing gas and refrigerator.
Warning: When positioning the appliance, ensure the supply cord is not trapped or damaged.
Warning: Do not locate multiple portable socket-outlets or portable power supplies at the rear of the appliance.
Do not use extension cord or ungrounded (two prong) adapters.
Danger: Risk of child entrapment. Before you throw away your old refrigerator or freezer:
- Take off the doors.
- Leave the shelves in place so that children may not easily climb inside.
The refrigerator must be disconnected from the source of electrical supply before attempting the installation of accessory.
Refrigerant and cyclopentane foaming material used for refrigerator are flammable. Therefore, when the refrigerator is scrapped, it shall be kept away from any fire source and be recovered by a special recovering company with corresponding qualification other than be disposed by combustion, so as to prevent damage to the environment or any other harm.
This appliance can be used by children aged from 8 years and above and people with impaired physical, sensory or mental abilities or with a lack of experience and knowledge provided that they are supervised or have received instruction in the safe use of this device, and about the resulting hazards. Cleaning and user maintenance shall not be made by children without supervision. Children aged from 3 to 8 years are allowed to load and unload appliance.
Children should be supervised to ensure that they do not play with the appliance. Children below the age of 3 must be kept away from the appliance unless they are under continuous adult supervision.
To avoid contamination of food, please respect the following instructions:
- Opening the door for long periods can cause a significant increase of the temperature in the compartments of the appliance.
- Clean regularly surfaces that can come in contact with food and accessible drainage systems.
- Store raw meat and fish in suitable containers in the refrigerator, so that it is not in contact with or drip onto other food.
- Two -**- star frozen-food compartments are suitable for storing pre-frozen food, storing or making ice cream and making ice cubes.
- One - *, two - **- and three-star - ***- compartments are not suitable for the freezing of fresh food.
- If the refrigerating appliance is left empty for long periods, switch off, defrost, clean, dry, and leave the door open to prevent mould developing within the appliance.
English
Dear costumer
Thank you for having chosen a NEVIR product.
The NEVIR products have been produced to think about the welfare of the consumer privileging the most raised standards of quality, functionality and assign. We are sure you will be happy with this appliance.
Your new appliance is designed exclusively for domestic use.
To ensure best use of your appliance, carefully read the instructions handbook which contains a description of the appliance and advice on storing and preserving food.
Keep this handbook for future reference and pass them on to whoever might acquire the appliance at a future date.
Before using the appliance
- After unpacking, make sure that the appliance is undamaged, and that the door closes properly. Any damage must be reported to your dealer within 24 hours after delivery of the appliance.
- Wait at least two hours before switching the appliance on in order to ensure the refrigerant circuit is fully efficient.
- Installation of the appliance and electrical connections must be carried out by a qualified electrician, in accordance with the manufacturer's instructions and local safety regulations
- Clean the inside of the appliance before using it.
Special Instructions
If this appliance is to replace an old refrigerator with a lock, break or remove the lock as safety measure before storing it, to protect children while playing might lock them inside.
Old refrigerators and freezers contain insulation gases and refrigerant, which must be disposed of properly. Please ensure that the refrigeration tubing is not damaged.
Warning: This refrigerator contains isobutane (R600a); this refrigerant gas is CFC-free but combustible. When transporting, installing, cleaning and repairing the refrigerator, take care not to damage any parts of the refrigeration circuit to prevent the risk of gas leaks. In case of damage, do not
use naked lights and ventilate the room containing the appliance appropriately.
Safety Precautions
The manufacturer declines all responsibility in case of failure to comply with the following precautions:
- Never put a damaged appliance into operation, if in doubt, contact your dealer.
- The appliance must be installed and connected to the electrical mains in full compliance with the instructions provided in the handbook. The electrical connection conditions must be as specified on the nameplate. The appliance's electrical safety is only guaranteed if the household electrical system is earthed in accordance with the relevant regulations.
- Make sure that all repairs and servicing are only carried out by a qualified technician. Always disconnect the appliance from the electrical mains in case of breakdown and maintenance, when changing light-bulbs or during cleaning. Never defrost using electrical devices or steam cleaners. Never remove frost or ice with sharp items, as this may cause irreparable damage to the walls of the refrigerator.
- Never attempt to move the refrigerator by pulling on the door or the handle.
- High-alcohol drinks must only be stored sealed and vertical. Never store liquids in cans or glass containers in the freezer compartment, especially if they contain added carbon dioxide. Never store products containing gases, flammable propellants or explosive substances in the freezer. There is always explosion hazard!
- The use of electrical appliances (such as ice-cream makers or whisks) inside the appliance is forbidden.
- To ensure the refrigerator operates correctly, never obstruct or cover the air ducts in any way.
- Never touch frozen products taken straight from the freezer or put them in your mouth. There is burn hazard due to the very low temperatures.
- Never eat or drink foods which look or smell strange.
- This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children unless they are older 8 years and supervised.
• Children must be supervised to ensure that they do not play with the appliance. - In case of electricity blackout, open the door(s) as little as possible. Once partly or completely thawed, frozen foods must not be re-frozen.
Intended use
This appliance is a compressor refrigerator, designed for the short-term storage of food in the main cabinet and long-term storage of food in the freezer compartment.
This appliance is intended for domestic or similar applications, such as in:
– shops, offices and other similar working environments,
- agricultural areas,
– hotels, motels etc. and similar establishments,
– bed and breakfast type environments.
This appliance is not intended for commercial use, nor for use in the catering business or similar wholesale environments.
Warming: The manufacturer declines all responsibility for injury or damage caused by failure to comply with the above regulations or deriving from tampering with even just one part of the appliance and the use of non-original spare parts.
Installation and connection
Choosing the site
- Always place the refrigerator in a dry place with satisfactory ventilation. Never expose it to direct sunlight or install it outdoors. Depending on its climate class (stated on the nameplate inside the refrigerator compartment), the appliance can be used in different temperature conditions:
| Class | Ambient temperature |
| SN (Subnormal) | from +10°C to +32°C |
| N (Normal) | from + 16°C to + 32°C |
| ST (Subtropical) | from + 16°C to + 38°C |
| T (Tropical) | from + 16°C to + 43°C |
- Never place the refrigerator close to heat sources. If this is unavoidable, a suitable insulating panel must be used to allow the appliance to function properly. Otherwise, place the appliance at least 3 cm from electric or gas cookers and at least 30 cm from combustion or radiation heating systems.
- To allow proper cooling of the condenser, the refrigerator must not be placed too close to the wall. If the refrigerator is installed underneath a wall cupboard, the distance between the two must be at least 5 cm.
- Take care not to scratch or damage the floor when installing the appliance on parquet or linoleum. If necessary, when positioning slide the refrigerator over pieces of wood or a mat to the point decided for connection to the electrical mains.
Positioning and levelling the appliance
Place the refrigerator on a stable and level floor. In case the floor is not perfectly level, use the two adjustable feet on the front part of the fridge. To ensure major stability, easier movement and a correct positioning of the product, two additional wheels are present at the rear. In any case we recommend moving the fridge very carefully in order to avoid floor damage (especially in case of wooden floor).
Electrical connection
Before switching the refrigerator on for the first time, leave it vertical for at least two hours. Then connect the appliance's power supply lead to a mains socket with earth contact, installed in accordance with electrical safety regulations. The rated voltage and frequency are stated on the nameplate. The appliance must be connected to the electrical mains and earthed in compliance with the relevant regulations and requirements. The appliance is able to withstand short fluctuations in voltage of no more than 15% less or 10% more than the rated voltage
stated on the nameplate. If the power supply lead has to be replaced, this operation must only be carried out by a qualified technician. The socket must be accessible after the appliance has been placed.

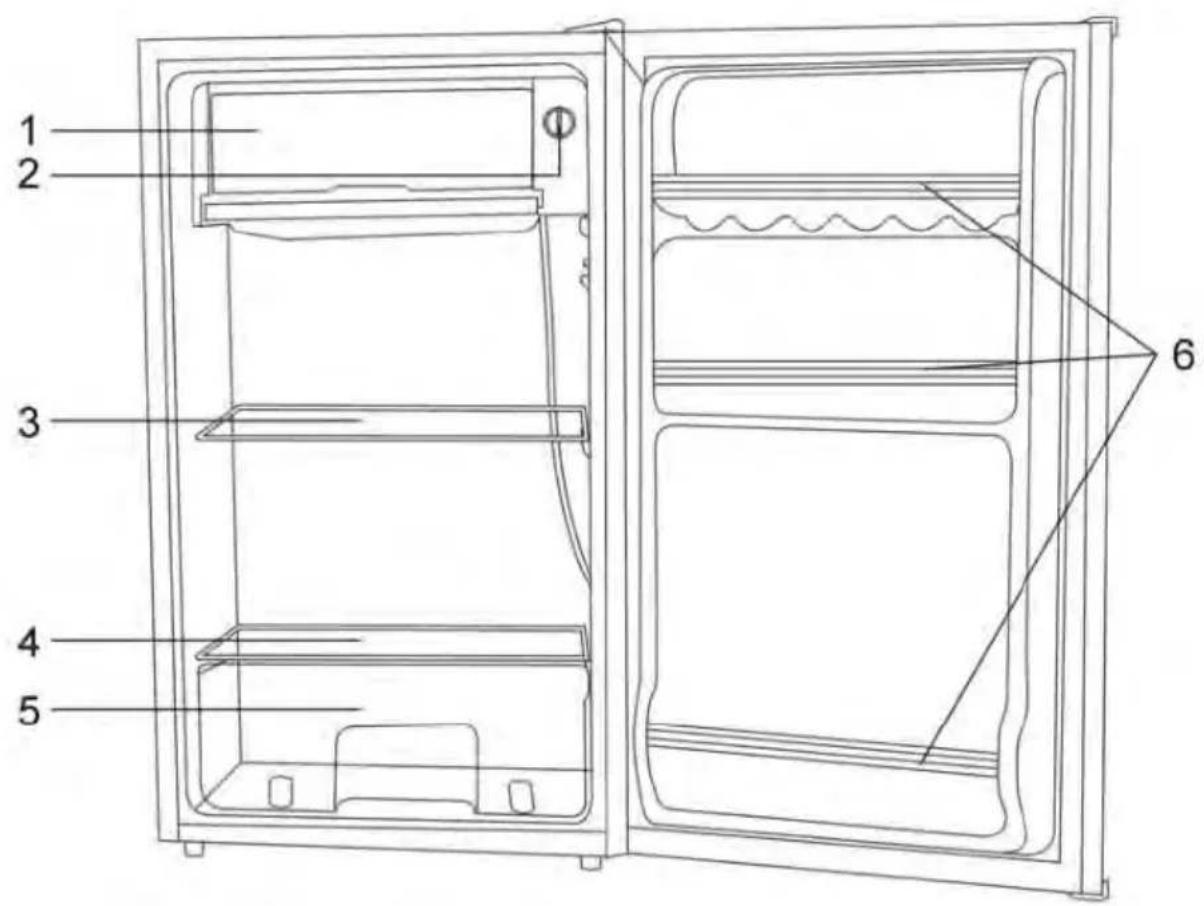

Product Description
| 1. Freezer Compartment | 2. Thermostat Knob |
| 3. Glass shelf | 4. Half-width shelf |
| 5. Crisper (Vegetable box) | 6. Rack shelves |
There is a freezer compartment in the upper section of the unit that can be closed by a door. The main storage area is under the freezer compartment.
Before using for the first time
- Remove any exterior and interior packaging materials completely, including the adhesive strips.
- Before it is connected to the mains, the unit must be thoroughly checked for transport damage, including its power cord.
– Clean the unit as described in the section Maintenance and Cleaning. - To ensure proper functioning, wait for around 2 hours before connecting the unit and switching it on once it has been positioned.
- When the unit is first switched on, a slight smell may be noticed. However, this will disappear once the cooling process has begun.
Arranging foods inside the refrigerator compartment
- Arrange the foods on the various shelves, taking care that they have an airtight wrapping or cover. This precaution will:
- conserve foods' fragrance, moisture and freshness;
- prevent the cross-contamination of foods with different aromas and tastes;
- prevent the humidity level inside the refrigerator becoming too high because of the normal breathing of food (especially fresh fruit and vegetables). In some operating conditions (rise in ambient temperature and humidity, more frequent opening of the door) this might cause condensation to form on the shelves.
- Use only containers approved for food storage. Always allow hot foods and drinks to cool to room temperature before placing them inside the refrigerator.
- Never store explosive substances in the appliance and only store high-alcohol drinks firmly sealed and vertical.

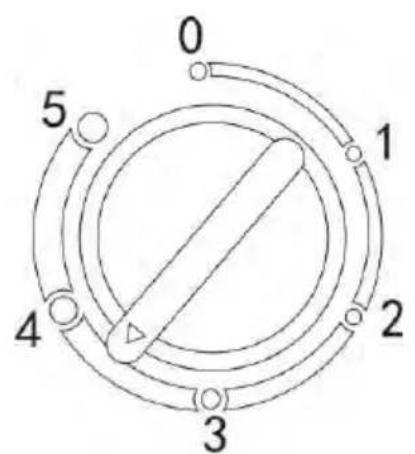

Setting the operating temperature
Your unit has only one control for regulating the temperature in the compartment. The temperature control is located on the upper right-hand side of the compartment. The first time you turn the unit on, set the temperature control to "5".
The range of the temperature control is from position "0" to "5". After 24 to 48 hours, adjust the temperature control to the setting that best suits your needs. The setting of "3" should be appropriate for home or office use.
NOTES: Turning the temperature control to "0" position stops the cooling cycle but does not shut off the power to the unit. If the unit is unplugged, has lost power, or is turned off, you must wait 3 to 5 minutes before restarting the unit. If you attempt to restart before this time delay, the unit will not start.
If the refrigerator is not used for a long period of time, proceed as follows:
- Disconnect the refrigerator from the main supply by removing the plug from the wall socket.
- Clean and dry the inside as instructed under the heading of "Maintenance and Cleaning".
- Leave the door open to prevent any unpleasant smells from building up while the refrigerator is not in use.
Important: Changes in weather conditions (temperature and humidity) and the frequency with which the doors of the two separate compartments are opened may affect the refrigerator's operating temperatures.
Maintenance and Cleaning
Defrosting
- When the refrigerator working for a period of time, the inner surface of the refrigerator will be covered with a layer of white frost. It may raise the electricity consumption and lessen the effect of refrigeration. Then you should remove the frost at once.
- When defrosting, turn the knob to "0" position cut off the power, open the door and move frozen/cooling foods to a shady and cooling place, defrost with a plastic scraper, or let the temperature rise naturally till frost melts. Then wipe away remaining ice and water, and switch on electricity again.
Notes: Never use sharp metal tools or it will damage the refrigerator.
Warning: the amount of ice which forms on the back wall may vary with changes in weather conditions (temperature and humidity), the frequency with which the door is opened, the appliance's operating temperatures and the amount of fresh foods stored inside (especially fruit and vegetables).
Cleaning the refrigerator
Clean the device regularly. To do this, please take into account the following guidelines.
- Do not clean the appliance while it is plugged into an outlet.
- Do not use abrasive products to clean the device, it may damage it.
- Use a mild detergent to clean the refrigerator compartments and shelves. Be sure to completely dry all surfaces after cleaning.
• Empty the appliance and clean the inside with a damp cloth. - The accumulation of dust on the back of the device can prevent it from working optimally and increase its energy consumption. Once a year, carefully remove the dust from the back of the device with a soft brush.
Replacing the refrigerator light bulb
Before changing the bulb, make sure that the light has not stopped working simply because the part inside the lamp socket has become loose. In all cases, whether you wish to check that the socket is connected correctly or change the bulb, for safety reasons the plug must be removed from the power socket.
- First, unplug the power cord; remove the control panel.
- Remove the old bulb by unscrewing it by hand in a counter clockwise direction.
- Insert a new bulb (10W) by turning it manually clockwise, refit the cover and switch the appliance back on.
Important Rules
- Never place hot food in the refrigerator.
- Drinks should be stored in closed containers.
• Food to be stored longer in the refrigerator should be covered or stored in glass containers. - Never put spoiled food in the refrigerator.
- Make sure that the refrigerator is never overloaded so that the food can be sufficiently refreshed.
- Open the refrigerator door only when necessary.
- It is not intended for outdoor use (e.g., tent) while camping.
• It can only be used indoors.
Troubleshooting Guide
In case of malfunction, you can solve many common problems easily.
Your Refrigerator will not operate, check if:
- The power supply cord is unplugged.
- The thermostat knob is set to OFF position.
The light doesn't work, check if:
- The power supply cord is unplugged.
- A household fuse or circuit breaker has tripped.
- A light bulb is loose in the socket.
- A light bulb has burned out.
Food in the refrigerator compartment freezing, check if:
- The thermostat knob is set too cold
- The position of food stored touches the refrigerator back wall.
Food in the refrigerator compartment is not cold, check if:
- The door is opened too often or not closed properly.
- A large amount of food has just been added to the refrigerator or refrigerator compartment.
- The position of the thermostat knob is adjusted too low.
Melted frost leak inside compartment or on floor, check if:
- The drain pipe is blocked.
- Water tray is in the correct place.
The refrigerator seems to make unusual noise, check if:
- The refrigerator is levelled on the floor.
- The cabinet of the refrigerator touches the wall.
- The water tray is in the correct place.
There is interior moisture build -up, check if:
- The air vents are blocked in the refrigerator.
- The door is opened too often.
- The room is humid.
- The food is not packaged correctly.
- The control is not set correctly according to the surrounding conditions.
The doors will not close completely, check if:
- The shelves are out of position.
- The gaskets are dirty.
- The fridge is not level.

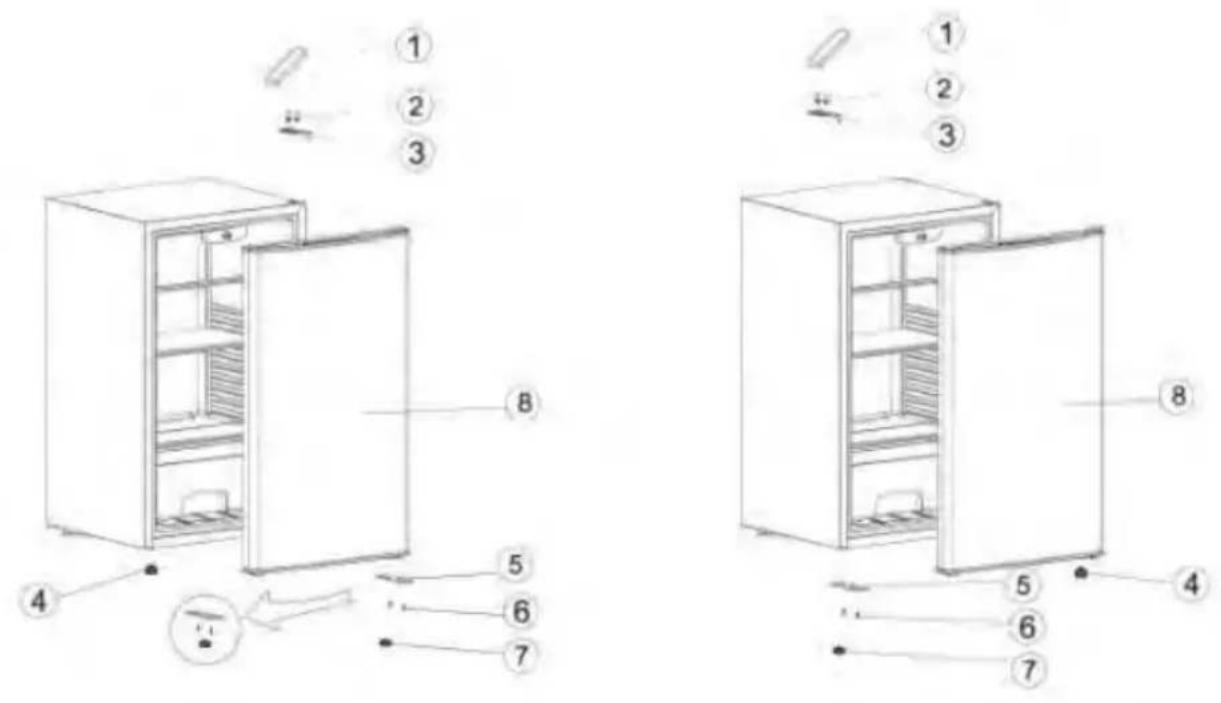

Door Reverse
This refrigerator has been built with the door hinges on the right or on the left dependent of the model. If you want to change the opening direction, please follow the instruction below.
WARNING: When reversing the door, the appliance must not be connected to the mains. Remove the plug from the mains beforehand.
- Remove the protective cap (1) from the hinge.
- Remove the screws (2) from the upper hinge. Remove the hinge (3).
- Remove the door protective small cap at the top, and place it in the hole at the opposite side. Remove the door (8) and place it on a surface that will not scratch it.
- Lie down the unit on the floor for support and remove the adjustable feet (4 & 7).
- Unscrew the screws (6) of the bottom hinge (5) and fix it on the opposite side of the appliance. Replace the adjustable feet (4 & 7).
- Reposition the unit on it original position and hang the door on the appliance.
- Finally, screw the upper hinge back in place. Make sure the rubber gasket seals tightly. Position the door so that it lines up above the appliance. Tighten all screws and place the protective cap (1).
Technical data
| Reference | NVR-5500SDC |
| Supply Voltage / Protection class | 220-240 V~ 50Hz / I |
| Rated current | 0.7A |
| Maximum lamp power (*) | 10W |
| Refrigerant/Amount | R600a / 21g |
| Insulation blowing gas | Cyclopentane ( C_5H_10 ) |
| Energy Class (1) | F |
| Energy consumption of E16 (2) | 0.150kWh/24h |
| Energy consumption of E32 (2) | 0.436kWh/24h |
| Annual Energy consumption (2) | 107kWh/annum |
| Total storage capacity | 91L |
| Defrost type | Manual |
| Climate Class (Ambient range) | N/ST (+16°C a +38°C) |
| Noise [dB (A) re 1pW] | 41 dB(A) |
| Net weight / Gross weight | 19kg/21kg |
| Dimensions (W x D x H) | 480mm x 450mm x 831mm |
| (1) Energy class: A......G (A= more economical...G=less economical) | |
| (2) The real energy consumption depends on conditions and appliance location. | |
(*) This product contains a light source of energy efficiency class G.
Declaration of Conformity
This appliance is intended for storing food and is manufactured in conformity with European Directives and European regulation (EC) 1935/2004.
This product has been designed, manufactured and marked in compliance with:
- the safety objectives of Low voltage Directive 2014/35/EU;
- the protection requirements of EMC Directive 2014/30/EU;
- Plastic materials and articles intended to come into contact with food – Commission Regulation (EU) 10/2011;
- Commission Delegated Regulation (EU) 2019/2016 & Commission Regulation (EU) 2019/2019.
The electrical safety of the appliance is guaranteed only if it is connected to an efficient and approved earthing system.
Disposal – Environment policy
Packing
The packaging material is entirely recyclable and marked with the recycling symbol. Follow local regulations for scrapping. Keep the packaging materials (plastic bags, polystyrene parts, etc.) out of reach of children, as they are potentially dangerous.
Disposal
The appliance is manufactured using recyclable material.
This appliance is marked according to the European directive 2012/19/UE on Waste Electrical and Electronic Equipment (WEEE).
By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product.
This symbol on the product, or on the documents accompanying the product, indicates that this appliance may not be treated as household waste. Instead, it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment.
Before disposal, make the appliance unusable by cutting off the power cable and removing the doors and shelves so that children cannot easily climb inside the appliance.
Disposal must be carried out in accordance with local environmental regulations for waste disposal. Deliver the appliance immediately to an authorized dump; do not leave it unattended even for a few days, since it is potentially dangerous for children.
For more detailed information about treatment, recovery and recycling of this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product.
Warranty Declaration
Warranty Terms and Conditions
- The product is guaranteed for the period stipulated by the legislation where it is placed on the market, starting from the date of purchase, against manufacturing defects and/or workmanship. The lack of conformity manifested in this period is presumed to exist at the date of purchase. After this period, it is for the customer to prove that the lack of conformity already existed at the time of delivery.
- If, during the warranty period, the product is defective in normal use, the buyer should contact the selling establishment and send the appliance to the place indicated by the seller.
-
The warranty is only valid upon presentation of the invoice proving the purchase and the completed warranty certificate (indicating the date of purchase, the name of the dealer, the reference of the model, and it is also recommended to indicate the serial number and lot number).
-
The importer/seller reserves the right to refuse warranty assistance in the event that such information has been deleted or altered after the original purchase of the product.
-
The responsibility of the importer/seller includes in particular the costs of repairing and/or replacing the unit covered by the warranty with the reservation of the right to replace it with an equivalent product, in cases where it is not possible to repair it.
-
The warranty does not apply to problems that are not directly related to defects in material, design or workmanship.
-
This product is an appliance and is intended for home use only. The warranty will be void if the product is used for professional purposes.
-
The warranty does not cover damage caused by misuse, improper installation, spillage, external factors, or intentional damage.
-
The warranty does not cover damage resulting from falls, use of excessive force, blows, exposure to extreme environmental conditions or deterioration caused by the normal use of plastic parts or keyboards, as well as the use of batteries other than those specified in this manual.
-
The warranty does not cover installation and programming by the dealer. In particular, no claim for installation and free programming by the reseller may be accepted.
-
The warranty does not cover deficiencies that insignificantly impair the operation of the appliance. Other costs, such as installation, transportation and travel of the technician are expressly excluded from the warranty.
-
The applicability of the warranty presupposes that the appliance is sent to the seller or place indicated by him, complete and in well-protected packaging (if possible, in its original packaging) and accompanied by its sheet or warranty card duly filled out and proof of purchase.
-
If after verification, it is found that there are no reasons for the claim, or that the product is not defective, the inherent costs will be imputed to the customer, and the dealer is authorized to charge those costs to the customer.
-
The warranty will be void when it shows signs that an unauthorized person has attempted to carry out repairs, modifications or replacement of parts on the appliance.
-
Repairs carried out after the end of the warranty period are subject to costs.
-
This warranty does not affect your legal rights that you may have as a consumer under applicable national law governing the purchase of products where the product is sold.
17. Warranty Period:
European Union countries - European Directives (EU) 2019/771 and (EU) 2019/770 apply on certain aspects of contracts for the purchase and sale of movable property and transposed into the national laws of their countries.
Other countries - national legislation on consumer rights in their country applies. In the case of no official legislation, the guarantee shall be applied at the discretion of the importer placing the product on the market or the seller establishment.
