Product Type	Freestanding Refrigerator
Total Capacity	100 L (approx.)
Dimensions (H x W x D)	84.5 x 54.5 x 54.5 cm (approx.)
Net Weight	25 kg (approx.)
Energy Class	E (on scale A to G)
Annual Energy Consumption	120 kWh (approx.)
Climate Class	N-ST (16°C - 38°C)
Noise Level	40 dB (A)
Voltage / Frequency	220-240 V ~ 50 Hz
Power Input	100 W (approx.)
Defrost Type	Manual (fridge) / Automatic (freezer compartment)
Temperature Range (Fridge)	+2°C to +8°C
Freezer Compartment	Small freezer shelf (3-star rating)
Door Reversibility	Yes (door hinge can be changed)
Adjustable Thermostat	Rotary knob
Interior Light	Incandescent (max 10W)
Shelves Material	Glass (tampered)
Refrigerant	R600a (Isobutane) – flammable
Cleaning	Wipe with soft damp cloth; do not use abrasive cleaners
Leveling Feet	2 adjustable front feet
Spare Parts Availability	Through authorized service centers

Frequently Asked Questions - NVR-5530CVSD NEVIR

How do I reverse the door opening direction?

The door hinge can be moved to the opposite side. Unscrew the hinges, swap the door handles and hinges, then reassemble. Refer to the installation manual for step-by-step instructions.

What should I do if the fridge is not cooling enough?

Check if the temperature dial is set correctly (recommended: medium). Ensure the door is sealing properly and there is enough ventilation around the appliance. Also, avoid overloading and keep the condenser coils clean.

How often should I defrost the freezer compartment?

Defrost when the frost layer reaches 5-7 mm. Manually turn off the appliance, remove food, and let the ice melt naturally. Never use sharp tools to remove ice.

Why is my fridge making unusual noises?

Noises like clicking, humming, or gurgling are normal due to refrigerant circulation or compressor cycles. If you hear loud banging or rattling, check if the appliance is level and the tubing is not touching the cabinet.

Can I store hot food in the fridge?

No, always allow hot food to cool to room temperature before placing it inside. Hot food raises the internal temperature, making the compressor work harder and potentially spoiling other food.

What is the proper way to clean the interior?

Unplug the appliance. Remove all food and shelves. Wipe interior with a mild solution of baking soda and warm water (1 tbsp per liter). Rinse and dry thoroughly before restocking.

My fridge has an ice build-up inside. What's wrong?

Excessive ice can be caused by a faulty door seal, leaving the door open too long, or setting the temperature too low. Check the gasket for tears and ensure the door closes firmly.

How can I save energy with this refrigerator?

Place the fridge away from heat sources (oven, direct sunlight). Keep the condenser coils dust-free. Ensure the door seals are tight. Set the thermostat to medium. Do not keep the door open longer than necessary.

What safety precautions should I take?

The refrigerant R600a is flammable. Do not damage the cooling circuit. Do not use electrical appliances inside the refrigerator. Ensure proper ventilation and do not block the ventilation grilles.

Where can I find spare parts for my NVR-5530CVSD?

Contact Nevir customer service or visit their website. Genuine parts such as shelves, door bins, and thermostats are available through authorized service centers.

USER MANUAL NVR-5530CVSD NEVIR

Simple line drawing of a rectangular container with a handle and four corner supports (no text or symbols)

Labeled diagram of an refrigerator interior showing numbered components for identification

Labeled diagram of an open refrigerator with numbered parts for identification

5.-Bisagra Inferior
6.-Tornillos Bisagra Inferior
7.-Pie Ajustable
8.-Puerta

Simple line drawing of a rectangular container with a handle and two side supports (no text or symbols)

THIS PRODUCT IS FOR HOUSEHOLD USE ONLY! Please read these instructions carefully before the first use of this product and save this manual for your future reference.

TABLE OF CONTENT

Important safety instructions --

Structure illustration --

Transport and handing--

Installation --

Test --

Temperature control --

Storage of food --

Defrosting --

General instructions for care and maintenance –

Door reverse--

Troubleshooting --

Technical specifications --

THIS PRODUCT IS FOR HOUSEHOLD USE ONLY! Please read these instructions carefully before the first use of this product and save this manual for your future reference.

IMPORTANT SAFETY INSTRUCTIONS

When using an electrical appliance, basic precautions should always be followed, including the following:

1 Check that the voltage of the power supply in your home is the same as the voltage shown on the rating label of this product.
2 This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.
3 WARNING: Keep ventilation opening, in the appliance enclosure or in the built-in structure, clear of obstruction.
4 WARNING: Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.
5 WARNING: Do not use electrical appliances inside

the food storage compartments of the appliance, unless they are of the type recommended by the manufacturer.

6 WARNING: Do not damage the refrigerant circuit.
7 If the supply cord is damaged, it must be replaced by the manufacturer or its service agent or a similarly qualified person in order to avoid a hazard.
8 It is recommended to check regularly the supply cord for any sign of possible deterioration, and the appliance should not be used if the cable is damaged.

9 To avoid injury or death from electrical shock, do not operate the appliance with wet hands, while standing on a wet surface.

10 It is not recommended to use this refrigerator with an extension cord or power board. Please ensure that the appliance is plugged directly into the electrical outlet.

11 When positioning the appliance, ensure that there is at least a 5cm clearance at the sides and a 10cm clearance at the back as this is the main outlet for heat. This will allow for adequate ventilation.

12 Do not place hot food or drink into the refrigerator before it cools down to room temperature.

13 Close the door immediately after putting in any items so the inside temperature will not rise dramatically.

14 Keep appliance away from any heat source or direct sunlight.

15 To fix stably, the appliance must be placed on a

flat and solid surface. It should not be laid on any soft material.

16 Do not place any other appliance on top of the refrigerator, and do not wet it.
17 Do not store something like ether, methanol, gasoline etc., which is easy to evaporate burn or explode.
18 Do not use outdoors or in wet conditions.
19 Never pull the cord to disconnect it from the outlet. Grasp the plug and pull it from the outlet.
20 Keep the cord away from heated surfaces.
21 This appliance has been incorporated with a grounded plug. Please ensure the wall outlet in your house is well earthed.
22 Connect your refrigerator to an independent electrical socket and use a safe ground wire.
23 When the frost in freezer is removed, or when there is no electricity or when refrigerator ceases to be used, it should be cleaned in order to prevent it from smelling.
24 Defrost the freezer at least once a month because too much frost may affect refrigeration.
25 Turn on electricity only 5 minutes later after electricity goes off. Otherwise, the compressor may be damaged.
26 The appliance is not intended to be operated by means of an external timer or a separate remote-control system.
27 Ensure the refrigerator is unplugged before cleaning or if the product is not in use.

28 To clean the appliance use only mild detergents or glass cleaning products. Never use harsh detergents or solvents.

29 Warming: Risk of fire / flammable materials
30 WARNING: When positioning the appliance, ensure the supply cord is not trapped or damaged.
31 WARNING: Do not locate multiple portable socket-outlets or portable power supplies at the rear of the appliance.
32 Children aged from 3 to 8 years are allowed to load and unload refrigerating appliances.
33 To avoid contamination of food, please respect the following instructions:

-Opening the door for long periods can cause a significant increase of the temperature in the compartments of the appliance.

-Clean regularly surfaces that can come in contact with food and accessible drainage systems.

-Clean water tanks if they have not been used for 48 h.

-Store raw meat and fish in suitable containers in the refrigerator, so that it is not in contact with or drip onto other food.

-Two-star frozen-food compartments are suitable for storing pre-frozen food, storing or making ice-cream and making ice cubes.

-One-, two- and three-star compartments are not

suitable for the freezing of fresh food.

-If the refrigerating appliance is left empty for long periods, switch off, defrost, clean, dry, and leave the door open to prevent mould developing within the appliance.

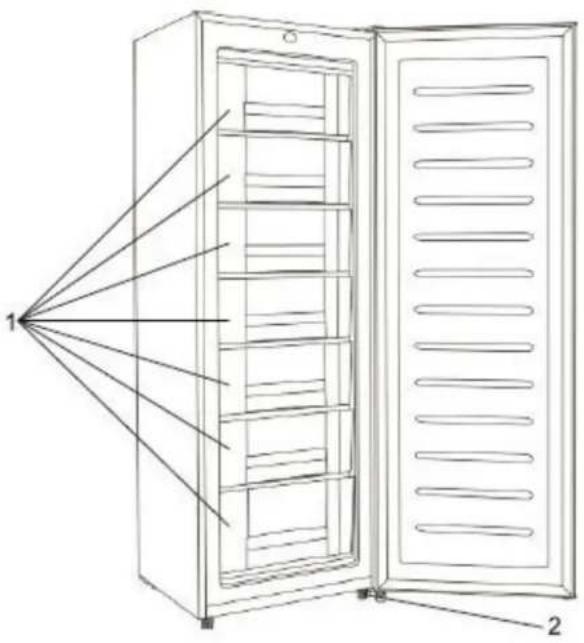

STRUCTURE ILUSTRATION

Line drawing of a refrigerator with shelves and door, showing light rays from the opening (no text or symbols)

1. Drawer

2. Adjustable feet

TRANSPORT AND HANDLING

When transportation, hold the base and lift the refrigerator carefully with an angle inferior at 45 degrees. Never hold the door handle as support. Never place it upside down nor horizontally. Push refrigerator on its basis and place it thanks to its roller feet.

INSTALLATION

To fix stably, the appliance must be placed on a flat and solid surface. It should not be laid on any soft material. Choose a well-ventilated place. A space of at least 5cm must be left at the sides and 10cm at the back of the refrigerator. Choose a location where there is no heat source. Keep the refrigerator away from direct sunlight or other appliance producing heat. Choose a dry and well-ventilated place where there is no corrosive air.

TEST

Clean the parts of the refrigerator with lukewarm water on a soft cloth or with a neutral detergent and with clear water, then wipe them dry. Notes: Electric parts of the refrigerator can only be wiped by dry cloth. Turn the thermostat knob on the "3" position and turn on electricity. The compressor begins to work. Close the door and wait 30 minutes. If the temperature in the freezer compartment decreased obviously, it shows that the refrigerator system works well. When the refrigerator operates for a period of time, the temperature controller will automatically set the temperature on conditions that the door is not too often opened. If the above steps are successful, the trial operations are finished. The refrigerator works normally.

TEMPERATURE CONTROL

1 OFF 2 3

The markings on control knob indicate the "1, 2, 3 and OFF" for the different temperature level.

"1." is the warmest setting;

"3." is the coldest setting;

For normal use, please set the control knob to "2" position.

Recommended gear: "2"

The temperature will impact the storage time of food. Too Warm or too cold will both speed up the spoilage of food.

STORAGE OF FOOD

How to Use the Freezer Compartment?

• Put fresh food, such like fish or meat, into the freeze to save their taste and nutrient.
• Wrapped food has to be frozen in aluminum sheet or cellophane sheet or in airtight plastic boxes.
• Put fresh food, such like fish or meat, into the freeze to save their taste and nutrient.

• Wrapped food has to be frozen in aluminum sheet or cellophane sheet or in airtight plastic boxes.

• Do not put fresh food directly in contact with food already frozen.

• If you buy frozen food, bring it home and place it in freezer as quickly as possible.
  ● Never re-freeze a defrosted product.

● Food has to be wrapped separately in aluminum sheet or in cellophane sheet or in airtight plastic boxes.

● Hot food cannot be put in the freezer until they have reached the ambient temperature, or it will increase electrical consumption.

● Never place vegetables and fruits into freezer compartment because they will unfit for the consumption once defrosted.

DEFROSTING

When the refrigerator working for a long time, the inner surface of the freezer will be covered with a layer of hoarfrost. It may raise the electricity consumption and decrease the effect of refrigeration. Then you should defrost your freezer once a month.

When defrosting, cut off the power, open the door and move frozen foods to a cool place. Use a plastic spatula to remove the hoarfrost. Then remove the hoarfrost so unstuck and wipe the inside of your freezer with a sweet and dry cloth.

Notes: Never use metal tools to defrost your freezer because it could damage it.

GENERAL INSTRUCTION FOR CARE AND MAINTENANCE

The refrigerator should be cleaned once a month. Before cleaning, the electric plug must be removed from the power supply.

Wipe the inside and the outside of the refrigerator with a wet soft cloth.

If it's too dirty, clean with a soft cloth with neutral detergent and, then remove the moisture with dry cloth

If you leave the refrigerator idle for a long time, proceed as follows:

• Disconnect the refrigerator from the electric power supply.
• Remove all food.
• Clean and dry the inside as instructed in the direction given above for cleaning.
• Leave the doors open to prevent any unpleasant smells while the refrigerator is not used.

Cleaning

When cleaning the refrigerator, the electric plug must be removed from the power supply. Use water or a non-abrasive detergent on a soft cloth and remove the moisture with a dry soft cloth. Remember to clear the defrost drain at the back just above the glass cover.

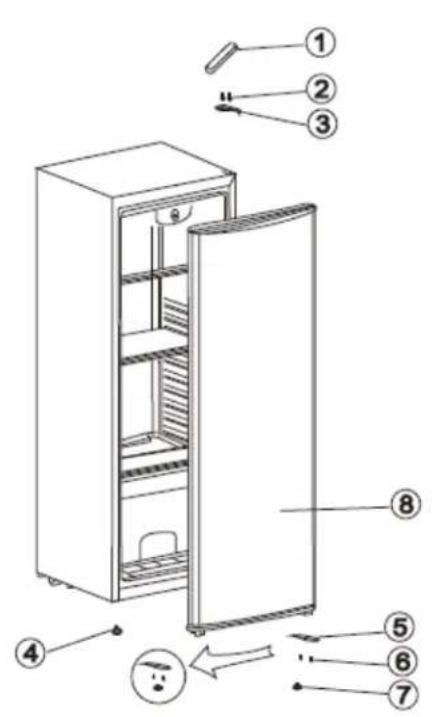

DOOR REVERSE

This refrigerator has been built with the door hinge on the right. If you want to change the opening direction, please follow the instruction below.

WARNING: When reversing the door, the appliance must be connected to the mains. Remove the plug from the mains beforehand. Users can change the direction of opening according to one's own needs.

Labeled diagram of an open refrigerator with numbered parts for identification and assembly reference.

1. Upper Hinge Cover
   2.Hinge Fixed Screws
2. Upper Hinge

3. Adjustable Foot

4. Down Door Hinge

5. Down Door Hinge Screws
6. Adjustable Foot

7. Door

8. Remove the hinge cover (1) and unscrew upper hinge screw (2). Remove upper hinge (3).

9. Lie the unit down on the floor for support.

10. Remove the door leg (4 & 7) and unscrew screws (6), remove lower hinge (5).

11. Change the position of lower hinge (5) to the opposite side of the appliance, locate and support the door onto the lower hinge (5), replace screws(6) and adjustable foot (4 & 7), align door and replace the upper hinge (3) and replace screws (2).
    • Fit the hinge cover (1).

TROUBLESHOOTING

If your device shows the other symptoms that those described above, please call the service after sale of the shop a retailer.

Symptom	Cause	Solution
The appliance does not work	There is no power supply	Check the plug connecting it others appliance, or verify that the appliance is connected to the plug
	The fuse doesn’t work	Replace the fuse
The appliance makes a lot of noise	The appliance is too close to the wall, or is not stable, or the accessories inside the refrigerator are placed in wrong position	Stabilize the base of the refrigerator by adjusting the position of feet, take away the device of the wall, place correctly the accessories inside the refrigerator
The appliance doesn’t cool enough	The door is too often opened or was left opened for a long time	Close the door and do not open it too much frequently
	The refrigerator is too close to the wall	Take away the device of the wall to favor the ventilation
	The refrigerator is too full	Remove food of the device
	The temperature is badly, adjusted	Turn the knurl of regulation of temperature on "3" or more
There are smells in the appliance	Food made obsolete inside the refrigerator	Throw away obsolete food and wrap the other
	The inside of the device at need to be cleaned	Clean the inside of the refrigerator

The following symptoms are not breakdowns:

• The noise of the cooling liquid which circulates in pipes can be heard, it is normal.
  ● The humidity on the surface outside of the device during the wet seasons is not a problem of the device; you just need to wipe it with a dry soft cloth.
• The compressor and the condenser can warm more during the periods of strong heat.
  ● The frame of the door is a bit hot; it means that the condenser works to evacuate the humidity of air.

TECHNICAL SPECIFICATIONS

Reference:	NVR- 5530CVSD
Rated voltage:	220-240V~
Rated current:	0.7 A
Rated frequency:	50Hz
Rated power:	80W
Total volume:	188L
Climate type:	N, ST
Refrigerant:	R600a(77g)
Energy consumption:	246kWh/year
Freezer capacity:	8.5kg/24h
Temperature rise:	14hour
Protection against electrical shock:	I
Net weight:	42kg
Foam:	CYCLOPENTANE
Energy Class:	F

We decline liability for any damage or accident derived from any use of this product which is not in conformity with the instructions contained in this booklet.

Symbol of a trash bin crossed with no text or numbers, representing environmental restriction (no text present)

The European Directive 2002/96 /EC on Waste Electrical and Electronic Equipment (WEEE) required that old household electrical appliances must not be disposed of in the normal unsorted municipal waste stream. Old appliances must be collected separately in order to optimize the recovery and recycling of the material they contain, and reduce the impact on human health and the environment. The crossed out “wheeled bin” symbol on the product remind you of your obligations that when you dispose of the appliance, it must be separately collected.

Besides that, waste batteries and/or accumulator must be removed prior to delivery of WEEE, thought the separated collection channels provided for this purpose (distributors and/or facilities from Local Authorities)
