Series 1 170s1 - Shaver BRAUN - Free user manual and instructions

Product type	Electric shaver
Brand	Braun
Model	Series 1 170s1
Power supply	Mains (100-240 V) via dedicated adapter
Battery life (model 190s/cb)	Approximately 30 minutes of cordless shaving
Main features	Wet and dry shaving, floating foil, retractable trimmer
Cutting system	Replaceable foil and cutter block
Cleaning	Under running water (washable)
Maintenance	Weekly oiling recommended
Safety	Use by children from 8 years under supervision; do not use with damaged foil or cord
Spare parts	Foil and cutter block (ref. 10B)
Blade replacement	Every 18 months maximum
Warranty	2 years
Dimensions (estimated)	15 x 5 x 4 cm
Weight (estimated)	200 g
Charging temperature (model 190s/cb)	5°C to 35°C
Shaving temperature	15°C to 35°C
Included accessories	Protective cap, power cord, cleaning brush, oil (depending on model)

Frequently Asked Questions - Series 1 170s1 BRAUN

How do I clean my Braun Series 1 170s1 shaver?

For effective cleaning, rinse the shaver head under hot water after each shave. You can use a little non-abrasive liquid soap. Then remove the foil and cutter block to let them dry. Never clean the foil with the brush to avoid damaging it.

Can I use my shaver in the shower?

Yes, the shaver is washable under running water. You can rinse it after shaving. However, always unplug the device before cleaning it under water to avoid any risk of electric shock.

How do I replace the foil and cutter block?

Remove the old foil by lifting it, then remove the cutter block. Insert the new cutter block and new foil (ref. 10B). Replace both parts simultaneously every 18 months maximum to maintain optimum shaving performance.

How long does the battery charge last?

For the 190s/cb model, a full charge offers up to 30 minutes of cordless shaving. The initial charging time is at least 4 hours. After several cycles, the maximum capacity is reached.

Does the shaver come with a trimmer?

Yes, the Braun Series 1 170s1 shaver is equipped with an integrated retractable trimmer. Push it forward to pre-cut long hairs or define your beard lines.

Where can I find spare parts?

Spare parts (foil and cutter block ref. 10B) are available at Braun authorized service centers or on service.braun.com. You can also contact customer service at 0 800 944 802.

What is the warranty period?

Braun offers a 2-year warranty from the date of purchase. It covers manufacturing and material defects. Normal wear (foil, blades) is not covered.

Can I shave a long beard with this shaver?

Yes, first use the retractable trimmer to pre-cut long hairs before shaving. This prevents clogging the foil and gives a smoother shave.

How do I know when to replace the blades?

Braun recommends replacing the foil and cutter block every 18 months or when shaving performance decreases. Simultaneous replacement ensures precise shaving with less irritation.

Is the shaver suitable for sensitive skin?

Yes, the floating foil automatically adapts to facial contours for a gentle shave. For sensitive skin, shave before washing your face and apply light pressure.

USER MANUAL Series 1 170s1 BRAUN

Type 5727

Type 5729

www.braun.com

190s- 1

190cb-1

170s- 1

Deutsch 6

English 10

Français 17

Español 22

Português 27

Italiano 32

Nederlands 36

Dansk 40

Norsk 44

Svenska 48

Suomi 52

Türkçe 56

Ελληνικά 60

DE / AT 00 800 27 28 64 63 00 800 BRAUNINFOLINE

CH 08 44 - 88 40 10

UK 0800 783 7010

IE 1 800 509 448

FR 0 800 944 802

BE 0 800 14 592

ES 901 11 61 84

PT 808 20 00 33

IT 800 440 017

NL 0 800-445 53 88

DK 70 15 00 13

NO 22 63 00 93

SE 020 - 21 33 21

FI 020 377 877

TR 0 800 261 63 65

Braun GmbH

Illustration showing a hand using a hairbrush to clean teeth, with no text or symbols present.

Illustration showing three-step steps of a dental procedure: foot removal, first step with toothbrush, and second step with tool (no text or symbols)

Deutsch

Our products are designed to meet the highest standards of quality, functionality and design. We hope you enjoy your new Braun Shaver.

Read these instructions completely, they contain safety information. Keep them for future reference.

Warnings

The shaver head is suitable for cleaning under running tap water. Detach the shaver from the power supply before cleaning the shaver head in water.

Your shaver is provided with a special cord set, which has an integrated Safety Extra Low Voltage power supply.

Do not exchange or tamper with any part of it, otherwise there is risk of electric shock. Only use the special cord set provided with your appliance.

Never use the appliance with a damaged foil or cord.

This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning the safe use of the appliance and understand the hazards involved. Children shall not play with the appliance.

Cleaning and user maintenance shall not be made by children unless they are older than 8 years and supervised.

Description

1 Foil protection cap
2 Shaver foil
3 Cutter block
4 Long hair trimmer
5 Charging light (model 190s/cb only)
6 On/off switch
7 Special cord set

Charging (model 190s/cb only)

Recommended ambient temperature for charging is 5 °C to 35 °C.

The battery may not charge properly or at all under extreme low or high temperatures. Recommended ambient temperature for shaving is 15 °C to 35 °C . Do not expose the shaver to temperatures higher than 50 °C for extended periods of time.

• Using the special cord set, connect the shaver to an electrical outlet with the motor switched off.
• When charging for the first time, leave the shaver to charge continuously for 4 hours. The charging light (5) shows that the shaver is being charged. When the battery is fully charged, the charging light intermittently blinks on and off. This indicates that the battery maintains its full capacity.
• A full charge provides up to 30 minutes of cordless shaving time depending on your beard growth.
• Once the shaver is completely charged, discharge the shaver through normal use. Then recharge to full capacity. Subsequent charges will take about 1 hour.
• Maximum battery capacity will only be reached after several charging / discharging cycles.
• If the rechargeable batteries are discharged, you may also shave by connecting the shaver to an electrical outlet via the special cord set.

Shaving

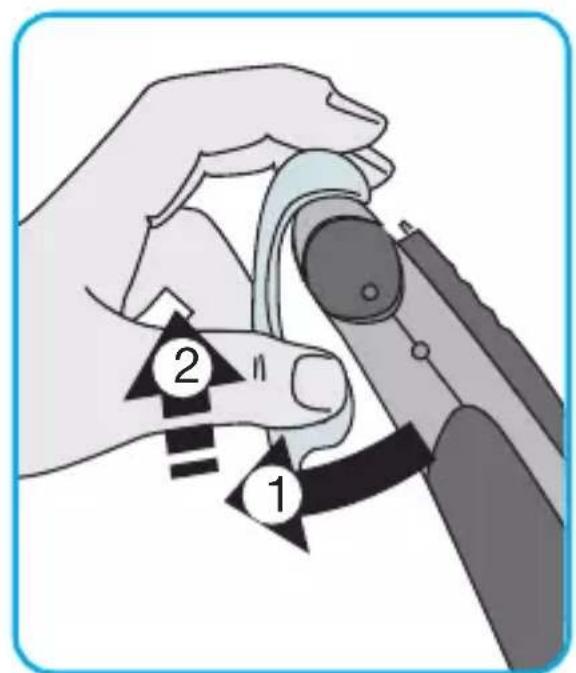

Remove the foil protection cap (1). Activate the on/off switch (6). The floating foil frame automatically adapts to your skin surface for a close, smooth shave.

For pre-shaving after a few days of not having shaved, use the long hair trimmer (4) to pre-cut long hairs. For a close, smooth shave, finish with the foil.

Trimming

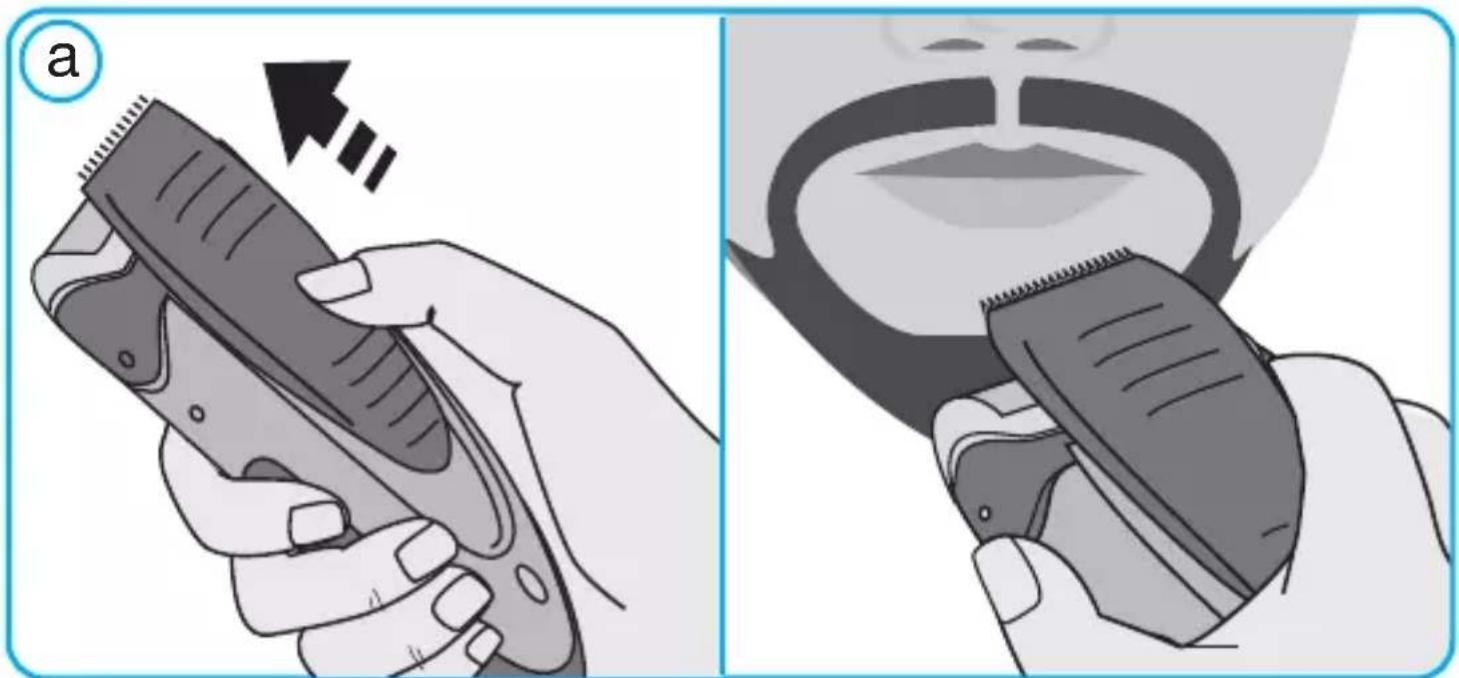

Push out the long hair trimmer (a). It allows controlled trimming of moustache and sideburns. It evenly cuts and trims larger areas: ideal for shaping sideburns, moustaches and partial short beards.

Frequent use of the long hair trimmer may reduce the battery capacity (model 190s/cb only).

Tips for a perfect dry shave

For best shaving results, Braun recommends you to follow 3 simple steps:

1. Always shave before washing your face.

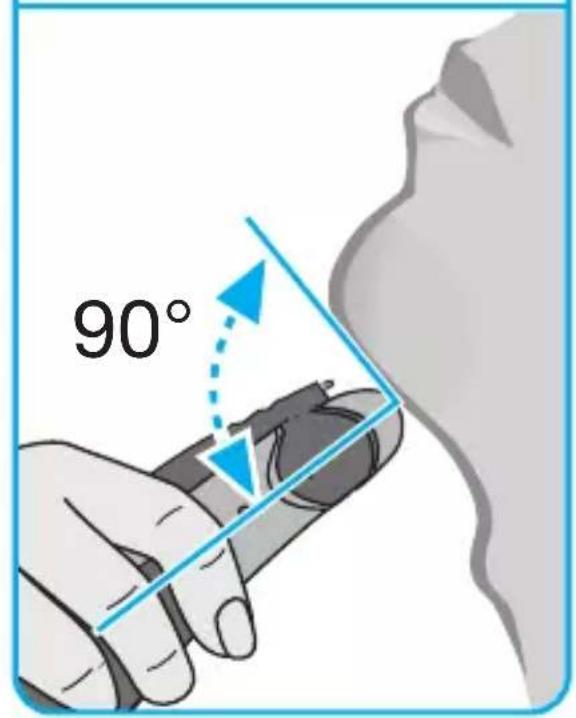

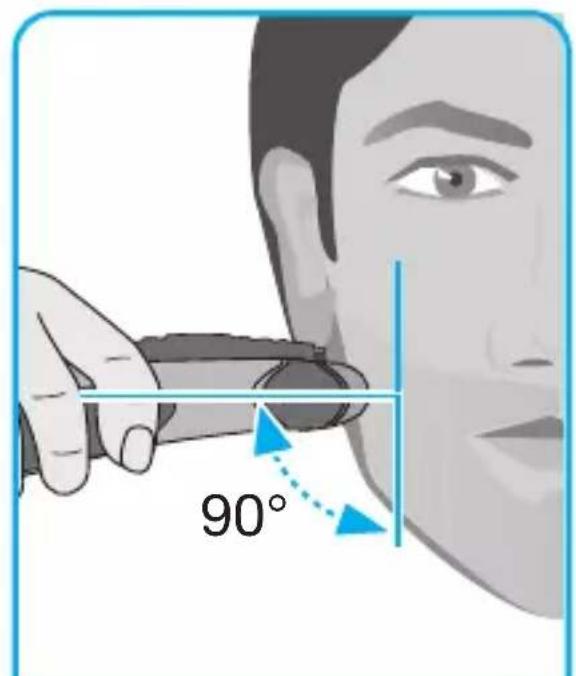

2. At all times, hold the shaver at right angles (90°) to your skin.
3. Stretch your skin and shave against the direction of your beard growth.

Cleaning

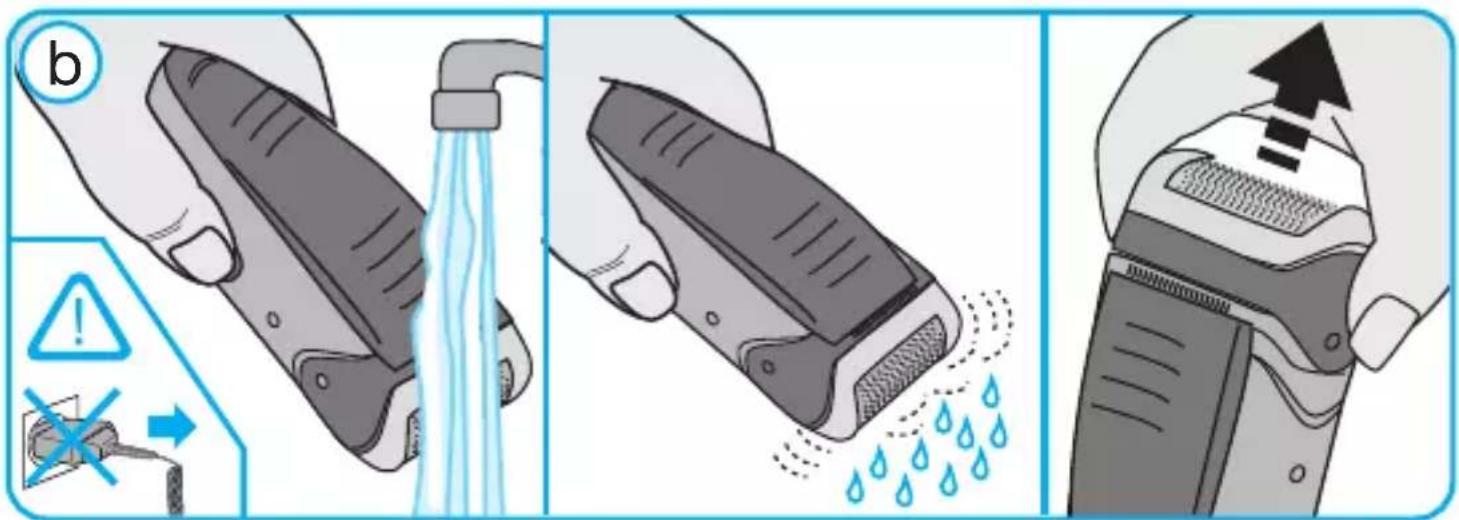

Regular cleaning ensures better shaving performance. Rinsing the shaver head under running water after each shave is an easy and fast way to keep it clean (b):

Model 190s/cb only:

• Switch the shaver on and rinse the shaver head under hot running water until all residues have been removed.
• You may use liquid soap without abrasive substances. Rinse off all foam and let the shaver run for a few more seconds.
• Next, switch off the shaver, remove the shaver foil (2) and cutter block (3). Then leave the disassembled shaving parts to dry.

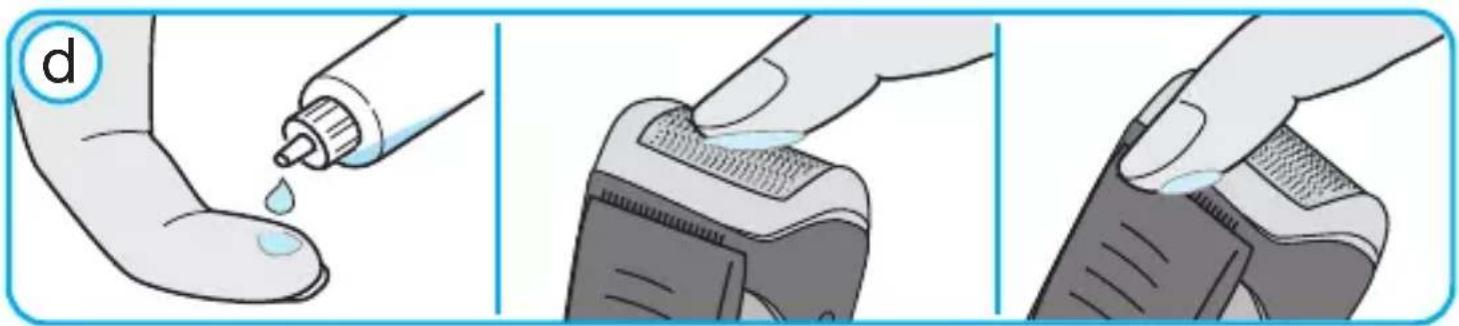

• If you regularly clean the shaver under water, then once a week apply a drop of light machine oil onto the long hair trimmer and shaver foil (d).

Model 170s only:

• After each shave, rinse the shaver head under hot running water until all residues have been removed (b). You may use liquid soap without abrasive substances. Rinse off all foam.
• Next, remove the shaver foil (2) and cutter block (3). Then leave the disassembled shaving parts to dry.

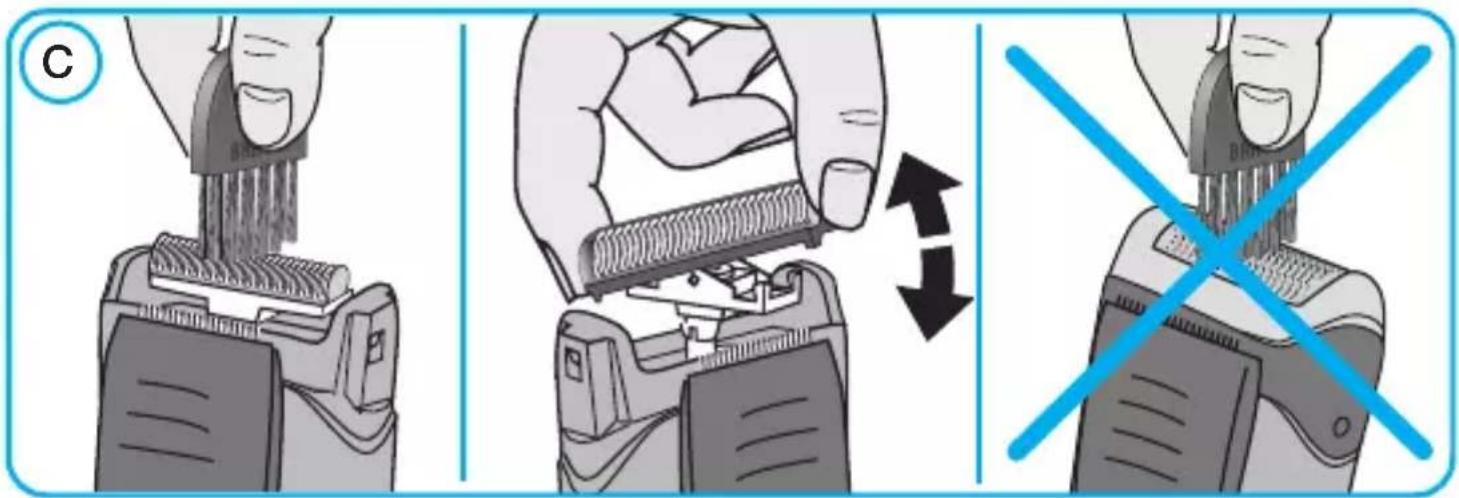

Alternatively, you may clean the shaver using a brush (c):

• Switch off the shaver. Remove the shaver foil and tap it out on a flat surface.
• Using the brush, clean the cutter block and the inner area of the shaver head. However, do not clean the shaver foil with the brush as this will damage the foil.

Keeping your shaver in top shape

About every four weeks, clean the cutter block with Braun cleaning agents. Put a drop of light machine oil onto the long hair trimmer and the shaver foil (d).

Replacing the shaver foil and cutter block

To maintain 100% shaving performance, replace the shaver foil (2) and cutter block (3) at least every 18 months or when worn. Change both parts at the same time for a closer shave with less skin irritation.

(Shaver foil and cutter block: 10B)

Preserving the batteries (model 190s/cb only)

In order to maintain the optimum capacity of the rechargeable batteries, the shaver has to be fully discharged (by shaving) every 6 months approximately. Then recharge the shaver to full capacity.

Environmental notice

This appliance contains rechargeable batteries. In the interest of protecting the environment, please do not dispose of the product in household waste at the end of its useful life. Disposal can take place at a Braun Service Centre or at appropriate collection points provided in your country.

Subject to change without notice.

For electric specifications, see printing on the special cord set.

Guarantee

We grant a 2 year guarantee on the product commencing on the date of purchase. Within the guarantee period we will eliminate any defects in the appliance resulting from faults in materials or workmanship, free of charge either by repairing or replacing the complete appliance at our discretion. This guarantee extends to every country where this appliance is supplied by Braun or its appointed distributor.

This guarantee does not cover: damage due to improper use, normal wear and tear (e.g. shaver foil or cutter block) as well as defects that have a negligible effect on the value or operation of the appliance. The guarantee becomes void if repairs are undertaken by unauthorised persons and if original Braun parts are not used.

To obtain service within the guarantee period, hand in or send the complete appliance with your sales receipt to an authorised Braun Customer Service Centre (address information available online at www.service.braun.com).

For UK only:

This guarantee in no way affects your rights under statutory law.

For Australia & New Zealand only:

Warranty

In Australia, our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and for compensation for any other reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure.

The benefits given by this warranty are in addition to other rights and remedies of the consumer law.

For Claims in Australia please contact:

Procter & Gamble Australia Pty Ltd

1 Innovation Road, Macquarie Park

NSW 2113

Telephone: [phone]

Facsimile: [phone]

Email: [e-mail]

For claims in New Zealand please contact:

Procter & Gamble Distributing

New Zealand Limited

Unit 3, Building I, 5 Orbit Drive

Rosedale, North Shore City 0632

Auckland, New Zealand

Telephone: [phone]

Facsimile: [phone]

Email: [e-mail]

Our Warranty

This appliance is also covered by a 24 Month Replacement Warranty commencing on the date of purchase (Our Warranty).

Our Warranty applies in all States and Territories of Australia and in New Zealand and is in addition to any mandatory statutory obligations imposed on Procter & Gamble Australia Pty. Ltd., its distributors and its manufacturer. Our Warranty does not purport to exclude, restrict or modify any such mandatory statutory obligations.

Our Warranty only covers defects in the appliance resulting from faults in workmanship or materials. Therefore, if your appliance becomes faulty as a result of faults in workmanship or materials, it will be exchanged by your retailer, on presentation of proof of purchase.

Our Warranty only applies to domestic or household use of this appliance and the warranty will only apply if the correct operating instructions included with this product have been followed. For any appliance replaced under this warranty, Our Warranty ends on the expiry of the warranty period that applied to the original appliance.

Our Warranty does not cover:

A. Damage arising from improper use or operation on incorrect voltages.
B. Breakages to shaver foils, glass jars, etc.
C. Normal wear due to moving parts.
D. Repairs undertaken by unauthorised service personnel or use of non genuine parts.
E. Appliances that are outside the warranty period or are not faulty.

This appliance is not intended for use by young children or infi rm persons without supervision. Young children should be supervised to ensure that they do not play with the appliance.

If the appliance is powered by a cord extension set or electrical portable outlet device these should be positioned so they are not subject to splashing or ingress of moisture.

To the extent permitted by the laws of the Commonwealth of Australia and New Zealand and applicable laws of a State or Territory of Australia, and without affecting any mandatory statutory obligations imposed by law, Our Warranty is given in exchange for any other rights you may have against Procter & Gamble Australia Pty. Ltd. or its distributors or manufacturer, whether at law, in tort (including negligence), in equity or under statute.

Please retain proof of purchase of this appliance. If you have any questions in relation to Our Warranty, please call our Consumer Service line (see below for numbers).

If you intend to make a claim please telephone our Customer Service line on the numbers set out below to obtain information about your claim and any costs associated with claiming under Our Warranty. You will bear the cost of returning your product to us.

Repairs and service

If you are sending your appliance for repair under Our Warranty, please pack the appliance adequately and send it to your nearest Service Agent, at your expense. For service or replacement parts refer to the authorised Service Agents listed overleaf. Local Service Agents may change from time to time – in that event please contact the Consumer Service free call number below for updated local service agent details.

Australian Consumer Service (free call): 1 800 641 820

New Zealand Consumer Service (free call): 0 800 108 909

Australian & New Zealand Service Agents

VICTORIA & TASMANIA

Statewide Services Pty Ltd

trading as J A Appliances

17-19 Hossack Avenue

Coburg North, VIC 3058

Tel. [phone]

Fax. [phone]

Email: jaappliances@

statewideservices.com.au

QUEENSLAND

Walters Import trading as

Brisbane Appliance Service Centre

449 Beaudesert Road

Moorooka

QLD 4105

Tel. [phone]

Fax. [phone]

Email: [e-mail]

WESTERN AUSTRALIA

Mark 1 Appliances

Unit 1, 46 Abernethy Road

Belmont, WA 6104

Tel. [phone]

Fax. [phone]

Email: [e-mail]

NEW SOUTH WALES & ACT

Faulder Appliance Services Pty Ltd

Shop 4, 9 Evans Road,

Rooty Hill, NSW 2766

Tel. [phone]

Fax. [phone]

Email: [e-mail]

SOUTH AUSTRALIA & NT

Adelaide Service Centre

Shop B2,

Parkholme Shopping Centre

319Oaklands Road, Parkholme

Adelaide, SA 5043

Tel. [phone]

Fax. [phone]

Email: [e-mail]

NEW ZEALAND

Key Service Ltd

7D Echelon Place

East Tamaki

Manukau City

Auckland

New Zealand

(PO Box 38569, Howick, Auckland,

New Zealand)

Tel. [phone]

Fax. [phone]

Email: [e-mail]
