USER MANUAL MP1 DANFOSS

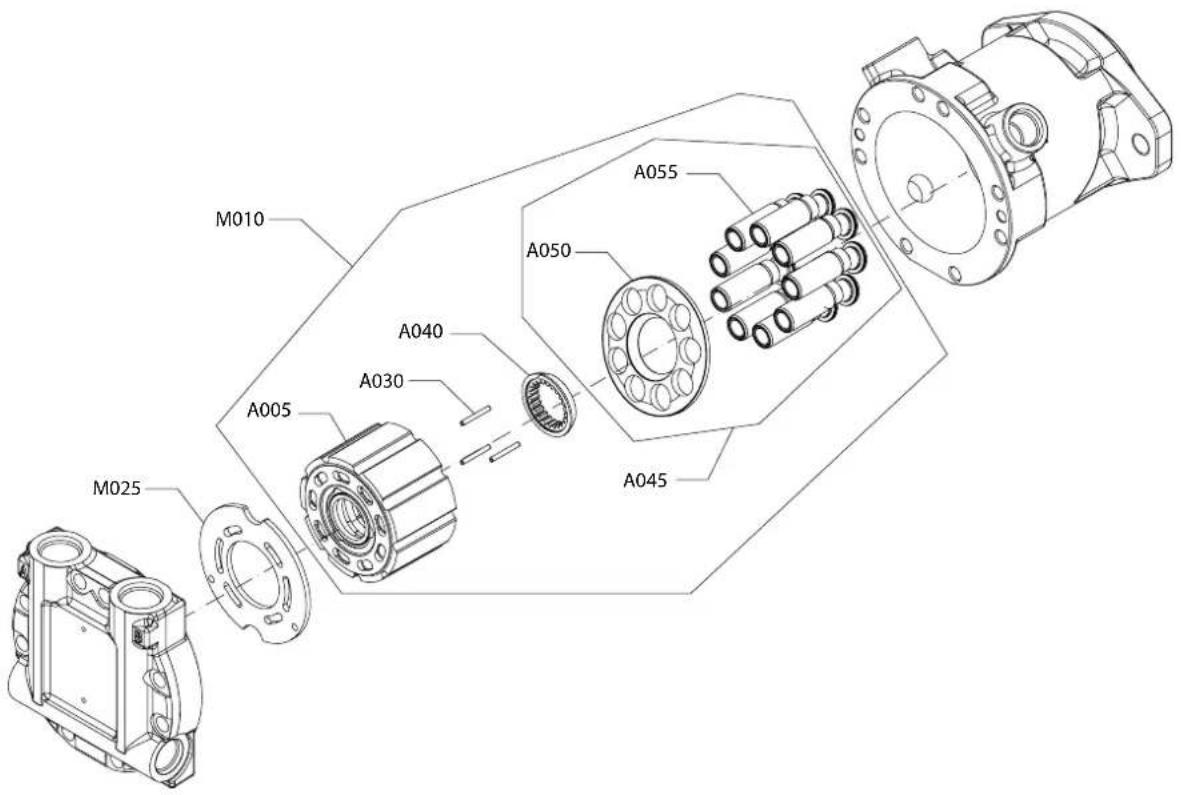

Exploded view diagram of a mechanical assembly showing internal components (no text or labels)

Revision history Table of revisions

Date Changed Rev
August 2021 Fixed shaft drawings 0105
March 2021 Updated QK301 on seal kit 0104

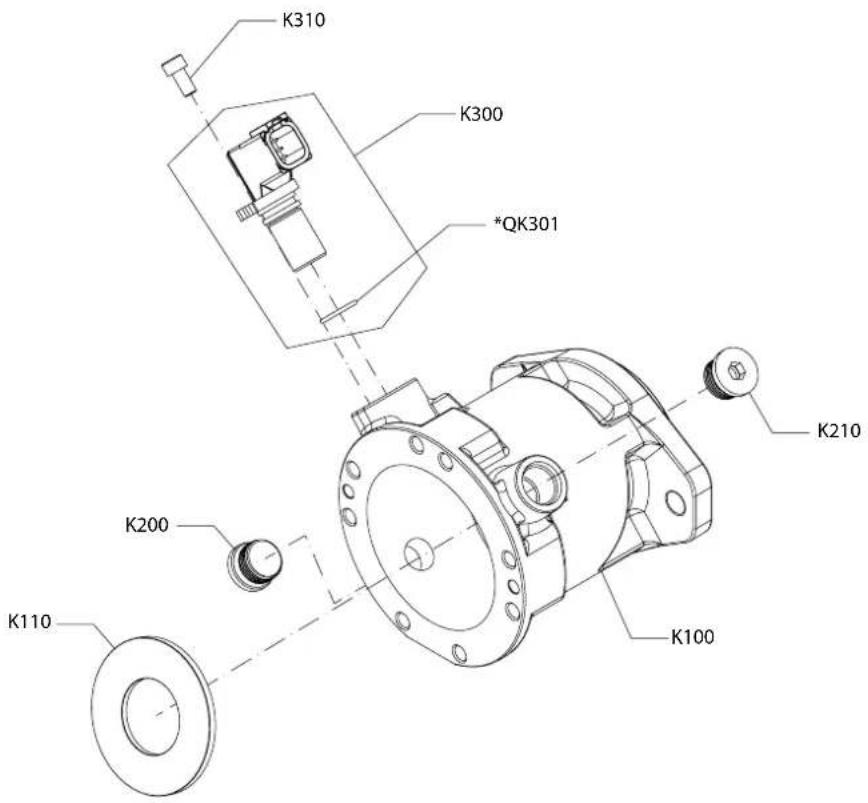

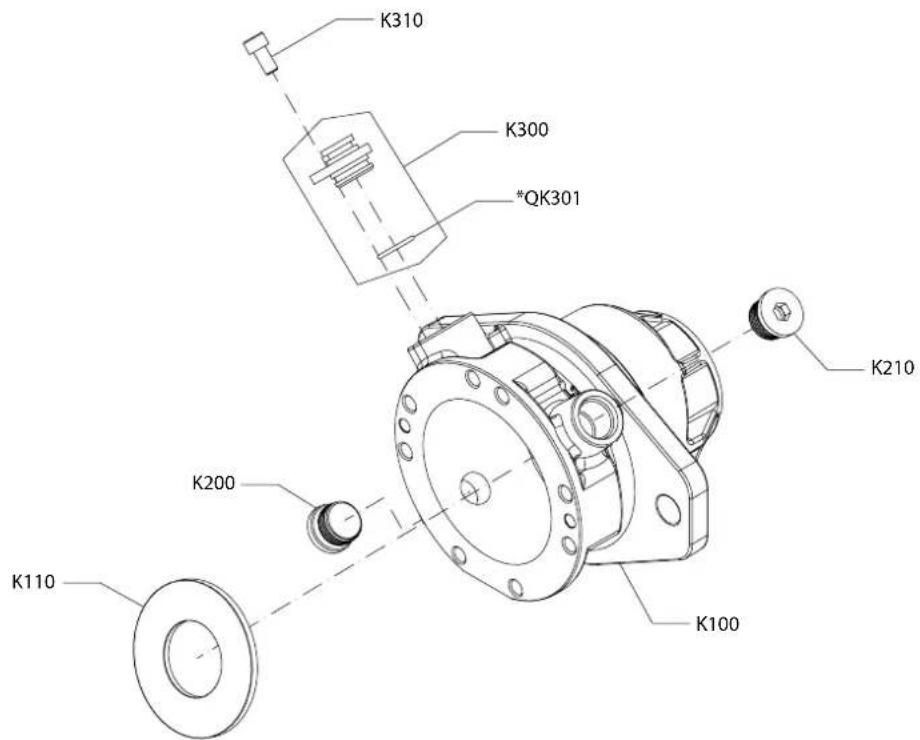

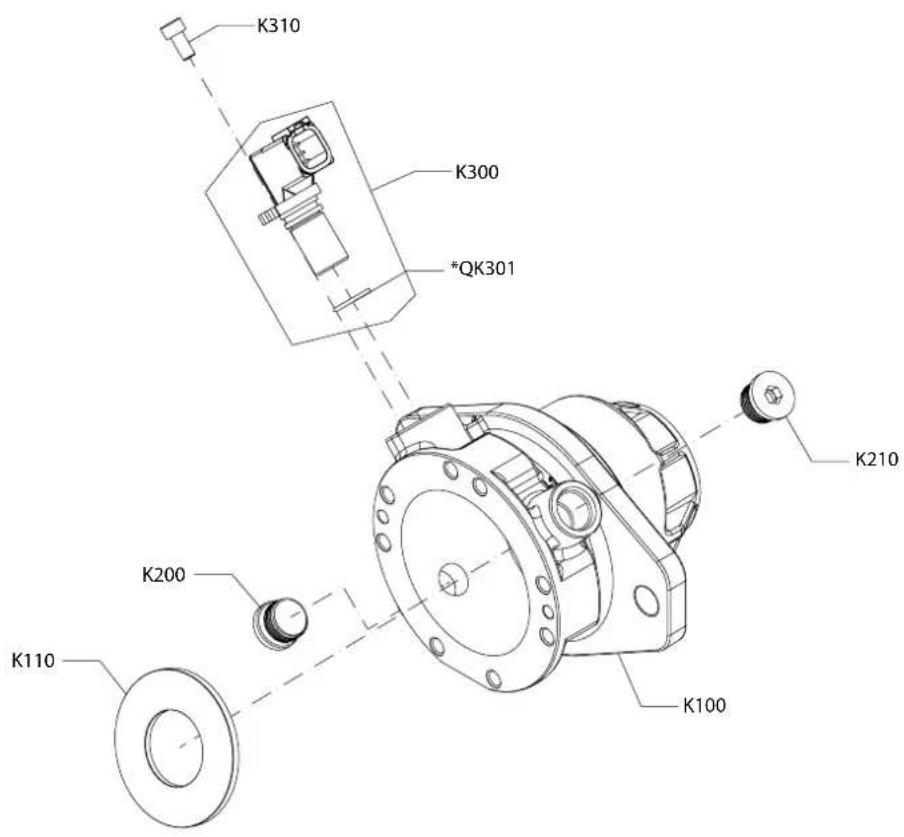

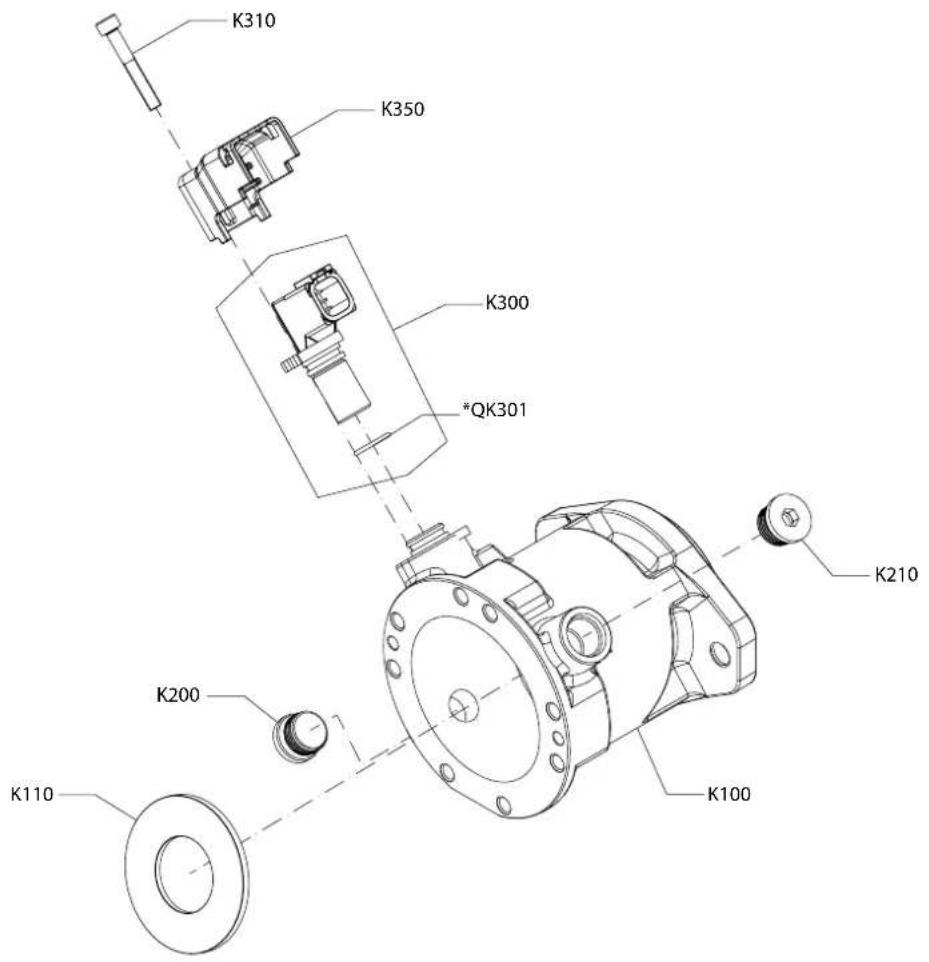

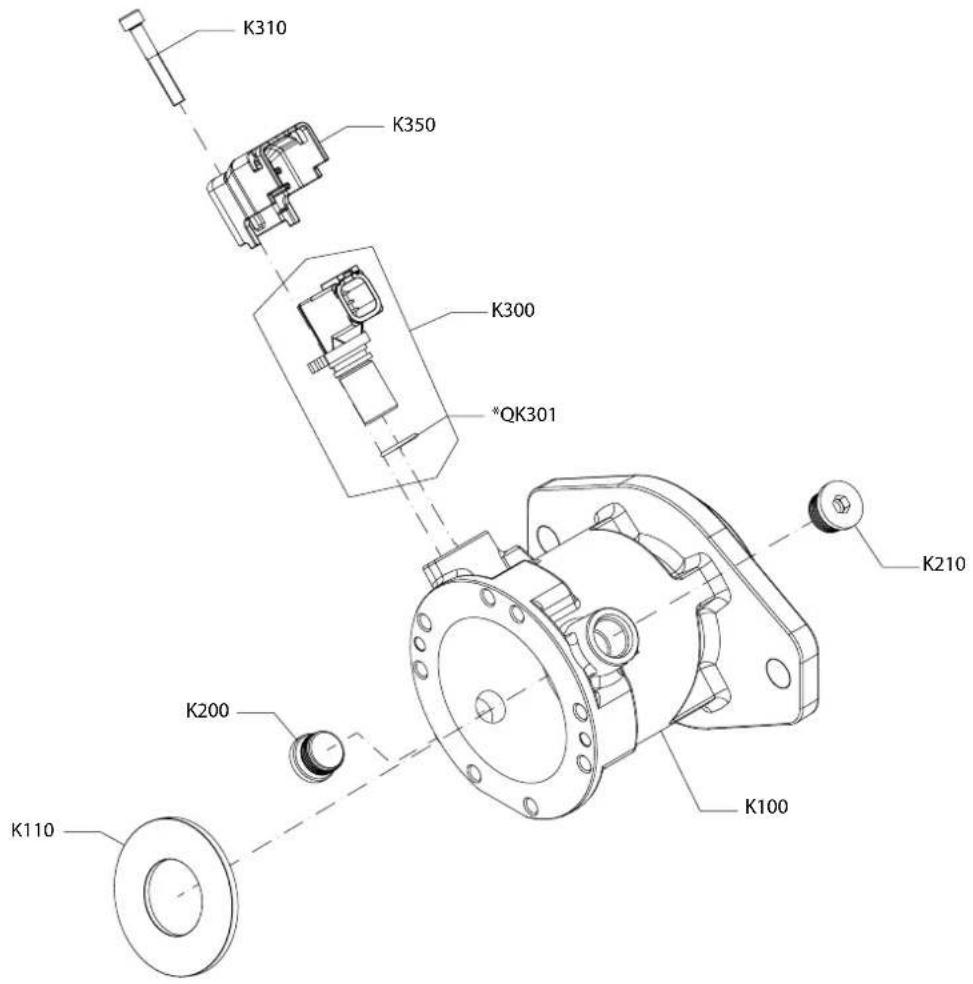

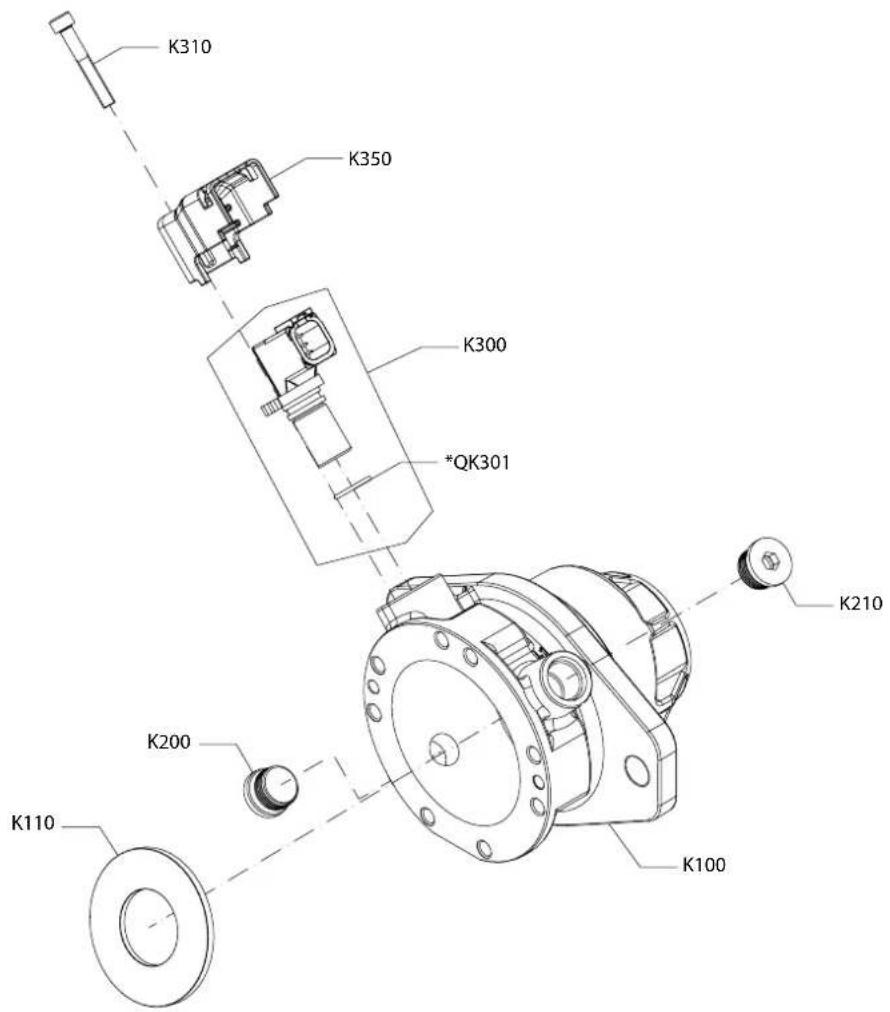

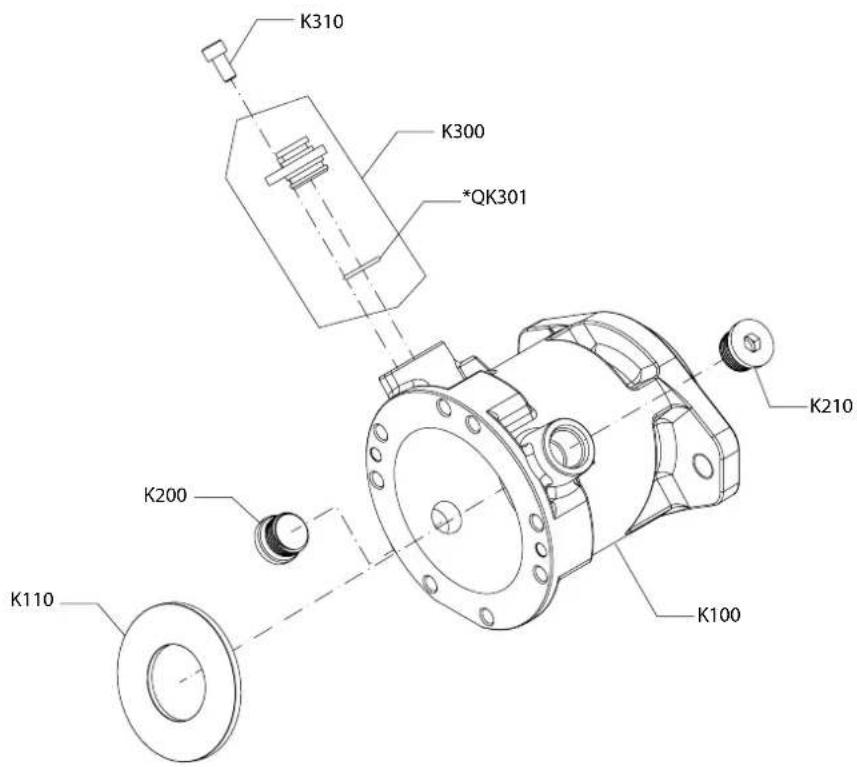

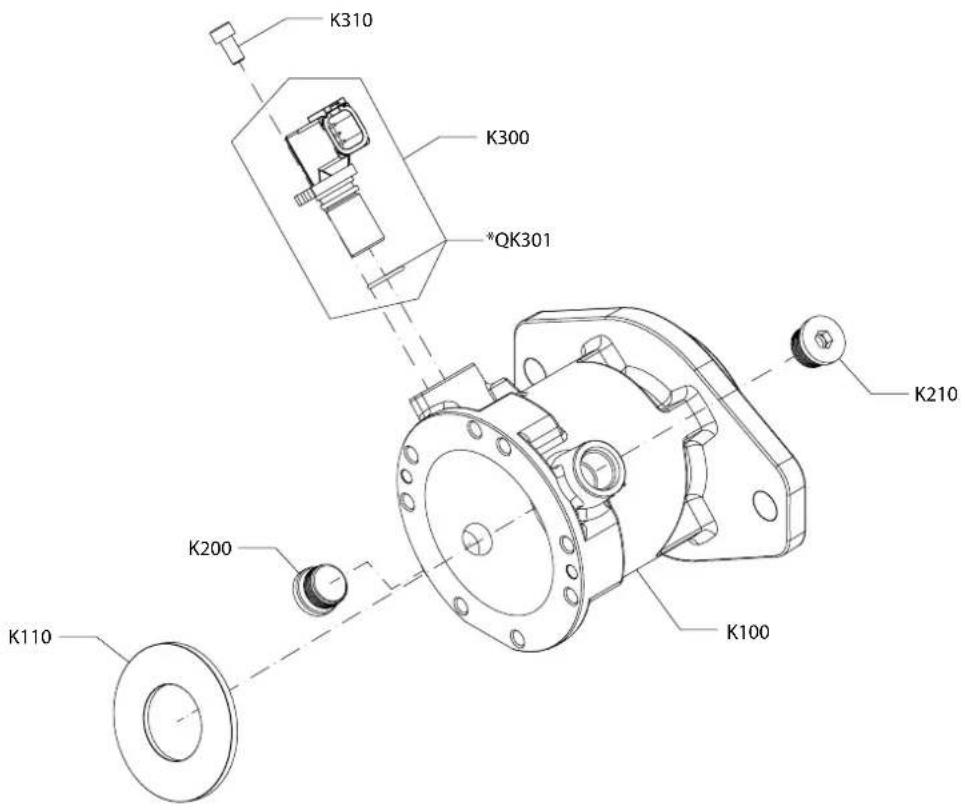

November 2020 Updated Housing section for Speed and Temperature Sensor 0103
June 2020 Added O-ring part numbers to porting type options 0102
February 2020 First edition 0101

Contents

General information

Service Parts Identification....4

Nameplate....4

Date code....5

About service bulletins....5

Procedure to identify a part....5

Adobe Acrobat 2-page viewing....6

Order code....7

Shaft

Shaft A....8

Shaft C....10

Shaft E....12

Shaft F....14

Shaft G....16

Shaft H....18

Shaft J....20

Shaft K....22

Shaft L....24

Porting type

Porting type A1....26

Porting type B1....28

Porting type B2....30

Porting type C1....32

Porting type C2....34

Porting type D1....36

Porting type D2....38

Porting type E1....40

Housing

Housing AA, AC, DA, DC 42

Housing AB, AD, DB, DD....44

Housing AN, DN....46

Housing BA, BC, EA, EC....48

Housing BB, BD, EB, ED....50

Housing BN, EN....52

Housing CA, CC, FA, FC....54

Housing CB, CD, FB, FD....56

Housing CN, FN....58

Displacement

Displacement 20A, 24A....60

Overhaul seal kit

MP1M seal kit....62

General information

Service Parts Identification

The following information and procedure is used to identify the module group, item number, manufacture date, part number, and part name of the parts included in the MP1 motor.

The parts listed include all parts which may be used when performing either "Minor Repairs", "Major Repairs" or "Conversions" on the MP1M.

Nameplate

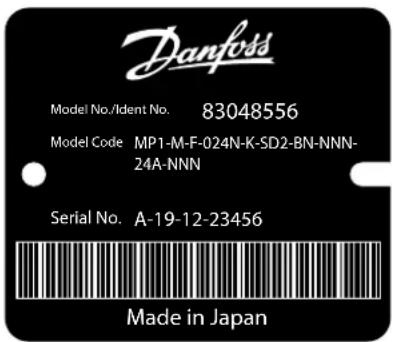

Each unit will have a nameplate affixed to the housing. The nameplate will include the following information:

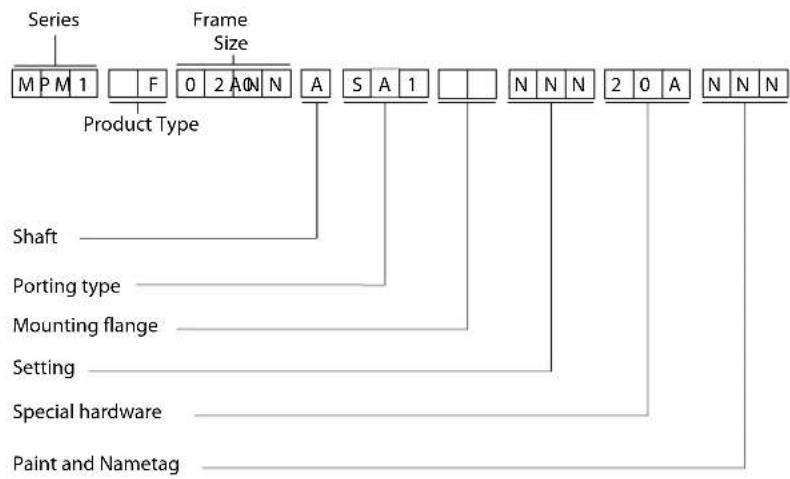

Model Code

The Danfoss model code completely defines the specific unit and must be used when ordering parts to service this product.

Model Number

The Danfoss model number is used by the factory in manufacturing. On repeat orders, a complete unit can be ordered by the model number.

Serial Number

The Danfoss serial number is used to identify the manufacture date and the unit sequence in the build. The serial number is also used to identify the units warranty time period.

The letter code indicates the location of original manufacture (assembly).

The first number (2 digits) indicates the year of manufacture. The second number (2 digits) indicates the calendar week of manufacture.

The third number (5 digits) is a sequential number used to identify a specific unit.

General information

Date code

The date code is defined as the year and week of manufacture. The same item number may list more than one part number. This indicates that there is more than one configuration for that item number. You will see that there are different date codes for the different part numbers. Find the date code of your unit from the nameplate to determine which service part number you need to order.

Example: The service part desired is item G30

Order Code Item	Date Begin Date	End Part Number	Part Name	Qty. per		Model/Kit
80 G30 89-17 80	00243 End cap gasket 1
	G30 89-16 8000	151 End cap gasket			(SB-1995-006)	1

All units using this order code with a date code prior to 89-17 must use part number "8000151." All units with a date code of 89-17 and newer must use part number "8000243."

About service bulletins

A Service Bulletin Number (SB-____ - ____) may follow the "Part Name" of the part you desire. You must read that Service Bulletin prior to ordering that part. The information contained in these Service Bulletins, as of the print date of this bulletin, are included at the end of this manual. Service Bulletins contain more detailed information such as interchangeability, what additional parts are involved, etc. It is suggested that you add additional Service Bulletins to this manual as you receive them.

Procedure to identify a part

The modular design of this product results in a simplified service parts list and part number identification procedure.

The same item numbers are used for same part names on all units within a product type. A part number that has another number following it in parentheses is done to make this a world wide manual.

Regional part numbers

Some part numbers are region specific and should be ordered accordingly.

As an example, the part number (example: 314583 (9008000-0118) will be used. The first number is sold in Germany. The number in parentheses is sold in the United States. Customers would order 9008000-0118 if ordering the part in the United States.

General information

Adobe Acrobat 2-page viewing

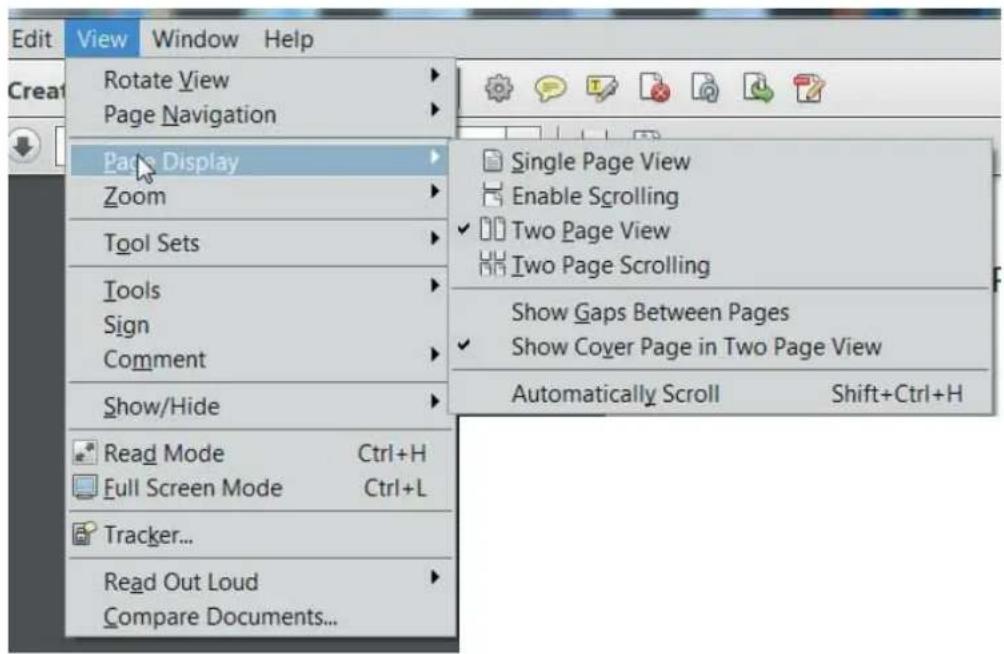

While viewing manual in Adobe Acrobat, the following settings need to be applied to ensure proper page display.

1. Select "View" → "Page Display" → "Two Page View"
2. Select "View" → "Page Display" → "Show Cover Page in Two Page View"

General information

Order code

Shaft

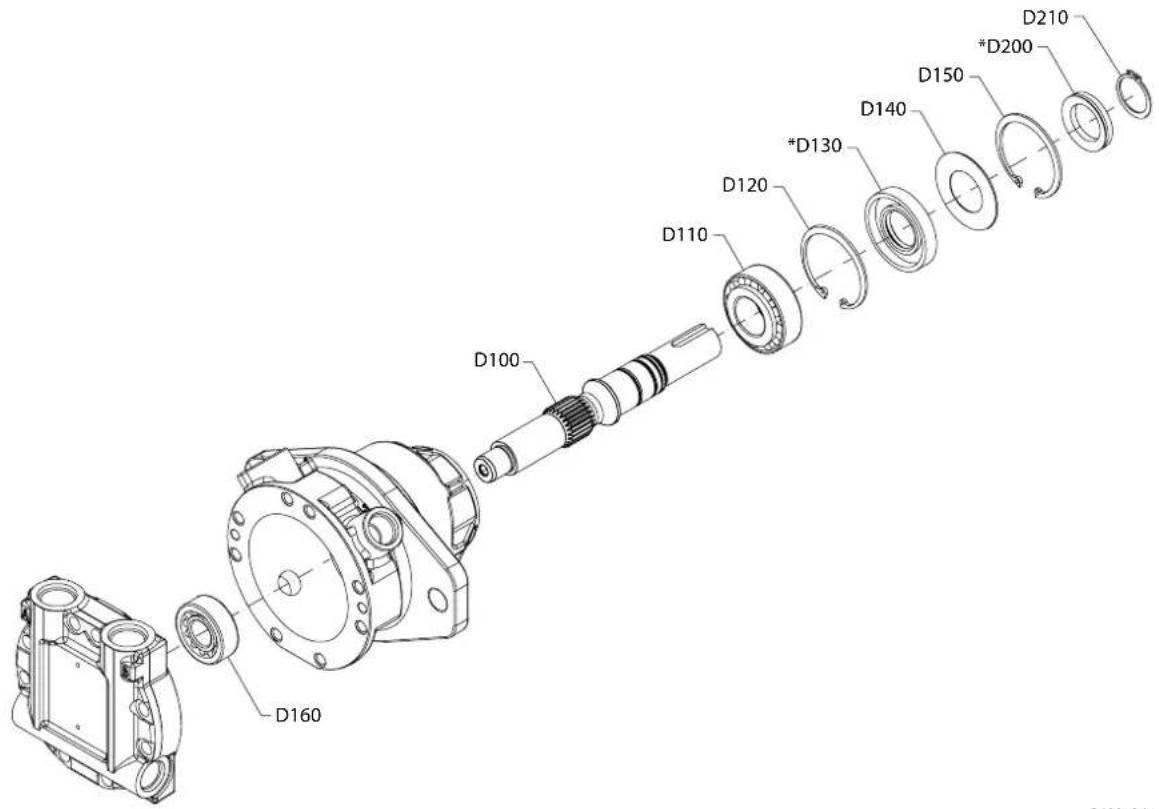

MP1M shaft A

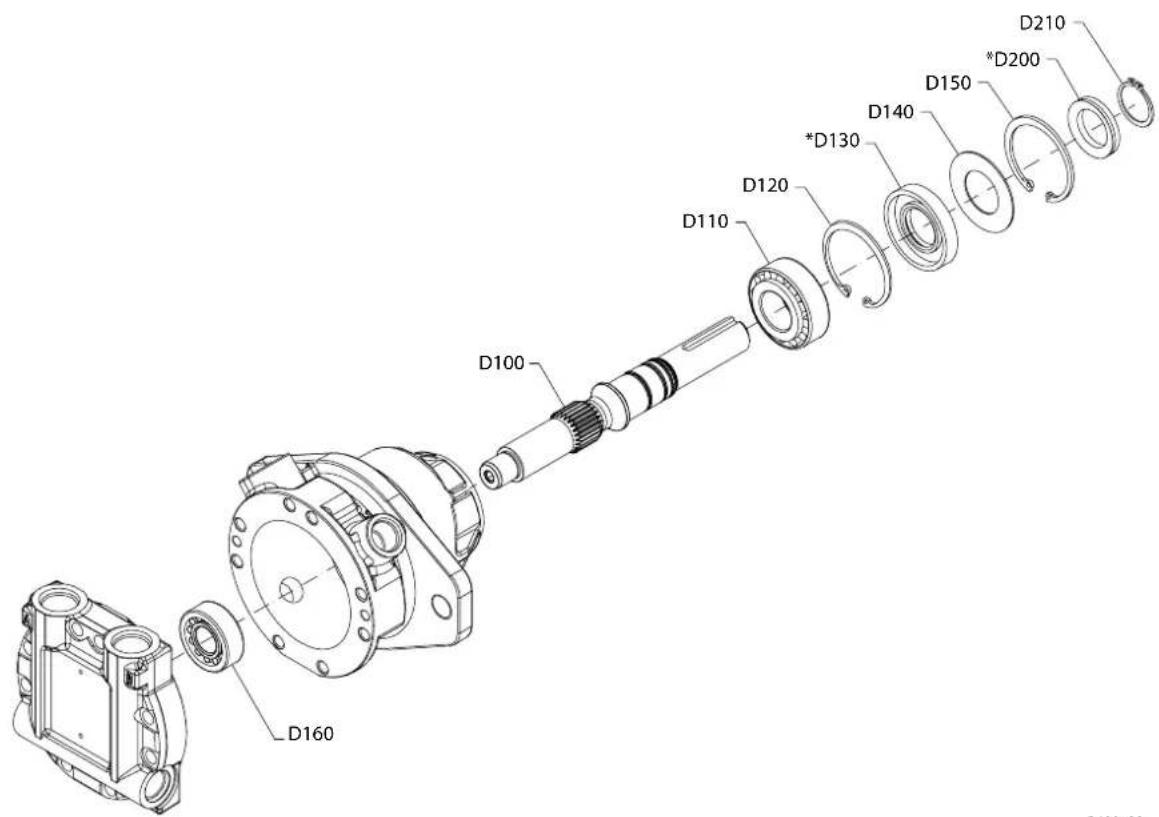

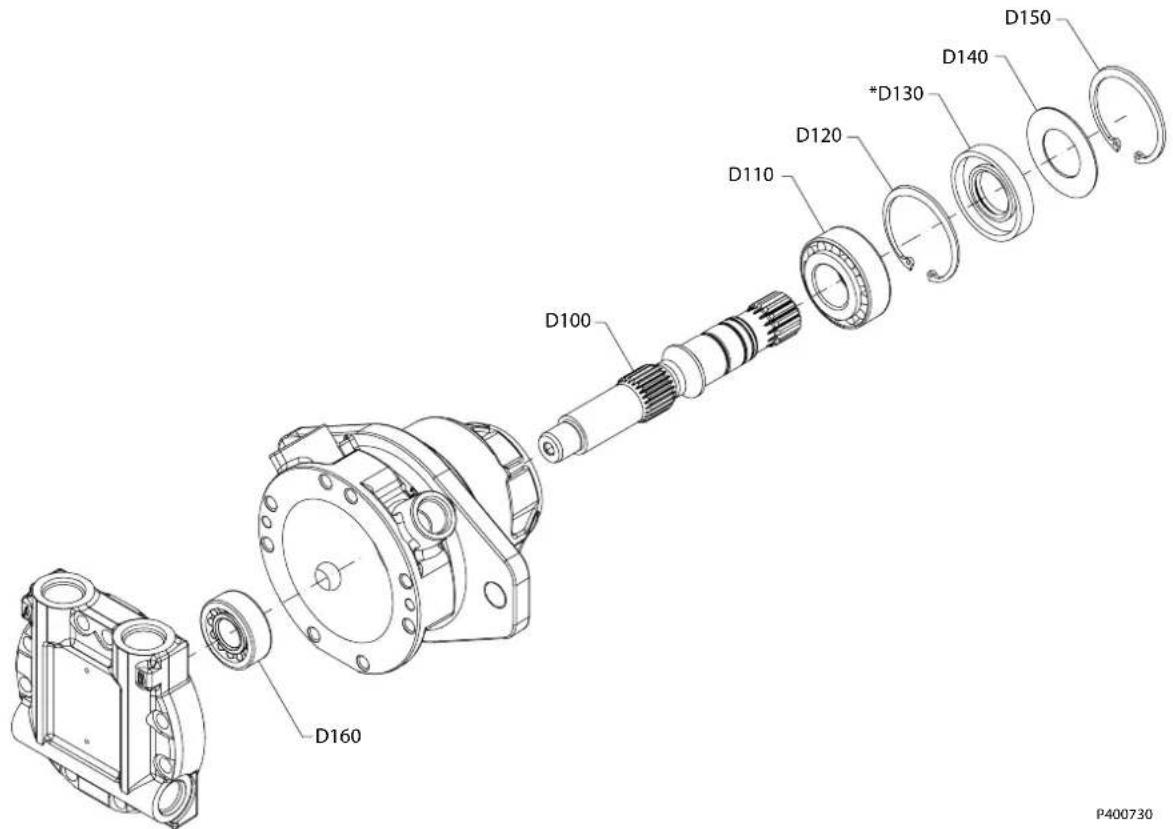

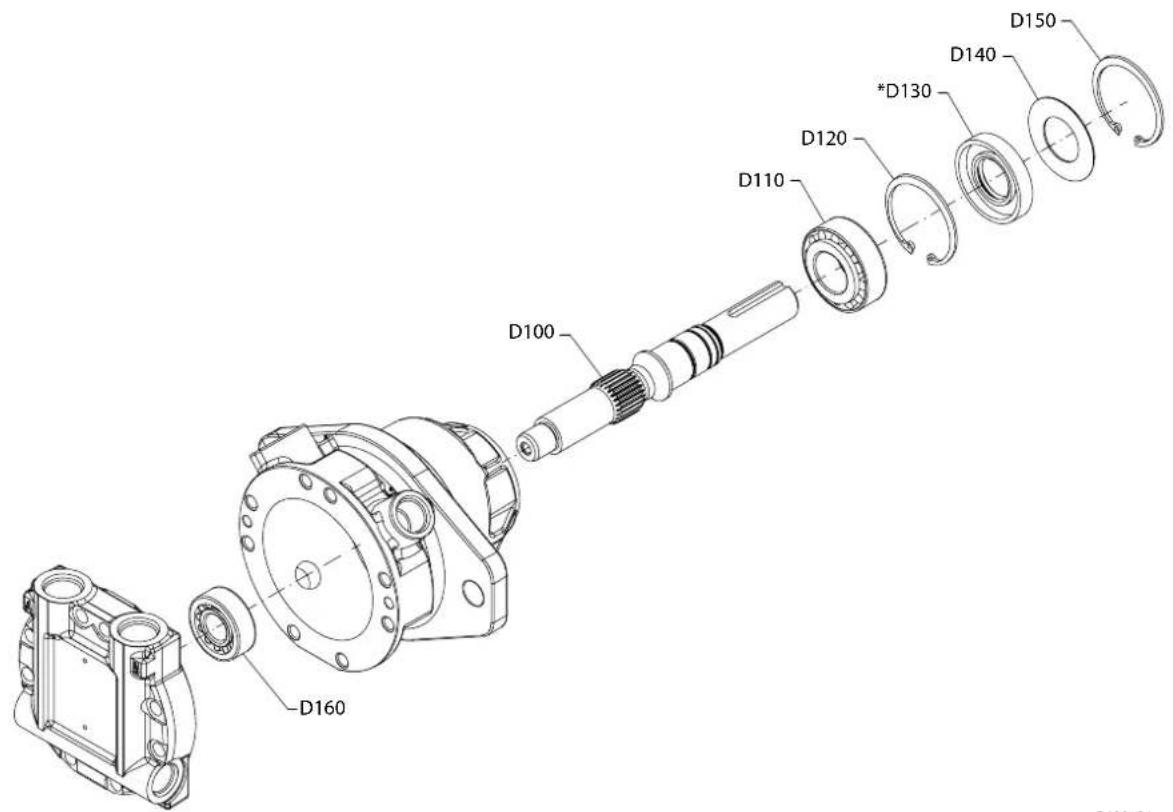

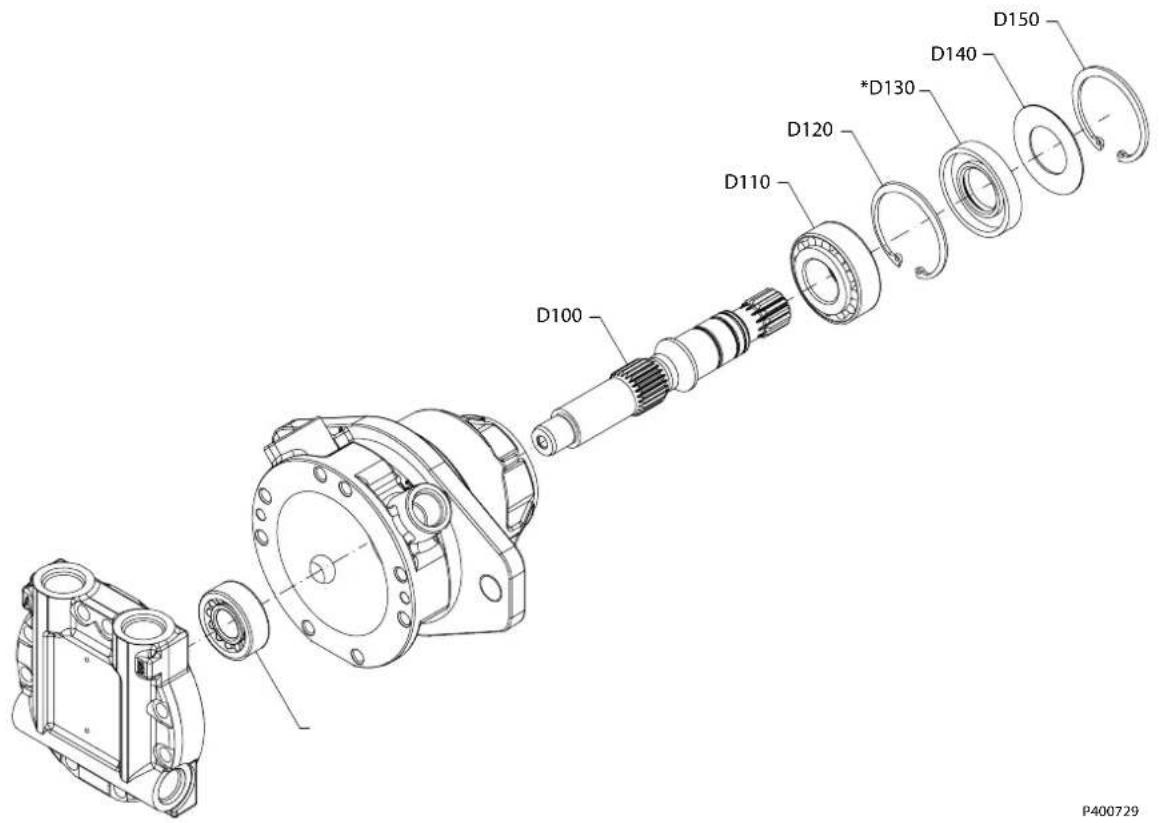

Parts configuration

Generic housing and endcap used to show part location only.

* Included in overhaul seal kit Q210

Shaft

Order code: A

Item Date Begin	Date End Part	Number Part Name Qty. per		Model/Kit
D100 18-48 112	28796 Shaft, 13T,	16/32 pitch 1
D110 18-48 112	28797 Roller bearing, tapered 1
D120 18-48 112	28820 Retaining ring 1
D130 18-48 112	28821 Lip seal 1
D140 18-48 112	28822 Washer 1
D150 18-48 FBE	052 Retaining ring 1
D160 18-48 112	28823 Roller bearing, tapered

Shaft

MP1M shaft C

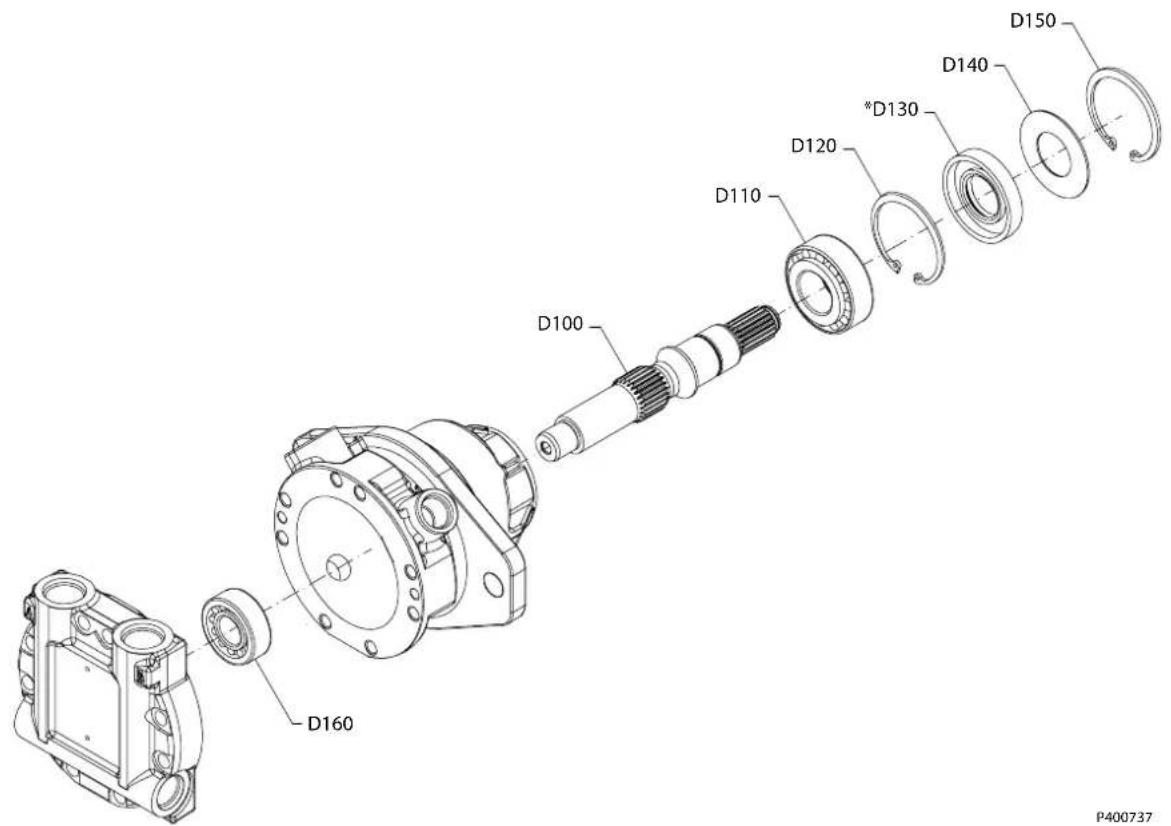

Parts configuration

Generic housing and endcap used to show part location only.

* Included in overhaul seal kit Q210

Shaft

Order code: C

Item Date Begin	Date End Part	Number Part Name Qty. per		Model/Kit
D100 18-50 112	28832 Shaft, 15T,	16/32 pitch 1
D110 18-50 112	28797 Roller bearing, tapered 1
D120 18-50 112	28820 Retaining ring 1
D130 18-50 112	28821 Lip seal 1
D140 18-50 112	28822 Washer 1
D150 18-50 FBE	052 Retaining ring 1
D160 18-50 112	28823 Roller bearing, tapered 1

Shaft

MP1M shaft E

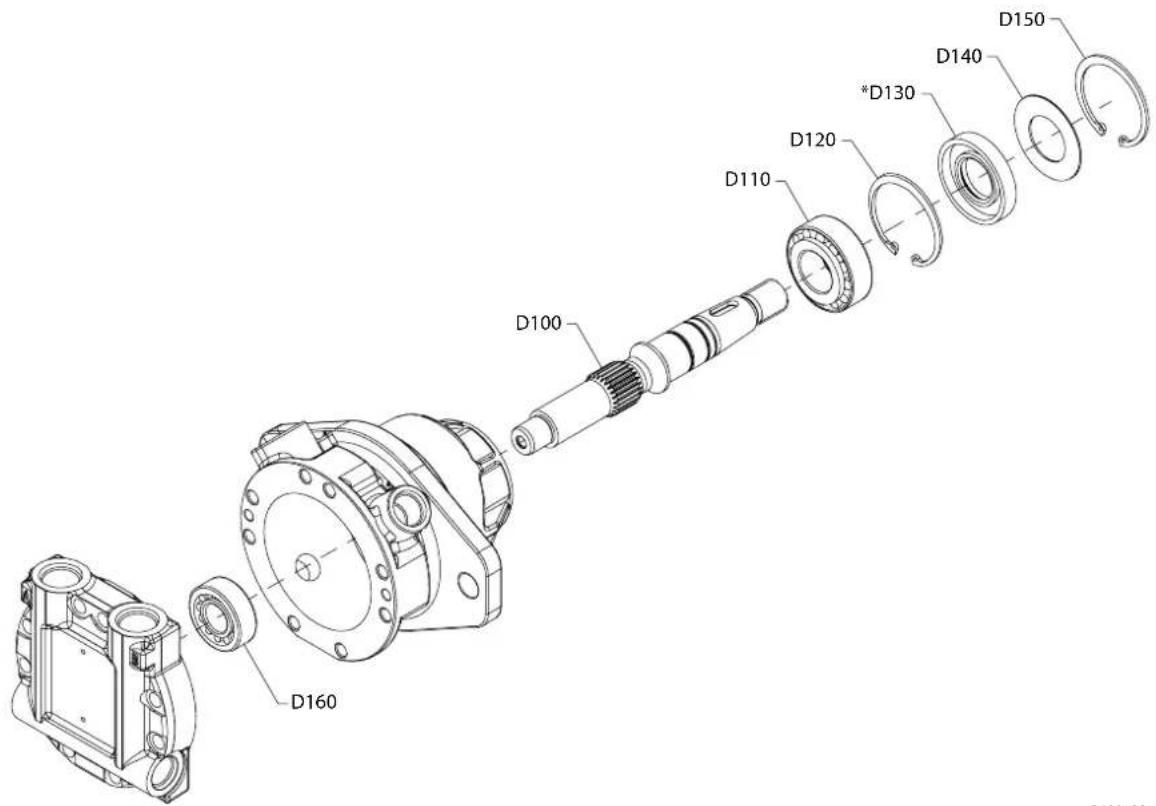

Parts configuration

P400731

Generic housing and endcap used to show part location only.

* Included in overhaul seal kit Q210

Shaft

Order code: E

Item Date Begin	Date End Part	Number Part Name	Qty. per		Model/Kit
D100 18-50 112	28829 Shaft with	long straight key	1
D110 18-50 112	28797 Roller bearing, tapered	1
D120 18-50 112	28820 Retaining ring	1
D130 18-50 112	28821 Lip seal	1
D140 18-50 112	28822 Washer	1
D150 18-50 FBE	052 Retaining ring	1
D160 18-50 112	28823 Roller bearing, tapered	1

Shaft

MP1M shaft F

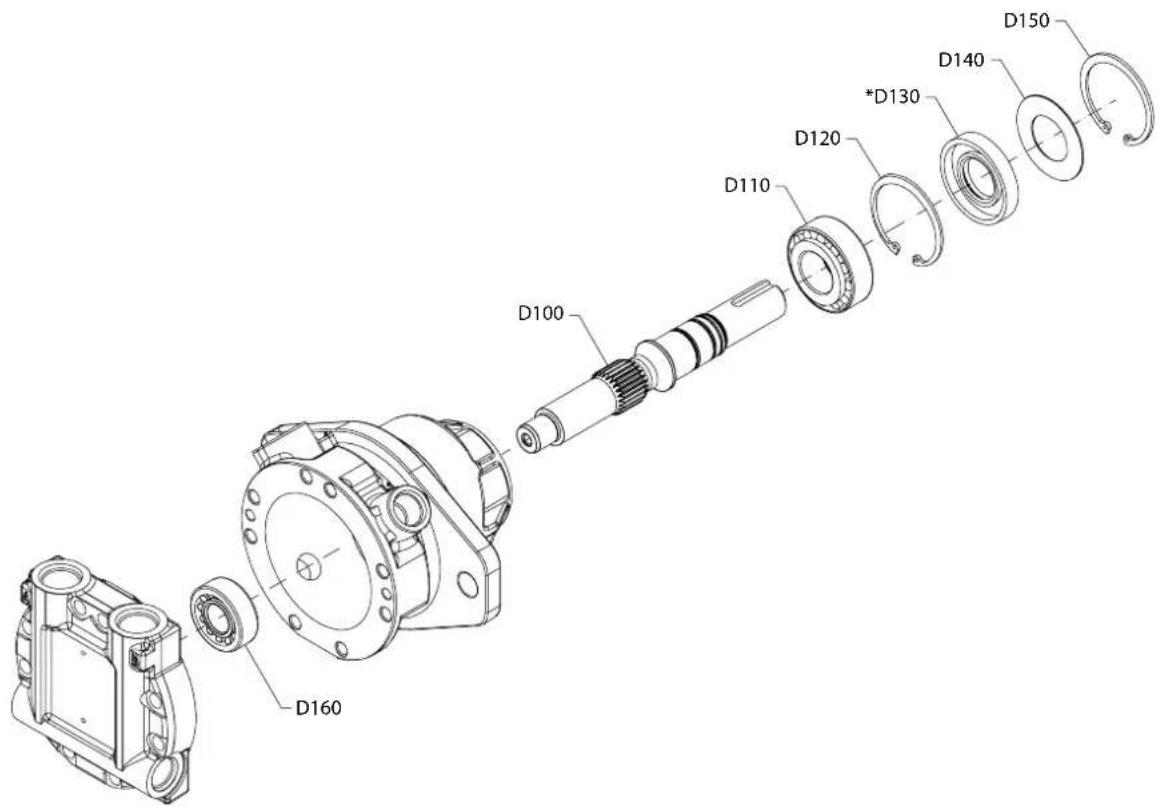

Parts configuration

P400732

Generic housing and endcap used to show part location only.

* Included in overhaul seal kit Q210

Shaft

Order code: F

Item Date Begin	Date End Part	Number Part Name	Qty. per		Model/Kit
D100 18-50 112	28829 Shaft with	long straight key	1
D110 18-50 112	28797 Roller bearing, tapered	1
D120 18-50 112	28820 Retaining ring	1
D130 18-50 112	28821 Lip seal	1
D140 18-50 112	28822 Washer	1
D150 18-50 FBE	052 Retaining ring	1
D160 18-50 112	28823 Roller bearing, tapered	1
D200 18-50 112	28825 Dust seal	1
D210 18-50 FBD	025 Retaining ring	1

Shaft

MP1M shaft G

Parts configuration

P400733

Generic housing and endcap used to show part location only.

* Included in overhaul seal kit Q210

Shaft

Order code: G

Item Date Begin	Date End Part	Number Part Name Qty. per		Model/Kit
D100 18-50 112	28842 Shaft, tapered 1
D110 18-50 112	28797 Roller bearing, tapered 1
D120 18-50 112	28820 Retaining ring 1
D130 18-50 112	28821 Lip seal 1
D140 18-50 112	28822 Washer 1
D150 18-50 FBE	052 Retaining ring 1
D160 18-50 112	28823 Roller bearing, tapered 1

Shaft

MP1M shaft H

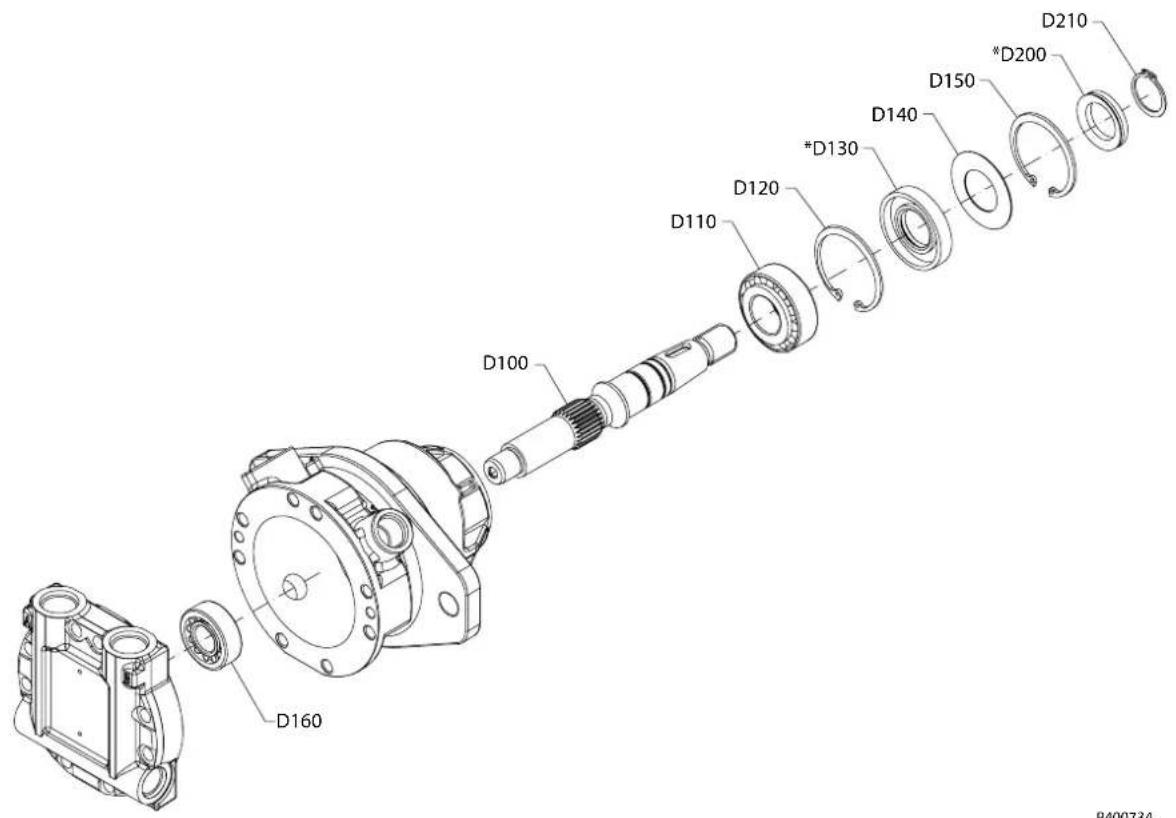

Parts configuration

Generic housing and end cap used to show part location only.

* Included in overhaul seal kit Q210

Shaft

Order code: H

Item Date Begin	Date End Part	Number Part Name Qty. per		Model/Kit
D100 18-50 112	28842 Shaft, tapered 1
D110 18-50 112	28797 Roller bearing, tapered 1
D120 18-50 112	28820 Retaining ring 1
D130 18-50 112	28821 Lip seal 1
D140 18-50 112	28822 Washer 1
D150 18-50 FBE	052 Retaining ring 1
D160 18-50 112	28823 Roller bearing, tapered 1
D200 18-50 112	28825 Dust seal 1
D210 18-50 FBD	025 Retaining ring 1

Shaft

MP1M shaft J

Parts configuration

P400735

Generic housing and endcap used to show parts location only.

* Included in overhaul seal kit Q210

Shaft

Order code: J

Item Date Begin	Date End Part	Number Part Name	Qty. per		Model/Kit
D100 18-50 112	29631 Shaft with	medium straight	key 1
D110 18-50 112	28797 Roller bearing, tapered 1
D120 18-50 112	28820 Retaining ring 1
D130 18-50 112	28821 Lip seal 1
D140 18-50 112	28822 Washer 1
D150 18-50 FBE	052 Retaining ring 1
D160 18-50 112	28823 Roller bearing, tapered 1

Shaft

MP1M shaft K

Parts configuration

Generic housing and endcap used to show part location only.

* Included in overhaul seal kit Q210

Shaft

Order code: K

Item Date Begin	Date End Part	Number Part Name Qty. per		Model/Kit
D100 18-50 112	29631 Shaft with	medium shaft key 1
D110 18-50 112	28797 Roller bearing, tapered 1
D120 18-50 112	28820 Retaining ring 1
D130 18-50 112	28821 Lip seal 1
D140 18-50 112	28822 Washer 1
D150 18-50 FBE	052 Retaining ring 1
D160 18-50 112	28823 Roller bearing, tapered 1
D200 18-50 112	28825 Dust seal 1
D210 18-50 FBD	025 Retaining ring 1

Shaft

MP1M shaft L

Parts configuration

Generic housing and endcap used to show part location only.

* Included in overhaul seal kit Q210

Shaft

Order code: L

Item Date Begin	Date End Part	Number Part Name Qty. per		Model/Kit
D100 19-12 112	32693 Shaft, 17T,	24/48 pitch 1
D110 19-12 112	28797 Roller bearing, tapered 1
D120 19-12 112	28820 Retaining ring 1
D130 19-12 112	28821 Lip seal 1
D140 19-12 112	28822 Washer 1
D150 19-12 FBE	052 Retaining ring 1
D160 19-12 112	28823 Roller bearing, tapered 1

Porting type

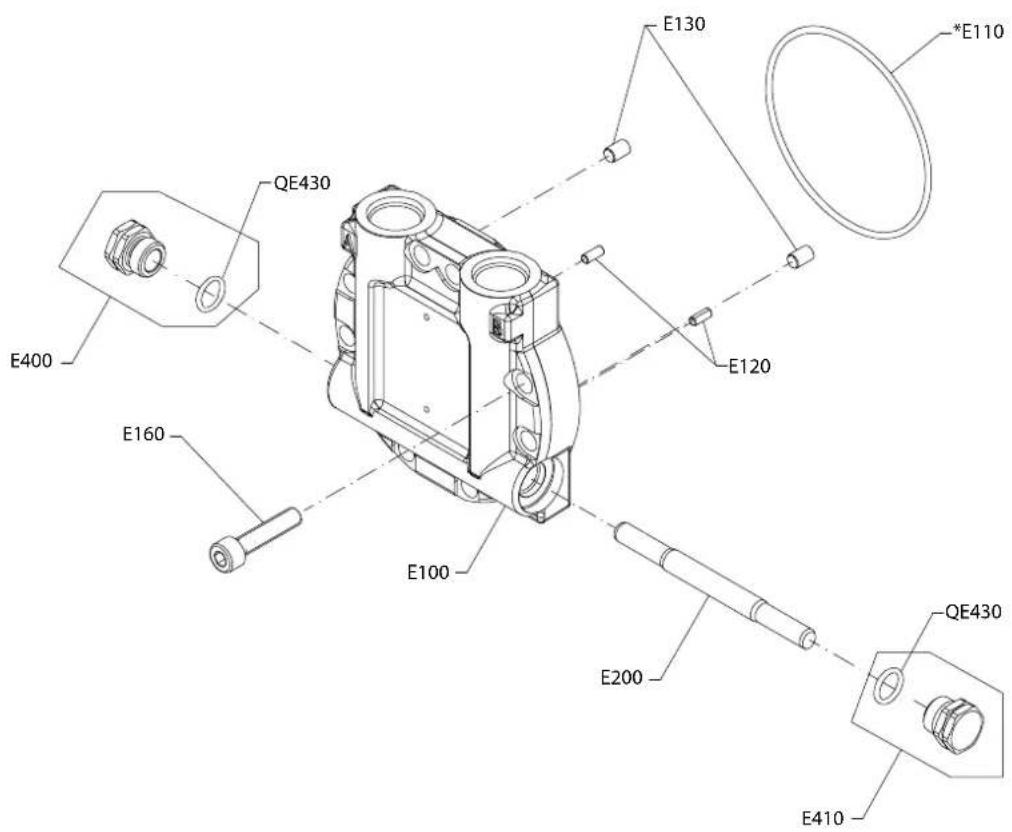

MP1M porting type A1

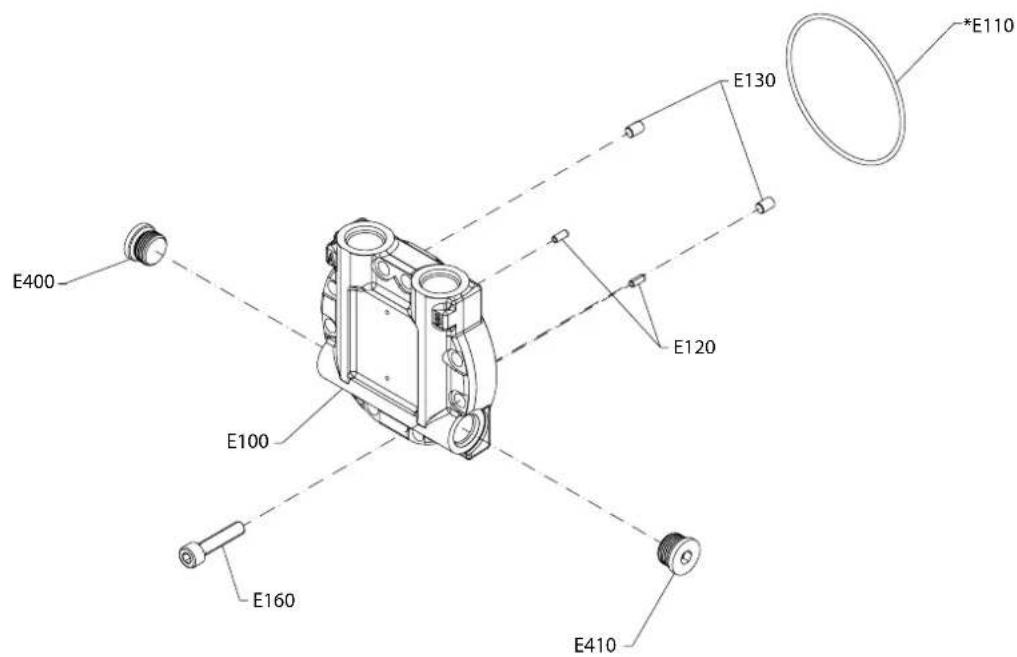

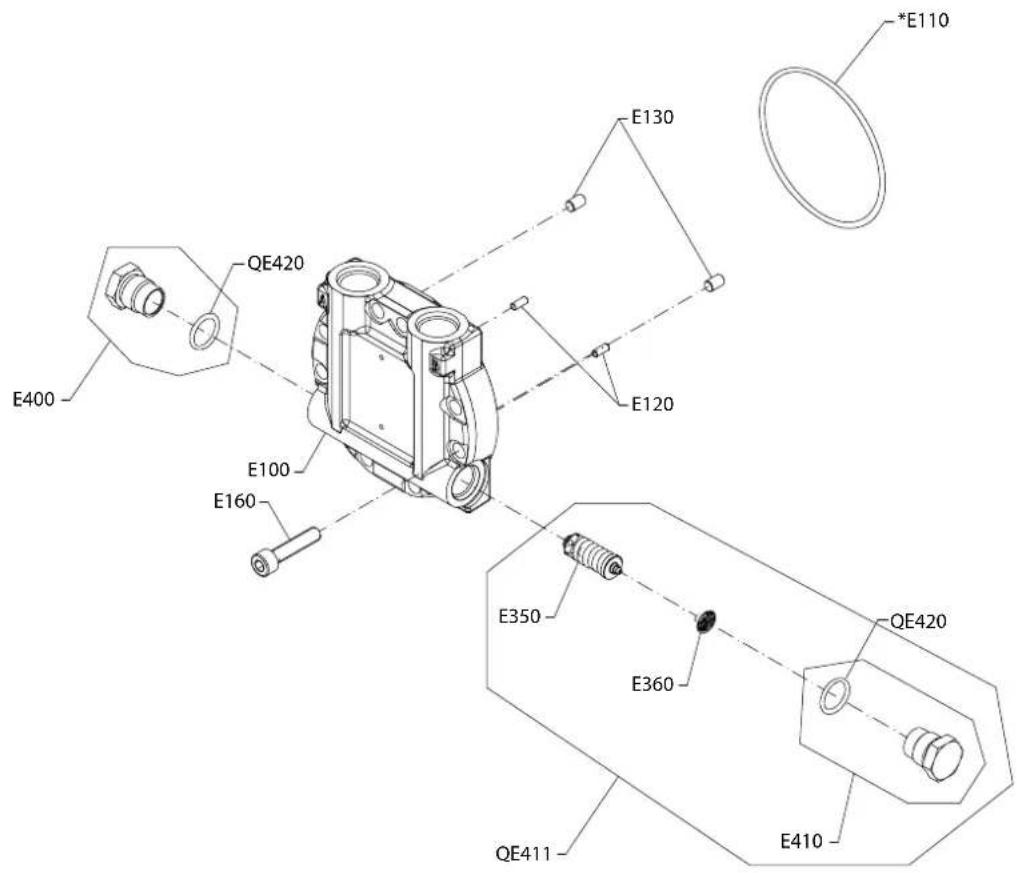

Parts configuration

* Included in overhaul seal kit Q210

This option is available in SAE and metric configuration. Please order accordingly.

Porting type

Common parts

Item Date Begin	Date End Part	Number Part Name Qty. per		Model/Kit
E110 19-28 9004	104-1530 O-ring 1
E120 19-28 9004	800-1506 Straight pin 2
E130 19-28 9004	800-2506 Straight pin 2
E160 19-28 0921	106 Screw 8
E200 19-28 1109	8213 Loop flushing spool, defeated 1
E400 19-28 1030	932-SA Plug assembly 1
E410 19-28 1030	932-SA Plug assembly 1
QE430 19-28 900	4201-3700 O-ring 2

Order code: A1 (SAE)

E100 19-28 11228906 Endcap, SAE

1

Order code: A1 (metric)

E100 19-28 11228999 Endcap, metric

1

Porting type

MP1M porting type B1

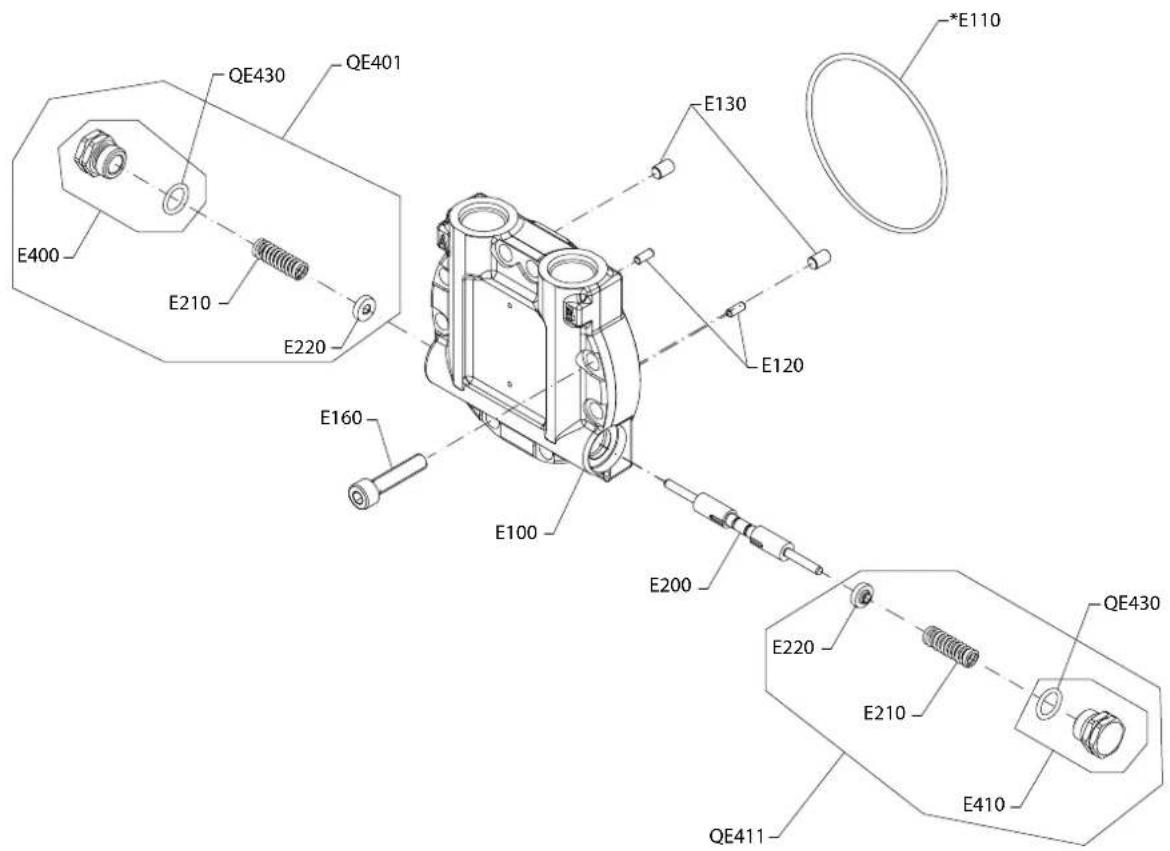

Parts configuration

* Included in overhaul seal kit Q210

This option is available in SAE and metric configurations. Please order accordingly.

Porting type

Common parts

Item Date Begin	Date End Part	Number Part Name Qty. per		Model/Kit
E110 18-48 9004	104-1530 O-ring 1
E120 18-48 9004	800-1506 Straight pin 2
E130 18-48 9004	800-2506 Straight pin 2
E160 18-48 0921	06 Screw 8
E200 18-48 1122	9010 Loop flushing spool 1
E210 18-48 1109	7840 Spring 2
E220 18-48 1745	296 Spring guide 2
E400 18-48 1030	932-SA	Plug assembly	1
E410 18-48 1030	932-SA	Plug assembly	1
QE401	18-48 11231264	Loop flushing spool assembly	1
QE411	18-48 11231266	Loop flushing spool assembly	1
QE430	18-48 9004201-3700 O-ring 2

Order code: B1 (SAE)

E100 18-48 11228906 Endcap, SAE

1

Order code: B1 (metric)

E100 18-48 11228999 Endcap, metric

1

Porting type

MP1M porting type B2

Parts configuration

* Included in overhaul seal kit Q210

This option is available in SAE and metric configurations. Please order accordingly.

Porting type

Common parts

Item Date Begin	Date End Part	Number Part Name Qty. per		Model/Kit
E110 19-02 9004	104-1530 O-ring 1
E120 19-02 9004	800-1506 Straight pin 2
E130 19-02 9004	800-2506 Straight pin 2
E160 19-02 0921	06 Screw 8
E200 19-02 1109	8179 Loop flushing spool 1
E210 19-02 1109	7840 Spring 2
E220 19-02 1745	296 Spring guide 2
E400 19-02 1030	932-SA	Plug assembly	1
E410 19-02 1030	932-SA	Plug assembly	1
QE401	19-02 11231264	Loop flushing spool assembly	1
QE411	19-02 11231266	Loop flushing spool assembly	1
QE430	19-02 9004201-3700 O-ring 2

Order code: B2 (SAE)

E100 19-02 11228906 Endcap, SAE

1

Order code: B2 (metric)

E100 19-02 11228999 Endcap, metric

1

Porting type

MP1M porting type C1

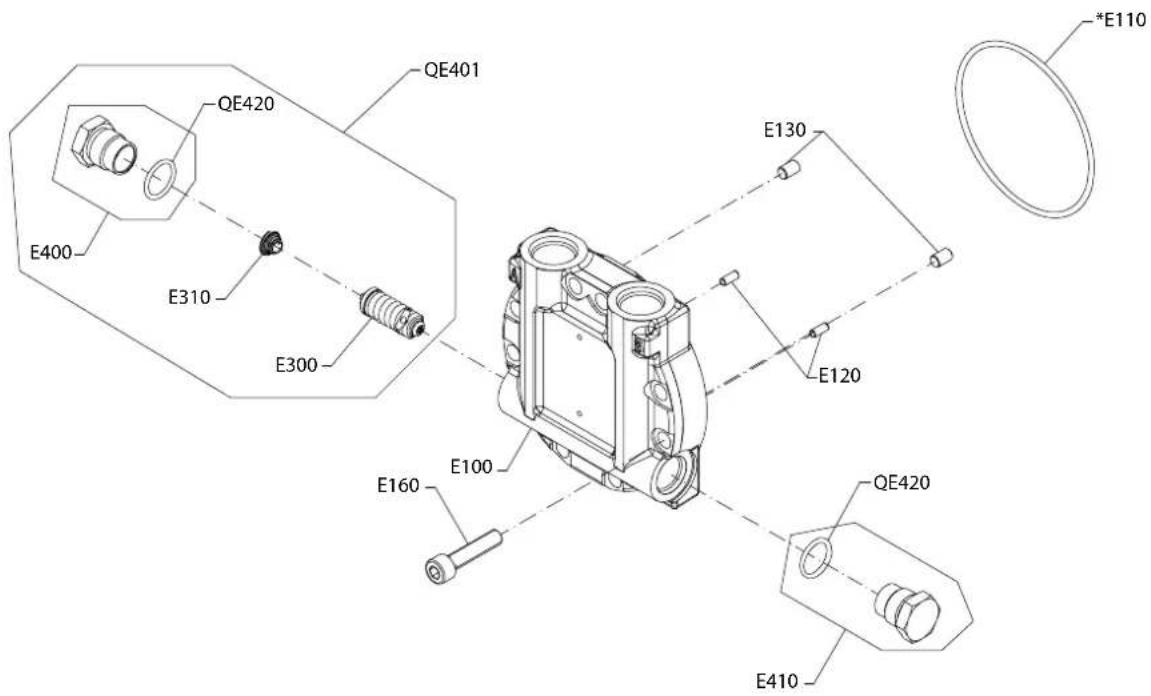

Parts configuration

* Included in overhaul seal kit Q210

This option is available in SAE and metric configurations. Please order accordingly.

Porting type

Common parts

Item Date Begin	Date End Part	Number Part Name Qty. per		Model/Kit
E110 19-02 9004	104-1530 O-ring 1
E120 19-02 9004	800-1506 Straight pin 2
E130 19-02 9004	800-2506 Straight pin 2
E160 19-02 0921	06 Screw 8
E300 19-02 3103	375-0280 Valve assembly 1
E310 19-02 4800	780 Compressed spring 1
E400 19-02 1122	9004 Plug assembly 1
E410 19-02 1122	9004 Plug assembly 1
QE401	19-02 11231269	Anti-cavitation valve assembly	1
QE420	19-02 9004021-5000 O-ring 2

Order code: C1 (SAE)

E100 19-02 11229006 Endcap, SAE

1

Order code: C1 (metric)

E100 19-02 11228994 Endcap, metric

1

Porting type

MP1M porting type C2

Parts configuration

* Included in overhaul seal kit Q210

This option is available in SAE and metric configurations. Please order accordingly.

Porting type

Common parts

Item Date Begin	Date End Part	Number Part Name Qty. per		Model/Kit
E110 19-02 9004	104-1530 O-ring 1
E120 19-02 9004	800-1506 Straight pin 2
E130 19-02 9004	800-2506 Straight pin 2
E160 19-02 0921	06 Screw 8
E300 19-02 3103	375-0345 Valve assembly 1
E310 19-02 4800	780 Compressed spring 1
E400 19-02 1122	9004 Plug assembly 1
E410 19-02 1122	9004 Plug assembly 1
QE401	19-02 11231270	Anti-cavitation valve assembly	1
QE420	19-02 9004201-5000 O-ring 2

Order code: C2 (SAE)

E100 19-02 11229006 Endcap, SAE

1

Order code: C2 (metric)

E100 19-02 11228994 Endcap, metric

1

Porting type

MP1M porting type D1

Parts configuration

* Included in overhaul seal kit Q210

This option is available in SAE and metric configurations. Please order accordingly.

Porting type

Common parts

Item Date Begin	Date End Part	Number Part Name Qty. per		Model/Kit
E110 19-02 9004	104-1530 O-ring 1
E120 19-02 9004	800-1506 Straight pin 2
E130 19-02 9004	800-2506 Straight pin 2
E160 19-02 0921	06 Screw 8
E350 19-02 3103	375-0280 Valve assembly 1
E360 19-02 4800	780 Compressed spring 1
E400 19-02 1122	9004 Plug assembly 1
E410 19-02 1122	9004 Plug assembly 1
QE411	19-02 11231412	Anti-cavitation valve assembly	1
QE420	19-02 9004201-5000 O-ring 2

Order code: D1 (SAE)

E100 19-02 11229006 Endcap, SAE

1

Order code: D1 (metric)

E100 19-02 11228994 Endcap, metric

1

Porting type

MP1M porting type D2

Parts configuration

* Included in overhaul seal kit Q210

This option is available in SAE and metric configurations. Please order accordingly.

Porting type

Common parts

Item Date Begin	Date End Part	Number Part Name Qty. per		Model/Kit
E110 19-02 9004	104-1530 O-ring 1
E120 19-02 9004	800-1506 Straight pin 2
E130 19-02 9004	800-2506 Straight pin 2
E160 19-02 0921	06 Screw 8
E350 19-02 3103	375-0345 Valve assembly 1
E360 19-02 4800	780 Compressed spring 1
E400 19-02 1122	9004 Plug assembly 1
E410 19-02 1122	9004 Plug assembly 1
QE411	19-02 11231413	Anti-cavitation valve assembly	1
QE420	19-02 9004201-5000 O-ring 2

Order code: D2 (SAE)

E100 19-02 11229006 Endcap, SAE

1

Order code: D2 (metric)

E100 19-02 11228994 Endcap, metric

1

Porting type

MP1M porting type E1

Parts configuration

* Included in overhaul seal kit Q210

Porting type

Order code: E1

Item Date Begin	Date End Part	Number Part Name Qty. per		Model/Kit
E100 19-12 1123	2694 Endcap 1
E110 19-12 9004	104-1530 O-ring 1
E120 19-12 9004	800-1506 Straight pin 2
E130 19-12 9004	800-2506 Straight pin 2
E160 19-12 0921	06 Screw 8
E400 19-12 J900	5110-7500 Plug assembly 1
E410 19-12 J900	5110-7500 Plug assembly 1

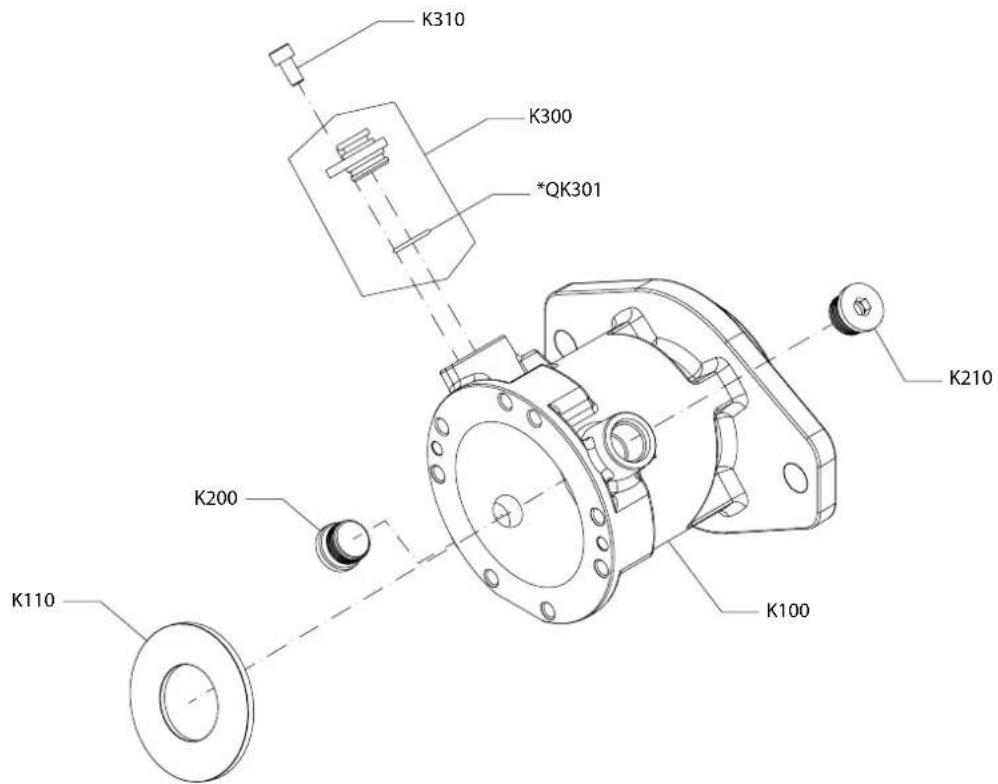

Housing

MP1M housing AA, AC, DA, DC

Parts configuration

* Included in overhaul seal kit Q210

This option is available in SAE and metric configurations. Please order accordingly.

Housing

Order code: AA, DA

Item Date Begin	Date End Part	Number Part Name Qty. per		Model/Kit
K110 18-52 11050106 Thrust plate 1
K300 18-52 149055 Speed and temperature sensor 4.5 - 8V 1
K310 18-52 503674 Screw 1
QK301 18-52 11013397 O-ring 1

Order code: AC, DC

Item Date Begin	Date End Part	Number Part Name Qty. per		Model/Kit
K110 18-52 110	50106 Thrust plate 1
K300 21-01 112	32698 Speed and temperature sensor 7 - 32V 1
K310 18-52 503	674 Screw 1
QK301 18-52 11	013397 O-ring 1

Order code: AA, AC (SAE)

K100 18-52 11226877 Housing, SAE-A 1
K200 18-52 J9005110-7500	Plug assembly	1
K210 18-52 J9005110-7500	Plug assembly	1

Order code: DA, DC (metric)

K100 18-52 11226878 Housing, SAE-A, metric		1
K200 18-52 5000570	Plug assembly		1
K210 18-52 5000570	Plug assembly		1

Housing

MP1M housing AB, AD, DB, DD

Parts configuration

* Included in overhaul seal kit Q210

This option is available in SAE and metric configurations. Please order accordingly.

Housing

Order code: AB, DB

Item Date Begin	Date End Part	Number Part Name Qty. per		Model/Kit
K110 18-48 11050106 Thrust plate 1
K300 18-48 149055 Speed and temperature sensor 4.5 - 8V 1
K310 18-48 11158928 Screw 1
K350 18-48 11187156 Sensor cover 1
QK301 18-48 11013397 O-ring 1

Order code: AD, DD

Item Date Begin	Date End Part	Number Part Name Qty. per		Model/Kit
K110 18-48 1105	0106 Thrust plate 1
K300 21-01 1123	2698 Speed and temperature sensor 7 - 32V 1
K310 18-48 1115	8928 Screw 1
K350 18-48 1118	7156 Sensor cover 1
QK301 18-48 1101	13397 O-ring 1

Order code: AA, AD (SAE)

K100 18-48 11226877 Housing, SAE-A		1
K200 18-48 J9005110-7500	Plug assembly		1
K210 18-48 J9005110-7500	Plug assembly		1

Order code: DB, DD (metric)

K100 18-52 11226878 Housing, SAE-A, metric		1
K200 18-52 5000570	Plug assembly		1
K210 18-52 5000570	Plug assembly		1

Housing

MP1M housing AN, DN

Parts configuration

* Included in overhaul seal kit Q210

This option is available in SAE and metric configurations. Please order accordingly.

Housing

Common parts

Item Date Begin	Date End Part	Number Part Name Qty. per			Model/Kit
K110 18-52 110	50106 Thrust plate 1
K300 18-52 110	3290 Plug 1
K310 18-52 503	674 Screw 1
QK301 18-52 110	013397 O-ring 1

Order code: AN (SAE)

K100 18-52 11226877 Housing, SAE-A 1
K200 18-52 J9005110-7500 Plug assembly	1
K210 18-52 J9005110-7500 Plug assembly	1

Order code: DN (metric)

K100 18-52 11226878 Housing, SAE-A, metric		1
K200 18-52 5000570	Plug assembly		1
K210 18-52 5000570	Plug assembly		1

Housing

MP1M housing BA, BC, EA, EC

Parts configuration

* Included in overhaul seal kit Q210

This option is available in SAE and metric configurations. Please order accordingly.

Housing

Order code: BA, EA

Item Date Begin	Date End Part	Number Part Name	Qty. per		Model/Kit
K110 18-52 1105	0106 Thrust plate	1
K300 18-52 1490	55 Speed and temperature sensor		4.5 - 8V 1
K310 18-52 5036	74 Screw 1
QK301 18-52 1101	13397 O-ring 1

Order code: BC. EC

Item Date Begin	Date End Part	Number Part Name Qty. per		Model/Kit
K110 18-52 110	50106 Thrust plate 1
K300 21-01 112	32698 Speed and temperature sensor 7 - 32V 1
K310 18-52 503	674 Screw 1
QK301 18-52 11	013397 O-ring 1

Order code: BA, BC (SAE)

K100 18-52 11226881 Housing, SAE-B 1
K200 18-52 J9005110-7500	Plug assembly	1
K210 18-52 J9005110-7500	Plug assembly	1

Order code: EA, EC (metric)

K100 18-52 11226892 Housing, SAE-B, metric 1
K200 18-52 5000570	Plug assembly		1
K210 18-52 5000570	Plug assembly		1

Housing

MP1M housing BB, BD, EB, ED

Parts configuration

* Included in overhaul seal kit Q210

This option is available in SAE and metric configurations. Please order accordingly.

Housing

Order code: BB, EB

Item Date Begin	Date End Part	Number Part Name Qty. per		Model/Kit
K110 18-52 110	50106 Thrust plate 1
K300 18-52 149	055 Speed and temperature sensor	4.5 - 8V 1
K310 18-52 111	58928 Screw 1
K350 18-52 111	87156 Sensor cover 1
QK301 18-52 11	013397 O-ring 1

Order code: BD, ED

Item Date Begin	Date End Part	Number Part Name Qty. per		Model/Kit
K110 18-52 110	50106 Thrust plate 1
K300 21-01 112	32698 Speed and temperature sensor 7 - 32V 1
K310 18-52 111	58928 Screw 1
K350 18-52 111	87156 Sensor cover 1
QK301 18-52 110	013397 O-ring 1

Order code: BB, BD (SAE)

K100 18-52 11226881 Housing, SAE-B		1
K200 18-52 J9005110-7500	Plug assembly		1
K210 18-52 J9005110-7500	Plug assembly		1

Order code: EB, ED (metric)

K100 18-52 11226892 Housing, SAE-B, metric 1
K200 18-52 5000570	Plug assembly	1
K210 18-52 5000570	Plug assembly	1

Housing

MP1M housing BN, EN

Parts configuration

* Included in overhaul seal kit Q210

This option is available in SAE and metric configurations. Please order accordingly.

Housing

Common parts

Item Date Begin	Date End Part	Number Part Name Qty. per			Model/Kit
K110 18-52 110	50106 Thrust plate 1
K300 18-52 110	3290 Plug 1
K310 18-52 503	674 Screw 1
QK301 18-52 110	013397 O-ring 1

Order code: BN (SAE)

K100 18-52 11226881 Housing, SAE-B 1
K200 18-52 J9005110-7500 Plug assembly	1
K210 18-52 J9005110-7500 Plug assembly	1

Order code: EN (metric)

K100 18-52 11226892 Housing, SAE-B, metric 1
K200 18-52 5000570	Plug assembly		1
K210 18-52 5000570	Plug assembly		1

Housing

MP1M housing CA, CC, FA, FC

Parts configuration

* Included in overhaul seal kit Q210

This option is available in SAE and metric configurations. Please order accordingly.

Housing

Order code: CA, FA

Item Date Begin	Date End Part	Number Part Name	Qty. per		Model/Kit
K110 18-52 1105	0106 Thrust plate	1
K300 18-52 1490	55 Speed and temperature sensor		4.5 - 8V 1
K310 18-52 5036	74 Screw 1
QK301 18-52 1101	13397 O-ring 1

Order code: CC, FC

Item Date Begin	Date End Part	Number Part Name Qty. per		Model/Kit
K110 18-52 110	50106 Thrust plate 1
K300 21-01 112	32698 Speed and temperature sensor 7 - 32V 1
K310 18-52 503	674 Screw 1
QK301 18-52 11	013397 O-ring 1

Order code: CA, CC (SAE)

K100 18-52 11226874 Housing, cartridge 1
K200 18-52 J9005110-7500	Plug assembly	1
K210 18-52 J9005110-7500	Plug assembly	1

Order code: FA, FC (metric)

K100 18-52 11226875 Housing, cartridge, metric		1
K200 18-52 5000570	Plug assembly		1
K210 18-52 5000570	Plug assembly		1

Housing

MP1M housing CB, CD, FB, FD

Parts configuration

* Included in overhaul seal kit Q210

This option is available in SAE and metric configurations. Please order accordingly.

Housing

Order code: CB, FB

Item Date Begin	Date End Part	Number Part Name Qty. per		Model/Kit
K110 18-52 110	50106 Thrust plate 1
K300 18-52 149	055 Speed and temperature sensor	4.5 - 8V 1
K310 18-52 111	58928 Screw 1
K350 18-52 111	87156 Sensor cover 1
QK301 18-52 11	013397 O-ring 1

Order code: CD, FD

Item Date Begin	Date End Part	Number Part Name Qty. per		Model/Kit
K110 18-52 110	50106 Thrust plate 1
K300 21-01 112	32698 Speed and temperature sensor7 - 32V 1
K310 18-52 111	58928 Screw 1
K350 18-52 111	87156 Sensor cover 1
QK301 18-52 110	013397 O-ring 1

Order code: CB, CD (SAE)

K100 18-52 11226874 Housing, cartridge		1
K200 18-52 J9005110-7500	Plug assembly		1
K210 18-52 J9005110-7500	Plug assembly		1

Order code FB, FD (metric)

K100 18-52 11226875 Housing, cartridge, metric	1
K200 18-52 5000570	Plug assembly	1
K210 18-52 5000570	Plug assembly	1

Housing

MP1M housing CN, FN

Parts configuration

* Included in overhaul seal kit Q210

This option is available in SAE and metric configurations. Please order accordingly.

Housing

Common parts

Item Date Begin	Date End Part	Number Part Name Qty. per			Model/Kit
K110 18-52 110	50106 Thrust plate 1
K300 18-52 110	3290 Plug 1
K310 18-52 503	674 Screw 1
QK301 18-52 110	013397 O-ring 1

Order code: CN (SAE)

K100 18-52 11226874 Housing, cartridge 1
K200 18-52 J9005110-7500 Plug assembly	1
K210 18-52 J9005110-7500 Plug assembly	1

Order code: FN (metric)

K100 18-52 11226875 Housing, cartridge, metric		1
K200 18-52 5000570	Plug assembly		1
K210 18-52 5000570	Plug assembly		1

Displacement

MP1M displacement 20A, 24A

Parts configuration

Generic housing and endcap used to show part location only.

Displacement

Order code: 20A

Item Date Begin	Date End Part	Number Part Name Qty. per		Model/Kit
A005 19-02 112	29118 Cylinder block assembly 1
A030 19-02 110	51744 Slipper hold down pin 3
A040 19-02 110	50768 Ball guide 1
A045 19-02 110	51772 Piston retainer assembly 1
A050 19-02 110	43940 Slipper retainer 1
A055 19-02 110	51761 Piston assembly 9
M010 19-02 112	28985 Cylinder block kit 1
M025 19-02 112	21364 Valve plate	1
Q210	19-02 11231284	Overhaul seal kit	1

Order code: 24A

A005 19-02 11229119 Cylinder block assembly 1
A030 19-02 11051744 Slipper hold down pin 3
A040 19-02 11050768 Ball guide 1
A045 19-02 11228987 Piston retainer assembly 1
A050 19-02 11228989 Slipper retainer 1
A055 19-02 11228988 Piston assembly 9
M010 19-02 11217765 Cylinder block kit 1
M025 19-02 11221364 Valve plate	1
Q210	19-02 11231284 Overhaul seal kit	1

Overhaul seal kit

MP1M seal kit

Seal kit

Item Date Begin	Date End Part	Number Part Name Qty. per		Model/Kit
D130 19-02 112	28821 Lip seal 1
D200 19-02 112	28825 Dust seal 1
E110 19-02 900	4104-1530 O-ring 1
QK301 19-02 11	013397 O-ring 1
QE420 19-02 90	04210-5000 O-ring 2
QE430 19-02 90	04210-3700 O-ring 2

Products we offer:

• Cartridge valves
  • DCV directional control valves
  • Electric converters
  Electric machines
  Electric motors
• Gear motors
• Gear pumps
  • Hydraulic integrated circuits (HICs)
  • Hydrostatic motors
  • Hydrostatic pumps
• Orbital motors
• PLUS+1 ^® controllers
• PLUS+1 ^ displays
  • PLUS+1° joysticks and pedals
  • PLUS+1 ^® operator interfaces
• PLUS+1 ^ sensors
• PLUS+1* software
  • PLUS+1 ^® software services, support and training
  • Position controls and sensors
  • PVG proportional valves
  • Steering components and systems
• Telematics

Danfoss Power Solutions is a global manufacturer and supplier of high-quality hydraulic and electric components. We specialize in providing state-of-the-art technology and solutions that excel in the harsh operating conditions of the mobile off-highway market as well as the marine sector. Building on our extensive applications expertise, we work closely with you to ensure exceptional performance for a broad range of applications. We help you and other customers around the world speed up system development, reduce costs and bring vehicles and vessels to market faster.

Danfoss Power Solutions – your strongest partner in mobile hydraulics and mobile electrification.

Go to www.danfoss.com for further product information.

We offer you expert worldwide support for ensuring the best possible solutions for outstanding performance. And with an extensive network of Global Service Partners, we also provide you with comprehensive global service for all of our components.

Local address:

Hydro-Gear

www.hydro-gear.com

Daikin-Sauer-Danfoss

www.daikin-sauer-danfoss.com

Danfoss

Power Solutions (US) Company

2800 East 13th Street

Ames, IA 50010, USA

D-24539 Neumünster, Germany

Phone: [phone]

Danfoss

Power Solutions ApS

Nordborgvej 81

DK-6430 Nordborg, Denmark

Phone: [phone]

Danfoss

Power Solutions Trading

(Shanghai) Co., Ltd.

Building #22, No. 1000 Jin Hai Rd

Jin Qiao, Pudong New District

Shanghai, China 201206

Phone: [phone]

Danfoss can accept no responsibility for possible errors in catalogues, brochures and other printed material. Danfoss reserves the right to alter its products without notice. This also applies to products already on order provided that such alterations can be made without subsequent changes being necessary in specifications already agreed.

All trademarks in this material are property of the respective companies. Danfoss and the Danfoss logotype are trademarks of Danfoss A/5. All rights reserved.
