Kiplo - Stroller BEBE CONFORT - Free user manual and instructions

Product Type	Stroller
Brand	BéBé Confort
Model	Kiplo
Recommended Age	From 6 months
Maximum Child Weight	15 kg
Dimensions (folded)	Approx. 80 x 30 x 60 cm
Dimensions (unfolded)	Approx. 100 x 60 x 105 cm
Product Weight	Approx. 8.5 kg
Safety Standard	EN 1888-1:2018
Brake	Parking brake pedal
Restraint System	5-point safety harness
Backrest Recline	Multiple reclining positions
Canopy	UV protection hood
Wheels	4 swivel wheels with suspension
Storage Basket	Yes, capacity 2 kg
Folding	Compact one-hand fold
Adjustable Handle	Yes
Compatible Accessories	Tray, net, pocket (depending on version)
Frame Maintenance	Wipe with a sponge and mild soap
Fabric Maintenance	Refer to the care label
Warranty	24 months (manufacturing defects)
Spare Parts	Contact local distributor or customer service

Frequently Asked Questions - Kiplo BEBE CONFORT

From what age can I use the Kiplo stroller?

The stroller is designed for children from 6 months up to 15 kg.

How to fold the Kiplo stroller?

To fold the stroller, operate the folding handle located under the seat while pushing the stroller forward. Refer to the manual for detailed instructions.

How to maintain the stroller frame?

Clean the frame with a sponge and mild soap. Do not use detergent, grease or oil. Check mechanisms every 15 days.

Can I use the stroller for a newborn?

No, this seat is not suitable for children under 6 months. For smaller ones, use a suitable carrycot (not included).

How to activate the brake?

Press the brake pedal located at the rear of the frame to lock the wheels. Ensure the brake is fully engaged before stopping the stroller.

What is the maximum weight of the lower basket?

The lower basket supports a maximum load of 2 kg. Do not exceed this limit to avoid any risk of tipping.

Can I machine wash the stroller fabric?

Check the care label sewn on the fabric for washing instructions. Generally, hand washing with mild soap is recommended.

Is the Kiplo stroller compatible with a car seat?

Yes, some Bébé Confort car seat models can be adapted using adapters (sold separately). Check compatibility on the manufacturer's website.

What to do in case of defect or missing part?

Contact your local retailer or Bébé Confort customer service with proof of purchase. The 24-month warranty covers manufacturing defects.

Can I use the stroller for jogging?

No, this product is not suitable for jogging or rollerblading. It is designed for everyday use on flat terrain.

USER MANUAL Kiplo BEBE CONFORT

White silhouette of an elephant and a baby on a green background (no text or symbols)

bebeconfort

Kiplo

6m+ | < 15kg

Black and white photo of a baby stroller with wheels and a hood, no visible text or symbols

bebeconfort.com

Photos non contractuelles - Products may differ from those shown - Niet contractuele foto's - Abbildungen ohne Gewähr - Las fotos pueden no coincidir con el producto real - Fotografie non contrattuali - Fotos não contratuais - Produkty sa možu odlíšovať od vyobrazených - Produkt može różnić się od pokazanego na ilustracji - Výrobky se mohou lišit od vyobrazení - Utomobligatoriska fotografier

EN • IMPORTANT! READ CAREFULLY AND KEEP FOR FUTURE REFERENCE.

Instructions for use/Warranty

Black-and-white photo of a multi-wheeled vehicle with two wheels and a helmet, no visible text or symbols.

1

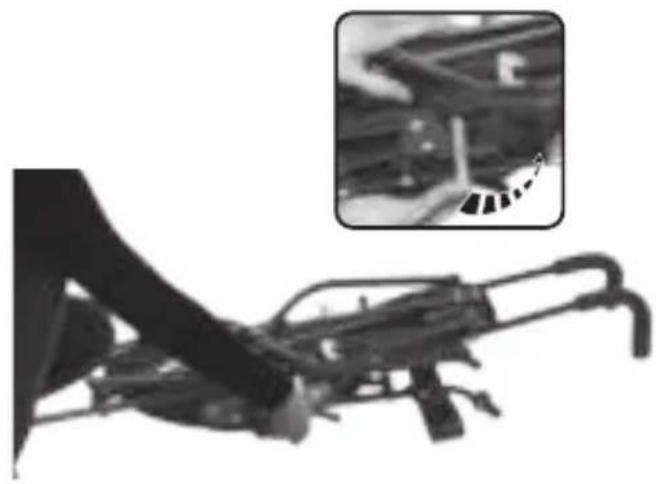

Mechanical assembly with a close-up inset showing a gear mechanism (no visible text or symbols)

2

Close-up of a robotic hand gripping a mechanical device with a circular icon labeled 'a' indicating rotation (no text or symbols on the device itself)

Silhouette of an oil rig with a curved arrow and label 'b' (no text or symbols on the structure itself)

Two robotic exoskeleton models with curved limbs, one before and one after assembly, showing structural changes (no text or symbols)

X2 CLICK

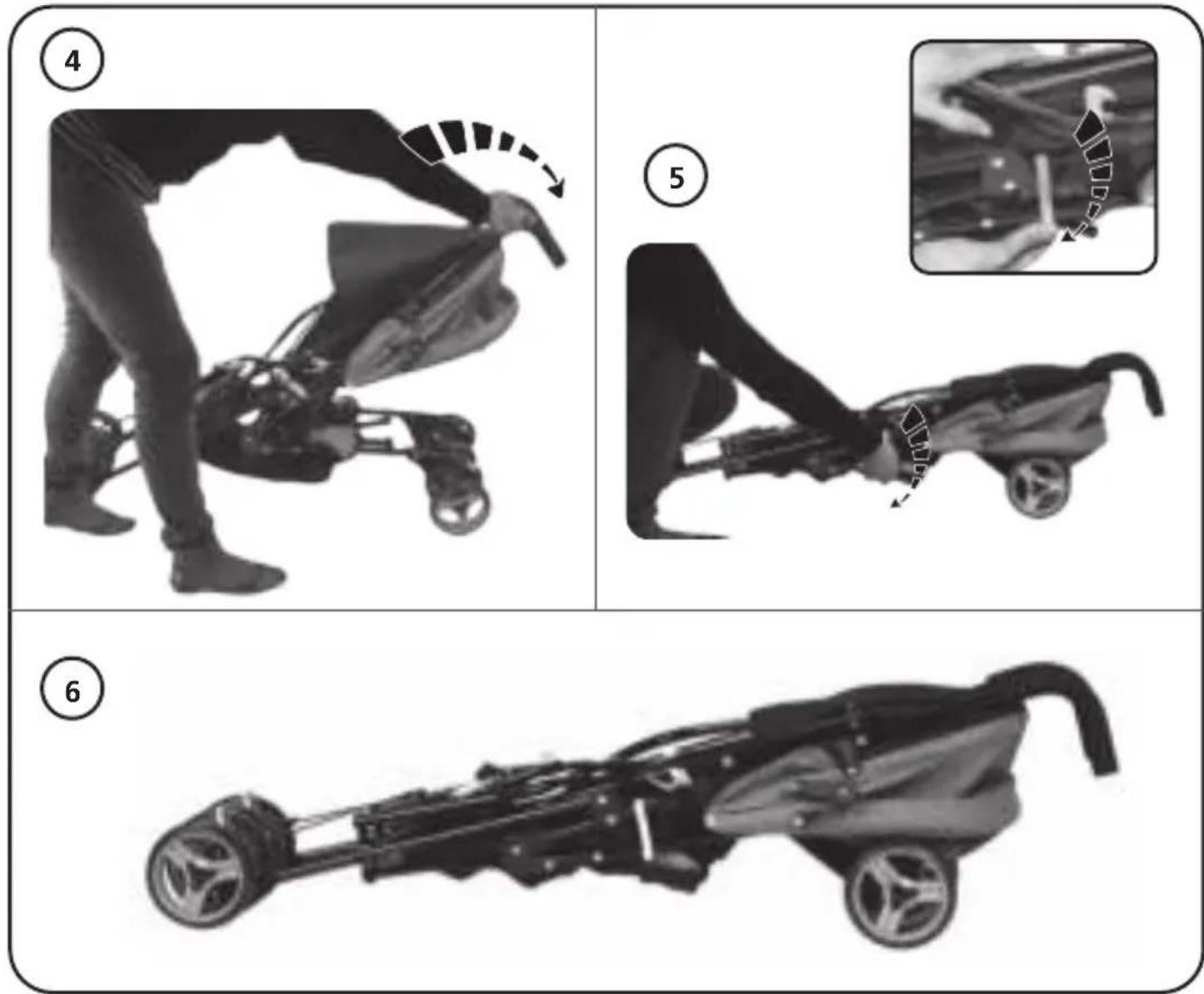

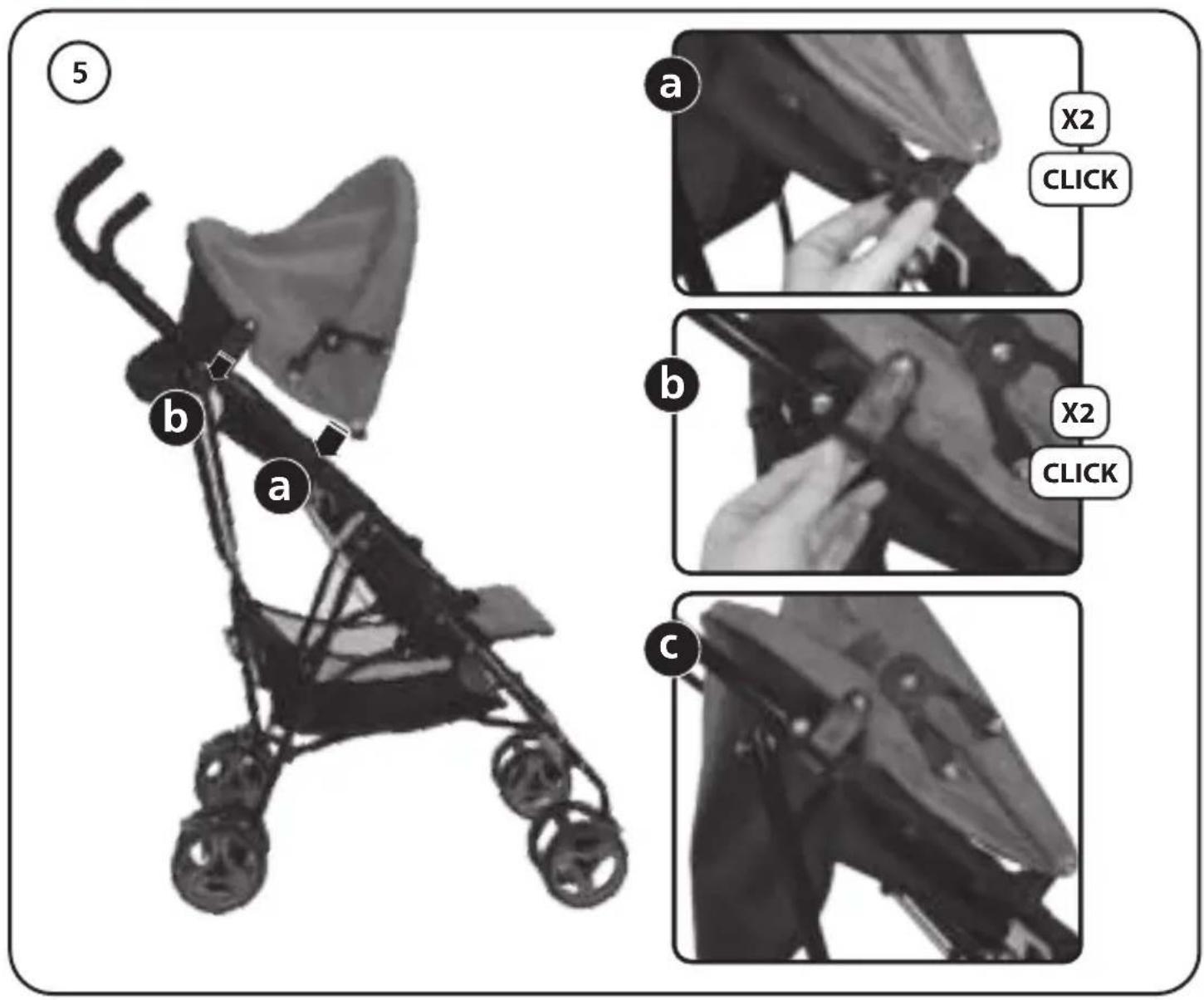

5 a X2 CLICK b X2 CLICK c

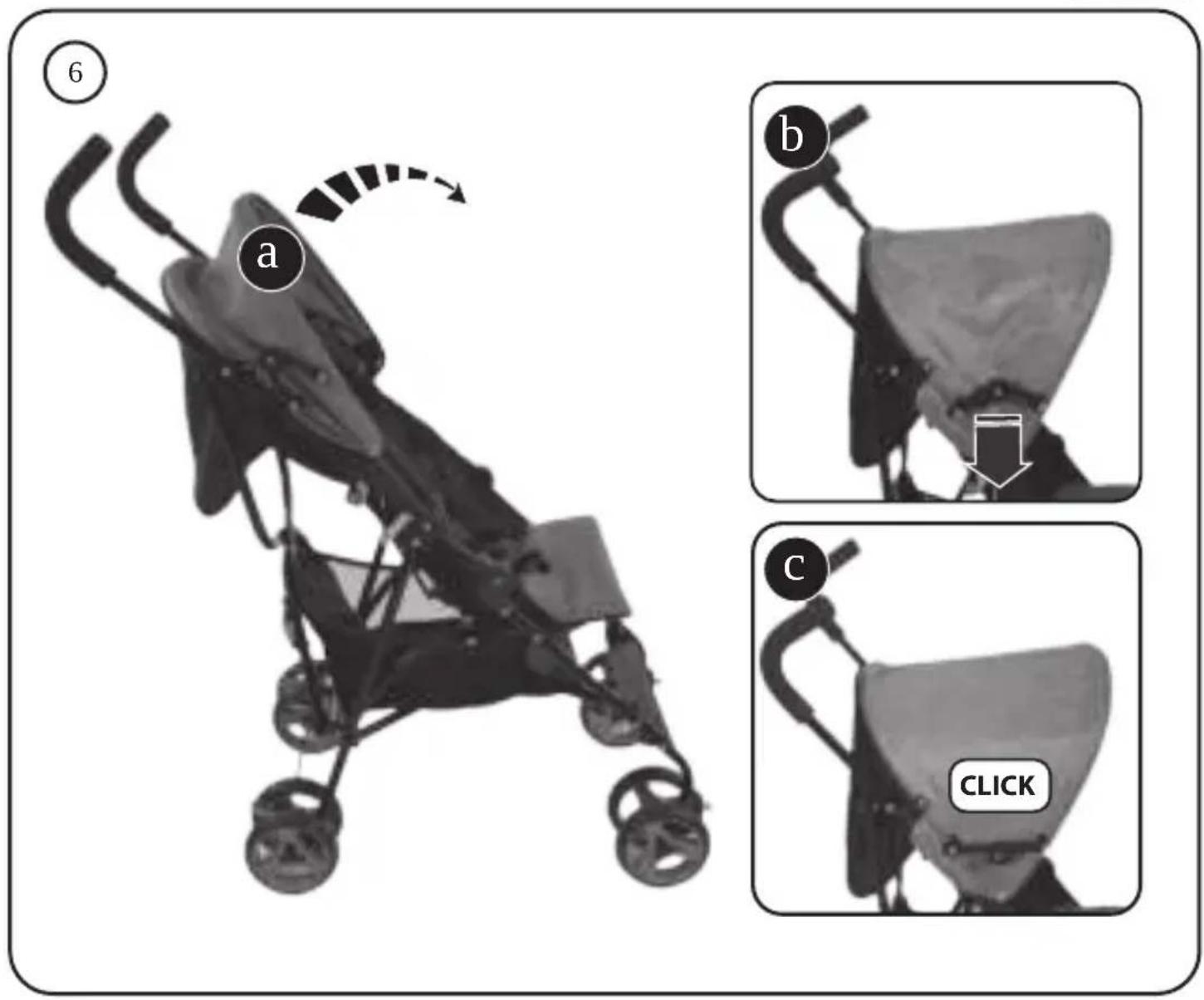

6 a b c CLICK

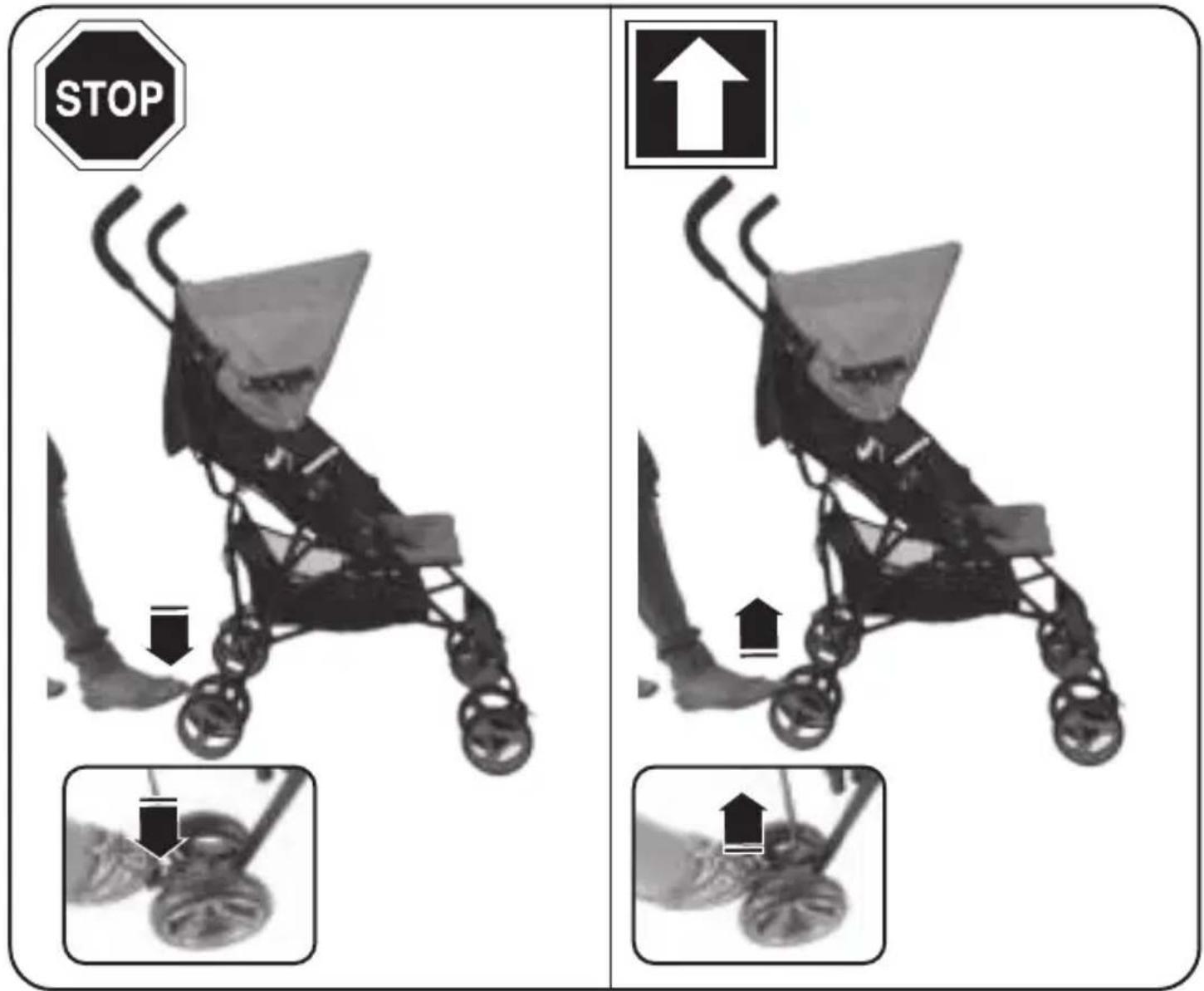

STOP ↑

Top-down view of a baby stroller with two handles and wheels (no text or symbols visible)

Abstract white arrow shape pointing right on black background (no text or symbols)

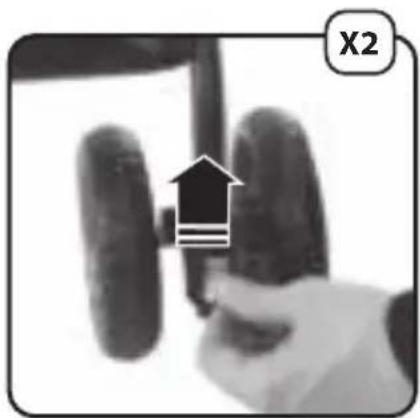

Close-up of a hand holding two dumbbells with an arrow pointing upward, no visible text or symbols

Simple white circular arrow icon on black background, no text or symbols present

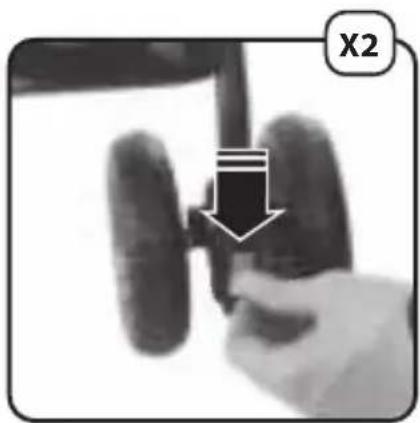

Close-up of a hand holding a small mechanical component with a downward arrow and 'X2' label (no readable text or symbols on the object itself)

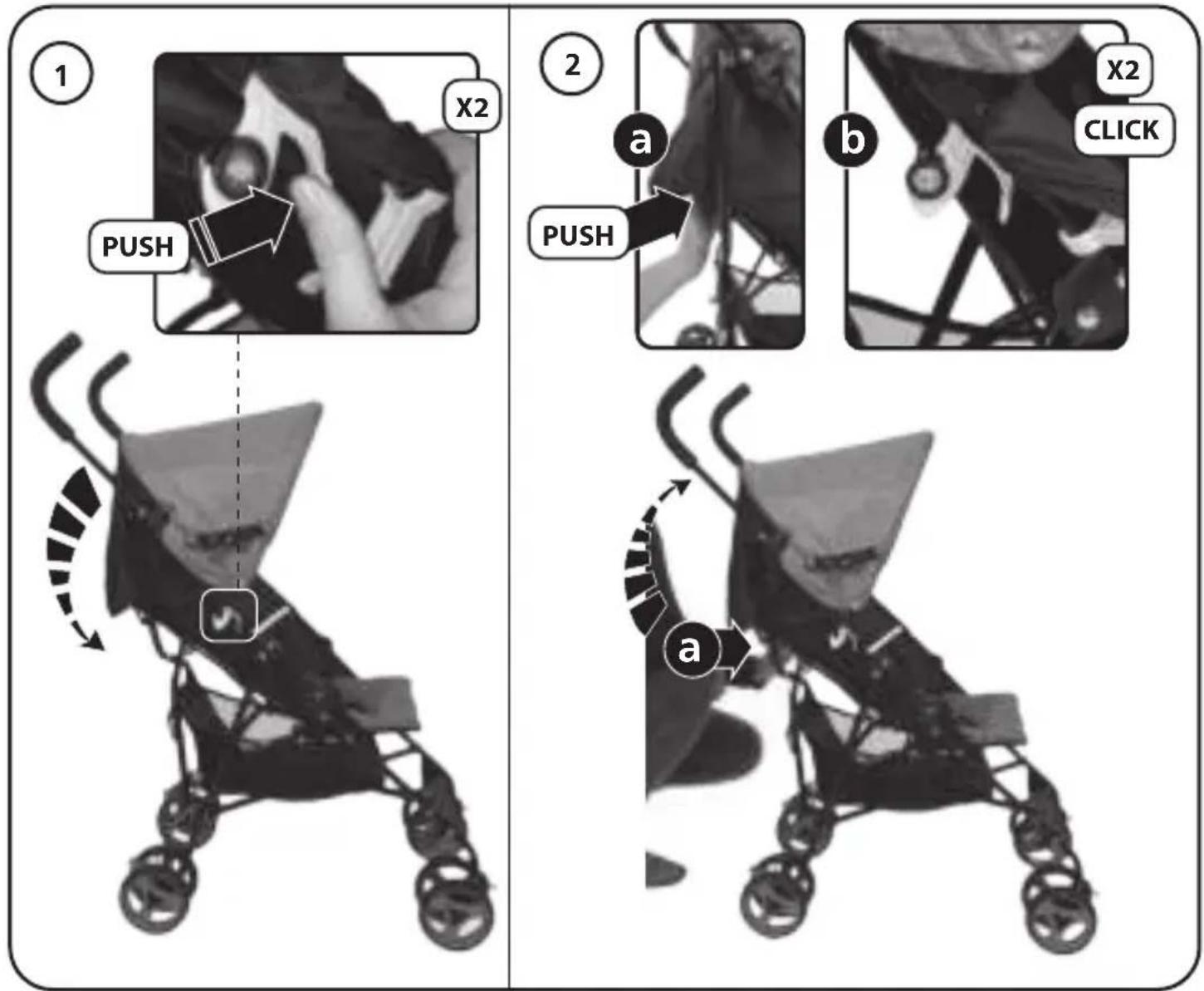

1 X2 PUSH 2 a PUSH b X2 CLICK a

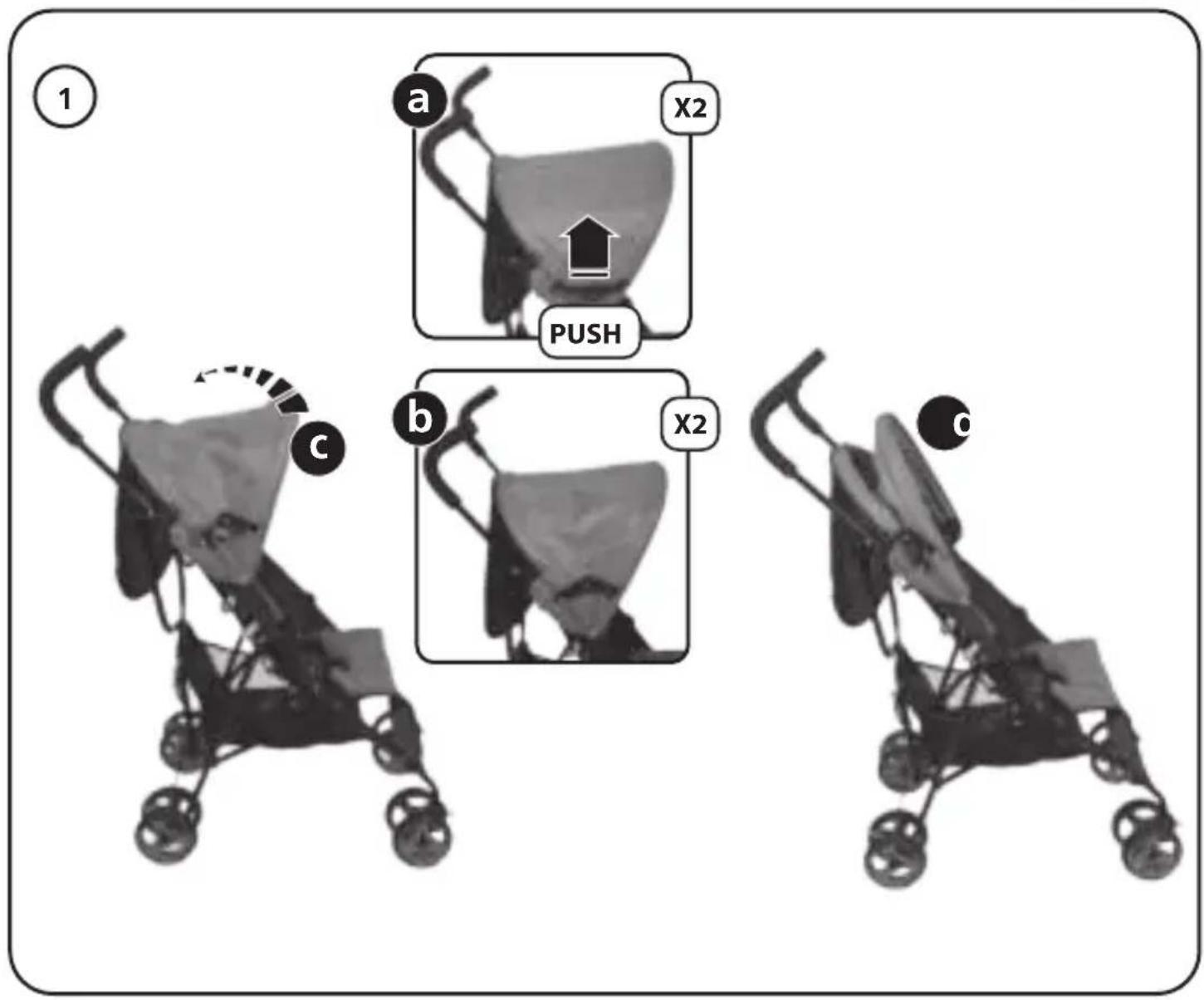

1 a X2 PUSH b X2 c

Medical procedure images showing a stroller with labeled parts and a magnified view of the internal structure.

Diagram illustrating a person using a stroller to adjust the body, with labeled steps and a close-up inset showing the motion.

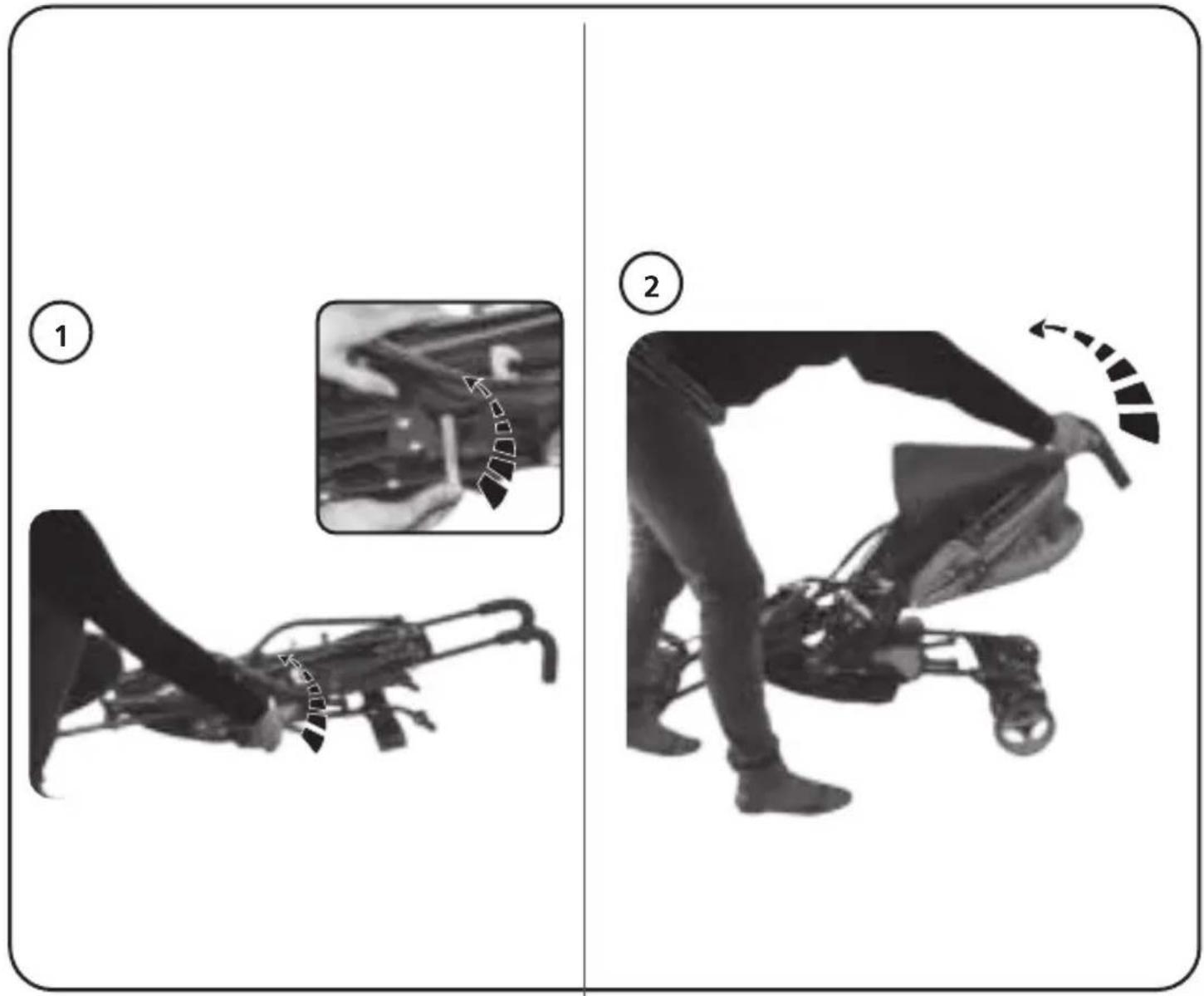

Diagram illustrating two mechanical or robotic device states: (1) left side shows a motor with labeled components, (2) right side shows a person adjusting a stroller with motion arrows.

Diagram illustrating robot motion steps with labeled instructions and a close-up of the device's movement, including a 'CLICK' button.

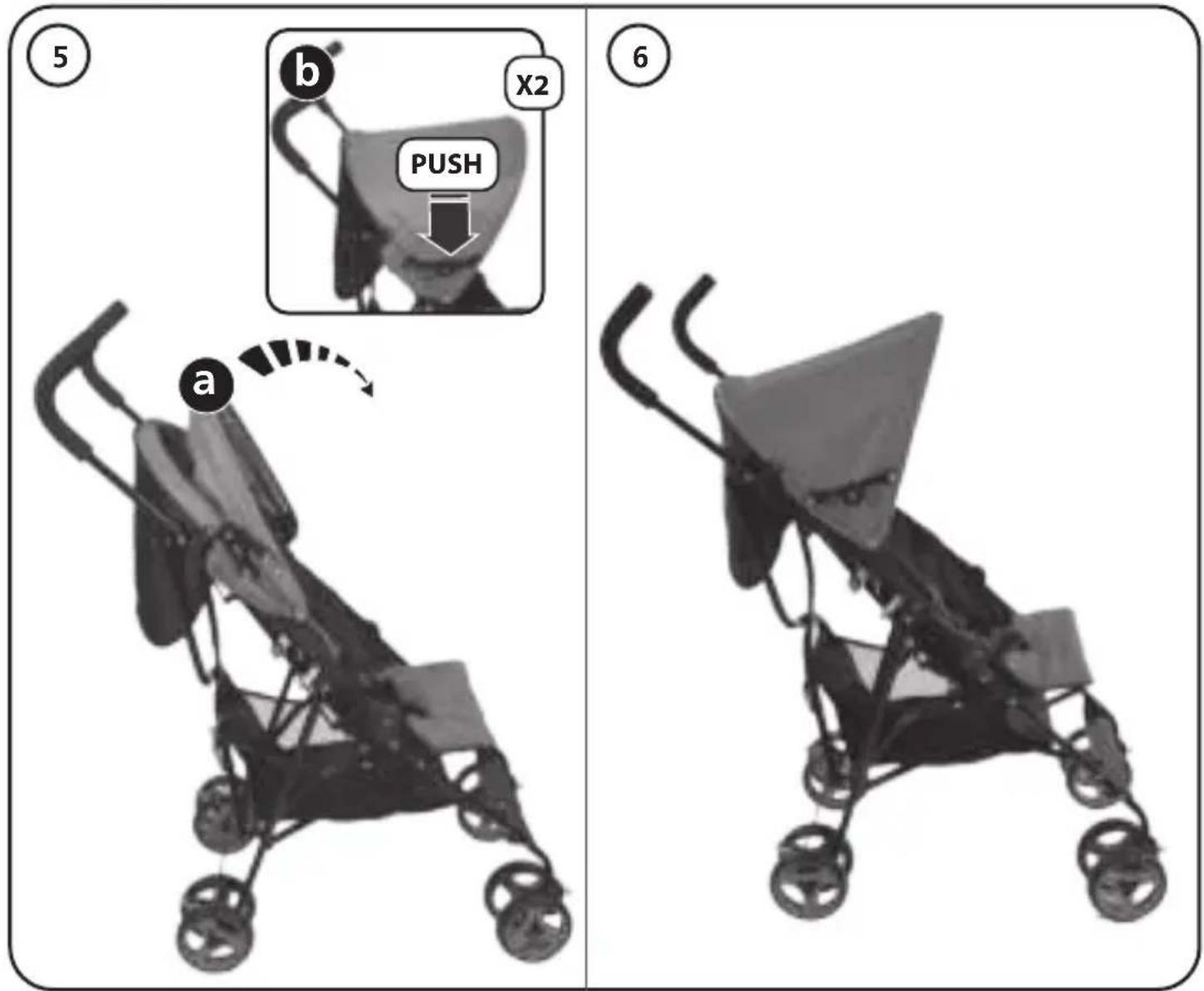

5 b X2 PUSH a 6

Three identical red schematic diagrams of industrial piping systems, arranged in a grid (no text or labels)

GENERAL INSTRUCTIONS

Our products have been carefully designed and tested to ensure your baby's safety and comfort. EN 1888-1:2018.

1. This vehicle is intended for children from 6 months and up to 15 kg.
2. Never carry more than 1 child per place in the pushchair at a time.
3. Never use stairs or escalators with your child in the pushchair.
4. The brake must always be on when putting the child in or taking him out. Always use the parking brake, even when standing still for only a few moments.
5. Only use accessories or spare parts sold or approved by the manufacturer. Using other accessories could be dangerous.
6. For buggies with accessories (depending on the version), please respect the maximum weight loads indicated below: Ex: Maximum permitted weight for the play tray 2 kg. Maximum permitted weight for the net bag 2 kg. Maximum permitted weight for the storage pocket 1 kg. Maximum permitted weight for the basket 2 kg.

WARNING :

• This seat unit is not suitable for children under 6 months.
• Never leave the child unattended.
• Ensure that all the locking devices are engaged before use.
  • To avoid injury ensure that the child is kept away when unfolding and folding this product.
• Never lift the pushchair with the child inside it.
• Do not let the child play with this product.
• Always use the restraint system. The product may be equipped with anchorage points for an additional harness, in this case these anchorage points may be situated, either at the level of the safety belt, under the seat or on each side of the seat.
• This product is not suitable for running or skating or any other sport activities.
• Not suitable for over night sleeping, your child may be at risk of serious harm or injury.
• Any load attached to the handle, back-

rest or sides affects the stability of the pram/pushchair.

• To avoid the risk of suffocation, keep all plastic bags and packaging out of reach of babies and young children.
- Check that the pram body or seat unit or car seat attachment devices are correctly engaged before use.
• Always check that the brake is fully engaged before letting go of your stroller.
- Never let your child climb into or out of the stroller alone.

Chassis care advice

• The product must be maintained regularly to provide full satisfaction. We advise you to check and if necessary clean mechanical parts every fortnight.
• Clean and dry thoroughly the chassis, the wheels and the braking device each time you go in muddy, sandy and corrosive environments.
• Do not use grease or oil.
• The pushchair may not work properly if it is not maintained regularly.
• Do not force it if it becomes difficult to fold it up or unfold it. Clean the product.
• If difficulties persist, contact the supplier.
• Caring: Use a sponge and mild soap. Do not use detergent.
• For washing the garment, please consult the instruction label.
• The tyres may leave color marks on some surfaces

(particularly smooth floors like parquet, laminate and linoleum). For information, the marks color can be black, yellow... (depending original floor surface color).

Environment

Keep all plastic packaging materials out of reach of your child to avoid the risk of suffocation. For environmental reasons, when you have stopped using this product, we ask that you dispose of the product in the proper waste facilities in accordance with local legislation.

Questions

If you have any questions, contact your local Bébé Confort retailer (see www.bebconfort.com for contact information). When doing so, please have the following information to hand:

• Serial number
• Age (height) and weight of the child.

Warranty

Our 24 months warranty reflects our confidence in the high quality of our design, engineering, production and product performance. We confirm that this product was manufactured in accordance with the current European safety requirements and quality standards which are applicable to this product, and that this product is free from defects on materials and workmanship at the time of purchase. Under the conditions mentioned herein, this warranty may be invoked by consumers in the countries where this product has been sold by a subsidiary of the Dorel Group or by an authorized dealer or retailer.

Our 24 months warranty covers all manufacturing defects in materials and workmanship when used in normal conditions and in accordance with our user manual for a period of 24 months from the date of the original retail purchase by the first end-user customer. To request repairs or spare parts under our warranty for defects in materials and workmanship you must present your proof of purchase, made within the 24 months preceding the service request.

Our 24 months warranty does not apply to defects caused by normal wear and tear, damage caused by accidents, abusive use, negligence, fire, liquid contact or other external cause, damage which is the consequence of failing to comply with the user manual, damage caused by use with another product, damage caused by service by anyone who is not authorized by us, or if the product is stolen or if any label or identification number has been removed from the product or has been changed. Examples of normal wear and tear include wheels and fabric worn down by regular use and the natural breakdown of colors and materials due to normal aging of the product.

What to do in case of defects:

Should problems or defects arise, your first point of contact is the authorized dealer or retailer recognized by us. Our 24 months warranty is recognized by them(1). You must present your proof of purchase, made within the 24 months preceding the service request. It is easiest if you get your service request pre-approved by us. If you submit a valid claim under this warranty, we may request that you return your product to the

authorized dealer or retailer recognized by us or that you ship the product to us in accordance with our instructions. We will pay for shipment and for return freight if all instructions are followed. Damage and/or defects neither covered by our warranty nor by the legal rights of the consumer and/or damage and/or defects with respect to products that are not covered by our warranty can be handled at a reasonable fee.

Rights of the consumer:

A consumer has legal rights pursuant to applicable consumer legislation, which may vary from country to country. The rights of the consumer under applicable national legislation are not affected by this warranty.

This warranty is provided by Dorel Netherlands. We are registered in The Netherlands under company number 17060920. Our trading address is Korendijk 5, 5704 RD Helmond, The Netherlands, and our postal address is P.O. Box 6071, 5700 ET Helmond, The Netherlands.

The names and address details of other subsidiaries of the Dorel group can be found on the last page of this manual and on our website for the brand concerned.

(1) Products purchased from retailers or dealers that remove or change labels or identification numbers are considered unauthorized. Products purchased from unauthorized retailers are also considered unauthorized. No warranty applies to these products since the authenticity of these products cannot be ascertained.
