Sena aire - Bed Nuna - Free user manual and instructions

Product type	Travel cot with removable bassinet
Brand	Nuna
Model	Sena aire
Maximum supported weight	15 kg
Maximum child height	86 cm
Safety standard	EN16890:2017
Included accessories	Mattress, sheet, storage bag
Cleaning	Wash with mild soapy water, do not use bleach
Use	From birth until child can climb out unaided
Warranty	Customized warranty from date of purchase
Customer service	[e-mail], www.nunababy.com
Product registration	Required at www.nunababy.com

Frequently Asked Questions - Sena aire Nuna

How to open the Nuna Sena aire travel cot?

To open the frame, detach the Velcro straps from the mattress, pull the short sides outward, then push down on the central hub. Make sure the bottom is fully pushed down to the floor.

How to install the bassinet?

Install the mattress with the soft side up. The bassinet installation is complete.

How to fold the travel cot?

Release the Velcro straps, remove the mattress, grasp the strap on the bottom and pull, then push the sides together toward the center. Do not force.

How to attach the sheet?

Wrap the sheet around the mattress at all four corners, making sure it is securely fastened. Then place the mattress in the cot and attach the sheet's Velcro straps to the four corners of the cot.

What is the maximum weight supported by the cot?

The maximum supported weight is 15 kg.

What is the maximum height of the child to use the cot?

The maximum height is 86 cm. Stop using the cot as soon as the child can climb out.

How to clean the mattress?

Open the mattress zipper, remove the boards, close the zipper, wash with lukewarm water and mild soap, then let dry. Do not use bleach.

Can I add an extra mattress?

No, use only one mattress, the one provided by Nuna. Adding a thicker mattress may cause a suffocation risk.

Where to find spare parts?

Contact Nuna customer service at [e-mail] or visit www.nunababy.com. Use only manufacturer-approved parts.

Is the cot compliant with safety standards?

Yes, the Nuna Sena aire travel cot complies with standard EN16890:2017.

USER MANUAL Sena aire Nuna

Illustration of a dark blue fabric or cushion with diagonal bracing and a small oval indentation (no text or symbols)

nuna®

IMPORTANT! KEEP THESE INSTRUCTIONS FOR FUTURE REFERENCE!

READ CAREFULLY

Illustration of a medical or laboratory device with two views: one showing a slide and the other showing a shirt and patterned rectangle (no text or symbols)

Illustration of a person pressing down on a flat surface with a downward arrow, no text or symbols present

Illustration of a baby crib with a seat and an empty table, no text or symbols present

10

Illustration of a person performing a backbend exercise with hands and legs (no text or symbols)

5

Illustration of a person using a table with a pillow and seatbelt, showing a downward arrow (no text or symbols)

Illustration of a person using a baby seatbelt device (no text or symbols)

3

6

9

Illustration of a person performing a backbend exercise with hands and legs (no text or symbols)

Illustration of a person with crutches and backpack, showing posture changes (no text or symbols)

Diagram showing a person interacting with a wall-mounted device, no text or symbols present

14

Illustration of a person using a folding chair with a cloth, showing a downward arrow (no text or symbols)

15

Designed around your life

nuna®

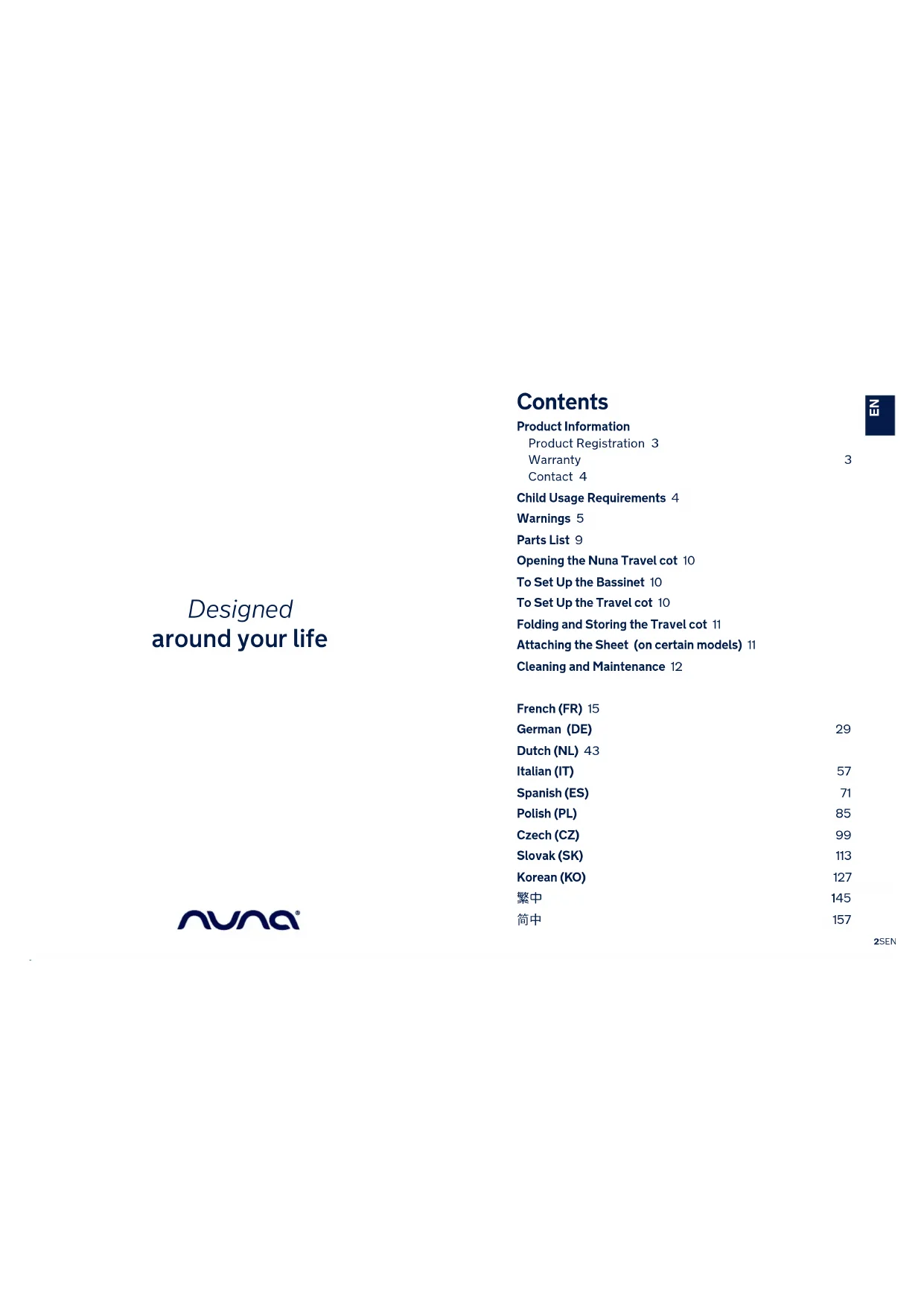

Contents

Product Information

Product Registration 3

Warranty

Contact 4

Child Usage Requirements 4

Warnings 5

Parts List 9

Opening the Nuna Travel cot 10

To Set Up the Bassinet 10

To Set Up the Travel cot 10

Folding and Storing the Travel cot 11

Attaching the Sheet (on certain models) 11

Cleaning and Maintenance 12

French (FR) 15

German (DE) 29

Dutch (NL) 43

Italian (IT) 57

Spanish (ES) 71

Polish (PL) 85

Czech (CZ) 99

Slovak (SK) 113

Korean (KO) 127

繁中 145

简中 157

2SEN

Product Information

Model Number:

Manufactured Date:

Product Registration

All products include a serial label which lists the product model number and serial number. This label is located on the bottom of the travel cot. Before contacting customer service, please have these numbers available for reference.

To register your product please visit:

www.nunababy.com

Click the "Register Gear" link on the homepage.

Warranty

We have purposely designed our high-quality products so that they can grow with both your child and your family. Because we stand by our product, our gear is covered by a custom warranty per product, starting from the day it was purchased. Please have the proof of purchase, model number and manufactured date available when you contact us.

For warranty information please visit:

www.nunababy.com

Click the "Warranty" link on the homepage.

Contact

For replacement parts, service, or additional warranty questions, please contact our customer service department.

[e-mail]

www.nunababy.com

In the United Kingdom:

[e-mail]

www.nunababy.com

NUNA International B.V.

This travel cot is suitable for use with children who meet the following requirements:

Child: form birth

Weight: 15 kg

Height: 86 cm

This product complies to EN16890: 2017

Discontinue use of the SENA aire travel cot when the child is able to climb out.

WARNING

Failure to follow these warnings and the instructions could result in serious injury or death.

Be sure the product is completely set up before use, including side rails fully erected, center of the floor pushed down completely, and mattress/pad flat.

To prevent from falls, discontinue use of this product when child is able to climb out, reaches the height of 86 cm, or weighs more than 15 kg.

Child can become entrapped and die when improvised netting or covers are placed on top of product. Never add such items to confine child in product.

The bassinet must be fully assembled and installed before using, including 4 corner buckles, 4 snaps under center flaps, and mattress/pad is flat, before using.

If a sheet is used with the pad, use only the one provided by Nuna or one specifically designed to fit the dimension of the pad.

To help prevent falls, do not use the bassinet when the infant begins to push up on hands and knees.

Strings can cause strangulation! Do not place items with a string around a child's neck, such as hood strings or pacifier cords. Do not suspend strings over a bassinet or attach strings to toys.

Use bassinet with only one child at a time.

Do not place the SENA aire travel cot close to another product which could provide a foothold or present a danger of suffocation or strangulation, e.g. strings, blind/curtain cords, etc.

Always use on a flat, level floor.

Keep all children away from the SENA aire travel cot during assembly and folding. When folded store away from children.

Once the child can sit up, the SENA aire travel cot mattress should be used in it's lowest position which is the safest position.

Do not allow children to climb inside or play with the carry bag.

When a child is able to sit, kneel or to pull itself up, the bassinet must not be used anymore for this child.

Young children should not be allowed to play unsupervised in the vicinity of a travel cot.

All assembly fittings should always be tightened properly and that fittings should be checked regularly and re-tightened as necessary.

The travel cot should be locked in the fixed position when a child is unsupervised in it.

DO NOT use the bassinet when it is not attached to the SENA aire travel cot frame.

DO NOT move the SENA aire travel cot with your child in it.

EN

DO NOT add anything to the inside of the SENA aire travel cot that will allow your child to climb out, or any article that may pose a risk of suffocation or strangulation.

DO NOT modify travel cot or add any attachments that are not listed in the owner's manual.

NEVER use this product if there are any loose or missing fasteners, loose joints, broken parts, or torn mesh/fabric. Check before assembly and periodically during use. Use only spare parts approved by the manufacturer.

NEVER add a mattress, pillow, comforter, or padding. Use ONLY mattress/pad provided by Nuna. Using a thicker or a different sized mattress/pad may allow a child's head to get between mattress/pad and side of the travel cot causing suffocation.

NEVER use plastic shipping bags or other plastic film as mattress covers not sold and intended for that purpose. They can cause suffocation.

NEVER use the mattress without the boards installed.

NEVER place the product near a window where cords from blinds or drapes can strangle a child.

NEVER leave bassinet in place when child is in travel cot.

NEVER place a child under the bassinet.

NEVER use a water mattress with this product.

Strings and cords can cause strangulation!

NEVER place items with a string around a child's neck such as hood strings, pacifier cords, etc. Keep strings and cords away from child.

NEVER suspend strings on or over the product or attach strings to toys.

NUNA SENA aire travel cot is NOT for commercial use.

WARNING Do not use more than one mattress in the SENA aire travel cot. Only use the base mattress supplied by the manufacturer for use with the SENA aire travel cot.

WARNING Do not use more than one mattress in the bassinet. Only use the base mattress supplied by the manufacturer for use with the bassinet.

WARNING Ensure that the SENA aire travel cot is fully erected and all the locking mechanisms engaged before placing your child in this SENA aire travel cot.

WARNING DO NOT Place the travel cot close to an open fire and other sources of strong heat, such as electric bar fires, gas fires etc. in the near vicinity of the travel cot.

WARNING ALWAYS provide the supervision necessary for the continued safety of your child. When used for playing, never leave child unattended.

WARNING Only use the mattress sold with this travel cot, do not add a second mattress on this one, suffocation hazards.

EN

Parts List

Check that you have all the parts for this product before using it. The assembly must be performed only by adults Tools: No tools required.

1 Travel cot

3 Storage bag

2 Mattress

4 Sheet

Illustration of a person wearing a white t-shirt and dark pants, with no visible text or symbols

Hexagonal grid pattern with a numbered label '2' pointing to the top-left corner (no text or symbols within the pattern)

nuna 3

Opening the Nuna Travel Cot

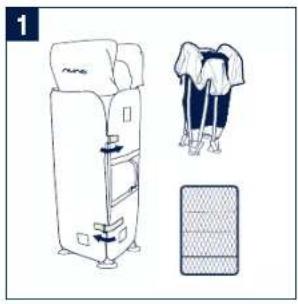

1 - To open the travel cot frame, unfasten hook and loop straps from the mattress and unfold. (1)

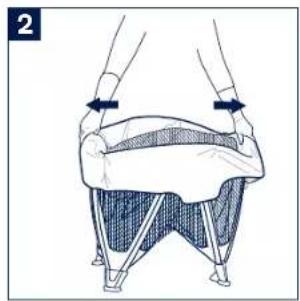

2 - Pull the short sides of the travel cot frame outward. (2)

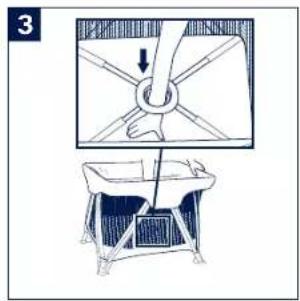

3 - Reach through bassinet and push down on the center hub at the bottom of travel cot. (3)

! MAKE SURE bottom of travel cot is pushed all the way to the floor.

To Set Up the Bassinet

1 - Install mattress soft side up. Bassinet set up is complete. (4)

To Set Up Travel Cot

1 - Remove mattress from the bassinet. Remove the 4 snaps on the bassinet fabric from the snaps at the center of each side of the travel cot. (5)

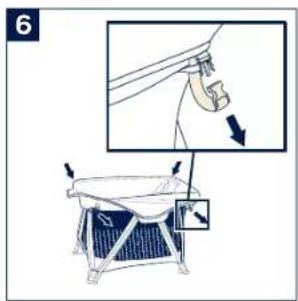

2 - Release the 4 buckles on the four corners of the travel cot. Once the buckle is separated, remove long strap from the loop on the travel cot. (6)
3 - Remove the bassinet from travel cot. (7)
4 - Place the mattress on the bottom of the Travel cot. (8)

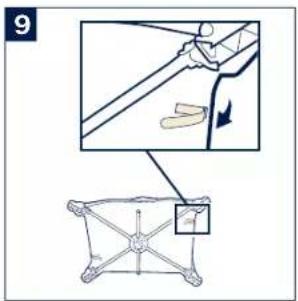

5 - Feeding the straps on the corners through the holes. Fasten the hook and loop. Repeat on other corners. (9)
! Push down on all four corners of the mattress to assure the mattress is secured to the bottom of travel cot.

Folding the Travel Cot

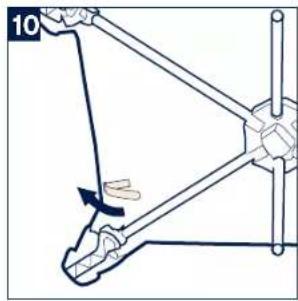

1 - Release the hook and loop straps. Remove mattress from the travel cot. (10)

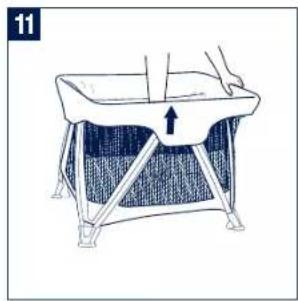

2 - Grab strap on bottom of travel cot and pull up. (11)
3 - Push sides together towards the center. Do not force. (12)

Storing the Travel cot

1 - To store the travel cot frame, fold the frame. (13)
2 - Wrap the unit with the mattress, guide the hook and loop fasteners straps though the rings and attach them. (14)
3 - Place the bag over the unit and pull the drawstring together. (15)

Attaching the Sheet

WARNING

Prevent possible suffocation or entanglement. NEVER use travel cot sheet unless it fits securely on travel cot mattress.

1 - Wrap the sheet around the mattress on all four corners. MAKE SURE sheet is securely attached to the four corners. (16)
2 - Once the sheet is attached place the mattress inside the travel cot. MAKE SURE that the four hook and loop patches on the sheet are securely attached to the four corners of the travel cot. (17)

Cleaning and Maintenance

Your travel cot can be spot cleaned with a sponge and mild soapy water. The covering material is not removable.

DO NOT soak.

DO NOT use bleach or harsh detergents.

The travel cot must be thoroughly dried before using or storing – Avoid exposure to heat and sunlight.

Your storage bag can be washed in lukewarm water using mild household soap and then drip-dry.

DO NOT USE BLEACH.

Cleaning and Maintenance (Cont.)

To wash your mattress, you will need to remove your boards by unfastening the zipper and pulling the boards out.

ALWAYS fasten the zipper on the mattress before washing.

Your mattress can be washed in lukewarm water using

mild household soap and then drip-dry. DO NOT USE BLEACH.

To re-install boards, match the number on the black tag on the mattress with the label on the board.

Boards should be installed with the numbers facing up exactly as shown in the illustrations.

Diagram showing four labeled panels (1-4) with upward arrows indicating movement or process, likely illustrating a technical or schematic layout.

! NEVER use the mattress without the boards installed. Once boards are installed in their correct slots, refasten the zipper.

NUNA International B.V. Nuna and all associated logos are trademarks.

IMPORTANT! CONSERVEZ CES INSTRUCTIONS POUR UNE UTILISATION FUTURE!

LIRE ATTENTIVEMENT

Sommaire

Illustration of a person wearing a backpack and holding a walking stick (no text or symbols)

Hexagonal grid pattern with a labeled section '2' (no text or symbols within the pattern)

nuna 3

Illustration of a person wearing a white and dark outfit with crutches, standing with legs (no text or symbols)

Hexagonal grid pattern with a numbered label '2' pointing to the top-left corner (no text or symbols within the pattern)

nuna 3

Diagram showing four labeled sections (1-4) of a container with patterned compartments and directional arrows indicating movement or flow.

Illustration of a person wearing a high leg and standing with crutches (no text or symbols)

Hexagonal grid pattern with a numbered label '2' pointing to the top-left corner (no text or symbols within the pattern)

nuna 3

De Nuna-reiswieg openmaken

Illustration of a person wearing a white tightsuit with a bandage, standing with legs and feet (no text or symbols)

Hexagonal grid pattern with a numbered label '2' pointing to the top-left corner (no text or symbols within the pattern)

nuna 3

Diagram showing four labeled cross-sectional views of a device or container with directional arrows indicating movement or flow.

Illustration of a person wearing a dark outfit with white straps and a patterned skirt, standing with legs (no text or symbols)

Hexagonal grid pattern inside a rectangular frame, no text or symbols present

suna 3

Diagram showing four labeled sections (1-4) of a container with internal compartments and directional arrows indicating movement or flow.

Diagram showing four labeled components (1 to 4) with upward arrows indicating flow or movement, likely illustrating a process or system layout.

Illustration of a person wearing a white t-shirt and dark pants, with a small object labeled '1' pointing to the chest area (no text or symbols on the torso itself)

Hexagonal grid pattern with a numbered label '2' pointing to the top-left corner (no text or symbols within the pattern)

nuna 3

SENA aire pokyny SENA aire pokyny 107 108

Illustration of a person wearing a white t-shirt and dark pants, with legs and hands visible (no text or symbols)

Hexagonal grid pattern with a numbered label '2' pointing to the top-left corner (no text or symbols within the pattern)

nuna 3

Rozloženie cestovné postiel'ky

Diagram showing four labeled sections of a vehicle or parking area with directional arrows indicating movement or movement.

Illustration of a person wearing a white and dark outfit with a bandaged top, no text or symbols present

Diagram of a hexagonal grid pattern with labeled section '2' (no text or symbols beyond label)

nuna 3

Diagram showing four labeled components with upward arrows indicating movement or flow, likely illustrating a technical or engineering schematic.

Illustration of a person wearing a white and dark blue outfit with crutches, no text or symbols present

Hexagonal grid pattern with a numbered label '2' pointing to the top-left corner (no text or symbols within the pattern)

打開嬰兒床

Diagram showing four labeled sections with upward arrows indicating movement or process, likely illustrating a technical or schematic layout.

Diagram showing four labeled panels (1-4) with upward arrows indicating movement or process, likely illustrating a technical or schematic layout.
