Product type	Travel crib / Playard
Brand	Nuna
Model	SENA
Usage	Travel playard for babies and young children
Maximum age/weight	Until child measures 89 cm (35 in) or weighs 13.6 kg (30 lb) (playard mode); bassinet mode up to 6.8 kg (15 lb) or once child gets on hands and knees
Dimensions (approx.)	109 x 76 x 76 cm (L x W x H)
Product weight	Approximately 11 kg
Materials	Polyester fabric, foam mattress
Safety standards	Complies with ASTM F406 (travel playard) and ASTM F2194 (bassinet) standards; complies with Canada's Play Yards Regulations
Main features	Travel playard with removable bassinet, reversible mattress, fitted sheet
Mattress included	Yes, foam mattress with removable and washable cover
Sheet included	Yes, fitted sheet with four-corner adjustment
Fabric care	Clean with sponge and soapy water; do not use bleach
Mattress care	Removable cover, machine washable in warm water delicate cycle
Storage bag included	Yes, washable in warm water
Warranty	Personalized warranty, registration available on Nuna website
Customer service	Nuna USA: 1-855-686-2872; Canada: 1-800-667-4111
Repairability	Spare parts available upon request
Usage period	From birth up to about 3 years (depending on size)
Additional accessories	No non-provided accessories should be added

Frequently Asked Questions - SENA Nuna

How to assemble the SENA travel playard?

To open the playard, unfold the frame by pulling the two short sides outward, then press down on the center of the floor to flatten it. Next, install the mattress by threading the straps through the slots at the four corners and fasten the snaps. Ensure the floor is completely flat.

How to install the bassinet in the playard?

The bassinet attaches inside the playard. Fasten the four corner loops and snaps under the center flaps. Place the bassinet mattress (soft side up). Make sure everything is securely fastened before putting the child in.

How to clean the SENA playard mattress?

Remove the panels by opening the zipper. Wash the cover on delicate cycle in warm water without bleach. Close the zipper before washing. To reinstall, match the numbers on the black labels.

What is the maximum weight for using the bassinet?

The bassinet can be used until the child reaches 6.8 kg (15 lb) or once they get on hands and knees, whichever comes first.

Can I use a mattress other than the one provided?

No, use only the mattress provided by Nuna. A mattress that is too thick or of different dimensions could create a gap where the child risks suffocation.

How to close and store the SENA playard?

Unfasten the mattress straps, remove it, then pull the gray strap on the floor to fold the frame. Fold the sides toward the center. Place the mattress around the frame and store everything in the provided carry bag.

What safety standards does the SENA playard meet?

The playard complies with US standard ASTM F406 (travel playards) and the bassinet with ASTM F2194. It also complies with Canada's Play Yards Regulations.

What to do if a part is missing or damaged?

Contact Nuna customer service: in the USA at 1-855-686-2872, in Canada at 1-800-667-4111. Do not replace any parts with non-compliant parts.

Can I use the playard for play and napping?

Yes, the playard is designed for play and sleep. However, never leave the child unattended. For sleep, place the child on their back and remove bulky objects as soon as they stand up.

How to install the provided sheet?

Wrap the four corners of the mattress with the sheet, then securely fasten the Velcro straps of the sheet to the four corners of the playard. Make sure the sheet is snug to prevent suffocation risk.

USER MANUAL SENA Nuna

Read all instructions BEFORE assembly and USE of product. KEEP INSTRUCTIONS FOR FUTURE USE

Simple line drawing of a table with four legs and a central triangular seat (no text or symbols)

sena ^TM aire

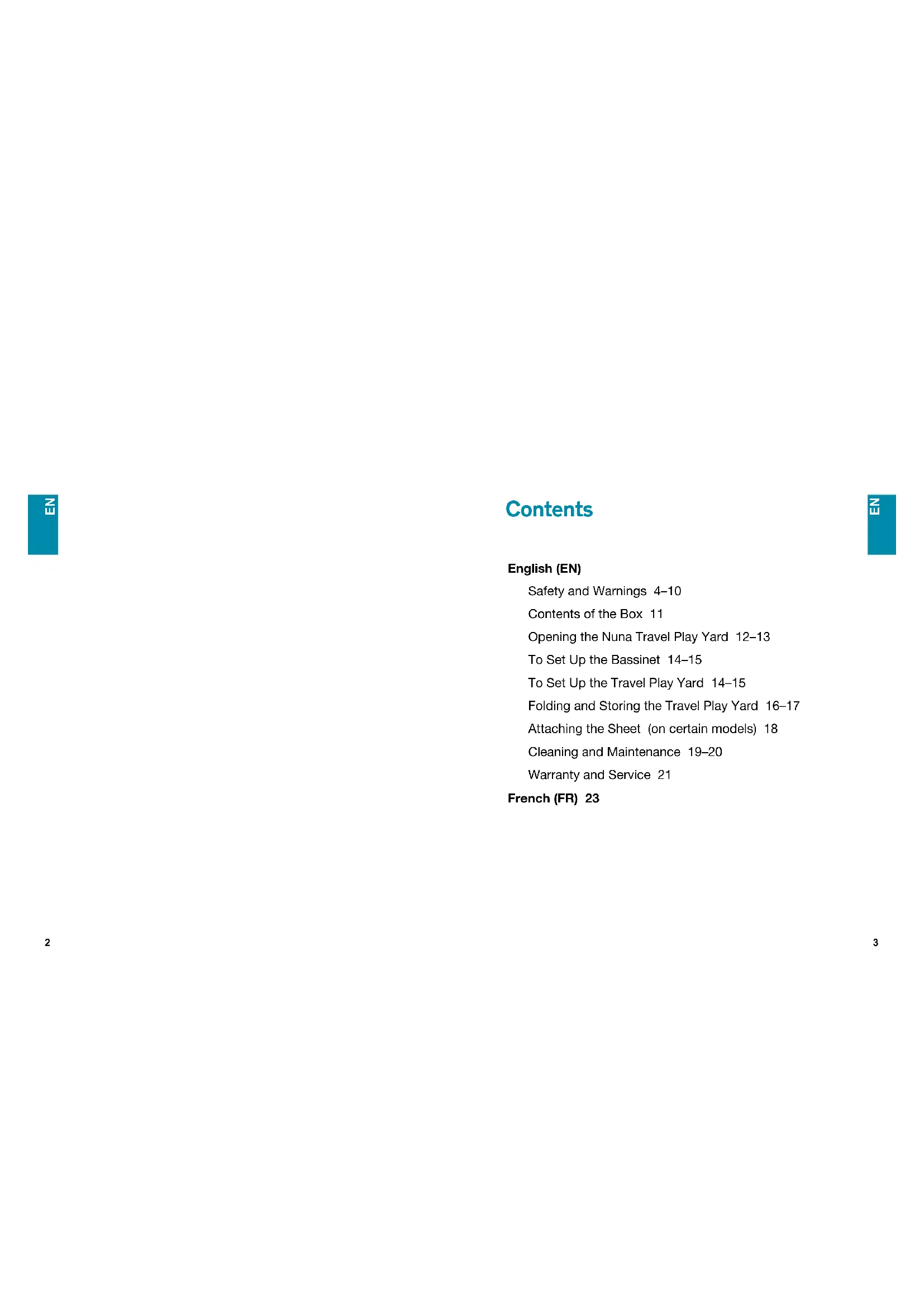

Safety and Warnings 4–10

Contents of the Box 11

Opening the Nuna Travel Play Yard 12–13

To Set Up the Bassinet 14–15

To Set Up the Travel Play Yard 14–15

Folding and Storing the Travel Play Yard 16–17

Attaching the Sheet (on certain models) 18

Cleaning and Maintenance 19–20

Warranty and Service 21

French (FR) 23

Safety and Recommendations

Please take note of the following before using the Nuna SENA™ aire.

Safety is very important to us and you can be assured that our products comply with the relevant standards. If you have any questions or comments regarding the SENA aire play yard, we will be glad to hear them through our web site nuna.eu or nunababy.ca

The play yard complies with the requirements of ASTM F406 (US).

The bassinet complies with the requirements of ASTM F2194 (US).

This product complies with the requirements of the Playpens Regulations (CANADA).

IMPORTANT! KEEP THESE INSTRUCTIONS FOR FUTURE REFERENCE: READ CAREFULLY

WARNING

Failure to follow these warnings and the instructions could result in serious injury or death.

Setting Up the Play Yard

Be sure the product is completely set up before use, including side rails fully erected, center of the floor pushed down completely, and mattress/pad flat and secured by the hook and loop straps.

NEVER use this product if there are any loose or missing fasteners, loose joints, broken parts, or torn mesh/fabric. Check before assembly and periodically during use. Contact Nuna 1.855.NUNA.USA (1.855.686.2872) or a Nuna distributor for replacement parts and instructions, if needed. Never substitute parts.

Using the Travel Play Yard

ALWAYS provide the supervision necessary for the continued safety of your child. When used for playing, never leave child unattended.

Discontinue use of this product when child is able to climb out, reaches the height of 35 inches (890 mm), or weighs more than 30 pounds (14 kg).

Child can become entrapped and die when improvised netting or covers are placed on top of product. Never add such items to confine child in product.

When child is able to pull to standing position, remove bumper pads, large toys, and other objects that could serve as steps for climbing out.

To reduce the risk of SIDS, pediatricians recommend healthy infants be placed on their back to sleep, unless otherwise advised by your physician.

WARNING

Failure to follow these warnings and the instructions could result in serious injury or death.

DO NOT place the travel play yard close to an open fire or other heat source such as stoves, heaters, fireplaces and other hazards which can cause injury to your child.

NEVER leave child in product with side lowered. Be sure side is in raised and locked position whenever child is in product.

If a sheet is used with the pad, use only the one provided by Nuna or one specifically designed to fit the dimension of the pad.

DO NOT modify play yard or add any attachments that are not listed in the owner's manual.

NUNA SENA aire play yard is NOT for commercial use.

Suffocation Hazards

Infants can suffocate

• In gaps between a mattress too small or too thick and product sides
• On soft bedding.

NEVER add a mattress, pillow, comforter, or padding. Use ONLY mattress/pad provided by Nuna. Using a thicker or a different sized mattress/pad may allow a child's head to get between mattress/pad and side of the play yard causing suffocation.

NEVER use plastic shipping bags or other plastic film as mattress covers not sold and intended for that purpose. They can cause suffocation.

▲ NEVER use the mattress without the boards installed.

WARNING

Failure to follow these warnings and the instructions could result in serious injury or death.

NEVER use a water mattress with this product.

Strangulation Hazards

Strings and cords can cause strangulation! NEVER place items with a string around a child's neck such as hood strings, pacifier cords, etc. Keep strings and cords away from child. NEVER suspend strings on or over the product or attach strings to toys.

NEVER place the product near a window where cords from blinds or drapes can strangle a child.

WARNING

Failure to follow these warnings and the instructions could result in serious injury or death.

Setting Up the Bassinet

The bassinet must be fully assembled and installed before using, including 4 corner buckles, 4 snaps under center flaps, and mattress/pad is flat, before using.

NEVER use this product if there are any loose or missing fasteners, loose joints, broken parts, or torn mesh/fabric. Check before assembly and periodically during use. Contact Nuna 1.855.NUNA.USA (1.855.686.2872) or a Nuna distributor for replacement parts and instructions, if needed. Never substitute parts.

Using the Bassinet

You are responsible to provide adult supervision when using your bassinet.

ALWAYS keep the bassinet away from hazards in the area that may injure your child.

Suffocation Hazard:

Infants have suffocated:

• In gaps between extra padding and side of the bassinet.
• On soft bedding: Use ONLY mattress/pad provided by Nuna. NEVER add a pillow, comforter, or another mattress for padding.

WARNING

Failure to follow these warnings and the instructions could result in serious injury or death.

Fall Hazard:

To help prevent falls, do not use this product when the infant begins to push up on hands and knees or has reached 15 pounds (6.8 kg), whichever comes first.

Strangulation Hazard:

Strings can cause strangulation! Do not place items with a string around a child's neck, such as hood strings or pacifier cords. Do not suspend strings over a bassinet or attach strings to toys.

NEVER place the product near a window where cords from blinds or drapes can strangle a child.

To reduce the risk of SIDS, pediatricians recommend healthy infants be placed on their backs to sleep, unless otherwise advised by your physician.

Use bassinet with only one child at a time.

Child can become entrapped and die when improvised netting or covers are placed on top of product. Never add such items to confine child in product.

Entrapment Hazard: NEVER leave

bassinet in place when child is in play yard.

If a sheet is used with the pad, use only the one provided by Nuna or one specifically designed to fit the dimension of the mattress/pad.

DO NOT modify bassinet or add any attachments that are not listed in the owner's manual.

NEVER place a child under the bassinet.

Contents of the Box

Check that you have all the parts for this product before using it. The assembly must be performed only by adults.

Tools : No tools required.

· Travel play yard

- Mattress

- Storage bag

- Sheet

Opening the Nuna Travel Play Yard

1 - To open the travel play yard frame, unfasten hook and loop straps from the mattress and unfold.

Z

2 - Pull the short sides of the travel play yard frame outward.
3 - Reach through bassinet and push down on the center hub at the bottom of travel play yard.

MAKE SURE bottom of play yard is pushed all the way to the floor.

1

2

Illustration of a person performing a backbend exercise with hands and legs (no text or symbols)

3

Diagram illustrating a hand positioning technique with labeled parts and directional arrows, including a small inset image of a bathtub.

ZE

To Set Up the Bassinet

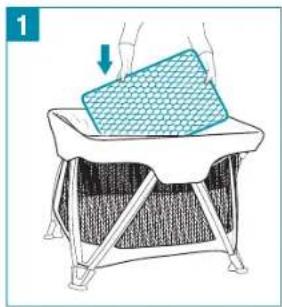

1 - Install mattress soft side up. Bassinet set up is complete.

To Set Up Travel Play Yard

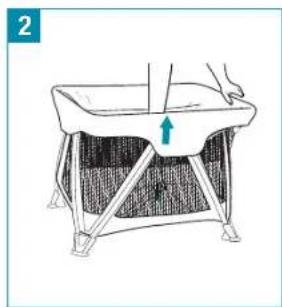

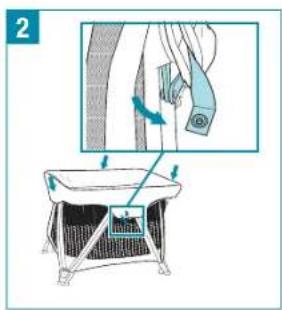

2 - Remove mattress from the bassinet. Remove the 4 snaps on the bassinet fabric from the snaps at the center of each side of the travel play yard.
3 - Release the 4 buckles on the four corners of the travel play yard. Once the buckle is separated, remove long strap from the loop on the play yard.

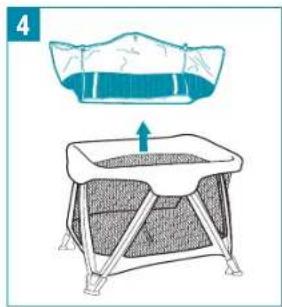

4 - Remove the bassinet from play yard.
5 - Place the mattress on the bottom of the Travel Play Yard by feeding the straps on the corners through the slits in the bottom of play yard.

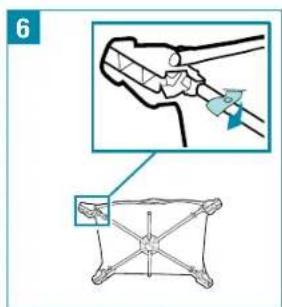

6 - Pull strap through slits in the bottom of play yard and wrap around tube and fasten snaps. Repeat on other corners.

Push down on all four corners of the mattress to assure the mattress is secured to the bottom of play yard.

Illustration of a person folding a chair with a patterned blanket and a hand holding the top panel (no text or symbols)

Illustration of a baby seat with a back panel and an upward arrow indicating growth (no text or symbols)

2

Illustration of a person using a net to lift a blue textured object, no text or symbols present

Diagram illustrating a mechanical or electrical device with labeled parts and directional arrows, showing components like a cable and a component with arrows.

6

Folding the Travel Play Yard

1 - Release the snap straps. Remove mattress from the travel play yard.
2 - Grab strap on bottom of travel play yard and pull up.

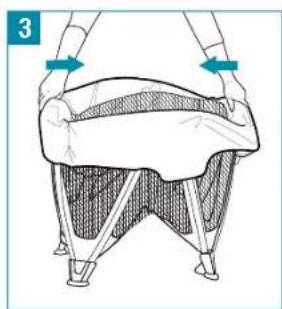

3 - Push sides together towards the center. Do not force.

Storing the Play Yard

4 - To store the travel play yard frame, fold the frame.

5 - Wrap the unit with the mattress, guide the hook and loop fasteners straps though the rings and attach them.

6 - Place the bag over the unit and pull the drawstring together.

Technical illustration of a mechanical tool with a bracket and forceps, showing a rotation arrow (no text or symbols)

Illustration of a person wearing a backpack with straps, showing posture and movement arrows (no text or symbols)

Illustration of a person using a baby seatbelt device with a blue arrow indicating the seat area (no text or symbols present)

5

Illustration of a person performing a backbend exercise with hands and legs (no text or symbols)

6

Attaching the Sheet (On certain models) ⚠WARNING

Prevent possible suffocation or entanglement. NEVER use play yard sheet unless it fits securely on play yard mattress.

Simple line drawing of a light blue bag with a lightning bolt on top (no text or symbols)

1 - Wrap the sheet around the mattress on all four corners. MAKE SURE sheet is securely attached to the four corners.

1

2 - Once the sheet is attached place the mattress inside the playard. MAKE SURE that the four hook and loop patches on the sheet are securely attached to the four corners of the play yard.

2

Illustration of hands using a flatboard to lift a box, with a downward arrow indicating compression (no text or symbols)

Instruction Storage

1 - Store your instructions underneath the play yard in the storage pocket as shown.

Diagram of a mechanical component with labeled parts and a magnified inset showing a device labeled 'sena'.

Cleaning and Maintenance

Your travel play yard and bassinet can be spot cleaned with a sponge and mild soapy water. The covering material is not removable. DO NOT soak. DO NOT use bleach or harsh detergents.

The travel play yard must be thoroughly dried before using or storing – Avoid exposure to heat and sunlight.

Your storage bag can be washed in lukewarm water using mild household soap and then drip-dry. DO NOT USE BLEACH.

Cleaning and Maintenance (Cont)

To wash your mattress, you will need to remove your boards by unfastening the zipper and pulling the boards out.

ALWAYS fasten the zipper on the mattress before washing. Wash your mattress on the delicate cycle in

lukewarm water and then drip-dry. DO NOT USE BLEACH.

To re-install boards, match the number on the black tag on the mattress with the label on the board.

Boards should be installed with the numbers facing up exactly as shown in the illustrations.

▲ NEVER use the mattress without the boards installed.

Diagram showing four labeled sections (1-4) with upward arrows indicating flow or movement, likely illustrating a process or system in a container or device.

Once boards are installed in their correct slots, refasten the zipper.

Warranty

We have purposely designed our high-quality products so that they can grow with both your child and your family. Because we stand by our product, our gear is covered by a custom warranty per product, starting from the day it was purchased. Please have the proof of purchase, model number and serial number available when you contact us.

For warranty information please visit: http://www.nuna.eu/warranty

Product Registration

All products include a serial label which lists the product model number and serial number. This label is located on the bottom of the play yard. Before contacting customer service, please have these numbers available for reference.

To register your product please visit: https://www.nuna.eu/register-gear

Contact

For replacement parts, service, or additional warranty questions, please contact our customer service departments.

In the USA:

[e-mail]

www.nuna.eu

1.855.NUNA.USA (1.855.686.2872)

In Canada:

[e-mail]

1.80 0.667.4111

Table des matières

Illustration of a person holding a cushion with bandages and arrows indicating movement (no text or symbols)

3

Diagram illustrating a hand operating a circular component with directional arrows, alongside a small photo of a bathtub with a handle.

FR

Montage du moïse

Illustration of a person folding a folded material on a chair using a net (no text or symbols)

Illustration of a small boat with a blue hull and a side table with a shaded seat, no text or symbols present.

2

Illustration of a person using a bed to lift a tray, with a blue patterned blanket and a downward arrow indicating motion (no text or symbols)

3

6

Illustration of two mechanical components: a square frame and a pliers, with no visible text or symbols.

Line drawing of a person sitting on a small table with a blue arrow indicating upward motion (no text or symbols)

Illustration of a person performing a stretching exercise with arms extended (no text or symbols)

Illustration of a person wearing a backpack with arms and legs, showing posture changes (no text or symbols)

5

6

Illustration of hands pressing down on a table with a blue object and a downward arrow (no text or symbols)

Diagram of a vehicle roof structure with labeled components and a warning icon for 'sena' warning.

Diagram showing four labeled sections with upward arrows indicating flow or movement, likely illustrating a process or system in a container or storage layout.

NE JAMAIS utiliser le matelas sans que les panneaux ne soient installés.

https://www.nuna.eu/register-gear

Nous joindre

For replacement parts, service, or additional warranty questions, please contact our customer service departments.

Aux É.-U.:

[e-mail]

www.nuna.eu

1.855.NUNA.USA (1.855.686.2872)

Au Canada :

[e-mail]

1.800.667.4111

United States:

Nuna Baby Essentials Inc.

70 Thousand Oaks Blvd.

Morgantown, PA 19543

1.855.NUNA.USA (1.855.686.2872)

nuna.eu

In Canada:

Nuna Canada

4500 Thimens Blvd, Suite 100

St-Laurent, QC, H4R 2P2

T: 514.344.3045 / F: 514.344.3296

1.800.667.4111

[e-mail]
