USER MANUAL KVC 71521 Koenic

Cyclone vacuum cleaner

XIC71521

Black and white photo of a vacuum cleaner with coiled hose and handle (no visible text or symbols)

Cancer 3-7	—
Engel 8-12	—
Spinel 1-17	—
Tumor 0-2	—
EOPar.23-27	—
Vagor-41-10	—
Sulco 53-37	—
Eosm and 38-12	—
Heik-41-47	—
Peging-41-57	—
Stenck 53-57	—
Ileucine 11-6	—

Labeled diagram of a vacuum cleaner with parts shown for identification and assembly reference.

Technical diagram showing mechanical assembly steps with numbered labels and red arrows indicating motion or force directions.

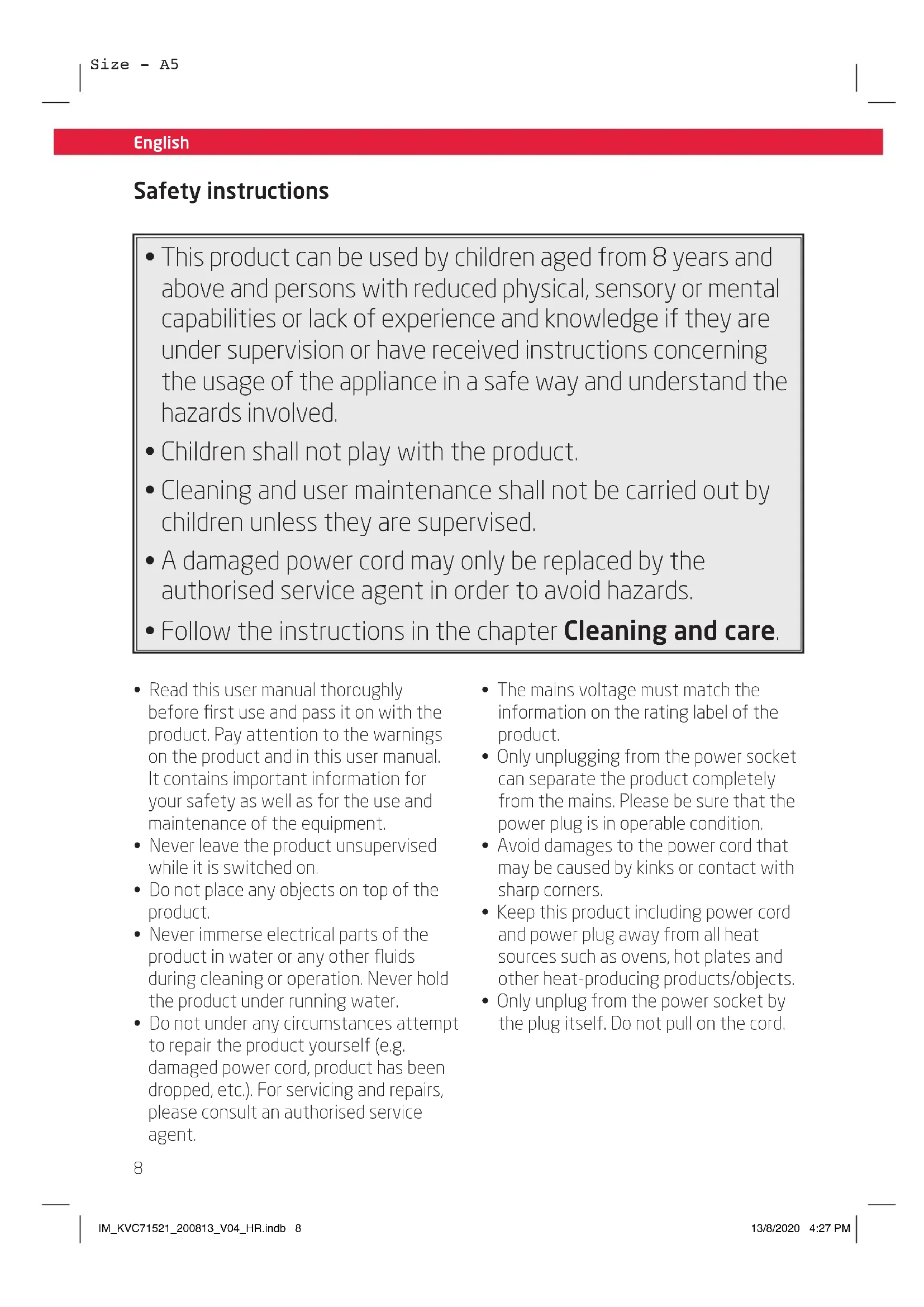

Sicherheitshinweise

• This product can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they are under supervision or have received instructions concerning the usage of the appliance in a safe way and understand the hazards involved.
  • Children shall not play with the product.
• Cleaning and user maintenance shall not be carried out by children unless they are supervised.
• A damaged power cord may only be replaced by the authorised service agent in order to avoid hazards.

• Follow the instructions in the chapter Cleaning and care.

• Read this user manual thoroughly before first use and pass it on with the product. Pay attention to the warnings on the product and in this user manual. It contains important information for your safety as well as for the use and maintenance of the equipment.

• Never leave the product unsupervised while it is switched on.
• Do not place any objects on top of the product.
• Never immerse electrical parts of the product in water or any other fluids during cleaning or operation. Never hold the product under running water.

• Do not under any circumstances attempt to repair the product yourself (e.g. damaged power cord, product has been dropped, etc.). For servicing and repairs, please consult an authorised service agent.

• The mains voltage must match the information on the rating label of the product.

• Only unplugging from the power socket can separate the product completely from the mains. Please be sure that the power plug is in operable condition.
• Avoid damages to the power cord that may be caused by kinks or contact with sharp corners.
• Keep this product including power cord and power plug away from all heat sources such as ovens, hot plates and other heat-producing products/objects.
• Only unplug from the power socket by the plug itself. Do not pull on the cord.

Safety instructions

- Unplug the product ...

• when the product is not being used,
• in case of malfunctions,
• before attaching / detaching accessories and
• before cleaning the product.

- Use this product in dry indoor areas only and never outdoors.

- This product is not intended for commercial use. It is designed for household use only.

- Make sure, that the motor unit and supply cord do not become wet.

- Use accessories supplied with the device or recommended by the manufacturer only!

- This product is suitable only for private use.

• Always switch the product off before disconnecting it from mains supply.

- Let the product cool down sufficiently before storing.

- Do not cover the product while in use. Fire hazard!

- Do not suck up liquids with the product. Do not suck up lit cigarettes, hot ashes, matches, etc. Fire hazard!

- Do not suck up inflammable or explosive materials and gases. The product must not be used in rooms with explosive gases or liquids.

- Be especially careful when cleaning the stairs.

- When in use, keep the product away from clothes and body parts (fingers, hair, face).

- Do not try to clean people or animals with the product.

- Ensure that the power supply cable does not become a tripping hazard.

English

Congratulations!

Thank you for your purchase of a KOENIC product. Please read this manual carefully and keep it for future reference.

Intended use

The vacuum cleaner is designed only to vacuum dry dust and dirt. Using it for anything else can damage the device or cause injury. The Imtron GmbH assumes no liability for damage to the product, for property damage or for personal injury due to careless or improper usage of the product, or usage of product which does not meet the manufacturer's specified purpose.

Before first time use

Remove the product and accessories carefully from the original packaging. It is recommended to keep the original packaging for storage. If you wish to dispose of the original packaging, please observe applicable legal provisions. Should you have any questions regarding proper disposal, contact your local waste management center. Inspect the delivery contents for completeness and damages. Should the delivery contents be incomplete or damaged, contact your sales outlet immediately.

After unpacking, please refer to chapter

Cleaning and care.

Disposal

Do not dispose of this product as unsorted municipal waste. Return it to a designated collection point for the recycling of WEEE.

By doing so, you will help to conserve resources and protect the environment. Contact your retailer or local authorities for more information.

Content

1 x Vacuum cleaner
1 x Floor nozzle
1 x Crevice nozzle
1 x Upholstery nozzle round brush
1 x Upholstery nozzle square brush
1 x Hard floor brush
1 x User manual
1 x Warranty card

Controls and Components

A Suction tube handle
B Auxiliary air flap
c Suction hose
D Dust container
€ Suction hose bracket
F Crevice nozzle
G Upholstery nozzle square
H Upholstery nozzle round
Hard floor brush
J Floor nozzle
K Wheel
On/Off button
M Telescopic tube holder
N Cable retraction button
o Suction power control dial
P Dust container release buttons
Q Carrying handle
R Telescopic tube with locking mechanism
S Suction tube handle release button

Technical data

Rated Voltage : 220 - 240 V\~, 50-60 Hz

Rated input power : 850 W

Protection class : II

• This is a general purpose vacuum cleaner
• The Erp test method is according to (EU) No 666/2013 & EN 60312:2013
- Please refer to below website for detail technical information, or contact us for technical document:

www.koenic-online.com

English

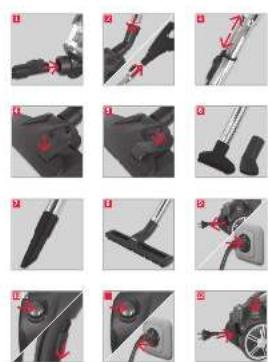

Assembling the vacuum cleaner

Fig. 1 Insert the suction hose into the hose connection. Make sure that it has clicked into place.
Fig. 2 Place the floor nozzle on the lower end and the suction tube handle on the upper end (side with locking mechanism) of the telescopic tube.
Fig. 3 Adjust the telescopic tube to the desired length by sliding up the locking mechanism and then pushing the telescopic tube out or squeezing it together.

Use of the accessories provided Floor nozzle

Fig. 4 To vacuum hard floors, press the toggle switch down.
Fig. 5 To vacuum carpeted areas, press the toggle switch down in front in order to retract the brushes.

Upholstery nozzle round/square

Fig. 6 For vacuuming upholstered furniture, mattresses, cushions, curtains, etc.

Crevice nozzle

Fig. 7 For vacuuming folds, crevices and corners.

Hard floor brush

Fig. 8 For vacuuming hard and wooden floors. Use the hard floor brush to protect the floor from being scratched.

Operation

Fig. 9 Pull out the connection cable to the desired length and insert the power plug into a receptacle.

Fig. 10 Press the On/Off switch to turn the vacuum cleaner on/off. Use the power control dial to adjust the desired power.

Tip: If the vacuum can only be guided with difficulty over carpeted areas due to excessively high suction power, decrease the suction power by opening the auxiliary air flap at the handle.

Fig. 11 Switch the vacuum cleaner off after use and unplug it when you have finished working.
Fig. 12 Wind the power cable around the cable storage by pressing the automatic cable retraction switch. While you are doing this keep the cable taut, if possible.

Parking system for pauses in vacuuming

Fig. 13 You can store the telescopic tube with the floor nozzle on the vacuum cleaner during short pauses. Insert the floor nozzle with the parking attachment into the parking system.

Transport and storage

Fig. 14 To carry your vacuum cleaner grasp it by the handle.

Cleaning and care

Warning

• When cleaning, never use solvents or abrasive materials, hard brushes, metallic or sharp objects. Solvents are harmful to human health and can attack plastic parts, while abrasive cleaning mechanisms and tools may scratch the surface(s).
• Never immerse any electrical parts of the product in water or in other liquids during cleaning. Never place it under running water.

English

Emptying the dust canister

If the suction power diminishes, the dust canister must be emptied and the filters must be cleaned. We recommend to empty the dust canister outside of the house.

Fig. 15 Press the dust container release button and remove the container.
Fig. 16 To empty the dust container, simply press the release on the bottom so that the bottom of the container opens and the dust falls out. Hold the dust container over a rubbish container whilst you are emptying it.
Fig. 17 Loosen the filter lid and remove the entire filter insert from the dust container. Empty remaining dust from the dust container.
Fig. 18 Re-assemble all of the components that have previously been removed. Assembly is carried out in reverse order. When inserting the upper fine filter, make sure that the white fine filter points upwards towards the top cover.

Cleaning the main filter

Fig. 19 Loosen the filter lid and remove the entire filter insert from the dust canister. Break down the filter into all of its individual parts. Tap the filter to remove the dust and clean all other parts with water and dry them thoroughly.

Fig. 20 Re-assemble all of the components that have previously been removed. Assembly is carried out in reverse order. When inserting the upper fine filter, make sure that the white fine filter points upwards towards the top cover.

Cleaning the motor filter

Fig. 21 Remove the motor filter and tap it to remove the dust. Then re-insert it. Reassemble all of the components that have previously been removed. Assembly is carried out in reverse order.

Warning

Never use the vacuum cleaner without a motor filter, as otherwise, the motor will soon get dirty and will be subject to wear. If the motor filter gets dirty, the suction power will diminish.

Cleaning the exhaust air filter

Fig. 22 Open the flap, take the filter out and tap it to remove the dust. Assembly is carried out in reverse order. Insert the filter in the right direction so that the correct side is facing the motor.

Troubleshooting

If there are any problems during operation, please refer to the following table. If problems cannot be solved as indicated under Solution, please contact your retailer.

Problem Possible causes Solution
Product does not work • Interrupted power supply • Check the power supply
Product cannot absorb dust or loses suction power	• Filters are blocked with dirt• Dust container full• Suction hose/ telescopic tube blocked with dirt
	• Clean and wash all filters• Empty dust container• Clean and wash the suction hose/telescopic tube
