USER MANUAL BCHTS3625L1 BLACK & DECKER

text_image BLACK+ DECKER™

BLACK & DECKER BCHTS3625L1 - 1

text_image BLACK* DECKER TM 1 2 3 4 5 6 7 9 8

www.blackanddecker.eu

BLACK & DECKER BCHTS3625L1 - 2

text_image A2 A1 <18% 18% - 45% 45% - 72% 72% - 100% A

BLACK & DECKER BCHTS3625L1 - 3

text_image BLACK+ DECKER B

BLACK & DECKER BCHTS3625L1 - 4

natural_image Technical line drawing of a mechanical component with directional arrows indicating movement (no text or symbols)

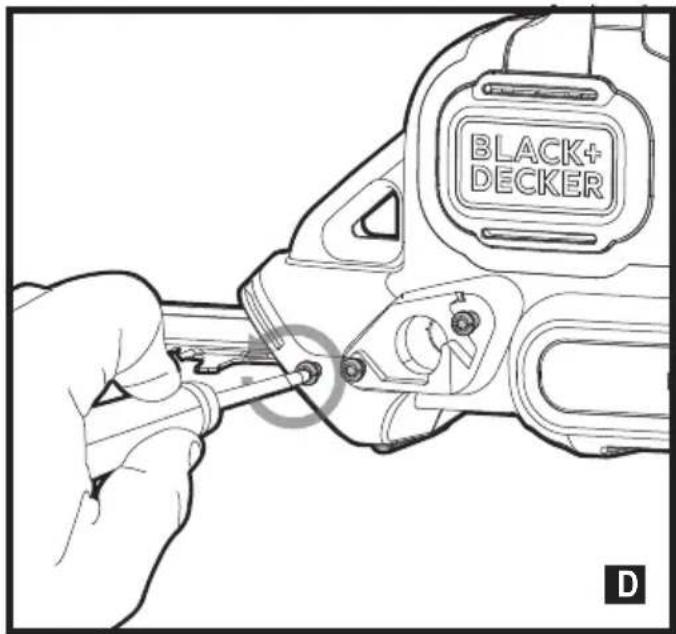

BLACK & DECKER BCHTS3625L1 - 5

text_image BLACK+ DECKER D

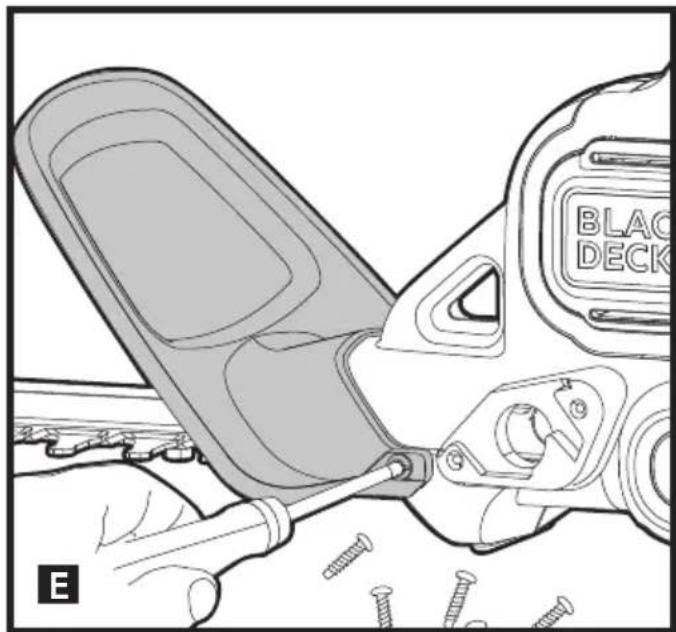

BLACK & DECKER BCHTS3625L1 - 6

natural_image Close-up of a hand using a screwdriver to adjust a black hard drive component (no text or symbols visible)

BLACK & DECKER BCHTS3625L1 - 7

text_image BLACK+ DECKER F

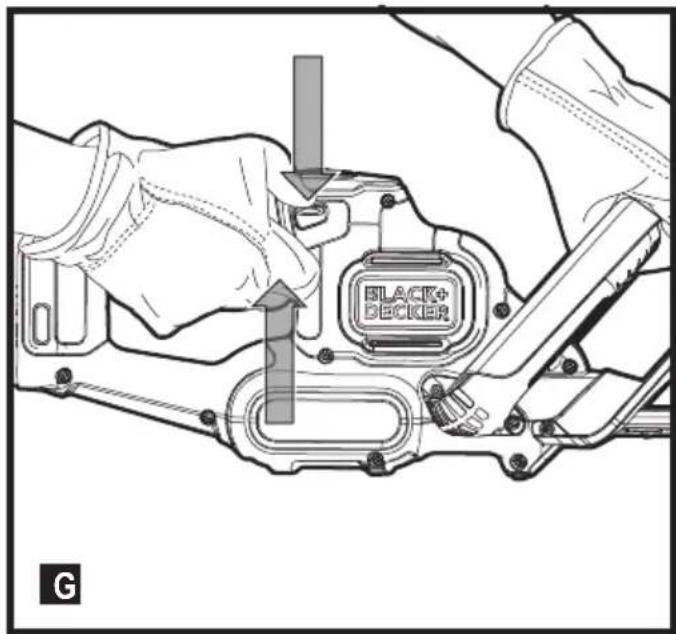

BLACK & DECKER BCHTS3625L1 - 8

text_image BLACK+ DECKER G

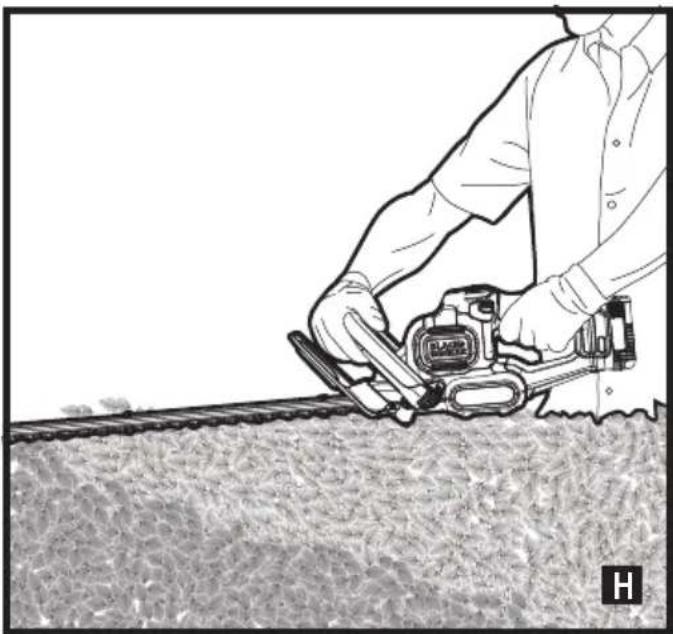

BLACK & DECKER BCHTS3625L1 - 9

natural_image Line drawing of a person using a power tool to cut a slope, no text or symbols present

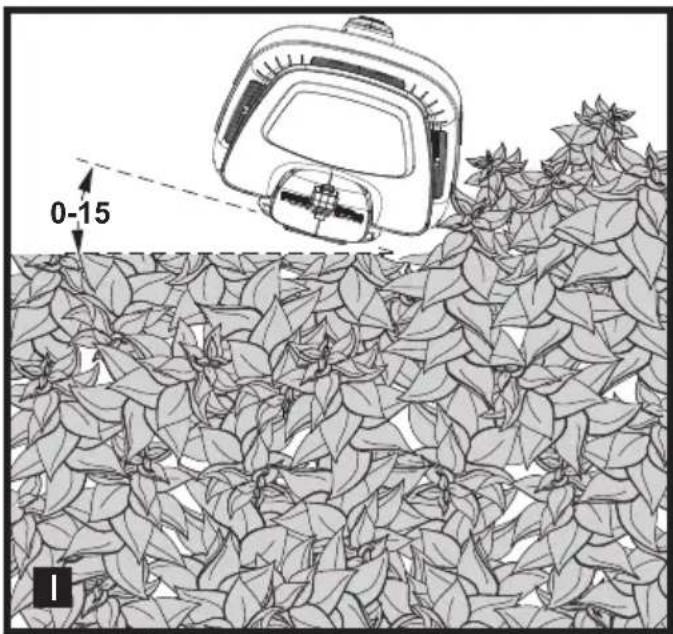

BLACK & DECKER BCHTS3625L1 - 10

text_image 0-15

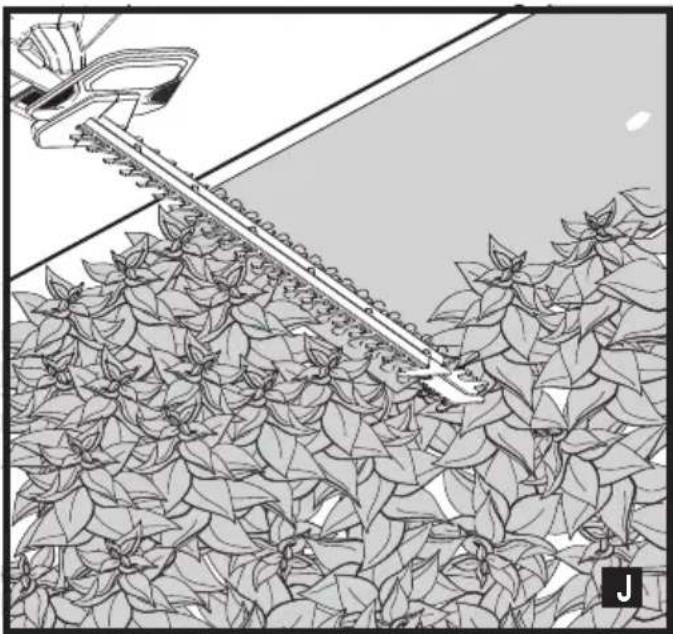

BLACK & DECKER BCHTS3625L1 - 11

natural_image Illustration of a trellis with a diagonal tool in the background, surrounded by dense foliage (no text or symbols)

BLACK & DECKER BCHTS3625L1 - 12

natural_image Diagram showing a hedgehog climbing over a leafy wall with an upward arrow indicating growth (no text or symbols)

BLACK & DECKER BCHTS3625L1 - 13

text_image BLACK+ DECKER

BLACK & DECKER BCHTS3625L1 - 14

natural_image Diagram of a tree branch with serrated edges and leaves, no text or symbols present

Intended use

Your BLACK+DECKER™ BCHTS36 hedgetrimmers have been designed for trimming hedges, shrubs and brambles. These tools are intended for consumer use only.

Safety instructions

General power tool safety warnings

BLACK & DECKER BCHTS3625L1 - General power tool safety warnings - 1

Warning! Read all safety warnings and all instructions. Failure to follow the warnings and instructions listed below may result in electric shock, fire and/or serious injury.

Save all warnings and instructions for future reference.

The term "power tool" in the warnings refers to your mains operated (corded) power tool or battery operated (cordless) power tool.

  1. Work area safety

a. Keep work area clean and well lit. Cluttered or dark areas invite accidents.
b. Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes.
c. Keep children and bystanders away while operating a power tool. Distractions can cause you to lose control.

  1. Electrical safety

a. Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools. Unmodified plugs and matching outlets will reduce risk of electric shock.

b. Avoid body contact with earthed or grounded

BLACK & DECKER BCHTS3625L1 - General power tool safety warnings - 2

text_image Safety warning sign and diagram showing a warning symbol with a warning triangle and a mesh fence, alongside a line drawing of a fence with a warning label.

surfaces such as pipes, radiators, ranges and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded.

c. Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock.

d. Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase the risk of electric shock.

e. When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock.

f. If operating a power tool in a damp location is unavoidable, use a residual current device (RCD) protected supply. Use of an RCD reduces the risk of electric shock.

  1. Personal safety

a. Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication. A moment of inattention while operating power tools may result in serious personal injury.

b. Use personal protective equipment. Always wear eye protection. Protective equipment such as dust mask, non-skid safety shoes, hard hat, or hearing protection used for appropriate conditions will reduce personal injuries.

c. Prevent unintentional starting. Ensure the switch is in the off-position before connecting to power source and/or battery pack, picking up or carrying the tool. Carrying power tools with your finger on the switch or

energising power tools that have the switch on invites accidents.

d. Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a rotating part of the power tool may result in personal injury.

e. Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations.

f. Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing and gloves away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts.

g. If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used. Use of dust collection can reduce dust-related hazards.

  1. Power tool use and care

a. Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed.

b. Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be controlled with the switch is dangerous and must be repaired.

c. Disconnect the plug from the power source and/or the battery pack from the power tool before making any adjustments, changing accessories, or storing power tools. Such preventive safety measures reduce the risk of starting the power tool accidentally.

d. Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users.

e. Maintain power tools. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the power tools operation. If damaged, have the power tool repaired before use. Many accidents are caused by poorly maintained power tools.

f. Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control.

g. Use the power tool, accessories and tool bits etc. in accordance with these instructions, taking into account the working conditions and the work to be performed. Use of the power tool for operations different from those intended could result in a hazardous situation.

  1. Battery tool use and care

a. Recharge only with the charger specified by the manufacturer.

A charger that is suitable for one type of battery pack may

create a risk of fire when used with another battery pack.

b. Use power tools only with specifically designated battery packs. Use of any other battery packs may create a risk of injury and fire.

c. When battery pack is not in use, keep it away from other metal objects, like paper clips, coins, keys, nails, screws, or other small metal objects, that can make a connection from one terminal to another. Shorting the battery terminals together may cause burns or a fire.

d. Under abusive conditions, liquid may be ejected from the battery; avoid contact. If contact accidentally occurs, flush with water. If liquid contacts eyes, additionally seek medical help. Liquid ejected from the battery may cause irritation or burns.

  1. Service

a. Have your power tool serviced by a qualified repair person using only identical replacement parts. This will ensure that the safety of the power tool is maintained.

Additional power tool safety warnings

BLACK & DECKER BCHTS3625L1 - Additional power tool safety warnings - 1

Warning! Additional safety warnings for hedge trimmers

- Keep all parts of the body away from the cutter blade. Do not remove cut material or hold material to be cut when blades are moving. Make sure the switch is off when clearing jammed material. A moment of inattention while operating the tool can result in serious personal injury.

- Carry the hedge trimmer by the handle with the cutter blade stopped.

When transporting or storing the hedge trimmer always fit the cutting device cover. Proper handling of the hedge trimmer will reduce possible personal injury from the cutter blades.

- Hold the power tool by insulated gripping surfaces only, because the cutter blade may contact hidden wiring. Cutter blades contacting a "live" wire may make exposed metal parts of the power tool "live" and could give the operator an electric shock.

- The intended use is described in this instruction manual. The use of any accessory or attachment or performance of any operation with this tool other than those recommended in this instruction manual can present a risk of personal injury and/or damage to property.

Do not carry the tool with your hands on the front handle, switch or the trigger switch unless the battery has been removed.

◆ If you have not used a hedge trimmer before, preferably

seek practical instruction by an experienced user in addition to studying this manual.

◆ Never touch the blades while the tool is running.
◆ Never attempt to force the blades to come to a standstill.
- Do not put the tool down until the blades have come to a complete standstill.
◆ Regularly check the blades for damage and wear. Do not use the tool when the blades are damaged.

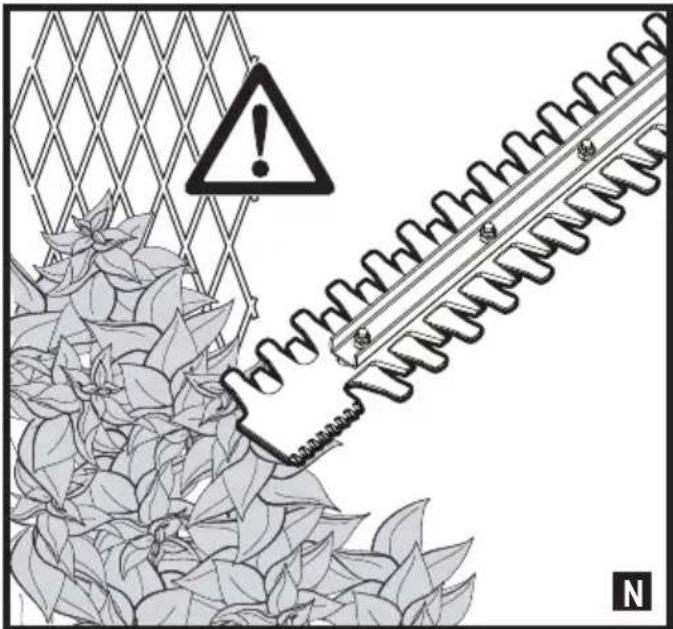

Take care to avoid hard objects (e.g. metal wire, railings) when trimming. Should you accidentally hit any such object, immediately switch the tool off and check for any damage.

- Should the tool start to vibrate abnormally, immediately switch it off and remove the battery then check for any damage.

If the tool stalls, immediately switch it off. Remove the battery before attempting to remove any obstructions.

- After use, place the blade sheath supplied over the blades. Store the tool, making sure that the blade is not exposed.

- Always ensure that all guards are fitted when using the tool. Never attempt to use an incomplete tool or a tool with unauthorised modifications.

◆ Never allow children to use the tool.

- Be aware of falling debris when cutting the higher sides of a hedge.

◆ Always hold the tool with both hands and by the handles provided.

Safety of others

  • This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
  • Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

Residual risks.

Additional residual risks may arise when using the tool which may not be included in the enclosed safety warnings. These risks can arise from misuse, prolonged use etc.

Even with the application of the relevant safety regulations and the implementation of safety devices, certain residual risks can not be avoided. These include:

◆ Injuries caused by touching any rotating/moving parts.
◆ Injuries caused when changing any parts, blades or accessories.

◆ Injuries caused by prolonged use of a tool. When using any tool for prolonged periods ensure you

take regular breaks.

◆ Impairment of hearing.
◆ Health hazards caused by breathing dust developed when using your tool (example:- working with wood, especially oak, beech and MDF.)

Vibration

The declared vibration emission values stated in the technical data and the declaration of conformity have been measured in accordance with a standard test method provided by EN 60745 and may be used for comparing one tool with another. The declared vibration emission value may also be used in a preliminary assessment of exposure.

Warning! The vibration emission value during actual use of the power tool can differ from the declared value depending on the ways in which the tool is used. The vibration level may increase above the level stated.

When assessing vibration exposure to determine safety measures required by 2002/44/EC to protect persons regularly using power tools in employment, an estimation of vibration exposure should consider, the actual conditions of use and the way the tool is used, including taking account of all parts of the operating cycle such as the times when the tool is switched off and when it is running idle in addition to the trigger time.

Labels on tool

The following pictograms are shown on the tool along with the date code:

BLACK & DECKER BCHTS3625L1 - Labels on tool - 1

Warning! To reduce the risk of injury, the user must read the instruction manual.

BLACK & DECKER BCHTS3625L1 - Labels on tool - 2

Wear safety glasses or goggles when operating this tool.

BLACK & DECKER BCHTS3625L1 - Labels on tool - 3

Wear ear protection when operating this tool.

BLACK & DECKER BCHTS3625L1 - Labels on tool - 4

Do not expose the tool to rain or high humidity.

BLACK & DECKER BCHTS3625L1 - Labels on tool - 5

Always remove the battery from the appliance before performing any cleaning or maintenance.

BLACK & DECKER BCHTS3625L1 - Labels on tool - 6

Directive 2000/14/EC guaranteed sound power.

Additional safety instructions for batteries and

chargers (Where supplied)

Batteries

◆ Never attempt to open for any reason.
◆ Do not expose the battery to water.
◆ Do not expose the battery to heat.
- Do not store in locations where the temperature may exceed 40 °C.
◆ Charge only at ambient temperatures between 10 °C and 40 °C.
◆ Charge only using the charger provided with the appliance/tool. Using the wrong charger could result in an electric shock or overheating of the battery.
- When disposing of batteries, follow the instructions given in the section "Protecting the environment".
- Do not damage/deform the battery pack either by puncture or impact, as this may create a risk of injury and fire. Do not charge damaged batteries.
Under extreme conditions, battery leakage may occur. When you notice liquid on the batteries Carefully wipe the liquid off using a cloth. Avoid skin contact.
◆ In case of skin or eye contact, follow the instructons below.

Warning! The battery fluid may cause personal injury or damage to property. In case of skin contact, immediately rinse with water. If redness, pain or irritation occurs seek medical attention. In case of eye contact, rinse immediately with clean water and seek medical attention.

BLACK & DECKER BCHTS3625L1 - Batteries - 1

Do not attempt to charge damaged batteries.

Chargers

Your charger has been designed for a specific voltage. Always check that the mains voltage corresponds to the voltage on the rating plate.

Warning! Never attempt to replace the charger unit with a regular mains plug.

- Use your BLACK+DECKER charger only to charge the battery in the appliance/tool with which it was supplied. Other batteries could burst, causing personal injury and damage.

- Never attempt to charge non-rechargeable batteries.

If the supply cord is damaged, it must be replaced by the manufacturer or an authorised BLACK+DECKER Service Centre in order to avoid a hazard.

◆ Do not expose the charger to water.

◆ Do not open the charger.

◆ Do not probe the charger.

- The appliance/tool/battery must be placed in a well ventilated area when charging.

BLACK & DECKER BCHTS3625L1 - Chargers - 1

The charger is intended for indoor use only.

BLACK & DECKER BCHTS3625L1 - Chargers - 2

Read the instruction manual before use.

Electrical safety

BLACK & DECKER BCHTS3625L1 - Electrical safety - 1

Your charger is double insulated; therefore no earth wire is required. Always check that the mains voltage corresponds to the voltage on the rating plate. Never attempt to replace the charger unit with a regular mains plug.

If the supply cord is damaged, it must be replaced by the manufacturer or an authorised BLACK+DECKER Service Centre in order to avoid a hazard.

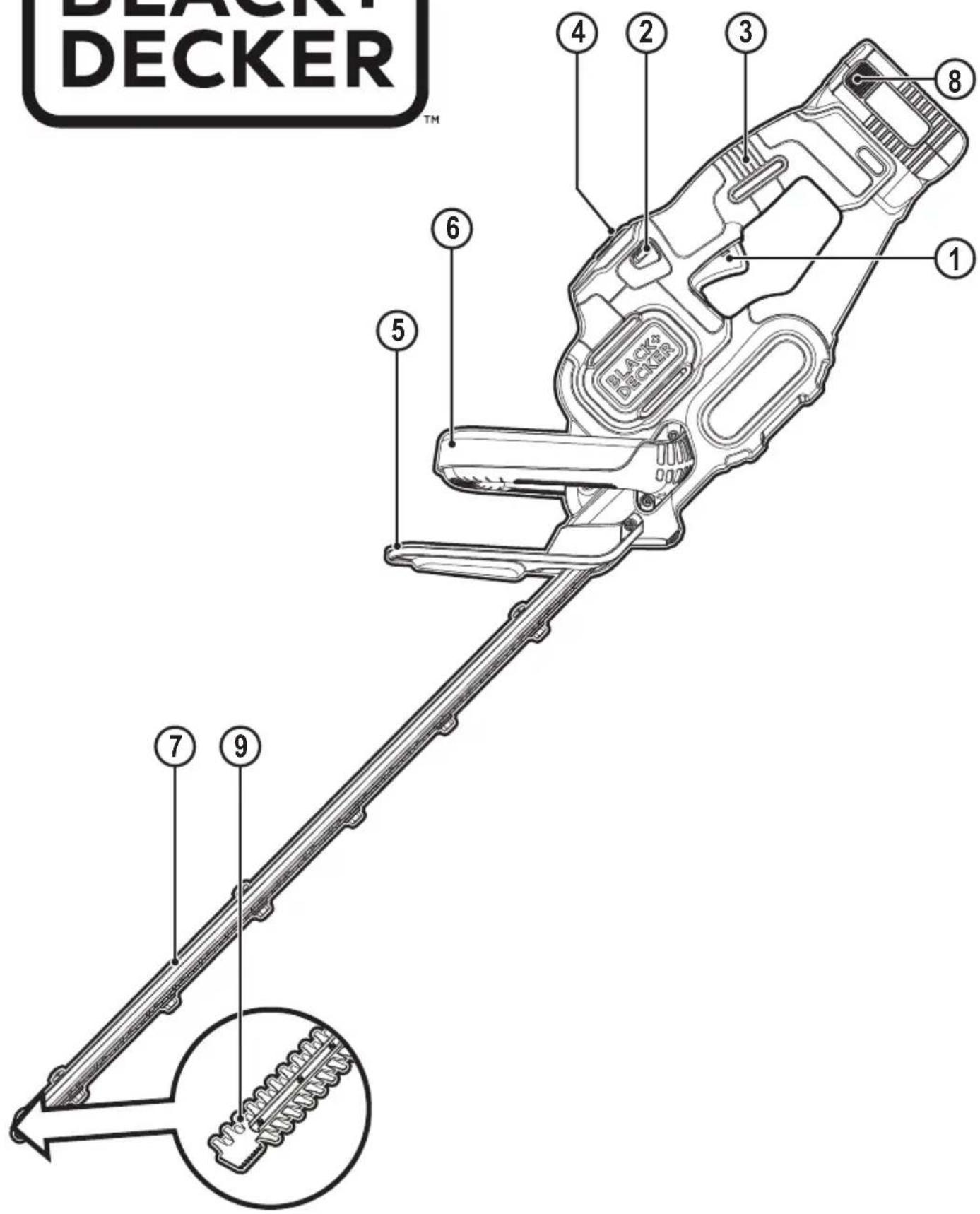

Features

This tool includes some or all of the following features.

  1. Trigger switch
  2. Lock-off button
  3. Handle
  4. POWERCOMMAND button
  5. Blade guard
  6. Dual switch bail handle
  7. Blade
  8. Battery

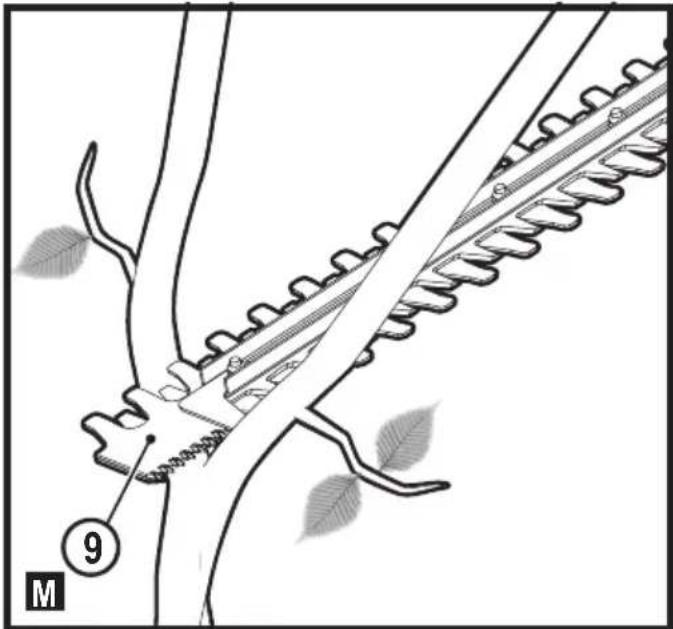

  9. Sawblade

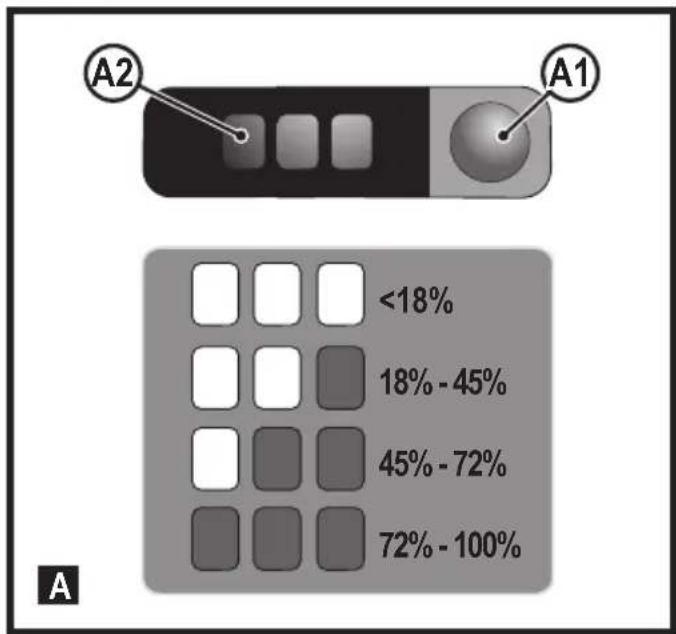

Charging the battery (Fig. A) (no battery or charger supplied with GTC3655PCLB)

The battery needs to be charged before first use and whenever it fails to produce sufficient power on jobs that were easily done before.

The battery may become warm while charging; this is normal and does not indicate a problem.

Warning! Do not charge the battery at ambient temperatures below 10 °C or above 40 °C. Recommended charging temperature: approx. 24 °C.

Note: The charger will not charge a battery if the cell temperature is below approximately 10 °C or above 40 °C.

The battery should be left in the charger and the charger will begin to charge automatically when the cell temperature warms up or cools down.

◆ Plug the charger into an appropriate outlet before inserting the battery pack.
◆ Insert the battery pack into the charger.

BLACK & DECKER BCHTS3625L1 - Charging the battery (Fig. A) (no battery or charger supplied with GTC3655PCLB) - 1

The green LED will flash indicating that the battery is being charged.

BLACK & DECKER BCHTS3625L1 - Charging the battery (Fig. A) (no battery or charger supplied with GTC3655PCLB) - 2

The completion of charge is indicated by the green LED remaining on continuously. The pack is fully charged and may be used at this time or left in the charger

Warning! Recharge discharged batteries as soon as possible after use or battery life may be greatly diminished.

Charger diagnostics

This charger is designed to detect certain problems that can arise with the battery packs or the power source. Problems are indicated by one LED flashing in different patterns.

Bad Battery

BLACK & DECKER BCHTS3625L1 - Bad Battery - 1

The charger can detect a weak or damaged battery. The red LED flashes in the pattern indicated on the label. If you see this bad battery blink pattern, do not continue to charge the battery. Return it to a service centre or a collection site for recycling

Hot/Cold Pack Delay

BLACK & DECKER BCHTS3625L1 - Hot/Cold Pack Delay - 1

When the charger detects a battery that is excessively hot or excessively cold, it automatically starts a Hot/Cold Pack delay, suspending charging until the battery has normalised. After this happens, the charger automatically switches to the Pack Charging mode. This feature ensures maximum battery life. The red LED flashes in the pattern indicated on the label when the Hot/Cold pack delay is detected.

Leaving the battery in the charger

The charger and battery pack can be left connected with the LED glowing indefinitely. The charger will keep the battery pack fresh and fully charged.

Important charging notes

◆ Longest life and best performance can be obtained if the battery pack is charged when the air temperature is between 65°F and 75°F (18°-24°C). DO NOT charge the battery pack in an air temperature below +40°F (+4.5°C), or above +105°F (+40.5°C). This is important and will prevent serious damage to the battery pack.

  • The charger and battery pack may become warm to touch while charging. This is a normal condition, and does not indicate a problem. To facilitate the cooling of the battery pack after use, avoid placing the charger or battery pack in a warm environment such as in a metal shed, or an uninsulated trailer
    ◆ If the battery pack does not charge properly:

◆ Check current at receptacle by plugging in a lamp or other appliance
◆ Check to see if receptacle is connected to a light switch which turns power off when you turn out the lights.
- Move charger and battery pack to a location where the surrounding air temperature is approximately 65°F - 75°F (18° - 24°C).
- If charging problems persist, take the appliance, battery pack and charger to your local service center.

- The battery pack should be recharged when it fails to produce sufficient power on jobs which were easily done previously. DO NOT CONTINUE to use under these conditions. Follow the charging procedure. You may also charge a partially used pack whenever you desire with no adverse effect on the battery pack.

  • Foreign materials of a conductive nature such as, but not limited to, steel wool, aluminium foil, or any buildup of metallic particles should be kept away from charger cavities. Always unplug the charger from the power supply when there is no battery pack in the cavity. Unplug charger before attempting to clean.
  • Do not freeze or immerse charger in water or any other liquid.

Warning! Shock hazard. Do not allow any liquid to get inside charger. Never attempt to open the battery pack for any reason.

If the plastic housing of the battery pack breaks or cracks, return to a service center for recycling.

State of charge indicator

The battery is equipped with a state of charge indicator. This can be used to display the current level of charge in the battery during use and during charging.

It does not indicate tool functionality and is subject to variation based on product components, temperature and end-user application.

Checking state of charge during use

◆ Press the state of charge indicator button (A1).
- The three LEDs (A2) will illuminate, indicating the percent of charge in the battery. See chart in figure a.
◆ If LED light does not illuminate, charge battery.

Installing and removing the battery pack from the appliance

Warning! Make certain the lock-off button is not engaged to prevent switch actuation before removing or installing battery.

To install battery pack

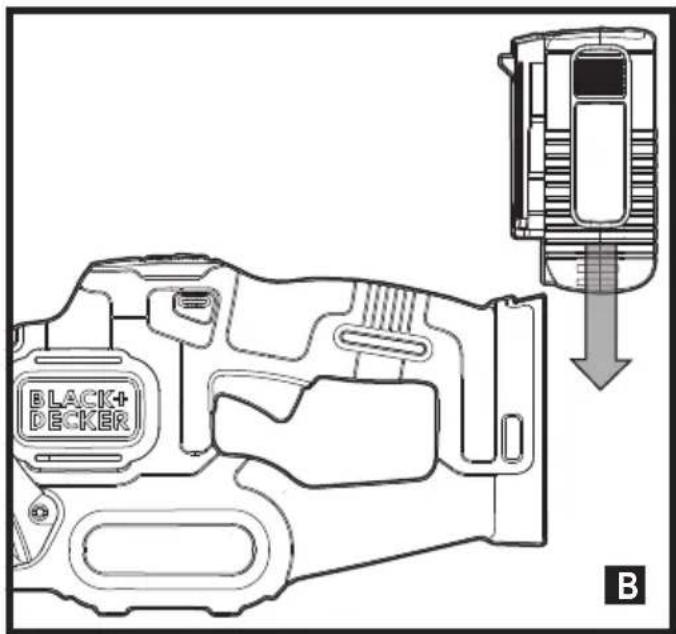

Insert battery (8) into appliance until an audible click is heard (Figure B). Ensure battery pack is fully seated and fully latched into position.

To remove battery pack

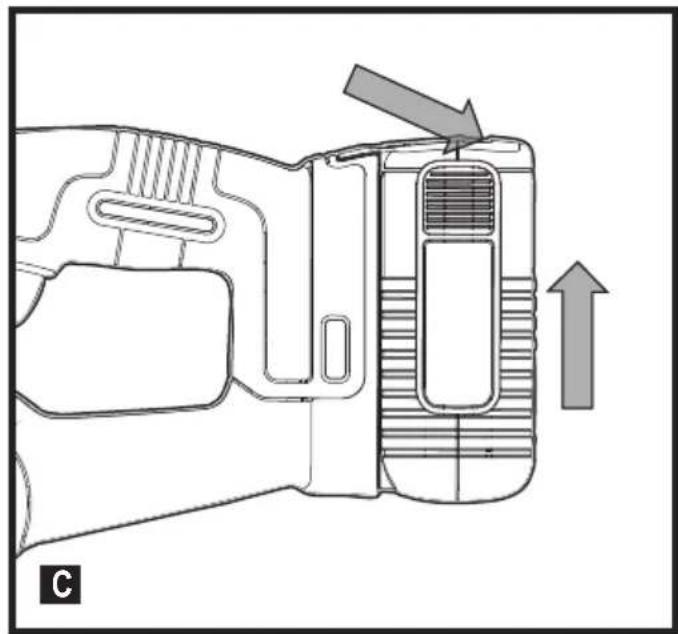

Depress the battery release button as shown in Figure C and pull battery pack out of appliance.

Assembly

Warning! Before assembly, remove the battery from the tool fit the blade sheath over the blades.

Warning! Before assembly, make sure that the tool is switched off and unplugged and that the blade sheath is fitted over the blades.

Warning! Never use the tool without the guard.

Fitting the guard and bail handle (fig. D–F)

Warning! Only use the tool with the guard and handle properly assembled. Using the hedge trimmer without the proper guard or handle provided may result in serious injury.

Note: The hedge trimmer was shipped with the guard and bail handle attached to the hedge trimmer with a plastic tie.

◆ Cut the plastic tie.
◆ Remove the partially inserted screws from the body of the tool (Fig. D).
◆ Slide the guard (5) onto the front of the hedge trimmer housing (Fig. E).
◆ Insert two screws into the openings on the side of the guard, tighten securely.

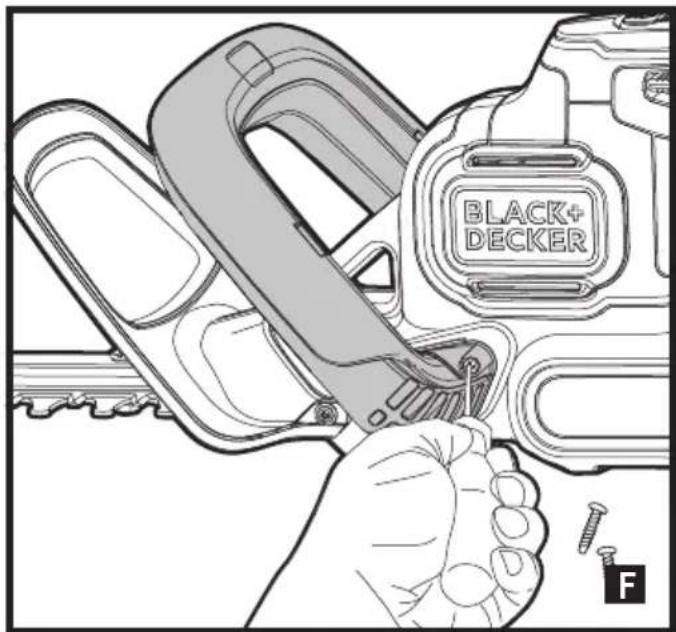

◆ Slide the bail handle (6) onto the front of the trimmer housing behind the guard as shown in Figure F.
- Insert the remaining four screws into the openings on the sides of the bail handle and tighten securely.

Use

Warning! Let the tool work at its own pace. Do not overload.

Switch

To turn the unit on, push the lock off button (2) down, squeeze the trigger (1) as shown in figure G. Once the unit is running, you may release the lock-off button. In order to keep the unit running you must continue to squeeze the trigger.
◆ To turn the unit off, release the trigger.

Warning! Never attempt to lock a switch in the ON position.

Trimming instructions

  • Maintain proper footing and balance and do not overreach. Wear safety goggles, non-skid footwear when trimming.
    ◆ Hold the unit firmly in both hands and turn the unit ON.
    ◆ Always hold the trimmer, as shown in the illustrations in this manual, with one hand on the switch handle and one hand on the bail handle (figure H).
    ◆ Never hold the unit by the blade guard.

Trimming new growth (Fig. I)

◆ A wide, sweeping motion, feeding the blade teeth through the twigs is most effective.
◆ A slight downward tilt of the blade, in the direction of motion gives the best cutting.

Warning! Do not cut stems greater than 19mm. Use the trimmer only for cutting normal shrubbery around houses and buildings.

Level hedges (Fig. J)

◆ To obtain exceptionally level hedges a piece of string can be stretched along the length of the hedge as a guide.

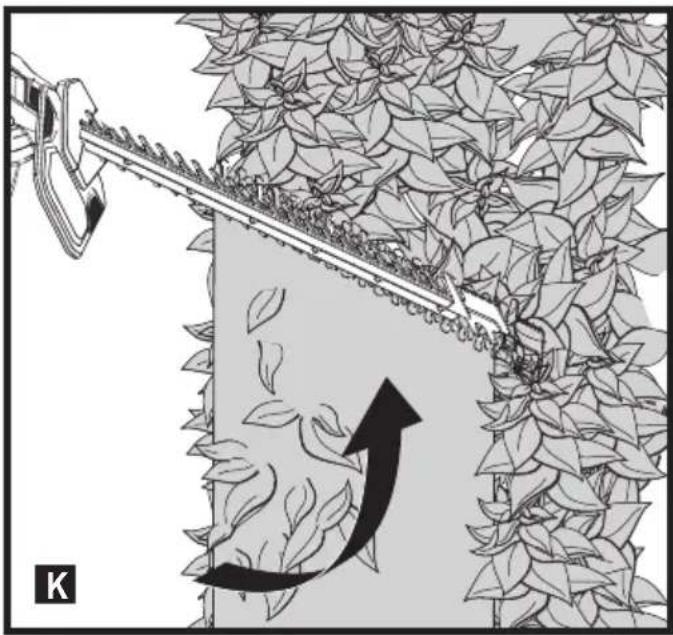

Side trimming hedges (Fig. k)

- Hold the trimmer as shown and begin at the bottom and sweep up.

Saw blade (Fig. M, N)

For branches too large for the blade (7) to cut, use the saw blade (9). Position the saw blade as close to the bottom of the branch as possible. Place the saw blade shoe against the branch. Turn the hedge trimmer on as described above, allowing the tool to work at its own pace until the branch is fully cut.

POWERCOMMAND

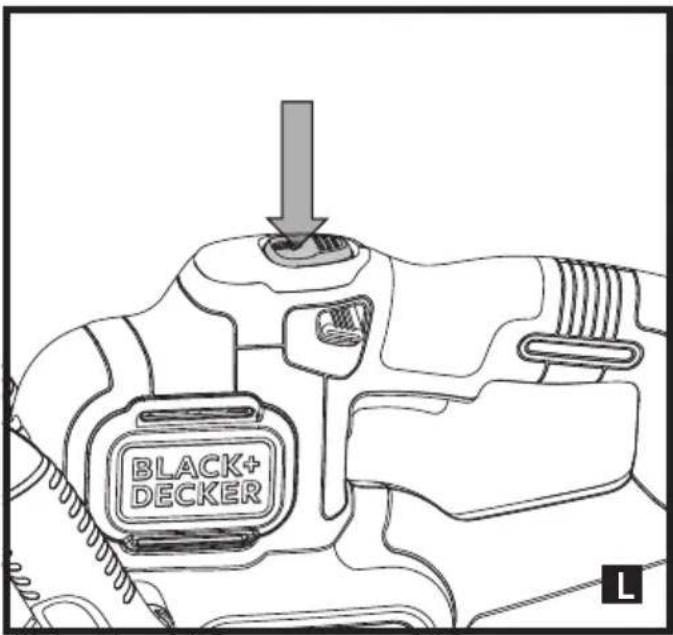

If you encounter a jam, depress the POWERCOMMAND button (4) shown in Figure L. The blades will move back and forth in a slower, more forceful rhythm to help cut through difficult branches. Release the button to return to normal hedge trimming usage.

Note: Once the button is released, the blades will immediately return to full speed.

Note: The blades will stop when the button is held for 15 seconds. To reengage the POWERCOMMAND feature, release the button and depress it again.DO NOT continuously hold the POWERCOMMAND button during normal hedge trimming.

Maintenance

Your BLACK+DECKER corded/cordless appliance/tool has been designed to operate over a long period of time with a minimum of maintenance.

Continuous satisfactory operation depends upon proper tool care and regular cleaning.

Lubrication oil is available from your BLACK+DECKER dealer (cat. no. A6102-XJ).

Warning! Before performing any maintenance on corded/cordless power tools:

◆ Switch off and unplug the appliance/tool.
- Or switch off and remove the battery from the appliance/tool if the appliance/tool has a separate battery pack.
- Or run the battery down completely if it is integral and then switch off.
◆ Unplug the charger before cleaning it. Your charger does not require any maintenance apart from regular cleaning.
◆ Regularly clean the ventilation slots in your appliance/tool/charger using a soft brush or dry cloth.
◆ Regularly clean the motor housing using a damp cloth. Do not use any abrasive or solvent-based cleaner.
- After use, carefully clean the blades. After cleaning, apply a film of light machine oil to prevent the blades from rusting.

Mains plug replacement (U.K. & Ireland only)

If a new mains plug needs to be fitted:

◆ Safely dispose of the old plug.
- Connect the brown lead to the live terminal in the new plug.
◆ Connect the blue lead to the neutral terminal.

Warning! No connection is to be made to the earth terminal. Follow the fitting instructions supplied with good quality plugs. Recommended fuse: 5 A.

Protecting the environment

BLACK & DECKER BCHTS3625L1 - Protecting the environment - 1

Separate collection. Products and batteries marked with this symbol must not be disposed of with normal household waste.

Products and batteries contain materials that can be recovered or recycled, reducing demand for raw materials. Please recycle electrical products and batteries according to local provisions. Further information is available at www.2helpU.com

Technical data

BCHTS36 B H1 BCHHTS36 25L1 H1
Voltage VDC36 36
Blade strokes (no load)min ^-1 1300 1300
Blade lengthcm55 55
Blade gapmm 22 22
Weightkg 3.2 3.2
Batteries Chargers (minutes)
Cat# Vdc AbWeight KgCat# 9050287° N617388° BVC1A BDC2ABDC2A36
Amps400mA1A1A2A1.35A
BL1518181.50.38BL1518225909045X
BL1518ST181.50.38BL1518ST225909045X
BL2018182.00.39BL201830012012060X
BL2018ST182.00.39BL2018ST30012012060X
BL2518182.50.43BL251838015015075X
BL4018184.00.84BL4018800240240120X
BL5018185.00.7BL5018750300300136X
BL20362182.00.54BL20362XXXX90
BL2536182.50.88BL2536XXXX110
BL155410:541.51.08BL1554225909045X
BL255410:542.51.2BL255438015015075X
Level of sound pressure according to EN 60745:
Sound pressure ( L_pA ) 77 dB(A), uncertainty (K) 4 dB(A)
Sound power ( L_WA ) 88 dB(A), uncertainty (K) 3 dB(A)
Vibration total values (triax vector sum) according to EN 60745:
Vibration emission value ( a_h ) < 2.5 m/s ^2 , uncertainty (K) 1.5 m/s ^2

EC declaration of conformity

MACHINERY DIRECTIVE

OUTDOOR NOISE DIRECTIVE

BLACK & DECKER BCHTS3625L1 - EC declaration of conformity - 1

BCHTS36 – Hedge Trimmer

Black & Decker declares that these products described under "technical data" are in compliance with:

2006/42/EC, EN 60745-1:2009 +A11:2010, EN 60745-2-15:2009 +A1:2010

2000/14/EC, Hedge trimmer 1300 min ^-1 , Annex V

Measured sound pressure ( L_pA ) 77 dB(A) Uncertainty (K) 3 dB(A)

Guaranteed sound power (L _WA ) 98 dB(A)

These products also comply with Directive 2014/30/EU and 2011/65/EU. For more information, please contact Black & Decker at the following address or refer to the back of the manual.

The undersigned is responsible for compilation of the technical file and makes this declaration on behalf of Black & Decker.

BLACK & DECKER BCHTS3625L1 - EC declaration of conformity - 2

Becky Cotsworth

Director – Outdoor Products Group

Black & Decker Europe, 270 Bath Road, Slough,

Berkshire, SL1 4DX

United Kingdom

21/08/2019

ENGLISH

(Original instructions)

Guarantee

Black & Decker is confident of the quality of its products and offers consumers a 24 month guarantee from the date of purchase. This guarantee is in addition to and in no way prejudices your statutory rights. The guarantee is valid within the territories of the Member States of the European Union and the European Free Trade Area.

To claim on the guarantee, the claim must be in accordance with Black&Decker Terms and Conditions and you will need to submit proof of purchase to the seller or an authorised repair agent. Terms and conditions of the Black&Decker 2 year guarantee and the location of your nearest authorised repair agent can be obtained on the Internet at www.2helpU.com, or by contacting your local Black & Decker office at the address indicated in this manual.

Please visit our website www.blackanddecker.co.uk to register your new Black & Decker product and receive updates on new products and special offers.

DEUTSCH

Director – Outdoor Products Group

Black & Decker Europe, 270 Bath Road, Slough,

Berkshire, SL1 4DX

Black & Decker Europe, 270 Bath Road, Slough,

Berkshire, SL1 4DX

Royaume-Uni

21/08/2019

Garantie

Black & Decker Europe, 270 Bath Road, Slough, Berkshire, SL1 4DX

Regno Unito

21/08/2019

Garanzia

Director – Outdoor Products Group

Black & Decker Europe, 270 Bath Road, Slough,

Berkshire, SL1 4DX

Verenigd Koninkrijk

21-8-2019

Garantie

BCHTS36 – Cortasetos

Black & Decker Europa, 270 Bath Road, Slough,

Berkshire, SL1 4DX

Reino Unido

21/08/2019

Garantía

Black & Decker Europe, 270 Bath Road, Slough,

Berkshire, SL1 4DX

Reino Unido

21/08/2019

PORTUGUÊS

Director – Outdoor Products Group

Black & Decker Europe, 270 Bath Road, Slough,

Berkshire, SL1 4DX

Storbritannien

2019-08-21

Garanti

Black & Decker Europe, 270 Bath Road, Slough,

Berkshire, SL1 4DX

Storbritannia

21.08.2019

Garanti

Black & Decker Europe, 270 Bath Road, Slough,

Berkshire, SL1 4DX

Storbritannien

21-08-2019

DANSK

Black & Decker Europe, 270 Bath Road, Slough,

Berkshire, SL1 4DX

Iso-Britannia

21.8.2019

Takuu

Black & Decker Europe, 270 Bath Road, Slough,

Berkshire, SL1 4DX

Manual assistant
Powered by Anthropic
Waiting for your message
Product information

Brand : BLACK & DECKER

Model : BCHTS3625L1

Category : Hedge trimmers
