Product Type	Air Circulator / Fan
Brand	XPower
Model	FC200
Dimensions (L x W x H)	41.0 x 22.5 x 36.0 cm
Weight	4.6 kg
Power Supply	115 V ~ 60 Hz
Motor Power	1/4 HP
Nominal Airflow	1300 CFM (cubic feet per minute)
Number of Speeds	4 speeds (1-4)
Timer	3 hours (OFF position)
Cord Length	1.8 m (6 feet)
Housing Material	PP (polypropylene)
Orientation	360° Swivel Stand with Locking Handles
Stacking	Up to 5 units for FC200 series
Carrying Handle	Integrated handle on top
Additional Power Outlet	No (FC200 model)
Safety Certification	ETL / C-ETL
Warranty	1 year limited (materials and workmanship defects)
Maintenance and Cleaning	Wipe with a damp cloth; do not use water directly. Check and clean grilles regularly.
Safety Instructions	Unplug before maintenance; do not use with damaged cord; do not immerse; keep out of reach of children.

Frequently Asked Questions - FC200 XPower

How to install the FC200 fan stand?

For the FC200 model, the stand is factory-installed. Simply unfold the stand and lock it at the desired angle using the locking handles.

How to clean the FC200 fan?

Unplug the fan. Use a damp cloth to wipe the housing. Never use water directly. Clean the front and rear grilles with a vacuum or soft brush.

How to adjust the fan speed?

The FC200 has a 4-speed selector. Turn the knob clockwise to go from speed 1 (lowest) to 4 (highest). The OFF position stops the unit.

How to use the timer?

Turn the timer to the right to set a countdown of up to 180 minutes (3 hours). Once the time is up, the fan stops automatically. The ON position allows continuous operation.

Can you stack multiple FC200 units?

Yes, you can stack up to 5 units of the FC200 model. Align the air intakes when stacking. Caution: stacking is not secure during transport.

Where to store the fan when not in use?

Store the FC200 in a dry place, away from direct sunlight, extreme temperatures, and humidity. Unplug and let it cool before storing out of reach of children.

What to do if the fan does not start?

Check that the power cord is properly plugged in and the outlet is live. Make sure the timer is not set to '0' (set it to ON). If the problem persists, contact XPOWER customer service.

The fan works but the speed is abnormal, what to do?

Check that the air intake and outlet are not blocked. Remove any obstacle. If the problem persists, contact XPOWER for further assistance.

What is the warranty for the FC200?

The FC200 comes with a 1-year limited warranty covering defects in materials and workmanship. Register your product online at www.xpower.com. The warranty does not cover normal wear and tear or damage from improper use.

Can I use the fan outdoors?

The FC200 is suitable for outdoor use provided it is plugged into a Ground Fault Circuit Interrupter (GFCI) protected outlet. Do not expose it to rain or direct water splashes.

USER MANUAL FC200 XPower

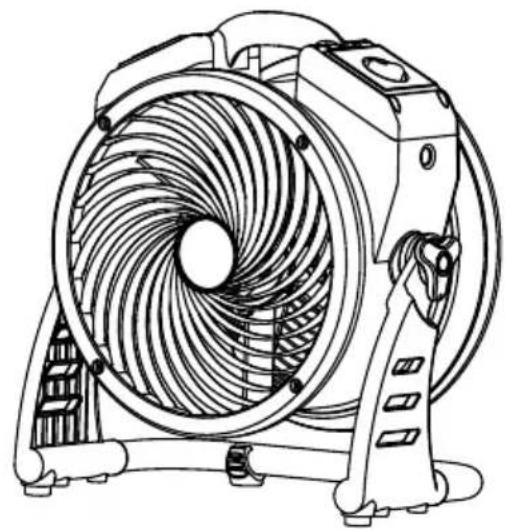

Line drawing of a multi-free fan with visible blades and mounting base (no text or symbols)

Line drawing of a fan with visible blades and mounting base (no text or symbols)

Air Circulator Owner's Manual

Read and save these instructions

WARNING - READ AND SAVE THIS INSTRUCTIONS BEFORE USING THIS PRODUCT.

The user of electrical products may create hazards that include, but are not limited to injury, fire, electrical shock. Failure to follow these instructions may damage and/or impair its operation and void the warranty.

• Before operating, remove all packaging material and check for any damage that may have occurred during shipping or any missing items.
• Check household power supply to ensure it matches the appliance's specification.
• DO NOT operate any fan with a damaged cord or plug. Discard fan or return it to an authorized service facility for examination and/or repair.
• Use only on GFCI protected receptacles. Please contact a qualified electrician for verification and / or installation of a GFCI receptacle if necessary.
• DO NOT run cord under carpeting. DO NOT cover cord with throw rugs, runners, or similar coverings. DO NOT route cord under furniture or appliances. Arrange cord away from traffic area and where it will not be tripped over.
• To reduce the risk of fire or electric shock, DO NOT use this fan with any solid-state speed control device.
• DO NOT touch this appliance or the plug with wet hands or while standing in water.
• DO NOT operate the appliance in any pooled water.
• DO NOT use the product in areas where gasoline, paint or other flammable goods and objects are used or stored.
• DO NOT insert or allow objects to enter any ventilation or exhaust opening as this may damage the appliance and void the warranty.
• DO NOT cover the air inlet or outlet on the appliance.
• DO NOT direct the air flow at human faces or bodies.
• DO NOT allow children to play with this appliance.
• AUTOMATICALLY OPERATED DEVICE – To reduce the risk of injury, disconnect from power supply before servicing.
• Remove the power cord from the electrical receptacle by grasping and pulling on the power cord plug-end only, DO NOT pull the cord directly.
• DO NOT attempt to repair or adjust any electrical or mechanical functions of this appliance, as this may cause danger and void the warranty.
• If the appliance is damaged or it malfunctions, DO NOT continue to use it. Unplug the product from the electrical outlet. Refer to troubleshooting guide or contact XPOWER.
• Store in a dry area, away from exposure to sunlight, extreme temperature and humidity, or other extreme environments, when not in use.
• For model FC-100 / FC-200 Series, DO NOT stack more than six units of this appliance. For model FC-300 / FC-420, DO NOT stack more than five units of this appliance.
• An electronic instruction manual can be obtained through manufacturer's website www.xpower.com.

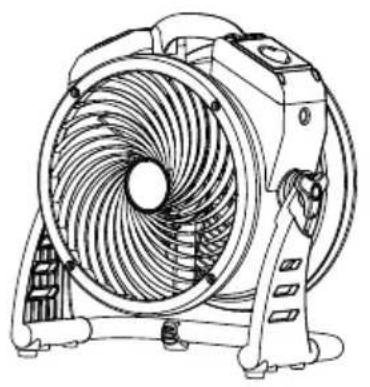

Items Included

Line drawing of a multi-free fan with blades and mounting base (no text or symbols)

○

- Rubber Washer x 2**

Technical line drawing of a mechanical fan or impeller assembly (no text or symbols)

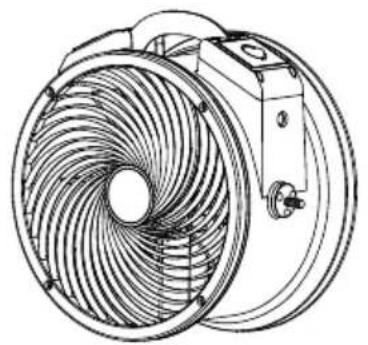

- Air Circulator Body x 1** • Air Circulator x 1*

- Rack Handle x 2**

Technical line drawing of a mechanical clamp or bracket (no text or symbols)

- Rack x 1**

- Owner's Manual x 1

* For model FC-100/FC-200 Series/FC-420 only.

The exact appearance of the products might be slightly different from the diagram.

** For model FC-300 only.

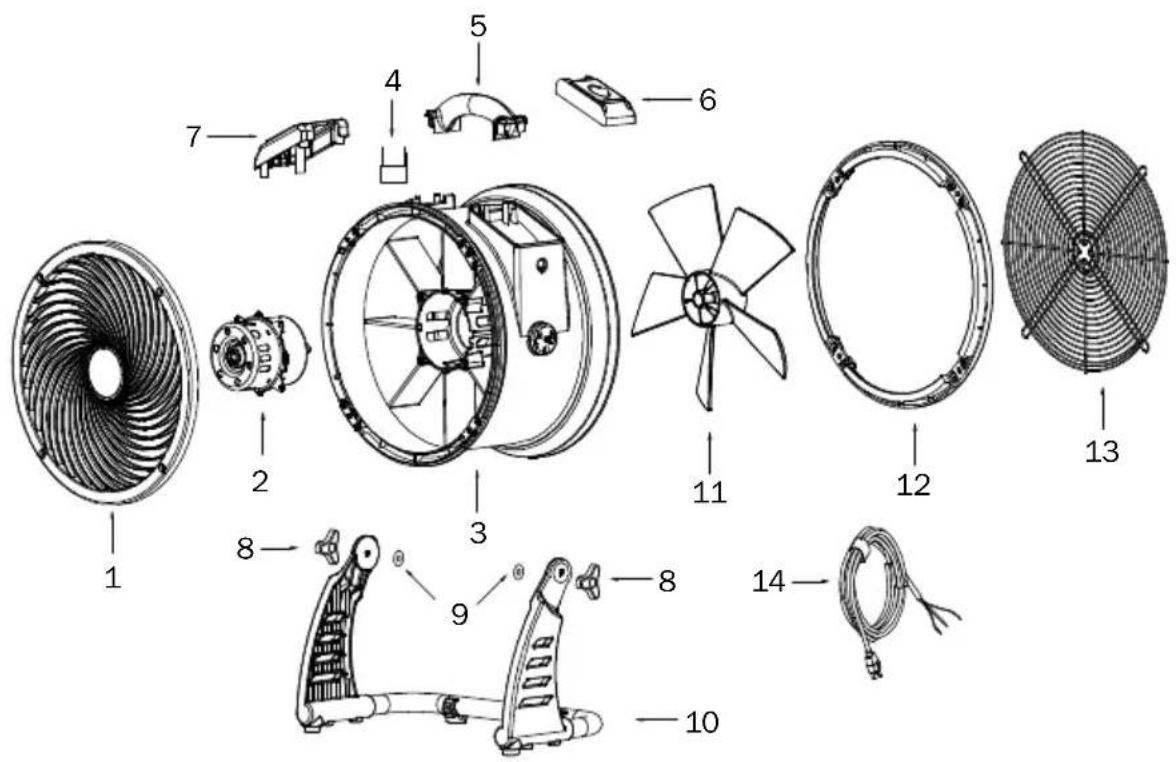

Parts Description

Parts Description (Continued)

(1) Front Grille Cover
and Timer Plate**
(10) Rack
(2) Motor
(7) Additional Electrical
(11) Fan
(3) Housing
Receptacle *** / Timer
(12) Rear End Cover
(4) Capacitor
Plate ****
(13) Rear Grille Cover
(5) Housing Handle
(8) Rack Handle
(14) Power Cord
(6) Switch Plate*/Switch
(9) Rubber Washer

* / ** / *** / **** These functions do not apply all models mentioned in this manual. (See Page 11: Technical Specification)

Air Circulator Introduction

• XPOWER Air Circulators are designed to offer efficient air circulation and ventilation with its high and long-distance focused airflow.
• It's perfect for air circulation and ventilation in janitorial/sanitation jobs, air condition control and more.

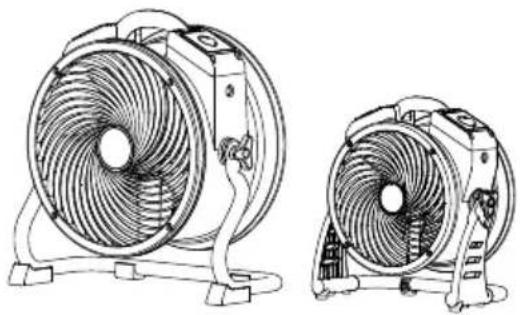

Technical line drawing of two different fan-shaped electric fans with blades and mounting base (no text or symbols)

Installation and Operation Guide

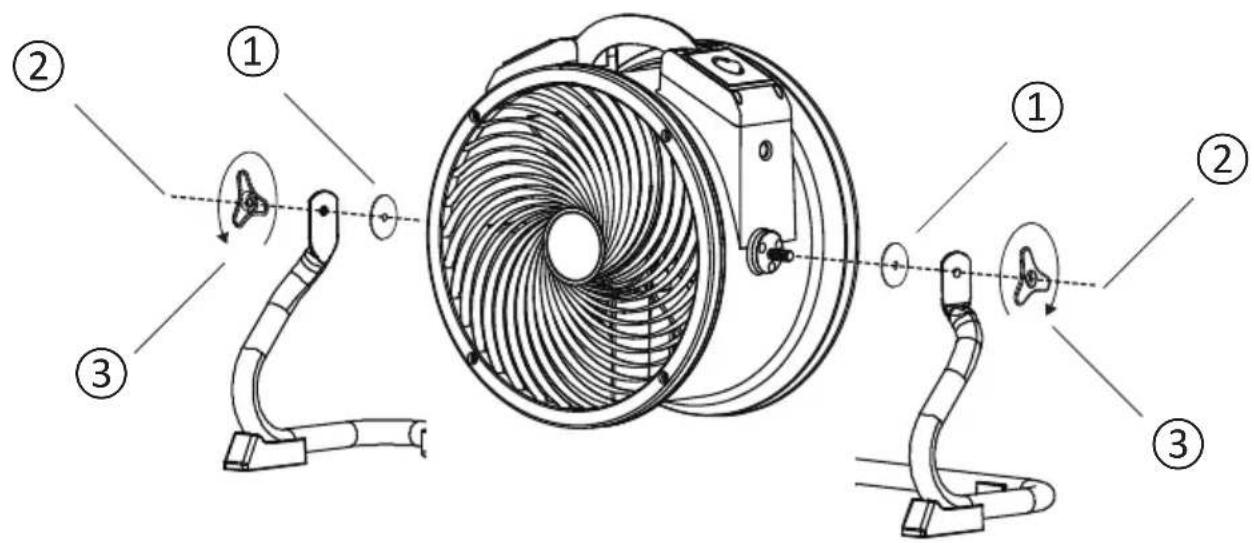

Installing the Rack\*

① Fit both rubber washers onto bolts on both sides of unit.
② Align the rack onto the air circulator.
③ Fasten the connection with the rack handle.

* For model FC-300 only.

Switch Plate

Four Speed Control

Five Speed Control

Variable Speed Control

Four Speed Switch ( For model FC-100/FC-200/FC-300 only)

• Turn to "OFF" position to switch the machine OFF. Turn to any speed position to switch the machine ON.
• Turn clockwise to set the desired speed. There are 4 speeds from: 4, 3, 2, 1. “4” is the highest speed and “1” is the lowest speed.

Installation and Operation Guide (Continued)

Switch Plate (Continued)

Five Speed Switch (For model FC-420 only)

• Turn to "OFF" position to switch the machine OFF. Turn to any speed position to switch the machine ON.
• Turn clockwise to set the desired speed. There are 5 speeds from: 5, 4, 3, 2, 1. “5” is the highest speed and “1” is the lowest speed.

Variable Speed Switch (For model FC-250D/FC-250AD only)

• Turn to “OFF” position to switch the machine OFF. Turn clock-wisely to any position between “MAX” and “LOW” to switch the machine ON.
• You can adjust to any desired speed variably. "MAX" is the highest speed and "LOW" is the lowest speed.

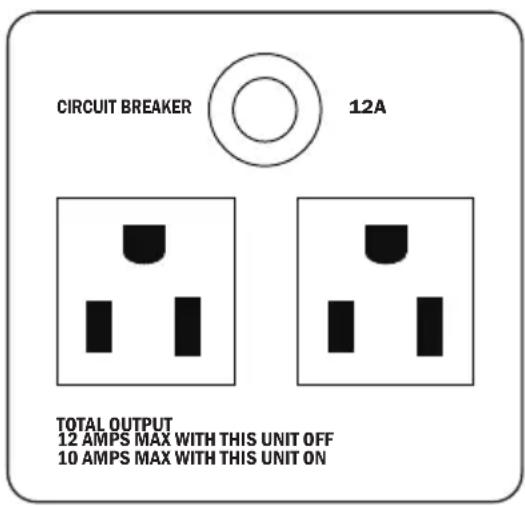

Additional Electrical Receptacle (Daisy Chain)\*

• Other appliances can be plugged in the additional electrical receptacles and work whether the machine is on or off. However, the total amperage must be lower than the amperage instructed. Different models may have varying instructions.
• If the machine or the plugged in appliance stops working, press the RESET BUTTON to reset the circuit.

Installation and Operation Guide (Continued)

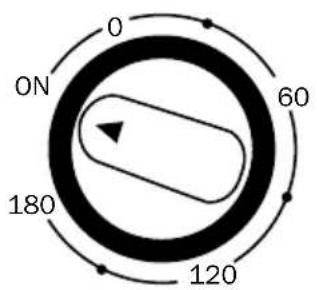

Timer Switch\*

• Turn clockwise to set timer for minutes count down to an automatic stop.
• The timer can be set for up to 180 minutes (3 hours).
• When the timer reaches "0" position, the unit stops working. On "ON" position, it will work constantly.

* For model FC-100/FC-200/FC-250D/FC-300/FC-420 only.

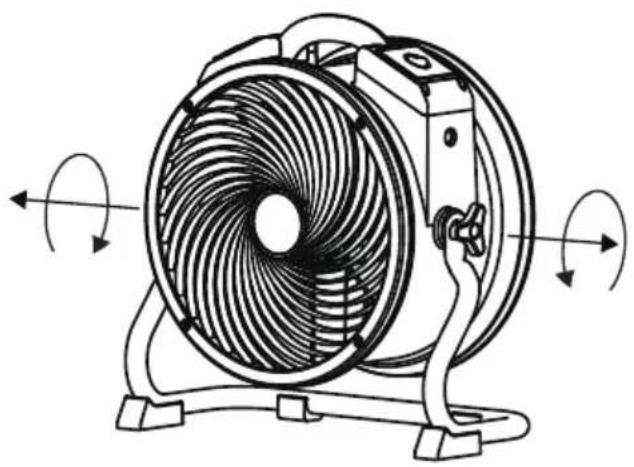

Adjust Operation Position

Line drawing of a multi-free fan with visible blades and mounting base, showing rotational motion arrows (no text or symbols)

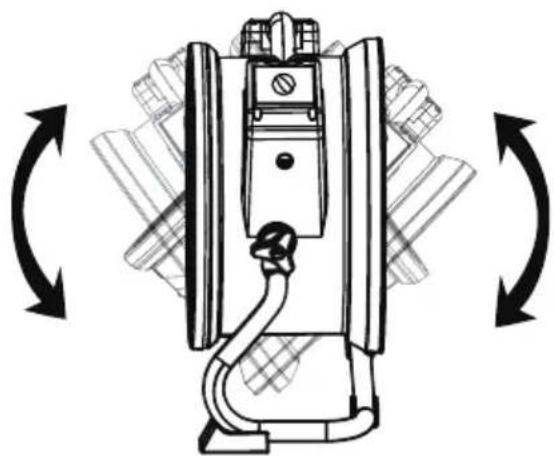

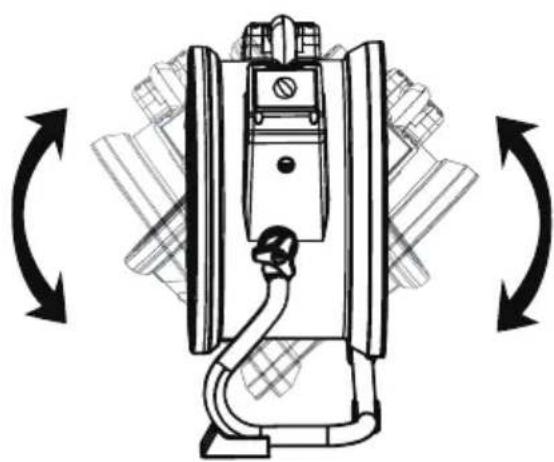

Technical line drawing of a mechanical device with bidirectional arrows indicating rotation or assembly (no text or symbols)

- The Air Circulator features 360^ Rotation. Tilt Air Circulator to desired angle and screw on rack handles to secure the position.


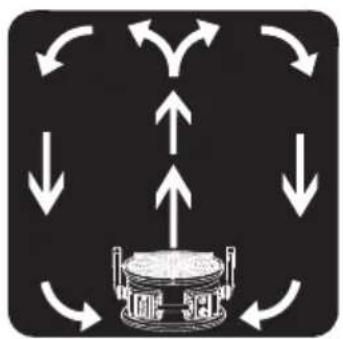

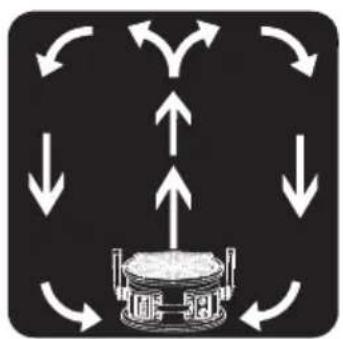

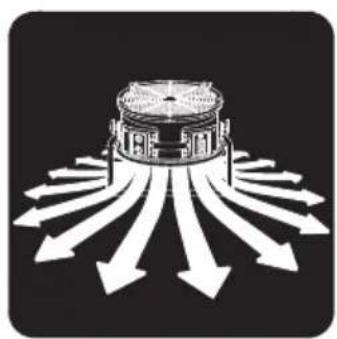

Abstract diagram of a cylindrical object with radial arrows pointing outward, no text or symbols present

Installation and Operation Guide (Continued)

Adjust Operation Position (Continued)

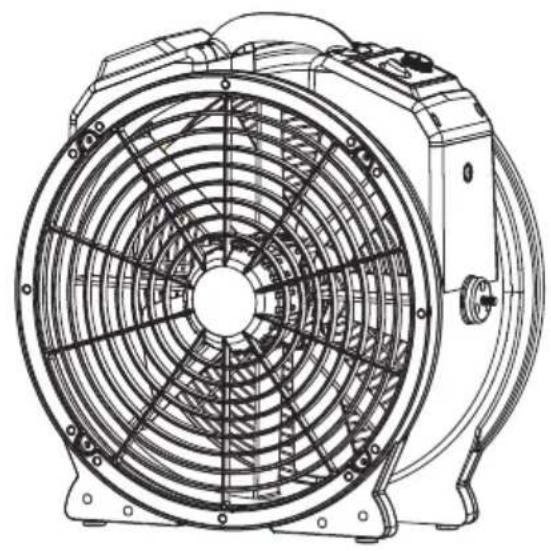

Technical line drawing of a mechanical fan assembly (no text or symbols)

Use without Rack\*

- Uninstall the rack and place the Air Circulator on a level surface.

* For model FC-420 only.

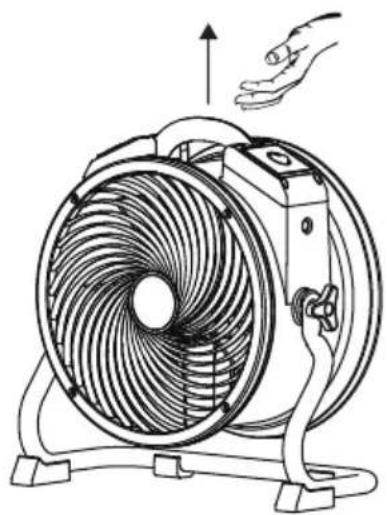

Transportation

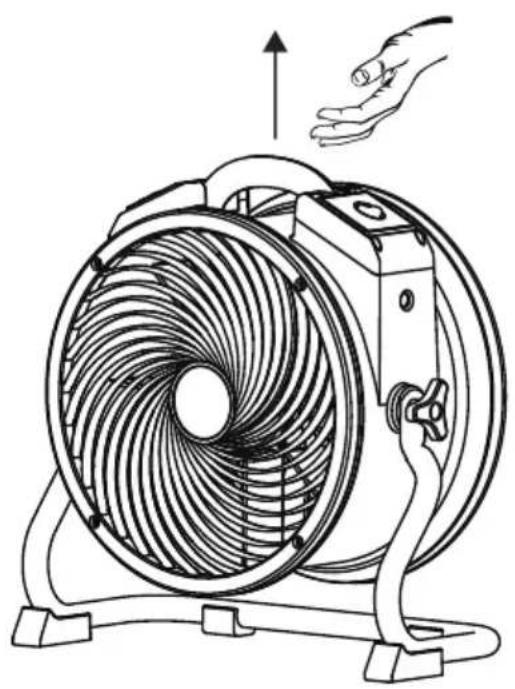

Line drawing of a hand operating the fan with a head-mounted handle (no text or symbols)

Lift with Handle

- Lift the Air Circulator with the handle on the top.

User Maintenance Instructions

Frequent maintenance is recommended on this appliance. Failure to follow the maintenance instructions may cause failure of the appliance and void the warranty.

• When not in use, unplug and store the appliance in a dry and cool indoor place. Make sure it's out of reach of children.
• Before performing any maintenance or cleaning, always disconnect the Air Circulator from its power source.
• Use a damp cloth to wipe the surface of the housing. Do not clean the unit with water directly.
• Check if the grille covers are clean. Remove dirt or any other objects that could block the air inlet and air outlet.

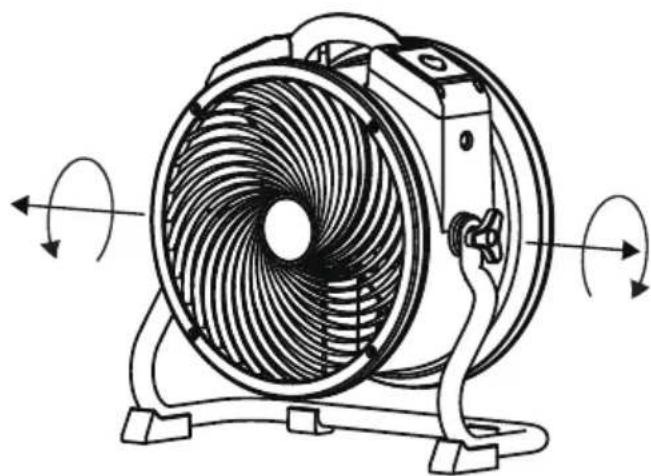

Line drawing of a multi-free fan with visible blades and rotating buttons (no text or symbols)

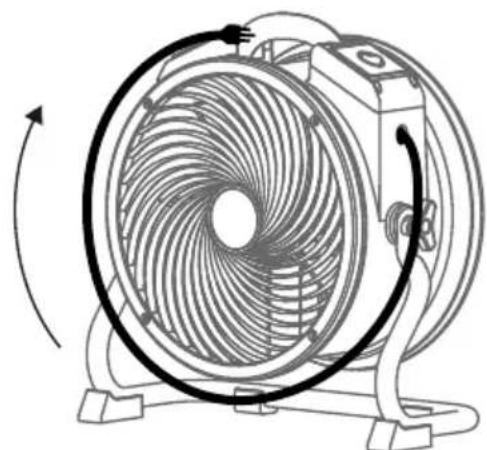

Fasten the Rack Handles

• To prevent possible injury, when you finish using this appliance, please position the Air Circulator UPRIGHT.
- Fasten the rack handle to lock the position of the Air Circulator.

Line drawing of a circular fan with internal blades and rotating axis (no text or symbols)

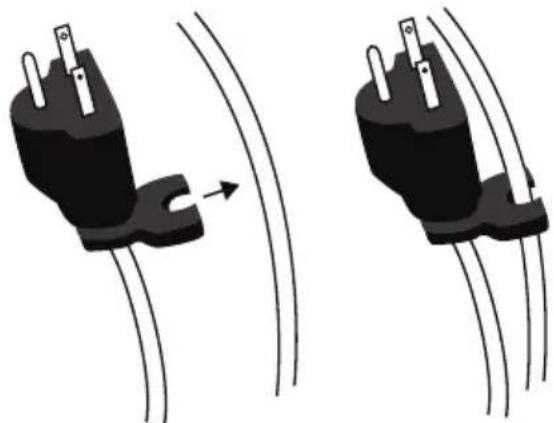

Organize the Power Cord

Two black electrical plug connectors with wires, shown in side-by-side motion (no text or symbols)

• Wrap the power cord around the housing.
• Clip the cord to the cord clip on the plug shown above.

User Maintenance Instructions (Continued)

Technical line drawing of a mechanical assembly with multiple views (no text or symbols)

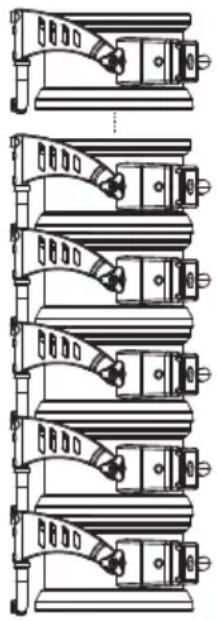

Stack Multiple Units

- Stack the Air Circulators on the sides. Align the air inlets of both Air Circulators.

WARNING

- For model FC-100 / FC-200 Series, DO NOT stack more than six units of this appliance.

- For model FC-300 / FC-420, DO NOT stack more than five units of this appliance.

- Stacking function is not secure during transportation.

Troubleshooting Guide

PROBLEM POSSIBLE CAUSE SOLUTION

Air Circulator does not start	No electricity. Check for power supply.
	The power cord is not properly plugged in.	Remove and reconnect the power cord.
	The circuit breaker on the additional electrical receptacle (Daisy chain) jumps.*	Remove all appliance on the additional electrical receptacle and press “Reset”.
	The timer switch is set to “0” position.*	Set the timer switch to “ON” position.
Unit runs but the speed is abnormal	Air inlet or air outlet is blocked. Remove blockage.

* These functions do not apply to all models mentioned in this manual.

If troubleshooting does not resolve your problem, please contact XPOWER or other parties authorized by XPOWER for further instructions.

Technical Specification

MODEL NUMBER	FC-100 FC-200 FC-250D FC-250AD FC-300 FC-420
Voltage/Frequency	115 V~60 Hz
Amperage 0.6	A 1.0 A 0.9	A 1.5 A 2.8 A
Motor Power -	- 1/4 HP 1/3 HP
Rated Airflow	1100 CFM	1300 CFM	1560 CFM		2100 CFM	3600 CFM
Speed Control	4 Speeds		Variable Speeds		4 Speeds	5 Speeds
Timer 3 Hours	(OFF) N/A	3 Hours (OFF)
Additional Electrical Receptacle	N/A			Yes	N/A
Cord Length	6 ft. / 1.8 m		10 ft. / 3.0 m			15 ft. / 4.5 m
Housing	PP					ABS
Unit Dimension (L) x (W) x (H)	16.1 x 8.9 x 14.2 in. / 41.0 x 22.5 x 36.0 cm	17.3 x 8.9 x 15.4 in. / 44.0 x 22.5 x 39.0 cm			18.6 x 9.4 x 19.2 in. / 47.2 x 23.9 x 48.8 cm	21.9 x 9.8 x 22.5 in. / 55.6 x 24.9 x 57.1 cm
Unit Weight	9.7 lbs. / 4.4 kg	10.1 lbs. / 4.6 kg		10.8 lbs. / 4.9 kg	13.0 lbs. / 5.9 kg	23.4 lbs. / 10.6 kg
Safety Certification	ETL / C-ETL

If your product(s) is not listed above, please visit www.xpower.com for more information.

XPOWER Limited Warranty (USA)

1 YEAR LIMITED WARRANTY

XPOWER-branded products purchased in the U.S. from authorized distributors include a 1-year limited warranty. Contact XPOWER to confirm warranty information about your product(s).

This limited warranty covers defects in materials and workmanship in your XPOWER-branded products, purchased in the U.S. ONLY. Local warranty policy (if any) in your country will cover products purchased outside the U.S.

IMPORTANT:

(1) Please finish the online warranty registration before usage. Visit www.xpower.com/service-support/warranty-registration.
(2) This Limited Warranty applies with its own timeliness. Contact XPOWER or visit www.xpower.com for more information.

Items mentioned but not limited to below are not covered by warranty:

(1) Power cord, filters or any other components considered as a “consumable parts” by XPOWER.
(2) Normal wear and tear.
(3) Problems that result, directly or indirectly, at XPOWER's sole discretion, from:

(3.1) External causes such as accident, abuse, misuse or problems with electrical power supply.
(3.2) Disassembling, servicing or modification not authorized by XPOWER.
(3.3) Usage that is not accordant with product instructions stated in Owner's Manual.
(3.4) Failure to follow the product instructions or lack of necessary maintenance stated in Owner's Manual.

Before contacting XPOWER, please try one or more of the following:

(1) Consult this Owner's Manual and follow the instructions of troubleshooting guide.
(2) Access www.xpower.com for more advice and information that could be helpful to address your problems.

If you need additional assistance from XPOWER, please:

(1) Email [e-mail].
(2) Call XPOWER U.S. Customer Service Department at 855-855-8868 or other numbers provided on www.xpower.com.
(3) Visit XPOWER U.S. Head Office at 668 S. 6th Ave., City of Industry, CA 91746 or the most current address provided on www.xpower.com.

Please also have your original proof of purchase and the serial number(s) of your product(s) ready when you contact XPOWER.

XPOWER Limited Warranty (USA)

If you are instructed to return the unit for service or replacement, please:

(1) Request a RMA (Return-Merchandise-Authorization) number.
(2) Use the original or an equivalent packaging, prepay shipping charges at your own expense to the address provided by XPOWER, with the RMA number on the shipping label or the packaging.
(3) Include all the original parts and components.

XPOWER will inspect, assess and advise the repairs needed and applicable cost, if any. For products under warranty, we will pay to ship the repaired or replaced product(s) to you if you use an address within the Contiguous United States. Otherwise, we will ship the product(s) to you at your own expense.

ATTENTION - LISEZ ET CONSERVEZ CE MANUEL D'UTILISATION AVANT D'UTILISER CE PRODUIT

Line drawing of a multi-free fan with visible blades and mounting base (no text or symbols)

Line drawing of a fan with visible blades and rotating buttons (no text or symbols)

Technical line drawing of a mechanical device with bidirectional arrows indicating rotation or assembly (no text or symbols)

Diagram of a mechanical component with multiple directional arrows radiating outward (no text or symbols)

Adjust Operation Position (Continued)

Technical line drawing of a mechanical fan assembly (no text or symbols)

Use without Rack\*

- Uninstall the rack and place the Air Circulator on a level surface.

* For model FC-420 only.

Transport

Line drawing of a fan with internal blades and a hand holding the top handle (no text or symbols)

Line drawing of a multi-passed fan with visible blades and mounting base, showing rotational motion arrows (no text or symbols)

Line drawing of a fan with visible blades and rotating motion arrows (no text or symbols)

Two black electrical plug connectors with wires, shown from different angles (no text or symbols)

Organiser le cordon

Technical line drawing of a multi-tiered mechanical assembly (no text or symbols)

PROBLÈME CAUSE POSSIBLE SOLUTION

XPOWER Manufacture, INC.

668 S. 6th Ave.,

City of Industry, CA 91746 USA

www.xpower.com | 1-(855)-855-8868 | [e-mail]

Read and save these instructions
