Product Type	Air Mover (Fan)
Brand	XPower
Model	X600A
Power Supply	115 V~60 Hz
Amperage	3.8 A
Motor Power	1/3 HP
Nominal Airflow	2600 CFM (≈ 4415 m³/h)
Number of Speeds	3
Speed Control	Rotary Knob (positions 1, 2, 3)
Timer	No (model without timer function)
Auxiliary Electrical Outlet	Yes, with built-in circuit breaker (GFCI on some models)
Dimensions (L × W × H)	40.5 × 40.0 × 41.5 cm
Weight	Approximately 12 kg (estimate)
Power Cord Length	7.6 m (25 ft)
Housing Material	Industrial Plastic
Carpet Clips	Not included (model without clips)
Carrying Handle	Not available on this model
Rubber Feet	Yes, non-slip
Safety Certification	ETL / C-ETL
Warranty	1 year (United States)
Recommended Use	Carpet drying, water damage restoration, ventilation
Maintenance and Cleaning	Unplug before cleaning; wipe with a damp cloth; do not immerse
Safety Instructions	Do not cover the grilles, do not use with a damaged cord, keep away from children

Frequently Asked Questions - X600A XPower

How to turn on the X600A air mover?

Turn the rotary switch from 'OFF' to the desired speed (1, 2, or 3). Level 1 is the lowest, level 3 is the highest.

Can I use the X600A air mover to dry a carpet?

Yes, use the carpet clip (if available) or place the corner of the carpet between the two parts of the clip, tighten the screws, and turn on the unit. Make sure the air intake is not obstructed.

What is the motor power of the X600A?

The motor has a power of 1/3 HP (approx. 250 W).

Does the X600A have a timer?

No, the X600A model (suffix 'A') does not have a timer. Only models with suffix 'T' are equipped with it.

How to clean the X600A air mover?

Always unplug the unit before cleaning. Wipe the housing with a damp cloth. Never use water directly on the unit. Check that the intake and outlet grilles are not obstructed.

What to do if the air mover does not start?

Check the power supply, the outlet, and the cord. Ensure that the auxiliary outlet circuit breaker has not tripped. If the unit is overheating, turn it off and let it cool down.

Is the X600A suitable for outdoor use?

No, it is designed for indoor use only. Do not use it in damp places or in the presence of liquids.

Can I plug another device into the X600A auxiliary outlet?

Yes, the auxiliary outlet can power other devices, provided the total amperage does not exceed the indicated limit (12 A). Press the reset button if the circuit breaker trips.

How to store the power cord?

Wrap the cord around the switch plate after use. Use the clip at the end of the cord to secure it.

Where to find the serial number of the X600A?

The serial number is on the label attached to the unit. Keep it for any warranty or service requests.

USER MANUAL X600A XPower

Line drawing of a portable air conditioner unit with internal components and fan base (no text or symbols)

Air Mover Owner's Manual

X/P-400/430 Series, X/P-600/630 Series

X/P-800/830 Series

Intertek

(115V 60HZ)

www.xpower.com | 1-(855)-855-8868 | [e-mail]

WARNING - READ AND SAVE THESE INSTRUCTIONS BEFORE USING THIS PRODUCT.

The user of electrical products may create hazards that include, but are not limited to injury, fire, electrical shock. Failure to follow these instructions may damage and/or impair its operation and void the warranty.

• Before operating, remove all packaging material and check for any damage that may have occurred during shipping or any missing items.
• Check power supply to ensure it matches the appliance's specification.
• DO NOT operate any fan with a damaged cord or plug. Discard fan or return it to an authorized service facility for examination and/or repair.
• Use only on GFCI protected receptacles. Please contact a qualified electrician for verification and/or installation of a GFCI receptacle if necessary.
• DO NOT run cord under carpeting. DO NOT cover cord with throw rugs, runners, or similar coverings. DO NOT route cord under furniture or appliances. Arrange cord away from traffic area and where it will not be tripped over.
• To reduce the risk of fire or electric shock, DO NOT use this fan with any solid-state speed control device.
• DO NOT touch this appliance or the plug with wet hands or while standing in water.
• DO NOT operate the appliance in any pooled water.
• DO NOT use the product in areas where gasoline, paint or other flammable goods and objects are used or stored.
• DO NOT insert or allow objects to enter any ventilation or exhaust opening as this may damage the appliance and void the warranty.
• DO NOT cover the air inlet or outlet on the appliance.
• DO NOT direct the air flow at human faces or bodies.
• DO NOT allow children to play with this appliance.
• AUTOMATICALLY OPERATED DEVICE – To reduce the risk of injury, disconnect from power supply before servicing.
• Remove the power cord from the electrical receptacle by grasping and pulling on the power cord plug-end only, DO NOT pull the cord directly.
• DO NOT attempt to repair or adjust any electrical or mechanical functions of this appliance, as this may cause danger and void the warranty.
• If the appliance is damaged or it malfunctions, DO NOT continue to use it. Unplug the product from the electrical outlet. Refer to troubleshooting guide or contact XPOWER.
• Store in a dry area, away from exposure to sunlight, extreme temperature and humidity, or other extreme environments, when not in use.
• An electronic instruction manual can be obtained through manufacturer's website www.xpower.com.

Items Included

Line drawing of a portable electric fan with internal blades and control panel (no text or symbols)

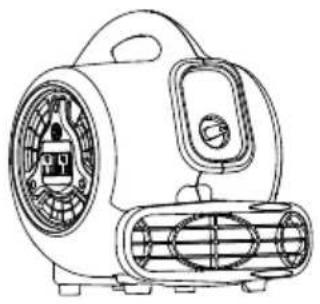

• Air Mover x 1

- Owner's Manual x 1

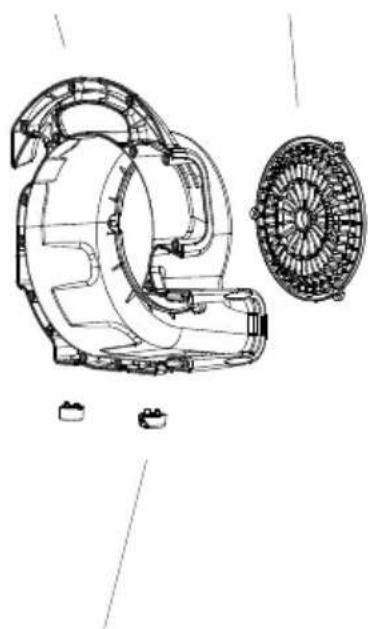

Parts Description

(1) (2) (3)

Technical line drawing of a mechanical device with internal components and exploded view (no text or labels)

Technical line drawing of various mechanical components including a motor, coil, and wiring (no text or labels)

Technical line drawing of a mechanical clutch assembly with internal components (no text or labels)

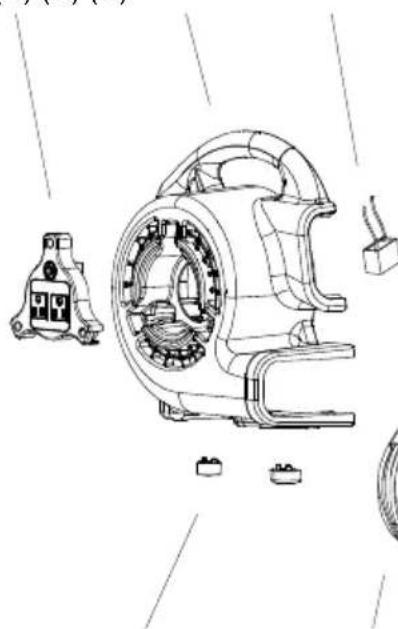

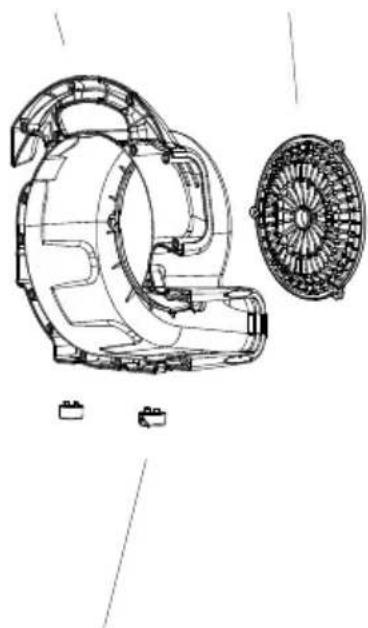

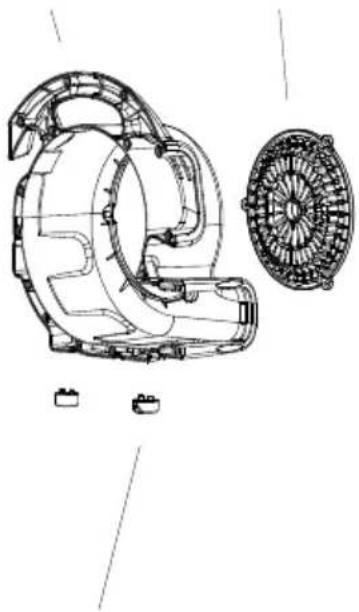

(1) Inlet Grille Cover (Motor Side) / Electrical Receptacles*
(2) Left Housing
(3) Capacitor
(4) Motor
(5) Bushing

(6) Fan
(7) Switch Plate
(8) Right Housing
(9) Inlet Grille Cover (Fan Side)
(10) Rubber Feet
(11) Power Cord

(12) Outlet Grille Cover
(13) Kick Stand
(14) Carpet Clamp** (Not shown)
(15) Handle*** (Not shown)

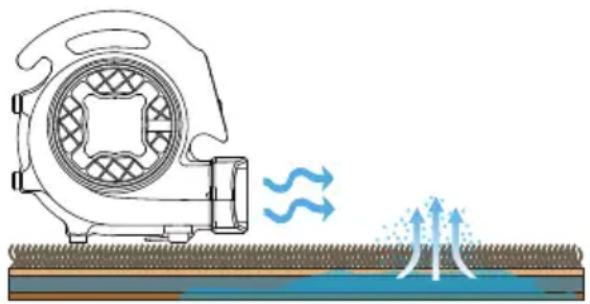

Air Mover Introduction

• The XPOWER Air Mover produces a plentiful airflow capacity for small to large jobs for any location size.
• It is ideal for drying tight spaces such as crawl spaces, under counters, inside cabinets, bathrooms, auto interiors, and more.
• It's also designed for professional carpet cleaning, water damage restoration jobs, or home use.

Diagram of a mechanical device emitting heat and fluid, showing airflow around a surface (no text or symbols)

Operation Guide

Drying A Floor

Single Unit:

Place the air mover at the corner to create circular airflow.

Multiple Units:

Multiple air movers should be spaced about 15 feet apart around the perimeter of room and angled about 15^ towards the wall in order to create circular airflow.

Multiple Operating Positions

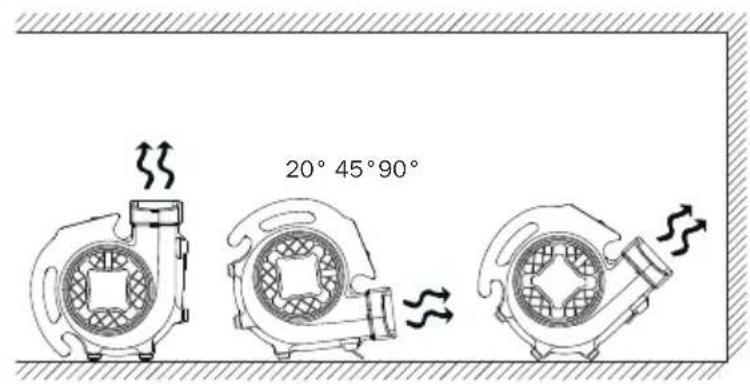

The air mover can operate at different positions*, directing the airflow to desired areas.

* 45° position is not operable when the handle is installed.

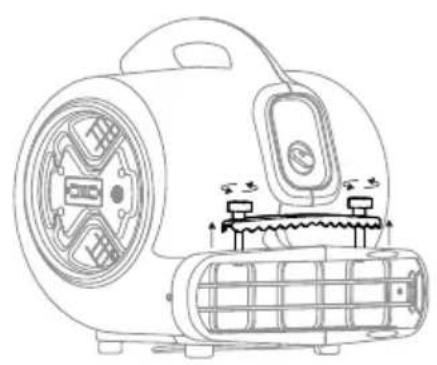

Drying A Carpet\*

Line drawing of a portable air conditioner unit with cooling fins and ventilation slots (no text or symbols)

Line drawing of a portable air conditioner with cooling unit and connecting tubing (no text or symbols)

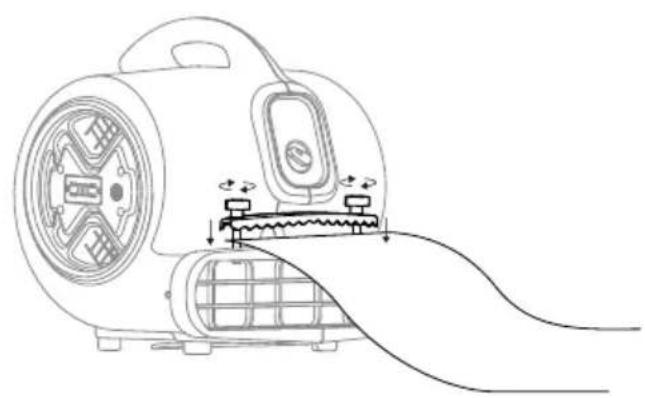

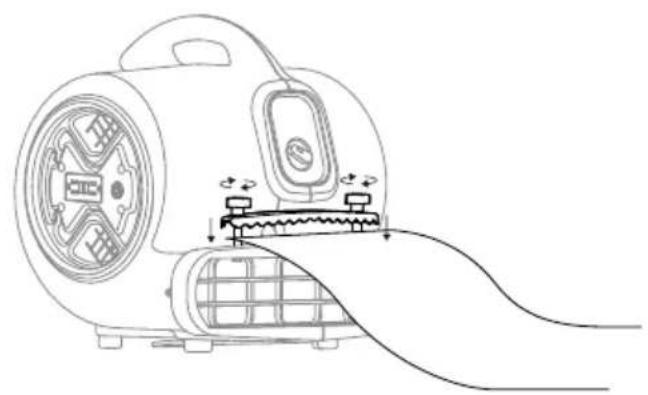

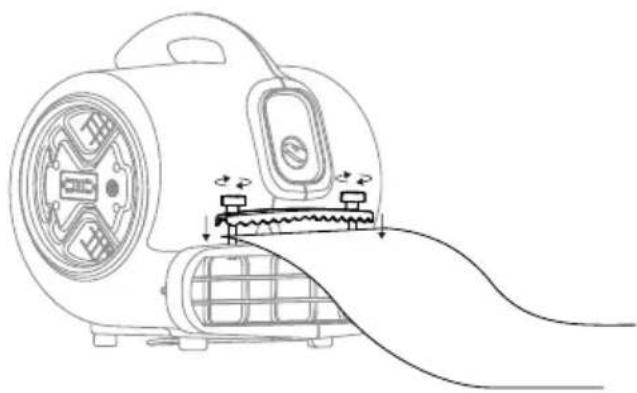

• Loosen the screws on the carpet clamp.
• Lift the carpet clamp and put the corner of the carpet in between.
• Fasten the screws on the carpet clamp and turn on the air mover.

* This does not apply to all models mentioned in this manual.

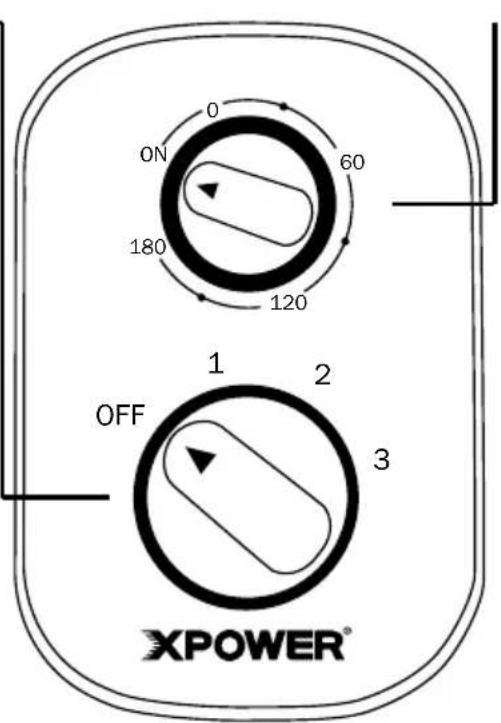

Switch Plate

Speed Switch

• Turn to "OFF" position to switch the air mover OFF. Turn to any speed position to switch the air mover ON.
• Turn clockwise to set the desired fan speed.
• There are 3 fan speeds from: 1, 2, 3. “1” is the lowest speed and “3” is the highest speed.

Timer Switch\*

• Turn clockwise to set timer for minutes count down to an automatic stop.
• The timer can be set for up to 180 minutes (3 hours).
• When the timer reaches "0" position, the unit stops working. On "ON" position, it will work constantly.

* This does not apply to all models mentioned in this manual.

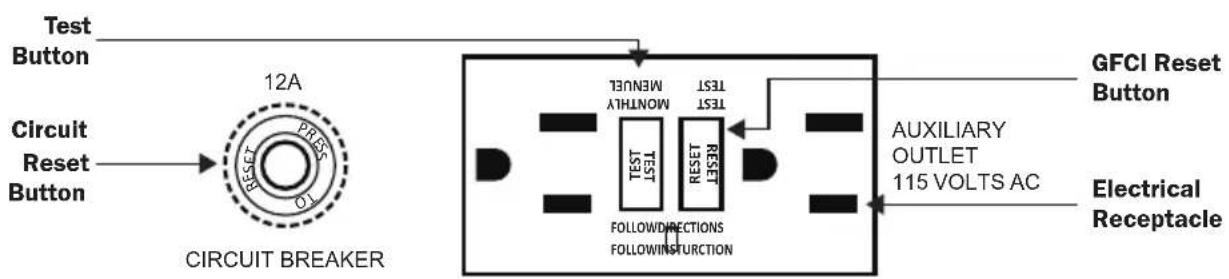

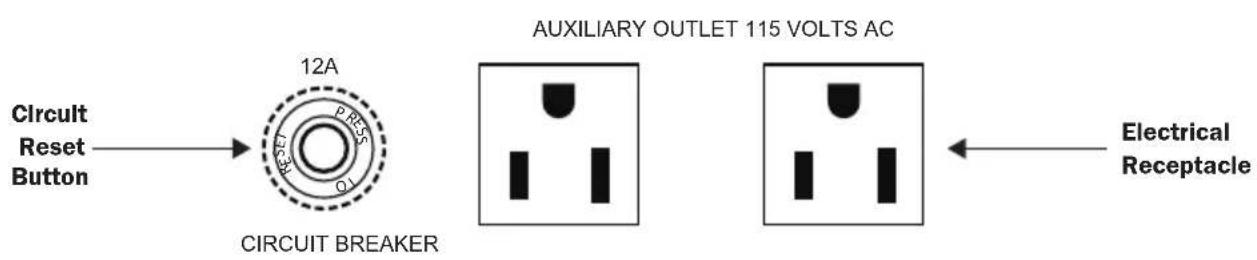

Additional Electrical Receptacle (Daisy Chain)\*\*

Regular Additional Electrical Receptacle

GFCI Protected Additional Electrical Receptacle

Additional Electrical Receptacle (Daisy Chain) (Continued) \*\*

• Other appliances can be plugged in the additional electrical receptacles and will operate whether the Air Mover is on or off. However, the total amperage must be lower than the amperage instructed. Different models may have varying instructions.
• If the Air Mover or the plugged in appliance stops working, press the Circuit Reset Button to reset the circuit.

For GFCI (Ground Fault Circuit Interrupter) protected additional electrical receptacle:

• Once a ground fault occurs, the GFCI will immediately interrupt the power connection to the additional electrical receptacle. Consult the Troubleshooting Guide.
• A ground fault is an inadvertent contact between an energized conductor (for example, a human being) and ground or equipment frame.

WARNING: Risk of electric shock. You should test the GFCI before each use.

• Press the Test Button and then press GFCI Reset Button, the Test Button should be reset to unpressed position.
• If the Test Button does not react as stated above, consult the Troubleshooting Guide.

** This does not apply to all models mentioned in this manual.

Transportation

Diagram of a mechanical device with rotating components and directional arrows indicating motion (no text or symbols)

Stack Multiple Units

• Stack the air movers on the sides. Align the air inlets of both air movers.
• Turn the second air mover 30^ .

Transportation (Continued)

Line drawing of a vacuum cleaner with mesh chamber and handle (no text or symbols)

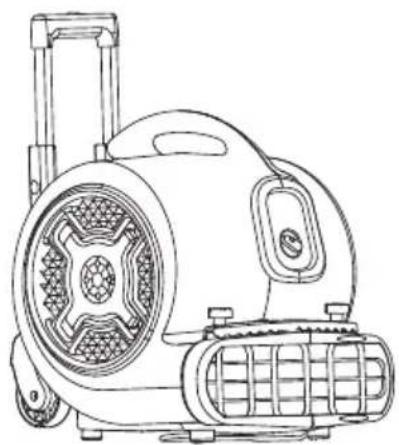

Transport with handle\*

• Push the button on the handle and pull out the handle.
• Lift the air mover on the wheels with the trolley handle.
• Pull to transport with the trolley handle.

* This does not apply to all models mentioned in this manual.

User Maintenance Instructions

Frequent maintenance is recommended on this appliance. Failure to follow the maintenance instructions may cause failure of the appliance and void the warranty.

• When not in use, unplug and store the appliance in a dry and cool indoor place. Make sure it's out of reach of children.
• Before performing any maintenance or cleaning, always disconnect the air mover from its power source.
• Use a damp cloth to wipe the surface of the housing. Do not clean the unit with water directly.
• Check if the grille covers are clean. Remove dirt or any other objects that could block the air inlet and air outlet.

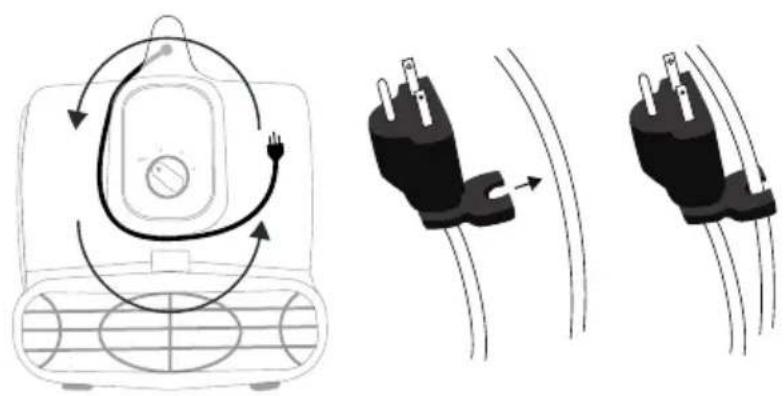

Organize the Power Cord

Diagram showing three stages of electric plug installation: battery, switch, and plug with wires (no text or symbols)

• Wrap the power cord around the switch plate for storage after use.
• Use convenient clip at end of cord to secure in place.

PROBLEM POSSIBLE CAUSE SOLUTION

Air mover does not start	No electricity. Check for power supply.
	The power cord is not properly plugged in.	Remove and reconnect the power cord.
	The machine is working under an extreme temperature.	Turn off the machine and unplug it. Let the machine cool down to normal temperature.
	The circuit breaker on the additional electrical receptacle (Daisy chain) jumps.*	Remove all appliance on the additional electrical receptacle and press “Reset”.
Unit runs but the speed is abnormal	Air inlet or air outlet is blocked.	Remove blockage.
The additional electrical receptacle has no power	The circuit breaker on the additional electrical receptacle (Daisy chain) trips.*	Remove all appliances on the additional electrical receptacle and press circuit reset button.
	The timer switch is set to “O” position.**	Set the timer switch to “ON” position.**
	A ground fault causes power interrupt by GFCI.*	Turn off and unplug the Air Scrubber. Remove all appliances on the additional electrical receptacle and press GFCI reset button.
The Test Button doesn’t react to GFCI test based on the manual	A ground fault causes power interrupt by GFCI.*

* This does not apply to all models mentioned in this manual.

If troubleshooting does not resolve your problem, please contact XPOWER or other parties authorized by XPOWER for further instructions.

MODEL NUMBER	X/P-400 Series	X/P-430 Series	X/P-600 Series	X/P-630 Series	X/P-800 Series	X/P-830 Series
Voltage / Frequency 115 V~60 Hz
Amperage 3.0 A 3.8 A	3.8 A 5.0 A 7.5 A 8.5 A
Motor Power 1/4 HP	1/3 HP 1/3 HP	1/2 HP 3/4 HP 1 HP
Rated Airflow 1600 CFM	2000 CFM	2600 CFM 2980 CFM	3200 CFM	3600 CFM
Speed Control 3 Speeds
Additional Electrical Receptacle	Only available for model series with postfix “A”
Carpet Clamp Only available for model series with postfix “C”
Timer Only available for model series with postfix “T”
Handle Only available for model series with postfix “H”
Cord Length	For model series with prefix “X”: 25 ft. / 7.6 mFor model series with prefix “P”: 20 ft. / 6.1 m
Unit Dimension (L) x (W) x (H)	13.9 x 14.8 x 14.6 in. / 35.3 x 37.6 x 37.0 cm		15.9 x 15.7 x 16.3 in. / 40.5 x 40.0 x 41.5 cmWith postfix “H”: 16.9 x 15.7 x 16.3 in. / 40.5 x 43.0 x 42.0 cm		15.9 x 17.5 x 18.5 in. / 40.5 x 44.5 x 47.0 cmWith postfix “H”: 15.9 x 18.7 x 18.7 in. / 40.5 x 47.5 x 47.5 cm
Unit Weight	See Packaging
Safety Certification	ETL/C-ETL

If your product(s) is not listed above, please visit www.xpower.com for more information.

XPOWER Limited Warranty (USA)

1 YEAR LIMITED WARRANTY

XPOWER-branded products purchased in the U.S. from authorized distributors include a 1-year limited warranty. Contact XPOWER to confirm warranty information about your product(s).

This limited warranty covers defects in materials and workmanship in your XPOWER-branded products, purchased in the U.S. ONLY. Local warranty policy (if any) in your country will cover products purchased outside the U.S.

IMPORTANT:

(1) Please finish the online warranty registration before usage. Visit www.xpower.com/service-support/warranty-registration.
(2) This Limited Warranty applies with its own timeliness. Contact XPOWER or visit www.xpower.com for more information.

Items mentioned but not limited to below are not covered by warranty:

(1) Power cord, filters or any other components considered as a “consumable parts” by XPOWER.
(2) Normal wear and tear.
(3) Problems that result, directly or indirectly, at XPOWER's sole discretion, from:

(3.1) External causes such as accident, abuse, misuse or problems with electrical power supply.
(3.2) Disassembling, servicing or modification not authorized by XPOWER.
(3.3) Usage that is not accordant with product instructions stated in Owner's Manual.
(3.4) Failure to follow the product instructions or lack of necessary maintenance stated in Owner's Manual.

Before contacting XPOWER, please try one or more of the following:

(1) Consult this Owner's Manual and follow the instructions of troubleshooting guide.
(2) Access www.xpower.com for more advice and information that could be helpful to address your problems.

If you need additional assistance from XPOWER, please:

(1) Email [e-mail].
(2) Call XPOWER U.S. Customer Service Department at 855-855-8868 or other numbers provided on www.xpower.com.
(3) Visit XPOWER U.S. Head Office at 668 S. 6th Ave., City of Industry, CA 91746 USA or the most current address provided on www.xpower.com.

Please also have your original proof of purchase and the serial number(s) of your product(s) ready when you contact XPOWER.

If you are instructed to return the unit for service or replacement, please:

(1) Request a RMA (Return-Merchandise-Authorization) number.
(2) Use the original or an equivalent packaging, prepay shipping charges at your own expense to the address provided by XPOWER, with the RMA number on the shipping label or the packaging.
(3) Include all the original parts and components.

XPOWER will inspect, assess and advise the repairs needed and applicable cost, if any. For products under warranty, we will pay to ship the repaired or replaced product(s) to you if you use an address within the Contiguous United States. Otherwise, we will ship the product(s) to you at your own expense.

ADVERTENCIA: LEA Y GUARDE ESTE MANUAL ANTES DE USAR ESTE PRODUCTO.

Line drawing of a portable electric fan with internal blades and ventilation slots (no text or symbols)

- Soplador De Aire x 1

Technical line drawing of a mechanical device with internal components and exploded view (no text or labels)

Technical line drawing of various mechanical components including a motor, coil, and wiring (no text or labels)

Technical line drawing of a mechanical clutch assembly with internal components and housing (no text or labels)

Diagram of a mechanical device emitting heat and water, showing fluid flow around a surface (no text or symbols)

Line drawing of a portable air conditioner unit with cooling fins and ventilation slots (no text or symbols)

Line drawing of a portable air purifier with cooling fan and connecting tubing (no text or symbols)

Diagram of a mechanical device with rotating components and directional arrows indicating motion (no text or symbols)

Apilar multiples unidades

Line drawing of a vacuum cleaner with control panel and fan (no text or symbols)

Diagram showing a device with rotating arrows and three separate electrical plug outlines (no text or symbols)

Line drawing of a portable electric fan with visible blades and control panel (no text or symbols)

• Brasseur D'air x 1

Technical line drawing of a mechanical assembly with internal gears and housing (no text or symbols)

Technical line drawing of various mechanical components including a motor, shaft, and wiring (no text or labels)

Technical line drawing of a mechanical device with internal components and external housing (no text or symbols)

Diagram of a mechanical device emitting blue waves toward a water surface, with no visible text or symbols.

Guide d'emploi

Sécher un plancher

Unité unique:

Line drawing of a portable air conditioner unit with cooling fins and internal components (no text or symbols)

Line drawing of a portable air conditioner with cooling unit and attached circuit board (no text or symbols)

Diagram of a mechanical device with rotating components and directional arrows indicating motion (no text or symbols)

Line drawing of a vacuum cleaner with mesh chamber and control panel (no text or symbols)

Diagram showing three different electrical plug arrangements: a motor, a plug with wires, and a plug with wires (no text or symbols present)

PROBLÈME CAUSE POSSIBLE SOLUTION

XPOWER Manufacture, INC.

668 S. 6th Ave.,

City of Industry, CA 91746 USA

www.xpower.com | 1-(855)-855-8868 | [e-mail]

Read and save these instructions
