Product Type	Extra Flat Fan (Heating)
Model	PL700A (also XL-700A, XL-730A, XL-760AM)
Dimensions (L x W x H)	21.0 x 45.0 x 45.0 cm
Weight	9.0 kg (PL700A)
Power Supply	115 V~60 Hz, 2.8 A
Motor	1/3 HP
Nominal Airflow	1050 CFM (PL700A)
Speed Control	3 speeds (positions 1, 2, 3)
Auxiliary Electrical Outlet	2 standard outlets (models PL700A/XL700A/XL730A)
Cord Length	4.7 m
Recommended Use	Drying confined spaces, water damage restoration, domestic and professional use
Operating Positions	Multiple positions to direct airflow
Maintenance	Unplug before cleaning; wipe with a damp cloth; do not clean with water directly
Safety	Built-in circuit breaker; GFCI on some models; do not use with a speed controller
Warranty	1-year limited (USA)

Frequently Asked Questions - PL700A XPower

How to start the extra flat fan?

Turn the control knob from the OFF position to the desired speed (1, 2 or 3). For XL-760AM models, use the ON position.

Can I use the fan in different positions?

Yes, the fan can operate in multiple positions to direct airflow to desired areas. Ensure that the air inlets and outlets are not obstructed.

How to test the GFCI (if present)?

Before each use, press the TEST button then the RESET button. If the TEST button does not reset, refer to the troubleshooting guide.

What to do if the fan does not start?

Check the power supply and cord connection. If the auxiliary outlet circuit breaker has tripped, press RESET. If the fan operates at an extreme temperature, turn it off and let it cool.

Can I stack multiple fans?

Yes, you can stack up to six units maximum. Align the air inlets when stacking.

How to clean the fan?

Always unplug the unit before cleaning. Wipe the housing surface with a damp cloth. Do not clean with water directly. Check and clean the inlet and outlet grilles to prevent obstructions.

Where should I store the fan when not in use?

Store it in a dry place, away from sunlight, extreme temperatures, and humidity. Wrap the cord around the air inlet and secure it with the provided clip.

What accessories are included with the fan?

The extra flat fan comes with an instruction manual.

How to operate the auxiliary electrical outlet?

The auxiliary outlets work even if the fan is off. Respect the maximum amperage: 12 A max with fan off, 8.5 A max with fan on.

What does the 1-year limited warranty cover?

The warranty covers defects in materials and workmanship. It does not cover the power cord, normal wear, damage due to misuse or unauthorized modifications. Register your product online at www.xpower.com.

USER MANUAL PL700A XPower

Line drawing of a car air conditioner housing with ventilation grilles (no text or symbols)

Low Profile Air Mover Owner's Manual

Read and save these instructions

WARNING - READ AND SAVE THIS INSTRUCTIONS BEFORE USING THIS PRODUCT.

The user of electrical products may create hazards that include, but are not limited to injury, fire, electrical shock. Failure to follow these instructions may damage and/or impair its operation and void the warranty.

• Before operating, remove all packaging material and check for any damage that may have occurred during shipping or any missing items.
• Check household power supply to ensure it matches the appliance's specification.
• DO NOT operate any fan with a damaged cord or plug. Discard fan or return it to an authorized service facility for examination and/or repair.
• Use only on GFCI protected receptacles. Please contact a qualified electrician for verification and / or installation of a GFCI receptacle if necessary.
• DO NOT run cord under carpeting. DO NOT cover cord with throw rugs, runners, or similar coverings. DO NOT route cord under furniture or appliances. Arrange cord away from traffic area and where it will not be tripped over.
• To reduce the risk of fire or electric shock, DO NOT use this fan with any solid-state speed control device.
• DO NOT touch this appliance or the plug with wet hands or while standing in water.
• DO NOT operate the appliance in any pooled water.
• DO NOT use the product in areas where gasoline, paint or other flammable goods and objects are used or stored.
• DO NOT insert or allow objects to enter any ventilation or exhaust opening as this may damage the appliance and void the warranty.
• DO NOT cover the air inlet or outlet on the appliance.
• DO NOT direct the air flow at human faces or bodies.
• DO NOT allow children to play around or with this appliance.
• AUTOMATICALLY OPERATED DEVICE – To reduce the risk of injury, disconnect from power supply before servicing.
• Remove the power cord from the electrical receptacle by grasping and pulling on the power cord plug-end only, DO NOT pull the cord directly.
• DO NOT attempt to repair or adjust any electrical or mechanical functions of this appliance, as this may cause danger and void the warranty.
• If the appliance is damaged or it malfunctions, DO NOT continue to use it. Unplug the product from the electrical outlet. Refer to troubleshooting guide or contact XPOWER.
• Store in a dry area, away from exposure to sunlight, extreme temperature and humidity, or other extreme environments, when not in use.
• DO NOT stack more than four units of this appliance.
• An electronic instruction manual can be obtained through manufacturer's website www.xpower.com.

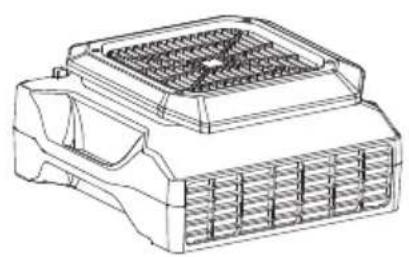

Items Included

Technical line drawing of a mechanical component with heat exchanger (no text or symbols)

• Low Profile Air Mover x 1 • Owner's Manual x 1

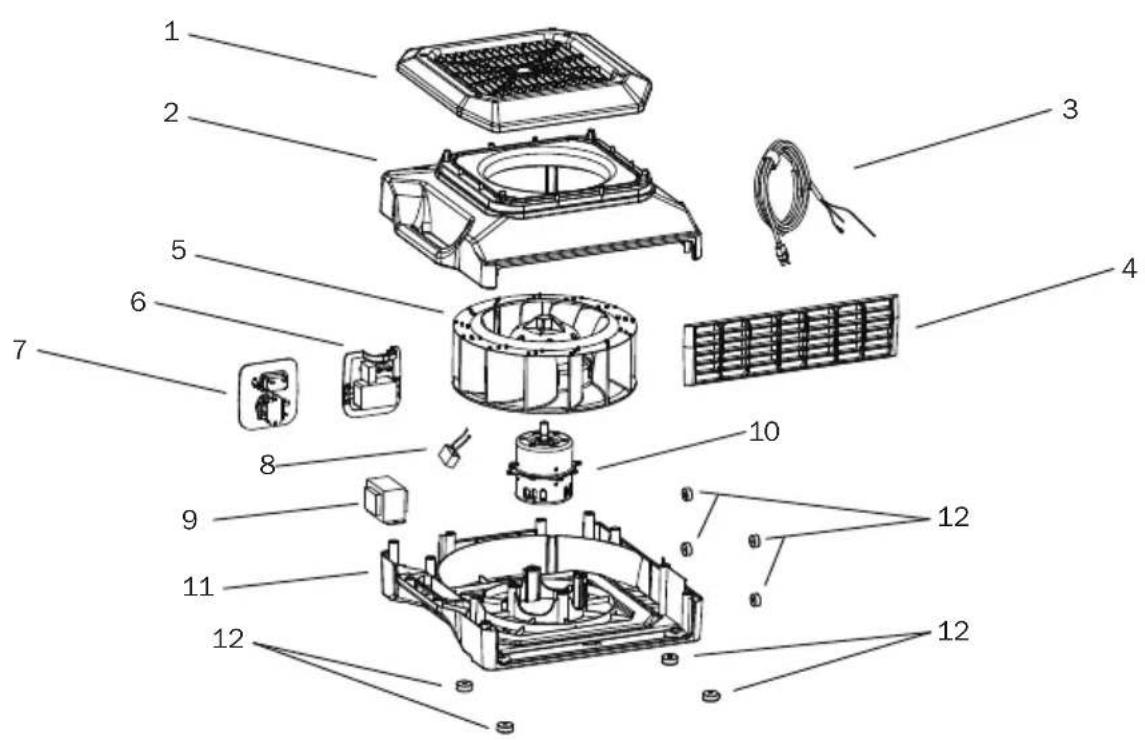

Parts Description

(1) Inlet Grille Cover
(2) Top Housing
(3) Power Cord
(4) Outlet Grille Cover
(5) Fan

(6) Additional Electrical

Receptacle (GFCI

Protected*)

(7) Switch Plate
(8) Capacitor

(9) Transformer**
(10) Motor
(11) Bottom Housing
(12) Rubber Feet

* For model XL-760AM only.
** For model PL-700A/XL-700A/XL-730A only.

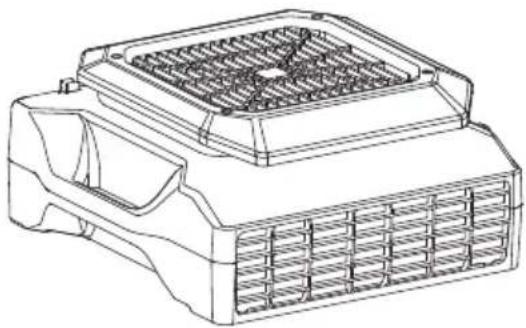

Low Profile Air Mover Introduction

• The XPOWER Low Profile Air Mover produces a plentiful airflow capacity for small to large jobs for any location size.
• It is ideal for drying tight spaces such as crawl spaces, under counters, inside cabinets, bathrooms, auto interiors, and more.
• It's also designed for professional carpet cleaning, water damage restoration jobs, or home use.

Technical line drawing of a mechanical component with ventilation grilles (no text or symbols)

Operation Guide

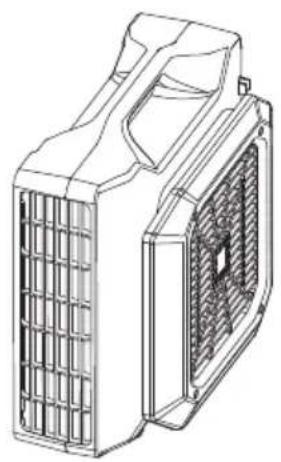

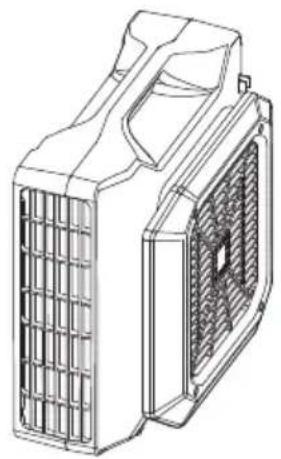

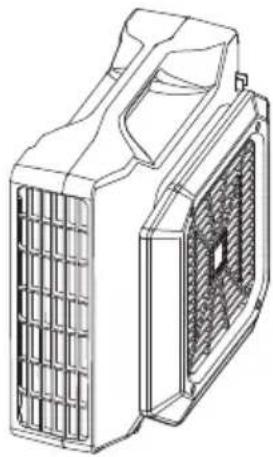

Multiple Operating Positions

Technical line drawing of a mechanical component with ventilation grilles (no text or symbols)

Technical line drawing of a modular air conditioner unit (no text or symbols)

The low profile air mover can operate at different positions, directing the airflow to desired areas.

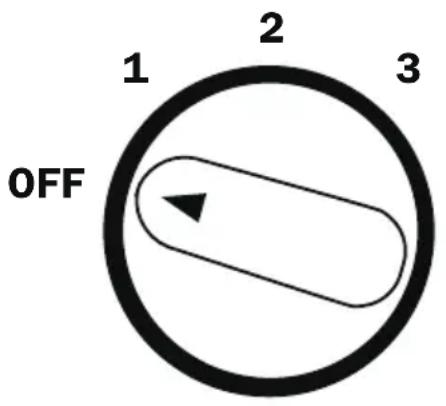

Three Speed Control (For Model PL-700A and XL-700A Only) and Five Speed Control (For Model XL-730A Only)

• Turn to "OFF" position to switch the air mover OFF. Turn to any speed position to switch the air mover ON.
• Turn clockwise to set the desired fan speed.
• For three speed control: there are 3 fan speeds from: 1, 2, 3. “1” is the lowest speed and “3” is the highest speed.
• For five speed control: there are 5 fan speeds from: 1, 2, 3. “1” is the lowest speed and “5” is the highest speed.

On/Off Control (For Model XL-760AM Only)

- Turn to “OFF” position to switch the air mover OFF. Turn to “ON” position to switch the air mover ON.

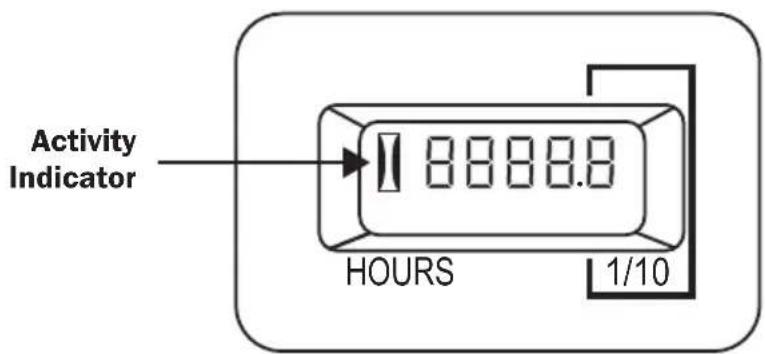

Time Meter (For Model XL-760AM Only)

• The time meter shows the total running time from the first usage to the current moment.
• When the machine turns on, the activity indicator will blink. The running time starts to count. When the machine is off, the activity indicator will stay illuminated.
• The value can't be reset. When the value exceeds 9999.9 hours, it will start over from 0 again.

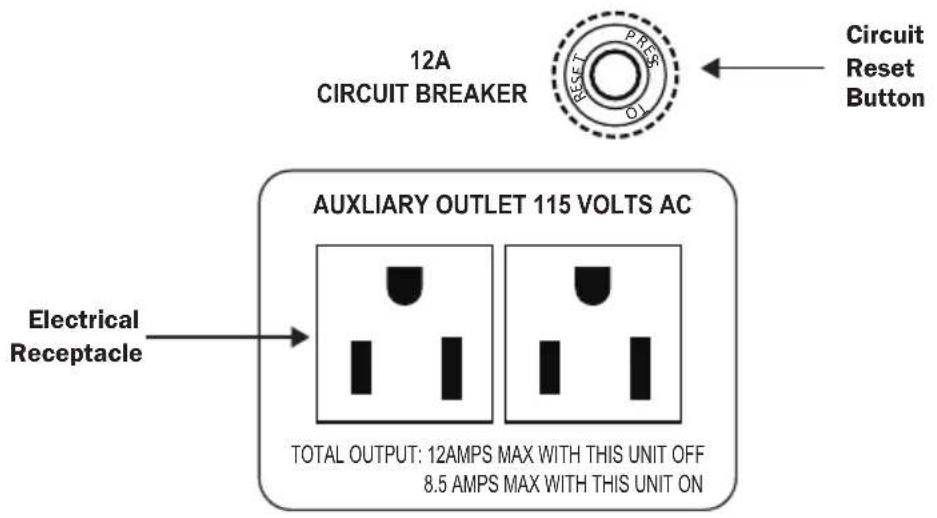

Additional Electrical Receptacle (Daisy Chain)

• Other appliances can be plugged in the additional electrical receptacles and work whether the air mover is on or off. However, the total amperage must be lower than the amperage instructed. Different models may have varying instructions.
• If the air mover or the plugged in appliance stops working, press the CIRCUIT RESET BUTTON to reset the circuit.

For GFCI (Ground Fault Circuit Interrupter) protected additional electrical receptacle:

• Once a ground fault occurs, the GFCI will immediately interrupt the power connection to the additional electrical receptacle. Consult the Troubleshooting Guide.
• A ground fault is an inadvertent contact between an energized conductor (for example, a human being) and ground or equipment frame.

WARNING: Risk of electric shock. You should test the GFCI before each use.

• Press the Test Button, the Power Indicator should go off. Then press GFCI Reset Button, the Power Indicator should illuminate and Test Button should be reset to unpressed position.
• If the Test Button does not react as stated above, consult the Troubleshooting Guide.

Regular Additional Electrical Receptacles (For Model PL-700A, XL-700A and XL-730A)

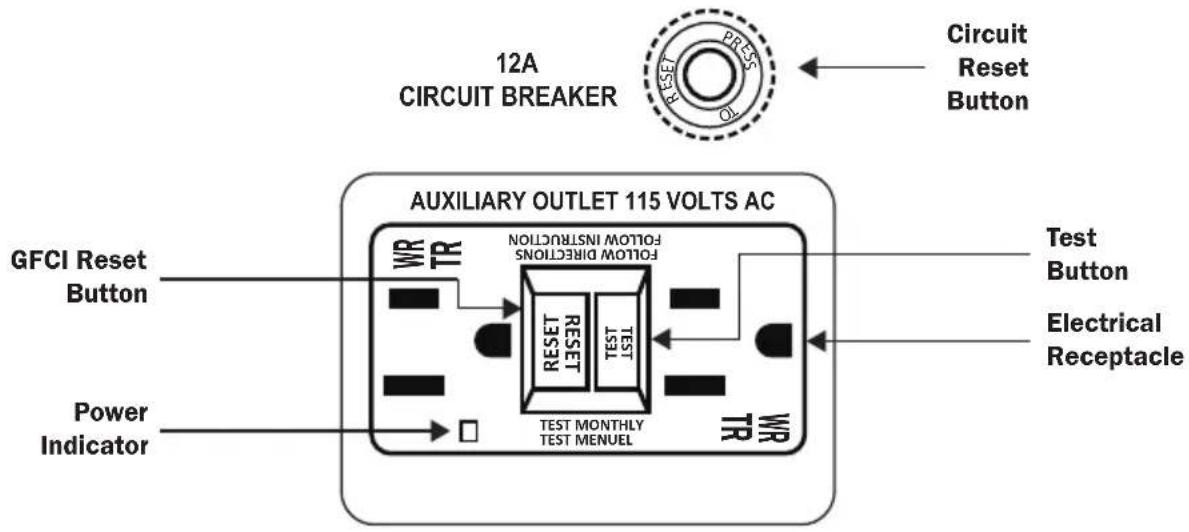

GFCI Protected Additional Electrical Receptacles (For Model XL-760AM)

Transportation

Technical line drawing of two stacked electronic devices with ventilation grilles (no text or symbols)

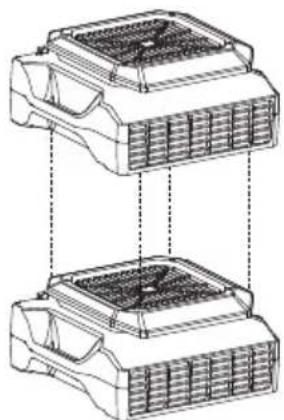

Stack Multiple Units

- Stack the low profile air movers on the top sides. Align the air inlets of both low profile air movers.

! WARNING

- Do not stack more than six units of this appliance.

User Maintenance Instructions

Frequent maintenance is recommended on this appliance. Failure to follow the maintenance instructions may cause failure of the appliance and void the warranty.

• When not in use, unplug and store the appliance in a dry and cool indoor place. Make sure it's out of reach of children.
• Before performing any maintenance or cleaning, always disconnect the air mover from its power source.
• Use a damp cloth to wipe the surface of the housing. Do not clean the unit with water directly.
• Check if the grille covers are clean. Remove dirt or any other objects that could block the air inlet and air outlet.
• Do not stack more than four units of this appliance.

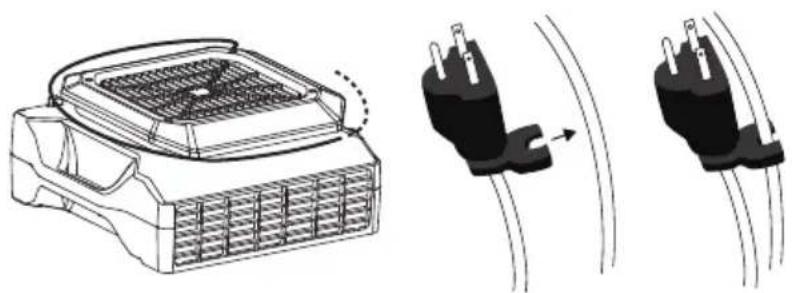

Organize the Cord

Technical illustration of a portable air conditioner unit with two close-up views showing internal components (no text or symbols)

- Wrap the power cord around the switch plate for storage after use.

- Use convenient clip at end of cord to secure in place.

PROBLEM POSSIBLE CAUSE SOLUTION

Low profile air mover does not start	No electricity. Check for power supply.
	The power cord is not properly plugged in.	Remove and reconnect the power cord.
	The machine is working under an extreme temperature.	Turn off the machine and unplug it. Let the machine cool down to normal temperature.
	The circuit breaker on the additional electrical receptacle (Daisy chain) jumps.	Remove all appliance on the additional electrical receptacle and press “Reset”.
Unit runs but the speed is abnormal	Air inlet or air outlet is blocked.	Remove blockage.
The additional electrical receptacle has no power	The circuit breaker on the additional electrical receptacle (Daisy chain) trips.	Remove all appliances on the additional electrical receptacle and press circuit reset button.
	A ground fault causes power interrupt by GFCI.*	Turn off and unplug the Air Scrubber. Remove all appliances on the additional electrical receptacle and press GFCI reset button.
The Test Button doesn’t react to GFCI test based on the manual	A ground fault causes power interrupt by GFCI.*

If troubleshooting does not resolve your problem, please contact XPOWER or other parties authorized by XPOWER for further instructions.

Technical Specification

MODEL NUMBER PL-700A XL-700A XL-730A XL-760AM
Voltage / Frequency 115 V~60 Hz
Amperage 2.8 A
Motor Power 1/3 HP
Rated Airflow 1050 CFM 1150 CFM
Speed Control 3 Speeds 5 Speeds 1 Speed
Time Meter N/A	9999.9 Hour
Additional Electrical Receptacle	2 Normal Outlets			2 GFCI Outlets
Cord Length	15 ft. / 4.7 m
Unit Dimension (L) x (W) x (H)	8.3 x 17.7 x 17.7 in. / 21.0 x 45.0 x 45.0 cm
Unit Weight	19.8 lbs. / 9.0 kg	21.2 lbs. / 9.6 kg	22.9 lbs. / 10.4 kg	20.7 lbs. / 9.4 kg
Safety Certification	ETL/C-ETL

If your product(s) is not listed above, please visit www.xpower.com for more information.

XPOWER Limited Warranty (USA)

1 YEAR LIMITED WARRANTY

XPOWER-branded products purchased in the U.S. from authorized distributors include a 1-year limited warranty. Contact XPOWER to confirm warranty information about your product(s).

This limited warranty covers defects in materials and workmanship in your XPOWER-branded products, purchased in the U.S. ONLY. Local warranty policy (if any) in your country will cover products purchased outside the U.S.

IMPORTANT:

(1) Please finish the online warranty registration before usage. Visit https://xpower.com/warranty-registration/
(2) This Limited Warranty applies with its own timeliness. Contact XPOWER or visit www.xpower.com for more information.

Items mentioned but not limited to below are not covered by warranty:

(1) Power cord, filters or any other components considered as a “consumable parts” by XPOWER.
(2) Normal wear and tear.
(3) Problems that result, directly or indirectly, at XPOWER's sole discretion, from:

(3.1) External causes such as accident, abuse, misuse or problems with electrical power supply.
(3.2) Disassembling, servicing or modification not authorized by XPOWER.
(3.3) Usage that is not accordant with product instructions stated in Owner's Manual.
(3.4) Failure to follow the product instructions or lack of necessary maintenance stated in Owner's Manual.

Before contacting XPOWER, please try one or more of the following:

(1) Consult this Owner's Manual and follow the instructions of troubleshooting guide.
(2) Access www.xpower.com for more advice and information that could be helpful to address your problems.

If you need additional assistance from XPOWER, please:

(1) Email [e-mail].
(2) Call XPOWER U.S. Customer Service Department at 855-855-8868 or other numbers provided on www.xpower.com.
(3) Visit XPOWER U.S. Head Office at 668 S. 6th Ave., City of Industry, CA 91746 or the most current address provided on www.xpower.com.

Please also have your original proof of purchase and the serial number(s) of your product(s) ready when you contact XPOWER.

XPOWER Limited Warranty (USA)

If you are instructed to return the unit for service or replacement, please:

(1) Request a RMA (Return-Merchandise-Authorization) number.
(2) Use the original or an equivalent packaging, prepay shipping charges at your own expense to the address provided by XPOWER, with the RMA number on the shipping label or the packaging.
(3) Include all the original parts and components.

XPOWER will inspect, assess and advise the repairs needed and applicable cost, if any. For products under warranty, we will pay to ship the repaired or replaced product(s) to you if you use an address within the Contiguous United States. Otherwise, we will ship the product(s) to you at your own expense.

ADVERTENCIA: LEA Y GUARDE ESTE MANUAL ANTES DE USAR ESTE PRODUCTO.

Technical line drawing of a mechanical component with heat exchanger (no text or symbols)

Line drawing of a mechanical component with internal grating (no text or symbols)

Line drawing of a mechanical component with ventilation grilles (no text or symbols)

Technical line drawing of a mechanical air conditioner unit (no text or symbols)

Technical line drawing of two stacked electronic devices with ventilation grilles (no text or symbols)

Apilar multiples unidades

Line drawing of a portable air conditioner unit with ventilation grilles and a cooling fan (no text or symbols)

Illustration of a plug with electric field lines indicating direction (no text or symbols)

Illustration of a black electrical plug with three wires, no text or symbols present

PROBLEM POSSIBLE CAUSE SOLUTION

Technical Specification

Technical line drawing of a mechanical component with heat exchanger (no text or symbols)

Technical line drawing of a mechanical component with heat exchanger and ventilation grilles (no text or symbols)

Guide d'utilisation

Line drawing of a vehicle air vent system (no text or symbols)

Technical line drawing of a mechanical air conditioner unit (no text or symbols)

Technical line drawing of two stacked electronic devices with ventilation grilles (no text or symbols)

Line drawing of a portable air conditioner unit with ventilation grilles and cooling fan (no text or symbols)

Illustration of a plug with three pins and a curved arrow indicating motion (no text or symbols)

Illustration of a black electrical plug with three wires, no text or symbols present

PROBLÈME CAUSE POSSIBLE SOLUTION

XPOWER Manufacture, INC.

668 S. 6th Ave.,

City of Industry, CA 91746 USA

www.xpower.com | 1-(855)-855-8868 | [e-mail]

Read and save these instructions
