Product type	Ice cube maker
Brand	ProfiCook
Model	PCEWB 1253
Power supply	220-240 V~, 50 Hz
Input power	120 W, 1.0 A
Ice cube production	8-12 kg / 24 hours
Water tank volume	Approximately 1.5 litres
Ice cube size	2 sizes: small or large
Refrigerant	R600a (isobutane), 20 g
Blowing gas for insulation	Cyclopentane (C5H10)
Protection class	I
Climate class	SN/N
Net weight	Approximately 8.0 kg
Dimensions (approx.)	35 x 25 x 30 cm (L x W x H)
Main functions	Ice cube production, size selection, automatic shut-off
Indicator lights	Power, ice cube size, water tank empty, ice basket full, self-cleaning
Self-cleaning	Yes, via dedicated button
Safety	Automatic shut-off if water tank empty or ice basket full
Delivery contents	1 ice cube maker, 1 ice scoop, 2 replacement caps for drainage
Maintenance	Manual cleaning, residual water purging recommended
Cycle duration	Approximately 9-10 minutes

Frequently Asked Questions - PCEWB 1253 PROFICOOK

How to start ice cube production?

Make sure the drain plug at the bottom is closed, pour water into the tank up to the MAX mark, then press the On/Off button. Select the ice cube size with the ≡ button.

What water to use for ice cubes?

Use only drinking water. For clear ice cubes, use cold water that has been boiled beforehand.

How to change the ice cube size?

Press the ≡ button to toggle between small and large sizes. The corresponding indicator lights up.

What to do if the 'Fill Water Tank' indicator lights up?

Turn off the appliance, open the lid, remove the ice basket, add water up to the MAX mark, then restart production.

How to stop ice cube production?

Press the On/Off button. The current ice cubes finish falling, the appliance goes into standby mode.

How to clean the machine?

Turn off and unplug the appliance. Remove the ice basket, clean it with warm soapy water. For self-cleaning, fill with water to MAX, press the button and select the program with the ≡ button.

Why are the ice cubes cloudy?

A cloudy appearance is normal and due to air trapped in the water during rapid freezing. This does not affect the quality of the ice cubes.

What to do if the machine does not produce ice cubes?

Check the power supply, the water level in the tank, that the ice basket is not full, and that the ambient temperature is suitable (16-25 °C). For other issues, contact a specialist.

What is the ideal water temperature for ice cube production?

Use water between 7 °C and 20 °C. Water that is too hot slows down production and results in smaller ice cubes.

How to purge residual water for storage?

Place the appliance at the edge of a table with a bowl under the drain plug. Remove the plug at the bottom, let the water drain, then replace the plug.

USER MANUAL PCEWB 1253 PROFICOOK

PykoBODCTBO no 3KcNpyataun

Be sure to read the separately enclosed safety instructions first.

Instruction Manual

Thank you for choosing our product. We hope you will enjoy using the appliance.

Read the instruction manual and the separately enclosed safety instructions very carefully before using this appliance. Keep these documents, including the warranty certificate, receipt and, if possible, the box with the inner packaging in a safe place. If you pass the appliance on to a third party, always include all the relevant documents.

Symbols in this Instruction Manual

Important information for your safety is specially marked. It is essential to comply with these instructions in order to avoid accidents and prevent damage to the appliance:

WARNING:

This warns you of dangers to your health and indicates possible injury risks.

CAUTION:

This refers to possible hazards to the appliance or other objects.

Content

Overview of the Components. 3
Unpacking the Appliance 8
Scope of Delivery 8
Overview of the Components.. 8
Warnings for the Use of the Appliance 9
If the Refrigerant Circuit is Damaged. 9
Notes for Use 9
Location. 9
Electrical Connection 9
Standby (Standby Mode) 9
Ice Cube Size 9
Eco Save (Power Saving Mode) 9
Operation 9
Making Ice Cubes 9
Stop Ice Cube Production 9
Control Lamp Ice Cube Container Full) 9
Control Lamp (Water Refill) 9
Cleaning and Maintenance. 10
Self-Cleaning. 10
Ice Cube Container 10
Housing and Interior. 10
Drain Residual Water. 10
Storage 10
Troubleshooting 10

Technical Data. 11
Disposal 11

Meaning of the "Dustbin" Symbol 11

Unpacking the Appliance

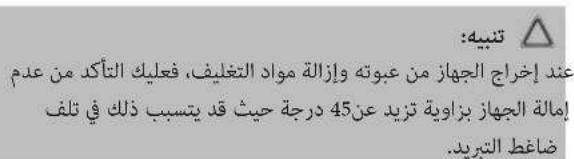

CAUTION:

When unpacking the appliance and removing packaging material, make sure not to tilt the appliance by more than 45^ , otherwise the cooling compressor could get damaged.

1. Remove the appliance from its packaging.
2. Remove all packaging material, such as foils, filling material, cable ties and cardboard packaging. If necessary, remove any adhesive tape in the water tank that may have been applied to fix moving parts.
3. Check the scope of delivery for completeness.
4. If the contents of the packaging are incomplete or if damage can be detected, do not operate the appliance. Return it to the dealer immediately.
5. There may still be dust or production residues on the appliance. We recommend that you clean the appliance as described under "Cleaning and Maintenance".

Scope of Delivery

1 × Ice cube maker
1×ice shovel
2 × Replacement closure for drainage opening

Overview of the Components

1 Cover
2 Freezing unit
3 Ice cube slider
4 Air inlet
5 Air outlet
6 Housing
7 Residual water - drainage opening
8 Water tank (inside the appliance)
9 Ice shovel
10 Control lamp cleaning programme)
11 button (select ice cube size / self-cleaning)
12 Control lamp (water refill)
13 Control lamp (ice cube container full)
14 Control lamp appliance switched on)
15 button (switch on / off)
16 Control lamp Large ice cubes)
17 Control lamp (small ice cubes)
18 Ice cube container

Warnings for the Use of the Appliance

WARNING:

The refrigerant circuit of the appliance uses the refrigerant isobutane (R600a), a flammable natural gas with high environmental sustainability. When transporting and installing the appliance, prevent the appliance from falling down. The refrigerant circuit must not get damaged.

CAUTION:

Please observe a waiting period of 2 hours before initial operation and after moving the appliance for the refrigerant to settle. Otherwise the compressor can be damaged.

If the Refrigerant Circuit is Damaged

• Open flames and ignition sources must be avoided.
• Disconnect the mains plug.
• Ventilate the room in which the appliance is installed.

Notes for Use

Location

• Place the appliance on a stable, horizontal, water-resistant and level surface. Maintain a gap of at least 15cm to walls or objects.
• Do not place the appliance on or directly next to heat sources such as ovens, radiators, etc.

Electrical Connection

1. Before inserting the plug into the socket. Make sure that the mains voltage to be used matches that of the appliance. You can find this information on the nameplate.
2. Connect the appliance to a properly installed wall outlet.

Standby (Standby Mode)

If no control lamp is lit, the appliance is in standby mode.

Ice Cube Size

You may choose between 2 sizes:

• small ( □-small icon)
• large ( large icon)

Eco Save (Power Saving Mode)

Once the ice cube container is full the appliance switches into standby mode.

You benefit from better safety and lower energy consumption.

Operation

When using the appliance for the first time or if you have not used it for a long time, clean the appliance as described in the chapter "Cleaning and Maintenance".

Making Ice Cubes

1. Make sure that the water tank cap on the bottom of the appliance is tightly closed.
2. Open the lid and take out the ice cube container.

3. Fill the container with water to no more than the MAX mark. Only use drinking water to make ice cubes.

4. For best results, aim for a water temperature of between 7^ and 20^ as well as an ambient temperature of between 16^ and 25^ .

5. If you want clear ice cubes, use chilled drinking water which has firstly been boiled.

6. Now put the ice cube container back in and close the lid.

7. Press the button to start ice cube production.

8. Select the desired ice cube size with the button. The corresponding control lamp lights up.

9. For hygienic reasons do not use the ice cubes from the first cycle.

10. The first few ice cubes will be small depending on the water temperature and ambient temperature. The ice cubes will only grow larger in the following cycle.

11. Due to fast freezing the ice cubes can look "milky". This is the air trapped in the water and does not influence the quality of the ice cubes.

12. Keep the lid closed during ice cube production. An ice cube making cycle lasts between 9 and 10 minutes.

Stop Ice Cube Production

Press the button to stop ice cube production.

• If operation is manually interrupted, water which is no longer needed is fed back to the water tank. Only then will the appliance stop. Half-finished ice cubes remain suspended on the cooling rods. As soon as it is sufficiently thawed, it will fall off and drop into the ice cube container.

Control Lamp (Ice Cube Container Full)

As soon as the ice cube container is full, the sensor stops production.

The control lamp flashes. The appliance switches into standby mode.

• Remove the ice cubes with the supplied ice cube scoop. When removing the ice cube container, some water will drip through the holes onto the floor.
• The control lamp turns off and a few moments later ice cube production starts again.

Control Lamp (Water Refill)

The control lamp displays when there is too little water in the water tank. Ice cube production is automatically interrupted.

1. Press the button to switch off the appliance.
2. Open the lid.

3. Empty the ice cube container.

4. Refill with potable water as described in chapter "Make ice cubes". Since there may still be water in the appliance, check the MAX mark in the water tank.

5. Now put the ice cube container back in and close the lid.

6. Press the button to resume ice cube production. The control lamp turns off.

Cleaning and Maintenance

WARNING:

• Switch off the appliance before cleaning and disconnect the mains plug.
• Never immerse the appliance in water to clean it. Doing so may lead to electric shock or fire.

CAUTION:

• Do not use wire brushes or other abrasive implements.
• Do not use harsh or abrasive cleaning agents.

• Do not use chemicals, acids, petrol or oil products.

• For hygienic reasons exchange the water in the tank after 24 hours.

• Remove the ice cube container after use. If the water tank remains open no mould or bacteria can form.

Self-Cleaning

1. Fill the water tank with water up to the MAX mark.
2. Press the button. Select the cleaning programme with the button. The control lamps and light up.
3. After the programme is finished, the appliance switches back to standby mode and all control lamps go out.

Ice Cube Container

Remove the ice cube container. Clean it in warm rinse water with a little hand dishwashing liquid. Rinse with clean water.

Housing and Interior

• Clean housing and interior with a damp cloth.
• Use a diluted solution of vinegar and water.

Drain Residual Water

Drain the residual water if the appliance is not in use for a longer period of time. Rest the appliance on a table edge. Take a bowl and hold it under the drainage opening for the residual water.

• Pull out the cap at the bottom.
  After the remaining water has drained off, put the cap back into the opening.

Storage

• We recommend that you keep the appliance in the original packaging if you do not intend using it for long periods.
• Always keep the appliance out of the reach of children in a dry, well-ventilated place.

Troubleshooting

Problem Possible Cause	Solution
No function. No power supply.	Test the socket	et with another appliance.
		Plug in the mains plug correctly.
		Check the main circuit breaker.
	The appliance is faulty.	Contact our service centre or a specialist.
Compressor noisy.	Mains power supply too low.	Turn the appliance off and check the mains power supply.
Control lamp ① flashes.	Water refill.	Add water as described in the chapter “Operation”⇒“Making Ice Cubes”.
Control lamp ② flashes.	The ice cube container is full.	Empty the ice cube container.
The ice cubes are too small.	Surrounding temperature is too high.	Place the appliance in a cooler location. Make sure there is adequate air circulation around the appliance.
	The water temperature is too high.	Stop the ice production. Drain some water and refill cold water (max. 20 °C).
	Ice cube size has been wrongly selected.	Select the ice cube size ☐ (large icon) with the ☐ button.
	Smaller ice cubes are normal during the first production cycles.
Ice cubes are too large and stick together.	Water temperature or ambient temperature too low.	Stop ice cube production. Drain off some water and refill with lukewarm water (max. 35 °C).
The appliance is in operation but does not produce ice cubes.	Blockage of the refrigerant line. C	Contact our service centre or a specialist.
	Refrigerant leak.

Technical Data

Model: .PC-EWB 1253

Voltage supply: 220-240V\~,50Hz

Power input: 1.0A, 120W

Ice cube production: 8-12kg/24hours

Water tank volume: approx. 1.5 litres

Refrigerant: R600a/20 g

Insulation blowing gas: C5H10 (cyclopentane)

Protection class:

Climate class: .SN/N

Net weight: approx. 8.0kg

The right to make technical and design modifications in the course of continuous product development remains reserved.

This appliance has been tested according to all applicable, current CE directives and built according to the latest safety regulations.

Disposal

Meaning of the "Dustbin" Symbol

Protect our environment: do not dispose of electrical equipment in the domestic waste.

Please return any electrical equipment that you will no longer use to the collection points provided for their disposal.

This helps avoid the potential effects of incorrect disposal on the environment and human health.

This will contribute to the recycling and other forms of re-utilisation of electrical and electronic equipment.

Information concerning where the equipment can be disposed of can be obtained from your local authority. Your dealer and contractual partner is also obliged to take back the old appliance free of charge.

BELANGRIJK:

Netto suly: .kb. 8,0 kg

Yka3bIbaeT Ha BO3MOxHyo ONaCHOCTb IЯ n3dJIyNn IpyrNX OKpyXaHOuX INpeDMeTOB.

CoapedkaHne

O63op Detanei np6opa. 3

PacnaKOBka np6opa. 37

KOMJIeKT NOCTABKN 37

O63op detae np6opa. 37

PpeDynpexdEHHno hCNoJIb3OBAHnIO np6opa....38

EcnnXoIOniNbHbIKoHTypycTpoCTBa nobpeJeH...38

PpmeuHnno nncnoB3OBAHn 38

PacnoJoxeHne 38

IoiKluoyehne K 3eKeTpoceTe. 38

PexmOxuaHn(CoCToHHe roTOBHOCTn) 38

Pa3mep Ky6KOB Ibda 38

3KOHOMHnhpeKM(Pekm3Heproc6epexen)....38

38

PpuroToBnEHeNc KybIKOB IbaI 38

OcTaHOBka npiroTOBneHn Ky6NkOB Nbda... 39

Jamna-IMdkatop

PnroTOBHeHne KByKOB Nba

1.Y6eIITecb,yTO KpbIuKa pe3epByapa InB OBOB B HIXHeY qactn np6opa nIOTHO 3aKpbIta.
2. OtkpoIte KpbIuKyu IIOCTaHbTe NOTOKДЯ Ky6IKOB JbDa.
3. HanonHnTe KOHTeHep BOoM MaKcMym Do OTMeTKN MAX. IЯ npiroTOBHeHn K6uKOB Nbda NcNoJIb3yTe TOnbKO NITBeByO BDOy.

-Дяполучени Лушinx pe3ynbTaTOB,стаNTecb,Тобы TempepaTypa BODby 6bIa МeJdy 7°C n 20°C, a TempepaTypa OkpykaIoUe i Cpebl MeJdy 16°C n 25°C.
- EcIn HxJHo NJIyUHTb KyBnKu YNCTOrO Jbda, nC- nONb3yIte OXnAxxDeHHUo NITbEByU BOyU, KOTOpU npEdBaPnteJIbHO pOKnIaTNI.

1. Tenepb noctabbTe IOTOK c Ky6nKamn Nbda o6paTHo n 3akpoTe KpbIkiy.
2. Haxmte KhoNky, YTo6bHaayatb npOn3BOcCTBO Ky6KOB Jbda.

3. BbIepeHte HxKhBpa3MeP Ky6KOB Nbda c NOMOuho KHOKN 3aropaeTc COOTBeTCTByUoMn INHdNkATOp.

4. IIO coo6paKeHnIgIeHbI He IcNoIb3yIte Ky6KnIbda n3 nepBvHoro zIKNa nprirotOBHeHn Ky6KOB.

5. IepBbIe HeckoJIbKO Ky6nKOB Nbda 6ydyT He6oJIbUoro pa3Mepa; 3TO 3aBNCIT OT TempepaTypbI BODbl N TemnepaTypbI OkpyKaIOSe CpeDbI. Ky6nKn Nbda 6ydyT 6OJIbWe ToNbKO BO BpEmr CneDyUoJero UNKJa.
6. BCJIeIcTBnE 6bIcTpoi 3aMopo3Kn Ky6Nk MoYr IMeTb «MOIOuHbI» CBET, KOToPbI OByCIOBJIeH COePjKaUIMC8 B BoDE BO3dYxOM. 3TO He BeJINrE T ha KaueCTBO Ky6NKOB JbJa.

7.BoBpemn3rOToBJIeHnKy6IKOBNbdaepXHTe KpbIuKy 3aKpbIToI.ODINuKNPpOn3BOJcTBaNbda DnITcraT 9do10MnHyT.

OctahOBka nprirotOBJIeHMy KU6NKOB JbDa

Hakmte KhONky, YTO6bl OCTaHOBnTB npOn3BOcTBO Ky6NkoB Nbda.

• Ecni npoucc 6bl npepbAH Bpyhnyo, liuHna BOda 6ydet OTBeHeHa 6bpaTHO B pe3epByap. TOnbKO nocne 3Toro yctpoCTBO OCTaHOBNTcH. HAnIOBHy cDenaHbIe KByIKN JbDa OCTaOTcN IOBWeHbIMn HA OXJaKdaUxN CTePxxHx. KaK TOnbKO OHN DOCTaTOHNO TTAOT, OHN cNaDyT C HNX NONaDyT B NOTOK Iy KByIKOB JbDa.

JaMaNa-HndKaTOp (JIoTOKdIy Ky6nKOBNbda 3aNoJIHeH)

Kak TontbKO IOTOK DnIy Ky6NKOB Nbda 3aONHReTc, DaTnK npekpaaaet npOn3BOdCTBO.

Miraet INndkaTop . Pnp6op nepeienB dejkyhbl pexim.

• IV3BNEKITE KU6NIJIbda C NOMOUIBO BXODIeTO B KOMIIeKT COBka. Iprn IV3BNeueHIN IOTka C KU6NIaMNIJIbda, HeKOTOpOE KOINueCTBO BOJbI NOJaTe YpeE3 OTBepCTNHa IOnl.

• lamna-nHnKaTOp BbIKIOHTcR,Yepe3 HeCKoJIbKO CEkyHn npOn3BOOCTBO Ky6NkOB Ibda 6yJeT npOdoJI-XeHO.

JaMa-nHnKaTOp (JOniNtB BODy)

HnKATOP NOKa3bIaET, KOrda B pe3epByape nra BObl CnUkOM MaIO BObl. POn3BOcTBO KyuKOB Nbda aBToMaTHueckn IppebIAeTcR.

1. Haxmte KhoNky, YTObblBbIKIOHTb yCTpoIcTBO.
2. OTKpoIte KpbIuKy.
3. OnyctoWnte IOTOK nIa Ky6nKOB Nbda.
4. 3aJIeIte NITBeByu BOy, KaK OINcAHO B pa3JeIe «PniroToBJIeHne Ky6NKOB IbDa». TaK KaB Y cTpoiCTBe BCE eUe MoKeT OCTaBaTbCBA OoA, PpOBepbTe OTMeTKY MAX Ha pe3epByape dIra BObl.
5. Tenepb nocTaBbTe IOTOK C Ky6nKamN Nbda ObaTHO m 3akpoTe KpbIky.
6. Haxmte KhoNky, UTObI BO3O6HOBNT IPOUN3BOIDCTBO Ky6nKOB Jbda. JAMNa-UNkAToP 1orachET.

Ynctka n o6nyxnbHne

I P E D U N P E X K D E H N E:

• Перацястков Вькючente устpoистBO И OTcoeДинITE erO OT cETNэл ektpoNTaHЯ.
• HNKoRda He norgykaIte yCTpoiCtBO B BODy, yTObI NOUHCTnTbe. 3To MoKet npINBeCTN K ydApy 3JIeKTPoTOKOM IIn NoXapy.

BHIMAHNE:

He nCnoB3yIte npOBOnOuHbIe 1eTkn nnDpyrme a6pa3nBhIe INCTpyMeHTbl.
He nCnoB3yIe IJIa OUncTKn XecTkne nn a6pa3nB-HbIe CpeIcTBA.
He nCnoB3yTe XIMnKaIIN, KNCNoTbI, 6eH3nH nn HeFpTe npOyKtbl.

• Pto coo6paXeHnM rIneHbI Heo6xOJIMo MeHrTb Body B pe3epByape cnYCTa 24 Yaca.
  V3BneKeIte IOTOK JnKy6IKOB Nbda nocNe NcNoNb3OBAHn yCTpoiCTBa.Ecn pe3epByap dna BObl OTkpbl, BHe He 6ydt PnecEn nn 6aKTepi.

Camoochnka

1. HanoJIHnTe pe3epByap IINI BOJbI BOIOI DO OTMeTKn MAX.

2. Haxmte KhoNky . Bb6epTe nporpamMy ouHCTKIO NMOUHO KHONK 3aRopaOTc KOHTPOJBHbIe JAMnB1

3. После заBERPSEня поррамьл пибор сюваперклочаetсь ржIM OЖИданя, И ВCE ИнДКATOpblупавlenя racHyT.

KonteHepdnykybokOBNbda

I3BNEKITE JOTOK Ky6NKOB Jbda. OYNCNTe erO B TEIIIOB OBe C He6oJIbUIM KOINcHcTBMxIKoCTn DnM MytBpyuHOr NocyDbI. PpOMTe YNCTOn BODoN.

Kopnyc BHyTpeneHne NOBepxHOCTN

OuHuaTe KOpnyc IN BHyTpene Hne NOBepxHOCTN C NOMO- bIyUbnaXHHHO TKAHN.
- IcnojI3yIte pa36abneHbI pactBOp yKcyca n BoIbI.

CnB BOdBi

Ecnu yctpoiCtBO He nCnONb3yeTcB TeueHne dInTeIb-Horo nepnoa BpeMeHN, CneTe OCTabUyOc BOy.

IocTaBbTe yctpoiCTBO Ha KpaI cTOna. Bo3bMITE KyBUnH n DePKeTIe ero noD dpeHaXhbIM OTBepCTnEM OCTaBWeierCBAObl.

BbITaHNTe KpbIiKy B HnKHeuacTn.
- Pocne TOROKaK OCTaTKN BObI CTeKyT, yCTaHOBInTe KpbIuKy o6paTHO B OTBepCTne.

XpaHeHne

• PekomeHnyetcXpaHnTb yCTpoiCTBO B erO opRnHaBHOyNAKOBKe,ecNbBbHe pAnHpyeTe NcNoB3oBaTbeeroB TeueHne DInTeJbHOrBoPemHn.
  Bcerda xpaHnTe yctpoNCTBO B cyXOM, xopoOIO npoBeTpnaEMOM MecTe, HeDOCTyHOM DnIa DeTei.

YcTpaHHe HEnCnpaBHOCTe

IopTe6JIeMaM MoUHocTb: 1,0A,120B

PnirroBHeHne Ky6KOB Nbda: 8-12Kr/24.

ObepeepByapaIyBoBbl:..np6n.1,5nTPOB

Xnaaarent: .R600a/20r

T3 n npodybkn 130jauu: ..C5H10 (unknoneHTaH)

Klacc 3aunrbl:

KImat Knacc: ..SN/N

Bec HeTTo: npn6n.8,0 Kr

CoxpaHeNo npaBo Ha TexHnueckne I KOHcTpyKUHOHHbIe N3MeHeHnB pAMkax npoDoJIkaUOSeIcra pa3pa6OTkn npOdykTa.

JaHHbI np6op 6bln IpOteCTnpOBaH B COOTBETCTBm CO BCEMN pImMeHMbIM N DeiCTByUoUIMM DnpeKtNBAMC CE IN3ROTOBJIEN B COOTBETCTBn C NOcNeiHMn IpabuNaMn 6e30NAchOCTn.

YTNIN3aIy

3NaueHne CNMBOJa KOp3nHa

3aunTa OkpykaIoUeI cpebl: He donyckaetcyaTIN3aun3neKtpnpn6bopOB BmecTe C 6bITOBbIMN OTXoJamN.

Yttnn3aun yctapeBwei TexHnKn HncnpabHBx 3neKtpoPnpobop npoun3BOuNTcB roponcknx pniMhbx nyHKtax.

He donyckaIte HnpaBnIbHoi yTnIIN3aMn OTXoIOB. 3TO HaHocNT Bpe OkpykaUoSe CpeDe N OKa3bIbAeT HeRaTNUBHOe BO3dEiCTBne Ha 3DopOBBe IIOei.

Oka3bIaBaiTe coaeiCTBne nporpamme yTnIIN3aUN IN dpYMM fopmam nepepa60TK n 3NeKtpoHHoN IN 3NeKtpuHeckoI TEXHKn.

HnΦopMaζI O nyHKTx yTIN3aζN 6bITOBo TExNkmoXHO nOlyuHTb B MeCThBX opraHax BlactN. BaI dIepeI npTHeP NO DOrOBOp YAokKe o8z3aH 6ecPiAtHO npInrTaB cTapbI npi60p.

a

PC-EWB 1253

50,240-220.

120,1,0

aLw 24/ps12-8

j1,5.. 0j

20/R600a

（JgKw）CH 10

I

SN/N.

g8.0 1

gulll 100000000000000000000000000000000000000000000000

jIoo oJooJIyooJooJooJoo

aalgl

：

.

[ab] a,b,c,d,e,f,g,h,i,j,k,l

.

jwgl jwl jgl

.

UgJoljooJgso Jao Ugpo pa

a aolb

jglg jglg b oal jglg plaoi pbl aololololololololololololololololololololololololololololololololololololololololololololololololol

JwJyIeWg

aioi 11 10

#

dolwogiyu 151 ydygio jzqbl bao elaai

a1g5b

g jj 10

.0

43

2ab = 15;y = 1 3ab = 15
ab ÷ 15g = 2 + 2
·

. dLw 24 jyj

Igaa aai jia yai iaii 100000000000000000000000000000000000000

Lx≤Lj≤S

1 7 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0

3.2020 11 11 11 11 11 11 11 11 11 11 11 11

6 jll 5 ...l l l l

1. G

.1gJ 1 gJ 1 gJ 1 gJ 1 gJ 1 gJ 1 gJ 1 gJ 1 gJ 1 gJ 1 gJ 1 gJ 1 gJ 1 gJ 1 gJ 1 gJ 1 gJ 1 gJ

• 20 do da iaoi iaoj o jaiai ai aai ci aai

JusyI jolao gSbI gaijolab jajai

.

.1441444444444444

三

A

1

g61

alco albll 1e bilo 7 .yjgj ojozug.

eai aieae baoi eaoaog cbi gao hao zao jiaqai

a 15

jolil jio 8julao diisluo jolao jg jde jglal gaiy.

.

g

J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J

（）

JyI JyI JyI JyI JyI JyI JyI JyI JyI JyI JyI JyI JyI JyI JyI JyI JyI JyI JyI JyI JyI JyI JyI JyI JyI JyI JyI JyI

Lgso g 15 .aas jgl tll Lgso aeg g 11 Lgso e jil.

S_ OBC = 12 · OB · BC

（y）o ool6b4u6b1

gag. u1 alg 10u 10u uauu auaa oog uue g

L

jLl jss 1

.

.

gio"pwll gjSio gaoLs yolul ooloo jy0 4
MAX aoIe jolal ooloo lai Jlloo jb."jlll OJx
.01j

150 150

1. 2011 高联竞赛班笔记-1 的今天

43
43
43
43.
42
42
42. “alall glio" jiu

gaiu gao 2

L

jLgl pluuiy gnius jLal.iipia 1J Ld.
auii Jauio Jai ydi jolll cai jg Caiell llo o j
o0s u 3Lg qilg 012e a .jglpluaiul J. aas
jka 4a11108gall .kai 15g .pkiyll Ulaq g. jauall
g jie Lel 0r .lgl jal jal jal jai 1. jao
aall tgl

1...gall jglal
2. JIJI JALGgCILBglg jll JIO gull

a 100000000000000000000000000000000000000000000000

3 ...Lgdi d5 29 g Juaal palaol cIgioo Jo 3
4. 421 y, Cui jie jie jie jie jie jie jie jie jie jie jie jie jie jie jie jie jie jie jie jie jie jie jie jie jie jie jie jie jie jie jie jie jie jie jie jie jie jie jie jie

1. jglal alil gogj 1. jglal gli y

.2111 1j oJooJ. j001

aalgl aalil

aai 1b

$$ x 1 $$

$$ \leqslant \frac {1}{2} \left[ \frac {\Delta}{\Delta_ {0}} + \frac {\Delta}{\Delta_ {1}} \right] \times 1 $$

$$ \left. \dot {a} _ {i j} \right\rvert \text {d i s t a t e} \delta \text {d i s t a t e} \text {d i s t a t e} \times 2 $$

CuiSbi de dole ojbi

1b2 1

1025 6log2

30

sgl 11 Loo 4

S OBC = S COD + S BOC - S BOC

6

a#a#d a#3-ol6b 7

(jj01) (j01b) 016j j8

9 10

（）10

（j111

（y）o yolodyu）

（）

(jzjzj) 14

（Jz11/）0j 15

（）16

（）

111111000000000000000000000000000000000000000000000000000

1

Ugab

5. 44
6. 44
   44
   44 (laaii)
   44
   44 (a) (Eco Save
7. 44
   44
   44 (）
   44 (sfo oolb0u)
8. 43
   43

GARANTIEKARTE

warranty card · garantiekaart · carte de garantie · scheda di garanzia · tarjeta de garantia · cartao de garantia · garantikort · karta gwarancyjna · zaru.cnli list · kartica jamstva · carte de garantie · fapaunnoHa Kapta · zaru.cnly list · garancijski list · garanciajegy · rapaHTiHmΦOpMynap · fapaHTnHbTanoH

PC-EWB 1253

24 Monate Garantie gemäß Garantieerklarung - 24 months warranty according to warranty declaration - 24 maanden garantie volgens garantieverklaring - 24 mois de garantie selon la déclaration de garantie - 24 messi de garanzia seconde la dichiarazione di garanzia - 24 meses de garantia de acuero con la déclaracion de garantia - 24 mezes de garantia, de accordo a sua déclaration de garantia - 24 manedes garantiaten henhold til garantibeteingensle - 24 misesi gwarancjna podastawie owiadczcnia gwarancjnego - zaruka 24 misi cò podle prohlasef o zaruce - 24 mesecno jamstvo u skladu s jarnstvenom deklaracionjom - 24 luni garantie conform declaratie de garanjie - 24 mecea rapanmu a cbotertcBne c rapaunohnana dekpanapaua - 24-measca zaruka podfa vhylasenia o zaruke - 24-mesecna garancija, skladno z garancjsko izavo - 24 honap garancia a garanciafeftetelekben leirtak szerint - rapanhtra na 24 micnji vidnoidho naro npo rapahtio - rapaHTra 24 meza cornaccho zanneneHHBM rapaHTHBM npaRbAM -

Kaufdatum, Handlsterpmel, Unterschied - date of purchase, dealer stamp, signature - aankoepdatum, dealerpmel, handbeking - date d'achat, tampon du concessionaire, signature - data di acquisto, timbre di rienditore, forn - fecha de compra, sellio del distribuiator, forn - data de compria, carimbo di distribuiator, assinatura - kippsdato, forhandlsterpmel, signature - data zakupu, pieczec spradleyce, podis - datum zakupenil, nulite prodede, podis - datum koupivne, zig trovocpu, podis - data ochichyde, stampli furzunolari, semnatura - Data na nojukna, neur na npodana, npodnc - datum nikukpa, pecliatka obchodnica/ predajcu, podis - datum nikukpa, zig trovocpu, podis - visilaris datuma, kereskedo belyegroje, alaraks - data npodbanha, nevaka npodana, npidnc - Data npodopetemir, ilramn npodjanca, npndnck.

PROFI COOK.

www.proficook-germany.de

Internet: www.proficook-germany.de

Made in P.R.C.
