Summit Pro 18SQ - Vacuum Cleaner Clarke - Free user manual and instructions

Product Type	Water and Dust Vacuum (Commercial)
Brand	Clarke
Model	Summit Pro 18SQ
Tank Capacity	18 gallons (68 liters)
Power Supply Voltage	115 V
Motor Power	1.5 HP (115 V)
Suction Type	Dry and Wet (water and dust)
Filtration System	Cloth/Paper Filter + Anti-Foam Bag (bubble breaker) for liquids
Isolation Valve	Integrated Float
Front Squeegee	Yes, height-adjustable
Included Accessories	Suction hose, tubes, floor nozzle, crevice tool, dusting tool
Weight	Approximately 18 kg
Grounding	Required (grounded outlet)
Usage	Indoor, commercial use
Maintenance	Rinse tank, clean float valve, check bag/filter
Safety	Do not use without filter, do not vacuum glowing materials, unplug before maintenance
Spare Parts	Motor, suction head, wheels, seals, etc.
Motor Warranty	Conditional on the use of the bubble breaker for liquid suction
Optional Accessories	Cloth bag, dry squeegee, mounting kit
Documentation	User manual included (20 pages)

Frequently Asked Questions - Summit Pro 18SQ Clarke

Can I vacuum water with this vacuum?

Yes, it is designed for water suction. It is mandatory to remove the cloth/paper filter and install the bubble breaker (anti-foam bag) to protect the motor.

How to install the handle on the vacuum?

Remove the handle from its transport position, remove the top fixing screws, realign the handle as shown, then replace the screws and washers. Also secure the drain hose clamp and the front squeegee.

How to empty the recovery tank?

Unplug the appliance, stand near a drain or bucket, disconnect the drain hose at the rear, remove the ball valve fitting, and empty. Then rinse the tank with clean water.

How often should I clean the filter or change the bag?

Check the filter after each use. Replace the bag when it is 3/4 full for optimal performance. For the bubble breaker, rinse it with clean water after each liquid use.

What to do if the motor does not start?

Check that the switch is set to On, that the cord is properly plugged into a grounded outlet, and that the filter is in place. If the problem persists, contact a qualified technician.

Can I use an extension cord with this vacuum?

No, it is forbidden to use an extension cord. Plug the power cord directly into a grounded outlet.

How to clean the squeegee blades?

Clean the blades with a soft cloth. Never wipe them with your fingers to avoid injury.

What is the motor warranty condition?

The suction motor warranty is void if the bubble breaker (anti-foam bag) is not used when suctioning liquids. Follow the instructions in the manual.

What to do if foam forms in the tank during suction?

Use an antifoam agent to eliminate foam. Foam does not trigger the float isolation valve, which can damage the motor.

How to store the vacuum after use?

Unplug the cord, remove the suction head to allow the tank to breathe, and store the appliance upright in a dry place, ensuring the squeegee does not rest on the floor.

USER MANUAL Summit Pro 18SQ Clarke

This book has important information for the use and safe operation of this machine. Failure to read this book prior to operating or attempting any service or maintenance procedure to your Clarke machine could result in injury to you or to other personnel; damage to the machine or to other property could occur as well. You must have training in the operation of this machine before using it. If your operator(s) cannot read this manual, have it explained fully before attempting to operate this machine.

All directions given in this book are as seen from the operator's position at the rear of the machine.

TABLE OF CONTENTS

Page

Safety Precautions .A-2

Handle Assembly .A-3

Machine Operation .A-4

Machine Maintenance & Storage .A-5

Vac Head Assembly Assy . D-2-D-3

Wiring Diagram D-3

Tank Assembly D-4-D5

Accessories D-6

SAFETY PRECAUTIONS

This machine is intended for commercial use. It is constructed for use in an indoor environment and is not intended for any other use. Use only recommended accessories.

All operators shall read, understand and exercise the following safety precautions:

1) Do not operate machine:

• Unless trained and authorized.
• Unless you have read and understand operators manual.
  In flammable or explosive areas.
• With damaged cord or plug
  If not in proper operating condition.
• In outdoor areas.
• In standing water.
• Without bag / fi lters in place.
• With the use of extension cords.

2) Before operating machine:

• Make sure all safety devices are in place and operate properly.

3) When using machine:

• Do not run machine over cord.
• Do not pull machine by cord or plug.
• Do not pull cord around sharp edges or corners.
• Turn power switch to "off" prior to unplugging machine..
• Do not unplug by pulling on the cord.
• Do not stretch cord.
• Do not handle plug with wet hands.
• Keep cord away from heated surfaces.
• Do not pick up burning or smoking debris such as cigarettes, matches or hot ashes..
  Report machine damage or faulty operation immediately.

4) Before leaving or servicing machine:

• Turn off machine.
• Unplug cord from outlet.

5) When servicing machine:

• An experienced technician should only perform service work.
• Unplug cord from outlet.

Use manufacturer supplied or approved replacement parts.

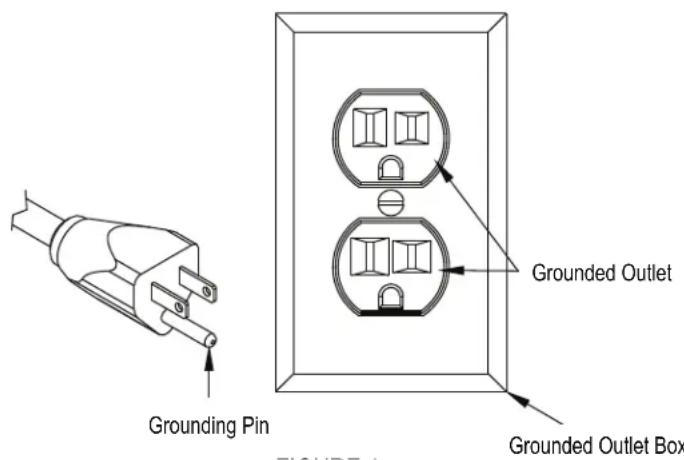

GROUNDING INSTRUCTIONS

!!! This machine must be grounded! Grounding provides the path of least resistance for electrical current. To reduce the risk of electrical shock should the machine malfunction, the machine has a special grounding plug. Do not remove the ground pin under any circumstances!

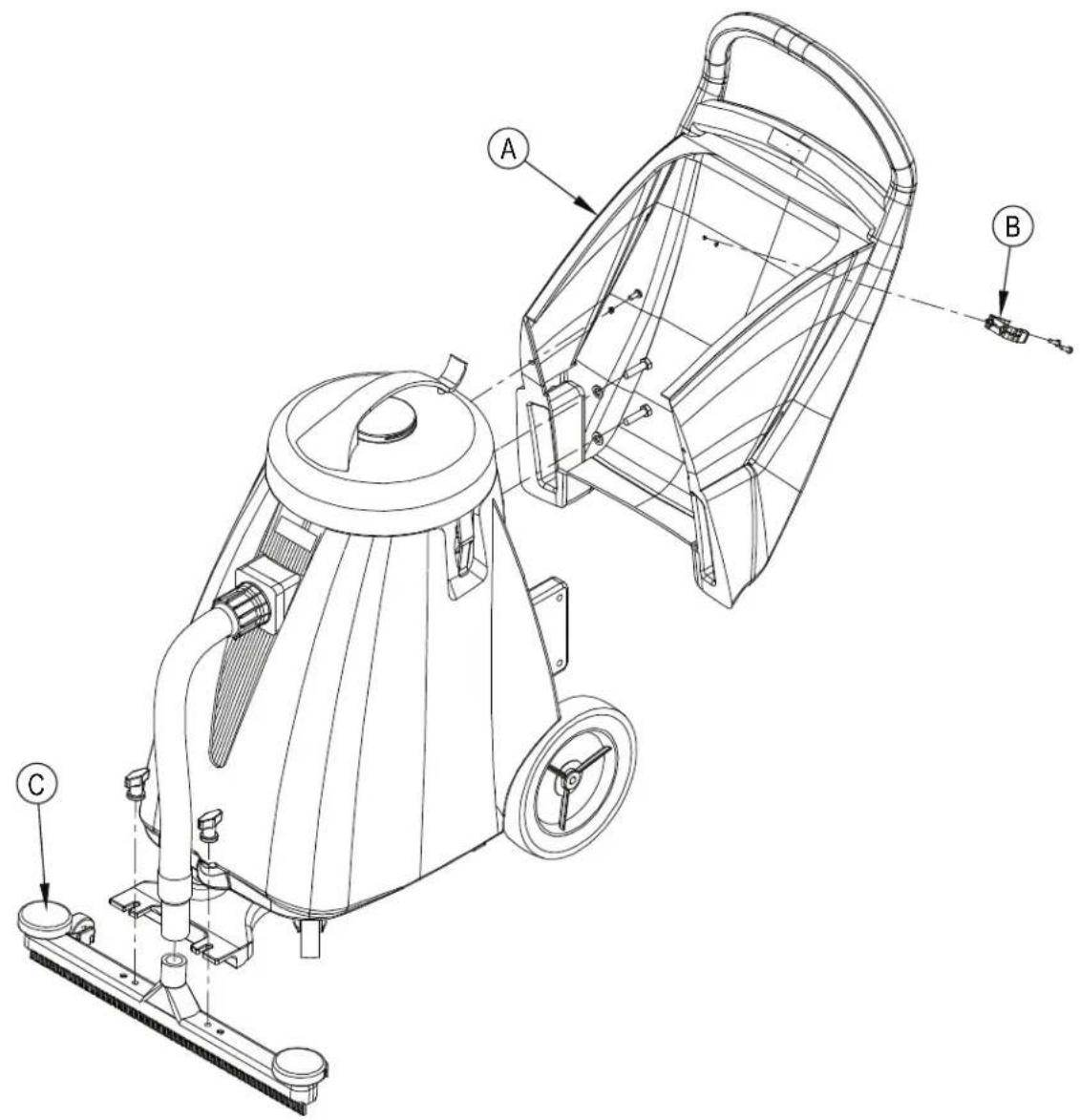

ATTACHING HANDLE

1. Remove Handle (A) from ship position and remove upper handle mounting screws from machine.
2. Realign Handle (A) as shown and replace screws & washers.
3. Attach rear hose dump Clamp (B).
4. Attach front mount Squeegee (C).

READ OPERATORS MANUAL THOROUGHLY PRIOR TO OPERATING OR SERVICING THIS MACHINE.

WET PICKUP

1. Remove vacuum head and remove the cloth or paper filter from vacuum, install the bubble buster.
2. While vacuum head is removed, check to make sure that the float shut-off is unobstructed and fully functional.
3. Replace vacuum head and latch it in place.
4. Connect vacuum hose to inlet on the machine body.
5. Attach appropriate accessory tool for the job to be completed.
6. Plug power cord into a grounded outlet.
7. Do not use an extension cord in conjunction with the standard power cord.
8. If using the front-mounted squeegee assembly, be sure that squeegee is attached to front of machine.
9. If using the front-mounted squeezegee assembly, lower squeezegee to the floor by depressing the top half of the pedal (rear of the machine) forward with your foot.
10. Turn power switch to "on" position.
11. During wet pickup, the float shut-off will automatically prevent water from entering the recovery tank once the recovery tank is full.
12. If foam develops in the recovery tank during wet vacuuming, use de-foamer chemical to help eliminate the foam. Foam will not activate the fl oat shut-off, and therefore, may cause vacuum motor damage.
13. To raise the squeegee assembly back to transport position, depress the bottom half of the pedal [rear of the machine] downward with your foot.
14. Be sure that the handle is properly assembled on machine body prior to operating machine.
15. This wet -dry vacuum includes the GV25014"bubble buster" blue nylon foam suppression bag. This bag must be used in all wet pickup applications. Failure to use the bag will void the warranty on the vacuum motor.

DRY PICKUP

1. Remove vacuum head and bubble buster, and be sure the cloth or paper filter is properly installed.
2. Do not operate machine without bag or fi lter properly installed.
3. Replace vacuum head and latch it in place.
4. Connect vacuum hose to inlet on the machine body.
5. Attach appropriate accessory tool for the job to be completed.
6. Plug power cord into a grounded outlet.
7. Do not use an extension cord in conjunction with the standard power cord.
8. Turn power switch to "on" position.
9. Check the filter bag periodically to see if it is full. For optimal performance, replace bag when it is 3/4 full.

DRAINING THE RECOVERY TANK

1. Unplug machine from power outlet.
2. Transport machine to nearest floor drain or bucket.
3. Remove drain hose from rear of machine. Remove ball plug from drain hose, and drain the contents of the tank.
4. After the contents have drained, remove the vacuum head and rinse recovery tank with clean water.
5. Replace the ball plug on the drain hose and hang hose back on the rear of the machine.
6. To prevent odors in the recovery tank, remove the vacuum head when machine is not in operation to allow air to circulate.

MAINTENANCE

To keep the machine performing well for many years, please follow the following maintenance procedures.

• Always confirm that the machine is unplugged prior to performing any maintenance or repairs.

• Drain and rinse recovery tank after each use.

• Clean float shut-off after each use.
• Check bag to see if it is full after each use. Replace bag when it is 3/4 full.
• Clean outside of machine with a mild cleaner.
• Check power cord for any damage.

• Clean squeegee blades with a cloth.

• Do not use your fingers to wipe the blades!

• Check vacuum hose for holes and clogs.

• Lubricate wheels, casters and axles with a water resistant lubricant every month.
• Check machine for loose or missing nuts and bolts, and replace as necessary.
• After each use in a wet pick-up application, remove the GV25014 "Bubble Buster" blue nylon foam suppression bag and rinse it with clean water. This will aid in preventing any build-up which can reduce air flow.

STORAGE

1. Unplug machine from power source.
2. Store in upright position in a dry area.
3. Store with squeegee assembly off the ground.
4. Store with vacuum head off unit so that tank may breathe.
