Product type	Infrared radiant electric heater
Model	PHP2000
Power	2000 W
Power supply	220-240 V~, 50/60 Hz
Dimensions (L x W x H)	460 x 190 x 75 mm
Weight	2.2 kg
Protection rating	IP65 (water and dust resistant)
Power cable length	1.8 m
Housing material	Metal + aluminum
Power factor	0.42
Mounting type	Wall or ceiling
Minimum safety distances	0.5 m from objects, 1.8 m from floor, 1 m from people/animals/objects
Overheat protection	Yes (never cover the appliance)
Hot surface	Yes (risk of burns)
Outdoor use	Only in protected areas (covered terrace, etc.)
Cleaning	Soft cloth and mild detergent; never immerse
Repairs	Only by a qualified technician; do not open
Warranty (EU consumer)	24 months against manufacturing defects
Included accessories	Mounting bracket, power cable
Intended audience	Adults and children over 8 years under supervision

Frequently Asked Questions - PHP2000 Perel

What is the minimum installation height for the PHP2000 heater?

The heater must be installed at a height of at least 1.80 m from the floor to avoid accidental contact and ensure optimal heat distribution.

Can I use the PHP2000 outdoors?

Yes, but only in protected outdoor areas such as a covered terrace or patio. Do not use it in the open without shelter or immerse it in water.

What should I do if there is an odor or smoke during first use?

This is normal: protective substances applied to the heating element are evaporating. Ventilate the room and wait for the odor to dissipate. If it persists, contact your retailer.

How do I clean the PHP2000 heater?

Unplug and let the appliance cool down. Clean the housing with a soft cloth dampened with a mild detergent. Never use solvents or abrasive products. Never immerse the appliance in water.

Can I plug the PHP2000 into a power strip or extension cord?

No, never use a power strip or extension cord. This may cause overload, overheating, or fire. Plug it directly into a wall outlet.

What safety distances must be maintained around the appliance?

Leave at least 0.5 m between the appliance and any combustible object (curtains, furniture). Ensure a distance of at least 1 m from people, animals, or objects. Do not place anything less than 1.8 m from the floor below the appliance.

Can the heater be used by children?

Children under 3 years must be kept away. Children aged 3 to 8 may only turn it on/off under supervision. From 8 years old, they may use it if they have received instructions and understand the risks. Children must not clean or repair the appliance.

What is the warranty period for the PHP2000?

For consumers in the EU, the warranty is 24 months against any manufacturing or material defects from the date of purchase. Detailed conditions are in the manual.

The power cable is damaged, what should I do?

The cable must be replaced by the manufacturer, its technical service, or a qualified person to avoid any danger. Do not use the appliance with a damaged cable.

Can I schedule the PHP2000 to turn on with a timer?

No, do not use the appliance with a programmer, timer, or remote control system. This poses a fire risk if the appliance is covered or improperly positioned.

USER MANUAL PHP2000 Perel

Exterior view of a modern heating lamp with glowing orange interior and black casing (no text or symbols visible)

USER MANUAL 3

HANDLEIDING 8

MODE D'EMPLOI 13

MANUAL DEL USUARIO 18

Illustration of a portable electrical heater with glowing internal structure and labeled number 1 (no text or symbols on the device itself)

Labeled diagram of a black handheld air conditioner with numbered parts and warning label

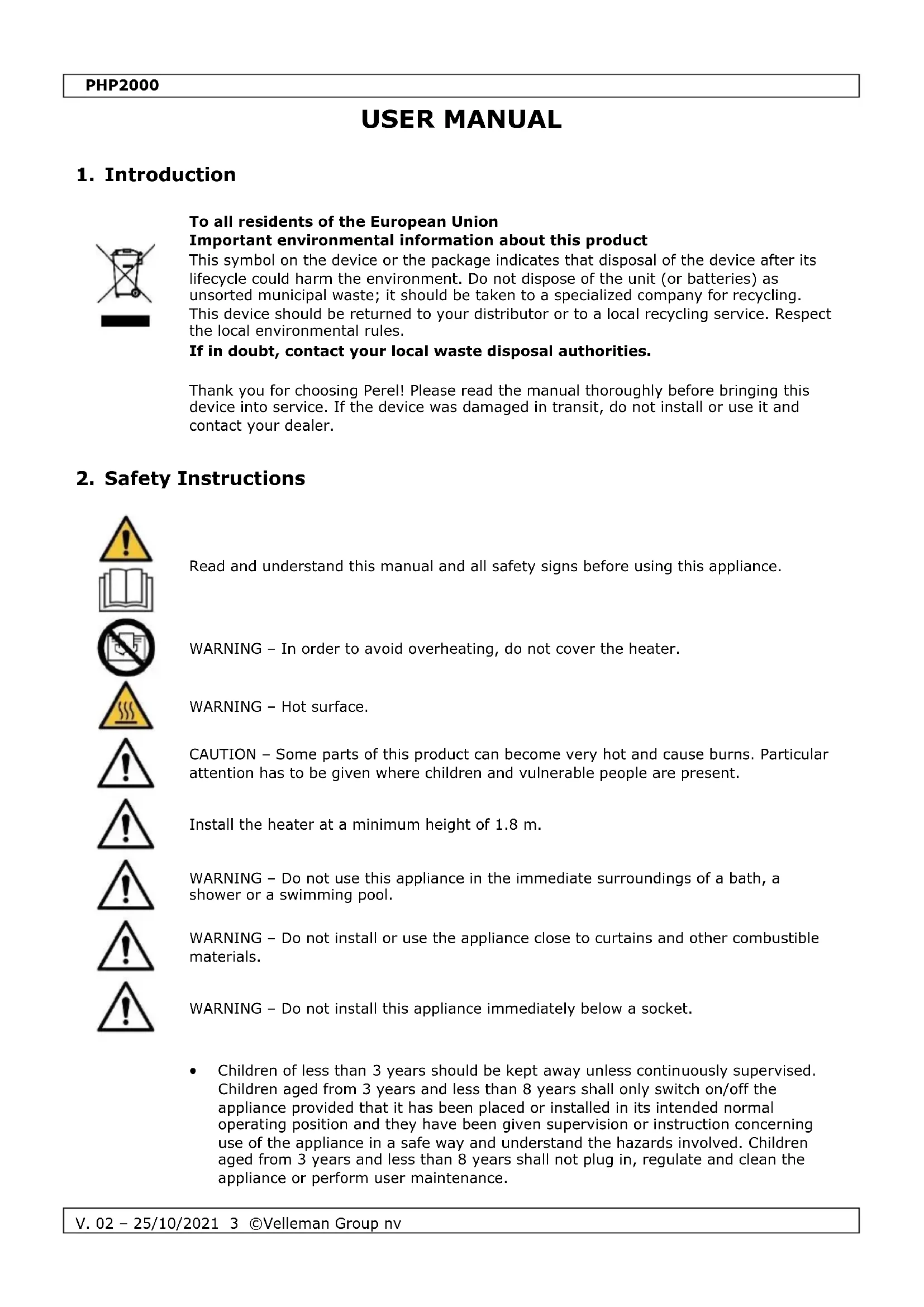

USER MANUAL

1. Introduction

To all residents of the European Union Important environmental information about this product

This symbol on the device or the package indicates that disposal of the device after its lifecycle could harm the environment. Do not dispose of the unit (or batteries) as unsorted municipal waste; it should be taken to a specialized company for recycling. This device should be returned to your distributor or to a local recycling service. Respect the local environmental rules.

If in doubt, contact your local waste disposal authorities.

Thank you for choosing Perel! Please read the manual thoroughly before bringing this device into service. If the device was damaged in transit, do not install or use it and contact your dealer.

2. Safety Instructions

Warning symbols and illustrations for electrical hazard, including warning signs, open book, and no warning symbol.

Read and understand this manual and all safety signs before using this appliance.

WARNING - In order to avoid overheating, do not cover the heater.

WARNING - Hot surface.

CAUTION – Some parts of this product can become very hot and cause burns. Particular attention has to be given where children and vulnerable people are present.

Install the heater at a minimum height of 1.8 m.

WARNING – Do not use this appliance in the immediate surroundings of a bath, a shower or a swimming pool.

WARNING – Do not install or use the appliance close to curtains and other combustible materials.

WARNING - Do not install this appliance immediately below a socket.

- Children of less than 3 years should be kept away unless continuously supervised. Children aged from 3 years and less than 8 years shall only switch on/off the appliance provided that it has been placed or installed in its intended normal operating position and they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children aged from 3 years and less than 8 years shall not plug in, regulate and clean the appliance or perform user maintenance.

PHP2000

- This device can be used by children aged from 8 years and above, and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning the use of the device in a safe way and understand the hazards involved. Children shall not play with the device. Cleaning and user maintenance shall not be made by children without supervision.

- Do not use the heater with a programmer, timer, separate remote-control system or any other device that switches the heater on automatically, since a fire risk exists if the heater is covered or positioned incorrectly.

- If the external flexible cable or cord of this appliance is damaged, it shall be exclusively replaced by the manufacturer or his service agent or a similar qualified person in order to avoid a hazard.

- Do not use the appliance if the glass (or ceramic or similar material) panels are damaged.

- Some parts of this product can become very hot and cause burns. Do not touch the appliance when in use or shortly after use. Do not rest the power cable on the appliance when hot.

- This appliance must not be supplied through an external switching device, such as a timer, or connected to a circuit that is regularly switched on and off by the utility.

- The use of an extension lead or multi-plug adaptor is not advised when connecting this appliance to the mains. Connection through these devices could lead to a risk of overloading, overheating and even fire at the extension lead or adaptor due to inadequate connection quality.

- The first time you use the appliance, a little smoke and smell due to the protective substances applied to the heating element before transport may be given off. This is normal and should not be considered a fault.

3. General Guidelines

- Refer to the Velleman ® Service and Quality Warranty on the last pages of this manual.

- All modifications of the device are forbidden for safety reasons. Damage caused by user modifications to the device is not covered by the warranty.

- Only use the device for its intended purpose. Using the device in an unauthorised way will void the warranty.

- Damage caused by disregard of certain guidelines in this manual is not covered by the warranty and the dealer will not accept responsibility for any ensuing defects or problems.

- Nor Velleman Group nv nor its dealers can be held responsible for any damage (extraordinary, incidental or indirect) – of any nature (financial, physical...) arising from the possession, use or failure of this product.

- Keep this manual for future reference.

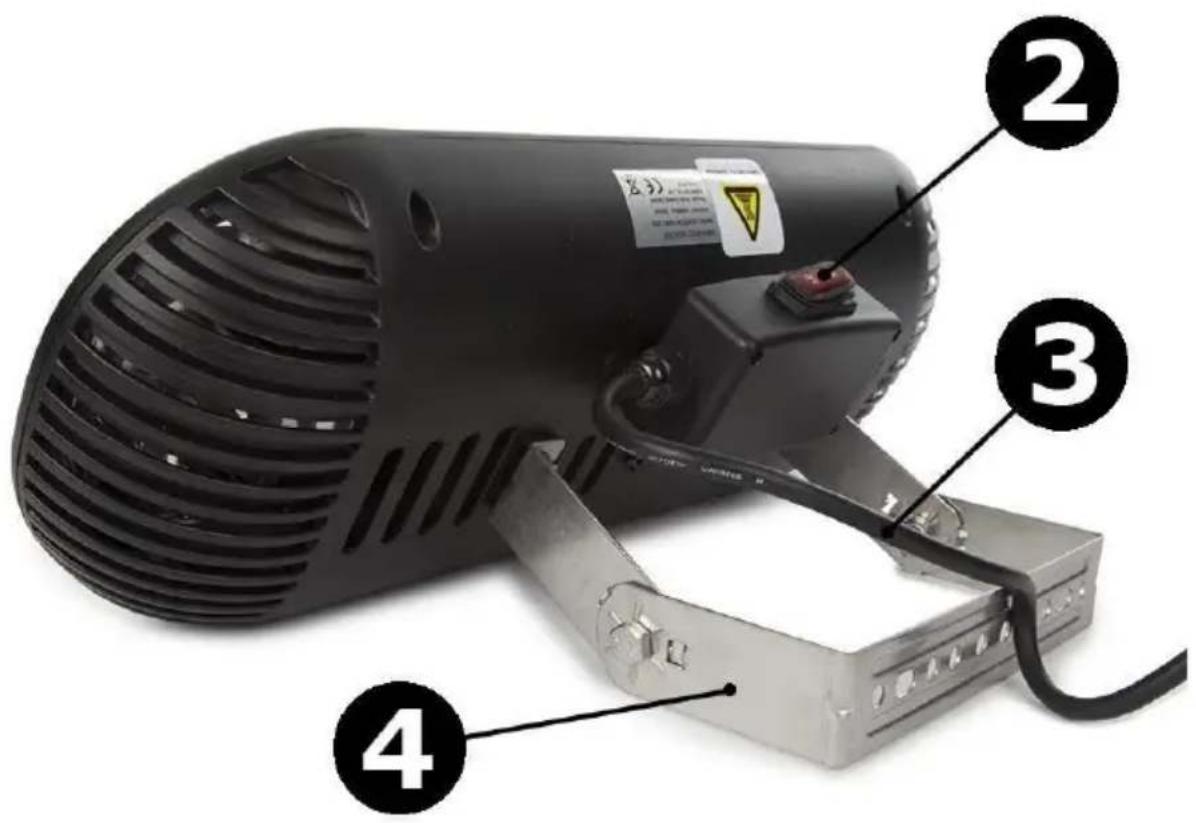

4. Overview

Refer to the illustrations on page 2 of this manual.

1	heating element
2	on-off switch

3	power cord
4	installation bracket

5. Installation

General

• Never plug in the device while mounting it.
• Only use mounting material that is suitable for the mounting surface. Do not install on an inflammable surface. Please contact a technician if in doubt.
• You must strictly follow the minimum safety clearances when mounting the appliance:
• Leave a minimum distance of 1 m between the front heat output of the appliance and any person, animal or object.
• Only install the appliance in a protected outdoor area, such as on a covered patio or deck. Do not use it in an unprotected outdoor area, and do not immerse the cord, plug or the appliance itself in water or other liquids.
• Before drilling ensure that there are no wires or water pipes in the area where the heater is to be installed.

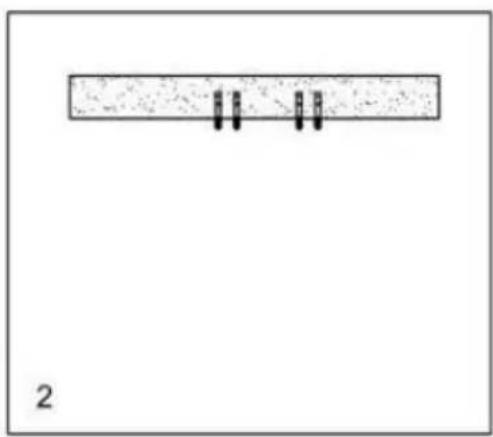

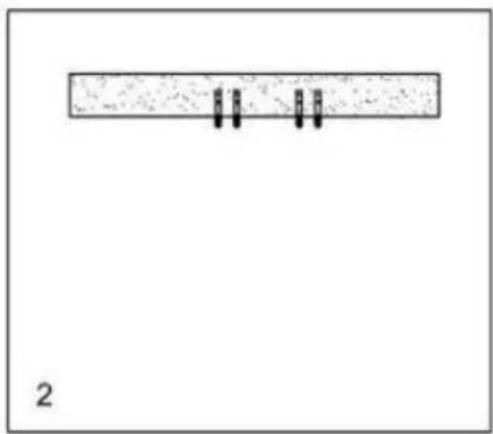

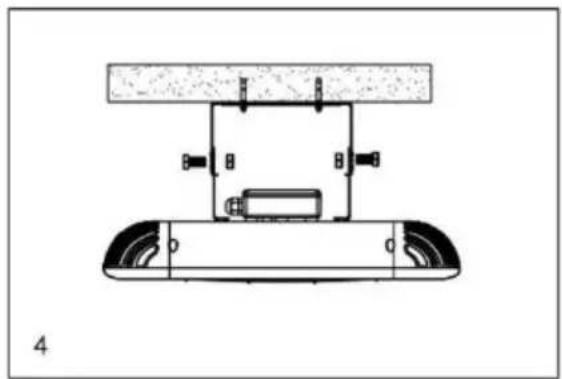

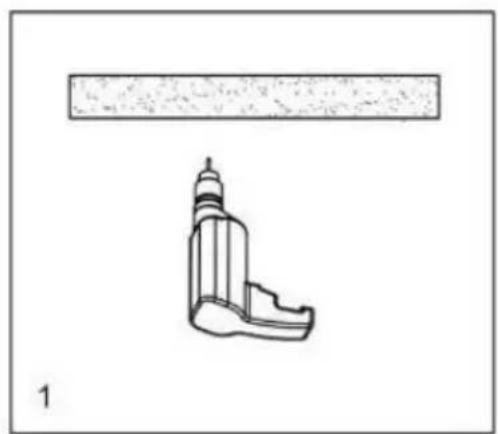

Ceiling/Wall Mounting

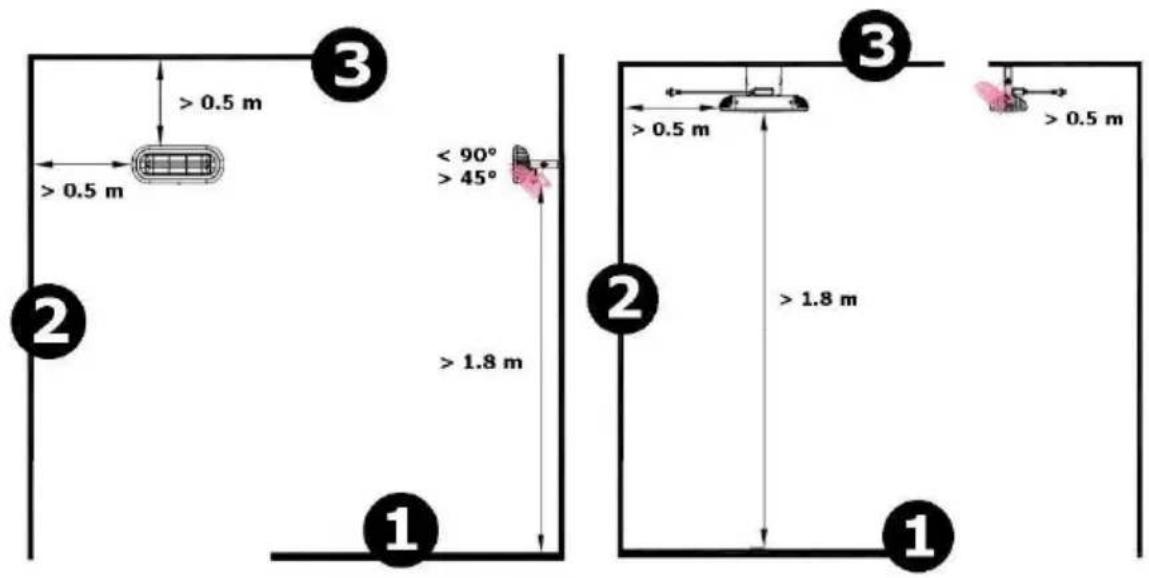

1 2 3 > 0.5 m > 0.5 m < 90° > 45° > 1.8 m 2 3 > 0.5 m > 0.5 m > 1.8 m 1

1	floor
2	wall

3

ceiling

Technical line drawing of a mechanical component with a rectangular block above it (no text or symbols)

Simple diagram with a rectangular bar and two vertical black bars, labeled '2' at the bottom (no text or symbols within the diagram itself)

Simple line drawing of a support structure with two vertical supports and a horizontal beam (no text or symbols)

Technical line drawing of a mechanical assembly with two components and mounting brackets (no text or symbols)

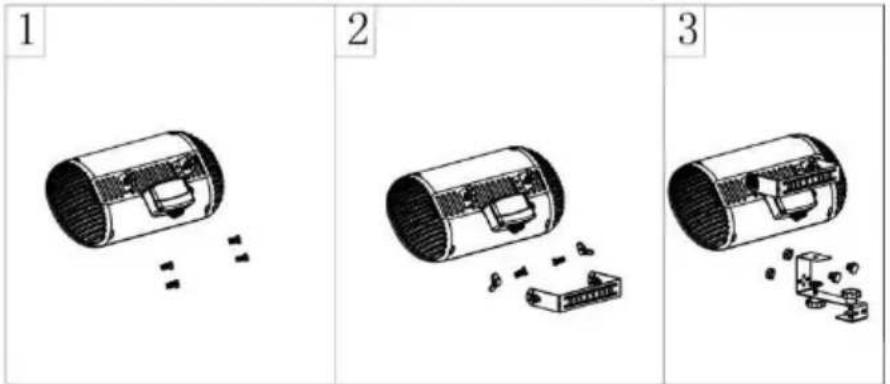

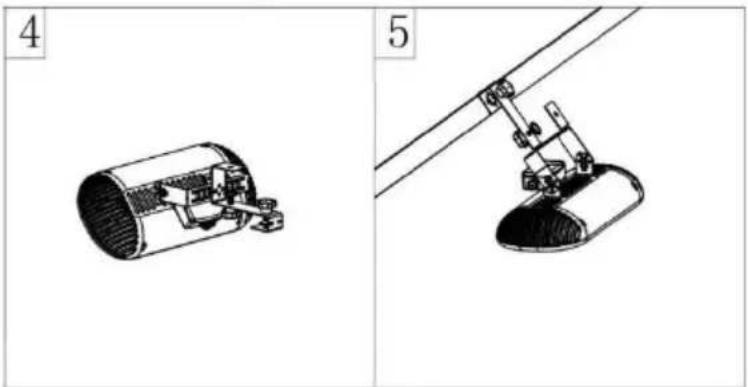

Installation on a Parasol (bracket Perel PHP2000-B)

1 2 3

Technical illustration showing two views of a mechanical device with labeled parts (4 and 5), no text or symbols present.

6. Care and Maintenance

Storage

Store the appliance and its accessories in a clean and dry area.

Cleaning

Before starting any cleaning or maintenance activities, unplug the appliance from its power source and let it cool down.

Wipe all exterior surfaces of the appliance clean with a soft cloth dampened with a soap and water solution. Do not immerse or submerge any part of the appliance in water or any other liquid. Never use solvents or cleaning agents containing petroleum (petrol, kerosene, oil), paint thinner, turpentine, alcohol, or ammonia.

Maintenance

All repairs should only be carried out by qualified service personnel. Do not open exterior casing of the appliance. There are no user-serviceable parts inside. Opening or visible attempts to open or repair the appliance may void any guarantee and/or cause damage to the product or personal injury.

7. Technical Specifications

power supply 220-240 V\~, 50/60 Hz power consumption 2000 W IP rating IP65 cord length 1.8 m material metal + aluminium dimensions 460 x 190 x 75 mm weight 2.2 kg power factor 0.42

Use this device with original accessories only. Velleman Group nv cannot be held responsible in the event of damage or injury resulting from (incorrect) use of this device. For more info concerning this product and the latest version of this manual, please visit our website www.perel.eu. The information in this manual is subject to change without prior notice.

© COPYRIGHT NOTICE

The copyright to this manual is owned by Velleman Group nv. All worldwide rights reserved. No part of this manual may be copied, reproduced, translated or reduced to any electronic medium or otherwise without the prior written consent of the copyright holder.

HANDLEIDING

1. Inleiding

Warning symbols and illustrations for electrical hazard, including warning signs, open book, and no warning symbol.

Technical line drawing of a mechanical component with no visible text or symbols

Simple diagram with a rectangular bar and three vertical black bars, labeled '2' at the bottom (no text or symbols within the diagram itself)

Simple line drawing of a support structure with two vertical supports and a horizontal beam (no text or symbols)

Technical line drawing of a mechanical assembly with two components and mounting brackets (no text or symbols)

Diagram showing three stages of a device with exploded views and labeled components, likely illustrating a mechanical or electrical assembly process.

Technical illustration showing two views of a mechanical device with labeled parts (4 and 5), no text or symbols present.

Warning symbols and illustrations for electronic devices, including warning signs, electrical meters, and a 'no protection' symbol.

Technical line drawing of a mechanical component with a rectangular block above it, labeled '1' at bottom left (no text or symbols on the diagram itself)

Simple diagram with a rectangular bar and two vertical black lines, labeled '2' at the bottom left (no text or symbols within the diagram itself)

Simple line drawing of a support structure with two vertical supports and a horizontal beam (no text or symbols)

Technical line drawing of a mechanical assembly with two components and mounting brackets (no text or symbols)

Installation sur un parasol (support Perel PHP2000-B)

1 2 3

Technical illustration showing two views of a mechanical device with labeled parts (4 and 5), no text or symbols present.

6. Entretien

Stockage

Warning symbols and illustrations for electronic devices, including warning signs, warning symbols, and warning icons

Technical line drawing of a mechanical component with a rectangular block above it (no text or symbols)

Simple diagram showing a rectangular block with three vertical black lines and two small dots, labeled '2' at the bottom (no text or symbols within the diagram itself)

Simple line drawing of a support structure with two vertical supports and a horizontal beam (no text or symbols)

Technical line drawing of a mechanical assembly with two components and mounting brackets (no text or symbols)

Technical illustration showing two views of a mechanical device with labeled parts (4 and 5), no text or symbols present.

Warning symbols and illustrations for electrical hazard, including warning signs, open book, and no warning symbol.

Technical line drawing of a mechanical component with no visible text or symbols

Simple diagram with a rectangular bar and three vertical black bars, labeled '2' at the bottom (no text or symbols within the diagram itself)

Simple line drawing of a support structure with two vertical supports and a horizontal beam (no text or symbols)

Technical line drawing of a mechanical assembly with two components and mounting brackets (no text or symbols)

Technical illustration showing two views of a mechanical device with labeled parts (4 and 5), no text or symbols present.

Warning symbols and illustrations for electrical hazard, including warning signs, open book, and no warning symbol.

Technical line drawing of a mechanical component with a rectangular block above it (no text or symbols)

Simple diagram with a rectangular bar and three vertical black lines, labeled '2' at the bottom (no text or symbols within the diagram itself)

Simple line drawing of a support structure with two vertical supports and a horizontal beam (no text or symbols)

Technical line drawing of a mechanical assembly with two components and mounting brackets (no text or symbols)

Diagram showing three stages of a device with exploded views and labeled components, likely illustrating a mechanical or electrical assembly process.

Technical illustration showing two views of a mechanical device with labeled parts (4 and 5), no text or symbols present.

Warning symbols and illustrations for electronic devices, including warning signs, warning symbols, and warning icons

Technical line drawing of a mechanical component with no visible text or symbols

Simple diagram with a rectangular bar and three vertical black lines, labeled '2' at the bottom (no text or symbols within the diagram itself)

Simple line drawing of a support structure with two vertical supports and a horizontal beam (no text or symbols)

Technical line drawing of a mechanical assembly with two components and mounting brackets (no text or symbols)

Technical illustration showing two views of a mechanical device with labeled parts (4 and 5), no text or symbols present.

Velleman® Service and Quality Warranty

Since its foundation in 1972, Velleman® acquired extensive experience in the electronics world and currently distributes its products in over 85 countries.

All our products fulfil strict quality requirements and legal stipulations in the EU. In order to ensure the quality, our products regularly go through an extra quality check, both by an internal quality department and by specialized external organisations. If, all precautionary measures notwithstanding, problems should occur, please make appeal to our warranty (see guarantee conditions).

General Warranty Conditions Concerning Consumer Products (for EU):

- All consumer products are subject to a 24-month warranty on production flaws and defective material as from the original date of purchase.

- Velleman® can decide to replace an article with an equivalent article, or to refund the retail value totally or partially when the complaint is valid and a free repair or replacement of the article is impossible, or if the expenses are out of proportion.

You will be delivered a replacing article or a refund at the value of 100% of the purchase price in case of a flaw occurred in the first year after the date of purchase and delivery, or a replacing article at 50% of the purchase price or a refund at the value of 50% of the retail value in case of a flaw occurred in the second year after the date of purchase and delivery.

• Not covered by warranty:

- all direct or indirect damage caused after delivery to the article (e.g. by oxidation, shocks, falls, dust, dirt, humidity...), and by the article, as well as its contents (e.g. data loss), compensation for loss of profits;

- consumable goods, parts or accessories that are subject to an aging process during normal use, such as batteries (rechargeable, non-rechargeable, built-in or replaceable), lamps, rubber parts, drive belts... (unlimited list);

- flaws resulting from fire, water damage, lightning, accident, natural disaster, etc....;

- flaws caused deliberately, negligently or resulting from improper handling, negligent maintenance, abusive use or use contrary to the manufacturer's instructions;

- damage caused by a commercial, professional or collective use of the article (the warranty validity will be reduced to six (6) months when the article is used professionally);

- damage resulting from an inappropriate packing and shipping of the article;

- all damage caused by modification, repair or alteration performed by a third party without written permission by Velleman®.

- Articles to be repaired must be delivered to your Velleman® dealer, solidly packed (preferably in the original packaging), and be completed with the original receipt of purchase and a clear flaw description.

- Hint: In order to save on cost and time, please reread the manual and check if the flaw is caused by obvious causes prior to presenting the article for repair. Note that returning a non-defective article can also involve handling costs.

• Repairs occurring after warranty expiration are subject to shipping costs.

- The above conditions are without prejudice to all commercial warranties.

The above enumeration is subject to modification according to the article (see article's manual).
