FN114204.1 - Fan Emerio - Free user manual and instructions

Product Type	Floor Fan
Brand	Emerio
Model	FN114204.1
Power Supply	220-240 V ~ 50/60 Hz
Power Consumption	45 W
Maximum Air Flow	34.7 m³/min
Service Value	0.881 (m³/min)/W
Noise Level	55.6 dB(A)
Maximum Air Speed	2.1 m/s
Number of Speeds	3 (low, medium, high)
Oscillation Function	Yes, with push button
Adjustable Height	Yes, by telescopic tube
Protective Grille	Front and rear, removable
Assembly Required	Yes, instructions provided
Main Material	Plastic and metal
Cleaning	Damp cloth, do not immerse
Safety	Do not insert objects into the grilles
Warranty	2 years
Recycling	Compliant with WEEE (Directive 2012/19/EU)
Dust Protection	Clean the grilles regularly

Frequently Asked Questions - FN114204.1 Emerio

How to assemble the fan?

First assemble the cross base by screwing in the four screws. Fix the pole onto the base, then insert the cap. Pull the adjustment tube to the desired height and tighten the ring. Secure the fan body with the fixing screw. Mount the rear grille with the nut, then the blades (nut to be screwed counterclockwise), and finally the front grille with the retaining ring.

How many speeds does the fan offer?

The fan has 3 speeds: low (1), medium (2) and high (3), controlled by push buttons. Make sure to press only one button at a time to avoid damaging the control unit.

How to activate oscillation?

To activate oscillation, press the oscillation button. To stop it, pull the button up. Oscillation allows air to circulate throughout the room.

How to clean the fan?

Before cleaning, unplug the appliance. Use a damp cloth to clean the exterior. Never immerse the appliance in water. Regularly clean the ventilation grilles with a dry brush or vacuum cleaner to prevent dust buildup.

What to do if the fan does not turn on?

First check that the appliance is plugged into a working power outlet. Ensure the speed switch is in a position other than 0. If the problem persists, contact Emerio customer service. Never attempt to repair the appliance yourself.

Can I use the fan outdoors?

No, this fan is designed for indoor use only. Do not expose it to rain, humidity, or extreme temperatures. Place it on a flat, dry, and heat-resistant surface.

Is the fan noisy?

The noise level is 55.6 dB(A), which corresponds to a normal conversation. It may be slightly louder at maximum speed, but remains discreet for domestic use.

How to adjust the fan height?

Unscrew the locking ring on the pole, pull the adjustment tube up or down to the desired height, then firmly tighten the ring to lock the position.

Can I replace the blades myself?

Yes, the blades are removable. Unscrew the blade fixing nut (counterclockwise) and remove the blade. To install a new one, insert it onto the shaft aligning the grooves, then retighten the nut. Make sure the appliance is unplugged before any intervention.

What is the power consumption of the fan?

The power input is 45 W (measured value 39.4 W according to ERP standard). This corresponds to a consumption of about 0.045 kWh per hour at full speed, which is very economical.

USER MANUAL FN114204.1 Emerio

Exterior view of a four-blade electric fan mounted on a stand (no text or symbols visible)

Stand fan (EN)

Stand Ventilator (DE)

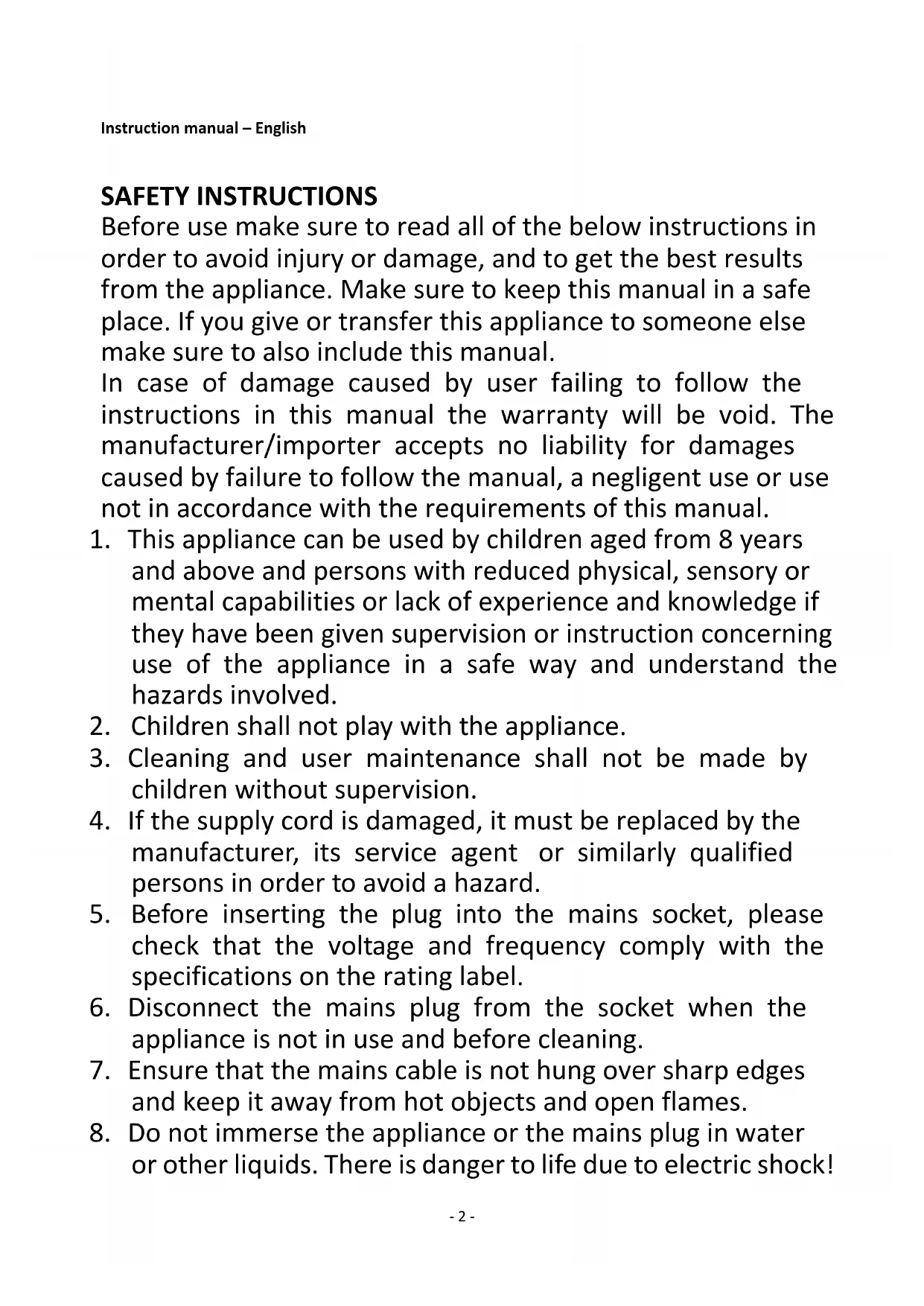

Instruction manual – English ...... - 2 -

Before use make sure to read all of the below instructions in order to avoid injury or damage, and to get the best results from the appliance. Make sure to keep this manual in a safe place. If you give or transfer this appliance to someone else make sure to also include this manual.

In case of damage caused by user failing to follow the instructions in this manual the warranty will be void. The manufacturer/importer accepts no liability for damages caused by failure to follow the manual, a negligent use or use not in accordance with the requirements of this manual.

1. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

2. Children shall not play with the appliance.

3. Cleaning and user maintenance shall not be made by children without supervision.

4. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

5. Before inserting the plug into the mains socket, please check that the voltage and frequency comply with the specifications on the rating label.

6. Disconnect the mains plug from the socket when the appliance is not in use and before cleaning.

7. Ensure that the mains cable is not hung over sharp edges and keep it away from hot objects and open flames.

8. Do not immerse the appliance or the mains plug in water or other liquids. There is danger to life due to electric shock!

9. To remove the plug from the plug socket, pull the plug. Do not pull the power cord.

10. Do not touch the appliance if it falls into water. Remove the plug from its socket, turn off the appliance and send it to an authorized service center for repair.
11. Do not plug or unplug the appliance from the electrical outlet with a wet hand.
12. Never attempt to open the housing of the appliance, or to repair the appliance yourself. This could cause electric shock.
13. Never leave the appliance unattended during use.
14. This appliance is not designed for commercial use.
15. Do not use the appliance for other than intended use.
16. Do not wind the cord around the appliance and do not bend it.
17. Keep the appliance away from damp, and protect from splashes.
18. Use the appliance on a flat, dry and heat resistance surface.
19. Do not store or operate the appliance in the open air.
20. Keep the appliance in a dry place for storage, inaccessible to children (in its packaging).
21. Never put fingers or any other objects through the fan guards when the fan is running.
22. Never operate the product without the fan guards in place, as serious personal injury may result.
23. The appliance must be assembled completely before use.
24. Watch out for long hair! It can be caught in the fan owing to the air turbulence.
25. Do not point the air flow at people for a long time.
26. Ensure that the fan is switched off from the supply mains before removing the guard.

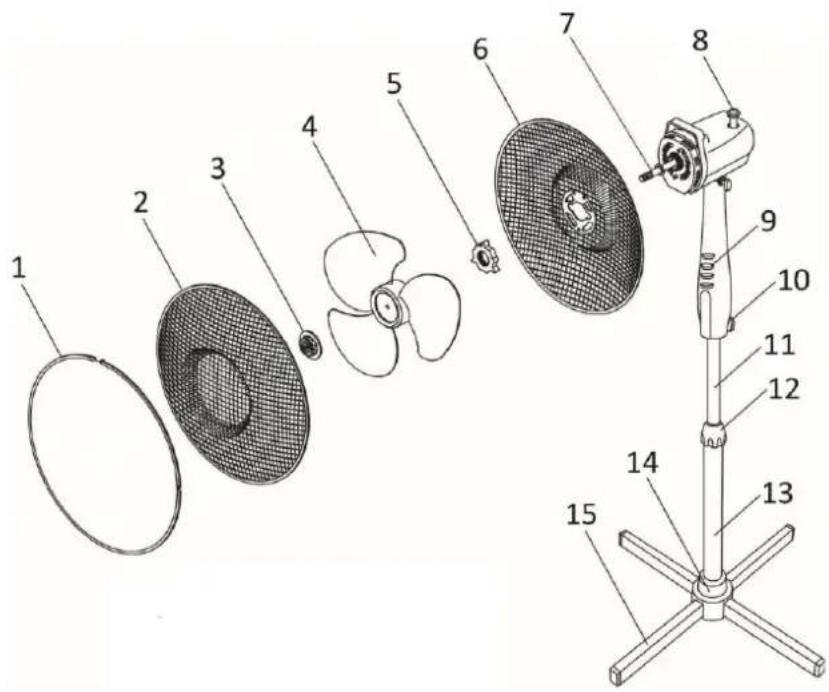

PARTS DESCRIPTION

1. Clamping ring
2. Front guard
3. Blade fastening screw
4. Fan blade
5. Guard fastening screw
6. Rear guard
7. Motor shaft
8. Oscillation button
9. Speed switch
10. Fastening screw
11. Height adjustment pipe
12. Fasten set
13. Standing shaft
14. Cover piece
15. Standing base

ASSEMBLING INSTRUCTIONS

** Please assemble correctly by the following orders when using.

1. Assemble the stand

2. Connect the two parts of the base together into a cross.
   • Unscrew the four screws from the base.

3. Attach the standing shaft onto the base and fix firmly with the four screws.
4. Rotate the fasten set out of the standing shaft. Put the cover piece on the base through the standing shaft.

5. Rotate back the fasten set.

6. The whole assembly

7. Pull the height adjustment pipe out and tighten the fasten set.

8. Link the fan main body and the height adjustment pipe together by the fastening screw and then fix them.

9. Rear grille assembly

● Unscrew the blade fastening screw and the guard fastening screw from the motor shaft.
● Fix the rear guard onto the two pillars of the motor front shell.
- Screw the guard fastening screw tightly in clockwise direction.

1. The assembly of fan blade

2. Insert fan blade onto shaft ensuring blade fits properly onto clip on shaft.
   ● Tighten blade screw onto shaft. Note: Blade screw should be tightened in anti-clockwise.

3. Front grille assembly

4. Put the front guard against the rear guard and fix with the clamping ring. Make sure the clamping ring is set properly at the rim of the fan guards.

5. Tighten the screw on the clamping ring.

OPERATING INSTRUCTIONS

1. Plug the power cord into a suitable socket.

2. Oscillation: To make the fan head oscillate, push down the oscillation knob. To stop the fan head from oscillating, pull up the oscillation knob.

3. The fan is switched on by using the push buttons on the control panel, i.e. 0: Off, 1 = Low Speed, 2 = Medium speed, 3 = High speed.

CAUTION: Press only one of the speed control button at a time. Permanent damage to the switch housing may result if two or more of the buttons are pressed simultaneously.

CLEANING

1. Before servicing the fan and after each occasion of use, switch off the appliance and unplug the mains cable from the socket.
2. Never immerse the appliance in water (danger of short-circuit). To clean the appliance, only wipe it down with a damp cloth and dry it carefully. Always take out the mains plug first.
3. Take care that excessive dust does not build up in the air-intake and air-outlet grille, and clean it occasionally using a dry brush or vacuum cleaner.

TECHNICAL DATA

Operating voltage: 220-240V \~ 50/60Hz

Power consumption: 45W

GUARANTEE AND CUSTOMER SERVICE

Before delivery our devices are subjected to rigorous quality control. If, despite all care, damage has occurred during production or transportation, please return the device to your dealer. In addition to statutory legal rights, the purchaser has an option to claim under the terms of the following guarantee:

For the purchased device we provide 2 years guarantee, commencing from the day of sale. If you have a defective product, you can directly go back to the point of purchase.

Defects which arise due to improper handling of the device and malfunctions due to interventions and repairs by third parties or the fitting of non-original parts are not covered by this guarantee. Always keep your receipt, without the receipt you can't claim any form of warranty. Damage caused by not following the instruction manual, will lead to a void of warranty, if this results in consequential damages then we will not be liable. Neither can we hold responsible for material damage or personal injury caused by improper use if the instruction manual is not properly executed. Damage to accessories does not mean free replacement of the whole appliance. In such case please contact our service department. Broken glass or breakage of plastic parts is always subject to a charge.

Defects to consumables or parts subjected to wearing, as well as cleaning, maintenance or the replacement of said parts are not covered by the warranty and are to be paid.

ENVIRONMENT FRIENDLY DISPOSAL

Recycling – European Directive 2012/19/EU

This marking indicates that this product should not be disposed with other household wastes. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To return your used device,

please use the return and collection systems or contact the retailer where the product was purchased. They can take this product for environmental safe recycling.

Emerio B.V.

Zomervaart 1A

2033 DA Haarlem

The Netherlands

Customer service:

T: [phone]

E: [e-mail]

Kundeninformation:

T: [phone]

E: [e-mail]

Klantenservice:

T: [phone]

E: [e-mail]

ERP information (EN)

Supplier: Emerio B.V.

Zomervaart 1A

2033 DA Haarlem

The Netherlands

Declare that the product detailed below:

Information requirements

Information to identify the FN-114204.1 to which the information relates to [Stand fan]
Description	Symbol	Value	Unit
Maximum fan flow rate	F	34,7	m3/min
Fan power input	P	39,4	W
Service value	SV	0,881	(m3/min)/W
Standby power consumption	PSB	--	W
Fan sound power level	LWA	55,6	dB(A)
Maximum air velocity	c	2,1	meters/sec
Measurement standard for service value	IEC 60879:2019 – Comfort fans and regulators for household and similar purposes – Methods for measuring performance
Contact details for obtaining more information	Emerio B.V.Zomervaart 1A2033 DA HaarlemThe Netherlands

Satisfies the requirement of the Council Directives:

COMMISSION REGULATION (EU) No 206/2012 of 6 March 2012 and Amending COMMISSION REGULATION (EU) 2016/2282 implementing Directive 2009/125/EC of the European Parliament and of the Council with regard to ecodesign requirements for air conditioners and comfort fans

Regarding information for consumers on how to install, use and maintain the product, WEEE information, please check the instruction manual provided with packaging.
