BP 6.000 Garden Set - Pump Kärcher - Free user manual and instructions

Product type	Garden pump
Brand	Kärcher
Model	BP 6.000 Garden Set
Use	Garden watering, domestic water supply
Authorized fluids	Clear water, rainwater, pool water (max temperature 35 °C)
Power supply	230-240 V / 50 Hz
Power rating	1000 W
Max flow rate	6000 l/h
Max pressure	4.5 bar (0.45 MPa)
Max delivery height	45 m
Max suction height	8 m
Max fluid temperature	35 °C
Pump type	Jet pump
Weight (without accessories)	9.7 kg
Suction connection	G1 (33.3 mm)
Delivery connection	G1 (33.3 mm)
Sound pressure level	69 dB(A)
Guaranteed sound power level	84 dB(A)
Protection	Do not run dry (risk of damage)
Maintenance	Rinse with clear water after use with additives
Included accessories	3.5 m suction hose kit with filter and non-return valve, 2-way connection adapter, closure cap, power cable
Warranty	Conditions according to country (see manual)

Frequently Asked Questions - BP 6.000 Garden Set Kärcher

How to prime the BP 6.000 Garden Set pump?

Unscrew the cap on the filling pipe, fill the pump with water until it overflows, then screw the cap back on. Plug in the power cord and turn on the switch. To reduce suction time, lift the delivery hose about 1 meter.

What to do if the pump runs but does not transport water?

Check for air in the pump by ensuring startup was correct (priming). Clean the suction area if particles are blocking it. Check that the suction hose and connection adapter are properly screwed in and that the seals are in place.

What fluids can I use with this pump?

Authorized fluids are industrial water, well water, spring water, rainwater and pool water with approved additives. The fluid temperature must not exceed 35 °C. Do not use for drinking water.

What is the maximum suction height?

The maximum suction height is 8 meters. Beyond that, the pump may not work properly.

How to maintain the pump after use?

After pumping water containing additives, rinse the pump with clear water. For storage, drain the pump via the water drain valve and keep it in a frost-protected place.

Can I leave the pump running unattended?

No, it is not recommended to leave the pump unattended during operation. Running dry can damage the pump. Always monitor the device.

How to winterize the pump?

Drain the pump by opening the water drain valve after depressurizing the unit. Remove the hoses and store the pump in a frost-free place. Refer to the Storage chapter in the manual.

What accessories are included in the set?

The set includes: a 3.5 m spiral suction hose kit with filter and non-return valve, a 2-way connection adapter, a closure cap and a power cable. The 20 m garden hose and sprayer are available in the Set Plus.

What is the noise level of the pump?

The sound pressure level is 69 dB(A) and the guaranteed sound power level is 84 dB(A).

Is the pump protected against dry running?

The pump does not have automatic dry run protection. It is essential not to operate it without water, as this can irreparably damage it. Always prime the pump correctly.

USER MANUAL BP 6.000 Garden Set Kärcher

3D rendering of a yellow electric motor with attached black coil and mounting bracket (no text or symbols visible)

Yellow Kirschener industrial machine with mechanical components and directional arrows indicating motion (no text or symbols on the device itself)

3D rendering of a yellow industrial water purifier with black piping and valve (no text or symbols visible)

Close-up of a yellow industrial water purifier with a black component being inserted, no visible text or symbols

3D rendering of a yellow and gray mechanical component with a black arrow indicating rotation direction (no text or symbols)

3D rendering of a yellow electric motor with blue spray bubble and black arrow indicating motion (no text or symbols)

Inhalt

H. Jenner
Chairman of the Board of Management

S. Reiser
Manager Regulatory Affairs & Certification

71364 Winnenden (Germany)

Tel.: [phone]

Fax: [phone]

Winnenden, 2021/06/01

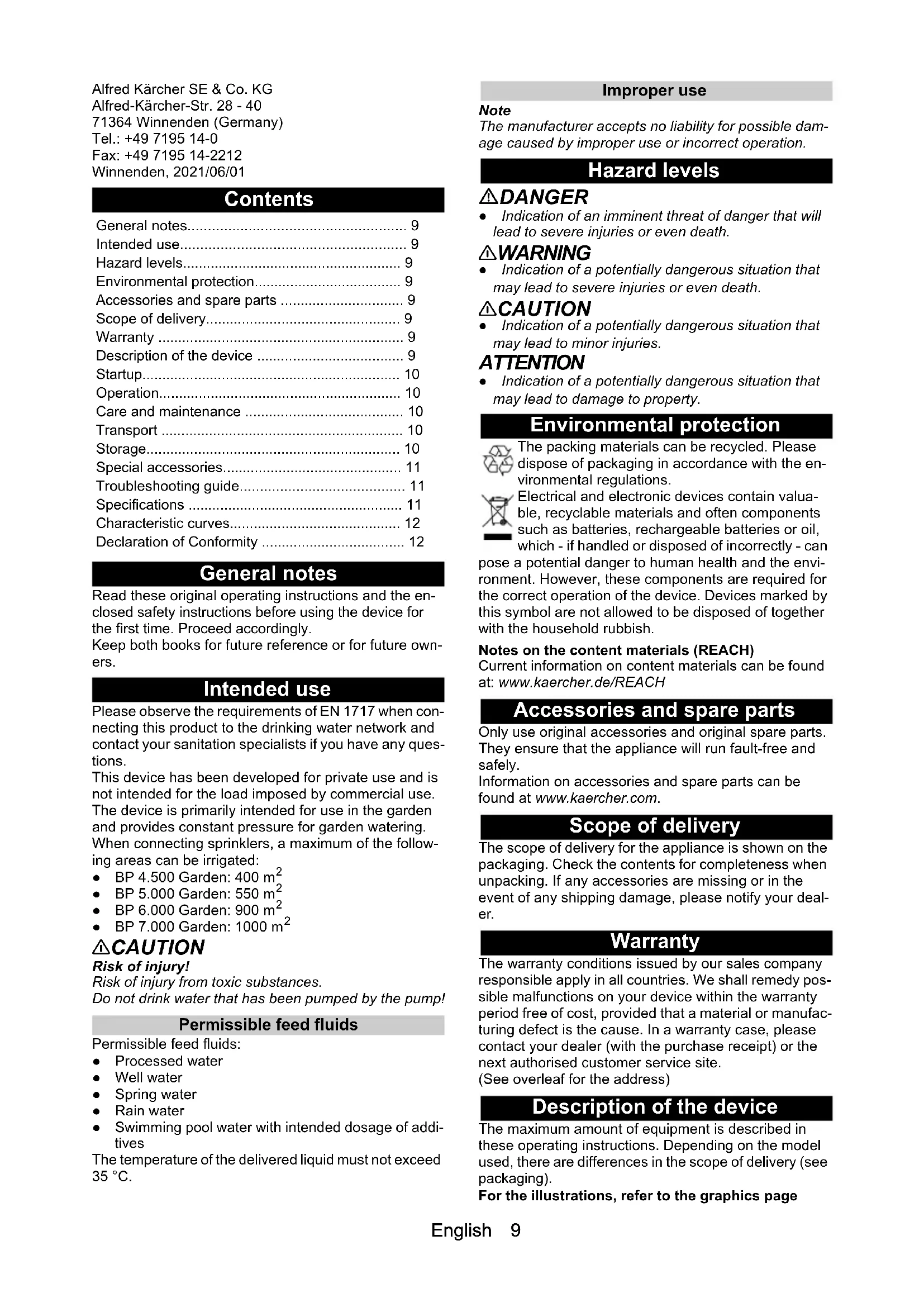

Contents

General notes....9

Intended use....9

Hazard levels....9

Environmental protection....9

Accessories and spare parts 9

Scope of delivery....9

Warranty 9

Description of the device 9

Startup.... 10

Operation.... 10

Care and maintenance 10

Transport 10

Storage.... 10

Special accessories.... 11

Troubleshooting guide.... 11

Specifications 11

Characteristic curves.... 12

Declaration of Conformity 12

General notes

Read these original operating instructions and the enclosed safety instructions before using the device for the first time. Proceed accordingly.

Keep both books for future reference or for future owners.

Intended use

Please observe the requirements of EN 1717 when connecting this product to the drinking water network and contact your sanitation specialists if you have any questions.

This device has been developed for private use and is not intended for the load imposed by commercial use.

The device is primarily intended for use in the garden and provides constant pressure for garden watering. When connecting sprinklers, a maximum of the following areas can be irrigated:

• BP 4.500 Garden: 400 m ^2
• BP 5.000 Garden: 550 m ^2
• BP 6.000 Garden: 900 m²
• BP 7.000 Garden: 1000 m²

△CAUTION

Risk of injury!

Risk of injury from toxic substances.

Do not drink water that has been pumped by the pump!

Permissible feed fluids

Permissible feed fluids:

• Processed water
• Well water
• Spring water
• Rain water
• Swimming pool water with intended dosage of additives

The temperature of the delivered liquid must not exceed 35^ C.

Improper use

Note

The manufacturer accepts no liability for possible damage caused by improper use or incorrect operation.

Hazard levels

⚠️DANGER

- Indication of an imminent threat of danger that will lead to severe injuries or even death.

⚠ WARNING

- Indication of a potentially dangerous situation that may lead to severe injuries or even death.

△CAUTION

- Indication of a potentially dangerous situation that may lead to minor injuries.

ATTENTION

- Indication of a potentially dangerous situation that may lead to damage to property.

Environmental protection

The packing materials can be recycled. Please dispose of packaging in accordance with the environmental regulations.

Electrical and electronic devices contain valuable, recyclable materials and often components such as batteries, rechargeable batteries or oil, which - if handled or disposed of incorrectly - can

pose a potential danger to human health and the environment. However, these components are required for the correct operation of the device. Devices marked by this symbol are not allowed to be disposed of together with the household rubbish.

Notes on the content materials (REACH)

Current information on content materials can be found at: www.kaercher.de/REACH

Accessories and spare parts

Only use original accessories and original spare parts. They ensure that the appliance will run fault-free and safely.

Information on accessories and spare parts can be found at www.kaercher.com.

Scope of delivery

The scope of delivery for the appliance is shown on the packaging. Check the contents for completeness when unpacking. If any accessories are missing or in the event of any shipping damage, please notify your dealer.

Warranty

The warranty conditions issued by our sales company responsible apply in all countries. We shall remedy possible malfunctions on your device within the warranty period free of cost, provided that a material or manufacturing defect is the cause. In a warranty case, please contact your dealer (with the purchase receipt) or the next authorised customer service site.

(See overleaf for the address)

Description of the device

The maximum amount of equipment is described in these operating instructions. Depending on the model used, there are differences in the scope of delivery (see packaging).

For the illustrations, refer to the graphics page

Illustration A

① Cap, 2-way connection adapter
②2-way connection adapter for pumps G 1 (not included with BP 4.500 Garden)
③ Connection adapter for pumps G 1 (included twice with BP 4.500 Garden)

④ Sealing plug

⑤ Connection G 1 (33.3 mm) suction line (inlet)

⑥ Filling nozzle with cap

⑦ Connection G 1 (33.3 mm) pressure line (outlet)

⑧ ON/OFF switch

⑨ Water drain valve

⑩**Tap connection G 1

⑪**Coupling with Aqua Stop

⑫**Coupling

⑬**Syringe

⑭*Suction hose set incl. 3.5 m ready-to-connect, vacuum-proof spiral hose with suction filter and backflow stop

⑮ **Garden hose 1/2" 20 m

16 Power supply cable with plug

* Only accessories included with Set and Set Plus.

** Only accessories included with Set Plus.

Startup

We recommend using only original Kärcher suction hoses, filter components and hose connections. Using components from other manufacturers can lead to malfunctions when sucking the feed fluid, especially when using bayonet connection systems.

Before initial startup

Preparation

• Remove the sealing plug.
• Screw the connection adapter into the suction connection of the pump (inlet). Manually tighten.
• Connect a vacuum-tight suction hose Illustration B

Note

If the water is dirty, we recommend fitting a pre-filter (see Special accessories) between the check valve and the suction hose.

Illustration C

Note

To shorten the re-suction time, use a suction hose with backflow stop. This prevents the suction hose from emptying after use (see Special accessories).

• Screw the connection adapter into the pressure connection of the pump (outlet). Manually tighten.
• Open the filling nozzle cap. Illustration E
• Fill the pump with water until it overflows. Illustration F

Illustration D

Operation

1. Plug the mains plug into a mains socket.

2. Switch the device on with the ON/OFF switch.

3. To shorten the suction time, raise the pressure hose approx. 1 m. Illustration I

4. Wait until the pump simultaneously sucks and delivers.

△CAUTION

Danger due to dry running

Dry running damages the pump.

Do not let the pump run dry!

1. Do not leave the pump unattended during operation.

ATTENTION

Risk of injury. The system is pressurised!

Risk of injury.

(for pressure see chapter "Technical data")

Ending operation

1. Switch off the device at the ON/OFF switch.
2. Pull the mains plug out of the socket.

Care and maintenance

⚠️DANGER

Danger of electric shock.

Always switch the device off and disconnect the mains plug before working on the device.

The device is maintenance-free.

Rinse

Note

Rinse the pump with clear water after each use when pumping water with additives.

Transport

⚠CAUTION

Risk of injury

Risk of injury from falling device.

When transporting the device, observe the weight of the device (see chapter Specifications) and secure it accordingly when transporting it in vehicles.

Manual transport

1 Roll up the cable.
2 Lift and carry the device by the carrying handle.

Transport in vehicles

1 Secure the device against slipping and tipping over.

△CAUTION

Risk of injury

Risk of injury from falling device.

When transporting the device, observe the weight of the device (see technical data) and secure it accordingly when transporting it in vehicles.

Storage

△CAUTION

Failure to observe the weight

Risk of injury and damage

Be aware of the weight of the device during storage.

1. Store the device in a frost-protected place.

Storing the device

1. Depressurise the device by opening the water removal connected to the pressure side (e.g. opening the garden sprayer).
2. Empty the hoses.

3. Remove suction line and pressure line.

4. Drain the pump via the water drain valve. Illustration H

5. Store the device in a frost-protected place.

Special accessories

You will find the possible special accessories on the last page of these operating instructions.

Troubleshooting guide

Malfunctions often have simple causes that you can remedy yourself using the following overview. When in doubt, or in the case of malfunctions not mentioned here, please contact your authorised Customer Service.

Fault Cause Rectification
Pump is running, but not delivering	Air is in the pump. 1. Check for correct start	startup (see chapterPreparation and Operation).
	Dirt particles block the suction area. 1. Pull the mains plug out of the socket.2. Clean the suction area.
	The suction hose or the connection adapter is not correctly screwed in.	1. Check that the seals are fitted correctly.2. Manually tighten the suction hose and connection adapter.
	The pre-filter is clogged. 1. Clean the pre-filter.
The pump does not start up, or stops suddenly during operation	The power supply is disconnected. 1. Check the fuses and the electrical connections.
The pump capacity drops or is too low	The suction area is clogged. 1. Pull the mains plug out of the socket.2. Clean the suction area.
	The delivery rate of the pump depends on the delivery head and the connected periphery.	1. Observe the max. delivery head (see chapter Specifications), select a different hose diameter or a different hose length if necessary.
	The cross-section on the pressure side is narrowed, e.g. due to the valve/ball tap not being fully open.	1. Open the valve/ball tap completely.
	The hose is kinked on the pressure side.	1. Eliminate the kink points in the hose.
	The pre-filter is clogged. 1. Clean the pre-filter.

Specifications

		BP 4.500 Garden	BP 5.000 Garden	BP 6.000 Garden	BP 7.000 Garden
		BP 4.500 Garden Set Plus	BP 5.000 Garden Set Plus	BP 6.000 Garden Set Plus
Mains voltage V 230-240 230-240 230-240 230-240
Power frequency	Hz	50	50	50	50
Nominal power	W	550	650	1000	1100
Maximum flow rate	l/h	4500	5000	6000	7000
Suction height (max.)	m	8	8	8	8
Solids content in water	kg/m^3	>2,5	>2,5	>2,5	>2,5
Pressure (max.)	MPa (bar)	0,36 (3,6)	0,40 (4,0)	0,45 (4,5)	0,5 (5,0)
Delivery height (max.)	m	35	40	45	50
Delivery temperature (max.)	°C	35,0	35,0	35,0	35,0
Particle size (max.) of permissible feed fluids mm		1	1	1	1
Pump type		Jet	Jet	Jet	Jet
Sound pressure level L_pA	dB(A)	56	58	69	68
Guaranteed sound power level L_WA	dB(A)	71	73	84	83
Dimensions and weights
Weight (without accessories)	kg	6,4	7,0	9,7	10,0

Note

Reason for exception according to regulation (EU)

2019/1781 Annex I Section 2 (12): (j)

Subject to technical modifications!

Characteristic curves

Declaration of Conformity

EU Declaration of Conformity

We hereby declare that the machine described below complies with the relevant basic safety and health requirements in the EU Directives, both in its basic design and construction as well as in the version placed in circulation by us. This declaration is invalidated by any changes made to the machine that are not approved by us.

Product: Pump

Type: 1.645-xxx

Currently applicable EU Directives

2006/42/EC (+2009/127/EC)

2014/30/EU

2000/14/EC

2011/65/EU

2009/125/EC

Commission Regulation(s)

(EU) 2019/1781

Harmonised standards used

EN 60335-1

EN 60335-2-41

EN 62233: 2008

EN 55014-1: 2017 + A11: 2020

EN 55014-2: 1997+A1: 2001+A2: 2008

EN 61000-3-2: 2014

EN 61000-3-3: 2013

EN IEC 63000: 2018

Conformity evaluation procedure used

2000/14/EC: Annex V

Sound power level dB(A)

BP 4.500 Garden

Measured: 68

Guaranteed: 71

BP 5.000 Garden

Measured: 70

Guaranteed: 73

BP 6.000 Garden

Measured: 81

Guaranteed: 84

BP 7.000 Garden

Measured: 81

Guaranteed: 83

The signatories act on behalf of and with the authority of the company management.

H. Jenner
Chairman of the Board of Management

S. Reiser
Manager Regulatory Affairs & Certification

Documentation supervisor:

S. Reiser

Alfred Kärcher SE & Co. KG

Alfred-Kärcher-Str. 28 - 40

71364 Winnenden (Germany)

Ph.: [phone]

Fax: [phone]

Winnenden, 2021/06/01

Declaration of Conformity (UK)

We hereby declare that the product described below complies with the relevant provisions of the following UK Regulations, both in its basic design and construction as well as in the version put into circulation by us. This declaration shall cease to be valid if the product is modified without our prior approval.

Product: Pump

Type: 1.645-xxx

Currently applicable UK Regulations

S.I. 2008/1597 (as amended)

S.I. 2016/1091 (as amended)

S.I. 2001/1701 (as amended)

S.I. 2012/3032 (as amended)

S.I. 2010/2617 (as amended)

Commission Regulation(s)

(EU) 2019/1781

Designated standards used

EN 60335-1

EN 60335-2-41

EN 62233: 2008

EN 55014-1: 2017 + A11: 2020

EN 55014-2: 1997+A1: 2001+A2: 2008

EN 61000-3-2: 2014

EN 61000-3-3: 2013

EN IEC 63000: 2018

Applied conformity assessment procedure

S.I. 2001/1701 (as amended): Schedule 8

Sound power level dB(A)

BP 4.500 Garden

Measured: 68

Guaranteed: 71

BP 5.000 Garden

Measured: 70

Guaranteed: 73

BP 6.000 Garden

Measured: 81

Guaranteed: 84

BP 7.000 Garden

Measured: 81

Guaranteed: 83

The signatories act on behalf of and with the authority of the company management.

Chairman of the Board of Management

S. Reiser
Manager Regulatory Affairs & Certification

Documentation supervisor:

S. Reiser

Alfred Kärcher SE & Co. KG

Alfred-Kärcher-Str. 28 - 40

71364 Winnenden (Germany)

Ph.: [phone]

Fax: [phone]

Winnenden, 2021/06/01

Contenu

2006/42/CE (+2009/127/CE)

2014/30/UE

2000/14/CE

2011/65/UE

2009/125/CE

Ordonnance(s) appliquée(s)

(UE) 2019/1781

H. Jenner
Chairman of the Board of Management

S. Reiser
Manager Regulatory Affairs & Certification

71364 Winnenden (Germany)

H. Jenner
Chairman of the Board of Management

S. Reiser
Manager Regulatory Affairs & Certification

71364 Winnenden (Germany)

Tel.: [phone]

Fax: [phone]

Winnenden, 01/06/2021

Inhoud

H. Jenner
Chairman of the Board of Management

S. Reiser
Manager Regulatory Affairs & Certification

71364 Winnenden (Germany)

Tel.: [phone]

Fax: [phone]

Winnenden, 2021/06/01

⑧ Interruptor ON/OFF

2006/42/CE (+2009/127/CE)

2014/30/UE

2000/14/CE

2011/65/UE

2009/125/CE

Chairman of the Board of Management

S. Reiser
Manager Regulatory Affairs & Certification

71364 Winnenden (Germany)

Tel.: [phone]

Fax: [phone]

Winnenden, 01/06/2021

Índice

2006/42/CE (+2009/127/CE)

2014/30/UE

2000/14/CE

2011/65/UE

2009/125/CE

H. Jenner
Chairman of the Board of Management

S. Reiser
Manager Regulatory Affairs & Certification

2006/42/EF (+2009/127/EF)

2014/30/EU

2000/14/EF

2011/65/EU

2009/125/EF

H. Jenner
Chairman of the Board of Management

S. Reiser
Manager Regulatory Affairs & Certification

71364 Winnenden (Germany)

Tlf.: [phone]

Fax: [phone]

Winnenden, 2021/06/01

Indhold

Generelle merknader 37

2006/42/EF (+2009/127/EF)

2014/30/EU

2000/14/EF

2011/65/EU

2009/125/EF

2000/14/EF: Vedlegg V

Lydeffektnivå dB(A)

BP 4.500 Garden

Målt: 68

Garantert: 71

BP 5.000 Garden

Målt: 70

Garantert: 73

BP 6.000 Garden

Målt: 81

Garantert: 84

BP 7.000 Garden

Mält: 81

Garantert: 83

H. Jenner
Chairman of the Board of Management

S. Reiser
Manager Regulatory Affairs & Certification

71364 Winnenden (Germany)

Tlf.: [phone]

Winnenden, 2021/06/01

Innehåll

Allmän information 41

H. Jenner
Chairman of the Board of Management

S. Reiser
Manager Regulatory Affairs & Certification

D-71364 Winnenden (Germany)

Tfn: [phone]

Fax: [phone]

Winnenden, 01.06.2021

Sisältö

Yleisiä ohjeita 45

H. Jenner
Chairman of the Board of Management

S. Reiser
Manager Regulatory Affairs & Certification

71364 Winnenden (Germany)

Puh.: [phone]

H. Jenner
Chairman of the Board of Management

S. Reiser
Manager Regulatory Affairs & Certification

71364 Winnenden (Germany)

Tnλ.: [phone]

Φαξ: [phone]

Winnenden, 2021/06/01

İçindekiler

Genel uyarılar 54

2006/42/AT (+2009/127/AT)

2014/30/AB

2000/14/EG

2011/65/AB

2009/125/EG

H. Jenner
Chairman of the Board of Management

S. Reiser
Manager Regulatory Affairs & Certification

Winnenden, 2021/06/01

Содержание

Общие указания 57

H. Jenner
Chairman of the Board of Management

S. Reiser
Manager Regulatory Affairs & Certification

71364 Winnenden (Germany)

Тел.: [phone]

Факс: [phone]

H. Jenner
Chairman of the Board of Management

S. Reiser
Manager Regulatory Affairs & Certification

Winnenden, 2021/06/01

Obsah

Obecné pokyny 66

2006/42/ES (+2009/127/ES)

2014/30/EU

2000/14/ES

2011/65/EU

2009/125/ES

H. Jenner
Chairman of the Board of Management

S. Reiser
Manager Regulatory Affairs & Certification

Winnenden, 2021/06/01

Kazalo

Splošna navodila....70

Namenska uporaba....71

2006/42/ES (+2009/127/ES)

2014/30/EU

2000/14/ES

2011/65/EU

2009/125/ES

Uporabljena(-e) uredba(-e)

(EU) 2019/1781

H. Jenner
Chairman of the Board of Management

S. Reiser
Manager Regulatory Affairs & Certification

Winnenden, 1. 6. 2021

Spis treści

Wskazówki ogólne 74

2006/42/WE (+2009/127/WE)

2014/30/UE

2000/14/WE

2011/65/UE

2009/125/WE

H. Jenner
Chairman of the Board of Management

S. Reiser
Manager Regulatory Affairs & Certification

71364 Winnenden (Germany)

Tel.: [phone]

Directive UE relevante

2006/42/UE (+2009/127/UE)

2014/30/UE

2000/14/UE

2011/65/UE

2009/125/UE

Regulament(e) utilizat(e)

(UE) 2019/1781

Norme armonizate aplicate

EN 60335-1

EN 60335-2-41

EN 62233: 2008

EN 55014-1: 2017 + A11: 2020

EN 55014-2: 1997+A1: 2001+A2: 2008

EN 61000-3-2: 2014

EN 61000-3-3: 2013

EN IEC 63000: 2018

Chairman of the Board of Management

S. Reiser

Manager Regulatory Affairs & Certification

71364 Winnenden (Germania)

Tel.: [phone]

Fax: [phone]

Winnenden, 2021/06/01

Obsah

Všeobecné upozornenia.... 83

2006/42/ES (+2009/127/ES)

2014/30/EÚ

2000/14/ES

2011/65/EÚ

2009/125/ES

H. Jenner
Chairman of the Board of Management

S. Reiser
Manager Regulatory Affairs & Certification

71364 Winnenden (Germany)

Tel.: [phone]

Fax: [phone]

Winnenden, 01.06.2021

Sadržaj

Opće napomene 87

2006/42/EZ (+2009/127/EZ)

2014/30/EU

2000/14/EZ

2011/65/EU

2009/125/EZ

Primijenjene uredbe

(EU) 2019/1781

Primijenjene uskladene norme

EN 60335-1

EN 60335-2-41

EN 62233: 2008

EN 55014-1: 2017 + A11: 2020

EN 55014-2: 1997+A1: 2001+A2: 2008

EN 61000-3-2: 2014

EN 61000-3-3: 2013

EN IEC 63000: 2018

H. Jenner
Chairman of the Board of Management

S. Reiser
Manager Regulatory Affairs & Certification

Opunomoćenik za dokumentaciju:

S. Reiser

Alfred Kärcher SE & Co. KG

Alfred-Kärcher-Str. 28 - 40

71364 Winnenden (Njemačka)

Tel.: [phone]

Telefaks: [phone]

Winnenden, 01.06.2021.

Sadržaj

Opšte napomene.... 91

Namenska upotreba 91

Stepeni opasnosti.... 91

2006/42/EZ (+2009/127/EZ)

2014/30/EU

2000/14/EZ

2011/65/EU

2009/125/EZ

Primenjena(e) odredba(e)

(EU) 2019/1781

Primenjene harmonizovane norme

EN 60335-1

EN 60335-2-41

EN 62233: 2008

EN 55014-1: 2017 + A11: 2020

EN 55014-2: 1997+A1: 2001+A2: 2008

EN 61000-3-2: 2014

EN 61000-3-3: 2013

EN IEC 63000: 2018

Chairman of the Board of Management

S. Reiser

Manager Regulatory Affairs & Certification

Lice ovlašćeno za dokumentaciju:

S. Reiser

Alfred Kärcher SE & Co. KG

Alfred-Kärcher-Str. 28 - 40

71364 Winnenden (Germany)

Tel.: [phone]

Winnenden, 2021/06/01

Съдържание

Общи указания 94

Употреба по предназначение 95

Степени на опасност.... 95

H. Jenner
Chairman of the Board of Management

S. Reiser
Manager Regulatory Affairs & Certification

71364 Winnenden (Germany)

Тел.: [phone]

Факс: [phone]

Виненден, 2021/06/01

Sisukord

2006/42/EÜ (+2009/127/EÜ)

2014/30/EL

2000/14/EÜ

2011/65/EL

2009/125/EÜ

Chairman of the Board of Management

S. Reiser

Manager Regulatory Affairs & Certification

71364 Winnenden (Germany)

Tel: [phone]

Winnenden, 2021/06/01

Saturs

H. Jenner
Chairman of the Board of Management

S. Reiser
Manager Regulatory Affairs & Certification

H. Jenner
Chairman of the Board of Management

S. Reiser
Manager Regulatory Affairs & Certification

Chairman of the Board of Management

S. Reiser

Manager Regulatory Affairs & Certification

Garden Garden Garden Garden

BP 4.500 BP 5.000 BP 6.000

Chairman of the Board of Management

S. Reiser

Manager Regulatory Affairs & Certification

文書の全権委員：

S. Reiser

Alfred Kärcher SE & Co. KG

Alfred-Kärcher-Str. 28 - 40

71364 Winnenden (Germany)

電話番号：[phone]

Chairman of the Board of Management

S. Reiser

Manager Regulatory Affairs & Certification

Options suction side

Options pressure side

Black and white line drawing of a hand giving a thumbs-up gesture (no text or symbols)

THANK YOU!

MERCI! DANKE! iGRACIAS!

Register your product and benefit from many advantages.

www.kaercher.com/welcome

Rate your product and tell us your opinion.

Icon showing a gear and wrench inside a square frame (no text or symbols)

www.kaercher.com/dealersearch

Alfred Kärcher SE & Co. KG

Alfred-Kärcher-Str. 28-40

71364 Winnenden (Germany)
