USER MANUAL FN121056 Emerio

Please read these Operating Instructions through carefully before connecting your appliance to the mains, in order to avoid damage due to incorrect use. Please pay particular attention to the safety information. If you pass the appliance on to a third party, these Operating Instructions must also be handed over.

WARNING - When using electrical appliance, basic safety precautions should always be followed to reduce the risk of fire, electrical shock and personal injury.

SAFETY INFORMATION

1. Read and save these instructions. Attention: pictures in the IM are for reference only.
2. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
3. Children shall not play with the appliance.
4. Cleaning and user maintenance shall not be made by children without supervision.
5. This appliance is intended to be used in household and similar applications.
6. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
7. Incorrect operation and improper handling can lead to faults on the appliance and injuries to the user.

8. In the event of improper use or incorrect handling, no liability can be accepted for any damage that may occur.

9. Do not immerse the unit or mains plug in water or other liquids. There is danger to life due to electric shock! However, if this occurs, remove the mains plug immediately and then have the unit checked by an expert before using it again.

10. Never remove the mains plug from the socket by pulling on the mains cable, or with wet hands.
11. Ensure that the mains cable does not hang over sharp edges or allow it to become trapped.
12. Keep the appliance away from damp, and protect from splashes.
13. Keep the appliance away from hot objects (e.g. hotplates) and open flames.
14. Keep the appliance and its cord out of reach of children less than 8 years.
15. Use the appliance on a flat, dry and heat resistance surface.
16. Never leave the appliance in unattended during use.
17. Do not store or operate the appliance in the open air.
18. Keep the appliance in a dry place, inaccessible to children (in its packaging).
19. Never put fingers or any other objects through the grilles (fan guards) when the fan is running.
20. Never operate the appliance without the grilles (fan guards) in place, as serious personal injury may result.
21. The appliance must be assembled completely before use.
22. Watch out for long hair! It can be caught in the fan owing to the air turbulence.
23. Do not point the air flow to the people for a long time.
24. Ensure that the fan is switched off from the supply mains before removing the guard.

PARTS DESCRIPTION

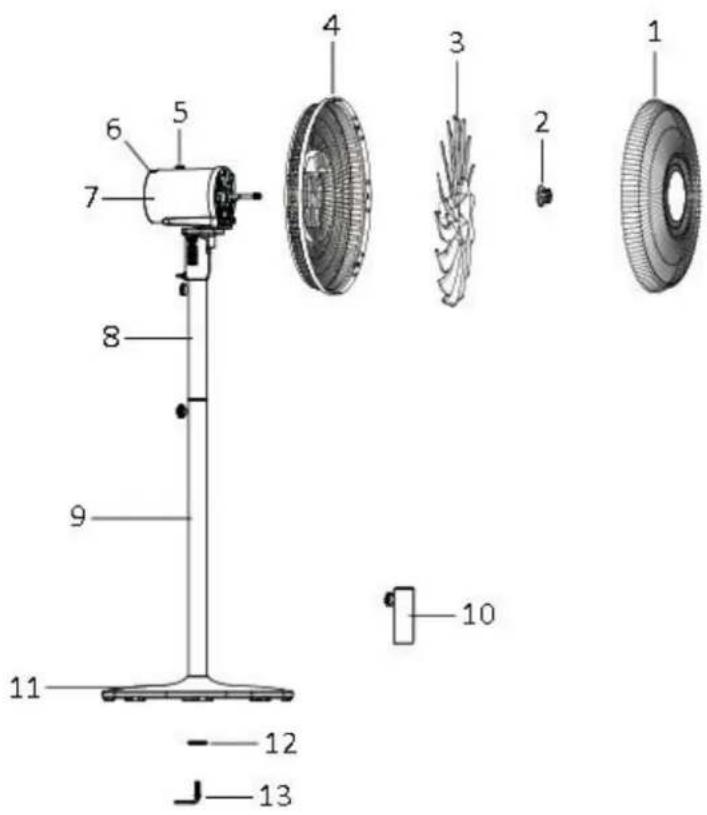

1. Front guard
2. Blade fastening screw
3. Fan blade
4. Rear guard
5. Oscillation knob
6. Switch knob
7. Motor unit
8. Upper column
9. Standing shaft
10. Shorter column
11. Standing base
12. Fastener
13. L screw

ASSEMBLY INSTRUCTIONS

** Please assemble correctly by the following order when using.

1. Assembly of the stand

2. Rotate the fastener and the L screw out from the bottom of the standing shaft.

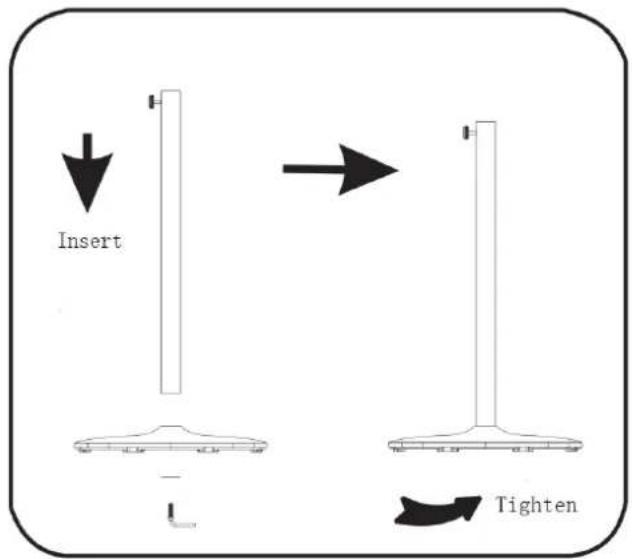

3. Put the standing shaft into the standing base. Fix back with the fastener and the L screw.

1. The whole assembly

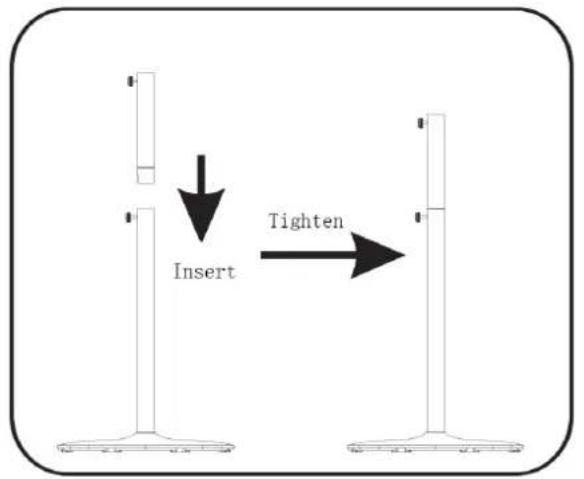

2. Loosen the fastening screw on the standing shaft. Insert the upper column into the standing shaft. Tighten back the fastening screw.

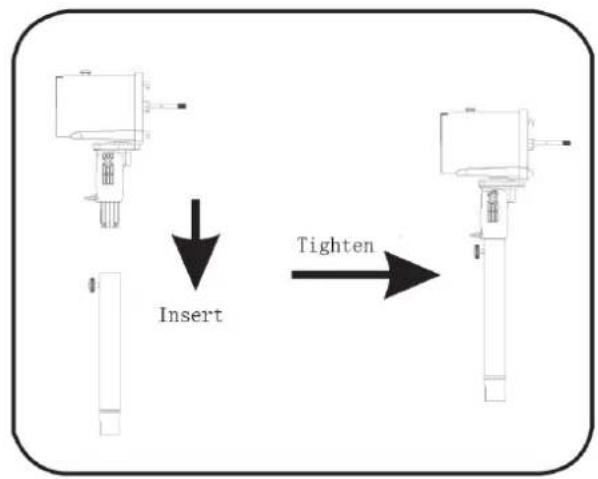

3. Loosen the fastening screw on the upper column. Insert the motor unit into the upper column. Tighten back the fastening screw.

1. Rear grille assembly

2. Loosen the blade fastening screw and remove the motor shaft sleeve (A) from the motor shaft.

3. Remove the black blade fixed buckle (B) from the rear guard. Separate the rear guard and the fan blade.

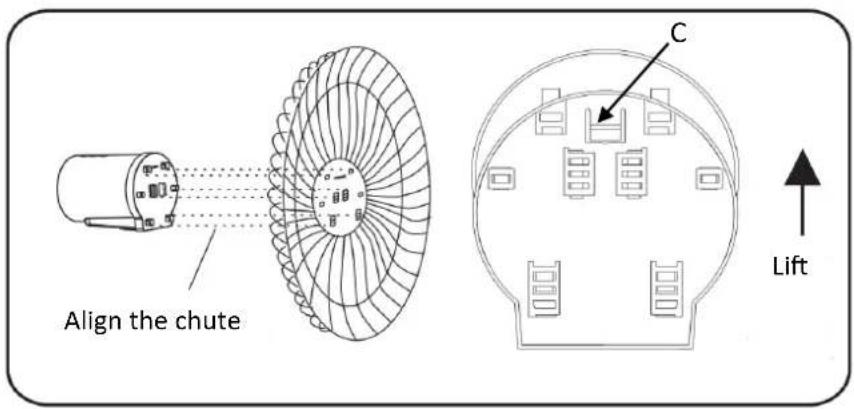

• Align the chute in the center of the rear guard with the sliding slot in the center of the motor unit. Attach and then lift the rear guard upwards until a "click" sound is heard. To remove the rear guard, push the clip (C) upwards and meanwhile press down the whole rear guard.

1. The assembly of fan blade

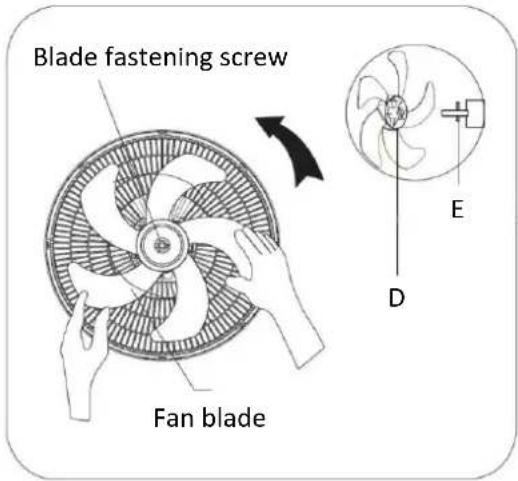

2. Insert fan blade onto shaft ensuring the groove (D) on the back of the fan blade fits over the spacer pin (E) on the motor shaft.

3. Tighten blade screw onto shaft. Note: Blade screw should be tightened in anti-clockwise direction.

1. Front grille assembly

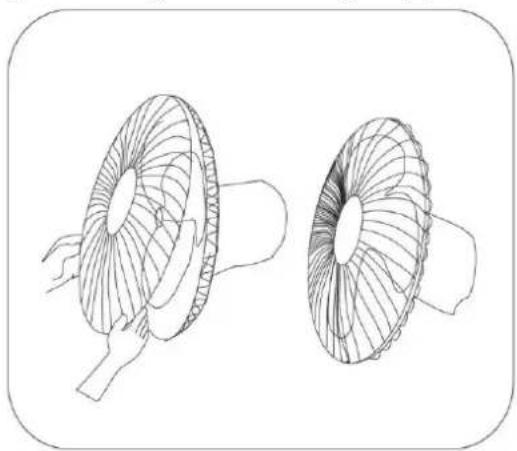

2. Align the front guard with rear guard; push them together.

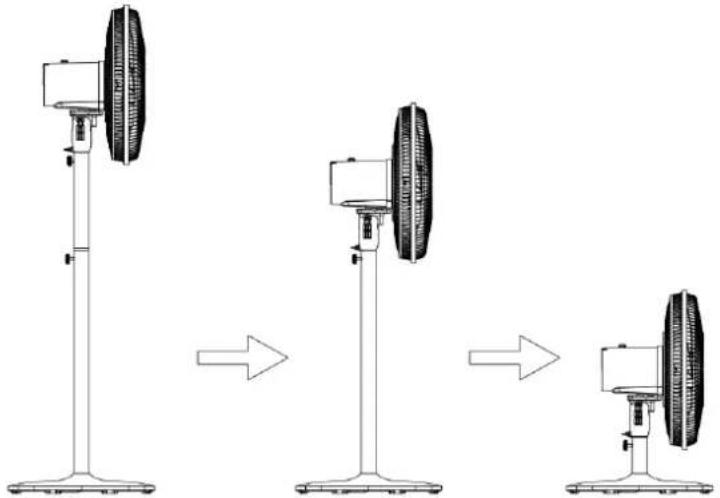

NOTE: This appliance can also be used with the standing shaft only (without the upper column) or with the shorter column only as the table fan. Choose your desired column to adjust the height of the appliance.

OPERATION

1. Plug the power cord into a suitable socket.
2. Rotate the switch knob to choose your desired fan speed setting, i.e. 0: Off, 1 = Low Speed, 2 = Medium speed, 3 = High speed.
3. Oscillation: to make the fan head oscillate, push down the oscillation knob. To stop the fan head from oscillating, pull-up the oscillation knob.
4. Tilting Angles: By pushing the fan-guard, you can adjust the fan to the preferred elevation.

CLEANING

• Before servicing the fan and after every use, switch off the appliance and unplug the mains cable from the socket.
• Never immerse the appliance in water (danger of short-circuit). To clean the appliance, only wipe it with a damp cloth and then dry it carefully. Always take out the mains plug first.
• Take care that excessive dust does not build up in the air-intake and air-outlet grille, and clean it occasionally using a dry brush or vacuum cleaner.

TECHNICAL DATA

Operating voltage: 220-240V 50Hz

Power consumption: 45W

GUARANTEE AND CUSTOMER SERVICE

Before delivery our devices are subjected to rigorous quality control. If, despite all care, damage has occurred during production or transportation, please return the device to your dealer. In addition to statutory legal rights, the purchaser has an option to claim under the terms of the following guarantee:

For the purchased device we provide 2 years guarantee, commencing from the day of sale. If you have a defective product, you can directly go back to the point of purchase.

Defects which arise due to improper handling of the device and malfunctions due to interventions and repairs by third parties or the fitting of non-original parts are not covered by this guarantee. Always keep your receipt, without the receipt you can't claim any form of warranty. Damage caused by not following the instruction manual, will lead to a void of warranty, if this results in consequential damages then we will not be liable. Neither can we hold responsible for material damage or personal injury caused by improper use if the instruction manual is not properly executed. Damage to accessories does not mean free replacement of the whole appliance. In such case please contact our service department. Broken glass or breakage of plastic parts is always subject to a charge. Defects to consumables or parts subjected to wearing, as well as cleaning, maintenance or the replacement of said parts are not covered by the warranty and are to be paid.

ENVIRONMENT FRIENDLY DISPOSAL

Recycling - European Directive 2012/19/EU

This marking indicates that this product should not be disposed with other household wastes. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To return your used device, please use the return and collection systems or contact the retailer where the product was

purchased. They can take this product for environmental safe recycling.

Emerio Deutschland GmbH (no service address)

Hoffer Weg 14

51519 Odenthal

Germany

Customer service:

T: [phone]

E: [e-mail]
