| Brand | Silverline |
| Model | 947560 |
| Product type | Hot air gun |
| Power supply | 220 V |
| Power | 1500 W |
| Output temperature | 2 settings: 300 °C and 500 °C |
| Air flow | 2 speeds: 280 L/min and 450 L/min |
| Weight | 0.6 kg |
| Protection class | II (double insulation) |
| Noise level | May exceed 85 dB(A) |
| Nozzle supplied | Standard outlet nozzle + accessory nozzle |
| Main uses | Paint stripping, drying, defrosting, plastic shaping, processing heat-shrinkable products |
| Warranty | 3 years (subject to registration within 30 days) |
| Cord length | Approximately 2 m (estimated) |
| Dimensions | Length approximately 25 cm (estimated) |
| Maintenance | Clean with a soft brush or dry cloth; do not block openings |
| Optional accessories | Available from Silverline dealer |
| Spare parts | Available at www.toolsparesonline.com |
Frequently Asked Questions - 947560 SILVERLINE
User questions about 947560 SILVERLINE
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Heat gun in PDF format for free! Find your manual 947560 - SILVERLINE and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. 947560 by SILVERLINE.
USER MANUAL 947560 SILVERLINE

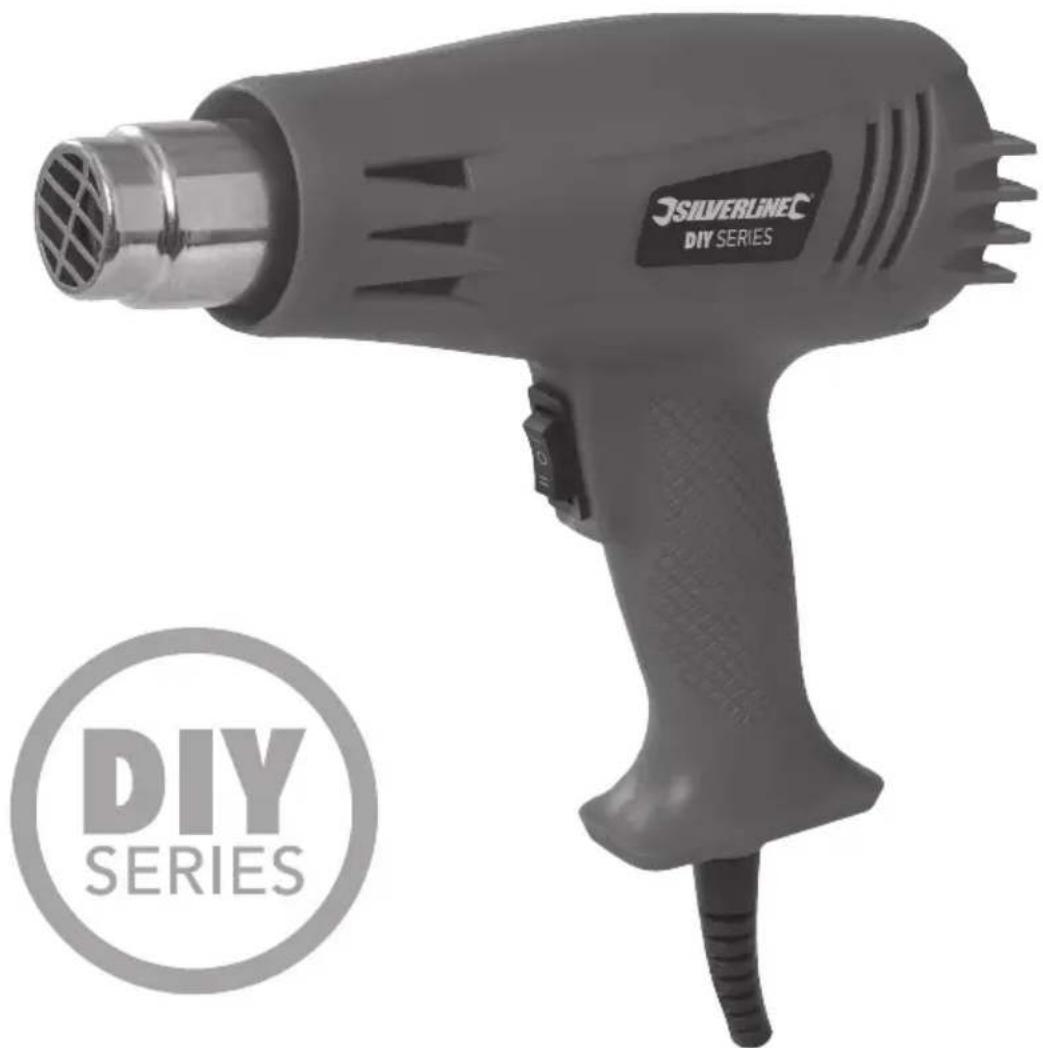

DIY 1500W Heat Gun 1500W
FR Pistolé déCAPEur 1500 W
DE Heimwerker-HeiBluftpistole, 1500 W
ES Pistola decapadora por aire caliente 1500 W
IT Pistola termica 1500 W
NL DIY 1500 W heteluchtpistol
PL Opalarka 1500 W
Register online: silverlinetools.com
silverlinetools.com
English .04
Français .08
Deutsch............12
Espanol......16
Italiano............20
Nederlands .24
Polski 28
Introduction
Thank you for purchasing this Silverline tool. This manual contains information necessary for safe and effective operation of this product. This product has unique features and, even if you are familiar with similar products, it is necessary to read this manual carefully to ensure you fully understand the instructions. Ensure all users of the tool read and fully understand this manual.
Description of Symbols
The rating plate on your tool may show symbols. These represent important information about the product or instructions on its use.
Wear hearing protection.
Wear eye protection.
Wear breathing protection.
Wear head protection.
Wear hand protection.
Read instruction manual.
Class II construction (double insulated for additional protection)
Always disconnect from the power supply when adjusting, changing accessories, cleaning, carrying out maintenance and when not in use!
Conforms to relevant legislation and safety standards.
Hot surfaces - DO NOT touch!
Keep bystanders away!
Caution
Environmental Protection Waste electrical products should not be disposed of with household waste. Please recycle where facilities exist. Check with your local authority or retailer for recycling advice.
Toxic fumes or gases!
Risk of fire!
Risk of explosion!
Technical Abbreviations Key
| V Volts | |
| ~, AC Alternating current | |
| A, mA Ampere, milli-Amp | |
| Ah Amp hours (battery capacity) | |
| ° Degrees | |
| Hz Hertz | |
| W, kW Watt, kilowatt | |
| /min or min-1 | Operations per minute |
| dB(A) Decibel sound level (A weighted) |
Specification
Voltage 220V
Max. Output 1500W
Temp. At nozzle outlet 300/500°C
Air Flow 280/450L/min
Weight 0.6kg
Protection rating.
As part of our ongoing product development, specifications of Silverline
products may alter without notice.
The sound intensity level for the operator may exceed 85dB(A) and sound protection measure are necessary.
WARNING: Always wear ear protection where the sound level exceeds 85dB(A) and limit the time of exposure if necessary. If sound levels are uncomfortable, even with ear protection, stop using the tool immediately and check the ear protection is correctly fitted and provides the correct level of sound attenuation for the level of sound produced by your tool.
WARNING: User exposure to tool vibration can result in loss of sense of touch, numbness, tingling and reduced ability to grip. Long-term exposure can lead to a chronic condition. If necessary, limit the length of time exposed to vibration and use anti-vibration gloves. Do not operate the tool with hands below a normal comfortable temperature, as vibration will have a greater effect. Use the figures provided in the specification relating to vibration to calculate the duration and frequency of operating the tool.
Sound and vibration levels in the specification are determined according to international standards. The figures represent normal use for the tool in normal working conditions. A poorly maintained, incorrectly assembled, or misused tool, may produce increased levels of noise and vibration.
www.osha.europa.eu provides information on sound and vibration levels in the workplace that may be useful to domestic users who use tools for long periods of time.
General Safety
WARNING: When using electric power tools, basic safety precautions should always be followed to reduce the risk of fire, electric shock and personal injury including the following safety information. Read all these instructions before attempting to operate this product and save these instructions for future use.
WARNING: This appliance is not intended for use by persons (including children) with reduced, physical or mental capabilities or lack of experience or knowledge unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children must be supervised to ensure that they do not play with the appliance.
CAUTION: Use the power tool, accessories and tool bits, etc. in accordance with these instructions, taking into account the working conditions and the work to be performed. Use of the power tool for operations different from those intended could result in a hazardous situation.
WARNING: Read all safety warnings, instructions, illustrations and specifications provided with this power tool. Failure to follow all instructions listed below may result in electric shock, fire and/or serious injury.
Save all warnings and instructions for future reference.
The term "power tool" in the warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool.
1) Work area safety
a) Keep work area clean and well lit. Cluttered or dark areas invite accidents.
b) Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. Power tools create sparks which may ignite the dust or tumes.
c) Keep children and bystanders away while operating a power tool. Distractions can cause you to lose control.
2) Electrical safety
a) Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools. Unmodified plugs and matching outlets will reduce risk of electric shock.
b) Avoid body contact with earthed or grounded surfaces, such as pipes, radiators, ranges and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded.
c) Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock.
d) Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase the risk of electric shock.
e) When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock.
f) If operating a power tool in a damp location is unavoidable, use a residual current device (RCD) protected supply. Use of an RCD reduces the risk of electric shock.
3) Personal safety
a) Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication. A moment of inattention while operating power tools may result in serious personal injury.
b) Use personal protective equipment. Always wear eye protection. Protective equipment such as dust mask, non-skid safety shoes, hard hat, or hearing protection used for appropriate conditions will reduce personal injuries.
c) Prevent unintentional starting. Ensure the switch is in the off-position before connecting to power source and/or battery pack, picking up or carrying the tool. Carrying power tools with your finger on the switch or energising power tools that have the switch on invites accidents.
d) Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a rotating part of the power tool may result in personal injury.
e) Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations.
f) Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing and gloves away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts.
g) If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used. Use of dust collection can reduce dust-related hazards.
h) Do not let familiarity gained from frequent use of tools allow you to become complacent and ignore tool safety principles. A careless action can cause severe injury within a fraction of a second.
4) Power tool use and care
a) Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed.
b) Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be controlled with the switch is dangerous and must be repaired.
c) Disconnect the plug from the power source and/or the battery pack from the power tool before making any adjustments, changing accessories, or storing power tools. Such preventive safety measures reduce the risk of starting the power tool accidentally.
d) Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users.
e) Maintain power tools. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the power tool's operation. If damaged, have the power tool repaired before use. Many accidents are caused by poorly maintained power tools.
f) Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control.
g) Use the power tool, accessories and tool bits etc. in accordance with these instructions, taking into account the working conditions and the work to be performed. Use of the power tool for operations different from those intended could result in a hazardous situation.
h) Keep handles and grasping surfaces dry, clean and free from oil and grease. Slippery handles and grasping surfaces do not allow for safe handling and control of the tool in unexpected situations.
5) Service
a) Have your power tool serviced by a qualified repair person using only identical replacement parts. This will ensure that the safety of the power tool is maintained.
Specific Safety
Hot Air/Heat Gun Safety
A fire may result if the tool is not used with care, therefore;
- Never allow any air vents to become blocked, or allow vents to be obscured during use
- Obscured inlet or outlet vents will cause the tool to rapidly overheat.
- Parts of this tool will become extremely hot during use. Do not touch any part of the tool, other than the handle whilst in use.
Always switch OFF, and allow to cool fully before handling, or attempting to change any fittings. Do not leave this tool unattended whilst switched ON or hot.
- Never aim the hot air/heat gun towards people, or animals.
- Be careful when using the tool in places where there are combustible materials
- Do not use in presence of an explosive atmosphere
- Be aware that heat may be conducted to combustible materials that are out of sight;
- Do not apply to the same place for a long time
- Do not hold the outlet nozzle against any material.
- Always keep the outlet nozzle at least 25mm away from the work surface. Do not allow any object to enter the nozzle when the tool is connected to the power supply.
- Do not allow paint, or any other waste, to accumulate on the outlet nozzle or scrapers. Residual heat may cause waste material to ignite, even after the tool has been switched OFF.
- When working on a vertical surface, always aim the heat gun downwards to prevent debris from falling into the machine.
- Use of the hot air/heat gun on certain materials may result in toxic fumes being emitted. Always allow adequate ventilation. Do not use in confined spaces.
- A good quality breathing mask, or respirator, should always be worn when using this tool.
- If working on pre-1960 paint finishes, there is an increased chance of encountering lead-based paint.
- Lead is especially toxic to children, pregnant women, or people with high blood pressure. If working on pre-1960 paint finishes such people should not be allowed near to the work area, even if provided with appropriate breathing protection.
- This tool should never be used in conjunction with chemical paint or varnish strippers. Use of heat guns with chemical strippers can produce extremely harmful fumes.
- Never use this tool near to any kind of fuel tank or gas cylinder.
Always dispose of waste material responsibly.

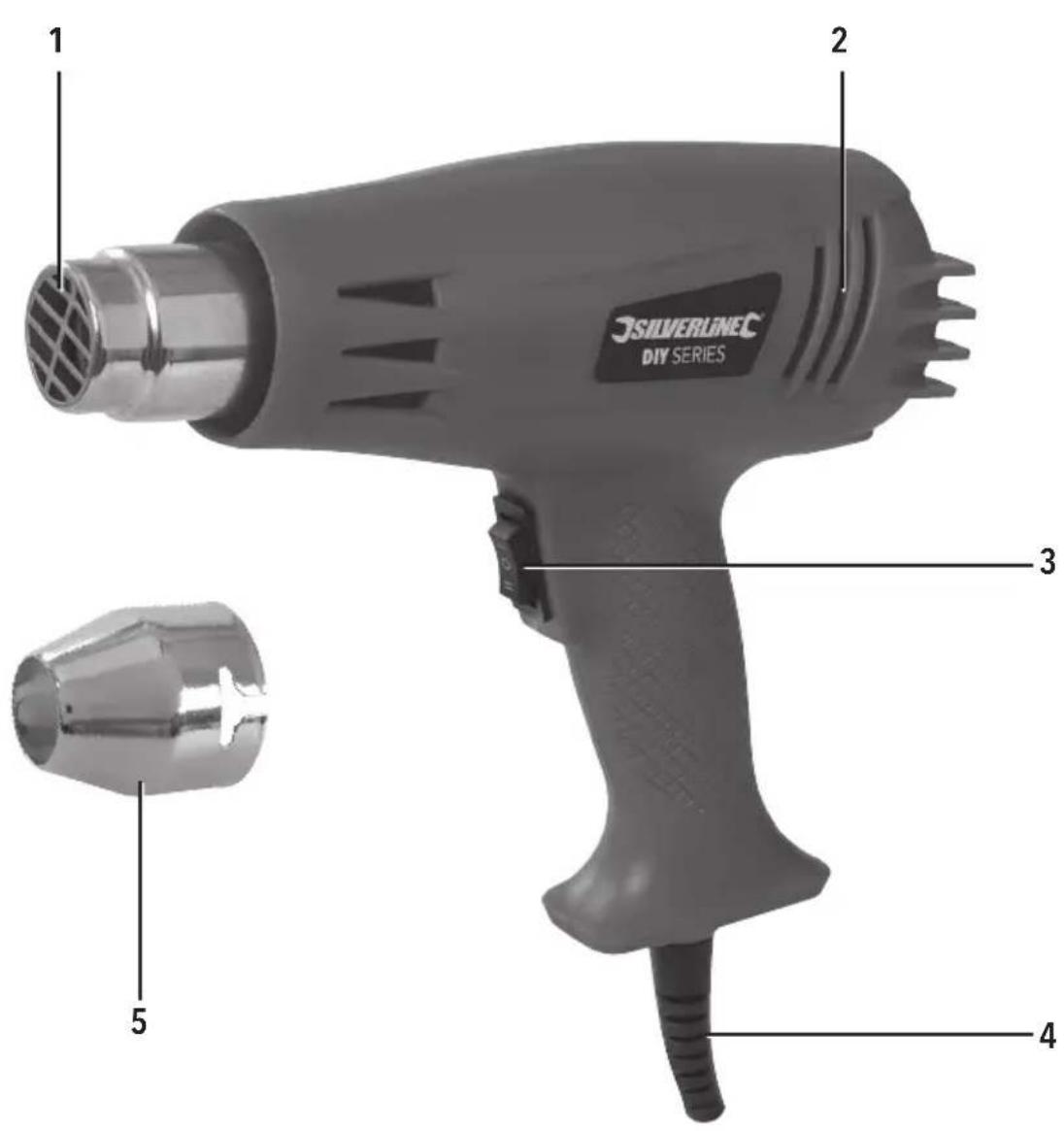

Product Familiarisation
- Outlet Nozzle
2.1 Let Vents
3. ON/OFF Switch
4. Power Cord
5.4 accessory Nozzle
Intended Use
Hand-held electric hot air blower for domestic light-to-medium duty applications. Suitable for stripping of paint and other surface coatings, curing new paint or filler, shrinking heat-shrink tubing and shrink-wrap, pre-heating and drying applications, thawing frozen water pipes and other DIY applications.
Unpacking Your Tool
- Carefully unpack and inspect the heat gun. Fully familiarise yourself with all features and functions of the tool.
If any parts are damaged or missing, have these parts repaired or replaced before use.
Before Use
Fitting Accessories
WARNING: Ensure the heat gun is disconnected from the power supply and fully cooled before attaching or changing any accessories, or making any adjustments.
The Accessory Nozzle (5) supplied, allows the heat gun to be used for a variety of different tasks.
- Accessories are a push-fit onto the Outlet Nozzle (1).
Operation
Always hold the machine by the handle provided.
- Do not obscure the Inlet Vents (2).
Always wear appropriate personal protective equipment for the job at hand. Use of this machine requires ear defenders, safety goggles, gloves and a breathing mask.
Switching ON and OFF
The outlet has two pre-set temperatures. This can be adjusted by changing the position of the ON/OFF Switch (3).
For the lower setting (300^) move the Switch into the I' position.
For the higher setting (500^) move the Switch into the 'll' position.
To switch the heat gun OFF move the ON/OFF Switch to the '0' position.
- Be aware that the metal parts of the tool will remain hot for some time after switching OFF. Allow at least 30mins for the gun to cool before leaving unattended.
Paint stripping
- Connect the tool to the mains supply, and switch ON.
- Direct the hot air onto the paint to be removed, keeping the Outlet Nozzle (1) at least 25mm away from the surface.
NOTE: Take extra care when removing paint from window frames. The heat from this tool can cause damage to glass if used carelessly.
- Allow the paint to soften and remove using a suitable scraper.
- Do not overheat the paint. If you notice smoke or blackening, stop heating.
- Do not allow waste to build up or drop into the Outlet Nozzle as this will cause a fire hazard.
Pipe defrosting
This heat gun can be used to defrost frozen water pipes.
- Using a suitable attachment, aim hot air at the frozen pipe. Move the heat gun along the pipe so that the whole length defrosts evenly.
- Be aware of overheating areas directly behind the pipe being defrosted.
- Do not attempt to defrost PVC pipe as the heat of the air may cause permanent damage
Drying
- This heat gun can be used to dry out damp wood or other materials.
- Be very careful when operating power tools near damp materials, the presence of water greatly increases the danger of electric shock.
- Always refer to the product manufacturer's instructions if using the heat gun to dry plaster, paint, or other finishes. Do not use the hot air gun/heat gun on any flammable material, or any material that may produce hazardous fumes
Stationary use
- This hot air gun can also be used statically, keeping hands free to manipulate the workpiece.
- The heat gun is designed to stand upright on a suitable workbench. The Outlet Nozzle (1) should point straight upwards. The nozzle must not contact the workbench or any other object.
- Ensure that the Power Cord (4) is well supported, and will not become caught as you work.
- Switch the heat gun ON, and move the workpiece into the hot air flow. Take care to keep your hands and face away from the hot air.
Accessories
A range of accessories is available from your Silverline stockist to enhance the functionality of your heat gun. Spare parts are available from your Silverline stockist or www.toolsparesonline.com
Maintenance
WARNING: ALWAYS disconnect from the power supply before carrying out any inspection, maintenance or cleaning.
General inspection
Regularly check that all the fixing screws are tight
- Inspect the supply card of the tool, prior to each use, for damage or wear. Repairs should be carried out by an authorised SILVERLINE service centre. This advice also applies to extension cords used with this tool
Cleaning
- Keep your machine clean. Always clean dust and particles away, and never allow ventilation holes to become blocked.
- Do not allow waste to collect on any part of the tool. Use a soft brush, or dry cloth to clean the machine, if available blow through the ventilation holes with clean, dry, compressed air.
Storage
- Store this tool in a secure, dry location out of the reach of children
Disposal
- Always adhere to national regulations when disposing of power tools that are no longer functional and are not viable for repair.
- Do not dispose of power tools, or other waste electrical and electronic equipment (WEEE), with household waste
- Contact your local waste disposal authority for information on the correct way to dispose of power tools
Silverline Tools Guarantee
This Silverline product comes with a 3 year guarantee
Register this product at www.silverlinetools.com within 30 days of purchase in order to qualify for the 3 year guarantee. Guarantee period begins according to the date of purchase on your sales receipt.
Registering your purchase
Registration is made at silverlinetools.com by selecting the Guarantee Registration button. You will need to enter:-
- Your personal details
Details of the product and purchase information
Once this information is entered your guarantee certificate will be created in PDF format for you to print out and keep with your purchase.
Terms & Conditions
Guarantee period becomes effective from the date of retail purchase as detailed on your sales receipt.
PLEASE KEEP YOUR SALES RECEIPT
If this product develops a fault within 30 days of purchase, return it to the stockist where it was purchased, with your receipt, stating details of the fault. You will receive a replacement or refund.
If this product develops a fault after the 30 day period, return it to:
Silverline Tools Service Centre PO Box 2988
Yeovil
BA21 1WU, UK
The guarantee claim must be submitted during the guarantee period.
You must provide the original sales receipt indicating the purchase date, your name, address and place of purchase before any work can be carried out.
You must provide precise details of the fault requiring correction.
Claims made within the guarantee period will be verified by Silverline Tools to establish if the deficiencies are related to material or manufacturing of the product.
Carriage will not be refunded. Items for return must be in a suitably clean and safe state for repair, and should be packaged carefully to prevent damage or injury during transportation. We may reject unsuitable or unsafe deliveries.
All work will be carried out by Silverline Tools or its authorized repair agents.
The repair or replacement of the product will not extend the period of guarantee
Defects recognised by us as being covered by the guarantee shall be corrected by means of repair of the tool, free of charge (excluding carriage charges) or by replacement with a tool in perfect working order.
Retained tools, or parts, for which a replacement has been issued, will become the property of Silverline Tools.
The repair or replacement of your product under guarantee provides benefits which are additional to and do not affect your statutory rights as a consumer.
What is covered:
The repair of the product, if it can be verified to the satisfaction of Silverline Tools that the deficiencies were due to faulty materials or workmanship within the guarantee period. If any part is no longer available or out of manufacture, Silverline Tools will replace it with a functional replacement part.
Use of this product in the EU.
What is not covered:
Silverline Tools does not guarantee repairs required as a result of:
Normal wear and tear caused by use in accordance with the operating instructions eg blades, brushes, belts, bulbs, batteries etc.
The replacement of any provided accessories drill bits, blades, sanding sheets, cutting discs and other related items.
Accidental damage, faults caused by negligent use or care, misuse, neglect, careless operation or handling of the product.
Use of the product for anything other than normal domestic purposes.
Change or modification of the product in any way.
Use of parts and accessories which are not genuine Silverline Tools components.
Faulty installation (except installed by Silverline Tools).
Repairs or alterations carried out by parties other than Silverline Tools or its authorized repair agents.
Claims other than the right to correction of faults on the tool named in these guarantee conditions are not covered by the guarantee.
CE Declaration of Conformity
The undersigned: Mr Darrell Morris
as authorised by: Silverline
Declarethat:This declaration has been issued under the sole responsibility of the manufacturer.
The object of the declaration is in conformity with the relevant Union harmonisation Legislation. Identification code: 947560

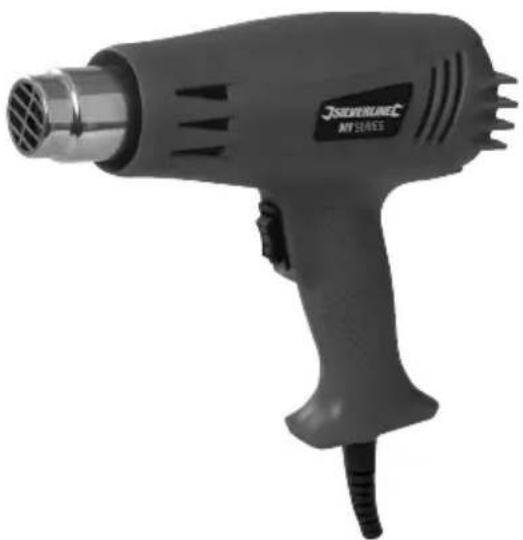

Description: DIY Heat Gun 1500W
Conforms to the following directives and standards:
Low Voltage Directive 2014/35/EU
EMC Directive 2014/30/EU
RoHS Directive 2011/65/EU
EN60335-2-45:2002+A2:2012
EN 60335-1:2012+A11:2014
EN62233:2008
EN55014-1+A2:2011
EN55014-2+A2:2008
EN61000-3-2+A2:2009
EN61000-3-3:2013
Notified body: TÜV SÜD
The technical documentation is kept by: Silverline
Date: 16/05/2017
Signed:
Mr Darrell Morris
Managing Director
Name and address of the manufacturer:
Powerbox International Limited, Company No. 06897059. Registered address: Powerbox,
Boundary Way, Lufton Trading Estate, Yeovil, Somerset, BA22 8HZ, United Kingdom.
Introduction
Silverline Tools Service Centre
PO Box 2988
Yeovil
BA21 1WU, GroBbritannien
Silverline Tools Service Centre
PO Box 2988
Yeovil
BA21 1WU,GB
Silverline Tools Service Centre
PO Box 2988
Yeovi
BA21 1WU, GB
Always disconnect from the power supply when adjusting, changing accessories, cleaning, carrying out maintenance and when not in use!
Silverline Tools Service Centre
PO Box 2988
Yeovil
BA21 1WU, UK
Powerbox International Limited, Company No. 06897059. Registered address: Powerbox,
Boundary Way, Lufton Trading Estate, Yeovil, Somerset, BA22 8HZ, United Kingdom.
GB 3 Year Guarantee. Register online within 30 days. Terms and Conditions apply.
