VTLLAMP15 - Lamp VELLEMAN - Free user manual and instructions

Product type	Rechargeable LED lamp with clip
Brand	Velleman
Model	VTLLAMP15
Light source	20 non-replaceable LEDs
Color temperature	3000-6500 K (warm white, cool white, mixed)
Luminous flux	60 lm (warm white), 60 lm (cool white), 110 lm (mixed)
Power consumption	3 W
Power supply	5 VDC, 1 A (via USB port)
Battery type	Integrated rechargeable Li-ion polymer
Battery voltage	3.7 V
Battery capacity	500 mAh (1.85 Wh)
Dimensions (height)	390 mm
Base dimensions	66 x 53 x 123 mm
Clamp max opening	40 mm
Weight	Not specified (light, approx. 300 g estimated)
Functions	On/off, color selection, dimmer (long press)
Usage	Indoor only, clamp on table
Cleaning	Damp cloth, no harsh chemicals
Protection rating	IP20 (indoor use, no water)
Warranty	24 months (Velleman conditions)
Spare parts	No user-repairable parts
Included accessories	USB cable (not mentioned but likely)

Frequently Asked Questions - VTLLAMP15 VELLEMAN

How to charge the VTLLAMP15 lamp?

Connect the lamp to a USB port (5V/1A) using the provided cable. The indicator lights up during charging. Allow at least 2 hours for a full charge.

How to turn on and change color?

Press the on/off button briefly to turn on the lamp. Each press changes the LED color: warm white, cool white, then mixed white. An additional press turns off the lamp.

How to adjust brightness?

Press and hold the on/off button to vary the LED intensity. Release when the desired brightness is reached.

Can I replace the LEDs if they burn out?

No, the LEDs are non-replaceable. In case of failure, you must replace the entire fixture or contact an authorized Velleman service.

Is the lamp suitable for outdoor use?

No, the lamp is designed for indoor use only. Protect it from rain, humidity, and splashes.

How to clean the lamp?

Clean with a soft, slightly damp cloth. Never use solvents, alcohol, or abrasive products that could damage the surface.

Does the lamp heat up during use?

Yes, the housing may heat up. Ensure a minimum distance around the device for proper ventilation and place it on a heat-resistant surface.

What is the battery life?

The 500 mAh Li-ion battery provides moderate autonomy. Charge it after each use to extend its lifespan. The battery is not user-replaceable.

What to do if the lamp no longer turns on?

First check the battery charge. Plug it into USB for at least 2 hours. If it still does not turn on, contact your retailer.

Is the lamp under warranty?

Yes, Velleman offers a 24-month warranty against manufacturing defects. Keep the proof of purchase. The warranty does not cover damage due to misuse.

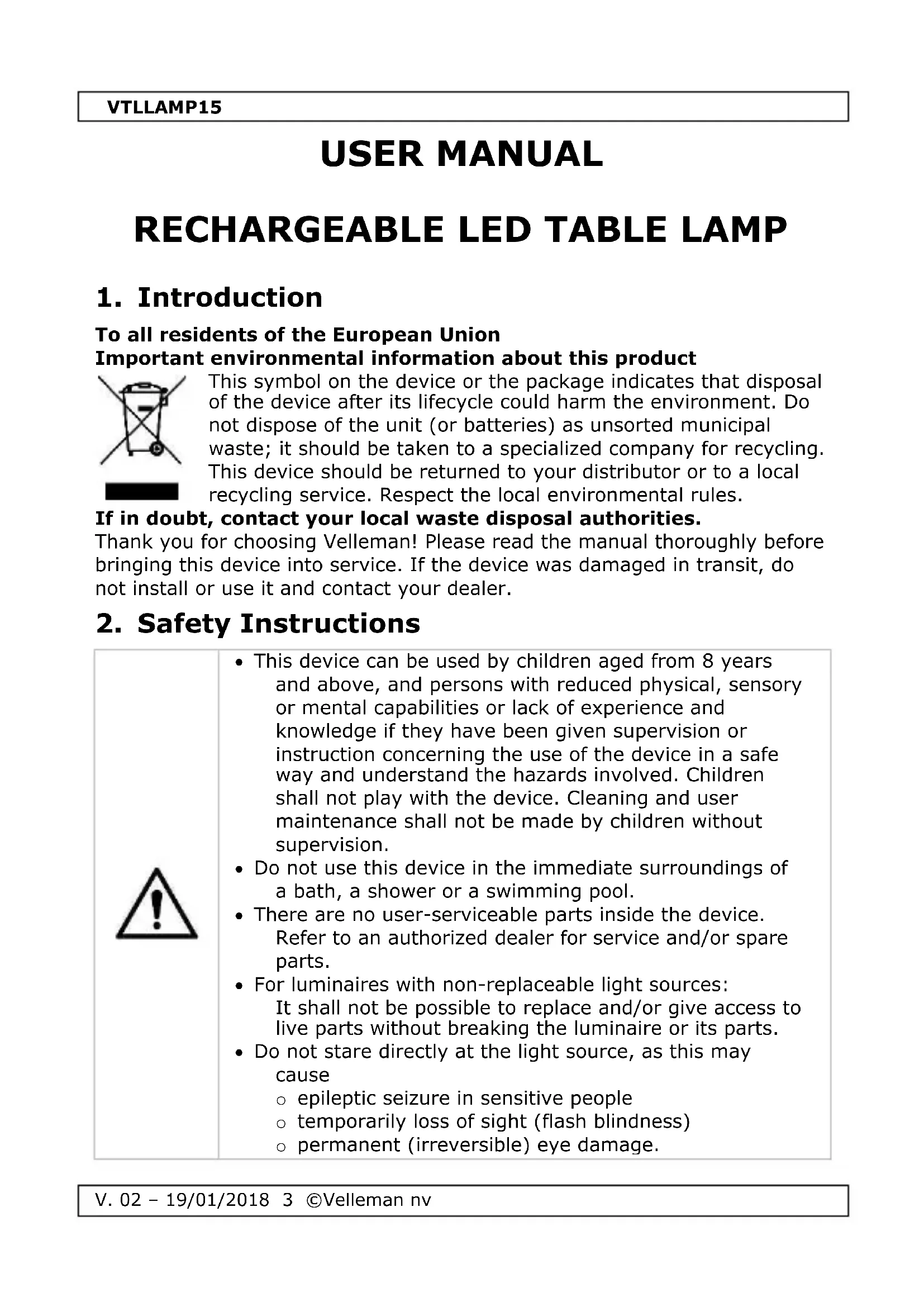

USER MANUAL VTLLAMP15 VELLEMAN

White desk lamp with adjustable arm and screen, no visible text or symbols

USER MANUAL 3

HANDLEIDING 6

MODE D'EMPLOI 9

MANUAL DEL USUARIO 12

To all residents of the European Union

Important environmental information about this product

Symbol of a trash bin with crossed lines indicating no waste or restriction, and a solid black rectangle below (no text or labels)

This symbol on the device or the package indicates that disposal of the device after its lifecycle could harm the environment. Do not dispose of the unit (or batteries) as unsorted municipal waste; it should be taken to a specialized company for recycling. This device should be returned to your distributor or to a local recycling service. Respect the local environmental rules.

If in doubt, contact your local waste disposal authorities.

Thank you for choosing Velleman! Please read the manual thoroughly before bringing this device into service. If the device was damaged in transit, do not install or use it and contact your dealer.

2. Safety Instructions

• This device can be used by children aged from 8 years and above, and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning the use of the device in a safe way and understand the hazards involved. Children shall not play with the device. Cleaning and user maintenance shall not be made by children without supervision.
• Do not use this device in the immediate surroundings of a bath, a shower or a swimming pool.
• There are no user-serviceable parts inside the device. Refer to an authorized dealer for service and/or spare parts.
• For luminaires with non-replaceable light sources: It shall not be possible to replace and/or give access to live parts without breaking the luminaire or its parts.
• Do not stare directly at the light source, as this may cause

o epileptic seizure in sensitive people

o temporarily loss of sight (flash blindness)

o permanent (irreversible) eye damage.

• Indoor use only. Keep this device away from rain, moisture, splashing and dripping liquids. Never put objects filled with liquids close to the device.
• Keep away from excessive heat and direct sunlight.
• The housing might heat up during usage. Keep minimum distances around the device for sufficient ventilation. Place the device on a flat, heat-resistant surface. Do not place the device on carpets, fabrics...
• For non-replaceable light sources: The light source of this luminaire is not replaceable; when the light source reaches its end of life, the whole luminaire shall be replaced.
• Where the mains plug or an appliance coupler is used as the disconnect device, the disconnect device shall remain readily operable.
• If the external flexible cable or cord of this luminaire is damaged, it shall be replaced by a special cord or cord exclusively available from the manufacturer or his service agent.
• Do not use the luminaire with a cracked or broken protective shield. Disconnect immediately from the mains. The protective shield is not replaceable.
• This device contains an internal rechargeable battery. When the device reaches end-of-life, it must be disposed of in accordance with local regulations.

3. General Guidelines

Refer to the Velleman® Service and Quality Warranty on the last pages of this manual.

4. Operation

1. Fully charge the lamp prior to first use: connect to a powered USB port and leave to charge for at least 2 hours.
2. Clamp the lamp onto the desk.
3. Tap the on-off switch to switch on, to select the colour (warm, cold and warm-cold) and to switch off.
4. Hold the on-off switch pressed to dim the LEDs up or down.
5. Switch off after use.

5. Cleaning and Maintenance

Occasionally wipe with a damp cloth to keep it looking new. Do not use harsh chemicals, cleaning solvents or strong detergents.

6. Technical Specifications

LEDs...... dimmable
colour temperature 3000-6500 K
number of LEDs.... 20 (not replaceable)
luminous flux 60 lm - 60 lm - 110 lm
power consumption 3 W
ratings 5 VDC, 1 A
dimensions
height.... 390 mm
base 66 x 53 x 123 mm
clamp max. 40 mm
battery....rechargeable
voltage 3.7 V
type ...... Li-ion polymer
capacity 500 mAh, 1.85 W

Use this device with original accessories only. Velleman nv cannot be held responsible in the event of damage or injury resulting from (incorrect) use of this device. For more info concerning this product and the latest version of this manual, please visit our website www.velleman.eu. The information in this manual is subject to change without prior notice.

© COPYRIGHT NOTICE

The copyright to this manual is owned by Velleman nv. All worldwide rights reserved. No part of this manual may be copied, reproduced, translated or reduced to any electronic medium or otherwise without the prior written consent of the copyright holder.

HANDLEIDING

LED-BUREAULAMP - OPLAADBAAR

1. Inleiding

Symbol of a trash bin with crossed lines indicating no waste, and a solid black rectangle below (no text or labels)

LÁMPARA LED CON CLIP - RECARGABLE

1. Introducción

Symbol of a trash bin with crossed lines indicating no waste or discharge, and a solid black rectangle below (no text or labels)

Symbol of a trash bin with crossed lines indicating no waste, and a solid black rectangle below (no text or labels)

Velleman® Service and Quality Warranty

Since its foundation in 1972, Velleman® acquired extensive experience in the electronics world and currently distributes its products in over 85 countries.

All our products fulfil strict quality requirements and legal stipulations in the EU. In order to ensure the quality, our products regularly go through an extra quality check, both by an internal quality department and by specialized external organisations. If, all precautionary measures notwithstanding, problems should occur, please make appeal to our warranty (see guarantee conditions).

General Warranty Conditions Concerning Consumer Products (for EU):

• All consumer products are subject to a 24-month warranty on production flaws and defective material as from the original date of purchase.
• Velleman® can decide to replace an article with an equivalent article, or to refund the retail value totally or partially when the complaint is valid and a free repair or replacement of the article is impossible, or if the expenses are out of proportion.
  You will be delivered a replacing article or a refund at the value of 100% of the purchase price in case of a flaw occurred in the first year after the date of purchase and delivery, or a replacing article at 50% of the purchase price or a refund at the value of 50% of the retail value in case of a flaw occurred in the second year after the date of purchase and delivery.

- Not covered by warranty:

• all direct or indirect damage caused after delivery to the article (e.g. by oxidation, shocks, falls, dust, dirt, humidity...), and by the article, as well as its contents (e.g. data loss), compensation for loss of profits;
• consumable goods, parts or accessories that are subject to an aging process during normal use, such as batteries (rechargeable, non-rechargeable, built-in or replaceable), lamps, rubber parts, drive belts... (unlimited list);
• flaws resulting from fire, water damage, lightning, accident, natural disaster, etc....;
• flaws caused deliberately, negligently or resulting from improper handling, negligent maintenance, abusive use or use contrary to the manufacturer's instructions;
• damage caused by a commercial, professional or collective use of the article (the warranty validity will be reduced to six (6) months when the article is used professionally);
• damage resulting from an inappropriate packing and shipping of the article;
• all damage caused by modification, repair or alteration performed by a third party without written permission by Velleman®.
• Articles to be repaired must be delivered to your Velleman® dealer, solidly packed (preferably in the original packaging), and be completed with the original receipt of purchase and a clear flaw description.
• Hint: In order to save on cost and time, please reread the manual and check if the flaw is caused by obvious causes prior to presenting the article for repair. Note that returning a non-defective article can also involve handling costs.
• Repairs occurring after warranty expiration are subject to shipping costs.
• The above conditions are without prejudice to all commercial warranties.

The above enumeration is subject to modification according to the article (see article's manual).
