Product type	Radio-controlled clock (radio alarm clock)
Brand	Perel
Model	WC109
Power supply	4 AA/LR6 1.5 V batteries (not included)
Dial diameter	47 cm
Clock dimensions	Ø 50.5 x 5.5 cm
Weight	Approximately 1860 g
Reception	DCF signal (transmitter near Frankfurt, Germany)
Automatic time setting	Yes, by capturing the DCF signal (synchronization with atomic clock)
Manual adjustment	Yes, via adjustment button
Forced reception button	Yes, to force signal search
Reset (zeroing)	Yes, if the hands are not at 12:00
Intended use	Indoor use only
Locking/protection tab	Remove before first use (discard)
Dial material	Not specified (estimated: glass or plastic)
Color	Not specified (estimated: white or black)
Warranty	24 months (consumer), conditions per Velleman®
Maintenance	Clean with a soft, dry cloth; do not use chemicals
Recycling	Do not dispose of with household waste; follow local regulations
Included accessories	Batteries not included, removable locking tab

Frequently Asked Questions - WC109 Perel

How do I set up the clock for the first time?

Insert 4 AA/LR6 batteries observing polarity, then remove the locking tab and the protection tab located on the clock. The hands will automatically move to 12:00. If not, press the reset button. The clock will then capture the DCF signal within 3 to 15 minutes and set to the correct time.

What type of batteries should be used and how long do they last?

Use 4 alkaline AA/LR6 1.5 V batteries. Battery life depends on battery quality and usage conditions, but is generally several months to a year. Never recharge alkaline batteries.

What should I do if the clock does not show the correct time?

Check that the batteries are correctly installed. Then press and hold the forced reception button for 3 seconds to force the DCF signal search. Make sure the clock is placed near a window, away from magnetic fields or electrical devices (motors, televisions). Synchronization can take up to 15 minutes.

Can the clock be used in a basement or cellar?

It is not recommended to install the clock in a basement or overly insulated place, as DCF signal reception is strongly weakened by concrete and metal. Choose a location near a window for better reception.

How do I manually set the time without reception?

Press and hold the manual adjustment button (rotary or push button). The hands will turn; release the button at the desired time. Note that the clock will automatically resynchronize upon the next DCF signal reception.

What do the locking tab and protection tab mean?

These tabs are plastic strips inserted to protect the batteries and mechanisms during transport. They must be removed before first use (pull them out completely) and discarded. Do not reinsert them, as this could irreversibly damage the clock.

Does the clock have an alarm or radio function?

No, the model WC109 is a radio-controlled clock (visual alarm clock) without an audible alarm function or radio receiver. It only displays the time on a large analog dial.

How to maintain and clean the clock?

Clean the clock with a soft, dry cloth. Do not use abrasive products, solvents, or water. Avoid touching the hands or internal mechanism. Keep the device away from moisture and extreme temperatures.

What if the minute or hour hand does not move?

First check that the batteries are new and correctly installed. If the clock does not respond, remove the batteries for 30 seconds then reinsert them. If the problem persists, press the reset button to bring the hands to 12:00. If that does not work, contact after-sales service.

Is this clock suitable for professional use?

The product is designed for domestic use. In case of professional use, the warranty period is reduced to 6 months. Ensure that the environment does not disturb DCF signal reception (electrical interference, metal structures).

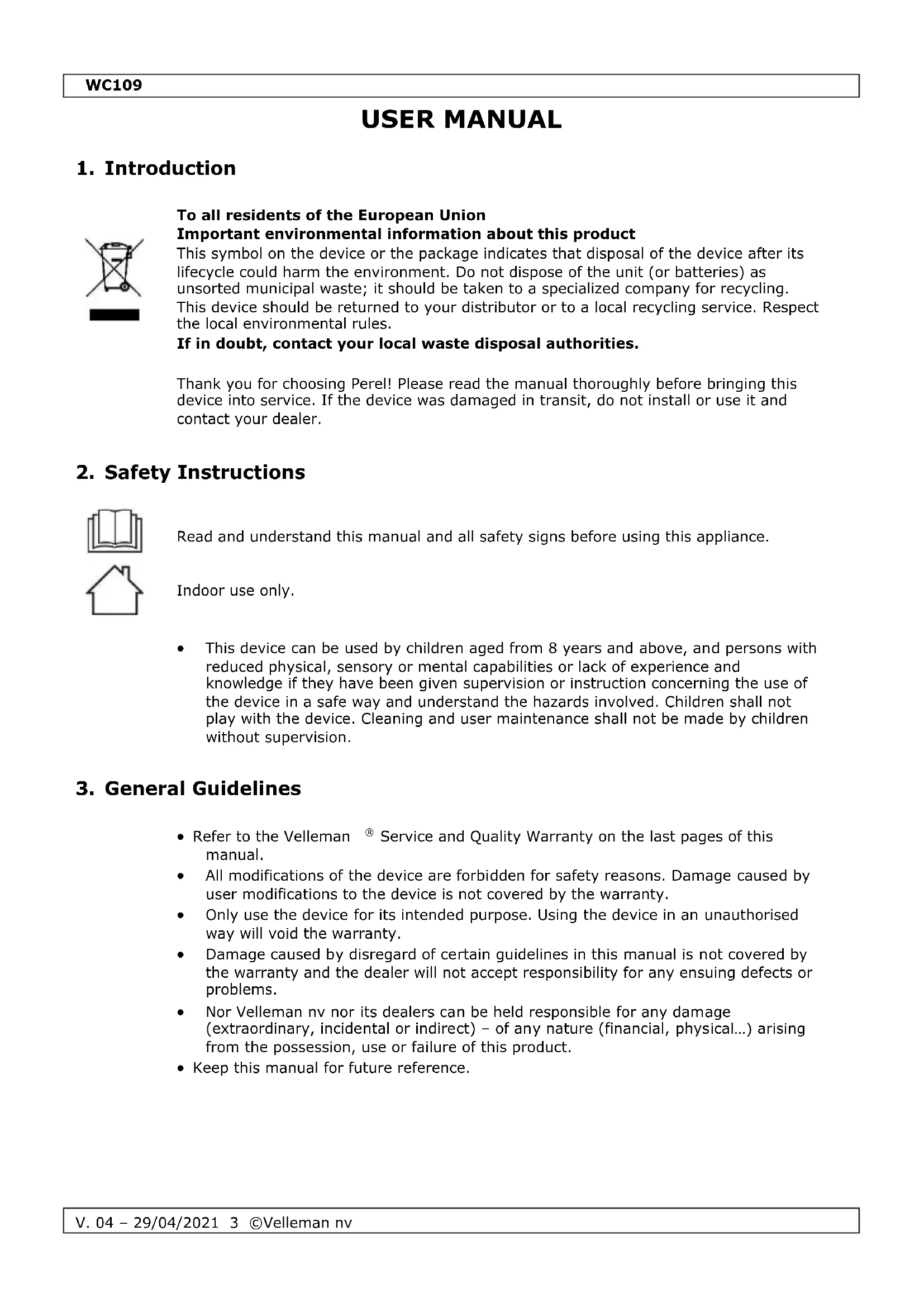

USER MANUAL WC109 Perel

USER MANUAL 3

HANDLEIDING 6

MODE D'EMPLOI 9

MANUAL DEL USUARIO 12

To all residents of the European Union

Important environmental information about this product

This symbol on the device or the package indicates that disposal of the device after its lifecycle could harm the environment. Do not dispose of the unit (or batteries) as unsorted municipal waste; it should be taken to a specialized company for recycling. This device should be returned to your distributor or to a local recycling service. Respect the local environmental rules.

If in doubt, contact your local waste disposal authorities.

Thank you for choosing Perel! Please read the manual thoroughly before bringing this device into service. If the device was damaged in transit, do not install or use it and contact your dealer.

2. Safety Instructions

Read and understand this manual and all safety signs before using this appliance.

Indoor use only.

- This device can be used by children aged from 8 years and above, and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning the use of the device in a safe way and understand the hazards involved. Children shall not play with the device. Cleaning and user maintenance shall not be made by children without supervision.

3. General Guidelines

• Refer to the Velleman ^® Service and Quality Warranty on the last pages of this manual.
• All modifications of the device are forbidden for safety reasons. Damage caused by user modifications to the device is not covered by the warranty.
• Only use the device for its intended purpose. Using the device in an unauthorised way will void the warranty.
• Damage caused by disregard of certain guidelines in this manual is not covered by the warranty and the dealer will not accept responsibility for any ensuing defects or problems.
• Nor Velleman nv nor its dealers can be held responsible for any damage (extraordinary, incidental or indirect) – of any nature (financial, physical...) arising from the possession, use or failure of this product.
• Keep this manual for future reference.

4. Overview

Refer to the illustrations on page 2 of this manual.

1	manual setting button
2	reset pin
3	forced signal reception button

4	battery compartment
5	protection pin

5. Operation

5.1 Battery

Do not puncture batteries or throw them in fire as they may explode. Do not attempt to recharge non-rechargeable batteries (alkaline). Dispose of batteries in accordance with local regulations. Keep batteries away from children.

1. Remove the protection pin before first use! Dispose of it in a safe way. Do not attempt to reinsert the pin afterwards as this will surely damage the clock.
2. Insert a new battery in the battery compartment in accordance with the polarity markings inside the battery compartment.

5.2 Working Principle

The clock contains a receiver, which receives a radio-signal from a radio station located near Frankfurt, Germany. This long-wave radio-signal (DCF77) is based on atomic clocks and contains time and date information. The clock automatically synchronizes with this master clock radio-signal and when necessary adjusts the positions of second, minute or hour hands of the clock.

Due to its nature, the radio-signal can be received indoors. However, it should be noted that the signal is weakened by the presence of concrete and metal. Therefore, the clock must not be installed in concrete basements or inside metal cages. In large concrete office buildings or apartments, the clock should be located near a window for better reception.

Also, avoid installing the clock near strong magnetic fields or other devices that generate a lot of electrical noise (e.g. engines).

5.3 Operation

Starting the Movement

Make sure the batteries have been inserted correctly.

Zero Position

Once the batteries are installed, the clock hands will automatically run and stop at 12:00. Press reset if the hands are not on the 12:00 position.

Reception Mode

Movement will start receiving the signal after 3 to 15 minutes. The reception time depends on the frequency quality at your location.

Automatic Time Setting

The clock hands will move to the correct time after the reception is completed.

Manual Time Setting

Press and hold the setting button to set the time manually. The hands will stop moving once you release the setting button.

Forced Reception

Press and hold the forced reception button for 3 seconds. The hands will move to the 12:00 position. The clock hands will move to the correct time after the reception is completed.

6. Technical Specifications

power supply .... 4 x 1.5 V AA/LR6 (not incl.) dimensions

dial 0 47 cm

clock 50.5 x 5.5 cm

weight....± 1860 g

Use this device with original accessories only. Velleman nv cannot be held responsible in the event of damage or injury resulting from (incorrect) use of this device. For more info concerning this product and the latest version of this manual, please visit our website www.velleman.eu. The information in this manual is subject to change without prior notice.

RED Declaration of Conformity

Hereby, Velleman NV declares that the radio equipment type [WC109] is in compliance with Directive 2014/53/EU.

The full text of the EU declaration of conformity is available at the following internet address: www.velleman.eu.

© COPYRIGHT NOTICE

The copyright to this manual is owned by Velleman nv. All worldwide rights reserved. No part of this manual may be copied, reproduced, translated or reduced to any electronic medium or otherwise without the prior written consent of the copyright holder.

HANDLEIDING

1. Inleiding

Velleman® Service and Quality Warranty

Since its foundation in 1972, Velleman® acquired extensive experience in the electronics world and currently distributes its products in over 85 countries.

All our products fulfil strict quality requirements and legal stipulations in the EU. In order to ensure the quality, our products regularly go through an extra quality check, both by an internal quality department and by specialized external organisations. If, all precautionary measures notwithstanding, problems should occur, please make appeal to our warranty (see guarantee conditions).

General Warranty Conditions Concerning Consumer Products (for EU):

- All consumer products are subject to a 24-month warranty on production flaws and defective material as from the original date of purchase.

- Velleman® can decide to replace an article with an equivalent article, or to refund the retail value totally or partially when the complaint is valid and a free repair or replacement of the article is impossible, or if the expenses are out of proportion.

You will be delivered a replacing article or a refund at the value of 100% of the purchase price in case of a flaw occurred in the first year after the date of purchase and delivery, or a replacing article at 50% of the purchase price or a refund at the value of 50% of the retail value in case of a flaw occurred in the second year after the date of purchase and delivery.

- Not covered by warranty:

- all direct or indirect damage caused after delivery to the article (e.g. by oxidation, shocks, falls, dust, dirt, humidity...), and by the article, as well as its contents (e.g. data loss), compensation for loss of profits;

- consumable goods, parts or accessories that are subject to an aging process during normal use, such as batteries (rechargeable, non-rechargeable, built-in or replaceable), lamps, rubber parts, drive belts... (unlimited list);

- flaws resulting from fire, water damage, lightning, accident, natural disaster, etc....;

- flaws caused deliberately, negligently or resulting from improper handling, negligent maintenance, abusive use or use contrary to the manufacturer's instructions;

- damage caused by a commercial, professional or collective use of the article (the warranty validity will be reduced to six (6) months when the article is used professionally);

- damage resulting from an inappropriate packing and shipping of the article;

- all damage caused by modification, repair or alteration performed by a third party without written permission by Velleman®.

- Articles to be repaired must be delivered to your Velleman® dealer, solidly packed (preferably in the original packaging), and be completed with the original receipt of purchase and a clear flaw description.

- Hint: In order to save on cost and time, please reread the manual and check if the flaw is caused by obvious causes prior to presenting the article for repair. Note that returning a non-defective article can also involve handling costs.

• Repairs occurring after warranty expiration are subject to shipping costs.

- The above conditions are without prejudice to all commercial warranties.

The above enumeration is subject to modification according to the article (see article's manual).
