DOC287 - Raclette grill LIVOO - Free user manual and instructions

Product type	Electric fondue set
Brand	Livoo
Model	DOC287
Power supply	220-240 V ~ 50-60 Hz
Power	800 W
Fondue types	Bourguignonne, cheese, chocolate, Chinese
Temperature control	Adjustable thermostat (red indicator light)
Included accessories	Pot, heating base, stand, splash guard, forks, thermal insulation plate
Pot material	Not specified (hand washable, not dishwasher safe)
Cleaning	Pot washable with soapy water (except heating base); base cleaned with damp cloth; some accessories are dishwasher safe
Safety	Hot surface – do not cover; do not move when hot; do not immerse base; children >8 years under supervision
Maintenance	Unplug before cleaning; do not use abrasive detergents
Repairability	Do not disassemble yourself – contact a qualified after-sales service
Weight	Not specified
Dimensions	Not specified

Frequently Asked Questions - DOC287 LIVOO

How to use the appliance for the first time?

Before first use, remove all labels and clean the accessories (except the heating base) in soapy water, then rinse thoroughly.

What types of fondue can I prepare?

The appliance allows you to make bourguignonne fondue (oil), cheese fondue, chocolate fondue and Chinese fondue (broth).

How to adjust the temperature?

Use the thermostat to select the level: maximum for bourguignonne fondue, medium for cheese, chocolate or Chinese. The red light turns on and off when the temperature is regulated.

Can I wash the pot in the dishwasher?

No, the pot is not dishwasher safe. Wash it by hand in soapy water. However, some accessories (forks, etc.) can go in the dishwasher.

How to clean the heating base?

Always unplug the appliance. Clean the base with a damp cloth, then dry it thoroughly before storing. Never immerse it in water.

Is the appliance safe for children?

Children under 8 years old must not use the appliance. Children over 8 years can use it under continuous supervision. Keep the appliance and its cord out of reach of children under 8.

What to do if the power cord is damaged?

The cord must be replaced by the manufacturer, its after-sales service or a qualified person to avoid any danger. Do not use the appliance.

Can I use the appliance outdoors?

No, the appliance is intended for indoor domestic use. Do not expose it to weather or humidity.

Does the appliance get very hot?

Yes, the accessible surfaces become very hot. Do not touch during use and let it cool before storing or cleaning.

Can I use accessories not provided?

Only use accessories recommended by the manufacturer. Using non-approved accessories may damage the appliance.

USER MANUAL DOC287 LIVOO

Thank you for choosing a Livoo product!

Your blender, your barbecue, and your headphones are not just objects, they are extensions of yourself, allowing you to get closer to your friends and family, to bring them together, to laugh and to share experiences. Livoo's aim is to help you live your life to the fullest, whatever wishes you have throughout the year. Winter raclette, summer barbecue. Or the other way around. It's up to you. Take advantage of this freedom for feel good moments every day.

That's why we're constantly innovating and creating clever products full of zest, but most of all, accessible.

Find our entire collection on our website www.livoo.en.

Livoo, your daily companion till social networks

@Livoo

@livoo_officiel

@Livoo

Safety Instructions

Please, take time to read well the instruction sheet before the first use and keep them for a future use.

A misuse of the appliance can damage it or hurt the user. Assure that you use the appliance for the use for which it is designed. We refuse any responsibilities as for the damages by an incorrect use or a bad manipulation.

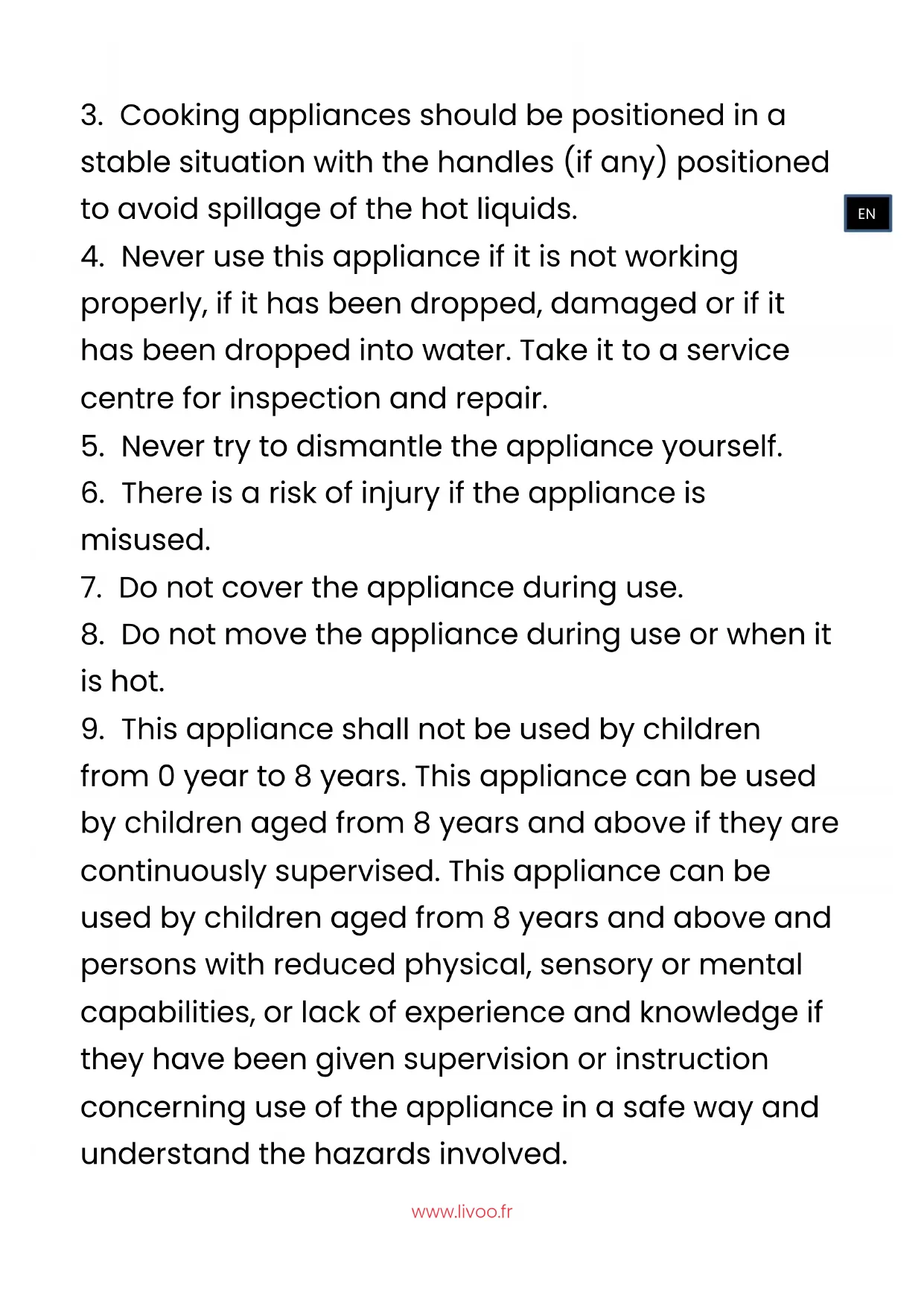

1. The safety instructions do not by themselves eliminate any danger completely and proper accident prevention measures must always be used.

2. Place the appliance on a flat, dry and stable surface.

3. Cooking appliances should be positioned in a stable situation with the handles (if any) positioned to avoid spillage of the hot liquids.

4. Never use this appliance if it is not working properly, if it has been dropped, damaged or if it has been dropped into water. Take it to a service centre for inspection and repair.
5. Never try to dismantle the appliance yourself.
6. There is a risk of injury if the appliance is misused.
7. Do not cover the appliance during use.
8. Do not move the appliance during use or when it is hot.

9. This appliance shall not be used by children from 0 year to 8 years. This appliance can be used by children aged from 8 years and above if they are continuously supervised. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities, or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

10. Children shall not play with the appliance.

11. Cleaning and user maintenance shall not be made by children.
12. Keep the appliance and its cord out of reach of children less than 8 years.
13. Avoid contact with hot surfaces or heat sources (hotplates, near hot gas or on a hot oven etc.).
14. CAUTION: The temperature of accessible surfaces may be high when the appliance is operating.
15. CAUTION: The surface of the heating element has residual heat after use.
16. Always allow to cool down before storing or cleaning.
17. Never immerse the base of your appliance in water or any other liquid for any reason whatsoever. Water must not enter into the base of the appliance.
18. Never use this product with wet hands or feet.

19. Before connecting your appliance, make sure that the voltage in your home corresponds to the voltage indicated on the appliance's nameplate.

20. The appliance is not intended to be operated by means of external timer or separate remote control system.

21. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard () .
22. Do not pull on the power cord or the unit itself to unplug.
23. Do not let the cord hang over the table or counter or touch a hot surface.
24. The socket must always remain accessible when the appliance is plugged in.
25. Only connect the appliance to a socket with a built-in earth connection. If an extension cord is used, it must have a built-in earth connection and must be able to withstand the power of the appliance.
26. Regarding the instruction for cleaning surfaces in contact with food thanks to refer to the below chapter "cleaning and maintenance" in manual.

27. Do not leave the appliance unattended when it is plugged in or in operation.

28. Always unplug the appliance in case of malfunction, after use or before cleaning.

29. Keep the manual with the appliance. If the appliance is to be used by a third party, this instruction manual must be provided. Use the appliance only for private use and in the manner indicated in the instruction manual.
30. Do not use any accessories not recommended by the manufacturer as this may damage the appliance.
31. It is absolutely necessary to keep this appliance clean at all times as it comes into direct contact with food.
32. This type of device is not designed to be used continuously, it is not a professional device, it is necessary to stop it temporarily.
33. Never use the device outdoors and never leave it in a place exposed to bad weather and humidity.

34. This appliance is intended to be used in household and similar applications such as:

35. staff kitchen areas in shops, offices and other working environments,

36. farm houses,

37. by clients in hotels, motels and other residential type of environments,

38. bed and breakfast type environments.

Technical Specifications

Voltage: 220 - 240V 50 - 60Hz

Power:800W

Read the operator's manual

Drawing of the device

FIGURE 1
1	Fork	9	Fondue support
2	Cover	10	Foot
3	Pot	11	Indicating lamp cover
4	Heating element	12	Thermostat
5	Shell	13	Knob component
6	Clip	14	Plug and cable
7	Stator ?	15	Terminal box
8	Heat insulation dish

Use of the device

BEFORE USE

Remove any stickers. Wash all parts in soapy water before use (except for heating base) and rinse thoroughly.

DURING USE

The adjustable temperature means that the fondue pan can be used for various kinds of fondue: the classic meat fondue, a cheese fondue, a chocolate fondue or a Chinese fondue (with ingredients cooked in boiling stock). Make sure the pan is not too full. Set the thermostat regulates the temperature. For the classic meat fondue, the thermostat needs to be set at the maximum level. Whereas for cheese, Chinese and chocolate fondues the "medium" setting is preferable. Adjust the temperature so that the contents are just starting to boil. Cheese and chocolate in particular need to be heated up slowly, as the pan will otherwise boil over. Stir every now and to obtain a smooth mixture. Only prick in to the ingredients, not into the pan.

Cleaning and maintenance

The pot can be washed in soapy water.

Do not place the container in the dishwasher.

Do not use a scouring agent or scouring sponge.

The heating base must be kept dry. It can be wiped with a damp cloth if necessary.

You can put the accessories in the dishwasher.

Correct disposal of the unit (Electrical and Electronic Equipment).

(Applicable in the European Union and the rest of Europe that have adopted separate collection systems countries). The European Directive 2012/19/EU on Waste Electrical and Electronic Equipment (WEEE), requires that old household electrical appliances must not be disposed of in the normal household waste stream. Old appliances must be collected separately in order to optimize the recovery and recycling of the materials they contain and reduce the impact on human health and the environment. The symbol of the crossed out dustbin is marked on all products to remind the obligations of separate collection. Consumers should contact their local authority or retailer for information concerning the correct disposal of their product.
