Inedit 29.6 Wash - Vacuum Cleaner TAURUS - Free user manual and instructions

Brand	TAURUS
Model	Inedit 29.6 Wash
Category	Stick vacuum cleaner
Type	Cordless stick vacuum with mop function
Power	2 speeds: ECO and TURBO
Charging time	4 to 6 hours
Battery type	Rechargeable lithium-ion
Battery life	Not specified in manual
Tank capacity	Not specified in manual
Filter	Washable motor filter
Included accessories	Crevice tool, upholstery brush, mop pad, wall mount, charger
Mop function	Yes, water tank, machine-washable mop pad
Folding handle	Yes
Parking position	Yes
Detachable handheld vacuum	Yes
Rotating brush	Yes, Turbobrush
Charge indicator	Yes
Wall mount	Yes
Power supply	Mains via charger for battery
Usage	Domestic
Certification	CE (directives 2014/35/EU, 2014/30/EU, etc.)
Warranty	According to current legislation

Frequently Asked Questions - Inedit 29.6 Wash TAURUS

How to charge the vacuum cleaner battery?

Plug the charger into the mains and connect it to the device. Full charge time is 4 to 6 hours. The indicator lights up during charging. Do not overcharge and unplug after the indicated time.

How to use the mop function?

Fill the water tank (a few drops of detergent possible). Attach it to the back of the nozzle until it clicks. Press the button to release water. The mop pad can also be used dry. Clean the mop pad in the washing machine.

How to clean the filter?

Press the extraction button of the handheld vacuum, remove the dust tank, then extract the filter. Clean it and reassemble in reverse order.

How to empty the dust bin?

When the bin is full or the power decreases, remove the handheld vacuum, open the tank, empty it into a trash bin, clean the filter and reassemble.

How to clean the rotating brush?

Lift the tab at the bottom of the base to unlock the brush, remove it and clean it. Reassemble in reverse order.

How to use the handheld vacuum?

Press the extraction button (H) to detach the handheld vacuum from the main body. Use it alone or with accessories (brush, crevice tool).

What to do if suction power decreases?

Check that the dust bin is not full and the filter is not clogged. Clean if necessary. Make sure the rotating brush is not blocked.

How to fold the handle for storage?

The device has a folding handle (button G). Actuate it to fold the handle, making storage easier.

How to attach the wall mount?

Fix the wall mount to the wall with wall plugs, screws or adhesives. Ensure it supports at least twice the weight of the device. Then hook the vacuum into the mount.

How to remove the battery at end of life?

Remove the front panel, unscrew the 6 screws, disconnect the connections, remove the 3 screws holding the battery to the motor and take it out safely.

USER MANUAL Inedit 29.6 Wash TAURUS

CROSSBACK 29.6 LITHIUM INEDIT 29.6 WASH

Català

Aspirador escoba

Stick vacuum cleaner

Aspirateur balai

Bodenstaubsauger

Scopa elettrica

Aspirador vertical

Aspirador escombra

Steelstofzuiger

Szczotka odkurzacz

Ηλεκτρική σκούπα

Line drawing of a tall vacuum cleaner with a long spoked top and base (no text or symbols)

Line drawing of a hand holding a device with two arrows pointing to the handle (no text or symbols present)

Line drawing of a mechanical device with a right-hand rule indicating rotational motion (no text or symbols)

Diagram showing a container with patterned contents and an upward arrow, no text or symbols present

Español

Aspirador escoba

Crossback 29.6 Lithium

Inedit 29.6 Wash

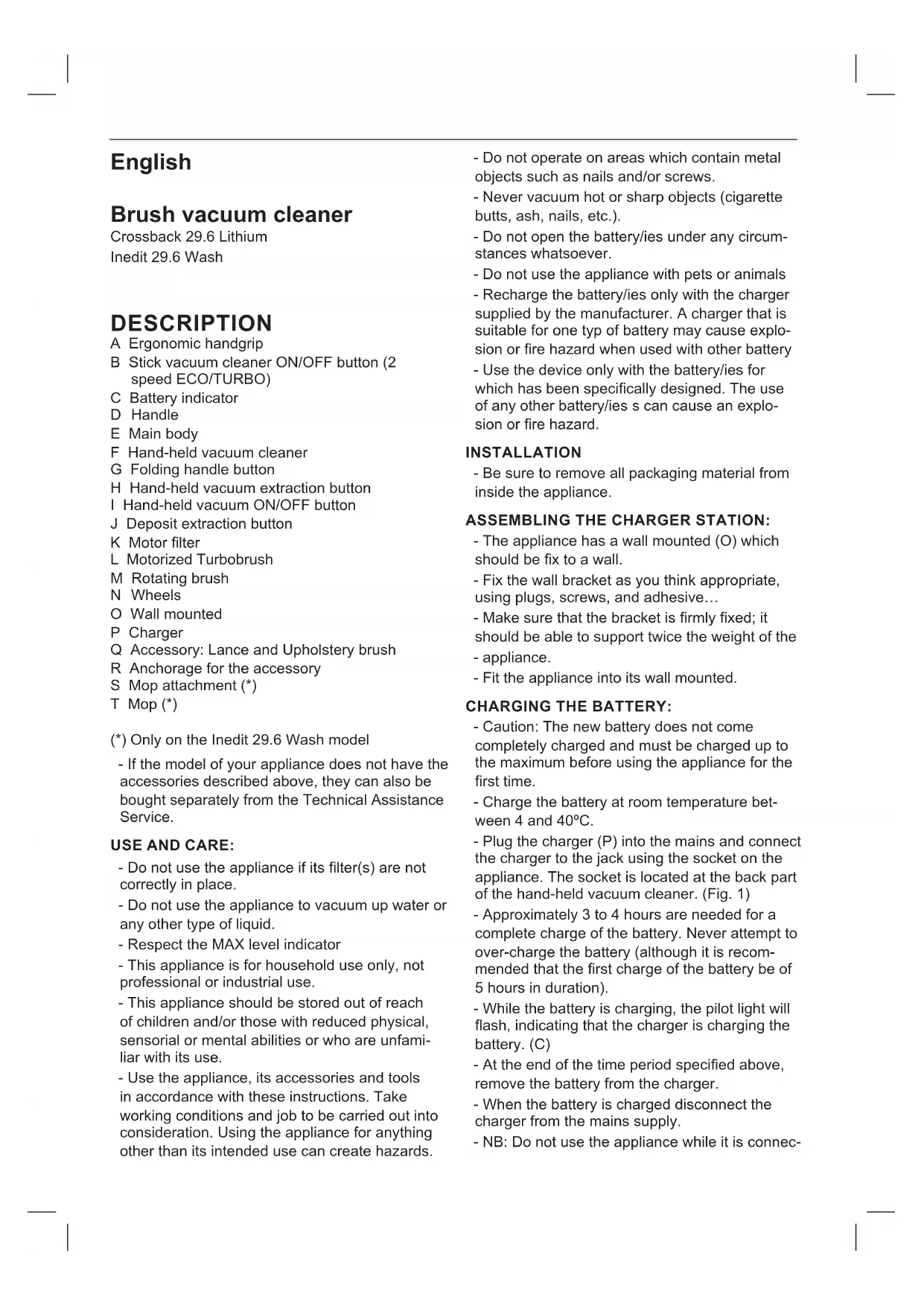

DESCRIPCIÓN

Brush vacuum cleaner

Crossback 29.6 Lithium

Inedit 29.6 Wash

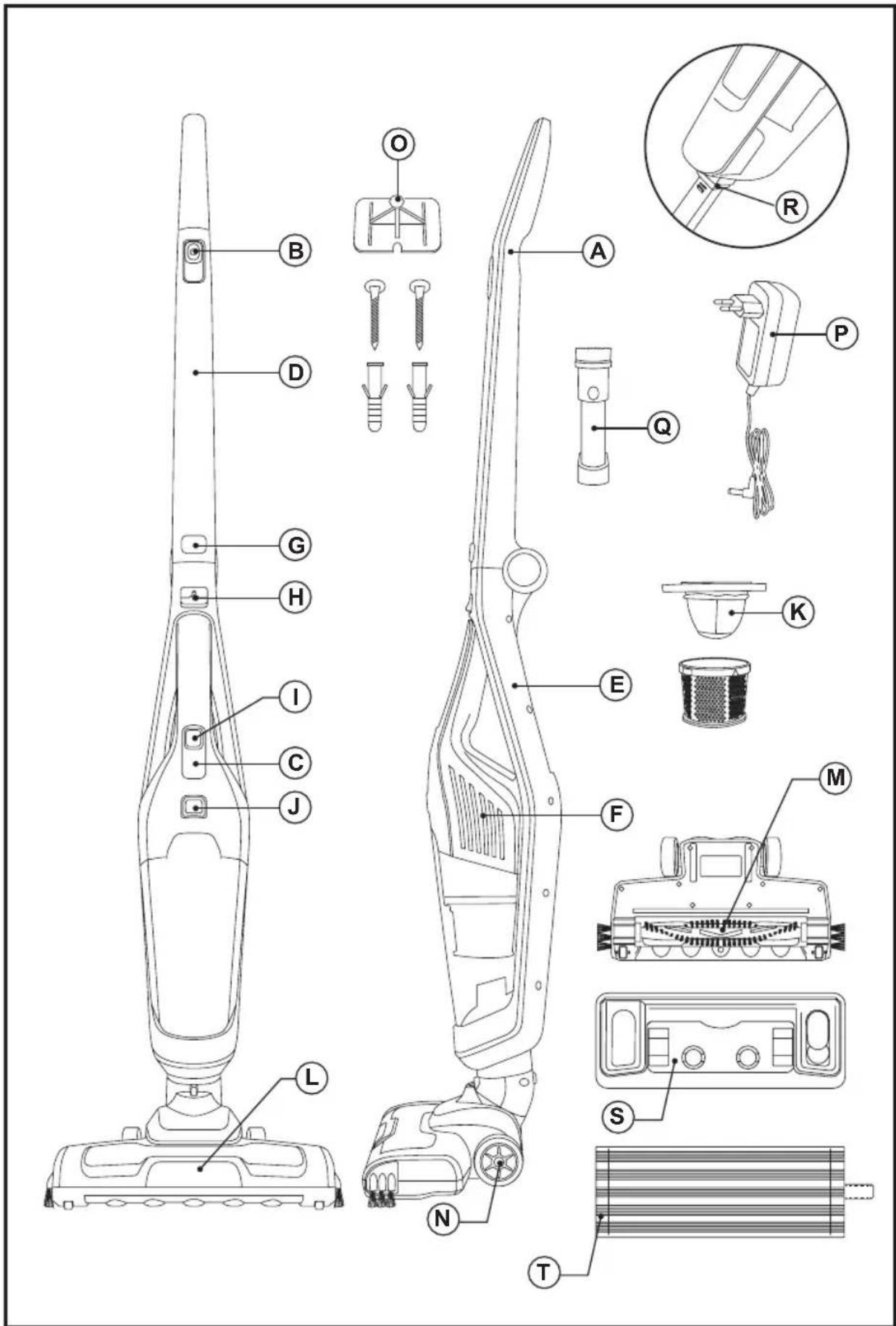

DESCRIPTION

A Ergonomic handgrip
B Stick vacuum cleaner ON/OFF button (2 speed ECO/TURBO)
C Battery indicator
D Handle
E Main body
F Hand-held vacuum cleaner
G Folding handle button
H Hand-held vacuum extraction button
I Hand-held vacuum ON/OFF button
J Deposit extraction button
K Motor filter
L Motorized Turbobrush
M Rotating brush
N Wheels
O Wall mounted
P Charger
Q Accessory: Lance and Upholstery brush
R Anchorage for the accessory
S Mop attachment (*)
T Mop (*)

(*) Only on the Inedit 29.6 Wash model

- If the model of your appliance does not have the accessories described above, they can also be bought separately from the Technical Assistance Service.

USE AND CARE:

- Do not use the appliance if its filter(s) are not correctly in place.

- Do not use the appliance to vacuum up water or any other type of liquid.

- Respect the MAX level indicator

- This appliance is for household use only, not professional or industrial use.

- This appliance should be stored out of reach of children and/or those with reduced physical, sensorial or mental abilities or who are unfamiliar with its use.

- Use the appliance, its accessories and tools in accordance with these instructions. Take working conditions and job to be carried out into consideration. Using the appliance for anything other than its intended use can create hazards.

• Do not operate on areas which contain metal objects such as nails and/or screws.
• Never vacuum hot or sharp objects (cigarette butts, ash, nails, etc.).
• Do not open the battery/ies under any circumstances whatsoever.
• Do not use the appliance with pets or animals
• Recharge the battery/ies only with the charger supplied by the manufacturer. A charger that is suitable for one typ of battery may cause explosion or fire hazard when used with other battery
• Use the device only with the battery/ies for which has been specifically designed. The use of any other battery/ies can cause an explosion or fire hazard.

INSTALLATION

- Be sure to remove all packaging material from inside the appliance.

ASSEMBLING THE CHARGER STATION:

• The appliance has a wall mounted (O) which should be fix to a wall.
• Fix the wall bracket as you think appropriate, using plugs, screws, and adhesive...
• Make sure that the bracket is firmly fixed; it should be able to support twice the weight of the
• appliance.
• Fit the appliance into its wall mounted.

CHARGING THE BATTERY:

• Caution: The new battery does not come completely charged and must be charged up to the maximum before using the appliance for the first time.
• Charge the battery at room temperature between 4 and 40°C.

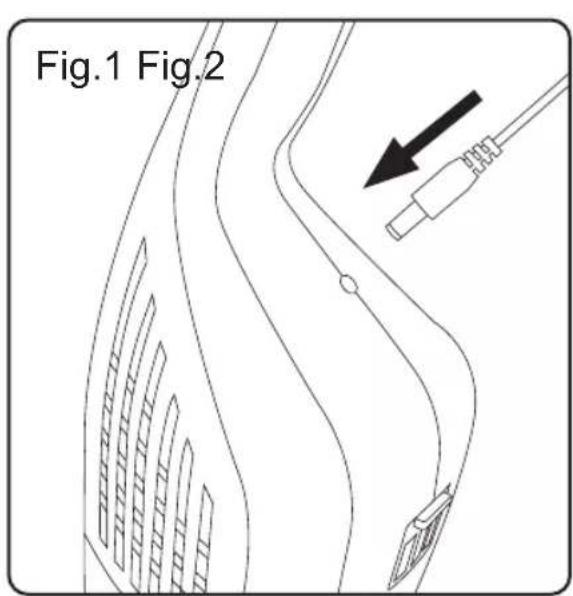

• Plug the charger (P) into the mains and connect the charger to the jack using the socket on the appliance. The socket is located at the back part of the hand-held vacuum cleaner. (Fig. 1)
• Approximately 3 to 4 hours are needed for a complete charge of the battery. Never attempt to over-charge the battery (although it is recommended that the first charge of the battery be of 5 hours in duration).
• While the battery is charging, the pilot light will flash, indicating that the charger is charging the battery. (C)
• At the end of the time period specified above, remove the battery from the charger.
• When the battery is charged disconnect the charger from the mains supply.
• NB: Do not use the appliance while it is connec-

ted to the charger.

INSTRUCTIONS FOR USE USE:

• Turn the appliance on, by using the on/off switch. (B)
• The ON indicator lamp will light up. (C)
• Select the desired power.
• Slide one position for ECO speed / slide two position for TURBO speed.
• To use the hand vacuum:
• Press the hand vacuum extraction button (H) on the brush vacuum's main body (E). (Fig. 2)
• Turn the appliance on, by using the on/off switch. (I)

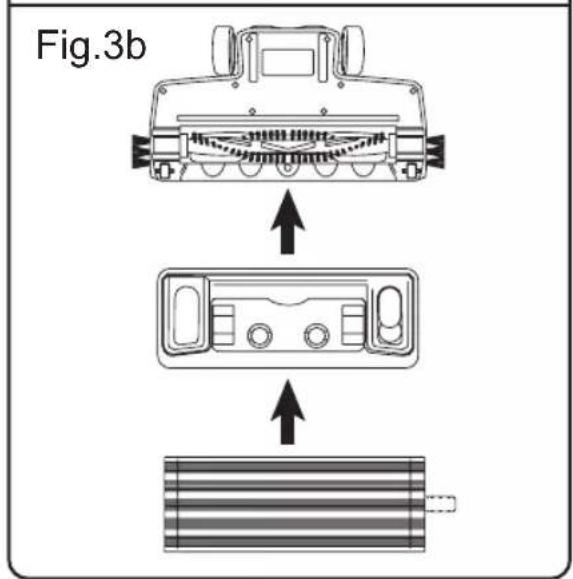

INSERTING THE MOP

(\*) Only on the Inedit 29.6 Wash model

• Fill the mop's water tank with water and, if necessary, add a few drops of detergent.
• Attach the water tank to the back the vacuum cleaner's brush base so that it clicks into position and press the button to open the passage for the water (Fig.3b)
• The mop can also be used dry.
• NOTE: The mop is machine washable.

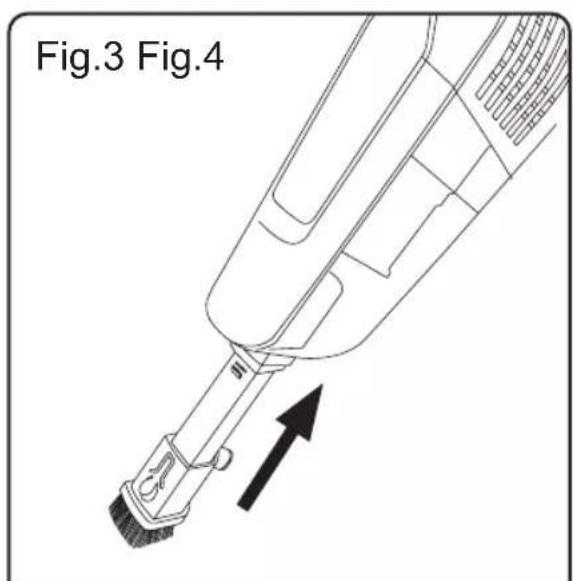

FITTING AN ACCESSORY TO THE HAND VACUUM:

• Press the hand vacuum extraction button (H) on the brush vacuum's main body (E). (Fig. 2)
• The hand vacuum is designed in such a way that it allows the following accessories to be fitted: (use the combination that best meets your requirements). (Fig.3)
• Furniture brush: Equipped with a brush at the end, which brushes the surface as it is used.
• Crevice nozzle: Specially designed for getting into cracks and difficult corners.

PARKING POSITION:

- This appliance has one parking position for comfortable and straightforward storage.

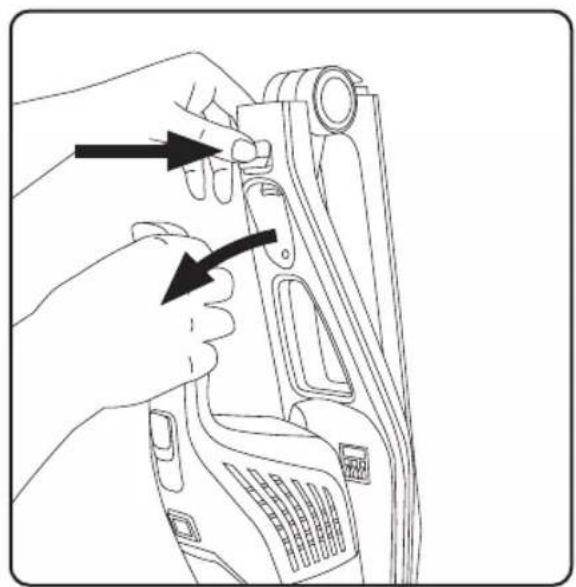

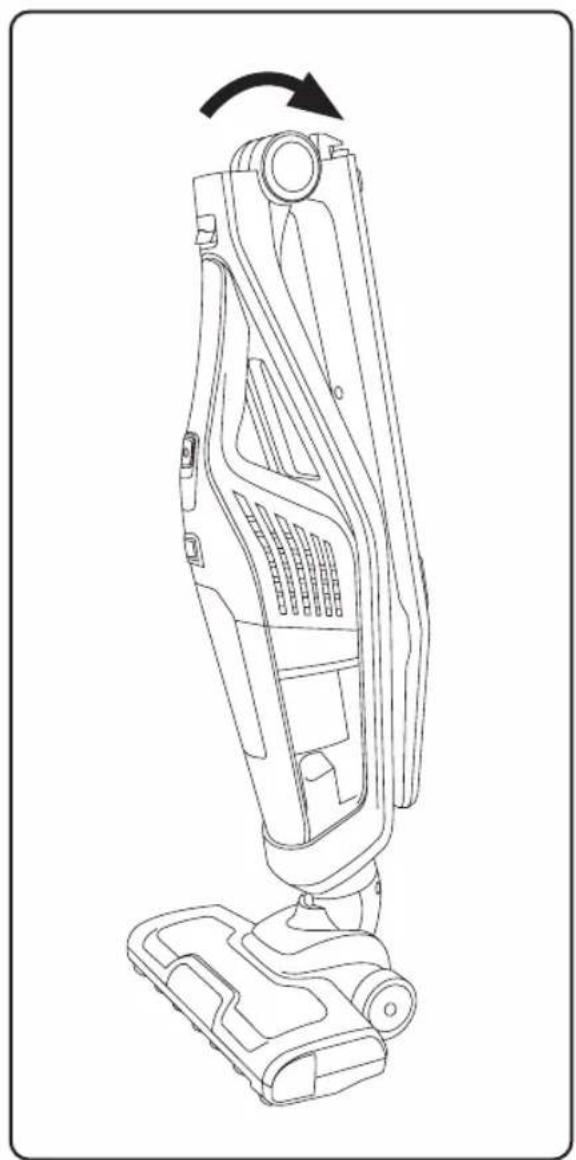

FOLDING HANDLE:

- This appliance has a folded handle position for easy storage. (Fig.4)

CLEANING

• Disconnect the charger from the mains and let it cool before undertaking any cleaning task.
• Clean the appliance using a damp cloth with a few drops of detergent and then dry it.
• Do not use solvents, or products with an acid or

base pH such as bleach, or abrasive products, for cleaning the appliance.

- Do not submerge the appliance in water or any other liquid, or place it under a running tap.

• Empty the vacuum deposit when dust is visible though the transparent walls, when it is full, or when the vacuum cleaner does not work to its full potential.

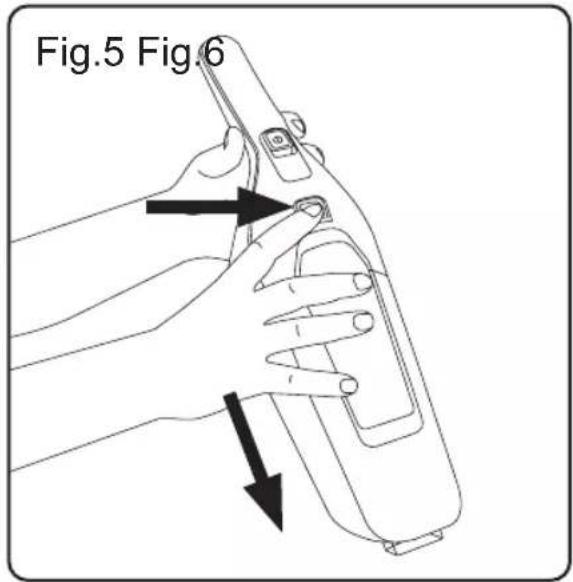

• Press the hand vacuum extraction button (H) on the brush vacuum's main body (E). (Fig. 2)
• Disconnect the dust box from the appliance. (Fig. 5)

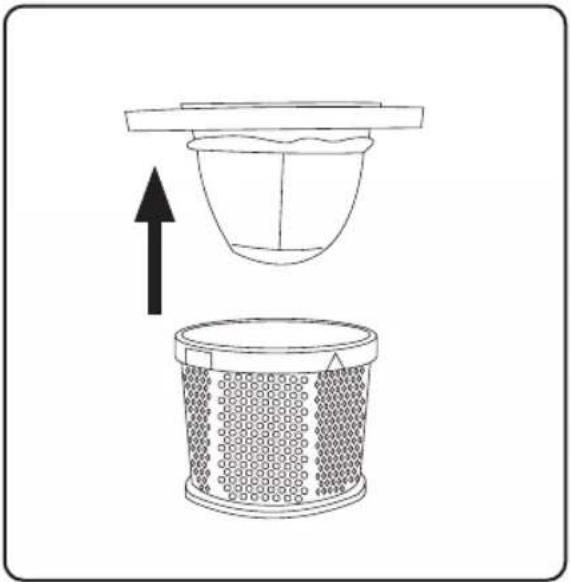

• Remove the cloth filter and its protector. (Fig. 6)
• Empty the contents into a suitable rubbish container.
• Clean the dust box filter.
• Attach the dust box to the appliance.
• To reassemble, follow the above instructions but in reverse.

CHANGING THE FILTERS: TO REMOVE FILTERS:

• Press the hand vacuum extraction button (H) on the brush vacuum's main body (E). (Fig. 2)
• Disconnect the dust box from the appliance. (Fig 5)
• Remove the cloth filter and its protector. (Fig. 6)
• To reassemble the filter, proceed with the above instructions, in reverse order.

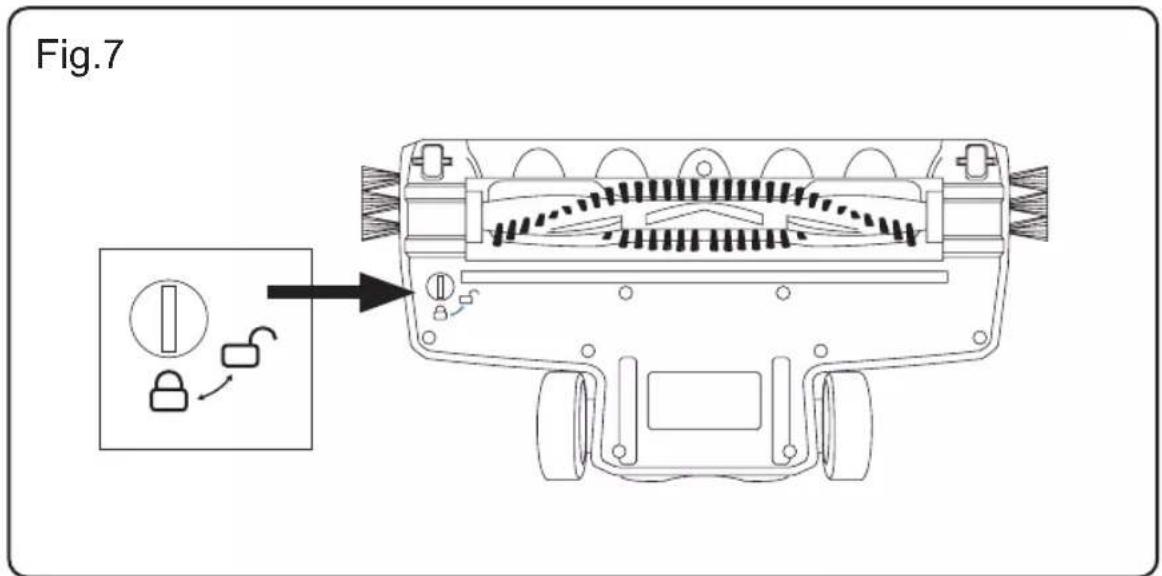

• Cleaning the rotary brush:

TO REMOVE THE BRUSH:

• Turn the rotating button on the bottom of the fitting to the left in order to release the brush. (Fig. 7)
• Remove the brush and clean.
• To reassemble, follow the above instructions but in reverse.

SUPPLIES

• Supplies can be acquired from distributors and authorised establishments (such as filters, etc.) for your appliance model.
• Always use original supplies, designed specifically for your appliance model.

HOW TO REMOVE THE BATTERIES FROM THE INTERIOR OF THE DEVICE:

- Caution: It is important that the batteries are fully discharged prior to its withdrawal from the

apparatus.

- Caution: the appliance must be disconnected from the mains when removing the batteries.

TO REMOVE THE BATTERIES, ONCE THE LIFE OF THE APPLIANCE, PROCEED AS FOLLOWS:

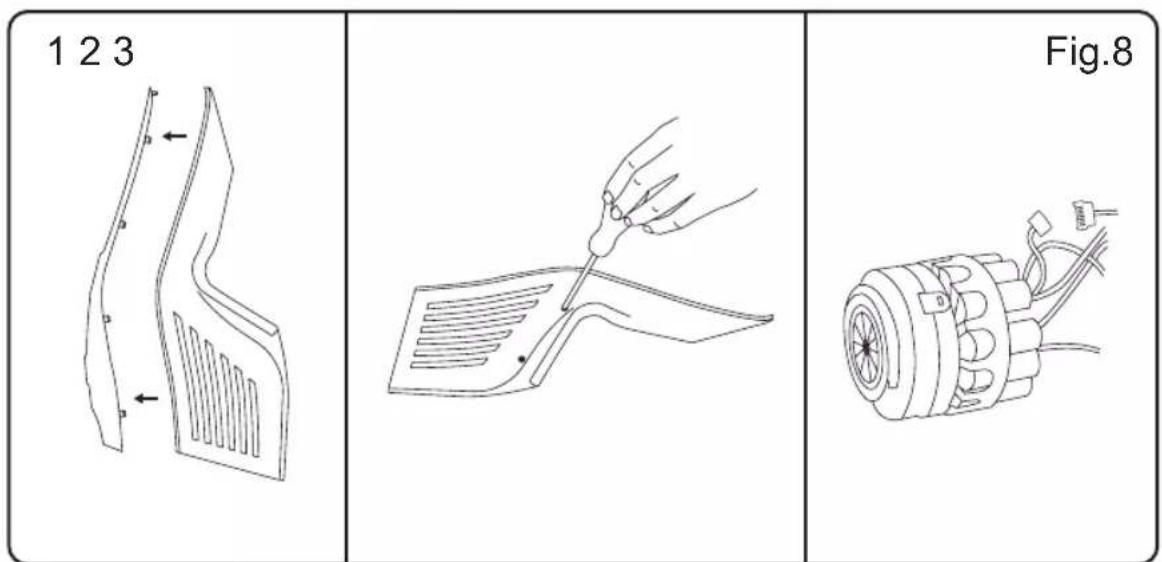

• Remove the front bezel.(Fig.8)
• Remove the 6 screws that join the two parts of the hand vacuum cleaner, to access the internal part. (Fig.8)
• Disconnect the connections and remove the 3 screws that hold the battery with the motor. (Fig.8)
• Safely remove the battery from its housing.

This appliance complies with Directive 2014/35/EU on Low Voltage, Directive 2014/30/EU on Electromagnetic Compatibility, Directive 2011/65/EU on the restrictions of the use of certain hazardous substances in electrical and electronic equipment and Directive 2009/125/EC on the ecodesign requirements for energy-related products.

Français

Aspirateur balai

Crossback 29.6 Lithium

Inedit 29.6 Wash

DESCRIPTION

L Bocchetta Turbobrush

M Spazzola rotante

N Rotelle

O Supporto a parete

P Caricatore

- Several who don't know that you can be able to find it.

This product enjoys the recognition and protection of the legal guarantee in accordance with current legislation. To enforce your rights or interests you must go to any of our official technical assistance services.

You can find the closest one by accessing the following web link: http://taurus-home.com/

You can also request related information by contacting us.

You can download this instruction manual and its updates at http://taurus-home.com/

Français

GARANTIE ET ASSISTANCE TECHNIQUE

COUNTRY ADDRESS PHONE

Spain Avda Barcelona, S/N, 25790 Oliana (Lleida)[e-mail]		902 118 050
Algeria Zone d'Activite, N° 62, Constantine 213770777756
Benin 359 Av. Steinmetz, 1930, Cotonou 0299-21313798
Burkina Faso Avenue Bassawarga, 01 BP915, Ouagadougou 226 25301038
Ivory Coast 01 Rue Des Carrossiers-Zone 3, B.P 3747,Abidjan 01 (RCI)		22521251820 / 225 21 353494
Ethiopia Lideta Sub City Kebele 10 H.NO 124, Addis Ababa [phone]
Gabon BP 574, Port-Gentil Centre-ville 24101552689 / 24101560698
Ghana	Ederick Place, Accra-Ghana	302682448 / 302682404
Guinea BP 206, GN, Conakry	(224) 622204545
Equatorial Guinea	SN Av Patricio Lumumba y C/ Jesus B, Bata	00240 333 082958 /00240 333 082453
Equatorial Guinea	Calle de las Naciones Unidas, PO box 762, Malabo	240333082958 / 240333082453
Mali	BP E2900, Dravela Bolibana	223227216 / 223227259
Mauritania	134 Avenue Gamal Abdener Ilot D, Nouakchott	2225254469 / 2225251258
Nigeria 8, Isaac; John Str,G.R.A Ikeja Lagos		23408023360099
Congo (Republic of)	98 Blvd du General Charles de Gaulle, Pointe Noire	242066776656

COUNTRY ADDRESS PHONE

Democratic Republic of the Congo	AV. Pont Canale N° 3440, Kinshasa 00243-991223232
Tunisia 2, Rue de Turquie, Tunis 21671333066
Hong Kong Unit H,13/F., World Tech Centre, Hong kong (852) 2448 0116 / 9197 3519
Vietnam Lot 7 Ind. Zone for, Ha Noi 84437658111 / 84437658110
Belgium Mariëndonkstraat 5, 5154 EG, Elshout 31620401500
Bulgaria	265,Okolovrasten Pat, Mladost 4, 1766, Sofia	35929211120 / 35929211193
Czech Republic	Milady Horakove 357/4, 568 02, Svitavy	420 461 540 130
Cyprus 20, Bethlehem Str. / P.O.Box 20430, 2033, Stro-volos		35722711300
France	Za les bas musats 18, 89100, Malay-le-Grand	03 86 83 90 90
Gibraltar	11 Horse Barrack Lane, 54000, Gibraltar	00350 200 75397 / 00350 200 41023
Greece	Sapfous 7-9, 10553, Athens	[phone]
Netherlands	Mariëndonkstraat 5, 5154 EG, Elshout 31620401500
Hungary	Késmárk utca 11-13, 1158, Budapest	[phone]
Luxembourg	Mariëndonkstraat 5, 5154 EG, Elshout 31620401500
Montenegro	Rastovac bb, 81400, Niksic	[phone]
Portugal	Avenida Rainha D. Amélia, n°12-B, 1600-677, Lisboa	[phone]
Romania	Dudesti Pantelimon 23, 410554, Bucharest	031.805.49.58
Serbia	Rastovac bb, 81400, Niksic	[phone]
Slovakia	Milady Horakove 357/4, 568 02, Svitavy	420 461 540 130
Ukraine	Block 6, Ap Housing Estate Topol-2, B, 49000, Dnepropetrovsk	380563704161 / 380563704161
Jordan	28 Basman St Down town, Amman	[phone]
Kuwait	P.O. BOX 3379 hawally, 32034, Hawally	[phone]
Lebanon	Damascus Highway; Sciale Building, Jamhour	9615922963
United Arab Emirates	P.O.BOX 8543, Dubai	14506246200
Argentina	Av. del Libertador 1298,(B1638BEY), Vicente López (Pcia. Buenos Aires)	541153685223
Paraguay	Denis Roa 155 c/ Guido Spano, Asunción	21665100
Uruguay	Luis Alberto de Herrera 3468, 11600, Montevideo	598 2209 28 00
