CAF-DECO - Coffee maker BRANDT - Free user manual and instructions

Product Type	Drip Coffee Maker
Brand	BRANDT
Model	CAF-DECO
Capacity	Approximately 1.25 L (10 cups)
Power	900 W
Voltage	220-240 V ~ 50/60 Hz
Dimensions (L x W x H)	25 x 20 x 30 cm
Weight	1.5 kg
Body Material	Plastic
Carafe Material	Glass
Color	White / Black
Main Functions	Drip coffee preparation, anti-drip system, keep-warm hot plate, on/off switch with indicator light
Water tank capacity	Approximately 1.25 L (visible max level)
Filter type	Paper filter (standard size)
Included accessories	Glass carafe with lid, filter holder, reservoir lid
Cleaning and maintenance	Removable parts (filter holder, carafe, lid) dishwasher safe; exterior body cleaned with a damp cloth
Descaling	Recommended periodically with a vinegar/water mixture (1/3 vinegar, 2/3 water)
Safety	Anti-drip system, automatic shut-off (not specified but typical), do not immerse in water
Country of origin	European Union

Frequently Asked Questions - CAF-DECO BRANDT

How to prepare coffee with the BRANDT CAF-DECO coffee maker?

Fill the water tank with cold water to the desired level (do not exceed the max). Place a paper filter in the filter holder and add ground coffee (about one level tablespoon per cup). Close the lid, place the carafe on the hot plate, plug in and turn on the switch. The coffee flows into the carafe. Turn off after use.

Why is the coffee not flowing or flowing very slowly?

Check that the carafe is correctly placed on the hot plate to activate the anti-drip valve. Make sure the filter is not clogged by too fine a grind or too much coffee. If the flow is slow after several uses, descaling may be necessary.

How to clean the coffee maker?

Turn off and unplug the coffee maker, let it cool. Clean the hot plate with a damp cloth. Wash the filter holder, carafe and its lid with soapy water or in the dishwasher. Never immerse the body of the appliance in water.

How to descale the coffee maker?

Fill the tank with one third white vinegar and two thirds water. Turn on the coffee maker, let it run for 30 seconds, turn off, wait 30 minutes, then turn on again to complete the cycle. Repeat 2 to 3 times if necessary. Then run two cycles with clean water to rinse.

Can the glass carafe go in the dishwasher?

Yes, the carafe and its lid are dishwasher safe. Avoid abrasive sponges to prevent scratching the glass. For stubborn stains, let soak with hot water and dishwasher detergent.

What type of ground coffee to use?

Use medium grind coffee, neither too fine nor too coarse. Too fine a grind can clog the filter. Freshly ground coffee gives a better aroma.

What to do if the coffee maker does not turn on?

Check that the appliance is plugged into a working wall outlet and that the cord is not damaged. If the indicator light does not come on, the fuse or switch may be defective. Contact an authorized technical service.

How to remove the carafe lid for cleaning?

Push the hinged part of the lid to one side, then turn and lift the other side. The pin comes loose and you can remove the lid. To reassemble, reverse the steps.

Can I use the coffee maker without coffee to heat water?

Yes, you can run the coffee maker with water only. However, it is not designed to boil water. Use it only for brewing coffee or rinsing after descaling.

How long does the coffee stay hot on the plate?

The hot plate keeps the coffee warm after brewing. For best taste, consume the coffee quickly. However, the appliance does not have auto shut-off, so remember to turn off the coffee maker after use to save energy.

USER MANUAL CAF-DECO BRANDT

FR - MANUEL D'UTILISATION DK - BRUGSANVISING

EN - INSTRUCTIONS FOR USE ES - MANUAL DE INSTRUCCIONES

CAFETIÈRE FILTRÉ / KAFFEMASKINE / DRIP COFFEE MAKER / CAFETERA DE GOTEO

MOD.:

CAF-DECO

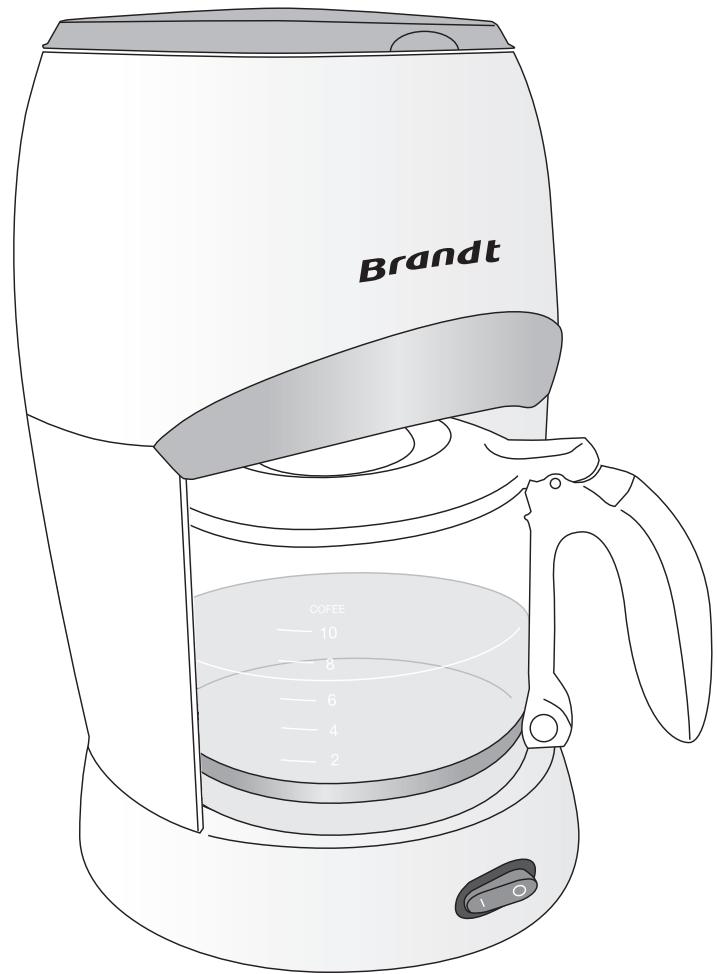

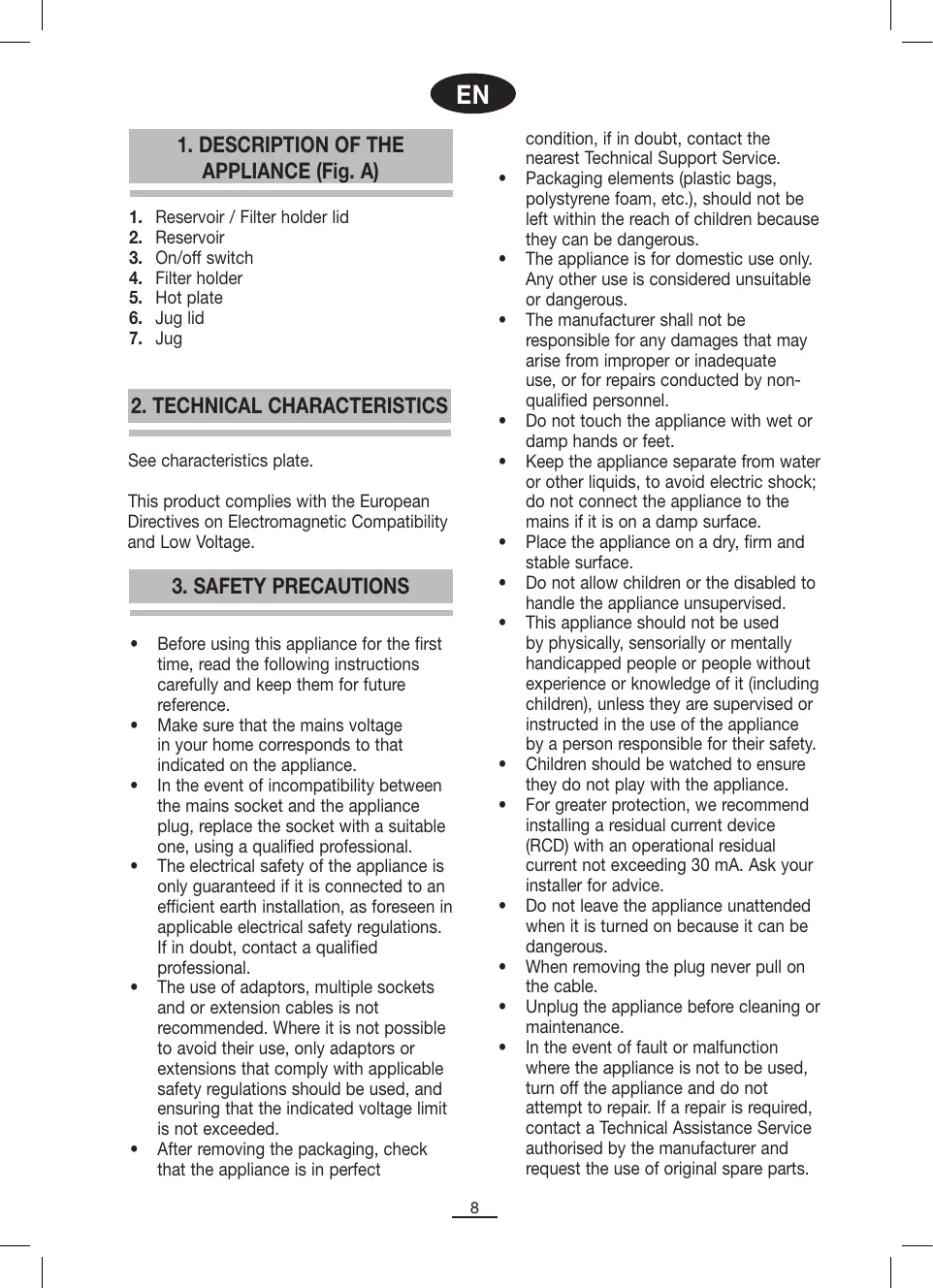

1.DESCRIPTION OF THE APPLIANCE (Fig.A)

1. Reservoir / Filter holder lid
2. Reservoir
3. On/off switch
4. Filter holder
5. Hot plate
6. Jug lid
7. Jug

2. TECHNICAL CHARACTERISTICS

See characteristics plate.

This product complies with the European Directives on Electromagnetic Compatibility and Low Voltage.

3. SAFETY PRECAUTIONS

• Before using this appliance for the first time, read the following instructions carefully and keep them for future reference.
  Make sure that the mains voltage in your home corresponds to that indicated on the appliance.
• In the event of incompatibility between the mains socket and the appliance plug, replace the socket with a suitable one, using a qualified professional.
• The electrical safety of the appliance is only guaranteed if it is connected to an efficient earth installation, as foreseen in applicable electrical safety regulations. If in doubt, contact a qualified professional.
• The use of adaptors, multiple sockets and or extension cables is not recommended. Where it is not possible to avoid their use, only adaptors or extensions that comply with applicable safety regulations should be used, and ensuring that the indicated voltage limit is not exceeded.
  After removing the packaging, check that the appliance is in perfect

condition, if in doubt, contact the nearest Technical Support Service.
- Packaging elements (plastic bags, polystyrene foam, etc.), should not be left within the reach of children because they can be dangerous.
- The appliance is for domestic use only. Any other use is considered unsuitable or dangerous.
- The manufacturer shall not be responsible for any damages that may arise from improper or inadequate use, or for repairs conducted by nonqualified personnel.
- Do not touch the appliance with wet or damp hands or feet.
- Keep the appliance separate from water or other liquids, to avoid electric shock; do not connect the appliance to the mains if it is on a damp surface.
- Place the appliance on a dry, firm and stable surface.
- Do not allow children or the disabled to handle the appliance unsupervised.
- This appliance should not be used by physically, sensorially or mentally handicapped people or people without experience or knowledge of it (including children), unless they are supervised or instructed in the use of the appliance by a person responsible for their safety.
Children should be watched to ensure they do not play with the appliance.
- For greater protection, we recommend installing a residual current device (RCD) with an operational residual current not exceeding 30mA . Ask your installer for advice.
- Do not leave the appliance unattended when it is turned on because it can be dangerous.
- When removing the plug never pull on the cable.
- Unplug the appliance before cleaning or maintenance.
- In the event of fault or malfunction where the appliance is not to be used, turn off the appliance and do not attempt to repair. If a repair is required, contact a Technical Assistance Service authorised by the manufacturer and request the use of original spare parts.

• If the cable for this appliance is damaged, contact an authorised Technical Assistance Service for it to be replaced.
• Do not leave the appliance exposed to the elements (rain, sun, ice, etc.).
• Do not use or let any part of the appliance come into contact or near hot surfaces (kitchen gas or electric hobs or ovens).
• Do not use detergents or abrasive sponges to clean the appliance.
• Do not touch the hot surfaces. Use the handles.
• Do not let the cable come into contact with the hot parts of the appliance.
• Do not allow all the liquid to evaporate.
• Do not heat the jug when empty.
• Do not use a jug which is broken or has a loose or weakened handle. Replace it at any sign of damage. A crack or a chip in the glass may cause the jug to break or to contaminate the liquid it contains with glass particles.
• Do not clean the jug with any kind of abrasive scouser or cleaners which may scratch and weaken the glass.
• The jug is designed for use with this appliance only. Do not place the jug on or near to a hot surface (heater, stove, cooking surface, hot oven, microwave oven, etc.)
• Avoid handling it carelessly and knocking it.

4. BEFORE USING FOR THE FIRST TIME

• Before using your coffee maker for the first time, familiarise yourself with all the parts. Read all the instructions carefully.
• Lift open the filter holder lid (1), take out the filter holder (4) and clean them together with the jug (7) and the jug lid (6) in warm, soapy water. Rinse well, dry them and reassemble.
  To clean the inside, operate the coffee maker twice running without coffee. To do this, follow the instructions in the next section.

5. MAKING COFFEE

• Place the coffee maker onto a flat, stable surface.
• Open the reservoir lid (1) and fill the reservoir (2) with fresh, cold water (see Fig. B) up to the level corresponding to the desired number of cups of coffee. Do not exceed the maximum level of the reservoir.
• Open the filter holder lid (1) and place the paper filter into the filter holder as shown in figure C.
• Fill the paper filter with the required amount of ground coffee and close the filter holder lid (1). We suggest one level tablespoonful of coffee per cup of coffee. Once you have used the coffee maker several times, you will be able to adjust the amount of coffee according to your taste.
• Place the jug (7) with its lid (6) duly in place, onto the hot plate (5). The jug will open the anti-drip valve when placed correctly onto the plate; otherwise the filtered coffee will not pass into the jug and the filter may overflow.
• Plug the appliance in and turn the coffee maker on by pressing the on/off switch (3). The indicator light will come on. The water will begin to filter through the coffee maker, pouring the coffee into the jug.
• Once the coffee is ready, the hot plate (5) will keep the coffee hot by means of the hot plate.
• Turn the coffee maker off by pressing the on/off switch (3) and unplug the coffee maker.

N.B.: The coffee maker is fitted with an anti-drip system; this prevents the coffee from dripping onto the plate (5) when the jug is not properly in place or when it has been removed from the appliance.

6. TIPS FOR GOOD COFFEE

To give the coffee a better flavour and aroma, we advise you to use freshly ground coffee.

Medium-ground coffee should be used; it should not be too finely ground.

Store the coffee in a dry place. Once the packet of coffee has been opened, it can be kept well-sealed in the refrigerator in order to maintain its aroma.

This coffee maker will keep the coffee hot by means of the hot plate (5), but for best results, drink the coffee as soon as it has been made.

7. CLEANING THE COFFEE MAKER

Before cleaning the coffee maker, turn it off, unplug the coffee maker and wait for it to cool down.

Clean the hot plate (5) with a cloth which has been moistened with soapy water.

To remove the lid from the jug (6), push the hinge part of the lid to one side (fig. D).

Turn and lift the other side (fig. E), the pin will spring out of the hinge and you will be able to remove the lid (fig. F).

Wash the filter holder (4), the jug (7) and the jug lid (6) in soapy water or in the dishwasher, rinse well and dry the parts before reassembling them.

To remove stains from the jug (7), rub with bicarbonate of soda or a soft cloth. For stubborn stains, fill the jug with hot water, add 2 spoonfuls of dishwasher detergent and leave to soak for several hours. Wash and rinse the jug well.

Clean the outside of the coffee maker with a damp cloth.

Do not use detergents or abrasive products to clean the coffee maker.

Do not immerse the appliance in water or in any other liquid.

DESCALING:

Depending on the hardness of the water and how often you use the appliance, the

channels may become blocked, due to the content of lime scale in the water. A sign of this is when the filtering process takes longer than normal. To prevent this, proceed as follows:

• Fill the reservoir (2) with one part vinegar and three parts water.
  Plug in the coffee maker and operate it.
  After 30 seconds, turn the coffee maker off.
• Wait for 30 minutes to allow the vinegar to perform its cleaning action and turn the coffee maker on again.
• Once the coffee-making cycle has finished, turn the coffee maker off.
• Repeat this operation 2 or 3 times, depending on the amount of lime scale.
• Once the coffee maker has been descaled, operate it 2 or 3 times with water only, to remove any remaining vinegar.

8. INFORMATION FOR THE CORRECT DISPOSAL OF ELECTRICAL AND ELECTRONIC APPLIANCES

At the end of its working life, the product must not be disposed of as urban waste. It must be taken to a special local authority differentiated waste collection centre or to

a dealer providing this service. Disposing of a household appliance separately avoids possible negative consequences for the environment and health deriving from inappropriate disposal and enables the constituent materials to be recovered to obtain significant savings in energy and resources.

To remind you that you must collaborate with a selective collection scheme, the symbol shown appears on the product warning you not to dispose of it in traditional refuse containers.

For further information, contact your local authority or the shop where you bought the product.
