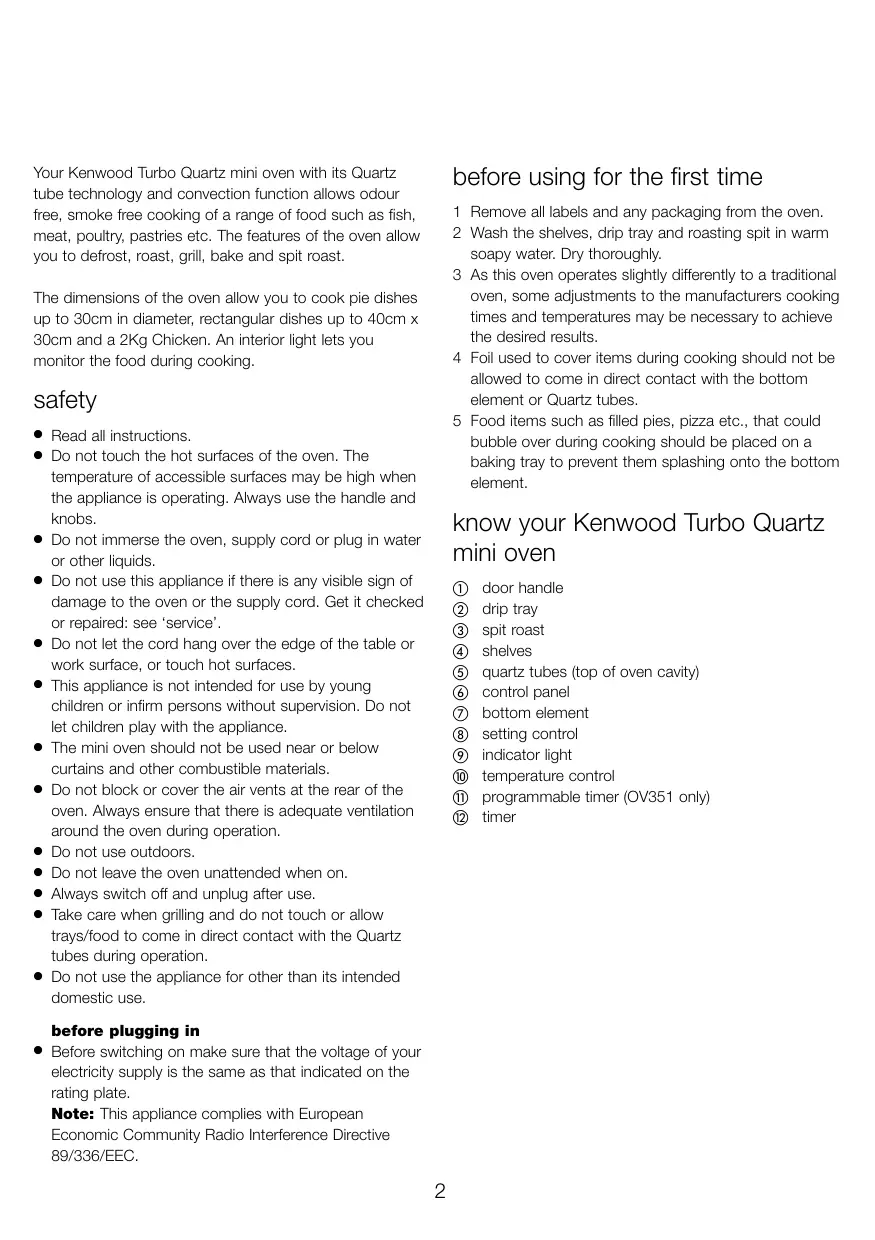

Your Kenwood Turbo Quartz mini oven with its Quartz tube technology and convection function allows odour free, smoke free cooking of a range of food such as fish, meat, poultry, pastries etc. The features of the oven allow you to defrost, roast, grill, bake and spit roast.

1 Remove all labels and any packaging from the oven. 2 Wash the shelves, drip tray and roasting spit in warm soapy water. Dry thoroughly. 3 As this oven operates slightly differently to a traditional oven, some adjustments to the manufacturers cooking times and temperatures may be necessary to achieve the desired results. 4 Foil used to cover items during cooking should not be allowed to come in direct contact with the bottom element or Quartz tubes. 5 Food items such as filled pies, pizza etc., that could bubble over during cooking should be placed on a baking tray to prevent them splashing onto the bottom element.

The dimensions of the oven allow you to cook pie dishes up to 30cm in diameter, rectangular dishes up to 40cm x 30cm and a 2Kg Chicken. An interior light lets you monitor the food during cooking.

Read all instructions. Do not touch the hot surfaces of the oven. The temperature of accessible surfaces may be high when the appliance is operating. Always use the handle and knobs. Do not immerse the oven, supply cord or plug in water or other liquids. Do not use this appliance if there is any visible sign of damage to the oven or the supply cord. Get it checked or repaired: see ‘service’. Do not let the cord hang over the edge of the table or work surface, or touch hot surfaces. This appliance is not intended for use by young children or infirm persons without supervision. Do not let children play with the appliance. The mini oven should not be used near or below curtains and other combustible materials. Do not block or cover the air vents at the rear of the oven. Always ensure that there is adequate ventilation around the oven during operation. Do not use outdoors. Do not leave the oven unattended when on. Always switch off and unplug after use. Take care when grilling and do not touch or allow trays/food to come in direct contact with the Quartz tubes during operation. Do not use the appliance for other than its intended domestic use.

know your Kenwood Turbo Quartz mini oven

before plugging in Before switching on make sure that the voltage of your electricity supply is the same as that indicated on the rating plate. Note: This appliance complies with European Economic Community Radio Interference Directive 89/336/EEC.

door handle drip tray spit roast shelves quartz tubes (top of oven cavity) control panel bottom element setting control indicator light temperature control programmable timer (OV351 only) timer

oven shelf positions ●

The shelves supplied can be inverted to give 4 different shelf positions.

The oven light will automatically come on when the timer is rotated to select a cooking time.

control panel setting control Turn the control to select the required cooking mode. ● ●

setting 4: quartz grill/spit roast Only the Quartz tubes operate on this setting. When using the grill or spit roast function the door must be left half opened. When grilling the food should be placed as near to the quartz tubes as possible without touching them. The temperature control should be turned to setting 10.

indicator light ● The light will come on when the oven is switched on and will go out when the temperature set is reached.

setting 1 : convection The heat is uniformly distributed around the oven by the rear heating element and fan. The continuous hot air flow allows quick uniform cooking to take place at a lower temperature than in a conventional oven. The lower temperature maintains the flavour and appearance of the food without producing any smoke. Several different dishes can be cooked simultaneously without the taste and smell being transferred from one to the other. This setting can also be used for defrosting and as a keep warm function.

temperature control ● The temperature control has 10 positions that can be selected. ● WARNING: The temperatures for each position will differ depending on the method of cooking selected as follows:-

setting 2: ventilated pastry The bottom heating element operates continuously on full power and the fan is on to distribute the heat evenly. The Quartz element can be switched on by turning the temperature control to the required temperature (see cooking charts) during the last 10minutes of cooking to brown, crisp or grill the top of the food. This setting is ideal for cooking savoury or sweet tarts and pies.

programmable timer (OV351 only) The delayed start timer can be set up to a maximum of 12 hours.

setting 3: turbo quartz Both the bottom heating element and Quartz tubes are on and the fan distributes the heat evenly. The Quartz technology enables the oven to reach a temperature of 250°C in less than 5 minutes. No preheating is required and the power consumption is greatly reduced. The taste and nutritional qualities of the food is retained with this method of cooking.

timer ● The cooking timer can be set up to a maximum of 120minutes. ● The oven will not operate unless a cooking time has been selected.

selecting the cooking modes ● ●

The oven will not operate unless a cooking time has been selected. The oven will automatically switch off when the timer reaches “0”.

convection setting Select setting 1 on the setting control. Turn the temperature control to select the temperature required. For defrosting and keeping food warm turn the temperature control to position 1. Set the cooking time using the timer. Refer to the cooking tables for the times and temperatures to use for individual recipes.

ventilated pastry setting Select setting 2 on the setting control. Only the bottom element will operate continuously on full power. The temperature control should be set to “0” unless the top Quartz tubes are required as well to brown, grill or crisp the top of the food. Refer to the cooking tables for the approx. times and temperatures to use for individual recipes. Set the cooking time required using the timer. Note: the indicator light will not come on unless a temperature has been selected for the quartz tubes.

turbo quartz setting Select setting 3 on the setting control. Turn the temperature control to select the temperature required. Refer to the cooking tables for the approx. times and temperatures to use for individual recipes. Set the cooking time required using the timer. quartz grill Select setting 4 on the setting control. Turn the temperature control to maximum/position 10. Place the food as near to the quartz tubes as possible without touching them. When using the grill the door must be left half opened. Place the drip tray under the grill shelf to catch the cooking juices and fat.

Set the cooking time required using the timer. Refer to the cooking tables for the approx. times to use for individual recipes. spit roast Select setting 4 on the setting control. Turn the temperature control to maximum/position 10. Fit the spit . When using the spit roast function the door must be left half opened. Set the cooking time required using the timer. Refer to the cooking tables for the approx. times to use. programmable timer (OV351 only) Do not use the programmable timer with the grill or spit roast functions. Do not use this for perishable food such as meat, poultry, fish or seafood. To use the programmable timer first set the required cooking mode, temperature and cooking time as explained in the previous section. Then turn the timer to the required delayed time. For Example: if you wish to set the oven up at 11am to cook a dish that takes 1 hour to be ready at 2pm. The timer then needs to be set to position 2 (2 hours), this is the difference between the time when you set the timer and the time that you need the oven to come on (1pm) for the dish to be ready at 2pm.

cooking tables convection/ventilated pastry oven cooking Dish/Recipe Meringues

Ham & Cheese melted Sandwich

Bread 500g (5min preheat)

* Last 10 minutes of cooking increase temperature and select setting 1.

turbo quartz cooking Dish/Recipe

quartz grill or spit roast Dish/Recipe

Switch off, unplug and allow the oven to cool completely before cleaning.

oven shelves, tray & spit Wash immediately after use in hot soapy water. Alternatively they can be washed in the dishwasher.

oven exterior Wipe with a damp cloth or non abrasive cleaner and dry thoroughly.

oven interior Clean the door with warm water and a non-abrasive cleaner. The bottom heating element can be lifted up slightly to clean the bottom of the oven. To avoid damage take care when lifting the element. Grease particles on the quartz tubes will normally evaporate during operation of the oven. Do not attempt to clean the actual quartz tubes as damage may occur. The oven has self-cleaning panels which are covered with porous enamel that will absorb grease. Do not scrape the surface with sharp utensils or scourers and do not clean using detergent based products. To clean and extend the life of the self cleaning surface :a) After cooking greasy foods - heat the oven when empty for 15minutes with the door open on setting 2(ventilated pastry) and the temperature set to maximum. b) Large splashes of grease should be wiped off with a damp sponge once the oven is cold.

If the cord is damaged it must, for safety reasons, be replaced by Kenwood or an authorised Kenwood repairer. For any repairs in or out of guarantee, servicing or selected spare parts contact the dealer from whom you purchased your appliance.

troubleshooting guide The oven does not work?

Check that it is plugged in Is the timer on? Is the programmable timer set instead of the cooking timer? Is the temperature control set to 0? Is the setting control set to 0? If none of the above check the fuse/circuit breaker for your installation

The oven gives off too much smoke?

Cooking temperature set too high Oven door closed when using the Quartz grill or spit roast setting. If smoking during grilling try adding a small amount of water to the drip tray.

The Oven gets dirty too quickly?

Cooking temperature too high. After cooking greasy/fatty foods - clean the oven by setting it to maximum temperature for 15minutes on setting 2 (Ventilated pastry) with the door open.

specification Exterior dimensions Internal dimensions Weight Capacity Convection power Quartz tube power Bottom heating element power Power Consumption Quartz setting Convection setting -

build up to 200°C Holding for 1 hour at 200°C build up to 200°C Holding for 1 hour at 200°C

550mm (w) X 465mm (D) X 335mm (H) 410mm (W) X 300mm (D) X 280mm (H) 15.5kg 34litres 1500W 1500W 700W
