Product type	Automatic coffee machine with grinder
Brand	Beko
Model	CEG 3194 B
Power supply	220-240 V~, 50-60 Hz
Power	1350 W
Water tank capacity	1.5 L
Bean container	Yes, capacity not specified
Main functions	Espresso, Cappuccino, Latte Macchiato, Hot water
Milk frother	Automatic, integrated
Grind adjustment	Yes, mechanical
Operating modes	Default, ECO, Quick
Automatic shut-off	Yes, adjustable (10/20/30 min depending on mode)
Pre-infusion function	Yes (except Quick mode)
Descaling program	Automatic with indicator
Automatic cleaning	Yes, rinsing before/after brewing
Empty system function	Yes, for long period of non-use
Manual rinsing	Yes
Drip tray	External and internal, with grounds bin
Dispensing spout	Adjustable height
Control panel	Touch with icons
Safety	Automatic shut-off, water protection, child lock not specified
Maintenance	Daily cleaning of frother, cleaning of brewing unit, regular descaling
Original spare parts	Recommended, available from authorized service center
Repairability	Repairs only by authorized service center, use of original parts

Frequently Asked Questions - CEG 3194 B BEKO

How to descale the machine?

Only use a suitable descaling agent. Fill the water tank with the solution, then start the self-cleaning cycle by pressing the Latte button for 5 seconds in standby mode. Follow the on-screen instructions.

Why is the coffee not hot enough?

Preheat the cups and rinse the appliance at least 3 times before preparing coffee. Check that the temperature is sufficient.

What to do if the coffee does not flow?

If the empty system function has been used, press the hot water button until water flows from the spout. Otherwise, check that the water tank is properly in place.

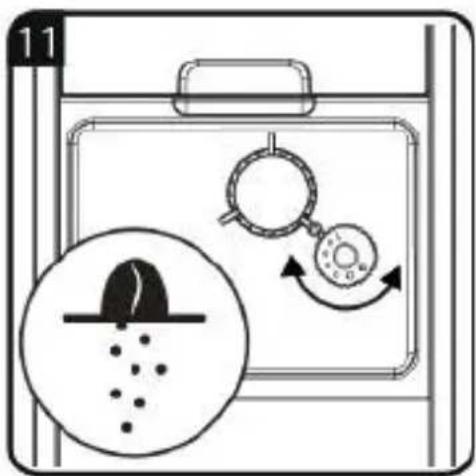

How to adjust the grind fineness?

Turn the adjustment knob while the grinder is running. Never adjust it when stopped to avoid damaging the mechanism.

What type of milk to use for good froth?

Use cold milk (about 5°C) with a protein content of at least 3%. Semi-skimmed or whole cow's milk gives the best results.

How to clean the milk system?

After each use, press the Cappuccino button once for a quick clean. For a thorough clean, disassemble the milk container and hose, clean them with warm water.

What does the flashing descaling indicator mean?

It indicates that descaling is in progress. Wait for the process to end; the machine switches off automatically. Do not turn it off manually.

How to cancel automatic cleaning?

Open the service flap, hold down the on/off button for 5 seconds until you hear a beep, then close the flap.

Why is the milk foam of poor quality?

Check the type of milk and its temperature. Milk that is too hot or too cold froths poorly. Also clean the automatic milk frother.

How to reset the coffee volumes?

Place a cup under the spout, press the beverage button (e.g., Espresso), hold it pressed during dispensing, release when the desired volume is reached. Two beeps confirm memorization.

USER MANUAL CEG 3194 B BEKO

Fully Automatic Espresso Machine

User Manual

Simple line icon of a steaming coffee cup on a saucer (no text or symbols)

CEG 3194 B

EN - DE - FR - TR - ES - CS - IT - PL - RO - SK - NL - RU - SR - AR

CONTENTS

ENGLISH	14-37
DEUTSCH	38-67
FRANÇAIS	68-92
TÜRKÇE	93-121
ESPAÑOL	122-148
ČESKY	149-172
ITALIANO	173-199
POLSKI	200-227
ROMÂNĂ	228-256
SLOVENSKÝ 257-280
NEDERLANDS	281-304
РУССКИЙ 305-333
СРПСКИ 334-358

Exploded view diagram of a device with numbered parts for identification

Illustration of a washing machine and an open box with a red arrow, no text or symbols present

2 150mm 150mm 150mm 150mm 150mm

Diagram showing a cable connector inserted into an RJ4 socket, with an inset view of a power outlet (no text or symbols present)

Line drawing of a device casing with a handle and side panel, no text or symbols present

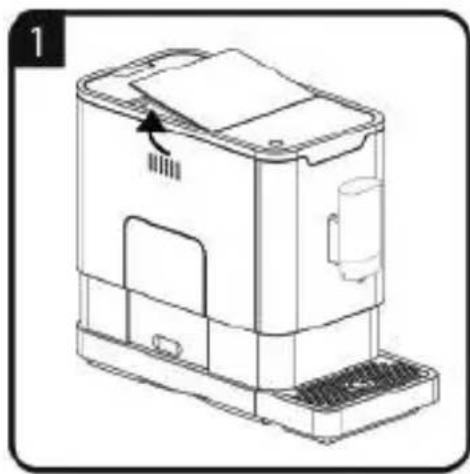

Line drawing of a mechanical device with an upward arrow indicating motion (no text or symbols)

6 Water

Diagram of a device with an arrow indicating transformation or assembly (no text or symbols present)

Line drawing of a mechanical device with a handle and base, showing no text or symbols

Line drawing of a mechanical device with a scroll wheel and directional arrow (no text or symbols)

Line drawing of a device casing with an open lid and internal compartments, showing no text or symbols.

11

Line drawing of a mechanical device with a handle and mounting base (no text or symbols)

Line drawing of a device with a container pouring liquid into it (no text or symbols)

Line drawing of a device casing with an open lid and internal compartments, showing a downward arrow indicating a process (no text or symbols present)

Line drawing of a device casing with a power button icon (no text or symbols)

Line drawing of a portable coffee machine with a side panel and base, no text or symbols present

Line drawing of a coffee maker with a cup and a magnifying glass highlighting the cup (no text or symbols)

Illustration of a coffee machine with a cup pouring liquid, showing a red speech bubble (no text or symbols)

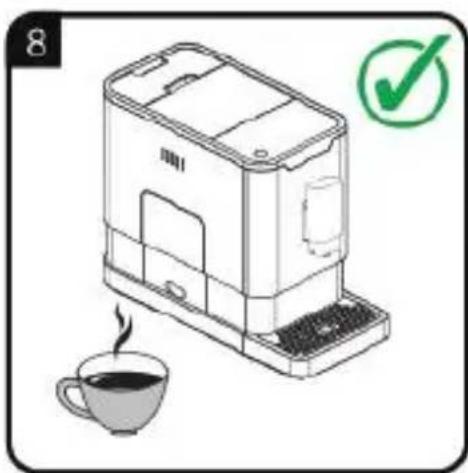

Illustration of a coffee machine with a steaming cup and a green checkmark (no text or symbols)

Illustration of a hand placing a small object into a container with a black arrow indicating direction (no text or symbols)

Illustration of a hand using a stick to press down a small object into a container (no text or symbols)

Diagram showing a hand placing a plastic container into a trash bin with an arrow indicating downward motion (no text or symbols)

Illustration of a hand using a tool to adjust or install a device component (no text or symbols visible)

Line drawing of a hand inserting a small component into a device (no text or symbols)

6 1 MILK 2

Line drawing of a coffee machine with a cup and side arm, no text or symbols present

Line drawing of a coffee maker with a cup and a glass container, no text or symbols present

Illustration of a hand holding a pen, pointing to a cylindrical object with an arrow (no text or symbols)

Line drawing of a device casing with a magnified inset showing four sparkles (no text or symbols)

i ✓ ×

1 MILK 2

Line drawing of a coffee maker with a coffee cup and a coffee cup icon, no text or symbols present

Illustration of a hand using a tool to adjust or install a cylindrical component, with no visible text or symbols.

Line drawing of a modern kitchen appliance with a side table and cup, no text or symbols present

2 1 MILK 2

3 x2

Line drawing of a device housing with an arrow pointing to a component (no text or symbols present)

2

Line drawing of a hand cleaning a rectangular container with a cloth (no text or symbols)

Line drawing of a device with a box and a separate tray, no text or symbols present

5

Line drawing of a hand cleaning a small object next to a rectangular container (no text or symbols)

Line drawing of a device with an open lid and a separate tray, no text or symbols present

Line drawing of a device housing with an arrow pointing to a component (no text or symbols)

Diagram of a trash bin with an upward arrow indicating movement or force (no text or symbols present)

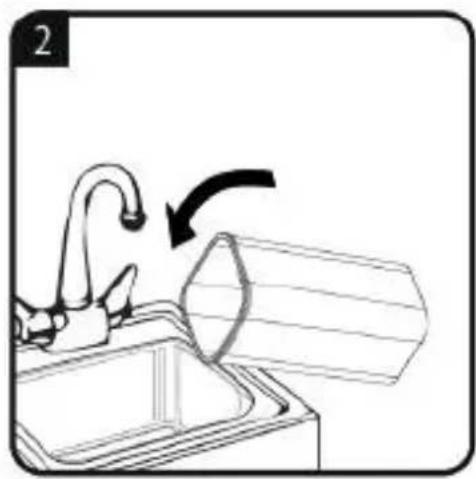

Line drawing of a kitchen sink with faucet and lid, showing a hand holding a bag (no text or symbols)

3

Illustration of a hand cleaning a cylindrical object with a cloth, alongside a small clamp and a separate box (no text or symbols)

Illustration of a hand holding a pen inside a circular frame, with a curved cable attached to the left (no text or symbols)

6 Water 1 2

Line drawing of a coffee machine with a cup, tray, and side panel (no text or symbols)

8 x2

9 x1

Illustration of a hand inserting a small component into a machine (no text or symbols visible)

Diagram of a mechanical device with a cylindrical component and directional arrow, no visible text or symbols

Illustration of a hand operating a sewing machine tool with a black arrow indicating the process (no text or symbols present)

Mechanical assembly diagram showing two connected components with directional arrows indicating motion (no text or symbols)

5

Technical line drawing of a mechanical valve or actuator component (no text or symbols visible)

Mechanical component diagram showing a valve mechanism with no visible text or symbols

Diagram of a mechanical assembly with two components and an arrow indicating rotation (no text or symbols)

Mechanical valve assembly diagram showing internal components and directional arrows (no text or labels)

Mechanical component diagram showing a valve assembly with no visible text or symbols

Illustration of a hand using a tool to adjust or install a cylindrical component, with an arrow indicating the process (no text or symbols present)

Technical line drawing of a mechanical assembly with a cylindrical component and directional arrow (no text or symbols)

Illustration of a hand holding a folding chair with a black arrow pointing to the handle (no text or symbols)

Illustration of a hand holding a smartphone with an arrow indicating the process (no text or symbols present)

Illustration of a hand pressing a component on a device (no text or symbols visible)

Illustration of a hand using a tool to adjust or install a mechanical component, with a black arrow indicating the process (no text or symbols present)

Line drawing of a hand using a tool to adjust or install electronic components (no text or symbols visible)

EN	FIRST USE	OPERATION	LATTE MACCHIATO
DE	VORBEREITUNG	BETRIEB	LATTE MACCHIATO
FR	PREMIÈRE UTILISATION	FONCTIONNEMENT	LATTE MACCHIATO
TR	İLK KULLANIM	KULLANIM	LATTE MACCHIATO
ES	PRIMER USO	FUNCIONAMIENTO	LATTE MACCHIATO
CS	PŘÍPRAVA	OBSLUHA	LATTE MACCHIATO
IT	PRIMO UTILIZZO	FUNZIONAMENTO	LATTE MACCHIATO
PL	PRZYGOTOWANIE	OBSŁUGA	LATTE MACCHIATO
RO	PRIMA UTILIZARE	UTILIZARE	LATTE MACCHIATO
SK	PRÍPRAVA	PREVÁDZKA	LATTE MACCHIATO
NL	VOORBEREIDING	WERKING	LATTE MACCHIATO
RU	ПОДГОТОВКА	ЭКСПЛУАТАЦИЯ	ЛАТТЕ МАКИАТО
AR	لاتيه ماتشيانو التشفيل اول استخدام
EN	CAPPUCCINO MILK	FROTHER FUNCTION CLEANING AND CARE
DE	CAPPUCCINO	MILCHAUFSCHÄUMER-FUNKTION	REINIGUNG UND PFLEGE
FR	CAPPUCCINO	FONCTION MOUSSEUR À LAIT	NETTOYAGE ET ENTRETIEN
TR	CAPPUCCINO	SÜT KÖPÜRTME FONKSİYONU	TEMİZLEME VE BAKIM
ES	CAPPUCCINO	FUNCIÓN DE VAPORIZ-ADOR DE LECHE	LIMPIEZA Y CUIDADOS
CS	CAPPUCCINO	FUNKCE NAPËÑOVÁNÍ MLÉKA	ČIŠTĚNÍ A PÉČE
IT	CAPPUCCINO FUNZIONE MONTALATTE PULIZIA E		MANUTENZIONE
PL	CAPPUCCINO	FUNKCJA SPIENIACZA DO MLEKA	CZYSZCZENIE I KONSER-WACJA
RO	CAPPUCCINO	FUNCTIE SPUMĂ DE LAPTE	CURĂ AREA ŞI İNGRIJIREA
SK	CAPPUCCINO	FUNKCIA NAPEŇOVANIA MLIEKA	ČISTENIE A STAROSTLIVOSŤ
NL	CAPPUCCINO	WERKING MELKOPSCHU-IMER	REINIGING EN VERZORGING
RU	КАПУЧИНО	ФУНКЦИЯ ВСПЕНИВАНИЯ МОЛОКА	ЧИСТКА И УХОД
AR	التنظيف والعناية وظيفة أداة خفق الحليب كابتشينو

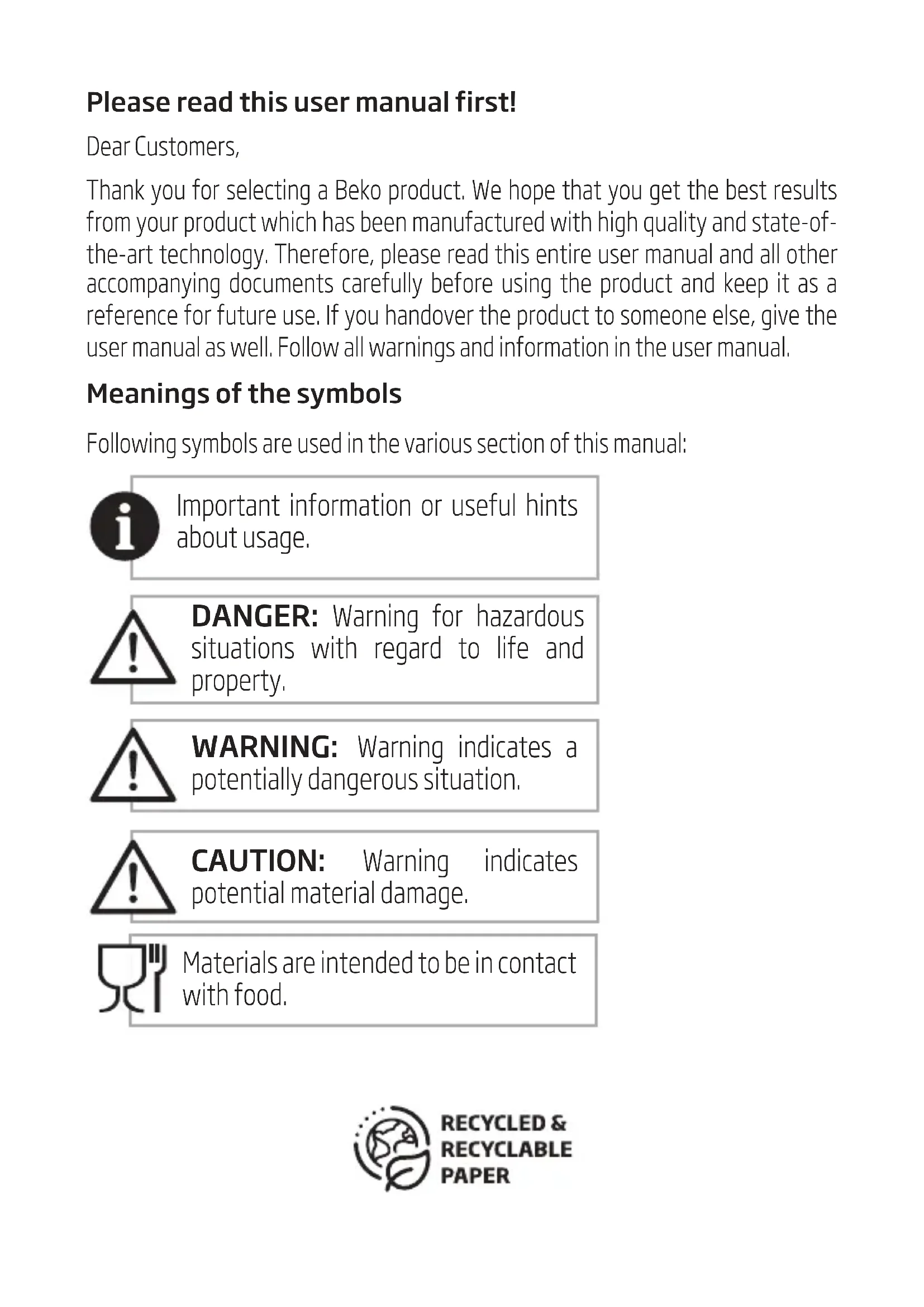

Please read this user manual first!

Dear Customers,

Thank you for selecting a Beko product. We hope that you get the best results from your product which has been manufactured with high quality and state-of-the-art technology. Therefore, please read this entire user manual and all other accompanying documents carefully before using the product and keep it as a reference for future use. If you handover the product to someone else, give the user manual as well. Follow all warnings and information in the user manual.

Meanings of the symbols

Following symbols are used in the various section of this manual:

Important information or useful hints about usage.

DANGER: Warning for hazardous situations with regard to life and property.

WARNING: Warning indicates a potentially dangerous situation.

CAUTION: Warning indicates potential material damage.

Materials are intended to be in contact with food.

1. External Drip Tray
2. Internal Drip Tray
3. Coffee Grounds Container
4. Adjustable coffee spout
5. Control Panel
6. Coffee Bean compartment
7. Coffee Beans Container Cover
8. Water Tank
9. Power cord
10. Brewer
11. Service Door
12. Cleanness brush
13. Milk container
14. Milk container lid
15. Connection milk tube
16. Container milk tube
17. Milk tube connector
18. Connection rubber

Technical data

Power supply:

220-240 V\~, 50-60 Hz

Power: 1350 W

Technical and design modifications reserved.

All declared values on the product and on the printed leaflets are picked up after laboratory measurements performed according to related standards. These values may differ upon usage and ambient conditions.

1 Important instructions for safety and environment

This section includes the safety instructions that will help providing protection against personal injury and material loss risks. Failure to follow these instructions invalidates the granted warranty.

1.1 Danger of electric current

Danger to life by electric current!

Contact with live wires or components could lead to serious injury or even death!

Observe the following safety precautions to avoid electric shocks:

• Do not use the coffee machine if the connecting cable or mains plug are damaged.
• Before reusing the coffee machine, the mains cable must be renewed by a qualified electrician.
• Do not open the housing of the coffee machine. Danger of electric shock if live connections are touched and/or the electrical and mechanical configuration is changed.

1 Important instructions for safety and environment

- Before cleaning the bean container, pull the mains plug of the appliance out of the socket. Danger from rotating coffee mill!

1.2 Danger of burning or scalding

Parts of the coffee machine can become very hot during operation! Dispensed drinks and escaping steam are very hot!

Observe the following safety precautions to avoid burning/scalding yourself and/or others:

• Do not touch either of the metal sleeves on both coffee spouts.
• Avoid direct contact of the skin with escaping steam or hot rinsing, cleaning and descaling water.

1.3 Fundamental safety precautions

Observe the following safety precautions to ensure safe handling of the coffee machine:

- Never play with packaging material. Risk of suffocation.

1 Important instructions for safety and environment

• Inspect the coffee machine for visible signs of damage before use. Do not use a damaged coffee machine.
• If the connecting cable is damaged, it should only be replaced by a service agent recommended by the manufacturer in order to prevent any danger! Please contact the manufacturer or his customer service.
• Repairs to the coffee machine must only be carried out by an authorised specialist or by the works customer service. Unqualified repairs can lead to considerable danger for the user. They will also void the warranty.
• Repairs to the coffee machine during the warranty period may only be carried out by service centres authorised by the manufacturer, otherwise the warranty will become void in the event of subsequent damage.
• Defective parts may only be replaced with original spare parts. Only original spare parts guarantee that the safety requirements are met.

1 Important instructions for safety and environment

• This appliance can be used by children from the age of 8 up as well as by persons with reduced physical, sensory or mental abilities or with lacking experience and/or knowledge, if these persons are supervised or have been instructed how to use the appliance in a safe way and have understood the hazards which could arise from using it. Children must not play with the appliance. Cleaning and user maintenance shall not be made by children unless they are older than 8 and supervised.

• This appliance is intended to be used in household and similar applications such as:

• staff kitchen areas in shops, offices and other working environments,

• farm houses,
• by clients in hotels, motels and other residential type environments,
• bed and breakfast type environments.

- Protect the coffee machine against the effects of weather such as rain, frost and direct sunlight. Do not use the coffee machine outdoors.

1 Important instructions for safety and environment

• Never immerse the coffee machine itself, the mains cable or the mains plug into water or other liquids.
• Do not clean the coffee machine or accessories in a dish washer.
• Do not pour any other liquids apart from water or place foodstuffs into the water tank.
• Do not fill the water tank beyond the maximum mark (lower edge of the filling hole) (1.4 litres).
• Only operate the machine when the coffee grounds container, drip tray and the cup grate are fitted.
• Do not pull the cable to remove the plug from the mains socket or touch with wet hands.
• Do not hold the coffee machine with the mains cable.
• Keep the appliance and its cord out of reach of children aged less than 8 years.
• Do not operate the hot water function continuously for more than one tank of water.

1 Important instructions for safety and environment

1.4 Intended use

The fully automatic coffee machine Beko is intended for use in homes and similar applications, for instance in staff kitchens, shops, offices and similar areas or by customers in bed & breakfast, hotels, motels and other living accommodation. This coffee machine is not intended for commercial use. The machine is only intended for preparing coffee and heating milk and water. Any other use other than previously stated is considered as improper use.

Danger resulting from improper use!

If not used for its intended purpose or used in any other way, the coffee machine may be or become a source of danger.

WARNING: Therefore, the coffee machine may only be used for its intended purpose.

WARNING: Observe the procedures described in this user manual.

No claims of any kind will be accepted for damage or injury resulting from use of the coffee machine for other than its intended purpose.

The risk has to be borne solely by the machine owner.

1 Important instructions for safety and environment

1.5 Limitation of liability

All technical information, data and instructions on installation, operation and maintenance of the coffee machine contained in these operating instructions represent the current status at the time of printing and are based on the best possible knowledge gained by experience and knowhow.

No claims can be derived from the information, illustrations and descriptions in this user manual.

The manufacturer assumes no liability for damage or injury resulting from failure to observe the user manual, use for other than the intended purpose, unprofessional repairs, unauthorised modifications or use of non-approved spare parts.

1.6 Compliance with the WEEE Directive and Disposing of the Waste Product:

This product complies with EU WEEE Directive (2012/19/EU). This product bears a classification symbol for waste electrical and electronic equipment (WEEE).

Symbol of a trash bin with crossed lines and a solid black rectangle below (no text or numbers)

This symbol indicates that this product shall not be disposed with other household wastes at the end of its service life. Used device must be returned to offical collection point for recycling of electrical and electronic devices. To find these collection systems please contact to your local authorities or retailer where the product was purchased. Each househol performs important role in recovering and recycling of old appliance. Appropriate disposal of used appliance helps prevent potential negative consequences for the environment and human health.

1 Important instructions for safety and environment

1.7 Compliance with RoHS Directive

The product you have purchased complies with EU RoHS Directive (2011/65/EU). It does not contain harmful and prohibited materials specified in the Directive.

1.8 Package information

Packaging materials of the product are manufactured from recyclable materials in accordance with our National Environment Regulations. Do not dispose of the packaging materials together with the domestic or other wastes. Take them to the packaging material collection points designated by the local authorities.

2 Display

2.1 Control Panel

	Flashing: Low water level/ Water tank missing
	Lack of bean
	Lights up stably: coffee grounds container is fullFlashing: Internal Drip Tray/coffee groundscontainer is missing
	Lights up stably: Brewer is missing/ installedimproperlyFlashing: Service door is opened / installedimproperly
	Lights up stably: Requires to do descalingFlashing: Descaling is under process
	Empty System Function is running
	Power ON/OFF Button

2 Display

	Hot Water Button
	Espresso Button
	Cappuccino
	Latte Macchiato
	One time: Quick cleanTwo time: Milk frother function

3 Preparation

3.1 Installation

Remove any protective films, stickers and any other packing material on the appliance.

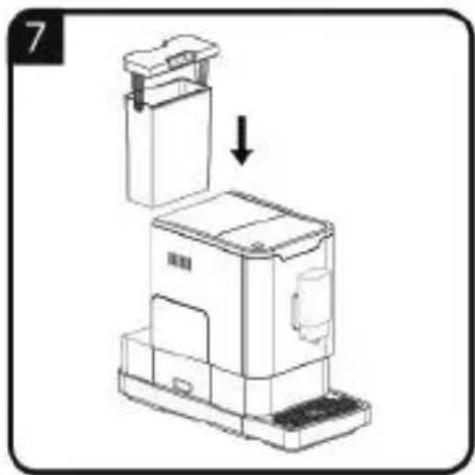

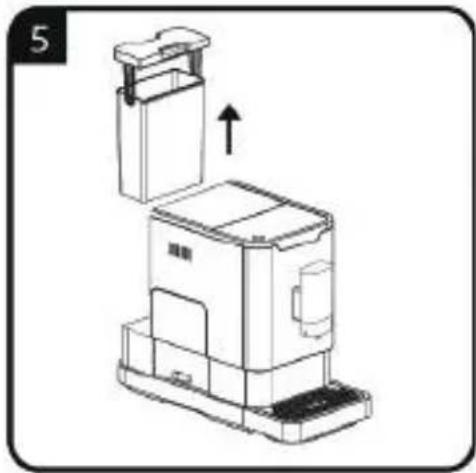

3.2 Filling the water tank

About the protect program: If the water tank is not fully placed into the machine, a protection mode will be activated in 15 seconds during brewing process. Hot water button will lights on control panel.

1. Make sure that the water tank is fully inserted into the machine.
2. Press the hot water button. After the hot water is dispensed, the machine will be in standby condition.

WARNING: When is flashing, the water tank is in low water level and requires filling the water tank.

To prevent overflow of water from the water tank, do not add water directly into the appliance with another container.

WARNING: Never fill the water tank with warm, hot, sparkling water or any other liquid which might damage the water tank and the machine.

4 Operation

WARNING: Never do the grinding adjustment when the grinder is not operating. It may damage the grinder.

The dots on the adjuster knob indicate the fineness of the grind.

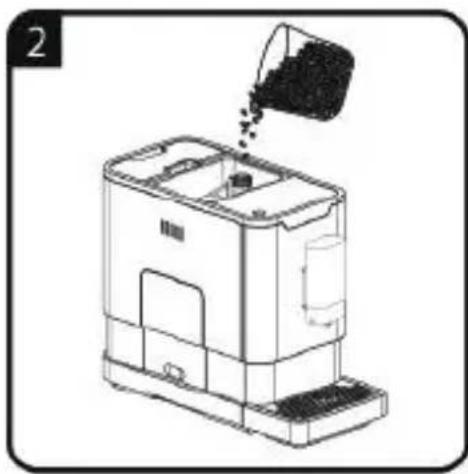

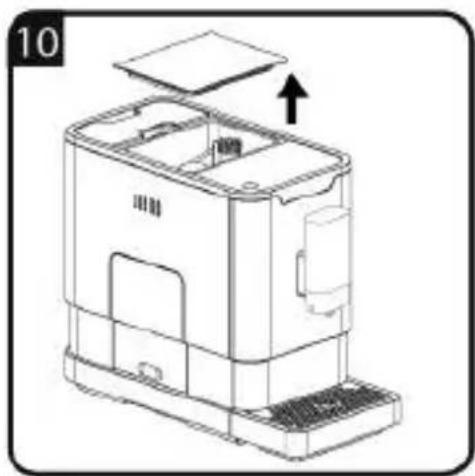

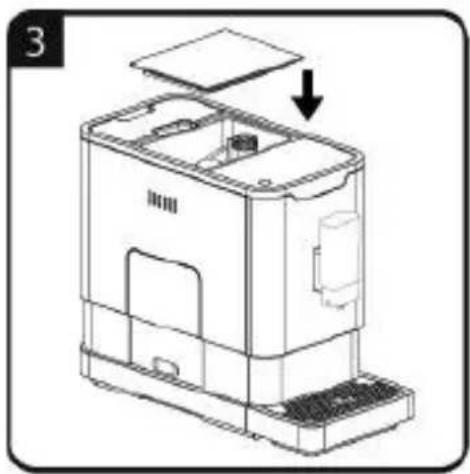

When is flashing, the appliance needs to be filled with coffee bean.

WARNING: Fill the coffee bean container only with coffee beans. Grounded coffee, instant coffee, caramelized coffee and any other objects may damage the machine.

Press the hot water button to clean inside of the coffee maker before first use.

The Appliance is equipped with auto-shut off. Depending on the mode you have selected the appliance will have different auto-shut off timing.

4.1 Adjusting The Volume Of Your Coffee/Hot Water

You can memorize your desired volume of coffee for espresso and also the hot water from 25ml to 250ml.

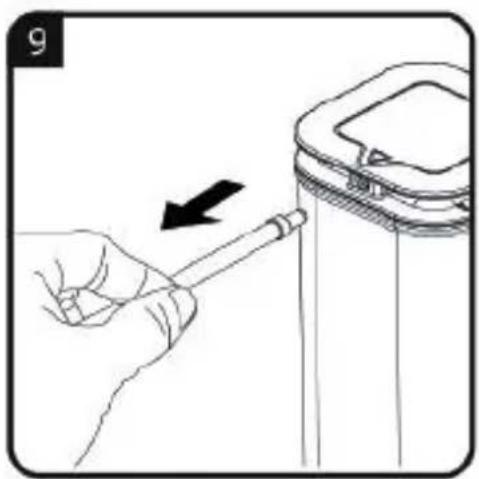

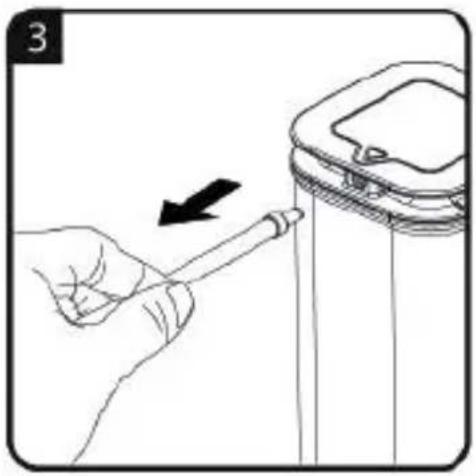

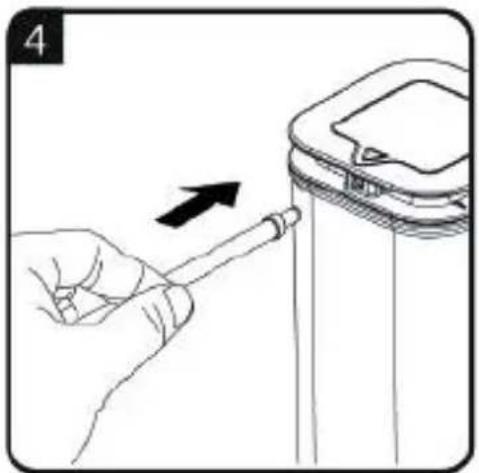

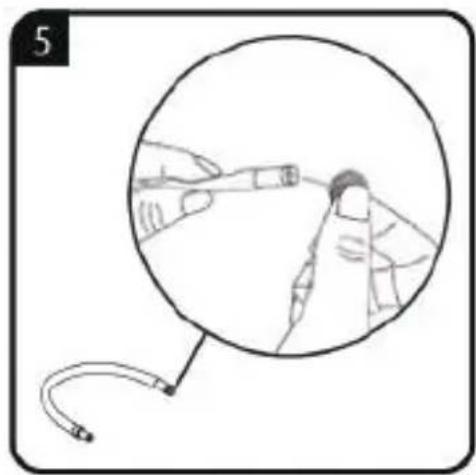

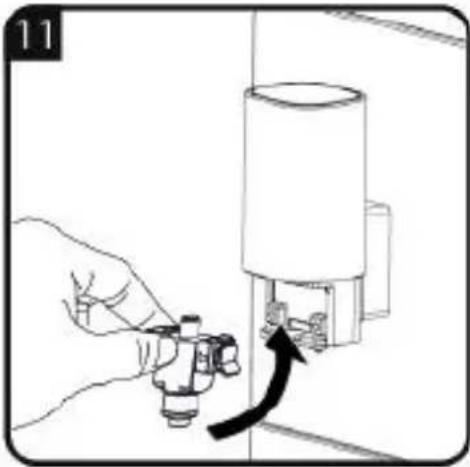

There is a protective cover for the milk tube connector inlet, just take it off when you need to insert the milk tube connector.

4 Operation

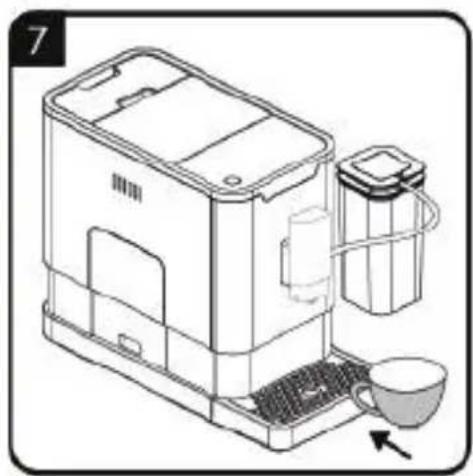

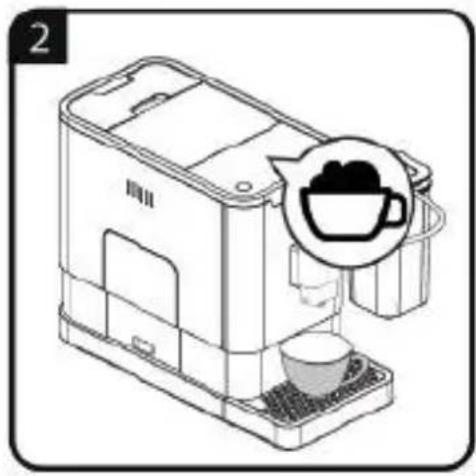

Cleaning the automatic milk froth system before first use.

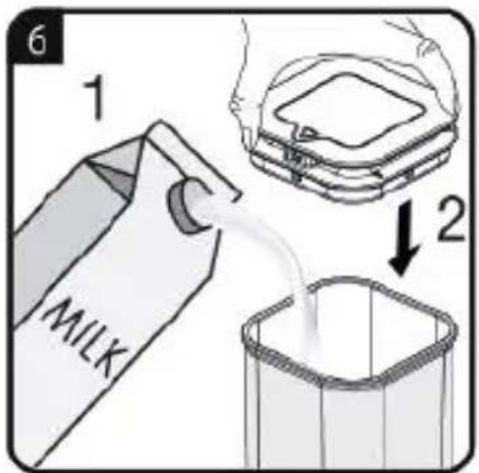

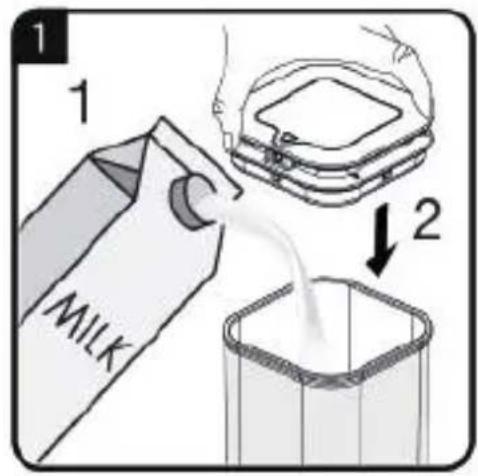

Use cold milk (at a temperature of approximately 5^ C/ 41^ F) with a protein content of at least 3% to ensure an optimal frothing result

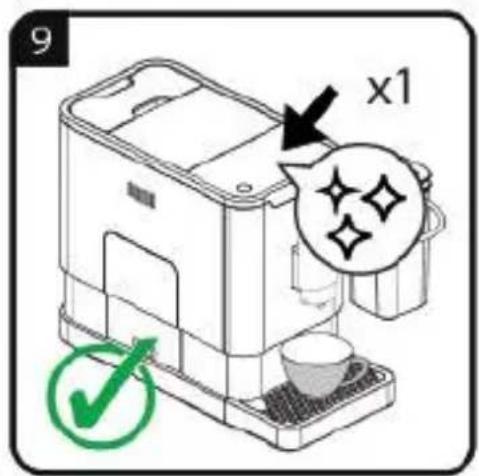

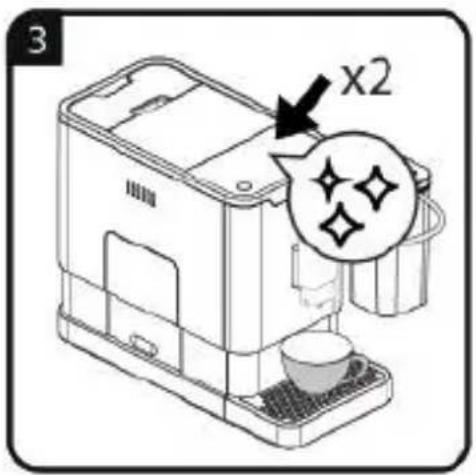

After use, press button once to perform quick cleaning the system. See chapter "Daily Cleaning of the appliance", section cleaning the automatic milk froth system).

4.2 Hot Water

The appliance can dispense hot water by simply pressing the hot water button. The hot water button and the illumination will lights up indicates that the appliance is heating up the water. When the hot water button and the illumination turn off, the water is ready to serve.

4.3 Mode Selection

The machine has two different settings: default setting, ECO mode and speed mode. In ECO mode, the appliance helps to save more energy. In speed mode, the user can make their coffee faster than in default setting.

	ECO Mode Speed Mode Default Setting
Illumination Light No Yes	Yes
Pre-brewing* Yes No Yes
Auto shut off time 10mins	30mins 20mins
Cup Volume memory Yes	Yes Yes

4 Operation

The pre-brewing function moistens the grounded beans in the brewer with a small amount of water before full extraction. This expands the coffee grounds to build up a greater pressure in the brewer which help extraction of all the oils and full flavor from the grounded beans.

1. When the machine is in standby condition, press and holds the 5 seconds.
2. The ⏻ will then be flashing and the following button will have the following indications for different settings:

	Cappuccino button	Latte button Espresso button
In ECO Mode Lights ON Flashing Flashing
In Speed Mode Flashing Lights On Flashing
In Default Setting Flashing Flashing Lights On

1. Press the Cappuccino button for ECO mode, Latte button for speed mode and Espresso button for default setting. Two Beep sound will be heard indicates that the mode is being selected. (Note: If you are pressing the relative lights on button for each mode, the machine will not response).
2. If you would like to remain the setting unchanged, press again or wait for 5 seconds for the machine to return to the standby condition

5 Cleaning

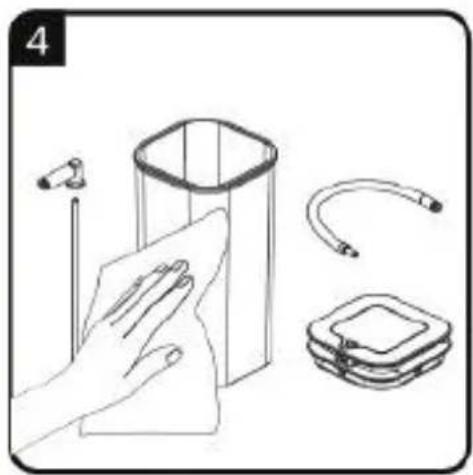

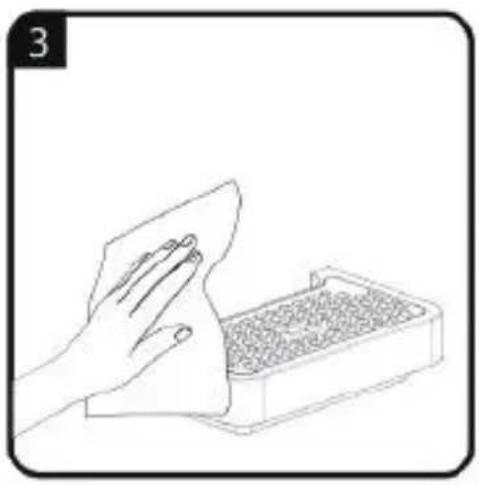

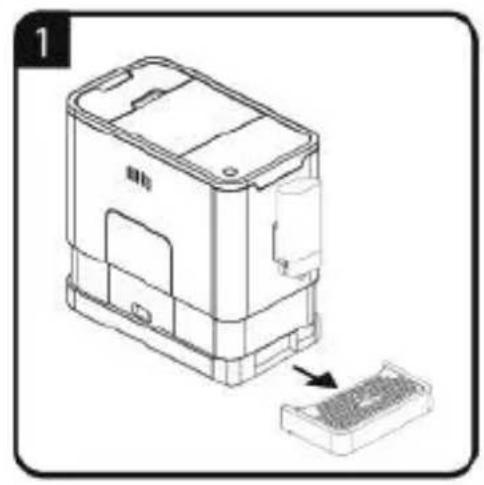

5.1 Cleaning of the appliance

WARNING: Never use any abrasive, vinegar or descaling agents not included in the box to clean the appliance.

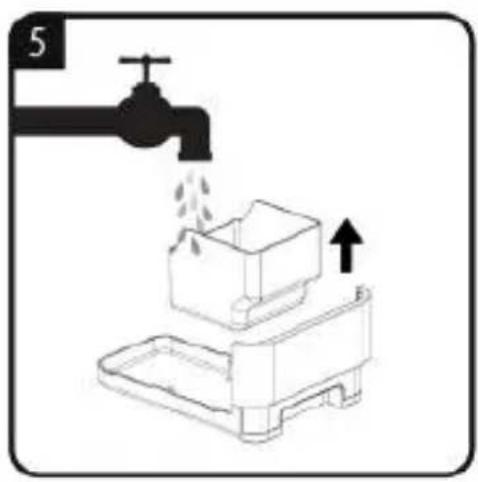

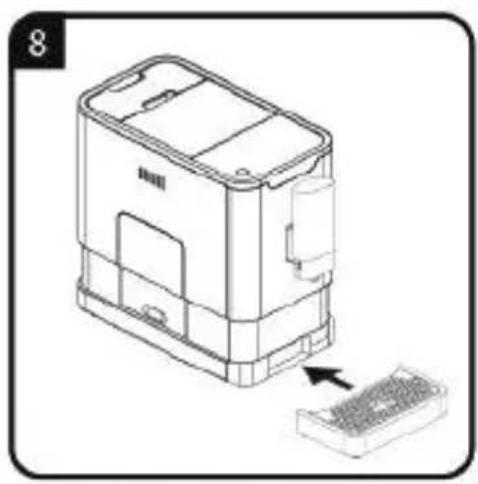

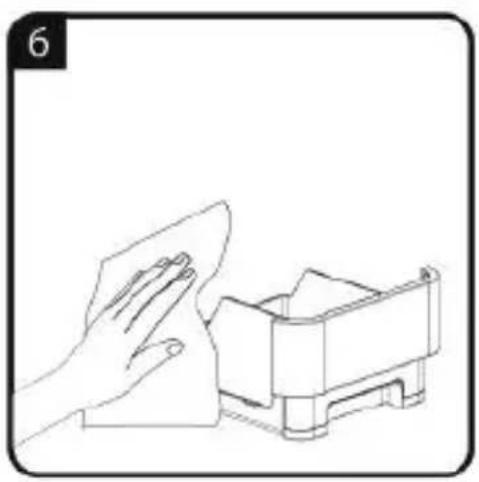

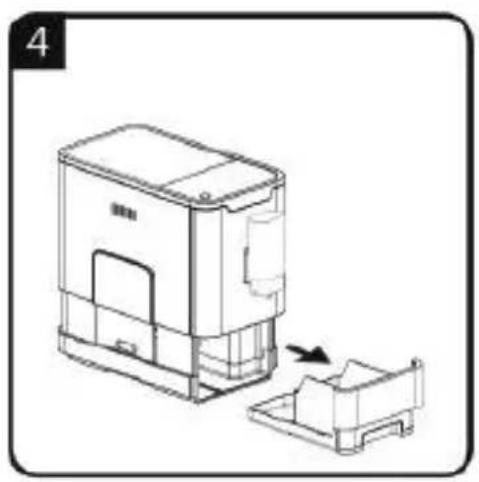

When lights up, the coffee grounds container needs to be emptied. This icon will light up after every 10 coffee brews. Clean the container to reset the icon. If the container is clean, it will be enough to remove the container and put it back in place.

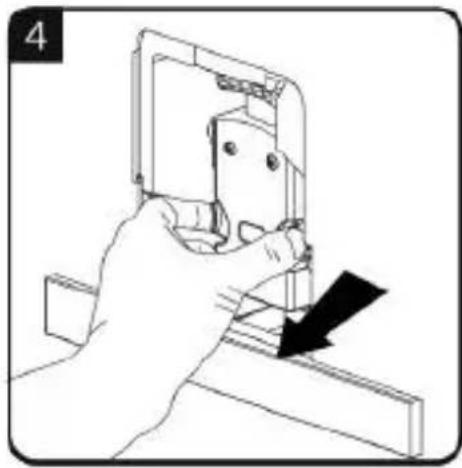

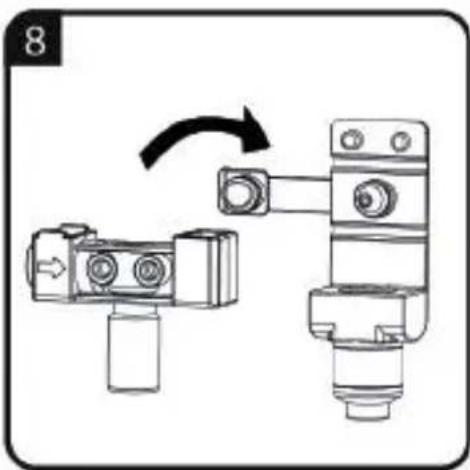

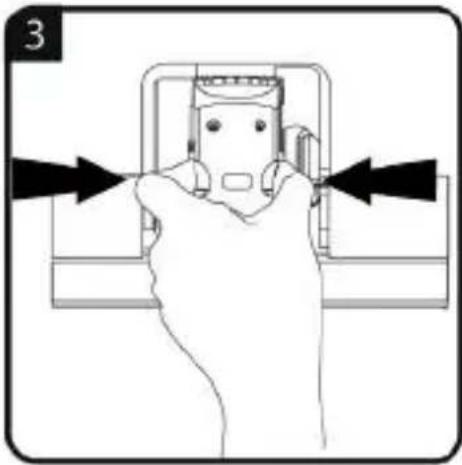

When lights up stably, it indicates that the brewer is missing / installed improperly. When is flashing, it indicates that the service door is missing/installed improperly.

It is important to do this step daily to make sure the function of automatic milk frother running in good condition.

5.2 Self-Cleaning

WARNING: Please wait for finishing the self cleaning process and then switch off the machine.

When using flashing, it indicates that the appliance needs to undergo self-cleaning. The appliance will remain in the best condition if this function is performed at least once a month or more regularly depending on the hardness of water used. It is also suggested that to

1. Fully fill the water tank.

5 Cleaning

1. Add one pack of cleaning agent into the water tank.

WARNING: Do not use vinegar or other cleaning agent to do self-cleaning of this appliance. The cleaning agent might damage the appliance.

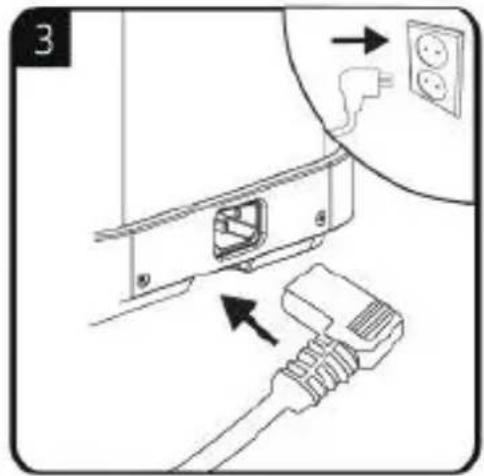

1. Plug in the appliance.
2. Place a sufficient large container under the coffee spout.
3. In standby condition, press and hold and Latte button for 5 seconds. A beep sound will be heard with and Latte button will be flashing.
4. Press Latte button to confirm undergoing the self-cleaning process. To resume back to the standby condition, press ⏻
5. Will be flashing indicates that the appliance is undergoing the self-cleaning process.

WARNING: Keep skin/body away from the hot water.

1. When all the water in the water tank is being dispensed out, and Latte button will be flashing. Remove all the remaining solution in the water tank and fill the tank with normal tap water until the max position. When water is filled into the water tank, will goes off. Then the appliance will continue the self-cleaning process.

2. When the self-cleaning process is completed, the appliance will switch off automatically.

5 Cleaning

5.3 Empty System Function

The empty system function is recommended to be used before long period of non-use, frost protection and before talking to repair agent.

1. In standby condition, press and hold the ⏻ and Espresso button together for 5 seconds.
2. Will then be flashing.
3. Remove the water tank from the appliance. 📋 will light up stably indicates that the empty system is under process. You can press ⏻ before removing the water tank to resume back to the standby condition.
4. When the empty system function is completed, the appliance will switch off automatically.

WARNING: After perform EMPTY SYSYEM FUNCTION; press the hot water button until water can come out from spout when the coffee maker is reused again.

5.4 Manual Rinsing

You can perform a manual rinsing cycle to clean the coffee nozzle after use. It is also suggested to perform a manual rinsing if the appliance has not been used for a long period of time.

1. In standby condition, press and hold the ⏻ and hot water button together.

5 Cleaning

1. ✦ will flashing. The coffee nozzle will then dispense a small amount of water which is used for the rinsing.

WARNING: Water comes out of the coffee nozzle is hot and is collected in the drip tray underneath. Avoid contact with splashes of water.

1. After rinsing, the appliance will return to the standby condition.

5.5 Further Setting

5.5.1 Adjusting The Quantity Of Your Coffee/ Hot Water

The machine can memorize your desired volume of coffee and hot water.

Preparing quantity for Latte Macchiato /Cappuccino/Coffee

1. Place a cup under the spout
2. Switch on the machine, all buttons lights on.
3. Press Latte/Cappuccino / Coffee button, only your desired one illuminates.
4. If machine dispenses milk, press and hold the button to continue and release the button when milk froth reaches your desired volume. Milk froth stops with two beep sounds and the volume is now stored.
5. If machine dispenses coffee, touch and hold the button to continue and release the button when coffee reaches your desired volume. Coffee stops with two beep sounds and the volume is now stored.

Preparing quantity for Hot Water

1. Place a cup under the spout
2. Switch on the machine, all buttons lights on.

5 Cleaning

1. Press Hot Water button, the button illuminates only.
2. The machine dispenses hot water. Touch and hold the button; release the button when it reaches your desired volume. Dispensing stops now and the volume is now stored

The Latte/Cappuccino/Coffee/Hot water button is programmed: every time it's pressed, the machine will brew the same amount set.

Cancelling the auto-clean mode

Your appliance cleans itself automatically before and after each brewing operation. You may follow the steps below to cancel the auto-clean mode.

• Turn on the appliance by pressing the On-Off switch and wait until it engages the Stand-by position.

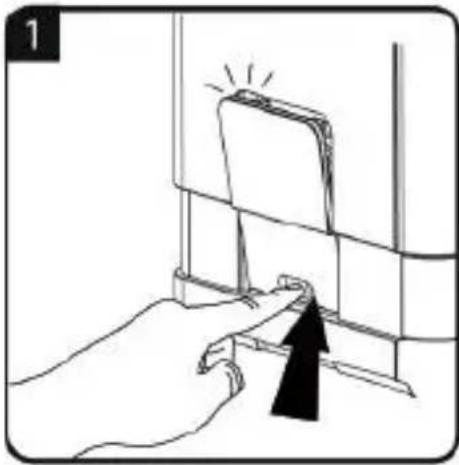

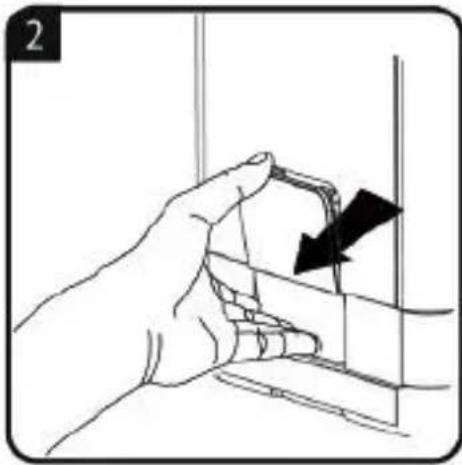

• Open the service cover.
• Press the On-Off switch for 5 seconds, a beep shall be heard.
• Close the service cover.
• Now, the auto-clean operation is cancelled.

We recommend you to use the auto-clean mode actively for a healthy operation.

6 Troubleshooting

Problem Cause Solution
The appliance does not work. The appliance is not connected to the mains.	- Plug in and press the switch.- Check the cable and the Plug
No or delayed response in several trials of pressing on function key on the panel	- Appliance is under an electro-magnetic interference- Dirt over the panel	Unplug the appliance. Restart after few minutes Clean the panel with the cloth provided
The coffee is not hot enough. - The cups have not been pre-heated.- The brewing unit is too cold.	Rinse the appliance at least 3 times before making the coffee.
The coffee cannot come out from spout.	Empty system function maybe used before.	Press the hot water button until water can come out from spout.
The first cup of coffee is poor quality.	The first run of grinder does not pour sufficient quantity coffee power into the brewing unit.	Throw the coffee away. The other coffees will always be of good quality.
Coffee has no cream. - Coffee bean is not fresh. Change or using appropriate brand of coffee bean.
The touch buttons are not sensitive	Not pressing the touch button from the front direction of the appliance	Press the lower bottom part of the icon of the touch button from the front direction of the appliance.
The appliance takes too long time to warm up.	Excessive scale has built up. Descale the appliance.
The water tank is removed / the water level is very low in the water tank but have no alert.	The area near the water tank connector is wet.	Wipe the water around the water tank connector
Internal drip tray is filled with a lot of water.	Coffee powder too fine which block the water to come out.	Adjust the coffee fineness to bigger dot during grinder operation.

6 Troubleshooting

Problem Cause Solution
Coffee is delivered too slowly or a drop at a time.	Coffee powder too fine which block the water to come out.	Adjust the coffee fineness to bigger dot during grinder operation.
Lack of bean indicator flashes but there is still a lot of coffee bean inside the container.	Internal coffee powder outlet is blocked.	Follow the steps in Cleaning the coffee powder outlet.
No milk foam out from the machine	The automatic milk frother is dirty or not assembled or installed correctly	Clean the automatic milk frother and make sure it is correctly assembled or installed.
No milk foam out from the machine	The hole of Milk tube connector is blocked by milk residues	Refer to section “Daily Cleaning of the appliance”, follow “cleaning the milk container and connection milk tube”, Clean the connector and make sure all the hole on the connector is clean, use needle or bristle of brush to clean the hole.

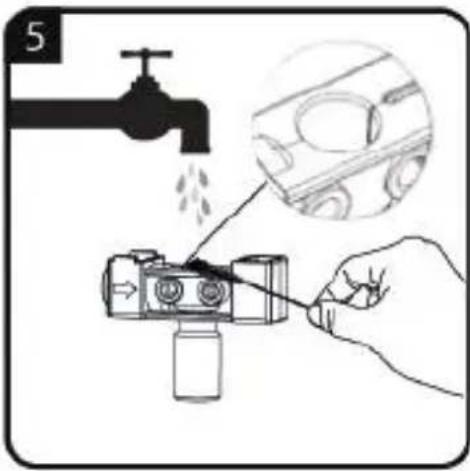

The hole of Milk tube connector is blocked by milk residues which hardly to be cleaned	The milk tube connector not be cleaned for a long time	Soaking the connection milk tube into warm water for an hour, follow the “cleaning the milk container and connection milk tube” in section “Daily Cleaning of the appliance”, keep using frothing milk function to clean until water come from dispenser smoothly. Use needle or bristle of brush to clean the hole
The milk froth is of poor quality	The type of milk used is not suitable for frothing	Different types of milk result in different amounts of froth and different forth qualities. Semi-skimmed or full-fat cow’s milk gives good results.
	The temperature of the milk is too high	No milk foam out from the machine

6 Troubleshooting

Problem Cause Solution

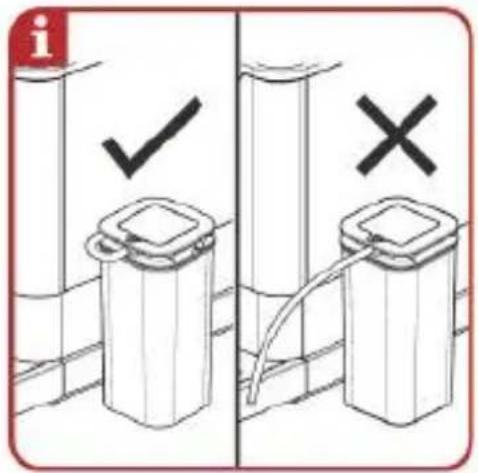

Milk spray out the table Milk dispensing tube is not put in place	Milk foam spray out from dispenser
Descaling indicator keep flashing even after the descaling process	Decaling process is not completed	Please be patient and wait for the process finish. The machine will auto shut off automatically, don't switch off the machine manually
The appliance no longer performs the rinsing cycle when switched on or off.	Improper handling when servicing the appliance may be the cause.	When the appliance is on, remove the coffee group access door.Press and hold the on/off button until you hear 2 beeps.Replace the coffee group access door.

Symbol of a trash bin crossed with no text or numbers, representing waste sorting or disposal (no text present)

Simple line drawing of a trash bin with crossed lines and a black rectangle below (no text or symbols)

Symbol of a trash bin crossed out by a diagonal line, with no text or numbers present.

- https://twitter.com/beko_tr

- https://www.facebook.com/bekoturkiye/

- https://www.youtube.com/user/BekoChannel

* Posta Adresimiz:

Simple line drawing of a trash bin with crossed lines and a blank rectangular base (no text or symbols)

Symbol of a trash bin with crossed lines indicating no waste, and a solid black rectangle below (no text or labels)

Symbol of a trash bin with crossed lines and a solid black rectangle below (no text or labels)

Simple line drawing of a trash bin with crossed lines and a blank rectangular base (no text or symbols)

Symbol of a trash bin with crossed lines and a solid black rectangle below (no text or numbers)

Simple line drawing of a trash bin with crossed lines indicating no waste or discharge (no text or symbols)

Simple line drawing of a trash bin with crossed lines and a blank rectangular base (no text or symbols)

Simple line icon of a steaming cup on a saucer (no text or symbols)

CEG 3194 B

RU

Simple line drawing of a trash bin with crossed lines and a blank rectangular base (no text or symbols)

Symbol of a trash bin with crossed lines and a solid black rectangle below (no text or numbers)

Ovaj simbol označava da se ovaj proizvod ne sme odlagati zajedno s ostalim kućnim otpadom na kraju njegovog radnog veka. Korišćeni aparat mora se vratiti na službeno mesto za sakupljanje za recikliranje električnih i elektronskih uređaja. Da biste pronašli ove sisteme za sakupljanje, obratite se lokalnim nadležnim telima ili prodavcu gde je proizvod kupljen. Svako domaćinstvo igra važnu ulogu u obnavljanju i recikliranju starog uređaja. Odgovarajuće odlaganje korišćenog uređaja pomaže u sprečavanju potencijalnih negativnih posledica po životnu sredinu i zdravlje ljudi.

Warning symbol for a trash bin with crossed lines indicating no waste, and a black rectangle below.

Simple line icon of a steaming coffee cup on a saucer (no text or symbols)

CEG 3194 B

AR
