Product type	Canister vacuum cleaner with bag
Brand	Beko
Model	VCC 44821 AD
Nominal power	800 W
Power supply	220-240 V~, 50-60 Hz
Dust bag capacity	4 L
Operating radius	9 m (cable + hose)
Filter type	HEPA 12
Electrical protection class	Class II
Bag full indicator	Yes
Automatic cable rewind	Yes
Power adjustment	No (fixed power)
Included accessories	Turbo brush, flexible crevice tool, flat nozzle, upholstery brush, double-position brush (carpets/hard floors), telescopic tube
Main brush type	Turbo brush (for rugs and carpets)
Use on hard floors	Yes (with double-position brush)
Weight	Approx 5 kg (estimated)
Dimensions (W × D × H)	Approx 40 × 25 × 30 cm (estimated)
Noise level	Not specified but standard ~75 dB(A)
Maintenance	Change the bag regularly, clean the HEPA filter every 6 months
Spare parts available	Swirl® Y 05® bags, HEPA 12 filters
Warranty	2 years (parts and labor)

Frequently Asked Questions - VCC 44821 AD BEKO

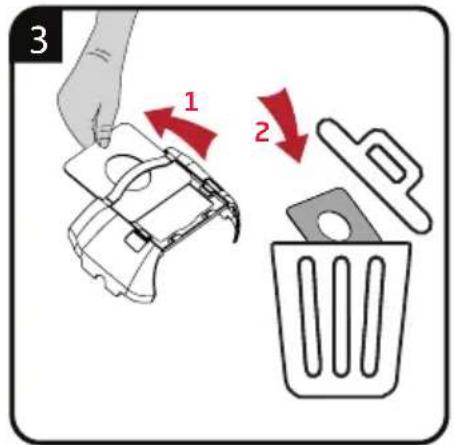

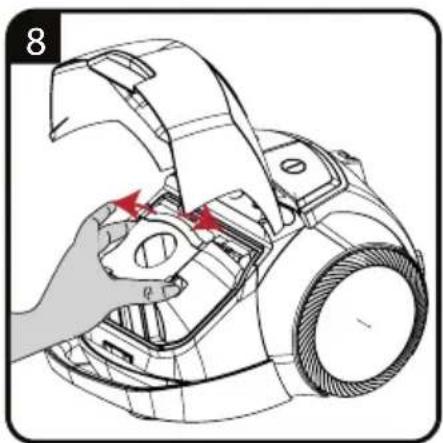

How to change the dust bag?

Unplug the appliance. Open the bag compartment by pressing the opening button. Remove the full bag and insert a new Swirl® Y 05® MicroPor® Plus AntiBac bag. Close the cover until it clicks.

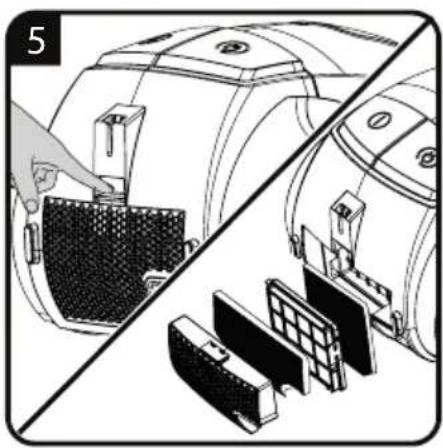

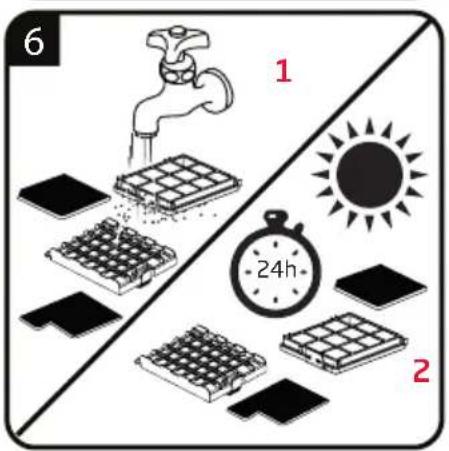

How to clean the HEPA filter?

Unplug the vacuum cleaner. Remove the HEPA 12 filter and gently tap it to remove dust. Wash it with lukewarm water (max 40°C) and let it dry completely for 24 hours before reinstalling. Do not use detergent.

What to do if the bag full indicator remains red?

The red indicator means the bag is full or obstructed. Replace the bag even if it seems half empty. If the problem persists, check that the hose and nozzles are not blocked.

Can I vacuum liquids or hot ashes?

No. Never vacuum water or other liquids, nor hot ashes, glowing cigarette butts or flammable materials. This would damage the appliance and pose a fire risk.

Which accessories to use for upholstered furniture?

Use the upholstery brush (small bristle brush) for curtains, cushions and sofas. Avoid getting too close to the fabric to prevent it from being sucked in.

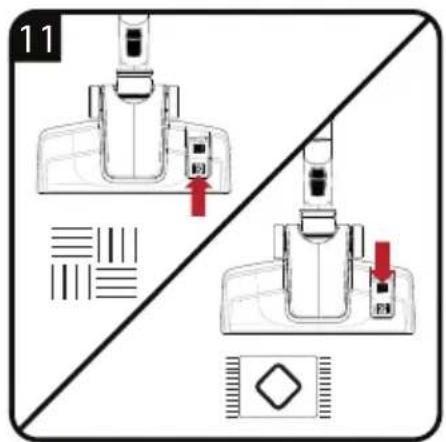

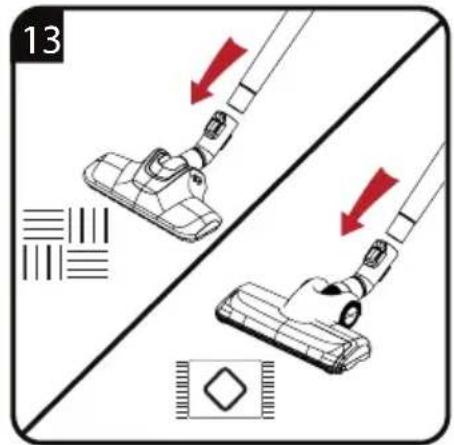

How to use the turbo brush?

The turbo brush is ideal for rugs and carpets. Attach it to the end of the telescopic tube. For hard floors, switch to the 'hard floor' position with the double-position brush.

The power cord does not rewind completely

Make sure the cord is not twisted or stuck. Gently pull the cord to release it, then press the rewind button fully. If the problem persists, contact after-sales service.

Can I use an extension cord?

No, it is not recommended to use an extension cord. Always plug the vacuum cleaner directly into a 220-240 V mains socket with a fuse of at least 16 A.

How to store the vacuum cleaner?

Unplug it, rewind the cord, store the hose and accessories in the designated compartment. Place the appliance in a dry place, away from humidity and out of reach of children.

Where to buy compatible replacement bags?

Use exclusively Swirl® Y 05® MicroPor® Plus AntiBac bags. Available in supermarkets, hardware stores or online. Do not use other brands to ensure performance.

USER MANUAL VCC 44821 AD BEKO

Red and black vacuum cleaner with coiled hose and handle (no visible text or symbols)

VCC 44821 AR

VCC 44821 AD

VCC 44824 AW

VCC 44822 AW

VCC 44822 AB

VCC 44820 AB

EN DE FR ES RO IT

PL \L C\ BG HU

Collection of cleaning and repair tools including brushes, clips, and a gift box with a red arrow (no text or symbols)

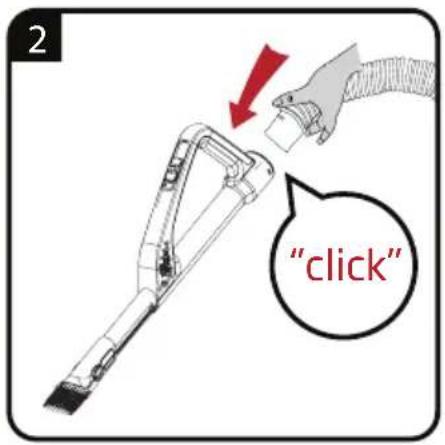

2 "click"

Line drawing of a hand holding a coiled hose next to a vacuum cleaner (no text or symbols)

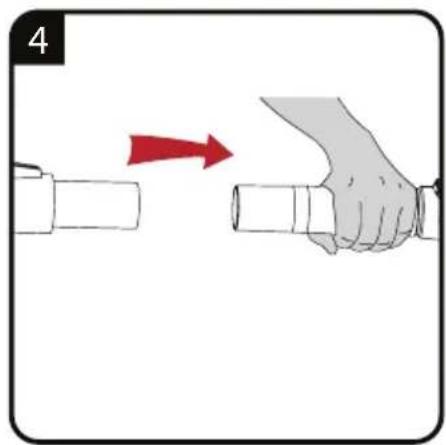

Illustration of a hand holding a pipe fitting with a red arrow indicating motion (no text or symbols)

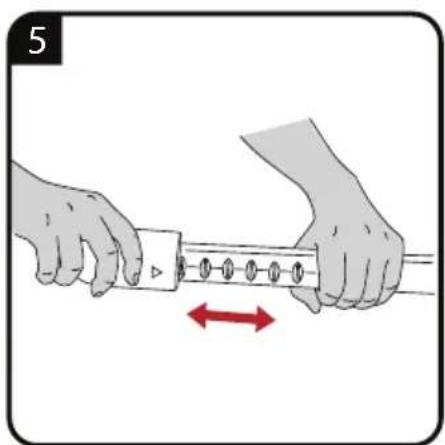

Illustration of hands holding a rectangular object with a red double-headed arrow indicating rotation or movement (no text or symbols)

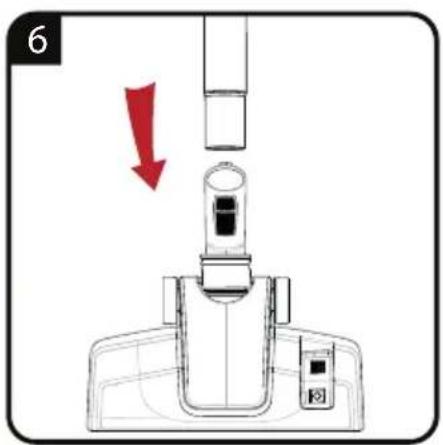

Diagram of a mechanical device with a red arrow indicating downward motion (no text or symbols present)

Illustration of a hand holding a small object with red arrows indicating motion or force (no text or symbols)

Illustration of a mechanical component with arrows indicating direction (no text or symbols)

9 2 1

10 ON

11

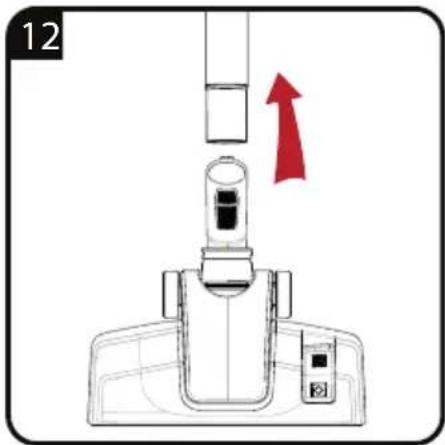

Diagram of a mechanical device with a red arrow indicating upward motion (no text or symbols present)

13

Diagram showing two mechanical components with red arrows indicating motion or movement, no text or symbols present

1 OFF 2 3

Technical line drawing of a mechanical component with a red arrow indicating direction (no text or symbols)

Line drawing of a hand holding a vacuum cleaner with a red arrow indicating the handle (no text or symbols present)

Illustration of a hand using a tool to adjust or install a device component, with no visible text or symbols.

3 1 2

Diagram showing a hand placing a component into a vehicle chassis, with no visible text or symbols.

Diagram showing a hand inserting a component into a cylindrical device, with additional components visible below (no text or symbols)

6 1 24h 2

Hand holding a game controller with a red arrow indicating motion (no text or symbols)

Technical illustration of a mechanical device with red arrows indicating a component or operation (no text or symbols present)

Line drawing of a vacuum cleaner with a red arrow indicating the process (no text or symbols present)

EN	OPERATION CLEANING AND CARE
DE	BETRIEB REINIGUNG UND PFLEGE
FR	FONCTIONNEMENT NETTOYAGE ET ENTRETIEN
ES	FUNCIONAMIENTO LIMPIEZA Y CUIDADOS
RO	UTILIZARE CURĂȚAREA ȘI ÎNGRIJIREA
IT	UTILIZZO PULIZIA E CURA
PL	OBSŁUGA CZYSZCZENIE I KONSERWACJA
SL	DELOVANJE ČIŠČENJE IN VZDRŽEVANJE
CS	PROVOZ ČIŠTĚNÍ A PÉČE
BG	РАБОТА ПОЧИСТВАНЕ И ГРИЖИ
HU	MŰKÖDÉS TISZTÍTÁS ÉS KARBANTARTÁS

Please read this user manual first!

Dear Customers,

Thank you for selecting a Beko product. We hope that you get the best results from your product which has been manufactured with high quality and state-of-the-art technology. Therefore, please read this entire user manual and all other accompanying documents carefully before using the product and keep it as a reference for future use. If you handover the product to someone else, give the user manual as well. Follow all warnings and information in the user manual.

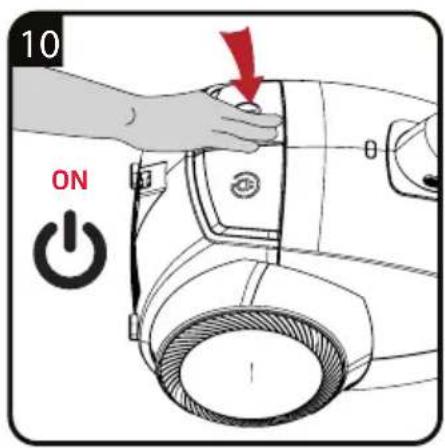

1. ON/OFF button
2. Dust bin indicator

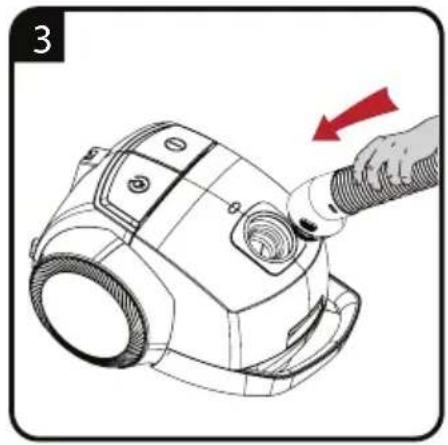

3. Hose inlet

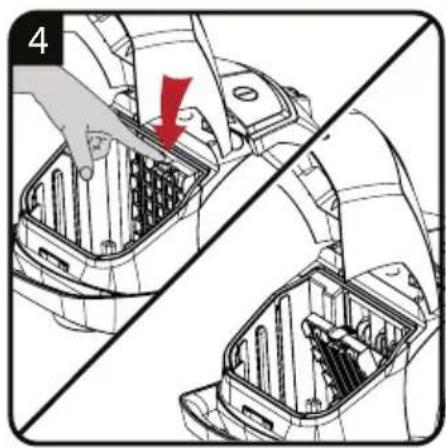

4. Dust container opening latch
5. Carriage handle

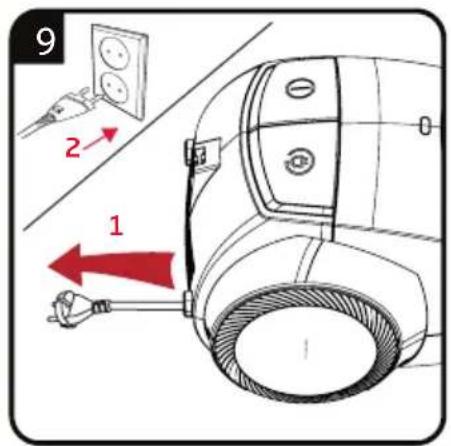

6. Power cord
7. Power cable winding button
8. Parquet/carpet brush parking groove
9. Hose
10. Parquet brush (VCC 44822 AW, VCC 44822 AB, VCC 44824 AW)
11. Turbo brush (VCC 44821 AR, VCC 44821 AD)

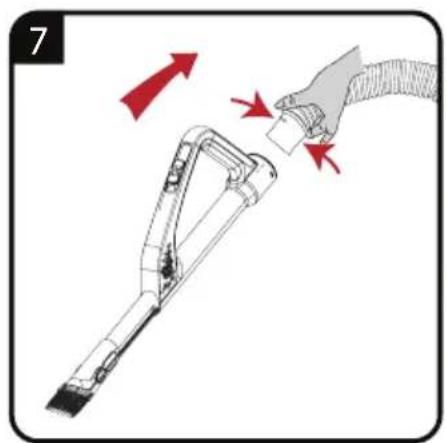

12. Handle
13. Telescopic tube
14. Flexible crevice (VCC 44821 AR, VCC 44822 AB)
15. Crevice tool (VCC 44824 AW, VCC 44821 AD, VCC 44822 AW, VCC 44820 AB)
16. Upholstery brush
17. Soft brush (VCC 44824 AW)
18. Elbow (VCC 44824 AW)
19. Main brush

Meanings of the symbols

Following symbols are used in the various section of this manual:

Important information and useful hints about usage.

WARNING: Warnings for dangerous situations concerning the safety of life and property.

Protection class for electric shock.

Technical data

Power supply : 220-240 V\~ 50-60 Hz

Power : 800 W

Dust capacity : 4 L

Operation radius : 9 m

Filter : HEPA 12

Technical and design modifications reserved.

The values which are declared in the markings affixed on your appliance or the other printed documents supplied with it represent the values which were obtained in the laboratories pursuant to the pertinent standards. These values may vary according to the usage of the appliance and ambient conditions.

This product has been produced in environmentally-friendly, state-of-the-art facilities.

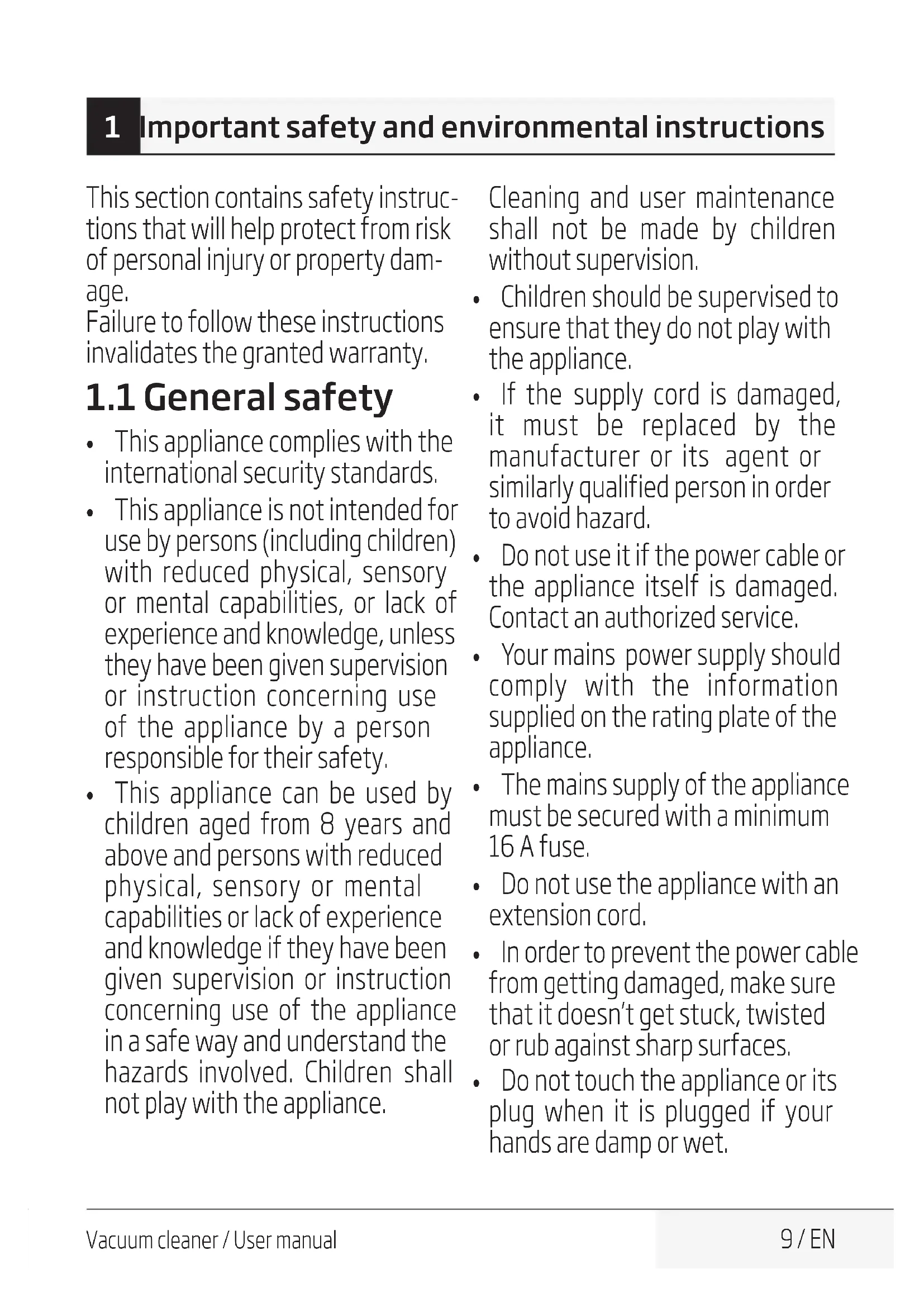

1 Important safety and environmental instructions

This section contains safety instructions that will help protect from risk of personal injury or property damage.

Failure to follow these instructions invalidates the granted warranty.

1.1 General safety

• This appliance complies with the international security standards.
• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance.

Cleaning and user maintenance shall not be made by children without supervision.

• Children should be supervised to ensure that they do not play with the appliance.
- If the supply cord is damaged, it must be replaced by the manufacturer or its agent or similarly qualified person in order to avoid hazard.
- Do not use it if the power cable or the appliance itself is damaged. Contact an authorized service.
- Your mains power supply should comply with the information supplied on the rating plate of the appliance.
- The mains supply of the appliance must be secured with a minimum 16 A fuse.
- Do not use the appliance with an extension cord.
- In order to prevent the power cable from getting damaged, make sure that it doesn't get stuck, twisted or rub against sharp surfaces.
- Do not touch the appliance or its plug when it is plugged if your hands are damp or wet.

1 Important safety and environmental instructions

• Do not pull the power cable when unplugging the appliance.
• Do not vacuum flammable materials and when vacuuming cigarette ashes make sure that it got cold.
• Do not vacuum water or other liquid materials.
• Protect the appliance from rain, humidity and heat sources.
• Never use the appliance in or near to combustible or inflammable places and materials.
• Unplug the appliance before cleaning and maintenance.
• Do not dip the appliance or its cable in water to clean it.
• Check the hose of the appliance regularly. Do not use if it is damaged and contact an authorized service.
• Do not attempt to dismantle the appliance.
• Only use the original parts or parts recommended by the manufacturer.

• The plug must be removed from the socket-outlet before cleaning or maintaining the appliance.

• If heavily used for cleaning dust such as cement or grout the dust indicator will lit earlier then expected, in such case replace the dust bag even it is empty.

• Do not use the appliance without filters; otherwise it can get damaged.
• Keep fingers, hair and loose clothing from moving parts and openings whilst using the vacuum cleaner.
• When vacuuming the stairs, the appliance should be located below the user.
• If your store the package material, keep it out of the reach of children.

2 Information

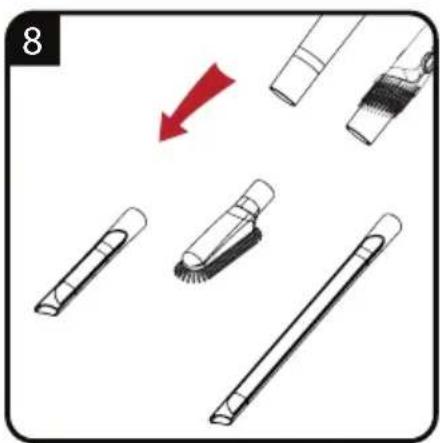

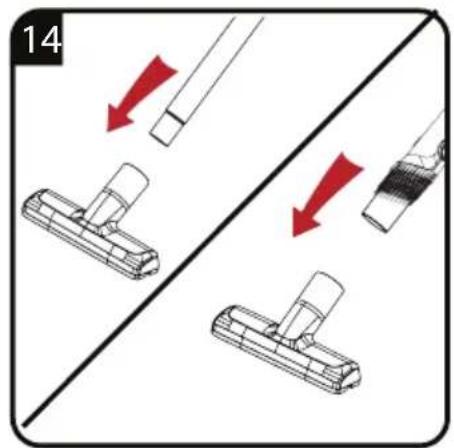

2.1 Usage areas of accessories

Upholstery tool: Curtains, cushions, sofas and upholstery fabrics.

Flexible crevice tool: Behind furniture, hard-to-reach areas and narrow gaps.

Crevice tool: Hard-to-reach areas and narrow gaps.

Soft brush: Sensitive flat areas, bookshelf, wooden furnitures.

Elbow: To access door frames, cupboard tops and behind cabinets.

2.2 Recommended vacuum cleaner bag

We recommend: Swirl® Y 05® MicroPor® Plus AntiBac vacuum cleaner bags.

Swirl®, MicroPor® and Y 05® are registered trade marks of a company of the Melitta group and used with their permission.

2.3 Cleaning and care

Switch off and unplug the appliance, before cleaning it.

WARNING: Never use gasoline, solvent, abrasive cleaning agents, metal objects or hard brushes to clean the appliance.

2.4 Compliance with the WEEE Directive and Disposing of the Waste Product

This product complies with EU WEEE Directive (2012/19/EU). This product bears a classification symbol for waste electrical and electronic equipment (WEEE).

This product has been manufactured with high quality parts and materials which can be reused and are suitable for recycling. Do not dispose of the waste product with normal domestic and other wastes at the end of its service life.

Take it to the collection center for the recycling of electrical and electronic equipment. Please consult your local authorities to learn about these collection centers.

2.5 Compliance with RoHS Directive

The product you have purchased complies with EU RoHS Directive (2011/65/EU). It does not contain harmful and prohibited materials specified in the Directive.

2.6 Package information

Packaging materials of the product are manufactured from recyclable materials in accordance with our National Environment Regulations. Do not dispose of the packaging materials together with the domestic or other wastes. Take them to the packaging material collection points designated by the local authorities.

2.7 Storage

• If you do not intend to use the appliance for a long time, store it carefully.
• Pull the appliance's plug out.
• Keep the appliance out of the reach of children.
