AX31201BL - Air purifier AEG - Free user manual and instructions

Product type	Air purifier
Brand	AEG
Model	AX31201BL
Power supply	220-240 V ~ 50/60 Hz
Number of fan speeds	Manually adjustable multi-speeds
Operating modes	Manual, automatic, sleep
Air quality sensor	PM2.5 sensor with light indicator (green, yellow, orange, red)
Filter replacement indicator	Yes, flashing then solid red
Filter type	Non-washable multi-layer filter (ref. AFFBRZ2)
Pre-filter	Wipeable
Filter installation	Open base by twisting, insert filter, close
Appliance cleaning	Damp cloth or vacuum with soft brush; unplug before
Child safety	Not allowed for children under 3 without supervision; use from age 8 with supervision
Electric shock protection	Grounding required; do not use extension cord
Recommended spare part	Replacement filter AFFBRZ2
Repairability	Repairs exclusively by an AEG authorized repairer
Number of manual pages	46 pages
Available languages	French, English, German, Spanish, Italian, Dutch, Portuguese, Greek, Bulgarian, etc.
Fan error code	Display off, device unusable
Sensor error code	Air quality indicator off, automatic mode disabled

Frequently Asked Questions - AX31201BL AEG

How to install the filter of the AEG AX31201BL air purifier?

First of all, turn off the device. Open the base by turning counterclockwise using the handle. Remove the filter from its plastic packaging and insert it in the center of the cavity (the filter works in both directions). Close the base by turning clockwise until it is securely in place.

How to reset the filter replacement indicator?

When the filter change indicator flashes red or stays solid red, replace the filter then press the mode icon ' ' for 3 seconds. The red light will turn off, confirming the reset.

Can I wash the filter of my AEG purifier?

No, the multi-layer filter is not washable. It must be replaced with a new one (ref. AFFBRZ2). Only the pre-filter can be wiped with a damp cloth.

What do the colors of the air quality indicator mean?

The PM2.5 sensor displays: Green (0-12 µg/m³, very good quality), Yellow (13-35, good), Orange (36-55, poor), Red (>56, very poor).

How to use automatic mode and sleep mode?

Touch the ' ' icon to switch between modes. In AUTO mode, the device adjusts the speed according to air quality. In SLEEP mode, it operates silently and all indicators (except the SLEEP icon) turn off.

What to do if the purifier does not turn on?

First check that the power cord is properly inserted into the device and the wall outlet. Then, open the bottom of the device, readjust the filter to the center, close correctly and lock. If the problem persists, contact an AEG authorized repairer.

Why is my purifier making a lot of noise?

The noise may come from an uneven installation surface or a poorly inserted filter. Place the device on a flat floor and ensure the filter is properly positioned in the center of its compartment.

How to clean the AEG AX31201BL air purifier?

Always unplug the device before cleaning. Use a damp cloth or a vacuum cleaner with a soft brush. For the plastic housing, a cloth dampened with warm water and mild detergent is suitable. Never use harsh cleaners, wax or polish.

What are the important safety precautions for this purifier?

Never use an extension cord or adapter plug. Do not obstruct the air inlets/outlets. Keep children under 3 years away. Unplug before cleaning. In case of burning smell or sparks, stop immediately and call an AEG authorized repairer.

What do the error codes on the device mean?

If the screen turns off and the device no longer responds, it is a fan failure. If the air quality indicator turns off and automatic mode is unavailable, the sensor is faulty. In both cases, contact an AEG authorized repairer.

USER MANUAL AX31201BL AEG

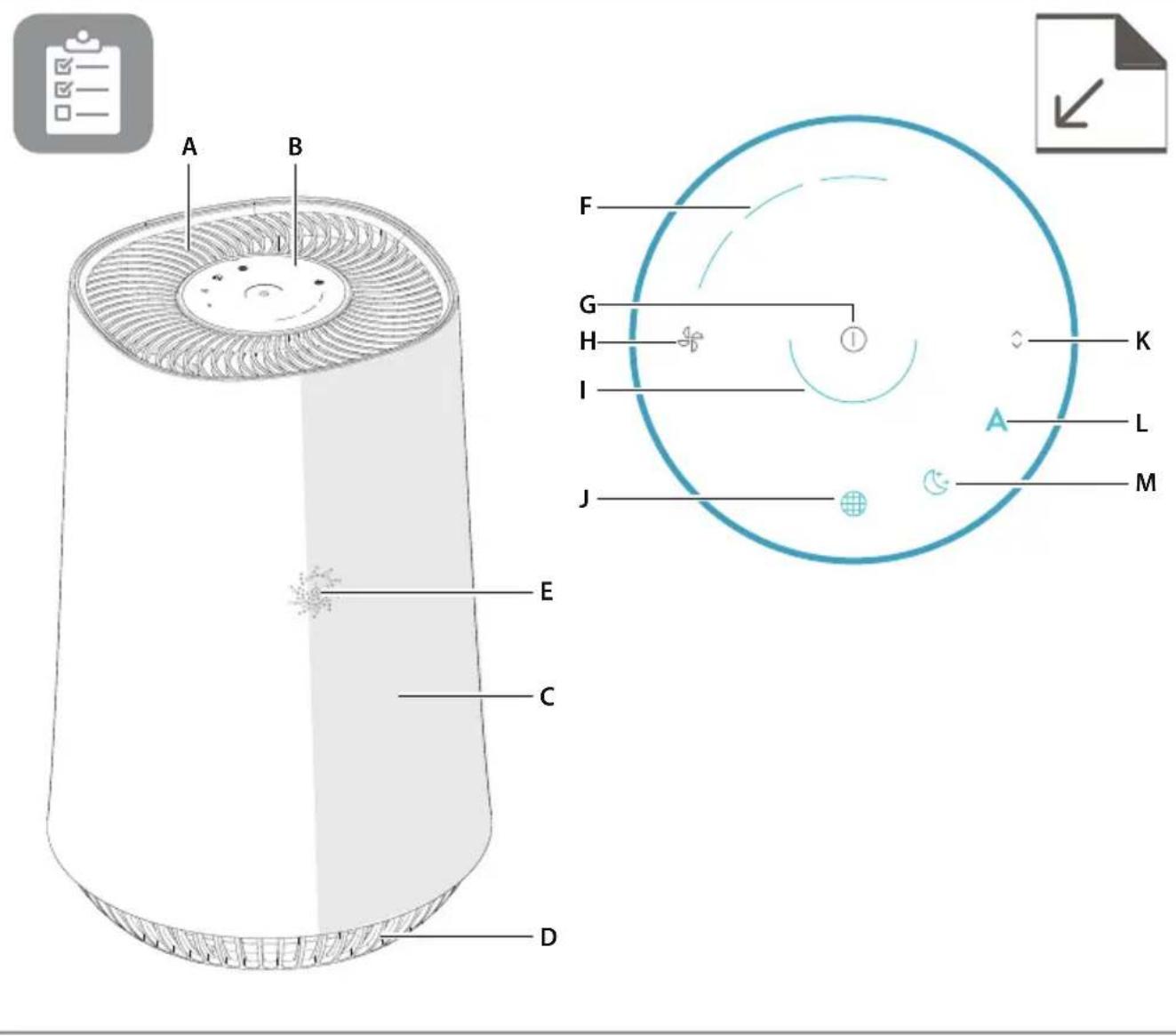

EN DESCRIPTION OF YOUR AIR PURIFIER AX3

Appliance:

A. Air outlet B. UI panel C. Main body D. Base E. Sensor window & Adapter jack

Control panel:

F. Fan speed indicator G. Power on/off H. Fan speed control I. Air quality indicator J. Filter change indicator

K. Toggle mode & Filter reset L. Auto mode indicator M. Sleep mode indicator

SAFETY INFORMATION

This USER MANUAL provides specific operating instructions for your model. Use the unit only as instructed in this USER MANUAL. These instructions are not meant to cover every possible condition and situation that may occur. Common sense and caution must be practiced when installing, operating, and maintaining any appliance.

WARNING! Avoid fire hazard or electric shock. Do not use an extension cord or an adaptor plug. Do not remove any prong from the power cord. This appliance can be used in 50Hz or 60Hz power supply without any change.

Do not under any circumstances, cut, remove or bypass the grounding prong.

Do not store or use gasoline or other flammable vapors and liquids in the vicinity of this or any other appliance. Read product labels for flammability and other warnings.

Do not let water or any other liquid or flammable detergent enter the appliance to avoid electric shock and/or a fire hazard.

Do not touch the fan blade when removing the filter.

Children and Vulnerable People Safety

WARNING! Risk of suffocation, injury or permanent disability.

This appliance can be used by children aged 8 years and above and persons with reduced physical, sensory, or mental capabilities, or lack of experience and knowledge, if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

Children shall not play with the appliance.

Cleaning and user maintenance shall not be made by children without supervision.

Children under 3 years of age should be kept away from the appliance unless continuously supervised.

Keep all packaging away from children.

If the appliance has a child safety device, we recommend you activate it.

Electrical Information

WARNING! Avoid fire hazard or electric shock.

If you are not sure the outlet is adequately grounded or protected by a time delay fuse or circuit breaker, have a qualified electrician install the proper outlet according to the National Electrical Code and applicable local codes and ordinances.

Do not use an extension cord or an adapter plug.

Never unplug the unit by pulling on the power cord.

Always grip the plug firmly and pull straight out from the receptacle.

Do not pinch, bend, or knot the power cord.

Do not cut or damage the power cord. If the power cord is damaged, it should only be replaced by an authorized AEG servicer. This unit contains no user-serviceable parts. Always call an authorized AEG servicer for repairs.

If the supply cord is damaged, it must be replaced by the manufacturer, its service agent, or similarly qualified persons in order to avoid a hazard.

Be sure to unplug the unit before cleaning to prevent shock or fire hazards.

Safety Precautions

CAUTION! Avoid Serious Injury or Death.

Do not insert or place fingers or objects into the air discharge area or front grille of the unit.

Do not start or stop the unit by unplugging the power cord or turning off the power at the electrical box.

In the event of a malfunction (sparks, burning smell, etc.), immediately stop the operation, disconnect the power cord, and call an authorized AEG servicer. Do not operate the unit with wet hands.

Do not pull on the power cord.

CAUTION! Avoid Injury or damage to the unit or other property.

Do not direct airflow at fireplaces or other heat related sources as this could cause flare ups.

Do not climb on or place objects on the unit.

Do not hang objects off the unit.

Do not place containers with liquids on the unit.

Turn off the unit at the power source when it will not be used for an extended period of time.

Operate the unit with air filter in place.

Do not block or cover the intake grille, discharge area and outlet ports.

Ensure that any electrical/electronic equipment is 30 cm away from the unit.

DISPOSAL

This symbol on the product indicates that this product contains a battery which shall not be disposed with normal household waste.

This symbol on the product or on its packaging indicates that the product may not be treated as household waste.

To recycle your product, please take it to an official collection point or to an AEG service center that can remove and recycle the battery and electric parts in a safe and professional way. Follow your country's rules for the separate collection of electrical products and rechargeable batteries.

ENGLISH

Thank you for choosing the AEG air purifier AX3. Always use original accessories and spare parts to get the best results. This product is designed with the environment in mind. All plastic parts are marked for recycling purposes.

BEFORE STARTING

• Read this manual carefully.
• Check that all parts described are included.
• Pay special attention to the safety precautions!

SET UP

The filters have to be installed before use.

Caution: Switch off the device before installing filters.

1 Open the base of the filter

Open the product by rotating the base in an anticlockwise direction using the handle provided at the bottom until it comes loose (see picture 1).

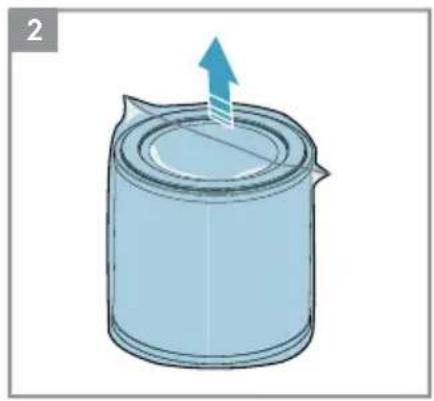

2. Take out the filter and remove the filter bag.

Carefully remove the filter, including its plastic packaging, from the unit. Break open the plastic bag and discard it appropriately (see picture 2).

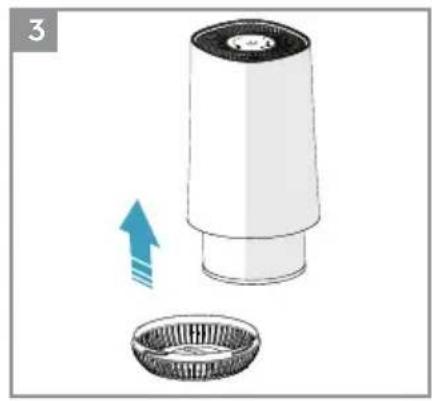

3. Install the filter.

Carefully insert the filter back into the product without the plastic packaging (either end of the filter works). Ensure the filter is placed in the center of the cavity (see picture 3).

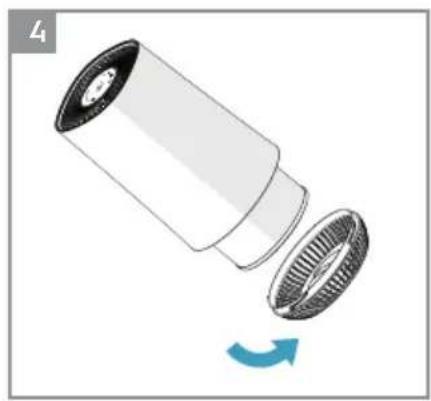

4. Close the base.

Close the product by rotating the base in a clockwise direction using the handle provided at the bottom until it is securely in place (see picture 4).

OPERATION

Caution: Ensure the filters are correctly inserted in the filter compartment, the equipment is installed on a level surface, and the power plug is firmly connected.

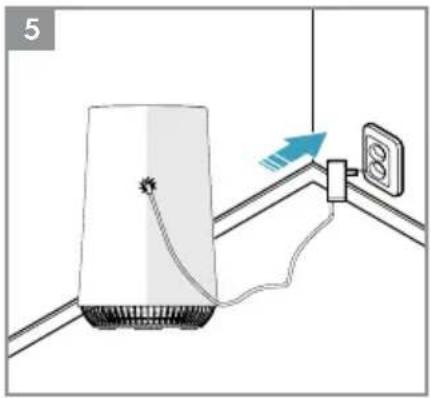

5. Connect the power plug.

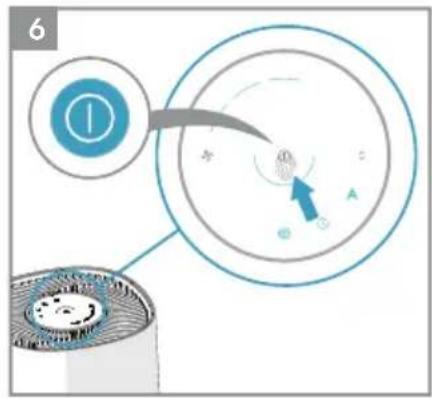

6. Power on.

Power on the product by gently touching the ON/OFF icon on the center of the product (see picture 6).

7. Fan speed control.

Change the fan speed by gently touching the fan icon on the product. If the product is in AUTO mode, it will switch to manual mode when the fan icon is touched (see picture 7).

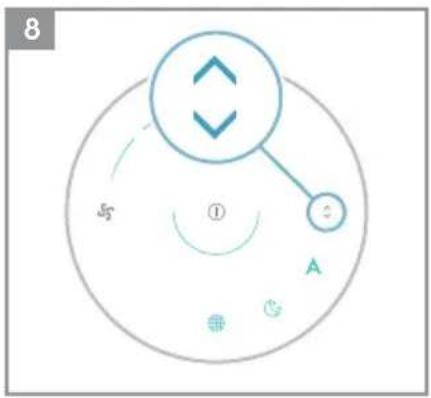

8. Auto mode and sleep mode.

Change between AUTO and SLEEP mode by gently touching the icon labeled "◇".

In AUTO mode, the unit will adjust its operation according to the latest air quality (PM2.5 level). In SLEEP mode, the unit will operate at a low noise level, and all indicators except for the SLEEP icon will go off.

9 Power off

Power down the product by gently touching the ON/OFF icon on the center of the product (see picture 9).

AIR QUALITY INDICATOR

10 The appliance has an air quality sensor that analyzes the air quality.

The air quality light will show the real-time air quality through different colors of light, as shown below:

LIGHT'S COLOR PM 2.5 (μg/m 3 ) AIR QUALITY
Green 0-12 Very Good
Yellow 13-35 Good
Orange 36-55 Poor
Red >56 Bad

FILTER CHANGE INDICATOR

11 The filter change indicator will light up to remind you to change the filter (Ref. # AFFBRZ2).

• When the filter change indicator flickers with a red light, please replace the filter and reset the filter change indicator.
• When the filter change indicator stops flickering and the red light is steady, please replace the filter immediately and reset the filter change indicator.

12 Filter change indicator reset operation

Press the mode icon labeled "◇" for 3 seconds, and the filter change indicator will reset; then the red light will go off.

CARE AND CLEANING

13 Unplug the appliance before cleaning to prevent shock or fire hazards. Use a damp cloth or a vacuum cleaner with a soft brush to clean your air purifier. 14 The plastic parts of the cabinet and top may be cleaned with an oil-free cloth or washed with a cloth dampened in a solution of warm water and mild liquid dishwashing detergent. Be sure to wring excess water from the cloth before wiping around the controls. Excess water in or around the controls may cause damage to the appliance. 15 Never use harsh cleaners, wax, or polish when cleaning the unit.

STORAGE

16 If you are not planning to use the appliance for a long time, cover it with plastic or return it to its carton.

NOTE: The multi-layer filter cannot be washed; it can only be replaced.

CAUTION!

Do not touch the fan blade when removing the multi-layer filter.

ERROR CODE

17 Fan failure error code: when fan failure occurs, the light of the screen will all go off and the unit cannot be operated then. 18 Air quality sensor failure error code: when sensor failure occurs, the light of the air quality indicator will go off and the unit cannot be set on auto mode.

TROUBLESHOOTING

When fault indicators show that the system is not operating properly, perform the following check.

Commonly Asked Questions & Topics

Carry out the operations below for commonly-occurring questions or faults.

Questions or Faults Possible	Diagnosis Corrective Steps / Reasoning
Can the filters be washed?	NO	Replace the compound filter instead of wash, the pre-filter can be wiped.
The control panel does not seem to work.	Power cord issueFilter compartment issueFan Motor Failure	Please ensure power cord is firmly attached to the unit as well as socket on the wall and then retry pressing the ON/OFF icon.Please reopen bottom of the unit, readjust the filter so it is centrally placed in cavity and close the bottom. Ensure bottom is firmly in place & locked and then retry operating the unit.If above two steps do not resolve this issue, then the unit has experienced a fan motor failure and will not operate. Please contact AEG authorized servicer for further troubleshooting or repairs.
The equipment emits a lot of noise.	The installation location is not at even level or the filter is not properly inserted.	Install the equipment on a level surface and re-confirm filter installation position and order.
The equipment operates normally but the outgoing air volume is significantly reduced.	The outlet might be blocked by a foreign object or the filter has not been replaced in a timely manner.	Please re-adjust the equipment installation position to ensure enough space is reserved, and confirm that filter have been replaced according to filter replacement indicator status.
If the fault encountered is not listed above, please call the Customer Service Hotline.
