USER MANUAL VCC 50701 AW BEKO

White and green vacuum cleaner with coiled handle and black handle (no visible text or symbols)

VCC 50701 AW

EN |T RQ SL \V C\ HU

BG FR PL DE ES NL

01M-8812123200-4617-01

beko

Please read this manual first!

Dear Valued Customer,

Thank you for preferring this Beko appliance. We hope that you get the best results from your appliance which has been manufactured with high quality and state-of-the-art technology. For this reason, please read this user manual and all other provided documents carefully before using the appliance and keep it as a reference for future use. If you hand over the appliance to someone else, give the user manual as well. Follow the instructions by paying attention to all the information and warnings in the user manual.

Remember that this user manual may also apply to other models. Differences between models are explicitly described in the manual.

Meanings of the Symbols

Following symbols are used in various sections of this manual:

Important information and useful hints about usage.

WARNING: Warnings against dangerous situations concerning the security of life and property.

Protection class for electric shock.

This product has been manufactured in environmental friendly modern plants without giving any harm to the nature.

CONTENTS

ENGLISH	4-10
ITALIANO	11-19
ROMANIAN	20-29
SLOVENŠČINA	30-37
SVENSKA	38-45
ČESKY	46-53
MAGYAR	54-62
BULGARIAN	63-72
FRANÇAIS	73-81
POLSKI	82-94
DEUTSCH	95-103
ESPAÑOL	104-113
NEDERLANDS	114-122

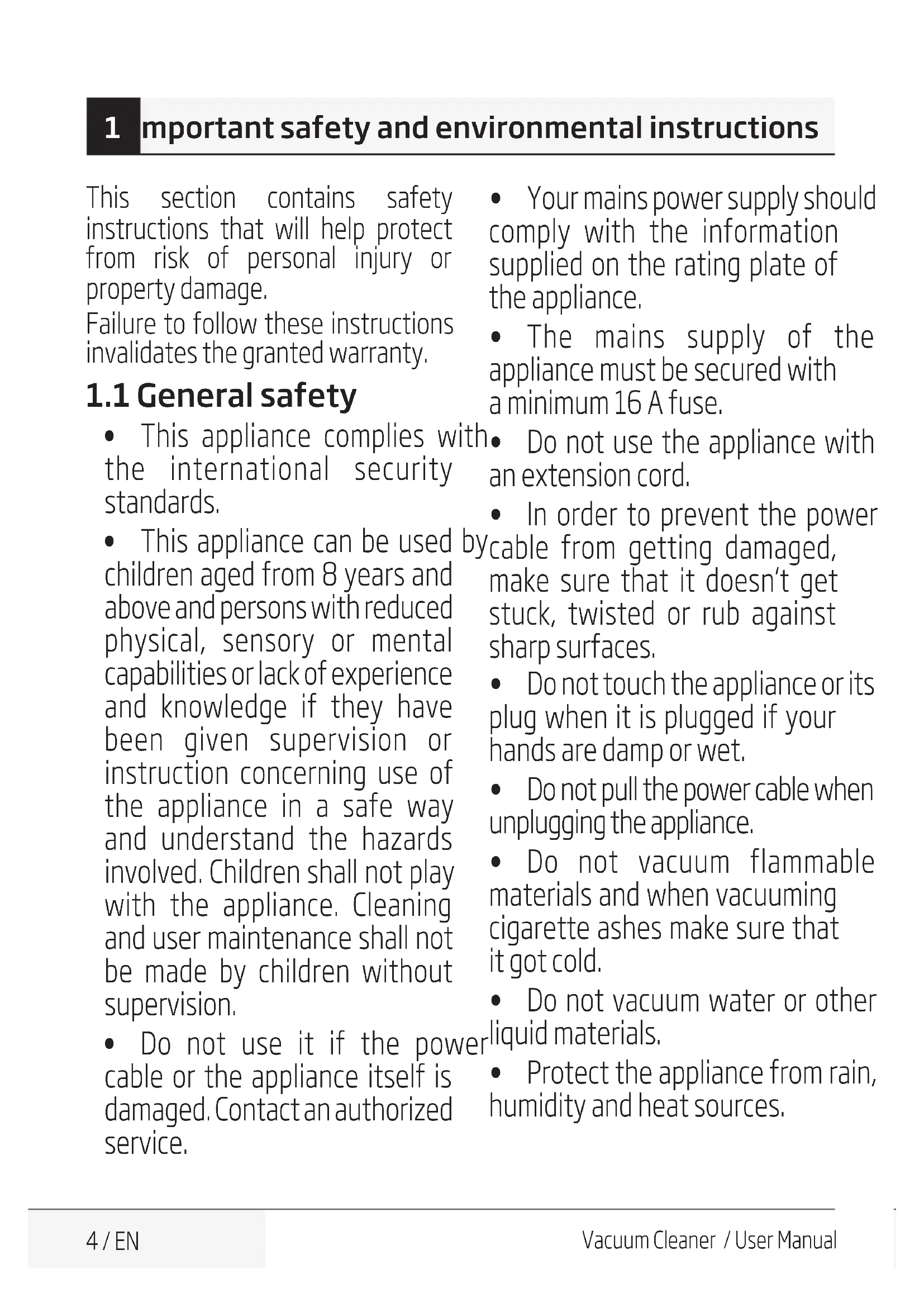

1 important safety and environmental instructions

This section contains safety instructions that will help protect from risk of personal injury or property damage.

Failure to follow these instructions invalidates the granted warranty.

1.1 General safety

- This appliance complies with the international security standards.

- This appliance can be used children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

- Do not use it if the pov cable or the appliance itself is damaged. Contact an authorized service.

- Your mains power supply should comply with the information supplied on the rating plate of the appliance.

- The mains supply of the appliance must be secured with a minimum 16 A fuse.

- Do not use the appliance with an extension cord.

- In order to prevent the power/cable from getting damaged, make sure that it doesn't get stuck, twisted or rub against sharp surfaces.

- Do not touch the appliance or its plug when it is plugged if your hands are damp or wet.

- Do not pull the power cable when unplugging the appliance.

- Do not vacuum flammable materials and when vacuuming cigarette ashes make sure that it got cold.

- Do not vacuum water or other -liquid materials.

- Protect the appliance from rain, humidity and heat sources.

1 important safety and environmental instructions

- Never use the appliance• If your store the package in or near to combustible material, keep it out of the reach or inflammable places and of children. materials.

- Unplug the appliance before cleaning and maintenance. 1.2 Compliance with WEEE Directive and Disposing of the Waste Product

- Do not dip the appliance or it cable in water to clean it.

- Check the hose of the appliance regularly. Do not use if it is damaged and contact an authorized service.

- Do not attempt to dismantle the appliance.

- Only use the original parts of parts recommended by the manufacturer.

- If heavily used for cleaning dust such as cement or grout the dust indicator will lit earlier then expected, in such case replace the dust bag even it is empty.

- Do not use the appliance without filters; otherwise it can get damaged.

- When vacuuming the stairs, the appliance should be located below the user.

1.2 Compliance with WEEE Directive and Disposing of the Waste Product

This product complies with EU WEEE Directive (2012/19/EU). This product bears a classification symbol for waste electrical and electronic equipment (WEEE). This product has been manufactured with high quality parts and materials which can be reused and are suitable for recycling. Do not dispose of the waste product with normal domestic and other wastes at the end of its service life. Take it to the collection center for the recycling of electrical and electronic equipment. Please consult your local authorities to learn about these collection centers.

1.3 Compliance with RoHS Directive

The product you have purchased complies with EU RoHS Directive (2011/65/EU). It does not contain harmful and prohibited materials specified in the Directive.

1.4 Package information

Packaging materials of the product are manufactured from recyclable materials in accordance with our National Environment Regulations. Do not dispose of the packaging materials together with the domestic or other wastes. Take them to the packaging material collection points designated by the local authorities.

2 Your vacuum cleaner

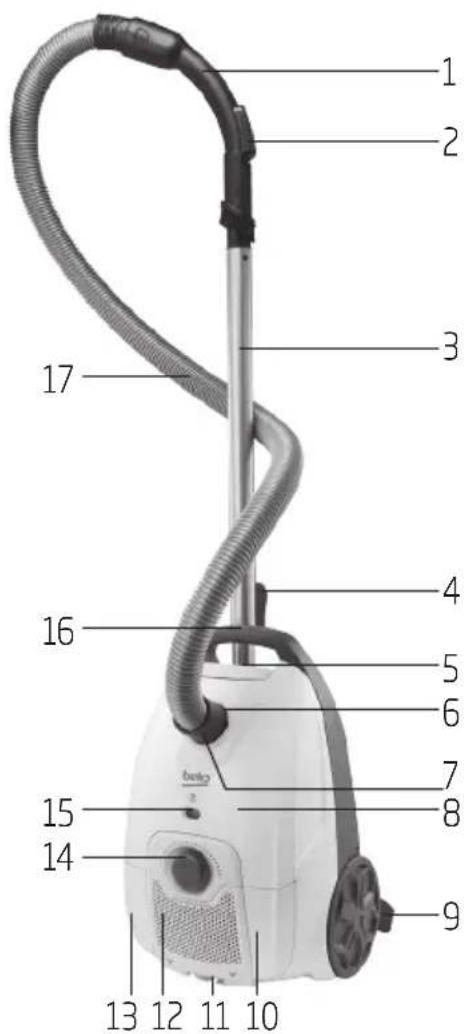

2.1 Overview

1 2 3 17 4 16 5 6 7 8 15 14 9 13 12 11 10

1. Handle
2. Vacuum control
3. Telescopic tube
4. Telescopic tube adjustment latch
5. Dust container release latch
6. Suction nozzle
7. Hose cap
8. Top lid
9. Parquet/carpet brush
10. Power cable winding button
11. Parquet/carpet brush parking groove
12. Filter cap
13. On/Off button
14. Suction power adjustment knob
15. Dust indicator
16. Carriage handle
17. Hose

2.2 Technical data

Power : 800W

Supply voltage : 220-240V\~, 50-60Hz

Sound level : 76 dbA

Dust capacity : 3,2L

Operating radius : 8 m

Dust collecting

on carpet : C

Hard floor dust

collecting : A

Dust emission : A

Energy class : A

Rights to make technical and design changes are reserved.

The values which are declared in the markings affixed on your appliance or other printed documents supplied with it represent the values which were obtained in the laboratories pursuant to the pertinent standards. These values may vary according to the usage of the appliance and ambient conditions.

3 Usage

3.1 Intended use

The appliance has been designed for household use and is not suitable for industrial use.

3.2 Attaching/removing the hose

1. To attach the hose (17), push the hose cap (7) in the arrow direction in order to match it with the suction nozzle and rotate it clockwise.
2. To remove the hose (17), rotate the hose cap (7) counter-clockwise and pull it.

3.3 Attaching/removing the telescopic tube

1. Attach the telescopic tube (3) to the handle (1).
2. Pull the telescopic tube (3) from the handle (1) to remove it.
3. Push the telescopic adjustment latch (4) in the arrow direction and pull the telescopic tube (3) to adjust its length.

Mechanical component with a highlighted section and an arrow indicating direction (no text or symbols)

3.4 Attaching/removing the parquet/carpet brush

You can install/remove the narrow end of the telescopic tube (3) from/to the parquet/carpet brush (9).

3.5 Adjusting the parquet/ carpet brush

Perform the following actions on the adjustment latch (4) located on the parquet/carpet brush (9);

- Use "position for hard floors and parquet.

- Use "" position for rugs and carpets.

3.6 Operation

1. Plug in the appliance after pulling the power plug located at the back of the appliance.
2. Press the on/off button (13) to switch on your appliance.

3.6.1 Adjusting the suction power

1. You can adjust the suction power using the suction power adjustment button (14) found on the appliance. Rotating in the clockwise direction will increase the suction power and in counterclockwise direction will decrease the suction power.
2. You can lower the suction power of the parquet carpet brush by pulling backward the vacuum adjustment control (2) located on the handle (1) without the need to use the suction power adjustment knob (14) found on the appliance.

3 Usage

3.6.2 Dust indicator

Dust indicator (15) indicates the fullness of the dust bag. When the indicator displays red zone more than 50%, replace the dust bag. (see 4.1).

3.7 Accessories

Crevice tool

Suitable for cleaning surfaces difficult to clean, such as areas under sofas and furniture.

WARNING: Do not perform cleaning tasks using the end part of the handle (1).

3.8 Switching off and parking the appliance

1. Switch off the appliance with the on/off button (13) and unplug it.
2. Wind the power cable by pressing the power cable winding button (10).

Vertical parking feature

Insert the parking hook of the parquet/carpet brush into the parking groove located at the bottom section of the appliance.

Horizontal parking feature

Insert the parking hook of the parquet/carpet brush into the parking groove (11) located at the rear section of the appliance.

4 Cleaning and care

Switch off and unplug the appliance before cleaning it.

WARNING: Never use gasoline, solvent, abrasive cleaning agents, metal objects or hard brushes to clean the appliance.

4.1 Replacing the dust bag

1. Open the top lid by pressing the dust container opening latch (5).
2. Remove the full dust bag from its guide, sliding it in upwards direction.
3. Dispose the full dust bag.
4. Insert the new dust bag holding it in the arrow direction indicated on it. Ensure that it is fully seated.
5. Close the appliance's top lid (8).

WARNING: Do not force the top lid (8) to close it, otherwise the plastic sections can be damaged.

WARNING: Dust bags purchased from locations other than the authorized dealers and services are not original. Unoriginal dust bags have a lesser quality and they become torn in a shorter period and render your appliance nonoperational. Faults caused due to using unauthentic dust bags are not covered within the warranty.

WARNING: Do not wash the dust bag.

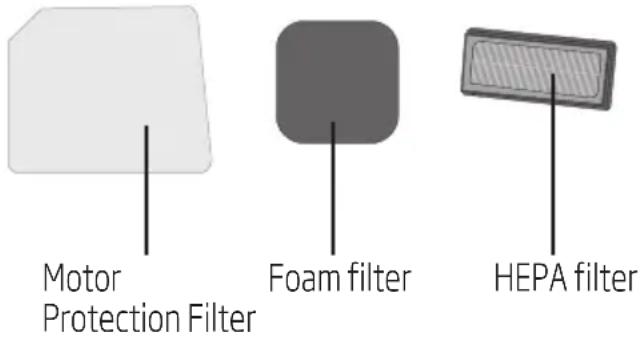

4.2 Cleaning the filters

After each 5 dust bag replacement (may vary depending on the frequency and area of usage), clean the filters.

WARNING: Do not use appliances producing hot air such as hair dryer or heater to dry the filters.

WARNING: Do not install the filters without completely drying them; otherwise, smell of moisture may occur during use, water can leak from the back of the appliance or the filters may get damaged.

WARNING: Attach the filters into their places after they have dried.

4 Cleaning and care

4.2.1 Motor protection filter

1. Open the top lid by pressing the dust container opening latch (5).
2. Press down on the latch of the filter cassette to remove the cassette.
3. Remove the motor protection filter from the cassette inside.
4. After washing the motor protection filter under running water, wring it out slightly and let it dry (for 24 hours minimum).

4.2.2 HEPA filter

1. Raise the filter cap in the arrow direction to open it.
2. Remove the HEPA filter by pulling it from its handle.
3. Shake off the HEPA filter to eliminate the dusts on it. After that, you can wash it by holding its clean side under running cool water.
4. If you wash the HEPÄ filter, dry it at room temperature (for 24 hours minimum). Do not use it before ensuring that it is completely dry.

4.2.3 Foam filter

1. Raise the filter cap in the arrow direction to open it.
2. After removing the HEPA filter, pull out and wash the foam filter located behind it.
3. After washing the motor protection filter under running water, wring it out slightly and let it dry (for 24 hours minimum).

4.3 Storage

• If you do not intend to use the appliance for a long time, store it carefully.
• Unplug the appliance.
• Keep the appliance out of the reach of children.

4.4 Handling and transportation

• During handling and transportation, carry the appliance in its original packaging. The packaging of the appliance protects it against physical damages.
• Do not place heavy loads on the appliance or on the packaging. The appliance may get damaged.
• Dropping the appliance may render it non-operational or cause permanent damage.

Close-up of a cylindrical mechanical component with an arrow indicating direction (no visible text or symbols)

Simple geometric shape with a vertical line across its base (no text or symbols)

Filtro HEPAFiltro a spug

protezione motore

Close-up of a cylindrical mechanical component with an arrow indicating direction (no text or symbols visible)

Simple geometric shape with a vertical line and rounded top, no text or symbols present.

Filtru HEPAFiltru burete

protectie motor

Mechanical component with a highlighted section and an arrow indicating direction (no text or symbols)

Simple geometric shape with a vertical line and rounded top, no text or symbols present.

Close-up of a cylindrical mechanical component with an arrow indicating direction (no visible text or symbols)

Simple geometric shape with a vertical line across its center (no text or symbols)

Motorskydds filter

HEPA-filterSvampfilter

Close-up of a cylindrical mechanical component with an arrow indicating direction (no visible text or symbols)

Simple geometric shape with a vertical line across its base (no text or symbols)

Mechanical component with a highlighted section and an arrow indicating direction (no text or symbols)

Close-up of a cylindrical mechanical component with a small protrusion and an arrow indicating direction (no text or symbols)

Simple geometric shape with a vertical line and rounded top, no text or symbols present.

Close-up of a cylindrical mechanical component with an arrow indicating direction (no visible text or symbols)

Simple geometric shape with a vertical line and irregular edges (no text or symbols)

Close-up of a cylindrical mechanical component with an arrow indicating direction (no visible text or symbols)

Simple geometric shape with a vertical line crossing through it (no text or symbols)

Close-up of a cylindrical mechanical component with an arrow indicating direction (no text or symbols visible)

Close-up of a cylindrical mechanical component with an arrow indicating direction (no visible text or symbols)

Simple geometric shape with a vertical line across its base (no text or symbols)

Close-up of a cylindrical mechanical component with a protruding part and an arrow indicating direction (no text or symbols)

Simple geometric shape with a vertical line crossing through it (no text or symbols)

Motorbeschermingsfilter

Schuimfilter

Hepa-filter
