Product type	Range hood
Brand	Beko
Model	CFB6311XH
Power supply	220-240 V, 50 Hz
Electrical connection	Mandatory grounding
Exhaust duct diameter	120 mm or 150 mm
Minimum installation height (electric cooktop)	65 cm
Minimum installation height (gas cooktop)	65 cm
Controls	Control panel with suction speeds and light switch
Lighting	LED bulbs E14, 3 W max
Grease filter	Metallic, dishwasher safe (short cycle, low temperature)
Grease filter cleaning frequency	Once a month
Charcoal filter	Optional, replace regularly
Exterior cleaning	Damp cloth with neutral liquid detergent, without alcohol
Use	Domestic
Lifespan	10 years
Compliance	WEEE (2012/19/EU), RoHS (2011/65/EU)
Maximum duct length	4 m
Maximum number of bends in duct	2 (90° angles)
Safety	Disconnect before maintenance, do not use without filters, maintain safety distance

Frequently Asked Questions - CFB6311XH BEKO

What is the minimum installation height of the hood?

The distance between the lower surface of the hood and the upper surface of the cooktop must be at least 65 cm for electric and gas cooktops.

How to clean the grease filters?

The metal grease filters should be cleaned once a month with a non-aggressive detergent, by hand or in the dishwasher on a low temperature short cycle.

What type of bulbs to use for replacement?

Use only LED E14 bulbs with a maximum power of 3 W.

Can I use the hood without filters?

No, never use the hood without the aluminum filters nor remove them during operation, this may cause a fire.

What to do if the power cord is damaged?

Have the cable replaced by a qualified person approved by the manufacturer, after-sales service or an electrician.

Can the hood be used with a gas cooktop?

Yes, but maintain a minimum distance of 65 cm and ensure adequate ventilation of the room.

How to replace the charcoal filter?

The charcoal filter is optional. It should be changed regularly (approximately every 3 to 6 months) depending on usage.

Should installation be carried out by a professional?

Yes, installation and repairs must be performed by an authorized service agent to avoid any risk.

What to do in case of hood failure?

Stop the appliance, unplug it and have it repaired by an authorized technician before using it again.

Is the hood compliant with environmental standards?

Yes, it complies with WEEE (2012/19/EU) and RoHS (2011/65/EU) directives and its packaging is recyclable.

USER MANUAL CFB6311XH BEKO

Illustration of a kitchen range hood with three circular buttons (no text or symbols)

CFB 6310 W CFB 5310 W HNS 61110 X

CFB 6310 X CFB 5310 X

CFB 6311 XH CFB 6311 WH

EN PL CS SK SR MK SQ RO

Please read this user manual first!

Dear Valued Customer,

Thank you for preferring this Beko appliance. We hope that you get the best results from your appliance which has been manufactured with high quality and state-of-the-art technology. For this reason, please read this entire user manual and all other accompanying documents carefully before using the appliance and keep it as a reference for future use. If you handover the appliance to someone else, give the user manual as well. Follow the instructions by paying attention to all the information and warnings in the user manual.

Remember that this user manual may also apply to other models. Differences between models are explicitly described in the manual.

Meanings of the Symbols

Following symbols are used in various sections of this user manual:

Important information and useful hints about usage.

WARNING: Warnings against dangerous situations concerning the security of life and property.

Warning for danger of fire.

Warning for electric shock.

Protection class against electric shock.

This appliance has been manufactured in environmentally friendly modern plants without giving any harm to the nature.

CONTENTS

ENGLISH	04-09
POLSKI	10-16
ČESKY 17-23
SLOVENSKÝ 24-30
СРПСКИ 31-37
MAKEДОНСКИ 38-45
SHQIPTARE	46-52
ROMÂNĂ 53-59
БЪЛГАРСКИ 60-66
DEUTSCH67-74
FRANÇAIS 75-82
EESTI83-89
LIETUVIŲ K 90-96
LATVIJAS	97-103
RUSSIAN	104-115

01M-8856193200-4020-05

01M-8861753200-4020-05

01M-8856203200-4020-05

01M-8856183200-4020-05

01M-8865213200-4020-05

01M-8865203200-4020-05

01M-8856213200-4020-05

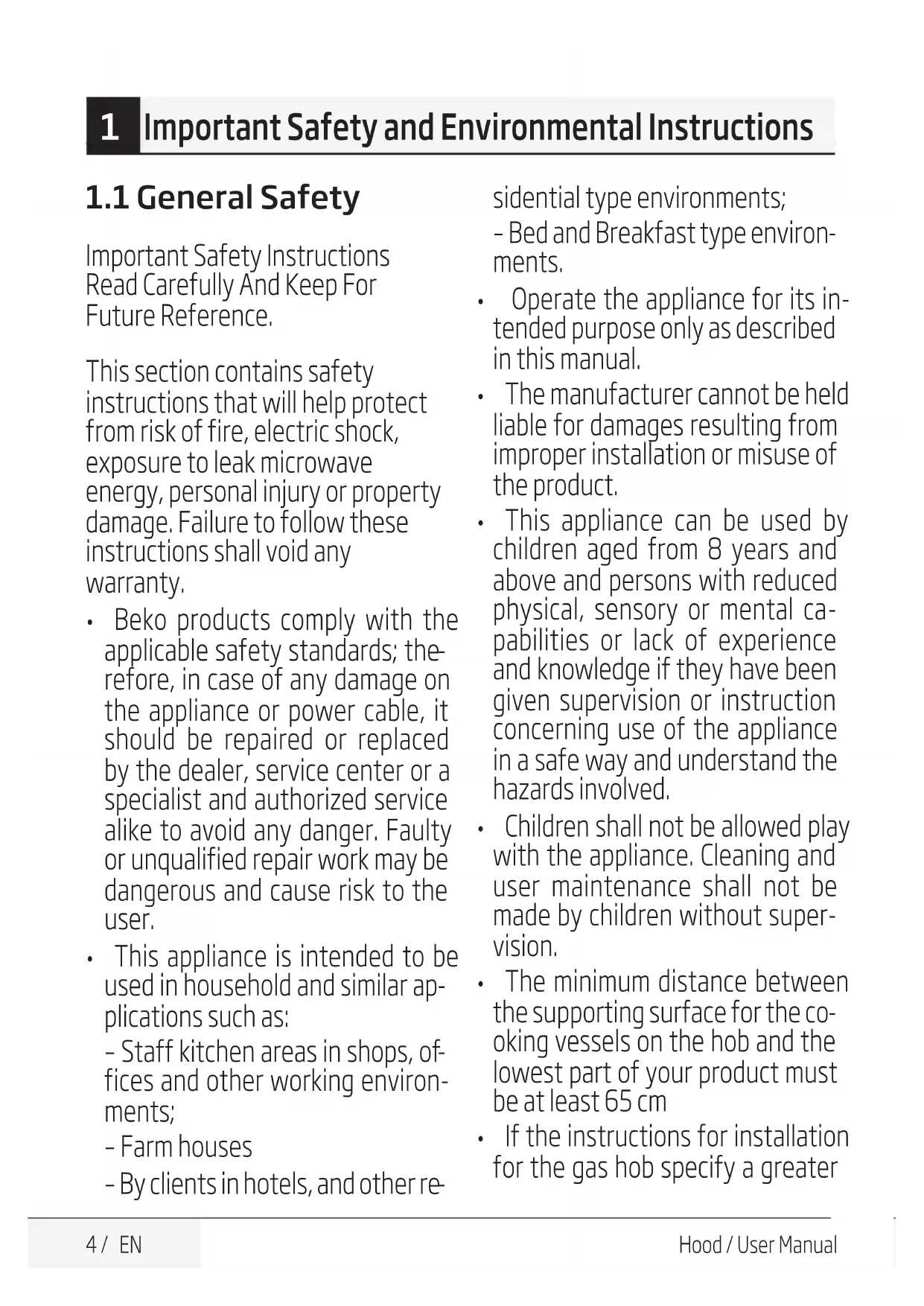

1 Important Safety and Environmental Instructions

1.1 General Safety

Important Safety Instructions Read Carefully And Keep For Future Reference.

This section contains safety instructions that will help protect from risk of fire, electric shock, exposure to leak microwave energy, personal injury or property damage. Failure to follow these instructions shall void any warranty.

- Beko products comply with the applicable safety standards; therefore, in case of any damage on the appliance or power cable, it should be repaired or replaced by the dealer, service center or a specialist and authorized service alike to avoid any danger. Faulty or unqualified repair work may be dangerous and cause risk to the user.

- This appliance is intended to be used in household and similar applications such as:

- Staff kitchen areas in shops, offices and other working environments;

- Farm houses

- By clients in hotels, and other re-

sidential type environments;

- Bed and Breakfast type environments.

- Operate the appliance for its intended purpose only as described in this manual.

- The manufacturer cannot be held liable for damages resulting from improper installation or misuse of the product.

- This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

- Children shall not be allowed play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

- The minimum distance between the supporting surface for the co-oking vessels on the hob and the lowest part of your product must be at least 65 cm

- If the instructions for installation for the gas hob specify a greater

1 Important Safety and Environmental Instructions

distance, this has to be taken into account.

• Make sure that your mains power supply complies with the information supplied on the rating plate of the appliance.
- Never use the appliance if the power cable or the appliance itself is damaged.
- Prevent damage to the power cable by not squeezing, bending, or rubbing it on sharp edges. Keep the power cable away from hot surfaces and naked flame. - Use the appliance with a grounded outlet only.

WARNING: Do not connect the appliance to the mains until the installation is fully complete.

• Place the appliance in a way so that the plug is always accessible.
• Do not touch the lamps if they have operated for a long time. They can burn your hands since they will be hot.

• Follow the regulations set out by competent authorities on discharge of the exhaust air (this warning is not applicable for use without flue).

• Operate your appliance after putting a pot, pan etc. on the hob. Otherwise, high heat may cause deformation in some parts of your product.

• Turn off the hob before taking the pot, pan etc. from it.
• Do not leave hot oil on the hob. Pans with hot oil may cause self combustion.
• Pay attention to your curtains and covers since oil may catch fire while cooking food such as fries.
• Grease filter must be replaced at least monthly. Carbon filter must be replaced at least every 3 months.
• Product shall be cleaned accordance with user manual. If cleaning was not carried out in accordance with user manual, there may be fire risk.
• Do not use non-fire-resistant filtering materials instead of the current filter.
• Only use the original parts or parts recommended by the manufacturer.
• Do not operate the product without the filter and do not remove the filters while the product is running.

1 Important Safety and Environmental Instructions

• In the event of be started any flame, de-energize your product and cooking appliances.
• In the event of be started any flame, cover the flame and never use water to extinguish.
• Unplug the appliance before each cleaning and when the appliance is not in use.
• The negative pressure in the environment should not exceed 4 Pa (4 x 10 bar) while the hood for electric hob and appliances running on another type of energy but electricity operate simultaneously.
• In the environment where the appliance is being used, the exhaust of devices running on fuel oil or gas, such as room heater must be absolutely isolated or device must be hermetical type.
• When connecting the flue, use pipes with a diameter of 120 or 150 mm. Pipe connection must be as short as possible and have as few elbows as possible.

Danger of choking! Keep all the packaging materials away from children.

CAUTION: Accessible parts may become hot when used with cooking appliances.

• The product outlet must not be connected to air channels that include other smoke.
• The ventilation in the room may be insufficient when the hood for electric hob is used simultaneously with the devices operating on gas or other fuels (this may not apply to appliances that only discharge the air back into the room).
• Objects placed on the product may fall. Do not place any objects on the product.
• Do not flambe under the your product.
  WARNING: Before installing the Hood, remove the protective films.
• Never leave high naked flames under the hood when it is in operation
• Deep fat fryers must be continuously monitored during use: overheated oil can burst into flames.

1 Important Safety and Environmental Instructions

1.2 Compliance with the WEEE Directive and Disposing of the Waste Product:

This product complies with EU WEEE Directive (2012/19/EU). This product bears a classification symbol for waste electrical and electronic equipment (WEEE).

This symbol indicates that this product shall not be disposed with other household wastes at the end of its service life. Used device must be returned to offical collection point for recycling of electrical and electronic devices. To find these collection systems please contact to your local authorities or retailer where the product was purchased. Each household performs important role in recovering and recycling of old appliance. Appropriate disposal of used appliance helps prevent potential negative consequences for the environment and human health.

1.3 Compliance with RoHS Directive

The product you have purchased complies with EU RoHS Directive (2011/65/EU). It does not contain harmful and prohibited materials specified in the Directive.

1.4 Package Information

Packaging materials of the product are manufactured from recyclable materials in accordance with our National Environment Regulations. Do not dispose of the packaging materials together with the domestic or other wastes. Take them to the packaging material collection points designated by the local authorities.

2 General Appearance

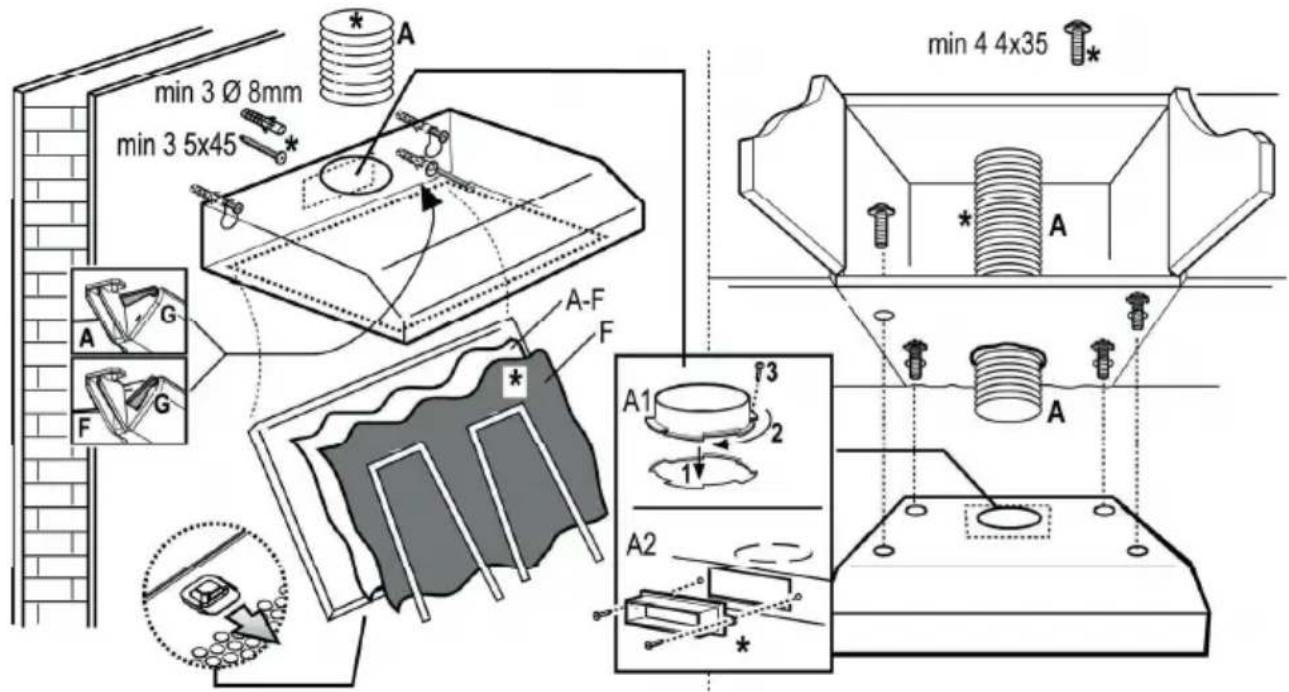

2.1 Overview

min 3 Ø 8mm min 3 5x45 min 4 4x35 A A-F F A1 3 2 1 A2 *

Fig. 1

2.2 Installation

The minimum distance between the supporting surface for the cooking equipment on the hob and the lowest part of the range hood must be not less than 65cm from electric cookers and 65cm from gas or mixed cookers. If the instructions for installation for the gas hob specify a greater distance, this must be adhered to. The template (*) can be used for installation.

2.3 Electrical connection

The mains power supply must correspond to the rating indicated on the plate situated inside the hood. If provided with a plug connects the hood to a socket in compliance with current regulations and positioned in an accessible area, after installation. If it not fitted with a plug (direct mains connection) or if the plug is not located in an accessible area, after installation, apply a double pole switch

in accordance with standards which assures the complete disconnection of the mains under conditions relating to over-current category III, in accordance with installation instructions.

WARNING: Before re-connecting the hood circuit to the mains supply and checking the efficient function, always check that the mains cable is corectly assembled.

WARNING: Power cable replacement must be undertaken by the authorised sevice assistance centre or similarqualified person.

2.4 Electrical connection

The hood is fitted with a control panel with aspiration speed selection control and a light switch to control cooking area lights.

B Cleaning and maintenance

Prior to cleaning and maintenance, unplug the appliance or turn the main switch off or loosen the fuse that supplies the hood.

Failure to comply with the provisions relating to cleaning of the device and replacement of filters may cause fire risks. It is therefore recommended to comply with the guidelines given herein. The manufacturer is not liable for any damage to the engine or fires caused by improper use.

Clean using only a cloth dampened with neutral liquid detergent. Do not clean with tools or instruments. Do not use abrasive products. Do not use alcohol

3.1 Cleaning of Grease Filter

This filter captures oil particles in the air. You are recommended to clean your filter every month under normal usage conditions. First remove the grease filters for this process. Wash the filters with liquid detergent and rinse them with water and install them back after they get dry. Grease filters may get discolored as they are washed; this is normal and you don't need to change your filter.

You can wash the grease filter in the dishwasher

3.2 Changing of Carbon Filter (Air Circulation Mode)

The hood can be fitted with an active carbon filter. The carbon filter is applied only in case the hood is not connected to the vent duct.

In any case it is necessary to replace the carbon filter at least every three months.

WARNING: The carbon filter is never washed.

WARNING: Carbon filter is available from Authorized Services.

3.3 Maintenance

ATTENTION! Before performing any maintenance operation, isolate the hood from the electrical supply by switching off at the connector and removing the connector fuse. Or if the appliance has been connected through a plug and socket, then the plug must be removed from the socket.

3.4 Replacing Lamps

Disconnect the hood from the electricity.

WARNING: Prior to touching the light bulbs ensure they are cooled down.

Replace the damaged lamp. Use ∅35mm E14 28W halogen candle lamps only

If you need to transport the appliance

- Keep the original packaging of the appliance. Transport the appliance with its original package, and follow the transport markings on the original package

If you do not have the original package

• Do not place any objects on the hood.
• Protect the outer surface from impacts.
• Pack the appliance so that it would not be damaged during transport.

min 3 Ø 8mm min 3 5x45 A J K L H* A-F F G min 4 4x35 M A H* E1 R1 G A G F A1 3 2 1

2.1 Instalacja

min 3 Ø 8mm min 3 5x45 A J K L H* A1 3 2 1 min 4 4x35 M A H* A-F F G E1 R1 G A G F A1 3 2 1

2.1 Instalace

min 3 Ø 8mm min 3 5x45 min 4 4x35 min 3 Ø 8mm min 3 5x45 A1 3 2 J K L H* J K A-F F G E1 R1 G A G F A1 3 2 M A H*

2.1 Inštalácia

min 3 Ø 8mm min 3 5x45 A J K L H* A1 3 2 1 min 4 4x35 E M A H+ A1 3 2 1 min 3 Ø 8mm min 3 5x45 J K L A-F F G E1 R1 G A G F

2.1 Instalacija

min 3 Ø 8mm min 3 5x45 A J K L H* A1 3 2 1 min 4 4x35 M A H* A-F F G E1 R1 G A G F A1 3 2 1

2.1 Поставување

min 3 Ø 8mm min 3 5x45 A J K L H* A-F F G min 4 4x35 B M A H+ E1 R1 G A G F A1 3 2 1

2.1 Instalimi

min 3 Ø 8mm min 3 5x45 A J K L H* A-F F G min 4 4x35 M A H+ E1 R1 G A G F A1 3 2 1

2.1 Montarea

min 3 Ø 8mm min 3 5x45 A J K L H* J A-F F G min 4 4x35 M A H+ E1 R1 G A G F A1 3 2 1

2.1 Монтаж

min 3 Ø 8mm min 3 5x45 A J K L H* A1 3 2 1 min 4 4x35 M A H* A-F F G E1 R1 G A G F A1 3 2 1

2.1 Installation

Cher client, chère cliente,

min 3 Ø 8mm min 3 5x45 A J K L H* A1 3 2 1 min 4 4x35 M A H* A-F F G E1 R1 G A G F A1 3 2 1

2.1 Installation

min 3 Ø 8mm min 3 5x45 A J K L H* A-F F G min 4 4x35 M A H* E1 R1 G A G F A1 3 2 1

2.1 Paigaldamine

min 3 Ø 8mm min 3 5x45 A J K L H* A1 3 2 1 min 4 4x35 M A H* A-F F G E1 R1 G A G F A1 3 2 1

2.1 Montavimas

min 3 Ø 8mm min 3 5x45 A J K L H* A1 3 2 1 min 4 4x35 M A H* A-F F G E1 R1 G A G F A1 3 2 1

2.1 Uzstādīšana

Illustration of a kitchen range hood with three circular buttons (no text or symbols)

CFB 6310 W CFB 5310 W HN\$ 61110 X

CFB 6310 X CFB 5310 X

CFB 6311 XH CFB 6311 WH
