USER MANUAL VCC 44821 AB BEKO

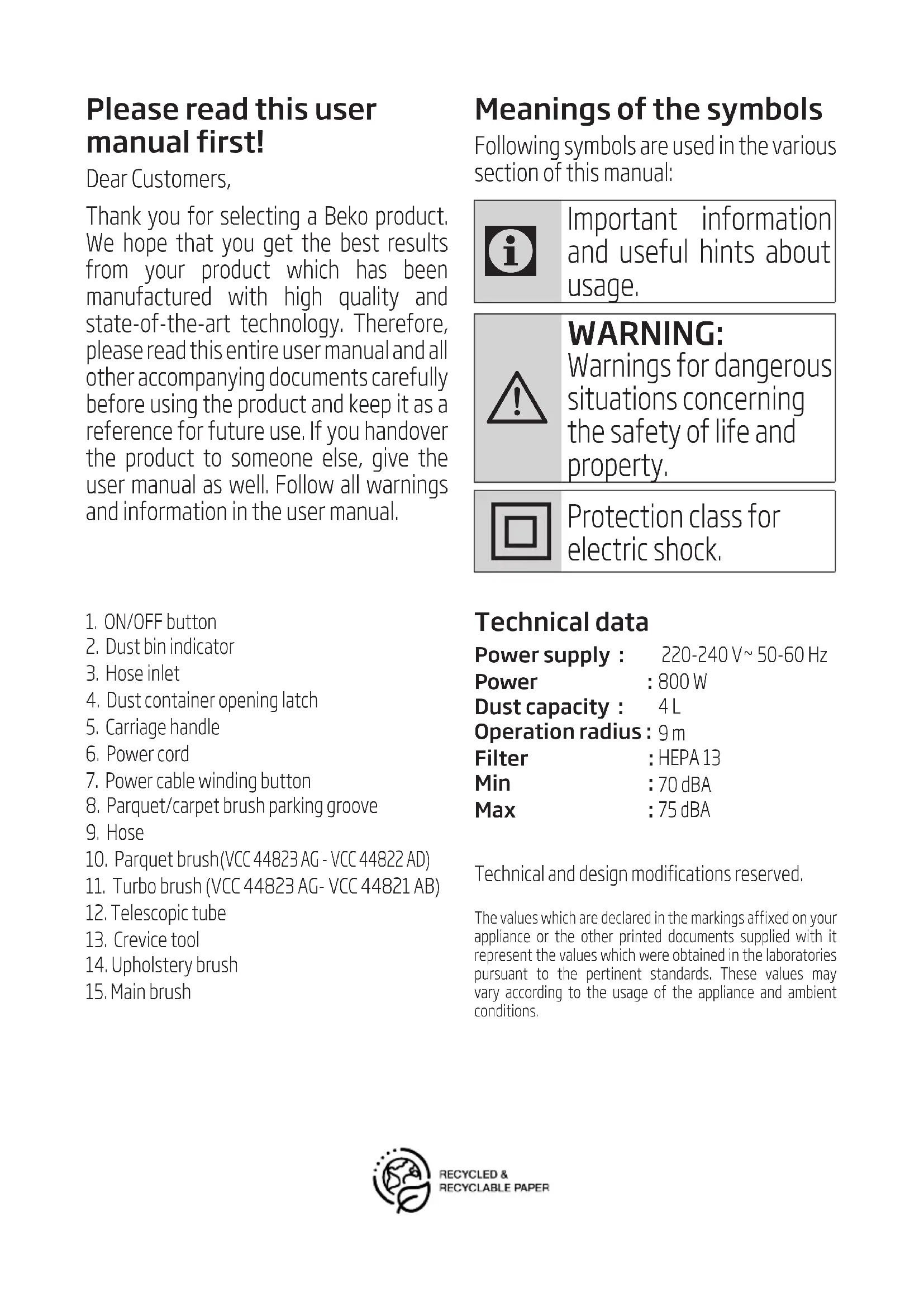

ΛΕΙΤΟΥΡΓΙΑ ΚΑΘΑΡΙΣΜΟΣ ΚΑΙ ΦΡΟΝΤΙΔΑPlease read ths user manual frst! Dear Customers, Thank you for selectng a Beko product. We hope that you get the best results from your product whch has been manufactured wth hgh qualty and state-of-the-art technology. Therefore, please read ths entre user manual and all other accompanyng documents carefully before usng the product and keep t as a reference for future use. If you handover the product to someone else, gve the user manual as well. Follow all warnngs and nformaton n the user manual. Meanngs of the symbols Followng symbols are used n the varous secton of ths manual:

Important information and useful hints about usage.

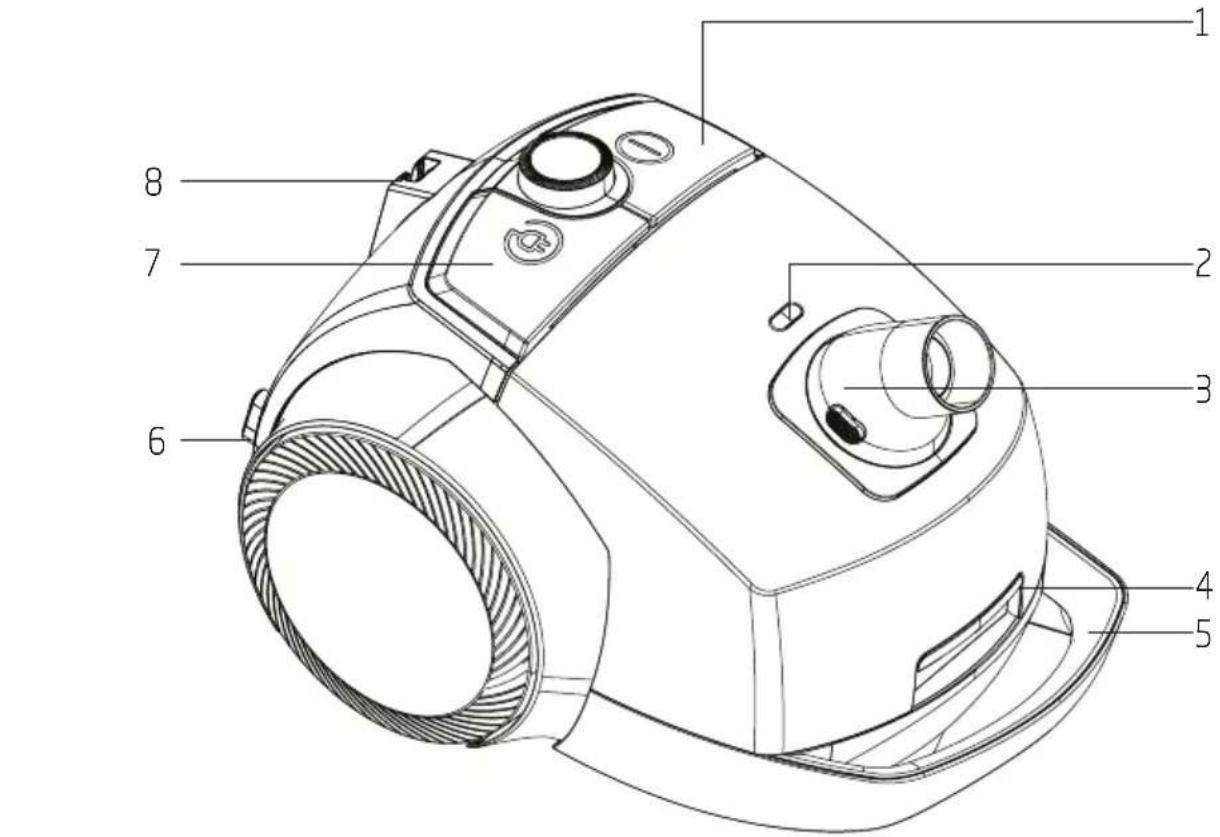

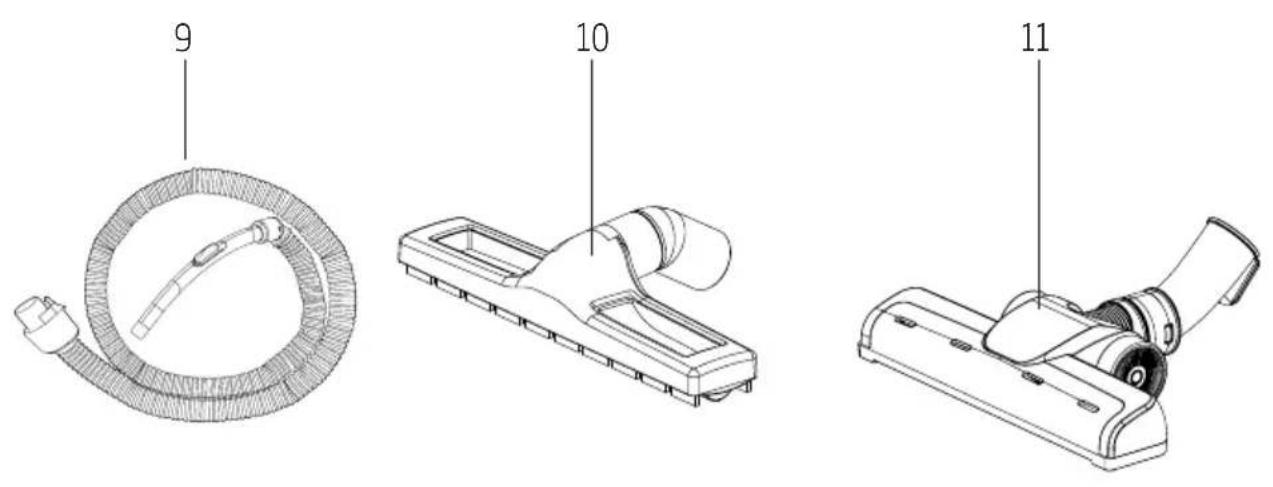

Warnings for dangerous situations concerning the safety of life and property. Protection class for electric shock. 1. ON/OFF button2. Dust bin indicator3. Hose inlet4. Dust container opening latch5. Carriage handle6. Power cord7. Power cable winding button8. Parquet/carpet brush parking groove9. Hose10. Parquet brush (VCC 44823 AG - VCC 44822 AD)11. Turbo brush (VCC 44823 AG- VCC 44821 AB)12. Telescopic tube13. Crevice tool 14. Upholstery brush15. Main brush Technical data Power supply : 220-240 V~ 50-60 HzPower : 800 WDust capacity : 4 L Operation radius : 9 m Filter : HEPA 13Min : 70 dBAMax : 75 dBATechnical and design modifications reserved.The values whch are declared n the markngs affxed on your applance or the other prnted documents suppled wth t represent the values whch were obtaned n the laboratores pursuant to the pertnent standards. These values may vary accordng to the usage of the applance and ambent condtons.Vacuum cleaner / User manual 9 / EN 1 Important safety and environmental instructions This section contains safety instruc- tions that will help protect from risk of personal injury or property dam- age. Failure to follow these instructions invalidates the granted warranty.

• This appliance complies with the international security standards.

• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

• Children should be supervised to ensure that they do not play with the appliance.

• If the supply cord is damaged, it must be replaced by the manufacturer or its agent or similarly qualified person in order to avoid hazard.

• Do not use it if the power cable or the appliance itself is damaged. Contact an authorized service.

• Your mains power supply should comply with the information supplied on the rating plate of the appliance.

• The mains supply of the appliance must be secured with a minimum 16 A fuse.

• Do not use the appliance with an extension cord.

• In order to prevent the power cable from getting damaged, make sure that it doesn’t get stuck, twisted or rub against sharp surfaces.

• Do not touch the appliance or its plug when it is plugged if your hands are damp or wet.10 / EN Vacuum cleaner / User manual

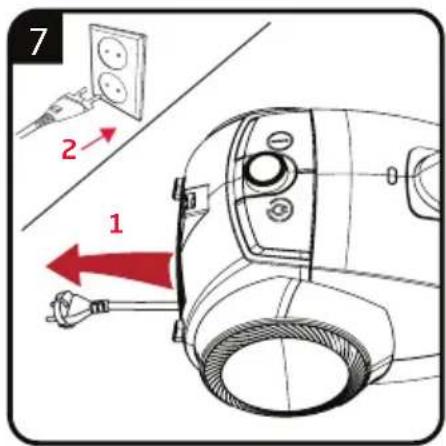

• Do not pull the power cable when unplugging the appliance.

• Do not vacuum flammable materials and when vacuuming cigarette ashes make sure that it got cold.

• Do not vacuum water or other liquid materials.

• Protect the appliance from rain, humidity and heat sources.

• Never use the appliance in or near to combustible or inflammable places and materials.

• Unplug the appliance before cleaning and maintenance.

• Do not dip the appliance or its cable in water to clean it.

• Check the hose of the appliance regularly. Do not use if it is damaged and contact an authorized service.

• Do not attempt to dismantle the appliance.

• Only use the original parts or parts recommended by the manufacturer.

• The plug must be removed from the socket-outlet before cleaning or maintaining the appliance. 1 Important safety and environmental instructions

• If heavily used for cleaning dust such as cement or grout the dust indicator will lit earlier then expected, in such case replace the dust bag even it is empty.

• Do not use the appliance without filters; otherwise it can get damaged.

• Keep fingers, hair and loose clothing from moving parts and openings whilst using the vacuum cleaner.

• When vacuuming the stairs, the appliance should be located below the user.

• If your store the package material, keep it out of the reach of children.Vacuum cleaner / User manual 11 / EN 2 Informaton

2.1 Usage areas of accessories

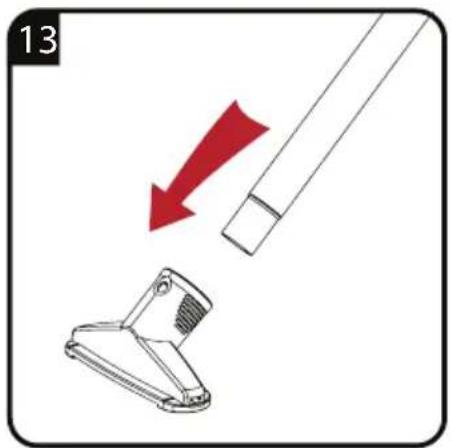

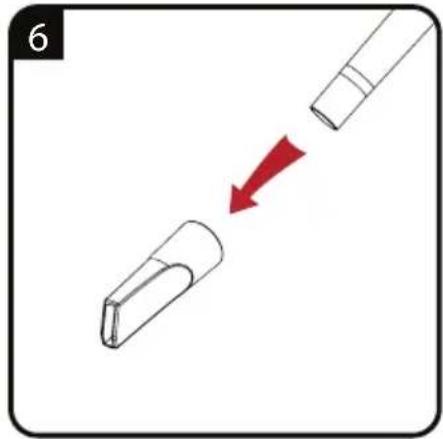

Upholstery tool: Curtains, cushions, sofas and upholstery fabrics.Flexible crevice tool: Behind furniture, hard-to-reach areas and narrow gaps.Crevice tool: Hard-to-reach areas and narrow gaps.Soft brush: Sensitive flat areas, bookshelf, wood-en furnitures.Elbow: To access door frames, cupboard tops and behind cabinets.

2.2 Recommended vacuum

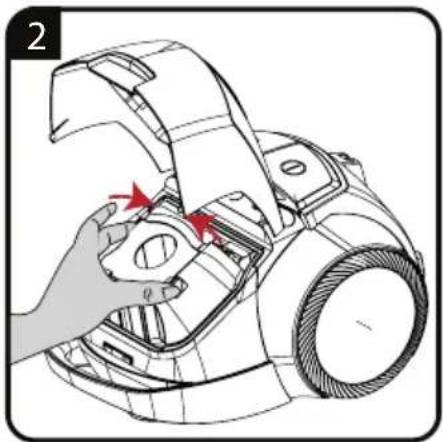

cleaner bag We recommend: Swirl® Y 05® MicroPor® Plus AntiBac vacuum cleaner bags.Swirl®, MicroPor® and Y 05® are registered trade marks of a company of the Melitta group and used with their permission.

2.3 Cleaning and care

Switch off and unplug the appliance ,before cleaning it.

Never use gasoline, solvent, abrasive cleaning agents, metal objects or hard brushes to clean the appliance.

2.4 Compliance with the WEEE

Directive and Disposing of the Waste Product This product complies with EU WEEE Directive (2012/19/EU). This product bears a classification symbol for waste electrical and electronic equip-ment (WEEE).This symbol indicates that this product shall not be disposed with other house-hold wastes at the end of its service life. Used device must be returned to offical collection point for recycling of electrical and electronic devices. To find these col-lection systems please contact to your local au-thorities or retailer where the product was pu-chased. Each household performs important role in recovering and recycling of old appliance. Appropriate disposal of used appliance helps pre-vent potential negative consequences for the en-vironment and human health.

2.5 Compliance with RoHS

Directive The product you have purchased complies with EU RoHS Directive (2011/65/EU). It does not contain harmful and prohibited materials specified in the Directive.

2.6 Package information

Packaging materials of the product are manufactured from recyclable materi-als in accordance with our National Environment Regulations. Do not dis-pose of the packaging materials together with the domestic or other wastes. Take them to the pack-aging material collection points designated by the local authorities.
