USER MANUAL Toast King TK100 Hatco

Conveyor Toasters are specially designed to speed the toasting operation. Products pass through a heating chamber for rapid and thorough toasting. Dryness, moisture, sugar content, and thickness of bread product affect the ability to achieve the perfect toasted product. Conveyor speed, not temperature, determines the toasting color. Hatco toasters are quality built to meet the demands of foodservice operations and provide years of trouble-free performance. The metal-sheathed tubular heating elements are guaranteed against breakage and burnout for two years. (If failure of one element should occur, your Hatco toaster will continue to operate – the production may be slightly lower.) Hatco Conveyor Toasters are products of extensive research and field testing. The materials used were selected for maximum durability, attractive appearance, and optimum performance. Every unit is inspected and tested thoroughly prior to shipment. This manual provides the installation, safety, and operating instructions for Hatco Conveyor Toasters. Hatco recommends all installation, operating, and safety instructions appearing in this manual be read prior to installation or operation of a unit. Safety information that appears in this manual is identified by the following signal word panels: WARNING WARNING indicates a hazardous situation which, if not avoided, could result in death or serious injury. CAUTION CAUTION indicates a hazardous situation which, if not avoided, could result in minor or moderate injury. NOTICE NOTICE is used to address practices not related to personal injury. Important Owner Information ..............................................2 Introduction ...........................................................................2 Important Safety Information ..............................................3 Model Description ................................................................4 Model Designation ...............................................................4 Specifications .......................................................................5 Plug Configurations .............................................................5 Electrical Rating Chart .........................................................6 Dimensions .......................................................................... 7 Installation .............................................................................8 General ................................................................................ 8 Operation ...............................................................................9 General ................................................................................ 9 Thermostat Adjustment ........................................................9 Maintenance ........................................................................10 General .............................................................................. 10 Daily Cleaning ...................................................................10 Cleaning the Toasting Baskets ..........................................10 Troubleshooting Guide ...................................................... 11 Options and Accessories ..................................................12 Limited Warranty ................................................................13 Authorized Parts Distributors ...........................Back Cover Record the model number, serial number, voltage, and purchase date of the unit in the spaces below (specification label located on the back of the unit). Please have this information available when calling Hatco

for service assistance. Model No. ________________________________________ Serial No. _________________________________________ Voltage ___________________________________________ Date of Purchase ___________________________________ Register your unit! Completing online warranty registration will prevent delay in obtaining warranty coverage. Access the Hatco website at www.hatcocorp.com, select the Support pull-down menu, and click on “Warranty”.

IMPORTANT OWNER INFORMATION

Business Hours: 7:00 am to 5:00 pm Monday–Friday, Central Time (CT) (Summer Hours — June to September: 7:00 am to 5:00 pm Monday–Thursday 7:00 am to 4:00 pm Friday) Telephone: [phone] E-mail: [e-mail] 24 Hour 7 Day Parts and Service Assistance available in the United States and Canada by calling 414-671-6350. Additional information can be found by visiting our web site at www.hatcocorp.com CONTENTSEnglish TRTKM-0125 3

• Plug unit into a properly grounded electrical receptacle of correct voltage, size, and plug configuration. If plug and receptacle do not match, contact a qualified electrician to determine and install proper voltage and size electrical receptacle.

• Turn OFF power switch, unplug power cord/turn off power at circuit breaker, and allow unit to cool before performing any cleaning, adjustments, or maintenance.

• DO NOT submerge or saturate with water. Unit is not waterproof. Do not operate if unit has been submerged or saturated with water.

• Unit is not weatherproof. Locate unit indoors where the ambient air temperature is a minimum of 70°F (21°C).

• Do not pull unit by power cord.

• Discontinue use if power cord is frayed or worn.

• Do not attempt to repair or replace a damaged power cord. Cord must be replaced by Hatco, an Authorized Hatco Service Agent, or a person with similar qualifications.

• Do not steam clean or use excessive water on unit.

• This unit is not “jet-proof” construction. Do not use jet-clean spray to clean unit.

• Do not clean unit when it is energized or hot.

• Do not allow liquids to spill into unit.

• This unit must be serviced by qualified personnel only. Service by unqualified personnel may lead to electric shock or burn. FIRE HAZARD:

• Locateunitaminimumof1″(25mm)fromcombustible walls and materials. If safe distances are not maintained, combustion or discoloration could occur.

• Do not locate toaster under shelving or closer than 12” (305 mm) from the ceiling.

• Do not place anything on top of toaster. Do not place toaster near or underneath curtains or other combustible materials. Items near or on top of toaster could catch fire causing injury and/or damage to toaster. EXPLOSION HAZARD: Do not store or use gasoline or other flammable vapors or liquids in the vicinity of this or any other appliance. In case of fire, disconnect toaster from power source immediately. This allows unit to cool, making it easier and safer to put out the fire. Make sure all operators have been instructed on the safe and proper use of the unit. This unit is not intended for use by children or persons with reduced physical, sensory, or mental capabilities. Ensure proper supervision of children and keep them away from unit. WARNING This unit has no “user-serviceable” parts. If service is required on this unit, contact an Authorized Hatco Service Agent or contact the Hatco Service Department at 414-671-6350. CAUTION BURN HAZARD:

• Some exterior surfaces on unit will get hot. Use caution when touching these areas.

• Do not remove toast collector pan or baskets for cleaning until toaster is cool. Locate unit at proper counter height in an area that is convenient for use. Location should be level to prevent unit or its contents from falling accidentally and strong enough to support weight of unit and contents. Products thicker than 1-1/4” (32 mm) will cause conveyor system to jam, which could ignite product inside toaster. Misalignment of toasting baskets will cause conveyor to jam. Hold down bars should be facing out and lying flat on baskets. Incorrectly positioned bars will cause conveyor to stop. Always operate toaster with toast collector pan installed. Toasting of coated or buttered products such as garlic bread, cheese sandwiches, and sweet rolls is NOT recommended. Residue will reduce toaster performance and could ignite inside toaster. Using toaster with food products listed above will void unit warranty. NOTICE Do not locate unit in an area subject to excessive temperatures or grease from grills, fryers, etc. Excessive temperatures could cause damage to the unit. Do not locate toaster in an area that restricts air flow around front or rear of unit. Do not locate unit in area with excessive air movement around unit. Avoid areas that may be subject to active air movements or currents (i.e., near exhaust fans/hoods, air conditioning ducts, and exterior doors). Do not lay unit on the side with control panel or manual advance knob. Damage to unit could occur. Use non-abrasive cleaners and cloths only. Abrasive cleaners and cloths could scratch finish of unit, marring its appearance and making it susceptible to soil accumulation. This unit is intended for commercial use only—NOT for household use. Read the following important safety information before using this equipment to avoid serious injury or death and to avoid damage to equipment or property.English TRTKM-01254 MODEL DESCRIPTION All Models Toast King Conveyor Toasters are fast, dependable, and versatile. They are designed for constant, high volume applications featuring three-basket access for fast loading to toast between 720–1500 slices of bread per hour, depending on the model. Multiple, fast heat-up heating elements ensure continuous toasting.Every unit includes a toast collector pan, heated toast storage area, power saving thermostat, speed control, manual advance, and factory attached 4′ (1219 mm) cord and plug. TK-72 Model The TK-72 model toasts up to 12 bread or bun slices per minute (720 per hour) and features toasting baskets two-slices wide. TK-100 Model The TK-100 model toasts up to 16 bread or bun slices per minute (960 per hour) and features toasting baskets three-slices wide. TK-135B Model The TK-135B model is a buns only toaster that toasts up to 22 bun slices per minute (1320 per hour) and features toasting baskets three-slices wide. TK-155B Model The TK-155B model is a 3-part hamburger bun toaster that toasts up to 25 3-part bun slices per minute (1500 per hour) and features toasting baskets three-slices wide. The outside buns are toasted on one side, the middle bun is toasted on both sides. ManualAdvance Knob ToastingBasketToastCollector Pan SpeedControlSelectorSwitch TK-100 Model T K - x x x B Toast King Model Number B = Buns model (Toasts one side) No Character = Bread and Buns MODEL DESIGNATIONEnglish TRTKM-0125 5 SPECIFICATIONS Plug Configurations Units are supplied from the factory with an electrical cord and plug installed. Plugs are supplied according to the applications. WARNING ELECTRIC SHOCK HAZARD: Plug unit into a properly grounded electrical receptacle of correct voltage, size, and plug configuration. If plug and receptacle do not match, contact a qualified electrician to determine and install proper voltage and size electrical receptacle.NOTE: Specification label located on the back of the unit. See label for serial number and verification of unit electrical information.

NEMA 6-20PNEMA 6-30P

Plug ConfigurationsNOTE: Receptacles are not supplied by Hatco, but some are available as accessories. Connecting Supply Wires If local codes require Greenfield or conduit hook-up, consult a licensed electrical contractor to perform supply wire connection. Access to the unit wiring is through the rear lower access panel.To connect supply wires to the toaster: 1. Remove the screws securing the side panels, and remove the side panels. 2. Remove the screws securing the rear lower access panel, and remove the panel. 3. Insert the Greenfield or conduit through the opening in the rear access panel and attach to the power supply bracket. Connect the wires. 4. Attach the ground wire to the power supply bracket at the threaded hole marked “G”. 5. Reinstall access panel and side panels.English TRTKM-01256 Model Voltage Hertz Watts Amps PlugConguration Shipping Weight TK-72 208 V 60 Hz 4038 W

No Cap 88 lbs. (40 kg)220 V 50 Hz 240 V 20.9 A SPECIFICATIONS Electrical Rating Chart The shaded areas contain electrical information for International models only.

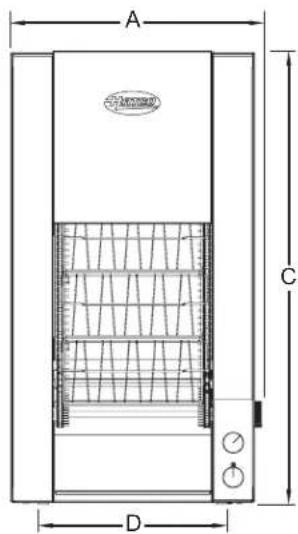

Front View Side View

• Add 4′′ (102 mm) to the height of the unit if the 4′′ (102 mm) leg accessory is installed.English TRTKM-01258 INSTALLATION NOTICE Do not locate unit in an area subject to excessive temperatures or grease from grills, fryers, etc. Excessive temperatures could cause damage to the unit. Do not locate toaster in an area that restricts air flow around front or rear of unit. Do not locate unit in area with excessive air movement around unit. Avoid areas that may be subject to active air movements or currents (i.e., near exhaust fans/hoods, air conditioning ducts, and exterior doors).

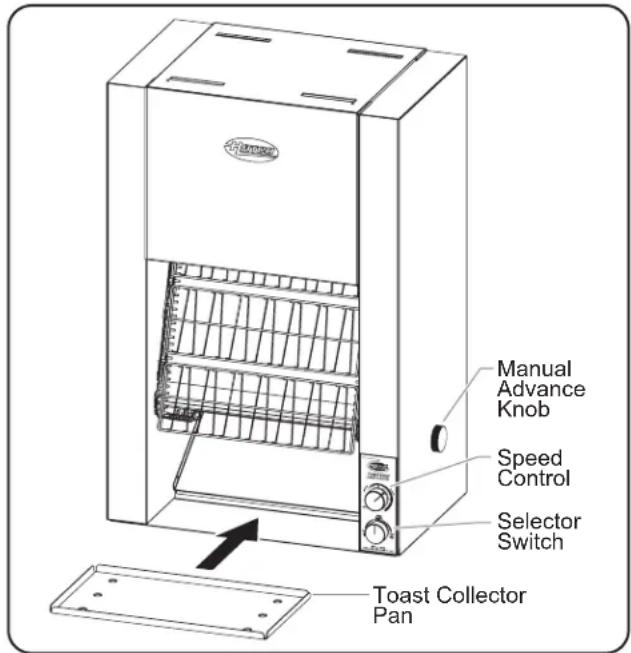

4. Install the toast collector pan.

5. If the unit does not have a plug installed on the power

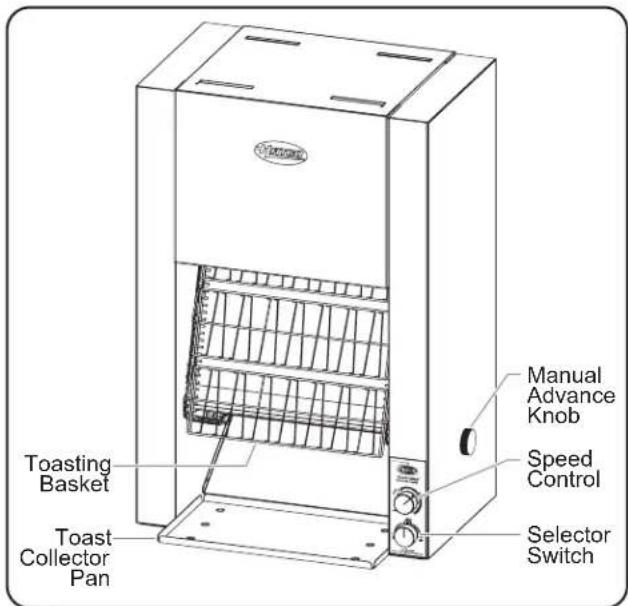

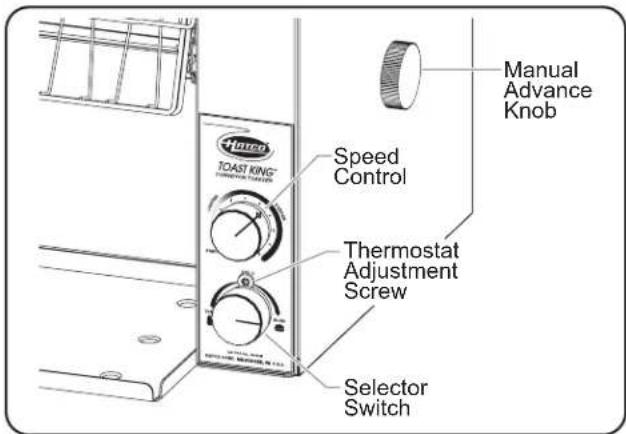

cord, contact a qualified electrician to determine and install the proper voltage and size electrical plug. See the SPECIFICATIONS section for details. NOTE: Hatco tests each toaster with bread product prior to shipping. Toast Collector Pan Speed Control Selector Switch Manual Advance Knob TK-100 Model General Hatco

Conveyor Toasters are shipped with all components pre-assembled. Care should be taken when unpacking the shipping carton to avoid damage to the unit and the components enclosed. WARNING ELECTRIC SHOCK HAZARD: Unit is not weatherproof. Locate unit indoors where ambient air temperature is a minimum of 70°F (21°C). EXPLOSION HAZARD: Do not store or use gasoline or other flammable vapors or liquids in the vicinity of this or any other appliance. FIRE HAZARD:

• Locateunitaminimumof1″(25mm)fromcombustible walls and materials. If safe distances are not maintained, combustion or discoloration could occur.

• Do not place anything on top of toaster. Do not place toaster near or underneath curtains or other combustible materials. Items near or on top of toaster could catch fire causing injury and/or damage to toaster.

1. Remove the unit from the carton.

NOTE: To prevent delay in obtaining warranty coverage, complete online warranty registration. See the IMPORTANT OWNER INFORMATION section for details.

2. Remove tape and protective packaging from all surfaces

3. Place the unit in the desired location. This may require two

• Locate the unit in an area where the ambient air temperature is constant and a minimum of 70°F (21°C). Avoid areas that may be subject to active air movements or currents (i.e., near exhaust fans/hoods, air conditioning ducts, exterior doors).

• Make sure the unit is at the proper counter height in an area convenient for use.

• Make sure the countertop is level and strong enough to support the weight of the unit and food product.

• Make sure all the feet on the bottom of the unit are positioned securely on the countertop.English TRTKM-0125 9 OPERATION General Hatco Toasters are designed for ease of operation. Perform the following procedure to operate the toaster. WARNING Read all safety messages in the IMPORTANT SAFETY INFORMATION section before operating this equipment. 1. Plug the unit into a properly grounded electrical receptacle of the correct voltage, size, and plug configuration. See the SPECIFICATIONS section for details. 2. Turn the Selector Switch from the OFF (O) position to the TOAST or BUNS position. NOTE: When toasting buns or bagels, place cut side facing out and set the Selector Switch to the BUNS position. 3. Turn the Speed Control counter-clockwise to the lightest/fastest position while the unit heats up. NOTE: Allow approximately 20–30 minutes for a warm-up period. CAUTION Always operate toaster with toast collector pan installed.BURN HAZARD: Some exterior surfaces on unit will get hot. Use caution when touching these areas. 4. After warm-up period, set the Speed Control to the desired toast darkness setting. The “1” setting on the Speed Control knobs represents the lightest toast setting and the “7” setting represents the darkest.NOTE: To toast moist products such as English muffins, rye bread, or whole wheat, slow the conveyor by turning the Speed Control knob to a DARKER setting (clockwise). CAUTION Toasting of coated or buttered products such as garlic bread, cheese sandwiches, and sweet rolls is NOT recommended. Residue will reduce toaster performance and could ignite inside toaster. Using toaster with food products listed above will void unit warranty.Productsthickerthan1-1/4″(32mm)willcauseconveyorsystem to jam, which could ignite product inside toaster. SelectorSwitchSpeed ControlManualAdvance Knob ThermostatAdjustmentScrew Control Panel (TK-100 shown) Manual Advance The manual advance knob is located on the right side panel of the toaster. This knob permits manual advancement of the toasting baskets and allows rapid discharge of toast. Thermostat Adjustment The thermostat adjustment screw is located on the control panel. The thermostat controls the toasting chamber temperature and is preset at the factory.If adjustment is needed, use the following procedure. 1. Turn the Selector Switch to the TOAST or BUNS position and allow approximately 20–30 minutes for a warm-up period. • The thermostat should be adjusted when the toaster is at the operation temperature. 2. Turn the adjustment screw using a small screwdriver. • Turn the screw clockwise to increase temperature or counterclockwise to decrease the temperature.NOTE: Do not turn the screw more than 1/8 turn at a time. Allow at least five minutes for temperature to stabilize.English TRTKM-012510 MAINTENANCE General Hatco

Conveyor Toasters are designed for maximum durability and performance, with minimum maintenance. NOTE: The conveyor chain gear motor is permanently lubricated and requires no maintenance. WARNING ELECTRIC SHOCK HAZARD:

• Turn OFF power switch, unplug power cord/turn off power at circuit breaker, and allow unit to cool before performing any cleaning, adjustments, or maintenance.

• DO NOT submerge or saturate with water. Unit is not waterproof. Do not operate if unit has been submerged or saturated with water.

• Do not steam clean or use excessive water on unit.

• This unit is not “jet-proof” construction. Do not use jet-clean spray to clean this unit.

• Do not clean unit when it is energized or hot. This unit has no “user-serviceable” parts. If service is required on this unit, contact an Authorized Hatco Service Agent or contact the Hatco Service Department at 414-671-6350. Daily Cleaning To preserve the finish of the toaster, it is recommended that the metal surfaces be wiped daily with a non-abrasive, damp cloth. WARNING Submerging or saturating unit with water will damage the unit and void unit warranty. CAUTION Do not remove toast collector pan or baskets for cleaning until toaster is cool.

1. Turn the Selector Switch to the OFF (O) position, unplug

power cord/turn off power at circuit breaker, and allow the unit to cool.

2. Remove and empty the toast collector pan.

3. Wash the toast collector pan with warm water and a mild

detergent. Rinse with water.

4. Allow the toast collector pan to air dry before placing back

5. Wipe the exterior surface of the toaster with a damp cloth.

NOTICE: Use non-abrasive cleaners and cloths only.

6. Wipe dry the entire unit using a dry, non-abrasive cloth.

Cleaning the Toasting Baskets The toasting baskets need to be removed from the toaster periodically in order to be cleaned properly.

1. Use the manual advance knob on the right side of the unit

to advance the baskets without energizing the unit.

2. Remove the baskets by pushing the spring-loaded chain

away from the basket while pulling the basket away from the chain and outward.

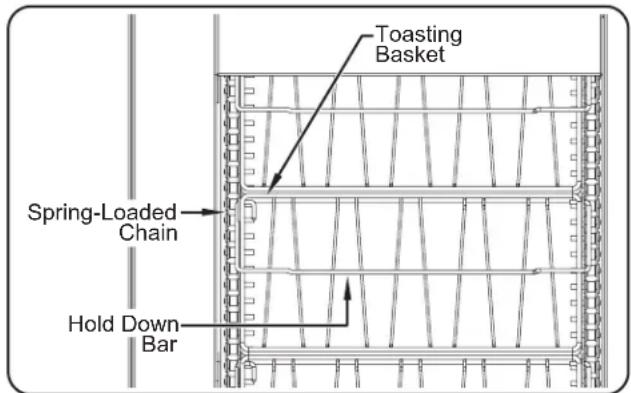

• The chain link pins must be pulled out of the toasting basket holes on the top of each side of the baskets. Spring-Loaded Chain Toasting Basket Hold Down Bar Removing Toasting Baskets NOTE: Do not detach the hold down bars when cleaning toasting baskets.

3. Wipe clean with a soft, damp cloth or soak the baskets in

a mild solution of soap and water.

4. Re-install a basket by aligning a pin on each chain with the

holes in each side of the toasting basket. The pin on the right-hand chain must be exactly opposite the pin on the left-hand chain.

5. To attach the remaining baskets, advance the conveyor

and repeat the previous step. Each basket must be hung immediately below the preceding basket for all baskets to fit properly. CAUTION Misalignment of toasting baskets will cause conveyor to jam. Hold down bars should be facing out and lying flat on baskets. Incorrectly positioned bars will cause conveyor to stop.English TRTKM-0125 11 Symptom Probable Cause Corrective Action Toast too light. Speed Control set on a light setting. Turn Speed Control to a darker setting.Thermostat is set to low. Refer to “Thermostat Adjustment” in the OPERATION section for information.Supply voltage to unit is low. Verify the supply voltage to the toaster matches the unit specifications.Heating element defective. Contact Authorized Service Agent or Hatco for assistance.Toast too dark. Speed Control set on a dark setting. Turn Speed Control to a lighter setting.Thermostat is set to high. Refer to “Thermostat Adjustment” in the OPERATION section for information.Supply voltage to unit is high. Verify the supply voltage to the toaster matches the unit specifications.Unit takes too long to toast. The first few batches can take longer because the toaster needs time to heat up when initially turned on.Wait until the toaster is at full operation temperature before inserting bread.Supply voltage to unit is low. Verify the supply voltage to the toaster matches the unit specifications.Unit toasts on one side only.(TK-135B and TK-155B models are designed to toast one side of buns/bagels only.)The selector switch is in the BUNS position. Move the selector switch to the BREAD position.Heating element defective. Contact Authorized Service Agent or Hatco for assistance.Toaster trips the circuit breaker or GFCI.Circuit breaker is not sized properly for the toaster. Check circuit breaker for proper sizing. Wiring fault inside toaster. Contact Authorized Service Agent or Hatco for assistance. TROUBLESHOOTING GUIDE WARNING This unit must be serviced by qualified personnel only. Service by unqualified personnel may lead to electric shock or burn. WARNING ELECTRIC SHOCK HAZARD: Turn OFF power switch, unplug power cord/turn off power at circuit breaker, and allow unit to cool before performing any cleaning, adjustments, or maintenance. Troubleshooting Questions? If you continue to have problems resolving an issue, please contact the nearest Authorized Hatco Service Agency or Hatco for assistance. To locate the nearest Service Agency, log onto the Hatco website at www.hatcocorp.com, select the Support pull- down menu, and click on “Find A Service Agent”; or contact the Hatco Parts and Service Team at: Telephone: [phone] e-mail: [e-mail] TRTKM-012512

OPTIONS AND ACCESSORIES

4″(102mm)AdjustableLegs 4″ (102 mm) adjustable legs are available as accessories for all models. Use the following procedure to install the legs. NOTICE Do not lay unit on the side with control panel or manual advance knob. Damage to unit could occur.

1. Carefully place unit on its side.

2. Thread the 4″ (102 mm) adjustable legs into the existing

leg holes on the bottom of the unit.

3. After all legs are secure, return the unit to the upright

position. This may require two people. LengthenShortenAdjustable Tip

4. Level the unit by turning the

adjustable tip on each leg. Use a 5/8″ (16mm) open-end wrench to make leveling adjustments. Baskets for Jumbo Buns Baskets for Jumbo Buns are available as accessories for TK-100, TK-135B, and TK-155B Models only. These baskets accommodate large buns up to 5-1/2” (140 mm) in diameter. Security Control Cover An optional security control cover is available for all models (not for field retrofit). A security control cover includes the control cover, bracket, fuse cover, and mounting hardware. Receptacles Receptacles are available as accessories for units using NEMA 6-20P or NEMA 6-30P plugs. Mounting Brackets Mounting brackets are available as accessories to securely and permanently mount a toaster. The brackets are installed in the leg mounting holes. Fasteners not supplied.English TRTKM-0125 13 LIMITED WARRANTY WARRANTY, EXCLUSIVE REMEDY: Hatco

Corporation (Seller) warrants that the products it manufactures (Products) will be free from defects in materials and workmanship under normal use and service and when stored, maintained, and installed in strict accordance with factory recommendations. Seller’s sole obligation to the person or entity buying the Products directly from Seller (Customer) under this warranty is the repair or replacement by Seller or a Seller-authorized service agency, at Seller’s option, of any Product or any part thereof deemed defective upon Seller’s examination, for a period of: (i) the Warranty Duration from the date of shipment by Seller or (ii) the Warranty Duration from the date of Product registration in accordance with Seller’s written instructions, whichever is later. The “Warranty Duration” shall mean the specific periods set forth below for specific Product components, or, to the extent not listed below, eighteen (18) months. Credit for Products or parts returned with the prior written permission of Seller will be subject to the terms shown on Seller’s material return authorization form. PRODUCTS

OR PARTS RETURNED WITHOUT PRIOR WRITTEN

PERMISSION OF SELLER WILL NOT BE ACCEPTED FOR CREDIT. Expenses incurred by Customer in returning, replacing, or removing the Products will not be reimbursed by Seller. If the defect comes under the terms of the limited warranty, the Products will be repaired or replaced and returned to the Customer and the cost of return freight will be paid by Seller. The remedy of repair or replacement provided for herein is Customer’s exclusive remedy. Any improper use, alteration, repairs, tampering, misapplication, improper installation, application of improper voltage, or any other action or inaction by Customer or others (including the use of any unauthorized service agency) that in Seller’s sole judgment adversely affects the Product shall void this warranty. The warranty expressly provided herein may only be asserted by Customer and may not be asserted by Customer’s customers or other users of the Products; provided, however, that if Customer is an authorized equipment dealer of Seller, Customer may assign the warranty herein to Customer’s customers, subject to all of the limitations of these Terms, and in such case, the warranty shall be exclusively controlled by Seller in accordance with these Terms. THIS LIMITED WARRANTY IS EXCLUSIVE AND IS IN LIEU OF ANY OTHER WARRANTY, EXPRESSED OR IMPLIED, INCLUDING BUT NOT LIMITED TO ANY IMPLIED WARRANTY OF NONINFRINGEMENT, MERCHANTABILITY, OR FITNESS FOR A PARTICULAR PURPOSE, WHICH ARE EXPRESSLY DISCLAIMED. One (1) Year Parts and Labor PLUS One (1) Additional Year Parts-Only Warranty: Conveyor Toaster Elements (metal sheathed) Drawer Warmer Elements (metal sheathed) Drawer Warmer Drawer Rollers and Slides Food Warmer Elements (metal sheathed) Display Warmer Elements (metal sheathed air heating) Holding Cabinet Elements (metal sheathed air heating) Heated Well Elements — HW, HWB, and HWBI Series (metal sheathed) Two (2) Year Parts and Labor Warranty: Induction Ranges Induction Warmers One (1) Year Replacement Warranty: TPT Pop-Up Toasters One (1) Year Parts and Labor PLUS Four (4) Years Parts-Only Warranty: 3CS and FR Tanks One (1) Year Parts and Labor PLUS Nine (9) Years Parts-Only Warranty: Electric Booster Heater Tanks Gas Booster Heater Tanks Ninety (90) Day Parts-Only Warranty: Replacement Parts Notwithstanding anything herein to the contrary, the limited warranty herein will not cover components in Seller’s sole discretion such as, but not limited to, the following: coated incandescent light bulbs, fluorescent lights, heat lamp bulbs, coated halogen light bulbs, halogen heat lamp bulbs, xenon light bulbs, LED light tubes, glass components, and fuses; Product failure in booster tank, fin tube heat exchanger, or other water heating equipment caused by liming, sediment buildup, chemical attack, or freezing. WARRANTY REGISTRATION INSTRUCTIONS: Product registration must be submitted within 90 days from the date of shipment from our factory to qualify for additional coverage. Registration may be submitted through the form on Seller’s website, through the form accessible through the QR code on the Product (where available), or by calling Customer Service with the required information at: 414-671-6350. LIMITATION OF LIABILITY: SELLER WILL NOT BE LIABLE FOR ANY INDIRECT, INCIDENTAL, CONSEQUENTIAL, PUNITIVE, EXEMPLARY,

OR SPECIAL DAMAGES, INCLUDING WITHOUT LIMITATION

ANY LOST PROFITS, COSTS OF SUBSTITUTE PRODUCTS, OR LABOR COSTS ARISING FROM THE SALE, USE, OR INSTALLATION OF THE PRODUCTS, FROM THE

PRODUCTS BEING INCORPORATED INTO OR BECOMING

A COMPONENT OF ANOTHER PRODUCT, OR FROM ANY
