Product Type	Desktop computer (barebone)
Brand	ASUS
Model	P2P5945GC
Dimensions (approx.)	200 x 400 x 450 mm
Weight (approx.)	8 kg
Power Supply	Voltage selector 115 V/230 V, internal power supply unit
Compatible Processor	Socket LGA775 (Intel)
RAM	Up to 4 GB DDR2 (2 DIMM slots)
Internal Storage	1 x 3.5" bay for hard drive, 1 x 5.25" bay for optical drive
Front Connectors	2 x USB 2.0 ports, audio ports (headphone, microphone), IEEE 1394 ports, card reader (MS/MS Pro, SD/MMC, CompactFlash)
Rear Connectors	4 x USB 2.0 ports, VGA, DVI-D, S/PDIF Out, LAN RJ-45, PS/2 ports (mouse, keyboard), serial port, audio ports (Line In, Line Out, MIC, Surround)
Main Functions	Versatile desktop computer, optical drive, hard drive, PCI expansion slots
Maintenance and Cleaning	Clean with a soft dry cloth. Disconnect power before any maintenance.
Safety	Turn off and unplug before any internal handling. Use an antistatic wrist strap.
Spare Parts and Repairability	CPU, memory, hard drive, optical drive, expansion card, power supply, CPU fan. Refer to the manual for installation.
General Information	User and installation manual available in PDF.

Frequently Asked Questions - P2P5945GC ASUS

How to open the computer case?

Remove the two screws at the back, pull the panel backward, then lift and tilt it.

How to install a processor on the motherboard?

Lift the socket lever to 90-100°, open the plate, remove the PnP cap, place the CPU (align notch), close the plate and lock the lever.

How to install a memory module (DIMM)?

Unlock the DIMM socket clips, align the module notch with the socket key, then push the module down until the clips lock.

How to install a hard drive or optical drive?

Position the storage assembly so that the 3.5" bay is above the 5.25" bay. Insert the drive into the corresponding bay and secure it with two screws on each side.

How to connect power and data cables to drives?

Connect the black connector of the IDE cable to the optical drive, the gray connector to the hard drive (or SATA cable for a SATA drive). Then connect the 4-pin power connector to the drive power connectors.

How to install an expansion card?

Lift the PCI Riser Card assembly, remove the metal bracket corresponding to the slot, insert the card into the slot, secure it with a screw, then reinstall the Riser assembly.

How to reinstall the front panel cover?

Insert the cover tabs into the openings on the right side of the chassis, then close it by snapping the hooks until it is securely in place.

How to reinstall the side panel?

Align the panel tabs with the chassis rails, push it forward until it locks, then secure with the two screws saved.

Which power supply voltage to choose?

Use the voltage selector near the power connector to choose 115 V or 230 V according to your region.

Where can I find the full manual?

The manual is available for free download in PDF format on the website notice-facile.com.

USER MANUAL P2P5945GC ASUS

ASUS PC (Desktop Barebone)

Installation Manual

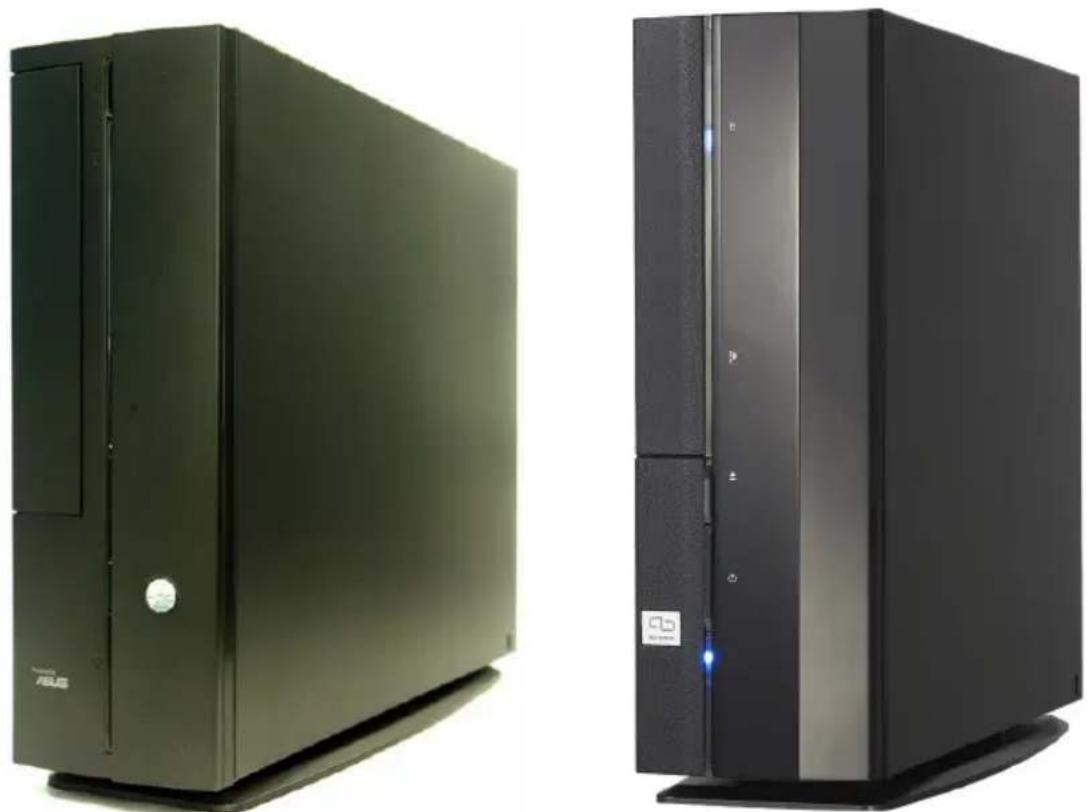

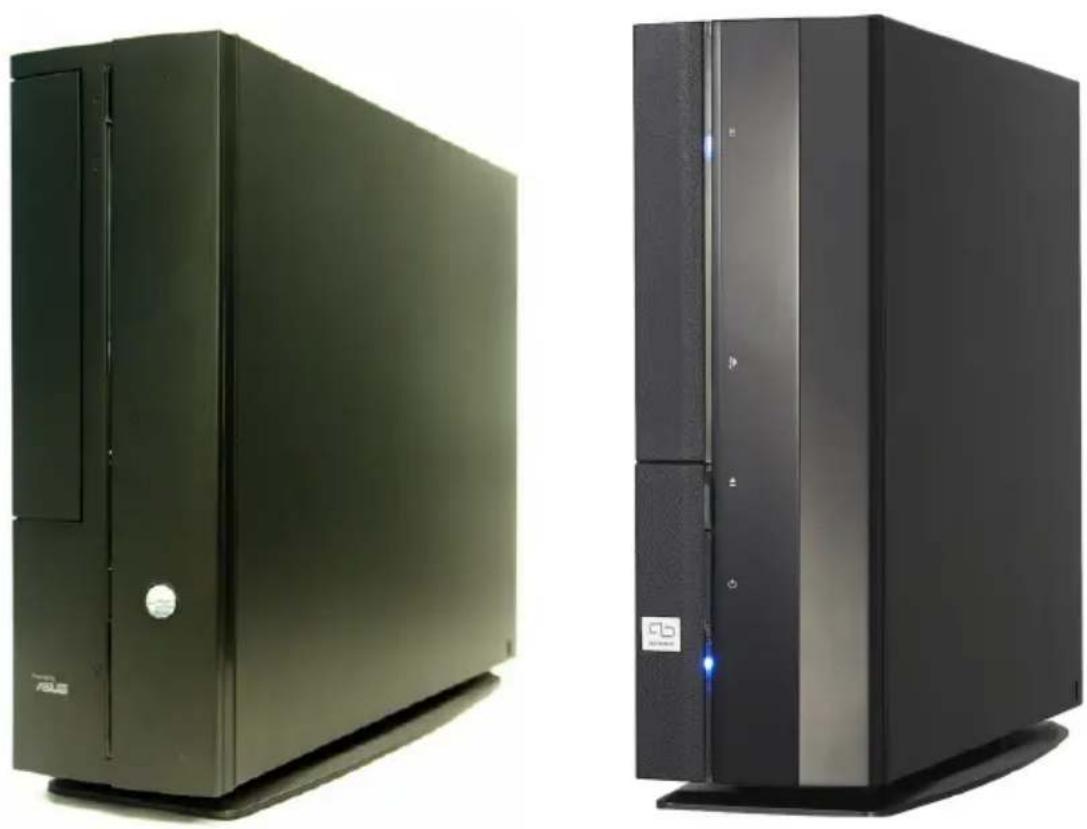

Two black desktop computer units, one with a visible logo and the other with a logo and control panel (no text or symbols on the devices themselves)

Download the latest manual from the ASUS website: www.asus.com

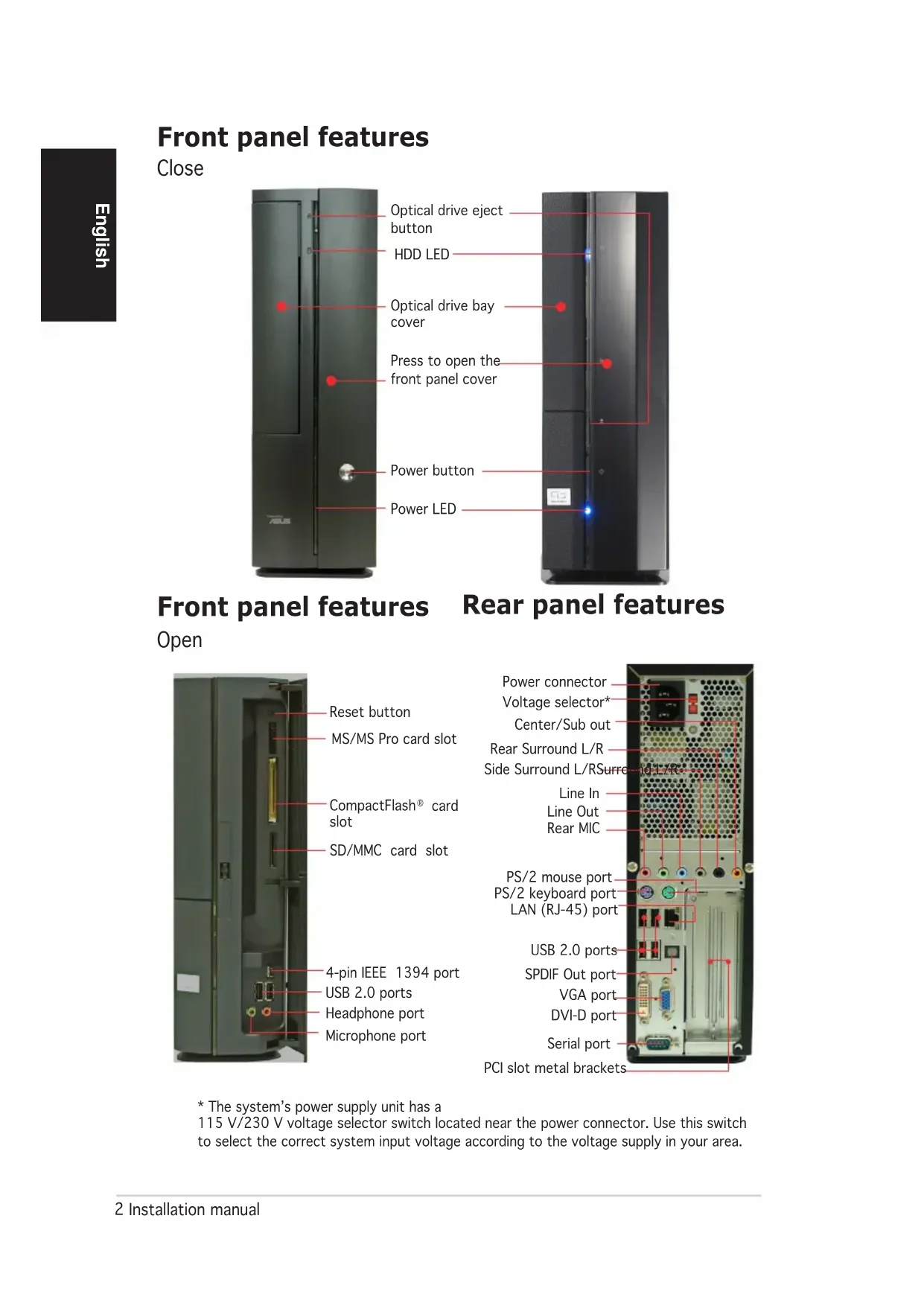

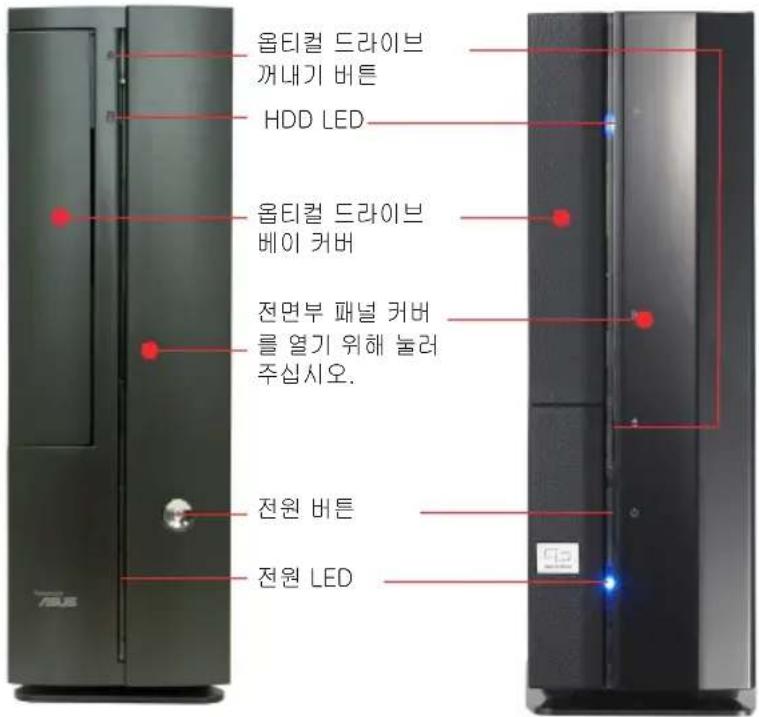

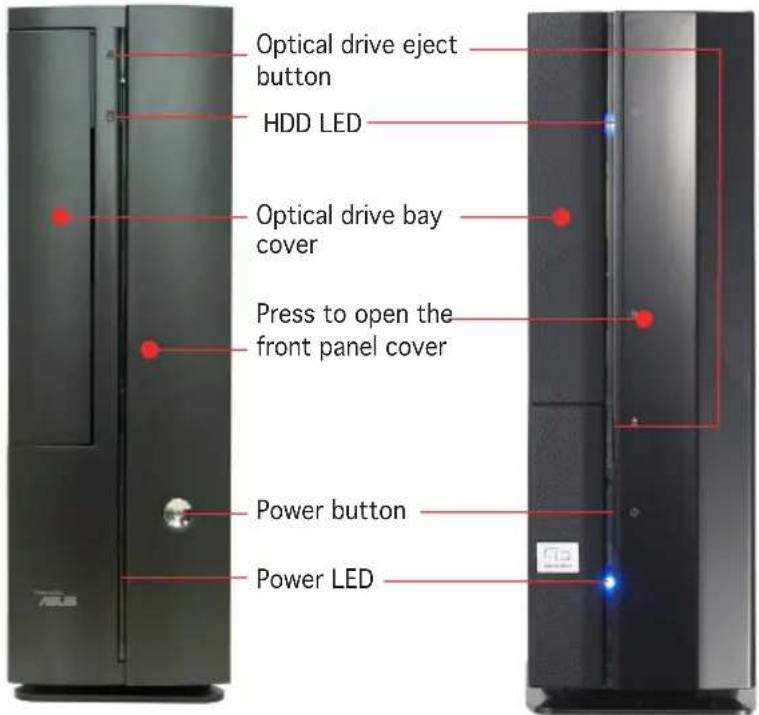

Front panel features

Close

Optical drive eject button HDD LED Optical drive bay cover Press to open the front panel cover Power button Power LED

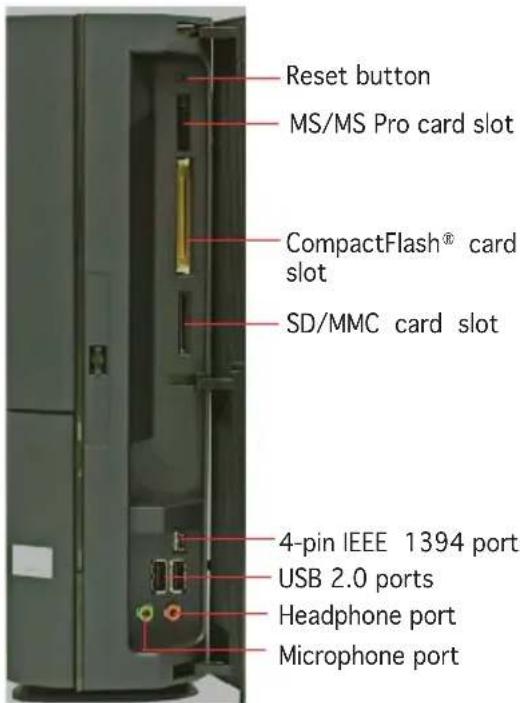

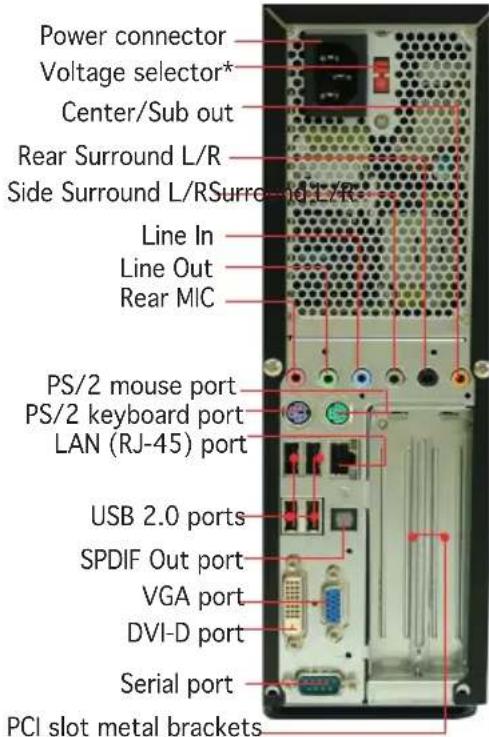

Front panel features Rear panel features

Open

Reset button MS/MS Pro card slot CompactFlash® card slot SD/MMC card slot 4-pin IEEE 1394 port USB 2.0 ports Headphone port Microphone port

Power connector Voltage selector* Center/Sub out Rear Surround L/R Side Surround L/RSurre and L/R Line In Line Out Rear MIC PS/2 mouse port PS/2 keyboard port LAN (RJ-45) port USB 2.0 ports SPDIF Out port VGA port DVI-D port Serial port PCI slot metal brackets

* The system's power supply unit has a 115 V/230 V voltage selector switch located near the power connector. Use this switch to select the correct system input voltage according to the voltage supply in your area.

Internal components

Internal view of a computer drive showing labeled components including CPU socket, fan, and heatsink

1. 5.25-inch optical drive and 3.5 inch hard disk drive cage
2. Front panel cover
3. Power supply unit

4. PCI card riser bracket (connected to the motherboard PCI slot)

5. ASUS motherboard

6. DIMM sockets
7. LGA775 socket (under the CPU fan and heatsink assembly)
8. CPU fan and heatsink assembly

Removing the cover

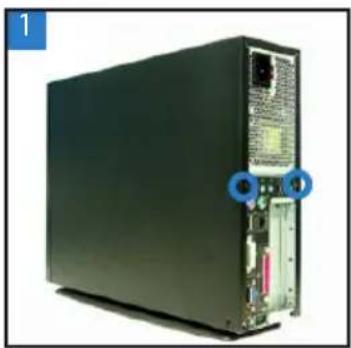

1. Remove the cover screws. Keep the screws for later use.

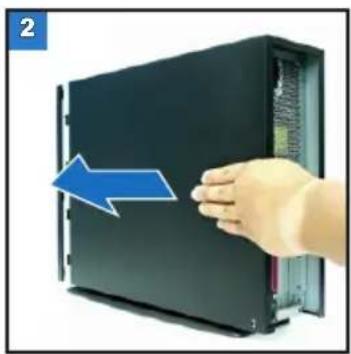

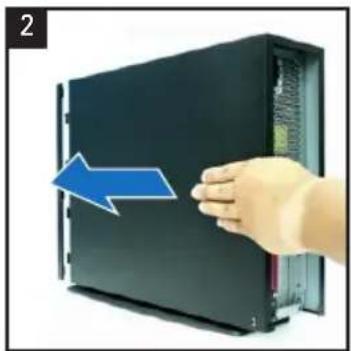

2. Pull the cover slightly toward the rear panel.

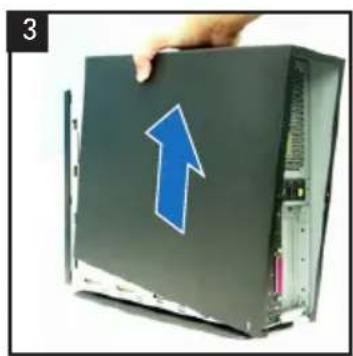

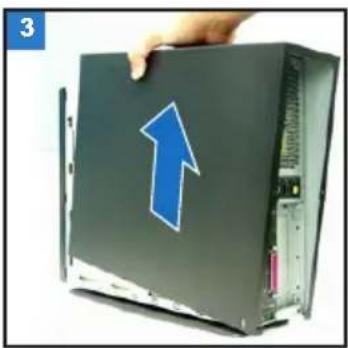

3. Lift the cover, then set aside.

Back view of a black server rack unit with ports and connectors (no visible text or labels)

Hand pressing a button on a server rack, showing a blue arrow indicating motion (no text or symbols present)

Hand holding a black device with a blue upward arrow on its cover, next to an open rear panel (no text or symbols visible)

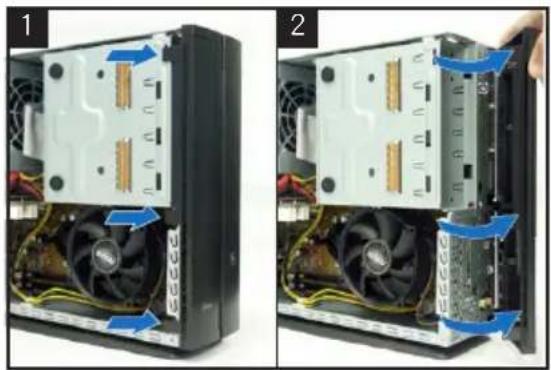

Removing the front panel cover

1. Lift the front panel cover hooks outward.
2. Carefully remove the front panel cover, then set it aside.

Two-panel photo showing a computer tower with visible CPU socket and fan blades, no text or symbols present.

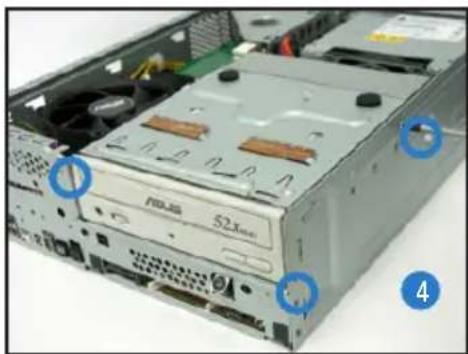

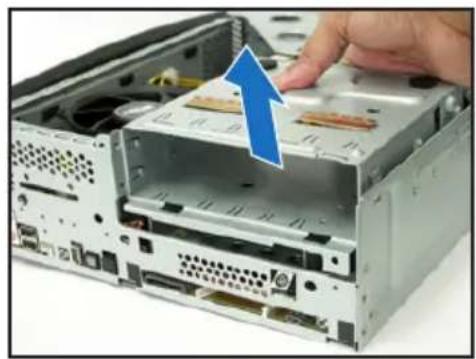

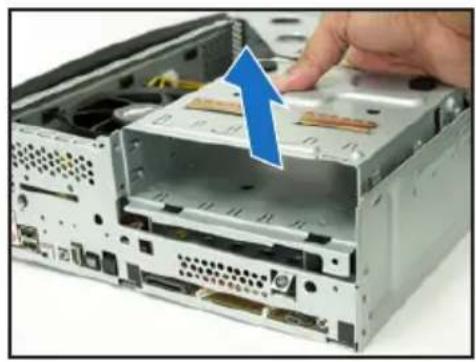

Removing the storage drive assembly

1. Lay the system on its side, then locate and remove three storage drive assembly screws.

2. Lift the storage drive assembly, then set aside.

Interior view of a computer drive bay showing internal components and a cable inserted (no visible text or labels)

Close-up of a computer drive showing internal components and a hand inserting a component (no text or symbols visible)

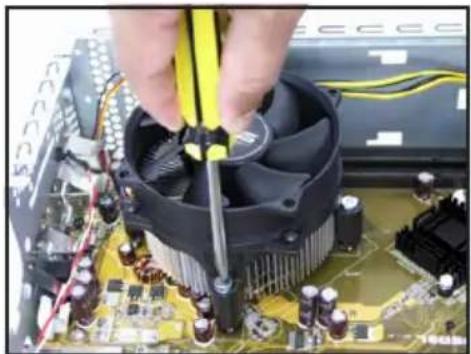

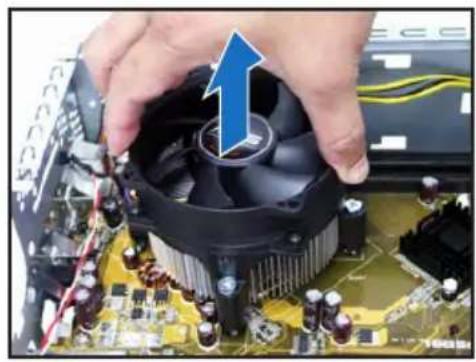

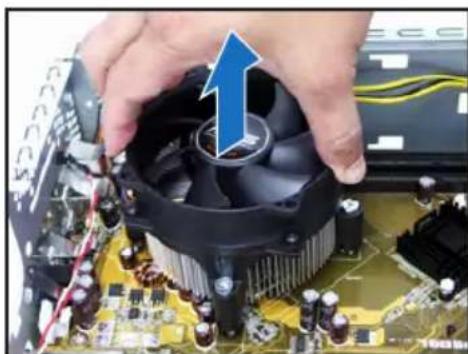

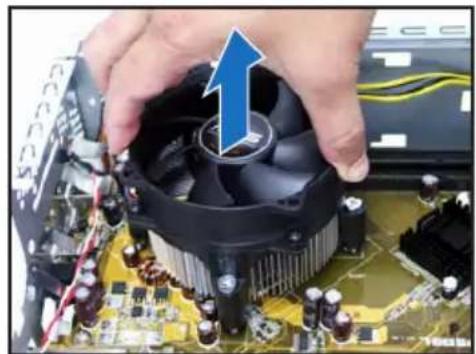

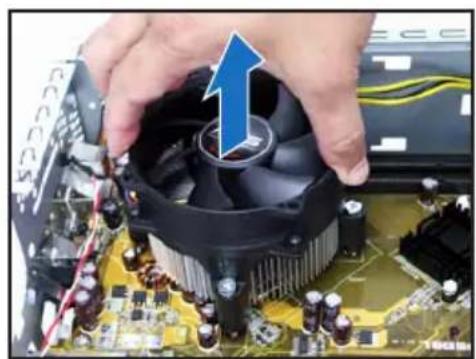

Removing the CPU fan and heatsink

1. Disconnect the CPU fan cable.

2. Loosen the CPU fan and heatsink assembly screws.

3. Lift the CPU fan and heatsink assembly, then set aside.

Close-up of hands working on a computer motherboard with a CPU socket and power cord (no visible text or symbols)

Close-up of hands holding a CPU fan on a motherboard with visible circuitry and components (no text or symbols)

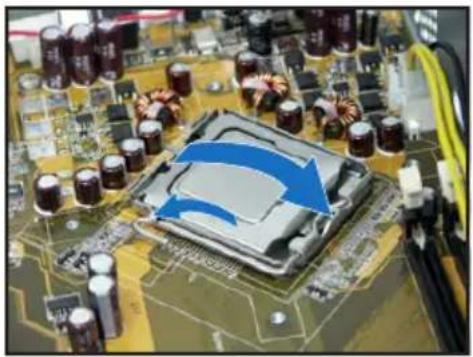

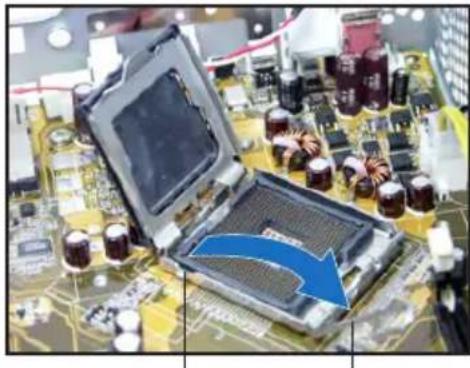

Installing the CPU

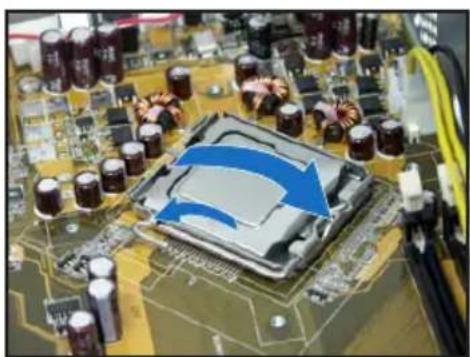

1. Unlock the load lever, then lift to a 90^-100^ angle.

Close-up of a computer motherboard with an open processor and a blue arrow indicating a process or component (no visible text or symbols)

Load leverRetention tab

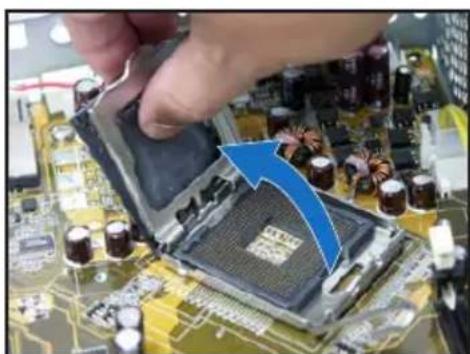

1. Lift the load plate, then remove the PnP cap.

Close-up of a computer motherboard with a hand holding an open CPU socket and a blue arrow indicating the process (no text or symbols visible)

1. Install the CPU. The CPU fits in only one orientation.

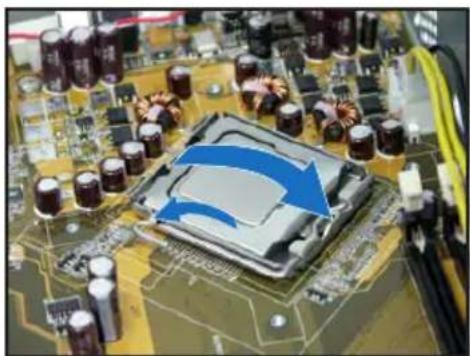

2. Close the load plate, then lock the load lever.

Close-up of hands installing a chip onto a computer motherboard with a blue arrow indicating the process (no text or symbols visible)

Close-up of a computer motherboard with visible CPU socket and surrounding components (no text or symbols)

1. Reinstall the CPU fan and heatsink assembly, then reconnect the CPU fan cable to the CPU fan connector on the motherboard. Refer to the instructions in the previous section for details.

Installing a DIMM

1. Locate the DIMM sockets in the motherboard.
2. Unlock a DIMM socket by pressing the retaining clips outward.
3. Align a DIMM on the socket such that the notch on the DIMM matches the break on the socket.

Unlocked retaining clip DDR DIMM notch

Installing an expansion card

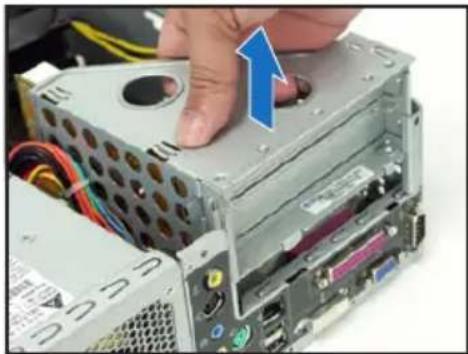

1. Lift the PCI riser card assembly to remove.

Close-up of a computer tower case with a hand pressing a button, showing internal components and wiring (no text or symbols visible)

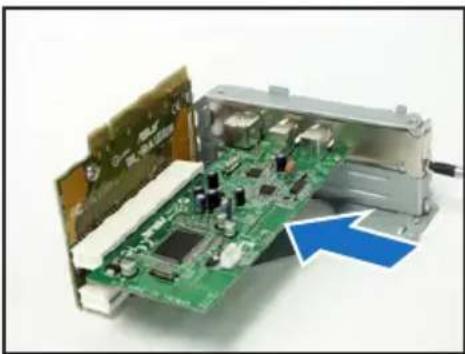

1. Insert the card connector to the slot, then press the card firmly until it fits in place. Secure the card with a screw.

2. Remove the metal cover opposite the slot that you intend to use.

Electronic component with circuit board and metallic housing, no visible text or symbols

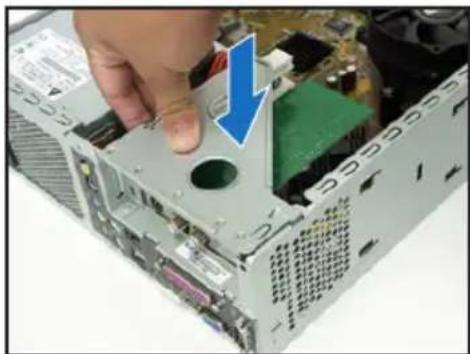

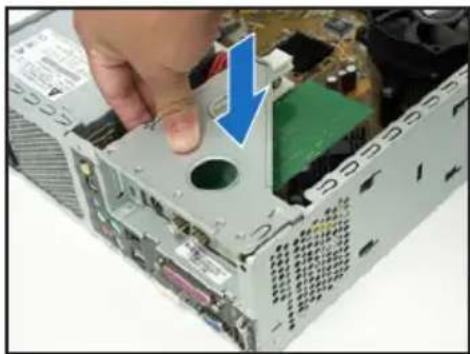

1. Reinstall the PCI riser card assembly. Make sure that the riser card connector sits properly on the motherboard PCI slot.

Interior view of an electronic device showing a green circuit board with internal components and a blue arrow pointing to a component (no text or symbols visible)

Close-up of a computer tower case with a hand inserting a component, showing internal circuitry and a blue arrow indicating the direction (no text or symbols visible)

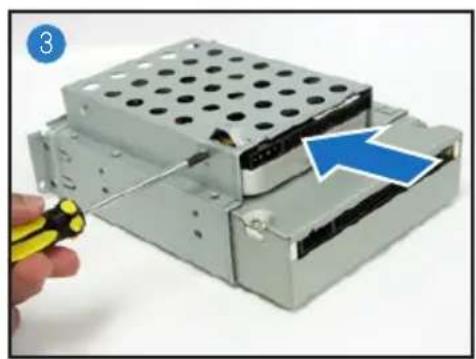

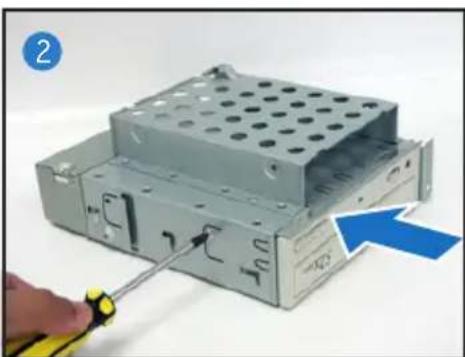

Installing optical and storage drives

1. Turn the storage drive assembly upside down with the 3.5-inch bay on top of the 5.25-inch bay.
2. Insert the optical drive upside down to the 5.25-inch bay, then secure it with two screws on both sides.

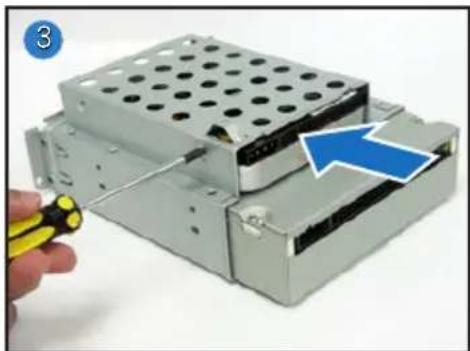

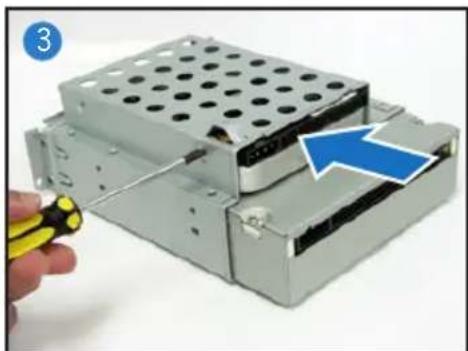

3. Turn the storage drive assembly, insert the hard disk drive upside down to the 3.5-inch bay, then secure it with two screws on both sides.

Close-up of a computer hard drive with a screwdriver inserted, showing internal components and a blue arrow indicating the component (no text or symbols present)

Hand holding a yellow pen next to a stacked electronic device with a blue arrow pointing to a component (no text or symbols visible)

Reinstalling the storage drive assembly

Before reinstalling the storage drive assembly, connect the IDE/SATA and power plugs to the IDE/SATA and power connectors at the back of the drives.

1. Connect the black plug of the IDE cable to the optical drive, then the gray plug to the hard disk drive. If you have the SATA HDD, connect the SATA cable to the SATA HD.
2. Connect the 4-pin power plugs to the power connectors at the back of the drives.
3. Install the storage drive assembly to the chassis.

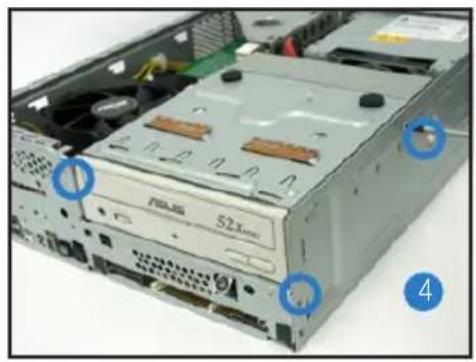

4. Secure the storage drive assembly with three screws.

Close-up of a CD-ROM drive showing internal components and a blue arrow indicating a loading or movement (no text or symbols on the device itself)

Interior view of a computer drive bay showing CD-ROM drive and drive casing (no text or symbols visible)

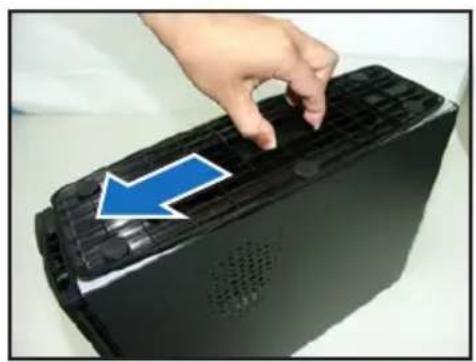

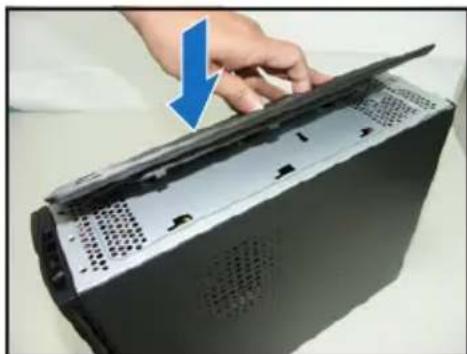

Installing the foot stand

1. Match the foot stand hooks to the holes on the chassis.

Hand placing a folder into a computer tower with a blue arrow indicating the direction (no text or symbols visible)

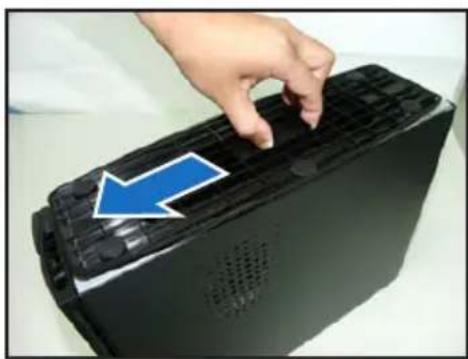

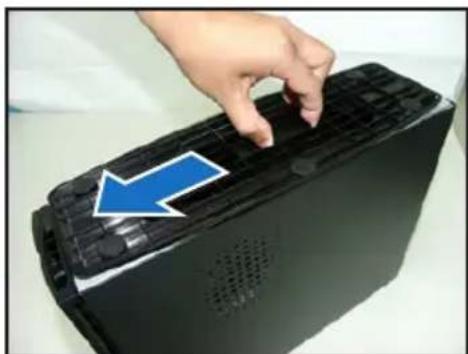

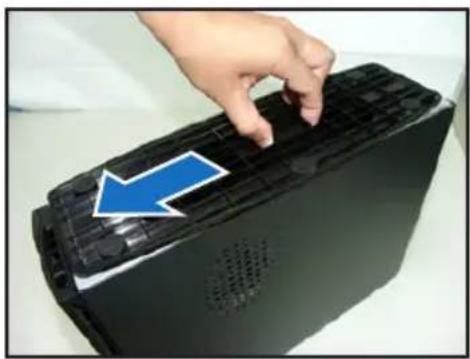

1. Pull the foot stand to the direction of the arrow until the lock clicks in place.

Hand pressing down on a black electronic device with a blue arrow pointing to the button (no text or symbols visible)

To remove the foot stand, lift the lock, then slightly push the foot stand to the direction of the rear panel until it disengages from the chassis.

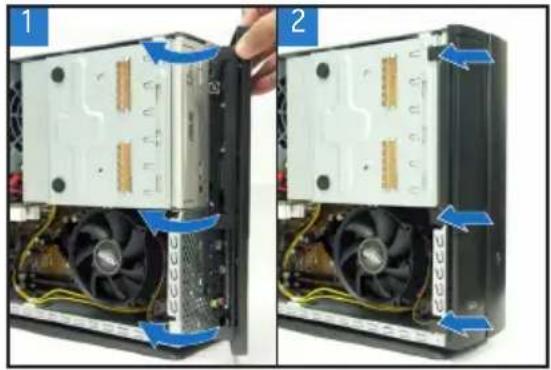

Reinstalling the front panel cover

1. Insert the front panel cover tabs to the holes at the right side of the chassis, then close.
2. Insert the front panel cover hooks to the chassis tabs until the front panel cover fits in place.

Two-panel photo showing a computer tower with visible CPU socket and heatsink, labeled 1 and 2 (no text or symbols on the diagram itself)

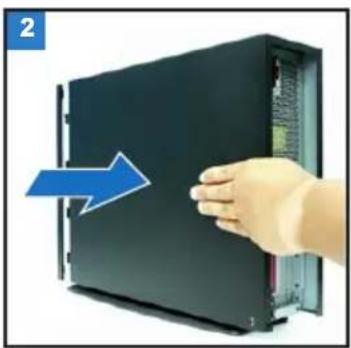

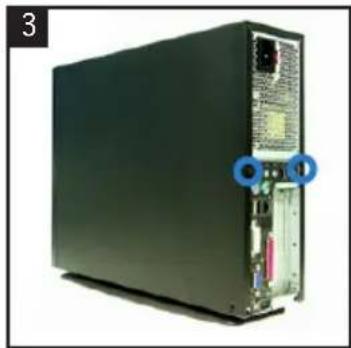

Reinstalling the cover

1. Install the cover to the chassis. Make sure the cover tabs fit the chassis rails.

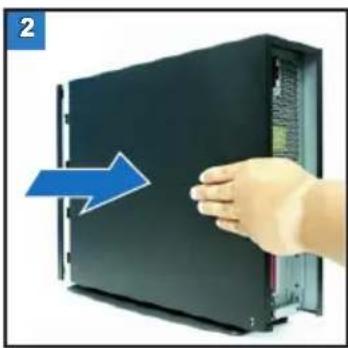

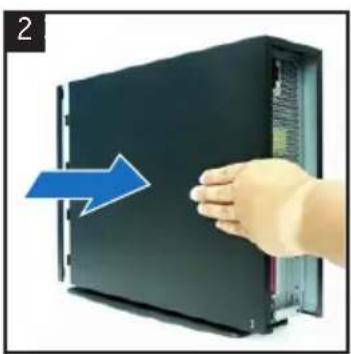

2. Push the cover toward the front panel until it fits in place.

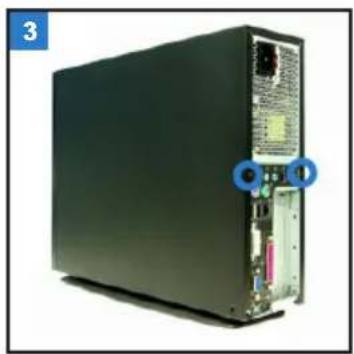

3. Secure the cover with two screws.

Hand holding a black computer tower with a blue downward arrow on its cover (no text or symbols visible)

Hand holding a black server rack with a blue arrow pointing to the side panel (no text or symbols visible)

Front view of a black server rack with ports and connectors, no visible text or symbols

P1-P5945G/P2-P5945G

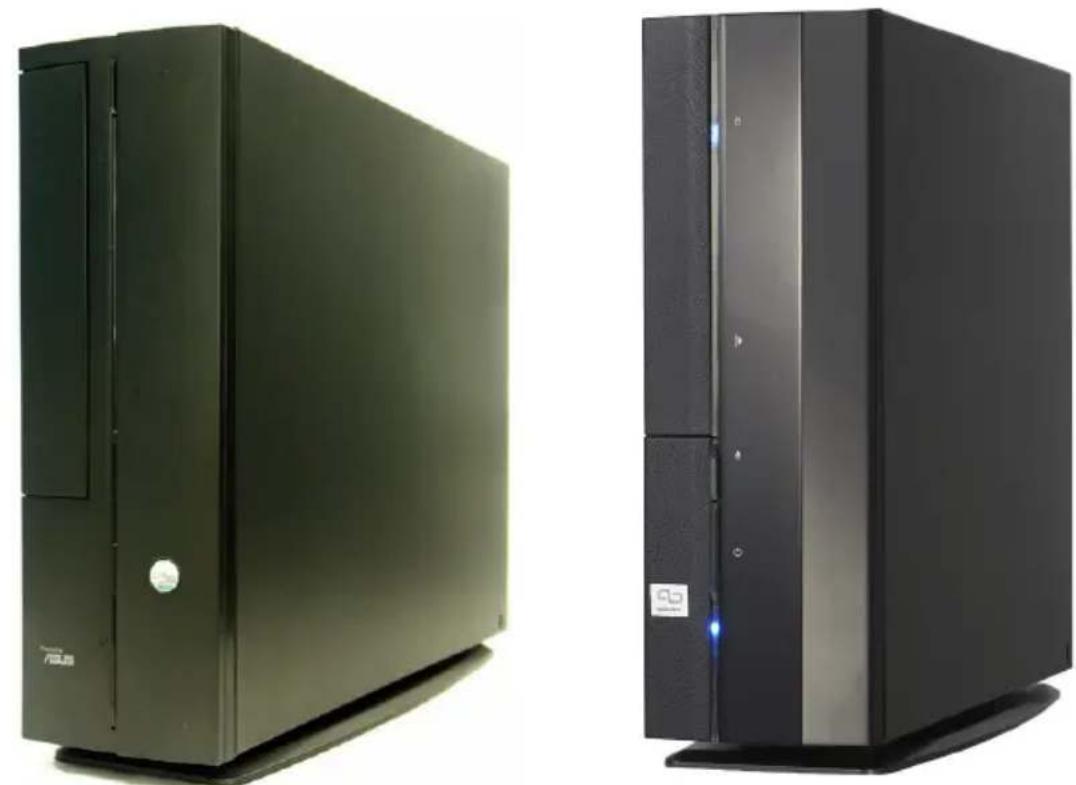

Two black desktop computer units, one front and one side, displayed against a white background (no visible text or symbols)

Internal view of a computer drive showing labeled components including CPU socket, fan, and heatsink

Front view of a server rack unit with visible ports and connectors (no text or symbols)

Hand pressing a device into a black rack, with a blue arrow indicating the motion (no text or symbols visible)

Hand holding a computer monitor with an upward arrow on the cover (no text or symbols visible)

Two views of a computer tower showing internal CPU socket and drive mechanism (no text or symbols visible)

Interior view of a computer drive bay showing internal components and a screwdriver inserted (no text or symbols visible)

Close-up of a computer drive showing a CD-ROM with an open rear case and a hand inserting a cable into it (no text or symbols visible)

Close-up of hands using a power tool to adjust the CPU into a motherboard (no visible text or symbols)

Close-up of hands installing a CPU fan on a motherboard with a blue arrow indicating the process (no text or symbols visible)

Installer un CPU

Close-up of a computer motherboard with visible electronic components and a blue arrow indicating a process or change (no text or symbols)

Close-up of a computer motherboard with a hand holding an open CPU socket and a blue arrow indicating the process (no visible text or symbols)

Close-up of hands installing a microchip on a circuit board with a blue arrow indicating the component (no text or symbols visible)

Close-up of a computer motherboard with a highlighted CPU socket and surrounding components (no visible text or symbols)

Close-up of a computer tower case with a hand pressing down on the cover (no visible text or labels)

Electronic component with exposed circuit board and metallic housing (no visible text or symbols)

Interior view of an electronic device showing a green circuit board with internal components and a blue arrow indicating a component (no text or symbols visible)

Close-up of a computer motherboard showing a hand inserting a component into a drive casing (no visible text or labels)

Close-up of a computer drive with a screwdriver inserted, showing internal components and a blue arrow indicating direction (no text or symbols)

Hand holding a yellow tool next to a stacked electronic device with a blue arrow pointing to a component (no text or symbols visible)

Interior view of a computer drive showing external components and labeled ports (no readable text or symbols)

Installer le pied de support

Close-up of a hand opening a computer case with a blue arrow pointing to the lid (no text or symbols visible)

Hand pressing down on a black electronic device with a blue arrow pointing to the button (no text or symbols visible)

Two views of a computer tower showing internal CPU socket and drive mechanism (no text or symbols visible)

Hand holding a black server case with a blue downward arrow on its side, next to an open drive (no text or symbols visible)

Hand pressing a black server rack with a blue arrow indicating left motion (no text or symbols)

Front view of a black server rack with ports and connectors (no visible text or labels)

ASUS

P1-P5945G/P2-P5945G

華碩個人電腦（桌上型準系統）

安裝手冊

Two desktop computer units shown from front and side views, one green and one black, with no visible text or labels.

Internal view of a computer drive showing labeled components including CPU socket, fan, and heatsink

Back view of a server rack unit with ports and connectors (no visible text or labels)

Hand inserting a device into a rack, showing a blue arrow indicating direction (no text or symbols present)

Hand holding a computer case with a blue upward arrow on the cover (no text or symbols visible)

移除前面板

1. 將前面板左側的三個固定卡榫往外扳開。

Two-panel photo showing a computer tower with visible CPU socket and fan blades, no text or symbols present.

移除儲存裝置模組

Interior view of a computer drive bay with visible ports and screwdriver (no text or symbols)

Close-up of a computer drive showing internal components and a hand inserting a component (no text or symbols visible)

移除 CPU 風扇

Close-up of hands using a tool to adjust the CPU into a motherboard (no visible text or symbols)

Close-up of hands holding a computer CPU socket with an upward arrow indicating rotation (no text or symbols visible)

安裝 CPU

Close-up of a computer motherboard with a hand holding a CPU socket and a blue arrow indicating the process (no text or symbols visible)

Close-up of hands installing a microchip on a circuit board with a blue arrow indicating the component (no text or symbols visible)

Close-up of a computer motherboard with a highlighted CPU socket and surrounding capacitors (no visible text or symbols)

繁體中文

Close-up of a computer tower case with a hand pressing a button, showing internal components and wiring (no text or symbols visible)

Electronic device with a circuit board and metallic housing, no visible text or symbols

Interior view of an electronic device showing a green circuit board with internal components and a blue arrow pointing to a component (no text or symbols visible)

Close-up of a computer tower case with a hand inserting a component, showing internal circuitry and a blue arrow indicating the direction (no text or symbols visible)

安裝光碟機及硬碟機

Close-up of a computer drive chassis with a hand using a screwdriver to adjust internal components (no text or symbols visible)

Hand holding a yellow pen next to a stacked electronic device with a blue arrow pointing to a component (no text or symbols visible)

裝回儲存裝置模組

Close-up of a CD-ROM drive showing internal components and a blue arrow indicating a component (no text or symbols on the device itself)

Interior view of a computer drive bay showing rear-mounted drive and ventilation slots (no readable text or symbols)

安裝腳座

Close-up of a hand opening a computer case with a blue arrow pointing to the lid (no text or symbols visible)

Hand pressing down on a black electronic device with a blue arrow pointing to the button (no text or symbols visible)

Hand holding a black hard drive with a blue downward arrow on top (no text or symbols visible)

Hand holding a black server rack with a blue arrow pointing to the front panel (no text or symbols visible)

Front view of a black server rack with ports and connectors, no visible text or symbols

ASUS

P1-P5945G/P2-P5945G

华硕个人电脑（桌上型准系统）

安装手册

Two black desktop computer units shown from front and side views, no visible text or labels on the devices themselves.

前面板功能

外觀功能

Internal view of a computer drive showing labeled components including CPU socket, fan, and heatsink

Back view of a server rack unit with ports and connectors (no visible text or labels)

Hand pressing a black server rack with a blue arrow indicating compression (no text or symbols visible)

Hand holding a black hard drive with a blue upward arrow on top (no text or symbols visible)

去除前面板除前面板

1. 将前面板左侧的三个固定卡榫往外扳开。

Two-panel photo showing a computer tower with visible CPU socket and fan blades, no text or symbols present.

去除存储设备模块

Interior view of a computer drive bay with visible ports and screwdrivers (no text or symbols)

Close-up of a computer drive showing internal components and a hand inserting a component (no text or symbols visible)

去除 CPU 风扇

Close-up of hands working on a computer motherboard with a CPU socket and cooling tool (no visible text or symbols)

Close-up of hands holding a CPU socket with an upward arrow indicating motion (no text or symbols visible)

安装 CPU

1. 将固定扳手扳开至90-100度。

固定扣 固定扳手

Close-up of a computer motherboard with a hand holding an open CPU socket and a blue arrow indicating the process (no text or symbols visible)

Close-up of hands holding a microchip on a circuit board with electronic components (no visible text or symbols)

Close-up of a computer motherboard with visible CPU socket and surrounding components (no text or symbols)

1. 装回 CPU 风扇并接回风扇电源线。请参考前面小节的说明。装回 CPU 风扇并接回风扇

简体中文

安装内存条内存条

Close-up of a computer tower case with a hand pressing a button, showing internal components and wiring (no text or symbols visible)

Electronic component with circuit board and metallic housing, no visible text or symbols

Interior view of an electronic circuit board with exposed components and a blue arrow indicating a component (no text or symbols visible)

Close-up of a computer tower case with a hand inserting a component, showing internal circuitry and a blue arrow indicating the direction (no text or symbols present)

安装光驱及硬盘光驱及硬盘

Close-up of a computer drive chassis with a hand using a screwdriver to adjust internal components (no text or symbols visible)

Close-up of a computer hard drive with a hand holding a yellow pen, showing internal components and a blue arrow indicating a component (no text or symbols present)

装回存储设备模块存储设备模块

Close-up of a CD-ROM drive with a blue arrow pointing to the disc (no text or symbols visible)

Interior view of a computer drive bay showing rear-mounted drive and ventilation slots (no text or symbols visible)

安装脚座

Close-up of a hand opening a computer case with a blue arrow pointing to the lid (no text or symbols visible)

Hand pressing down on a black electronic device with a blue arrow pointing to the button (no text or symbols visible)

Hand holding a black computer case with a blue downward arrow on the cover (no text or symbols visible)

Hand holding a black server rack with a blue arrow pointing to the front panel (no text or symbols visible)

Front view of a black server rack with ports and indicator lights (no visible text or labels)

ASUS

P1-P5945G/P2-P5945G

Two black desktop computer units shown from front and side views, one with a visible logo on the left (no text or symbols on the device itself)

フロントパネル

閉じた状態

Internal view of a computer drive showing labeled components including CPU socket, fan, and heatsink

Front view of a black server rack with ports and connectors, showing internal components (no visible text or labels)

Hand holding a black server rack with a blue arrow pointing to its side panel (no text or symbols visible)

Hand holding a black server rack with a blue upward arrow on the cover (no text or symbols visible)

フロントパネルカバーを取り外す

Two-panel photo showing a computer tower with visible CPU socket and internal components, no text or symbols present.

記憶ドライブを取り外す

Interior view of a computer drive bay showing internal components and a cable inserted (no visible text or labels)

Interior view of a computer drive showing a CD expansion with a blue arrow indicating the process (no text or symbols visible)

CPUファンとヒートシンクを取り外す

Close-up of a CPU socket being adjusted by a hand using a tool, with visible circuit board and screw components (no text or symbols)

Close-up of hands installing a CPU into a motherboard with a blue arrow indicating the process (no visible text or symbols)

CPU の取付け

Close-up of a computer motherboard with a highlighted CPU socket and blue arrow indicating a process (no text or symbols present)

受け側のツメ

Close-up of a computer motherboard with a hand holding an open CPU socket, showing internal components and a blue arrow indicating the process (no text or symbols visible)

Close-up of hands installing a microchip on a circuit board with a blue arrow indicating the component (no text or symbols visible)

Close-up of a computer motherboard with visible CPU socket and surrounding components (no text or symbols)

Close-up of a computer tower case with a hand pressing down on the cover (no visible text or labels)

Electronic component with a circuit board and metallic housing, no visible text or symbols

Interior view of an electronic circuit board with exposed components and a blue arrow indicating direction (no text or symbols)

Close-up of a computer tower case with a hand inserting a component, showing internal components and a blue arrow indicating the direction (no text or symbols present)

光学ドライブと記憶ドライブを取り付ける

Close-up of a computer drive with a screwdriver inserted, showing internal components and a blue arrow indicating a specific part (no text or symbols present)

Hand holding a yellow pen next to a stacked electronic device with a blue arrow pointing to a component (no text or symbols visible)

記憶ドライブを再び取り付ける

Close-up of an open CD-ROM drive showing internal components and a blue arrow pointing to a component labeled '52x' (no readable text beyond label)

Interior view of a computer drive bay showing power spool and drive casing (no readable text or symbols)

フットスタンドを取り付ける

Close-up of a hand holding a computer case with a blue arrow pointing to the lid (no text or symbols visible)

Hand pressing down on a black electronic device with a blue arrow pointing to the button (no text or symbols visible)

Two-panel photo showing a computer tower with visible CPU socket and fan blades, no text or symbols present.

カバーを再び取り付ける

Hand holding a computer hard drive with a blue downward arrow on the cover (no text or symbols visible)

Hand placing a device into a server rack with a blue arrow indicating left motion (no text or symbols visible)

Back view of a black server rack unit with visible ports and connectors, no text or symbols present

ASUS

P1-P5945G/P2-P5945G

ASUS PC (데스크탑 베어본)

빠른 설치 가이드

Two black desktop computer units, one with a visible logo and the other with a logo and control panel (no text or symbols on the devices themselves)

전면부 사양

닫힌 상태

Internal view of a computer drive showing labeled components including CPU socket, fan, and power connections

Back view of a black server rack unit with ports and connectors (no visible text or labels)

Hand inserting a device into a server rack, showing a blue arrow indicating the direction (no text or symbols present)

Hand holding a computer case with a blue upward arrow on the cover (no text or symbols visible)

전면부 패널 제거

Two-panel photo showing a computer tower with visible CPU socket and fan, labeled 1 and 2 (no text or symbols on the diagram itself)

저장 장치 드라이브 제거

Interior view of a computer drive bay with cooling fans and drive bays, showing no visible text or symbols

Close-up of a computer drive showing internal components and a hand inserting a component (no text or symbols visible)

CPU 팬과 핓 싱크 제거

Close-up of hands installing a CPU into a motherboard with visible cooling fans and circuit board (no text or symbols)

Close-up of hands holding a CPU fan on a motherboard with visible circuitry and components (no text or symbols)

CPU 설치

Close-up of a computer motherboard with a disassembled CPU socket and surrounding components (no visible text or symbols)

Close-up of a hand holding an open electronic circuit board with visible components and a blue arrow indicating a component (no text or symbols)

로드 레버리텐션 탑

Close-up of hands installing a microchip on a circuit board with a blue arrow indicating the component (no text or symbols visible)

Close-up of a computer motherboard with a highlighted CPU socket and surrounding components (no visible text or symbols)

Close-up of a computer tower case with a hand inserting a component, showing internal structure and cable (no text or symbols visible)

Electronic component with circuit board and mounting bracket (no visible text or symbols)

Interior view of an electronic device showing a green circuit board with internal components and a blue arrow indicating a component (no text or symbols visible)

Close-up of a computer motherboard showing a hand inserting a component into a drive casing (no visible text or labels)

옵티컬 & 저장 장치 드라이브 설치

Hand using a screwdriver to adjust a metal hardware component (no text or symbols visible)

Close-up of a mechanical device with a hand holding a yellow tool, showing internal components and a blue arrow indicating a specific component (no text or symbols visible)

저장 장치 드라이브 재설치

Close-up of an open CD-ROM drive showing internal components and a blue arrow indicating a component (no text or symbols on the device itself)

Close-up of a computer drive chassis showing internal components and mounting holes (no text or symbols visible)

풋 스탠드 설치

Close-up of a hand opening a computer case with a blue arrow pointing to the lid (no text or symbols visible)

Hand placing a black electronic device into a rack, with a blue arrow pointing to the rack (no text or symbols visible)

Two-panel photo showing a computer tower with visible CPU socket and drive, labeled 1 and 2 (no text or symbols on the diagram itself)

커버 재설치

Hand holding a computer tower with a blue downward arrow pointing to the front panel (no text or symbols visible)

Hand holding a black server rack with a blue arrow pointing to the side panel (no text or symbols visible)

Front view of a black server rack with ports and connectors (no visible text or symbols)

P1-P5945G/P2-P5945G

ASUS PC

Two black desktop computer units, one front and one side, displayed against a white background (no visible text or symbols)

Internal view of a computer drive showing labeled components including CPU socket, fan, and heatsink

Front view of a black server rack with visible ports and connectors, no text or symbols present

Hand pressing a button on a black server rack, with a blue arrow indicating the direction (no text or symbols visible)

Hand holding a computer case with an upward arrow on the cover (no text or symbols visible)

Two-panel photo showing a computer tower with visible CPU socket and internal components, no text or symbols present.

Interior view of a computer drive bay with visible cooling fans and screwdrivers (no text or symbols)

Close-up of a computer drive showing internal components and a hand inserting a component (no visible text or symbols)

Close-up of hands using a computer CPU to press or install a motherboard, no visible text or symbols

Close-up of hands holding a CPU fan on a motherboard with visible circuit components and a blue upward arrow (no text or symbols)

CPU'nun takılması

Close-up of an open circuit board with a disassembled chip and surrounding electronic components (no visible text or symbols)

Close-up of a computer motherboard with a hand holding a partially open CPU socket and a blue arrow indicating the process (no text or symbols visible)

Close-up of hands installing a microchip on a circuit board with a blue arrow indicating the component (no text or symbols visible)

Close-up of a computer motherboard with visible CPU socket and surrounding components (no text or symbols)

Close-up of a computer tower case with a hand pressing down on the cover (no visible text or labels)

Interior view of an electronic circuit board with exposed components and a blue arrow indicating direction (no text or symbols)

Electronic component with exposed circuit board and metallic housing (no visible text or symbols)

Close-up of a computer tower case with a hand inserting a component, showing internal components and a blue arrow indicating the direction (no text or symbols present)

Close-up of a computer hard drive with a screwdriver inserted, showing internal components and a blue arrow pointing to the component (no text or symbols visible)

Close-up of a mechanical assembly with a hand holding a yellow tool, showing internal components and a blue arrow indicating a specific part (no text or symbols present)

Close-up of a CD-ROM drive showing internal components and a blue arrow pointing to a component labeled '52x', with no readable text or symbols beyond the label.

Close-up of a computer tower drive showing internal components and ventilation slots (no readable text or symbols)

Close-up of a computer tower with a hand holding the lid, showing ventilation slots and ventilation ducts (no text or symbols visible)

Hand pressing down on a black electronic device with a blue arrow pointing to the lid (no text or symbols visible)

Two-panel photo showing a computer tower with visible CPU socket and fan blades, no text or symbols present.

Hand holding a computer monitor with a blue downward arrow on the cover (no text or symbols visible)

Hand pressing a black server rack with a blue arrow indicating leftward motion (no text or symbols)

Front view of a black server rack with ports and connectors, no visible text or symbols
