USER MANUAL Stealth Jandy

Pumps Models SHPF and SHPM H0573800 Rev V

ENGLISH | FRANÇAIS | ESPAÑOL

INSTALLATION AND OPERATION MANUAL WARNING FOR YOUR SAFETY - This product must be installed and serviced by a contractor who is licensed and qualified in pool equipment by the jurisdiction in which the product will be installed where such state or local requirements exist. The maintainer must be a professional with sufficient experience in pool equipment installation and maintenance so that all of the instructions in this manual can be followed exactly. Before installing this product, read and follow all warning notices and instructions that accompany this product. Failure to follow warning notices and instructions may result in property damage, personal injury, or death. Improper installation and/or operation may void the warranty.Improper installation and/or operation can create unwanted electrical hazard which can cause serious injury, property damage, or death. ATTENTION INSTALLER - This manual contains important information about the installation, operation and safe use of this product. This information should be given to the owner/operator of this equipment.Table of Contents

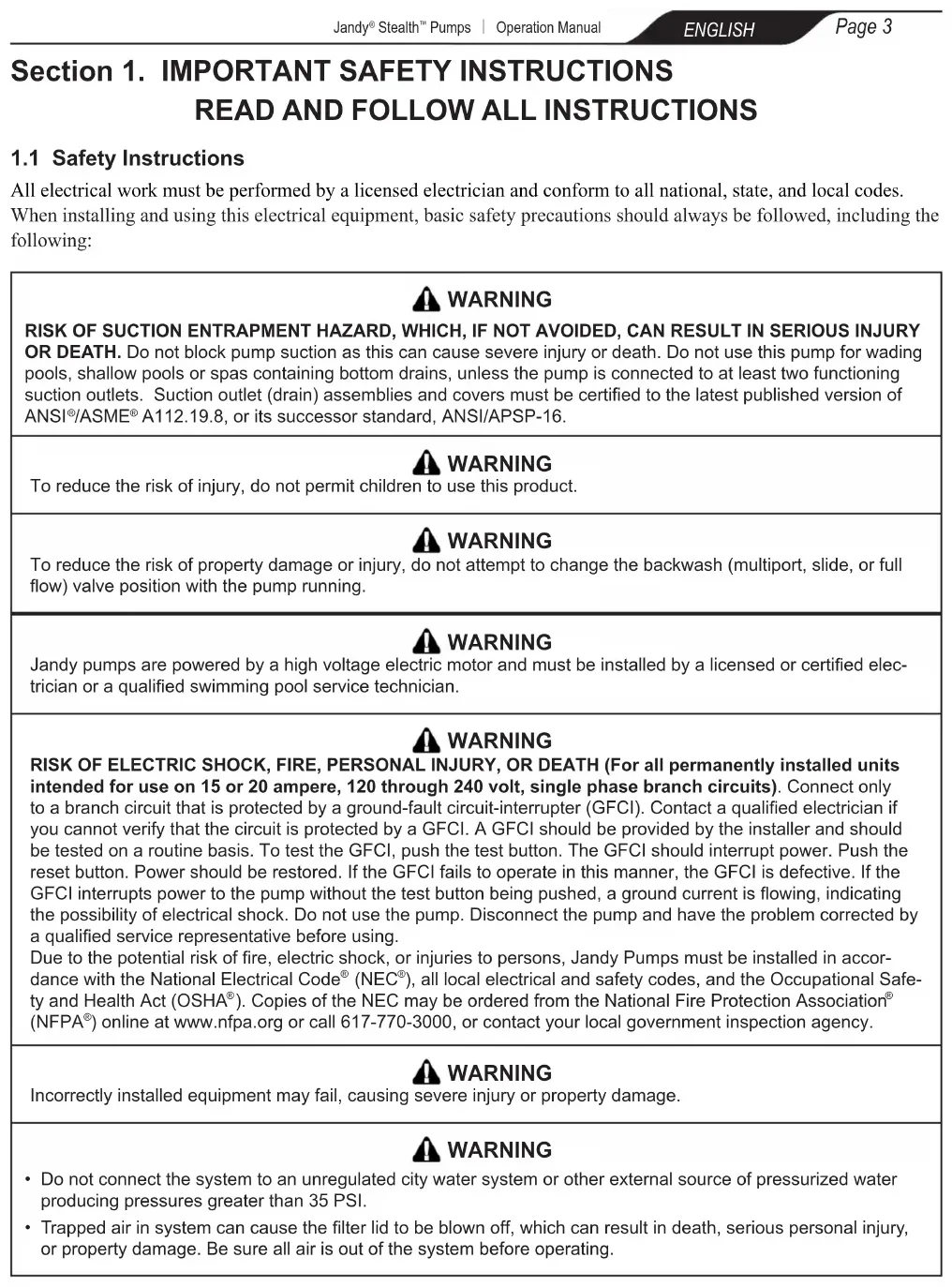

Section 1. IMPORTANT SAFETY

1.2 Pool Pump Suction Entrapment Prevention

Section 5. Service and Maintenance ............13

Section 7. Product Specications and

Page 2 ENGLISH Jandy

1.1 Safety Instructions

All electrical work must be performed by a licensed electrician and conform to all national, state, and local codes. When installing and using this electrical equipment, basic safety precautions should always be followed, including the following: Page 3 ENGLISH Jandy Stealth Pumps Operation Manual WARNING To reduce the risk of injury, do not permit children to use this product. WARNING To reduce the risk of property damage or injury, do not attempt to change the backwash (multiport, slide, or full ow)valvepositionwiththepumprunning. WARNING Jandypumpsarepoweredbyahighvoltageelectricmotorandmustbeinstalledbyalicensedorcertiedelec- tricianoraqualiedswimmingpoolservicetechnician. WARNING RISK OF ELECTRIC SHOCK, FIRE, PERSONAL INJURY, OR DEATH (For all permanently installed units intended for use on 15 or 20 ampere, 120 through 240 volt, single phase branch circuits). Connect only toabranchcircuitthatisprotectedbyaground-faultcircuit-interrupter(GFCI).Contactaqualiedelectricianif you cannot verify that the circuit is protected by a GFCI. A GFCI should be provided by the installer and should be tested on a routine basis. To test the GFCI, push the test button. The GFCI should interrupt power. Push the reset button. Power should be restored. If the GFCI fails to operate in this manner, the GFCI is defective. If the GFCIinterruptspowertothepumpwithoutthetestbuttonbeingpushed,agroundcurrentisowing,indicating the possibility of electrical shock. Do not use the pump. Disconnect the pump and have the problem corrected by aqualiedservicerepresentativebeforeusing. Duetothepotentialriskofre,electricshock,orinjuriestopersons,JandyPumpsmustbeinstalledinaccor- dance with the National Electrical Code

),alllocalelectricalandsafetycodes,andtheOccupationalSafe- ty and Health Act (OSHA

)onlineatwww.nfpa.orgorcall617-770-3000,orcontactyourlocalgovernmentinspectionagency. WARNING Incorrectly installed equipment may fail, causing severe injury or property damage. WARNING

• Do not connect the system to an unregulated city water system or other external source of pressurized water producing pressures greater than 35 PSI.

• Trappedairinsystemcancausethelterlidtobeblownoff,whichcanresultindeath,seriouspersonalinjury, or property damage. Be sure all air is out of the system before operating. WARNING RISK OF SUCTION ENTRAPMENT HAZARD, WHICH, IF NOT AVOIDED, CAN RESULT IN SERIOUS INJURY OR DEATH. Do not block pump suction as this can cause severe injury or death. Do not use this pump for wading pools, shallow pools or spas containing bottom drains, unless the pump is connected to at least two functioning suctionoutlets.Suctionoutlet(drain)assembliesandcoversmustbecertifiedtothelatestpublishedversionof ANSI

A112.19.8, or its successor standard, ANSI/APSP-16.WARNING Chemicalspillsandfumescanweakenpool/spaequipment.Corrosioncancauseltersandotherequipmentto fail, resulting in severe injury or property damage. Do not store pool chemicals near your equipment. CAUTION Do not start pump dry! Running the pump dry for any length of time will cause severe damage and may void the warranty. In order to avoid premature failure or damage to the pump motor, protect the pump from direct water exposure from sprinklers, water runoff from rooftops and drainage, etc.. Failure to comply may cause pump failure, and may void warranty. WARNING Tominimizetheriskofsevereinjuryordeaththelterand/orpumpshouldnotbesubjectedtothepipingsystem pressurization test. Local codes may require the pool piping system to be subjected to a pressure test. These requirements are gen- erallynotintendedtoapplytothepoolequipmentsuchasltersorpumps. Zodiac

pool equipment is pressure tested at the factory. However,iftheWARNINGcannotbefollowedandpressuretestingofthepipingsystemmustincludethelter and/or pump, BE SURE TO COMPLY WITH THE FOLLOWING SAFETY INSTRUCTIONS:

• Check all clamps, bolts, lids, lock rings and system accessories to ensure they are properly installed and secured before testing.

• RELEASE ALL AIR in the system before testing.

• Water pressure for test must NOT EXCEED 35 PSI.

• WatertemperaturefortestmustNOTEXCEED100°F(38°C).

• Limit test to 24 hours. After test, visually check system to be sure it is ready for operation. NOTICE: These parameters apply to Zodiac equipment only. For non-Zodiac equipment, consult equipment manufacturer. CAUTION This pump is for use with permanently installed pools and may also be used with hot tubs and spas if so marked. Do not use with storable pools. A permanently installed pool is constructed in or on the ground or in a building such that it cannot be readily disassembled for storage. A storable pool is constructed so that it may be readily disassembled for storage and reassembled to its original integrity. CAUTION Do not install within an outdoor enclosure or beneath the skirt of a hot tub or portable spa. The pump requires adequate ventilation to maintain air temperature at less than the maximum ambient temperature rating listed on the motor rating plate. Page 4 ENGLISH Jandy

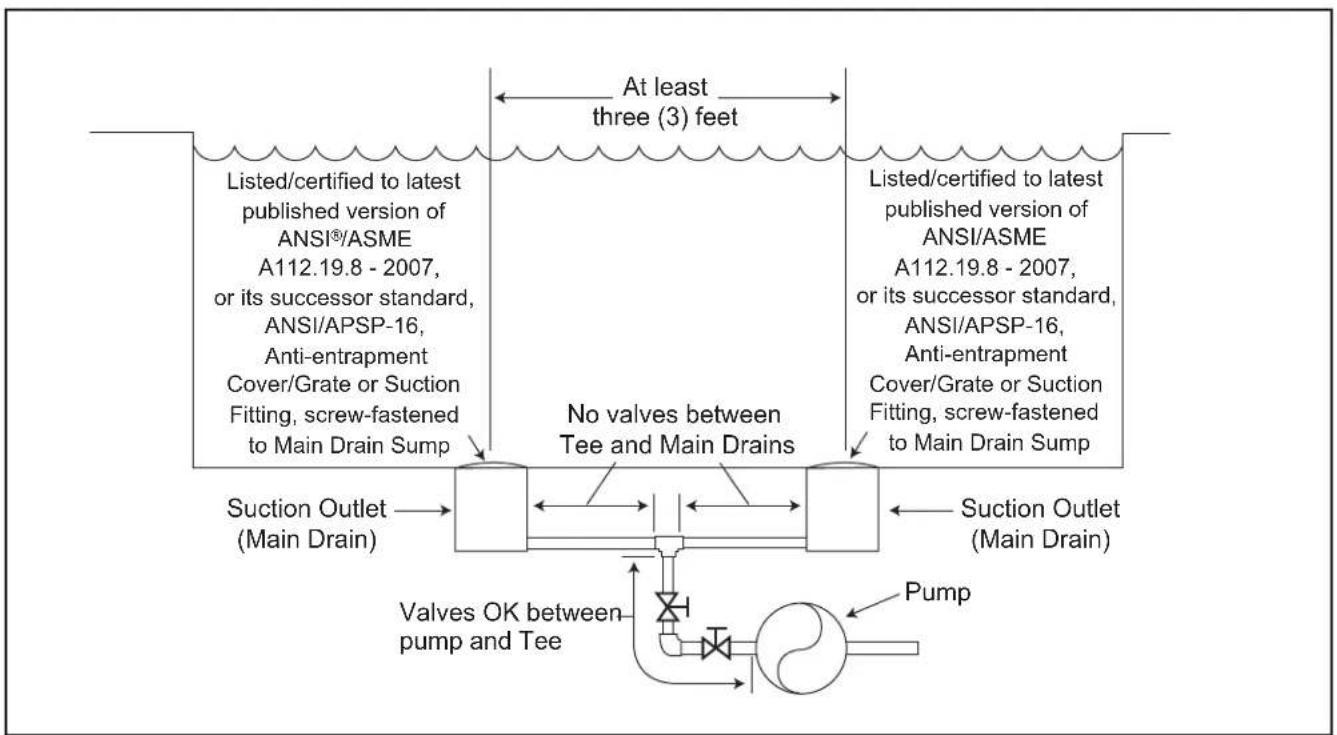

Operation Manual SAVE THESE INSTRUCTIONS1.2 Pool Pump Suction Entrapment Prevention Guidelines WARNING Pump suction is hazardous and can trap and drown or disembowel bathers. Do not use or operate swim- ming pools, spa, or hot tubs if a suction outlet cover is missing, broken, or loose. The following guidelines provide information for pump installation that minimizes the risk of injury to users of pools, spas, and hot tubs: Entrapment Protection - The pump suction system must provide protection against the hazards of suction entrapment. Suction Outlet Covers - All suction outlets must have correctly installed, screw-fastened covers in place. All suctionoutlet(drain)assembliesandtheircoversmustbeproperlymaintained.Suctionoutlets(drain)assem- bliesandtheircoversmustbelisted/certiedtothelatestversionofANSI

A112.19.8 or its successor standard, ANSI/APSP-16. They must be replaced if cracked, broken, or missing. Number of Suction Outlets Per Pump-Provideatleasttwo(2)hydraulically-balancedmaindrains,withcov- ers,assuctionoutletsforeachcirculatingpumpsuctionline.Thecentersofthemaindrains(suctionoutlets)on anyone(1)suctionlinemustbeatleastthree(3)feetapart,centertocenter.SeeFigure1. The system mustbebuilttoincludeatleasttwo(2)suctionoutlets(drains)connectedtothepumpwhenever thepumpisrunning.However,iftwo(2)maindrainsrunintoasinglesuctionline,thesinglesuctionlinemaybe equipped with a valve that will shut off both main drains from the pump. The system shall be constructed such that it shall not allow for separate or independent shutoff or isolation of each drain. See Figure 1. Morethanone(1)pumpcanbeconnectedtoasinglesuctionlineaslongastherequirementsabovearemet. Water Velocity - The maximum water velocity through the suction outlet assembly and its cover for any suc- tionoutletmustnotexceedthesuctionttingassemblyandit’scover’smaximumdesignowrate.Thesuction outlet(drain)assemblyanditscovermustcomplywiththelatestversionofANSI/ASMEA112.19.8,thestandard for Suction Fittings For Use in Swimming Pools, Wading Pools, Spas, and Hot Tubs, or its successor standard, ANSI/APSP-16. If100%ofthepump’sowcomesfromthemaindrainsystem,themaximumwatervelocityinthepumpsuc- tionhydraulicsystemmustbesix(6)feetpersecondorless,evenifone(1)maindrain(suctionoutlet)iscom- pletelyblocked.Theowthroughtheremainingmaindrain(s)mustcomplywiththelatestversionofANSI/ASME A112.19.8 or its successor standard, ANSI/APSP-16, the standard for Suction Fittings For Use in Swimming Pools, Wading Pools, Spas, and Hot Tubs. Testing and Certication - Suction outlet assemblies and their covers must have been tested by a nationally recognized testing laboratory and found to comply with the latest version of ANSI/ASME A112.19.8 or its succes- sor standard, ANSI/APSP-16, the standard for Suction Fittings For Use in Swimming Pools, Wading Pools, Spas, and Hot Tubs. Fittings-Fittingsrestrictow;forbestefciencyusefewestpossiblettings(butatleasttwo(2)suctionoutlets). Avoidttingswhichcouldcauseanairtrap. PoolcleanersuctionttingsmustconformtoapplicableInternationalAssociationofPlumbingandMechanical Ofcials(IAPMO)standards. SUCTION HAZARD. Can cause serious injury or death. Do not use this pump for wading pools, shallow pools or spas containing bottom drains, unless the pump is connected to at least two (2) functioning suction outlets. WARNING CAUTION The 3-phase SHPF series pumps utilize non-thermally protected motor assemblies. NRTL Listed Motor Controller with internal motor running overload protection or external motor running overload are required during the final installation of the pump assembly. Overloads shall be set at a maximum of 125% of the full-load current rating of the pump motor assembly. Page 5 ENGLISH Jandy

Operation ManualAt least three (3) feet Suction Outlet (Main Drain) Suction Outlet (Main Drain) No valves between Tee and Main Drains Listed/certified to latest published version of ANSI/ASME A112.19.8 - 2007,or its successor standard,ANSI/APSP-16,Anti-entrapmentCover/Grate or Suction Fitting, screw-fastened to Main Drain SumpListed/certified to latest published version of ANSI

/ASME A112.19.8 - 2007,or its successor standard,ANSI/APSP-16,Anti-entrapmentCover/Grate or Suction Fitting, screw-fastened to Main Drain Sump Valves OK between pump and Tee Pump Figure 1. Number of Suction Outlets Per Pump

Section 2. General Description

This manual contains information for the proper installation, operation and maintenance of Jandy Stealth (SHP) Pumps. Procedures in this manual must be followed exactly. To obtain additional copies of this manual contact Zodiac Pool Systems LLC at

800.822.7933. For address information, see the back

cover of this manual.

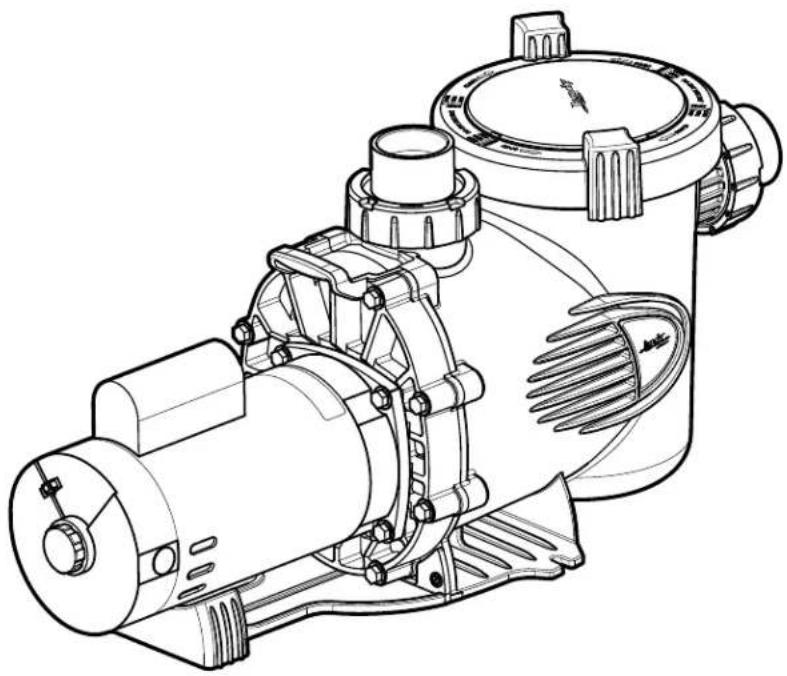

Jandy SHP Pumps are designed to meet the needs of today’s more hydraulically demanding pool equipment. The pump housing, backplate, diffuser, hair and lint pot (pump debris lter basket), and impeller are all made from high quality thermoplastic materials. These materials were chosen for their strength and corrosion resistance. The pump is driven by an electric motor directly attached to the pump impeller. As the electric motor turns, it causes the impeller to turn, which forces water to ow through the pump. The water ows through the pump inlet and then into the lter basket. The basket assembly pre-strains and traps large particles. The water then enters the center of the pump housing, ows through the impeller into the diffuser, and then ows out the pump discharge port.

Section 3. Installation

1. Upon receipt of the pump, check the carton for

damage. Open the carton and check the pump for concealed damage, such as cracks, dents or a bent base. If damage is found, contact the shipper or distributor where you purchased the pump.

2. Inspect the contents of the carton and verify

that all the parts are included. See Section 7.1, Replacement Parts List.

To Reduce the Risk of Fire, install pool equipment in an area where leaves or other debris will not collect on or around the equipment. Keep surrounding area clear of all debris such as paper, leaves, pine-needles and other combustible materials. WARNING

1. Zodiac Pool Systems LLC recommends

installing the pump within one (1) foot above the water level. The pump should not be elevated more than a few feet above the water level of the pool. A check valve is recommended on the suction line to the pump. Page 6 ENGLISH Jandy Stealth Pumps Operation Manual5. The pump foundation must have adequate drainage to prevent the motor from getting wet. The pump needs to be protected from the rain and sun. NOTE Protect the pump from direct water exposure from sprinklers, water runoff from rooftops and drainage, etc. Failure to comply may cause pump failure, and may void warranty.

6. Proper ventilation is required for the pump

to operate normally. All motors generate heat that must be removed by providing proper ventilation.

7. Provide access for future service by leaving a

clear area around the pump. Allow plenty of space above the pump to remove the lid and basket for cleaning.

8. If the equipment is under cover, provide

NOTE All HP ratings given in this section apply to full-rated pumps. For help with max-rated pumps, contact Zodiac Technical Support at 800.822.7933.

3.1.3.1 Suction Pipe

When the pump is located up to 50 feet from the pool, the recommended minimum pipe size for the suction side of the pump is:

• 2" for .75 to 1.5 HP*

• HP refers to full-rated pumps NOTE Better self-priming will be achieved if the pump is installed as close as possible to the water level of the pool.

2. If the pump is located below water level,

isolation valves must be installed on both the suction and return lines to prevent back ow of pool water during any routine or required servicing. SomeSafetyVacuumReleaseSystem(SVRS)de- vices are not compatible with installation of check valves. If the pool has an SVRS device, be sure to conrmthatitwillcontinuetosafelyoperatewhen any check valves are installed. WARNING

3. Install the pump such that any disconnecting

means and/or junction boxes for power connection are within sight of the pump and at least ve (5) feet horizontally from the edge of the pool and/or spa. Choose a location that will minimize turns in the piping. NOTE In Canada, the minimum distance maintained from the edge of the pool and/or spa as noted above must be3meters(10feet),asrequiredbytheCanadian ElectricalCode(CEC,CSAC22.1).

4. The pump should be installed on a rm, solid, and

level surface to avoid risk of settlement. Do not use sand to level the pump as sand will wash away. Check local building codes for any additional requirements (Ex. Equipment pads in Florida must be concrete and equipment must be secured to the pad.) NOTE Zodiac Pool Systems LLC recommends bolting the pump directly to the foundation. AQUAPUREMANUAL BY-PASS DETAILMANUAL BY-PASS IS USEDWHEN FILTRATION RATEEXCEEDS 125 GPM Figure 2. Typical Piping Installation Page 7 ENGLISH Jandy

Operation Manual3.1.3.2 Discharge Pipe When the pump is located up to 50 feet from the pool, the recommended minimum pipe size for the discharge side of the pump is:

• 2" for .75 to 1.5 HP*

• HP refers to full-rated pumpsNOTE All pipe sizes are able to withstand the pressures the pump will deliver, but not necessarily the flow. If the pipe is too small for the pump, or it is elevated abovewater,themaximumgallonsperminute(GPM)may not be delivered. If this happens, the pump will developanairpocket(cavitation)thatwillmakenoiseand the pump life will be shortened.

3.1.3.3 Installation Recommendations

1. If the pump is located below water level,

isolation valves must be installed on both sides of the pump to prevent back ow of pool water during any routine or required servicing.

2. To help prevent difculty in priming, install the

suction pipe without high points (above inlet of pump - inverted “U”s in plumbing), which can trap air. For installations of equipment up to 100 feet from the water, refer to the pipe sizing chart, Table 1. For installations of equipment more than 100 feet from the water, the recommended pipe must be increased to the next size. Table 1. Pipe Sizing Chart for Schedule 40 PVC Pipe Size Maximum Flow Suction (6 feet per second) Maximum Flow Discharge (8 feet per second) 1½" 37GPM(140LPM) 50GPM(189LPM) 2" 62GPM(235LPM) 85GPM(322LPM) 2½" 88GPM(333LPM) 120GPM(454LPM) 3" 136GPM(515LPM) 184GPM(697LPM) 4" 234GPM(886LPM) 313GPM(1185LPM)

3. SHP Pumps come equipped with unions on

both the suction and discharge ports. This feature simplies installation and service, and eliminates the possibility of leaks at threaded adapters.

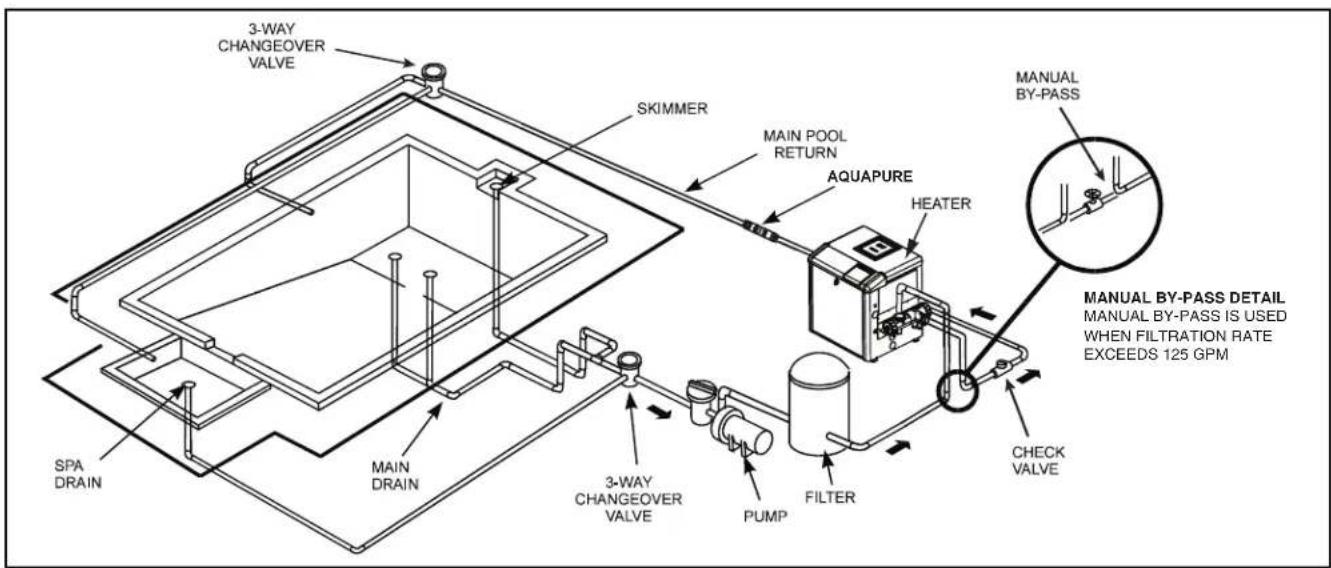

The SHP Pump must be connected to at least two (2) hydraulically balanced main drains (suction outlets) for each pool pump suction line. Each drain (suction outlet) assembly must be provided with covers and must be listed or certied to the latest version of ANSI

A112.19.8, or its successor standard, ANSI/APSP-16. The suction outlets of the main drains must be at least three (3) feet apart or at different planes. The suction outlets can be a drain and skimmer, two (2) drains, two (2) skimmers, or a skimmer with an equalizer line installed. Check the local codes for proper installation requirements. NOTE To prevent entrapment, the system must be built so that it cannot operate with the pump drawing water fromonlyone(1)maindrain.Atleasttwo(2)maindrains must be connected to the pump when it is in operation.However,iftwo(2)maindrainsrunintoa single suction line, the single suction line may be equipped with a valve which will shut off both main drains from the pump.

5. The piping must be well supported and not

forced together where constant stress will be experienced.

6. Always use properly sized valves. Jandy

Diverter Valves and Ball Valves typically have the best ow capabilities.

7. Use the fewest ttings possible. Every

additional tting has the effect of moving the equipment farther away from the water. NOTE If more than 10 suction fittings are needed, the pipe size must be increased.

8. If this is a new installation, pressure test

according to local codes. See Section 3.3, Pressure Testing.

The correct voltage, as specied on the pump data plate, is necessary for proper performance and long motor life. Incorrect voltage will decrease the pump’s ability to perform and could cause overheating, reduce the motor life, and result in higher electric bills. It is the responsibility of the electrical installer to provide data plate operating voltage to the pump by ensuring proper circuit sizes and wire sizes for this specic application. The National Electrical Code

requires all permanently installed pool pumps intended for use on 15 or 20 ampere, 120 through 240 volt, single phase branch circuits be protected with a Ground Fault Interrupter (GFCI). Therefore, it is also the responsibility of the electrical installer to ensure that the pump circuit is in compliance with this and all other applicable requirements of the National Electrical Code (NEC) and any other applicable installation codes. Failuretoprovidedataplatevoltage(within10%) during operation will cause the motor to overheat and may void the warranty. CAUTION RECOMMENDED MINIMUM WIRE SIZE FOR SHP PUMPS* (3-PHASE POWER) Distance from Sub-Panel 0-50 Feet 50-100 Feet 100-150 Feet 150-200 Feet Pump Model Inverse - Time Circuit Breaker or Branch Fuse AMPs Class: CC, G, H, J, K, RK, or T Voltage Voltage Voltage Voltage 460VAC 115VAC 460VAC 208-230VAC 460VAC 208-230VAC 460VAC 208-230VAC 460VAC 208-230VAC

)andlocalcodesmustbe followed. Table shows minimum wire size and branch fuse recommendations for a typical installation per NEC. Page 8 ENGLISH Jandy Stealth Pumps Operation Manual3.2.2 Bonding and Grounding

1. In addition to being properly grounded as

described below in Sec. 3.2.3, and in accordance with the requirements of the National Electrical Code (NEC), or in Canada the Canadian Electrical Code (CEC), the pump motor must be bonded to all metal parts of the swimming pool, spa or hot tub structure and to all electrical components and equipment associated with the pool/spa water circulation system.

2. The bonding must be accomplished by using a

solid copper conductor, No. 8 AWG or larger. In Canada No. 6 AWG or larger must be used. Bond the motor using the external bonding lug provided on the motor frame. National Electrical Code® (NEC®) requires bonding of the Pool Water. Where none of the bonded pool equipment, structures, or parts are in direct connection with the pool water; the pool water shall be in direct contact with an approved corrosion-resistant conductive surface that exposes not less than 5800 mm² (9 in²) of the surface area to the pool water at all times. The conductive surface shall be located where it is not exposed to physical damage or dislodgement during usual pool activities, and it shall be bonded in accordance with the bonding requirements of NEC Article 680. Refer to locally enforced codes for any additional bonding requirements. RECOMMENDED MINIMUM WIRE SIZE FOR SHP PUMPS* (1-PHASE POWER) Distance from Sub-Panel 0-50 Feet 50-100 Feet 100-150 Feet 150-200 Feet Pump Model Inverse - Time Circuit Breaker or Branch Fuse AMPs Class: CC, G, H, J, K, RK, or TVoltage Voltage Voltage Voltage 230VAC 115VAC 208-230VAC 115 VAC 208-230VAC 115 VAC 208-230VAC 115 VAC 208-230VAC 115 VAC

(NEC )andlocalcodesmustbefollowed. Table shows minimum wire size and branch fuse recommendations for a typical installation per NEC.**Two-speed pumps are not rated for use with 208 VAC. Table 2. Recommended Minimum Wire Size RECOMMENDED MINIMUM WIRE SIZE FOR SHP PUMPS* (3-PHASE POWER) Distance from Sub-Panel 0-50 Feet 50-100 Feet 100-150 Feet 150-200 Feet Pump Model Inverse - Time Circuit Breaker or Branch Fuse AMPs Class: CC, G, H, J, K, RK, or TVoltage Voltage Voltage Voltage460VAC 115VAC 460VAC 208-230VAC 460VAC 208-230VAC 460VAC 208-230VAC 460VAC 208-230VAC

(NEC )andlocalcodesmustbefollowed. Table shows minimum wire size and branch fuse recommendations for a typical installation per NEC. Page 9 ENGLISH Jandy

Operation Manual4. To congure the internal wiring of the pump motor for the correct voltage, refer to the diagram on the motor data plate.

5. For 3-Phase motors - conrm direction of motor

rotation matches the directional arrow on the pump. Failure to do so may cause pump failure, and may also void warranty.

3.3 Pressure Testing

All model SHP pumps come with an additional disposable o-ring for pressure testing. This is the blue pressure test o-ring. See Figures 3 and 4. Lid withLocking Ring and Seal Blue Pressure Test O-ring Pump Debris Trap Basket(InsidePump) Figure 3. Exploded View of Pump Lid withLocking Ring Blue Pressure TestO-ring Seal Figure 4. Blue Pressure Test O-ring in Lid Assembly Do not open the pump lid before pressure testing, because the blue pressure test o-ring may fall out. If this happens, you may need to replace it. CAUTION If you have not opened the pump lid, skip to Section

3.3.2, Conduct Pressure Test.

To avoid the risk of property damage, severe personal injury, and/or death, always disconnect the power source before working on a motor or its connected load. WARNING To avoid the risk of property damage, severe per- sonal injury, and/or death, make sure that the con- trol switch or time clock is installed in an accessible location so that in the event of an equipment failure oralooseplumbingttingtheequipmentcanbe turned off. This location must not be in the same areaasthepoolpump,lter,andotherequipment. WARNING The pump must be permanently connected to a dedicated electrical circuit. No other equipment, lights, appliances or outlets may be connected to the pump circuit, with the exception of devices that may be required to operate simultaneously with the pump, such as a chlorinating device or heater. WARNING

3.2.3 Electrical Wiring

To avoid risk of property damage, severe personal injury, or death, always ground before connecting to an electrical power supply. WARNING

1. The pump motor must be securely and

adequately grounded using the green screw provided. Ground before attempting to connect to an electrical power supply. Do not ground to a gas supply line.

2. Wire size must be adequate to minimize voltage

drop during the start-up and operation of the pump. See Table 2 for recommended wire sizes.

3. Insulate all connections carefully to prevent

grounding or short-circuits. Sharp edges on terminals require extra protection. To prevent wire nuts from loosening, tape them using a suitable, listed (UL, ETL, CSA) electrical insulating tape. For safety, and to prevent entry of contaminants, reinstall all conduit and terminal box covers. Do not force connections into the conduit box. Page 10 ENGLISH Jandy

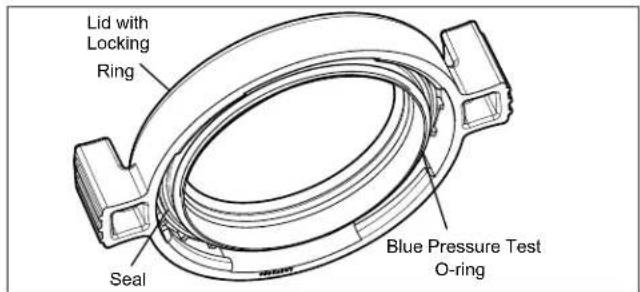

Operation Manual2. Place the blue o-ring on the step located ¼" from the bottom of the lid. See Figure 5. Figure 5. Placement of Blue Pressure Test O-ring Upside Down View of Bottom of LidStep where O-ring is SeatedGroove where Seal is Seated

3. Make sure that the o-ring is properly seated. It

helps to “place” the o-ring on the step rather than to “roll” it on. That prevents it from rolling off. NOTE The blue o-ring sits approximately ¼" away from the seal. See Figure 5.

4. Carefully install the lid, making sure that the

blue pressure test o-ring sits in the housing without “binding” or “rolling” off.

5. Following the markings on the locking ring,

align ‘START’ markings with the ports and turn clockwise until ‘LOCKED’ markings align with the ports. Do not tighten past the ‘LOCKED’ marking.

3.3.1.3 Conduct Pressure Test

When pressure testing a system with water, air isoftentrappedinthesystemduringthelling process. This air will compress when the system is pressurized. Should the system fail, this trapped air can propel debris at a high speed and cause injury. Every effort to remove trapped air must be taken, includingopeningthebleedvalveonthelterand looseningthepumpbasketlidonthelterpump whilellingthepump. WARNING Trappedairinsystemcancauselterlidtobe blown off, which can result in death, serious per- sonal injury, or property damage. Be sure all air is properly out of system before operating. DO NOT

USE COMPRESSED AIR TO PRESSURE TEST

OR CHECK FOR LEAKS. WARNING

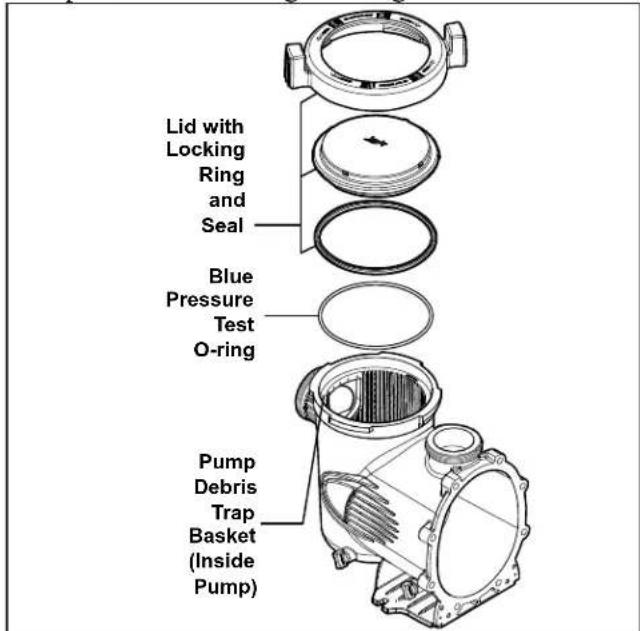

3.3.1 Replace Blue Pressure Test O-ring if

Necessary If you open the pump lid before conducting the pressure test, the blue o-ring may fall out. If this happens, you will need to install it on the lid again before conducting pressure testing. There is a risk of damage to the blue o-ring during re- installation. If you damage it when trying to re-install it, you will need to order a new blue pressure test o-ring (R0479000) before you begin conducting the pressure test. These instructions describe the proper procedures for replacing, using, and disposing of the blue o-ring. These instructions must be followed exactly. Read through the instructions completely before starting the procedure.

3.3.1.1 Remove Pump Lid

1. Make sure that the pump is turned off.

2. Make sure that the switch to the circuit breaker

that powers the pump motor is turned off. Turn off the pump and the main breaker in the pump electrical circuit before starting the procedure. Failure to comply may cause a shock hazard, resulting in severe personal injury or death. WARNING Duetothepotentialriskofre,electricshock,or injuries to persons, Jandy Pumps must be installed in accordance with the National Electrical Code

)inCanada.Allapplicablelocalcodes must also be followed. The NEC may be obtained by contacting the National Fire Protection Association

3. Make sure all necessary isolation valves are

closed to prevent pool water from reaching the pump.

4. Following the markings on the locking ring,

turn the ring counter-clockwise until the ‘START’ markings align with the ports.

5. Carefully remove the lid with locking ring.

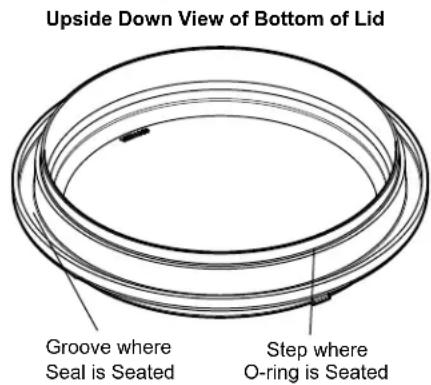

3.3.1.2 Replace Blue O-ring

1. Turn the lid with locking ring upside down and

place it on a stable surface. Page 11 ENGLISH Jandy

Operation ManualWhen pressure testing the system with water, it is very important to make sure that the pump basket lidonthelterpumpiscompletelysecure. WARNING Do not pressure test above 35 PSI. Pressure test- ing must be done by a trained pool professional. Circulation equipment that is not tested properly can fail, which could result in severe injury or prop- erty damage. WARNING

1. Fill the system with water, using care to

eliminate trapped air.

2. Pressurize the system with water to no more

3. Close the valve to trap pressurized water in the

4. Observe the system for leaks and/or pressure

technical support, call 800.822.7933.

6. Discard the blue pressure test o-ring after

successfully completing the test.

Section 4. Operation

Never run the pump without water. Running the pump “dry” for any length of time can cause severe damage to both the pump and motor and may void the warranty. CAUTION If this is a new pool installation, make sure all piping is clear of construction debris and has been properly pressure tested. The lter should be checked for proper installation, verifying all connections and clamps are secure according to the manufacturer's recommendations. To avoid risk of property damage, severe personal injury, or death, verify that all power is turned off before starting this procedure. WARNING

1. Release all pressure from the system and open

the lter pressure release valve.

2. If the pump is located below the water level

of the pool, opening the lter pressure release valve will prime the pump with water.

3. If the pump is located above the water level of

the pool, remove the lid and ll the basket with water before starting the pump.

4. Prior to replacing the lid, check for debris

around the lid o-ring seat. Debris around the lid o-ring seat will cause air to leak into the system, and make it difcult to prime the pump.

5. Hand-tighten the lid to make an air tight seal.

Do not use any tools to tighten the lid, hand- tighten only. Make sure all valves are open and the unions are tight.

6. Turn on the power to the pump. Then turn on

rotation matches the directional arrow on the pump. Failure to do so may cause pump failure, and may also void warranty.

8. Once all the air has left the lter, close the

pressure release valve.

9. The pump should prime. The time it takes to

prime will depend on the elevation and length of pipe used on the suction supply pipe. See

Section 3.1.3.3 for proper elevation and pipe

10. If the pump does not prime and all the

instructions to this point have been followed, check for a suction leak and then repeat Steps 2 through 7. Page 12 ENGLISH Jandy Stealth Pumps Operation ManualSection 5. Service and Maintenance

5.1 Routine Maintenance

Inspect the pump basket for debris by looking through the clear pump lid. Remove any debris, because as debris accumulates, it will begin to block the ow of water through the pump. Keep the basket clean to improve the performance of the pump.

1. Turn off the power to the pump. If the pump is

located below the water level, close the isolation valves on the suction and discharge sides of the pump to prevent a backow of water.

2. Turn the lid's locking ring counter-clockwise

until 'START' aligns with the ports. (You may use a tool for leverage to open the lid, but never to tighten the lid when closing it.) Carefully remove the lid. A misaligned basket will cause the lid to be improperly seated, allowing an air leak, which could result in pump damage. CAUTION

3. Lift the basket out of the pump.

4. Dispose of the debris and thoroughly clean

the basket, making sure all the holes are open. Using a garden hose, spray the basket from the outside to help clear the holes. Use your hands to remove any remaining debris.

5. Replace the basket in the pump by aligning

the opening with the suction pipe. If aligned properly, the basket will drop easily into place. Do not force into place.

6. Prior to replacing the lid, check for debris

around the lid o-ring seat, as this will cause air to leak into the system. Clean the lid o-ring and place it on the lid.

7. Hand-tighten the lid to make an air tight seal.

Do not use any tools to tighten the lid: hand- tighten only.

8. Verify that all valves have been returned to the

proper position for normal operation.

9. Open the pressure release valve on the lter, and

make sure it is clean and ready for operation.

10. Turn on the power to the pump. Once all the

air has been evacuated from the lter, close the pressure release valve.

5.2 Winterizing the Pump

The pump must be protected when freezing temperatures are expected. Allowing the pump to freeze will cause severe damage and may void the warranty. CAUTION Do not use antifreeze solutions in the pool, spa, or hot tub systems! Antifreeze is highly toxic and may damage the circulation system. The only exception to this is Propylene Glycol. For more information see your local pool/spa supply store or contactaqualiedswimmingpoolservicecom- pany. CAUTION

1. Drain all water from the pump, system

equipment, and piping.

2. Remove the two drain plugs. Store the drain

plugs in a safe location and reinstall them when the cold weather season is over. Do not lose the o-rings. (Drain Plug with O-ring Set, R0446000)

3. Keep the motor covered and dry.

NOTE Covering the pump with plastic will create condensation, and this moisture will damage the pump. The best way to protect your pump is to have a qualified service technician or electrician properly disconnect the electrical wiring at the switch or junction box. Once the power is removed, the two unions can be loosened and the pump stored indoors. For safety, and to prevent entry of contaminants, reinstall all conduit and terminal box covers.

4. When the system is reopened for operation,

make sure all piping, valves, wiring, and equipment are in accordance with the manufacturer's recommendations. Pay close attention to the lter and electrical connections.

5. The pump must be primed prior to starting; refer

to Section 4.1, Start-up. Page 13 ENGLISH Jandy Stealth Pumps Operation ManualSection 6. Troubleshooting Zodiac Pool Systems LLC strongly recommends that you call a qualied service technician to perform any repairs on the lter/pump system. To locate an independent service company, check your local yellow pages or visit www. zodiacpoolsystems.com and click on "Support."

Symptom Possible Problem/Solution The cleaning/circulating system is not operating correctly. Verify that skimmer baskets, pump basket and other screens are clean. Clean as necessary. Check filter and clean as necessary. Check valve positions. Adjust as necessary. NOTE Multiple pieces of equipment operating at one time (for example, waterfalls, spajets,andsurfacereturns)maypreventthecleaningsystemfromworking properly. Check the cleaning system manually to ensure that the system is adjusted according to the manufacturer's recommendations. Bubbles present in the pump basket. Air in system. Check the pool or spa water level to ensure it is at the proper level and that air is not being drawn into the suction piping. If the water is at normal level, turn off the pump. Remove the lid and check for debris around the lid o-ring seat or improper installation of the lid seal, as this either of these conditions will cause air to leak into the system. Clean the lid o-ring and place on the lid. Hand-tighten the lid to make an air tight seal. Do not use any tools to tighten the lid. Turn the pump back on. Air leaks are still present. Check the suction side piping union. While the pump is running, try to tighten the union. If this does not stop the air leak, turn off the pump. Loosen both unions and slide the pump out of the way. Remove, clean and re-install both union o-rings. Reposition the pump next to the piping and secure the union nuts to the pump. With clean union o-rings, hand-tightening of the unions should create a seal. If the unions still do not seal, gently tighten with a large pair of tongue-and-groove pliers. Do not over-tighten. There is no air in the system, but the pressure is still low. It is possible that debris is caught in the pump impeller. The pump impeller moves the water, and the vanes in the impeller can become blocked with debris.

1. Turn off the pump. Switch off the circuit breaker to the pump motor.

2. Remove the lid and basket.

3. Look inside the pump for any debris. Remove any debris found inside.

4. Replace the basket and lid.

5. Switch on the circuit breaker to the pump motor.

6. Turn on the pump, and see if the problem is solved.

7. If the impeller is still blocked with debris and it is not possible to remove

the debris using Steps 2 through 4, the pump will need to be disassembled in order to access the inlet and outlet of the impeller. Page 14 ENGLISH Jandy

Operation ManualSection 7. Parts, Product Specications and Technical Data

7.1 Replacement Parts List

To order or purchase parts for Zodiac

pumps, contact your nearest Zodiac dealer. If they cannot supply you with what you need, contact Zodiac technical support at 800.822.7933 or send an e-mail message to: [e-mail] Key No. Description Model No. (HP) Order Part No. 1 Single-speed Motor & Hardware, SHPF .50 R0445114 1 Single-speed Motor & Hardware, SHPF .75 R0445101 1 Single-speed Motor & Hardware, SHPF 1.0 R0445102 1 Single-speed Motor & Hardware, SHPF 1.5 R0445103 1 Single-speed Motor & Hardware, SHPF 2.0 R0445104 1 Single-speed Motor & Hardware, SHPF 3.0 R0445105 1 Single-speed Motor & Hardware, SHPF 5.0 R0490200 1 Single-speed Motor & Hardware, SHPM .75 R0479301 1 Single-speed Motor & Hardware, SHPM 1.0 R0479302 1 Single-speed Motor & Hardware, SHPM 1.5 R0479303 1 Single-speed Motor & Hardware, SHPM 2.0 R0479304 1 Single-speed Motor & Hardware, SHPM 2.5 R0479305 1 Two-speed Motor & Hardware, SHPM 1.5 R0479307 1 Two-speed Motor & Hardware, SHPM 2.0 R0479308 1 Two-speed Motor & Hardware, SHPM 2.5 R0479309 1 Single-speed Motor & Hardware, SHPF, 3 Phase 1.0 R0479101 1 Single-speed Motor & Hardware, SHPF, 3 Phase 1.5 R0479102 1 Single-speed Motor & Hardware, SHPF, 3 Phase 2.0 R0479103 1 Single-speed Motor & Hardware, SHPF, 3 Phase 3.0 R0479104 1 Two-speed Motor & Hardware, SHPF 1.0 R0445113 1 Two-speed Motor & Hardware, SHPF 1.5 R0445106 1 Two-speed Motor & Hardware, SHPF 2.0 R0445107 2 Backplate Kit w/Hardware, O-ring & Mech Seals, SHPF/SHPM .50-3.0 R0445200 2 Backplate Kit w/Hardware, O-ring & Mech Seals, SHPF 5.0 R0445201 3 Impeller Replacement Kit, SHPF .50 R0807204 3 Impeller Replacement Kit, SHPF .75 R0807203 3 Impeller Replacement Kit, SHPF 1.0, 1.0-2 R0807202 Symptom Possible Problem/Solution There is no debris blocking the impeller and the pressure is still low. The pump impeller and diffuser are showing signs of normal wear. Have a qualified service technician check the impeller and diffuser and replace as necessary. If the pump is part of a relatively new installation, it could be an electrical problem. Contact a qualified service technician. Have the technician check for loose electrical connections and check the voltage at the pump motor while it is in operation. The voltage must be within 10% of the motor's data plate rating. If the voltage is not within 10%, contact a qualified electrician and/or the local power service provider. The pump is leaking water between the motor and pump body. This is caused by a damaged or failed mechanical seal. Pump seal is leaking air. Have a qualified service technician replace the seal. The pump gets hot and shuts off periodically. Ensure that there is adequate room around the motor to circulate air and keep the motor cool. Have a qualified electrician check for loose connections and check the voltage at the pump motor while it is in operation. The voltage must be within 10% of the motor's data plate rating. If the voltage is not within 10%, contact a qualified electrician and/or the local power service provider. Page 15 ENGLISH Jandy

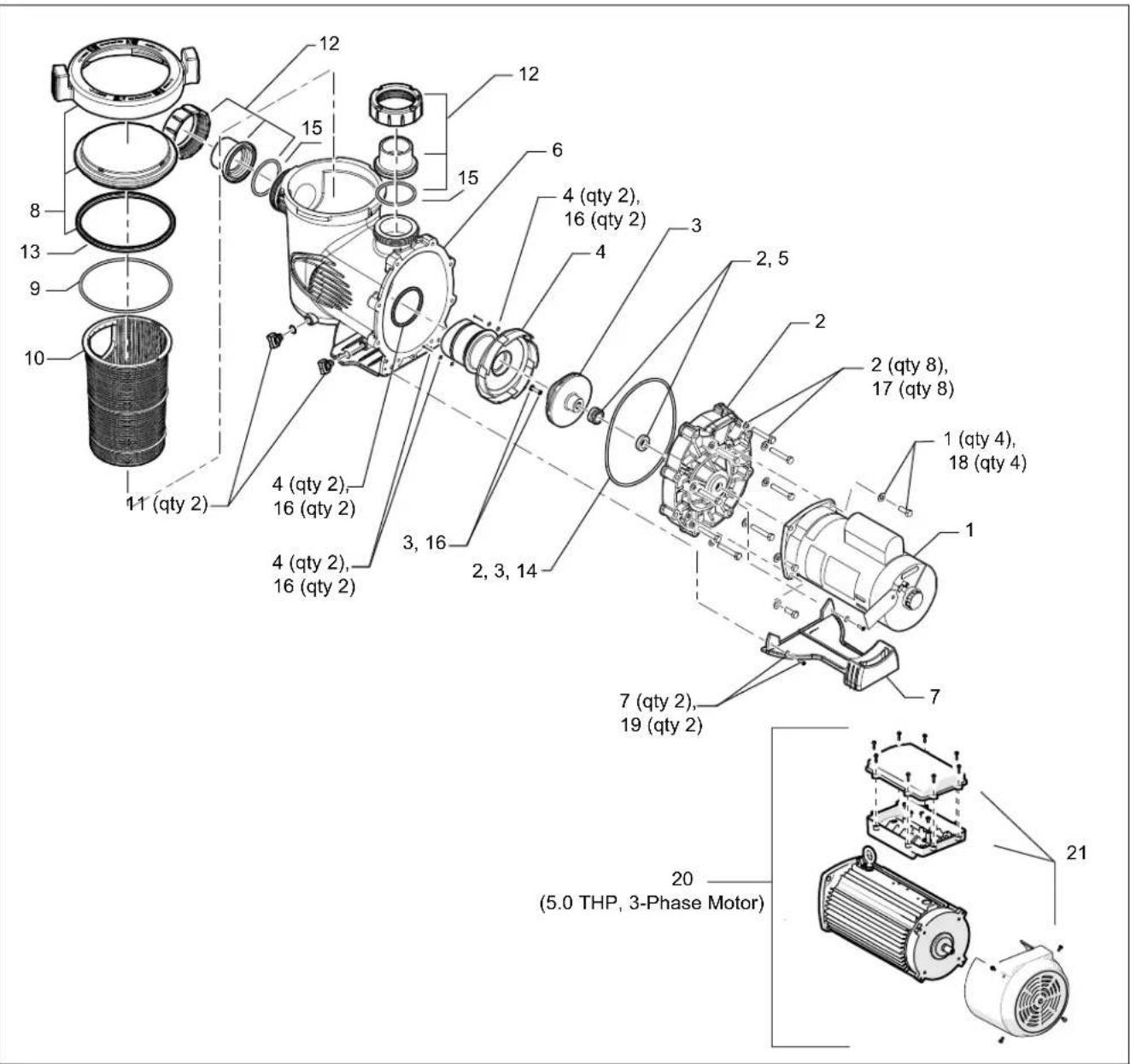

Operation ManualFigure 6. SHPF and SHPM Exploded View

(5.0 THP, 3-Phase Motor)

Operation Manual7.4 Physical and Operational Specications

7.4.1 SHPF Pump Specications

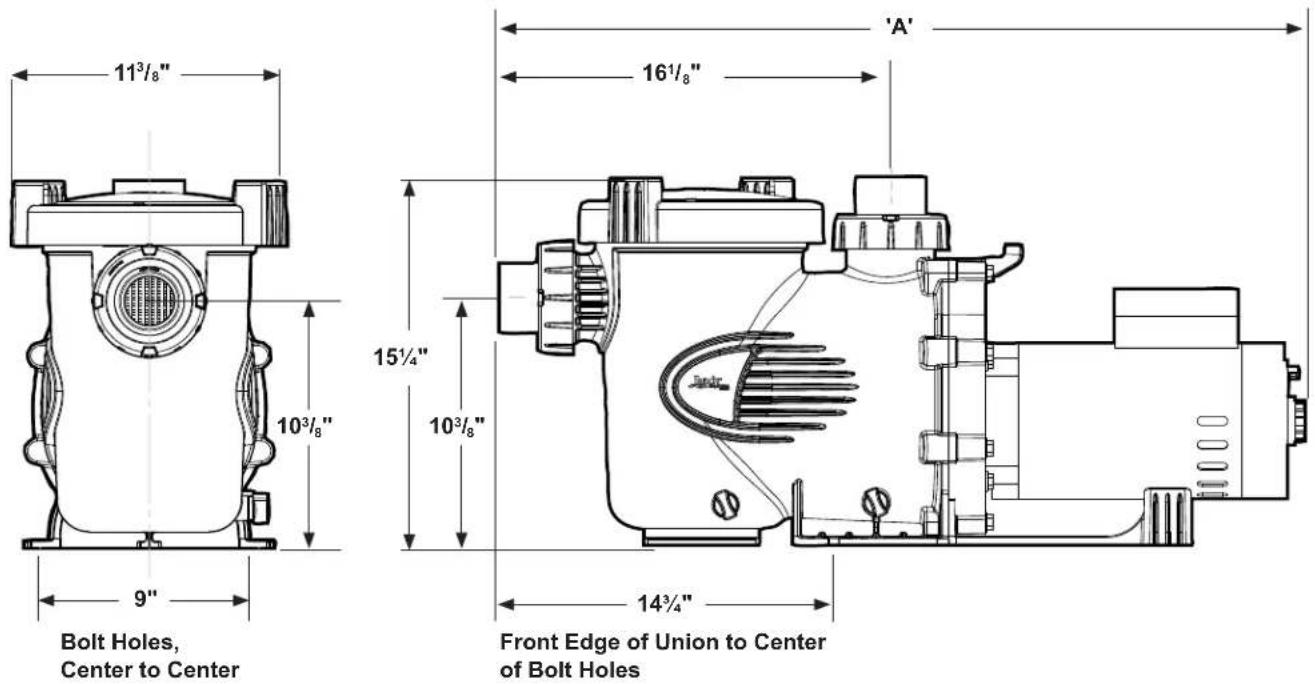

Model No. HP Voltage Amps Pipe Size Carton Weight Overall Length 'A' SHPF.50 .50 208-230/115 4.4-4.5/8.8 2-2½" 30 lbs. 31

SHPF1.0-2 1.0 230 7.2/3.0 2-2½" 52 lbs. 33

SHPF2.0-2 2.5 230 11.0/4.0 2-2½" 64 lbs. 33

SHPF1.0-3PH 1.0 208-230/460 5.0-4.6/2.3 2-2½" 55 lbs. 31

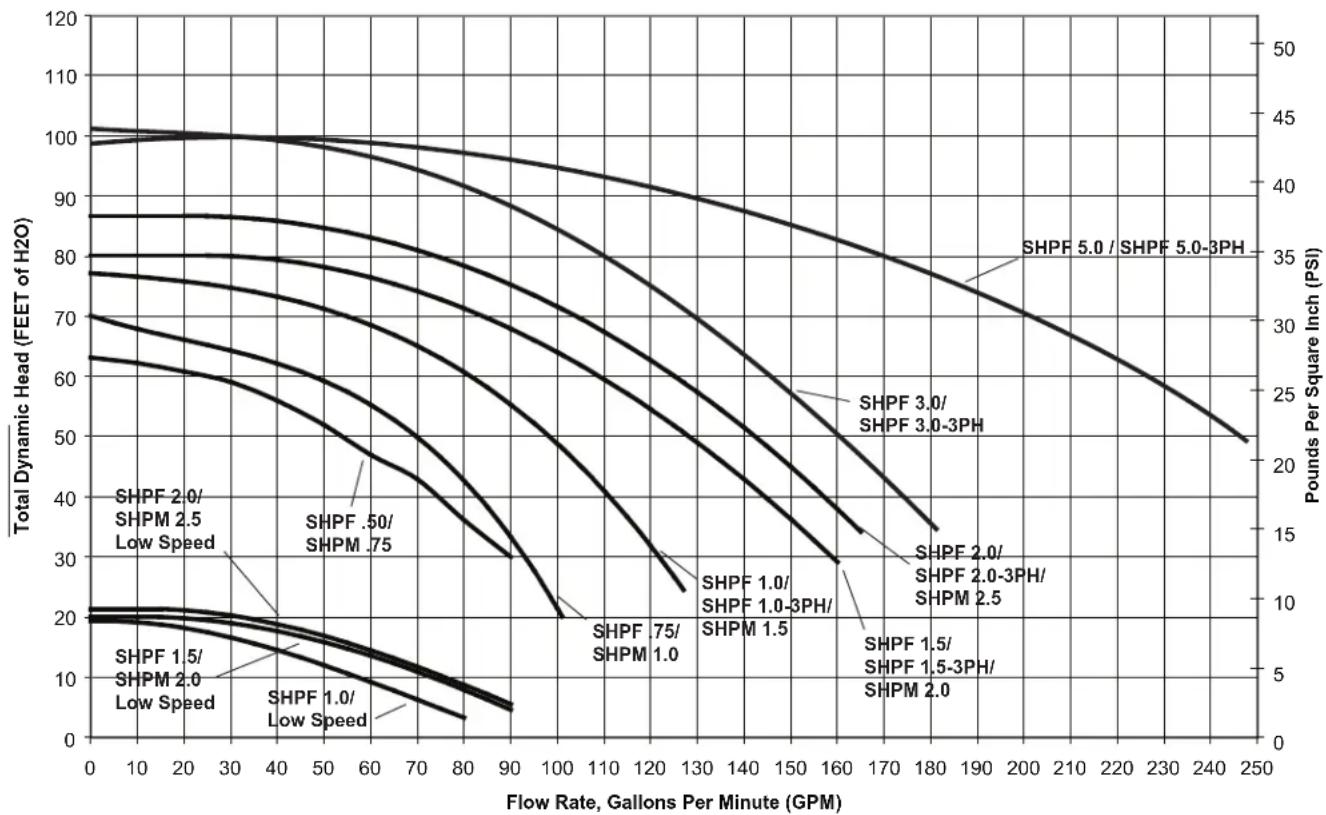

7.3 SHPF and SHPM Pump Curves

Jandy Stealth Series High Head Pumps Full-Rated (SHPF) and Max-Rated (SHPM)

Operation Manual7.4.2 SHPM Pump Specications Model No. HP Voltage Amps Pipe Size Carton Weight Overall Length 'A' SHPM.75 .75 208-230/115 4.4-4.5/8.8 2-2½" 30 lbs. 31

'A' 15¼" 14¾" Bolt Holes, Center to Center Front Edge of Union to Center of Bolt Holes

Operation ManualCertified to NSF/ANSI Standard 50

Zodiac Pool Systems LLC 2882 Whiptail Loop # 100, Carlsbad, CA 92010 Zodiac Pool Systems Canada, Inc. 2-3365 Mainway, Burlington, ON L7M 1A6 Canada USA | Jandy.com | 1.800.822.7933 Canada | Jandy.ca | 1.888.647.4004 ©2020 Zodiac Pool Systems LLC. All rights reserved. Zodiac® is a registered trademark of Zodiac International, S.A.S.U. used under license. All other trademarks referenced herein are the property of their respective owners. H0573800 Rev VPompes Jandy Stealth

Section 3. Installation
