USER MANUAL VS5140 Concept

VS5130 | VS5140 ACKNOWLEDGEMENTS Thank you for purchasing a Concept product. We wish you much joy with your new appliance every day you use it. Please read the instruction manual carefully before initial use. To refer to this manual any time you need to, we recommend you to keep it in a safe place. And please pass it to any future owner of the appliance. Technical specifications VS5130 VS5140 Voltage 220-240 V ~ 50/60 Hz 220-240 V ~ 50/60 Hz Input 50 W 50 W Sound level ≤53 dB ≤46 dB IMPORTANT Before connecting to the mains, make a visual check to ensure that the unit is intact and that no damage occurred during transport.

IMPORTANT SAFETY PRECAUTIONS

• Do not use the appliance in any other way than as described in this manual.

• Remove all the covering and marketing materials from the appliance before the first use.

• Make sure the mains voltage corresponds to the values on the rating plate of the product.

• Place the appliance on a stable, flat surface away from other heat sources.

• Do not leave the appliance unattended when it is switched on or connected to the mains.

• When connecting and disconnecting the appliance from the mains, the on/off button must be turned off (positioned at 0).

• When disconnecting the appliance from the wall outlet, never pull the power cord, grasp the plug end and disconnect it by removing it from the receptacle.

• Do not allow children or unauthorized people to handle the appliance, use it out of their reach.

• Persons with reduced mobility, reduced sensory perception, mental disadvantage or persons not familiar with the operation must use the appliance only under the supervision of responsible person, who is familiar with the instructions.

• Pay extra attention if the appliance is used near children.

• Do not use the appliance as a toy.34 35 ENEN VS5130 | VS5140 VS5130 | VS5140 understand the hazards involved. Cleaning and maintenance performed by the user must not be carried out by children unless they are at least 8 years old and under supervision. Children under the age of 8 must be kept away from the appliance and its power supply. Do not let children play with the appliance. Damages from failure to follow the manufacturer's instructions are not covered by the warranty.

• Never put your fingers, pencils or other objects into the openings of the appliance.

• Never use the appliance without cover grids.

• Do not let small children and sick persons to be exposed to a direct air flow.

• Do not cover the appliance.

• Do not put anything on the appliance or place anything in front of it.

• The appliance must only be used in the upright position.

• Do not use the appliance near shower, bathtub, sink or pool.

• Do not use the appliance in a damp or dusty environment.

• Do not use the appliance in an environment where there are explosive gases and flammable substances (solvents, varnishes, adhesives, etc.). Before assembly and disassembly, disconnect the power cord from the wall outlet. Before cleaning and after use of the appliance, switch the appliance off and disconnect it from the mains.

• Keep the appliance clean, do not allow foreign objects to into the grid openings. It could cause serious injury, short circuit, damage to the appliance or cause fire.

• Do not use coarse and chemically aggressive substances to clean the appliance.

• Do not use the appliance with a damaged cord or plug and have it repaired immediately by an authorized service centre.

• Do not use the appliance if it is not working properly, has been dropped, damaged or immersed in liquid. Have it checked and repaired by an authorized service centre.

• Do not use the appliance outdoors.

• The appliance is only suitable for home use and is not intended for commercial use.

• Do not touch the appliance with wet hands.

• Do not immerse the power cord, plug or appliance in water or any other liquid.

• Do not repair the appliance yourself. Contact an authorized service centre.

• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning the use of the appliance in a safe way and36 37 ENEN VS5130 | VS5140 VS5130 | VS5140 OPERATING INSTRUCTIONS Connect the power cord to the mains. The appliance is in standby mode. ON/OFF button (E) If the appliance is switched off, press the (E) button to switch it to standby mode (two dashes "--” are displayed). Press this button a second time to switch on the appliance at the lowest airflow speed (F1). Press this button a third time to switch back to standby mode. After 60 seconds of inactivity the appliance automatically switches off. Airflow speed setting (D) Press this button to change the airflow speed in 3 levels (F1, F2, F3). Note: When the appliance is switched off, the last set airflow speed is not saved. When switched on again, the appliance always starts at the lowest speed (F1). Mode setting (H) - only when using the remote control Press this button to choose from 3 saved modes: 1. Basic: no indication on the display. It is necessary to set the airflow level manually (this mode is set after starting the appliance).

2. Sleep: the icon (A) is displayed.

3. Natural breeze: the icon (B) is displayed.

Timer (F) Use the timer button (F) to set the required operating time from 0 to 15 hours in 1-hour intervals. Oscillation (G) Use the oscillation button (G) to switch on/off the rotation of the appliance.

CLEANING AND MAINTENANCE

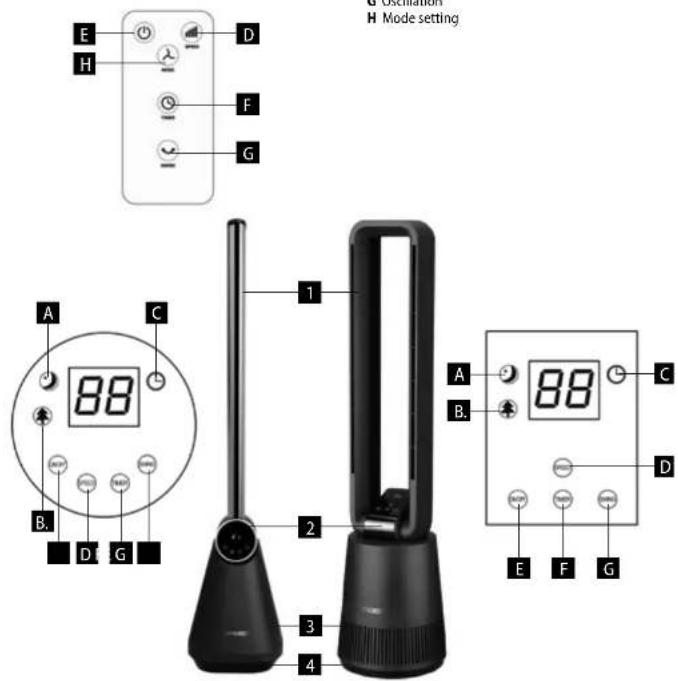

Before each cleaning of the appliance, unplug the power cord from the electrical outlet! To clean the surface of the appliance, use only a damp cloth, no detergents or hard objects, as they can damage the surface of the appliance! Clean and inspect the input and output grids of the appliance frequently to ensure good operation of the appliance. Never clean the appliance under running water, do not rinse it or immerse it in water! If the fan is dismantled, proceed in the reverse order of installation. PRODUCT DESCRIPTION 1 Air outlet 2 Control panel with display 3 Air inlet 4 Base

• Packaging materials and old appliances should be recycled.

• Packaging materials may be disposed of as sorted waste.

• Dispose the plastic bags made of polyethylene (PE) of as sorted waste. Recycling of the appliance at the end of its lifespan: This appliance is labelled in accordance with European Directive 2012/19/EU concerning used electrical and electronic appliances (waste electrical and electronic equipment - WEEE). The symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead, it should be taken to the appropriate collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. The disposal of such material has to be done according to the recycling regulations. For more detailed information about recycling of this appliance see the authorized local office or service for household waste disposal or the shop, where you purchased the appliance. The product meets all the necessary requirements of the EU directives applicable to the specific product. Changes in text, design, and technical specifications are subject to change without prior notice and we reserve the right to change them.40 41 DEDE VS5130 | VS5140 VS5130 | VS5140

• ja atsevišķām izstrādājuma daļām, piem., akumulatoram, spuldzēm utt., ir beidzies kalpošanas laiks. To, kāda ir attiecīgā bojājuma izcelsme, ir tiesīgs novērtēt vienīgi ražotājs, piegādātājs, autorizētais servisa centrs vai tiesu eksperts nevis pārdevējs vai patērētājs. LV80 81 VS5130 | VS5140 VS5130 | VS5140 If the noted defect is not removable, or if the customer becomes entitled to replacement of the product or a part thereof, yet the replacement is not possible, for example due to the product having been sold out, the customer has the right to return the product (withdrawal from the contract). The customer shall have the right to a new product (replacement) or to replacement of a part of the product even if the defect can be removed, provided they cannot properly use the product due to repeated occurrence of the defect or due to a high number of such defects. In such a case, the customer also has the right to return the product (by withdrawing from the contract). If the product is not returned (the customer does not withdraw from the contract), or if the customer does not apply the right to a new defect-free product (replacement), to replacement of a part thereof or to repair of the product, they may request a reasonable discount. The customer also has a right to a reasonable discount if a new defect-free product cannot be supplied to them, or if a product part cannot be replaced or the product repaired unless the situation is remedied within a reasonable time limit, or if remedying the situation would create major discomfort on the part of the customer. The seller, authorised service centre or a staff member authorised by them must decide about each complaint immediately or within three business days in complicated cases. This term does not include areasonable period of time, depending on the type of product concerned, required for the defect to be assessed by an expert. A complaint, including defect removal, must be dealt with without any undue delay, yet no later than within 30 calendar days of the complaint filing date, unless the seller and the customer agree on a later deadline. On returning the product (withdrawing from the contract) the customer must return any accessories and documents supplied along with the product. The customer does not have the right to keep the defective parts and components of the product replaced as part of a repair of the product. This shall be without prejudice to any other rights the customer may have in relation to the purchase of the product. Remark: Complaints against products damaged in transport are governed by the carrier’s complaints procedure. Manufacturer Jindřich Valenta - Concept Vysokomýtská 1800, 565 01 Choceň Czech Republic tel.: [phone] fax [phone] Company ID No. 13216660 email: [e-mail] www: www.my-concept.com Product data Model: Production number: Date of purchase: Seal and signature of vendor: WARRANTY TERMS Warranty The manufacturer (or importer) is responsible for ensuring the product complies with the requirements of applicable legal regulations as well as those of the relevant technical standards. Moreover, they are responsible for ensuring the product has the properties the manufacturer described in documents related to the goods or those reasonably expected by the customer with regard to the nature of the goods or based on advertising produced by the manufacturer, and further they are responsible for ensuring the product is fit for the purpose proposed by the manufacturer or that aproduct of the same type is normally used for. The quality warranty term is 24 months from product takeover by the customer. The warranty does not apply to wear and tear caused by regular use. The customer shall not be entitled to any warranty claims if, prior to taking the product over, they knew the product contained a defect or if the defect is attributable to the customer. The warranty specifically does not apply:

• if the product installation, operation and service conditions stipulated in the product operating manual have not been adhered to,

• to malfunctions caused due to mechanical, heat or chemical damage, short circuit, over voltage or incorrect installation,

• to malfunctions caused by an inexpert third-party intervention,

• to malfunctions caused by natural disaster,

• to malfunctions caused by insufficient or inappropriate maintenance in violation of the operating manual, including malfunctions caused by water and other sediments,

• to changes in colour of the heating surface or to scratching of the surface caused as a result of using the products in an unusual manner,

• to appearance and functional changes caused by exposure to sunlight, thermal radiation of water and other sediments,
