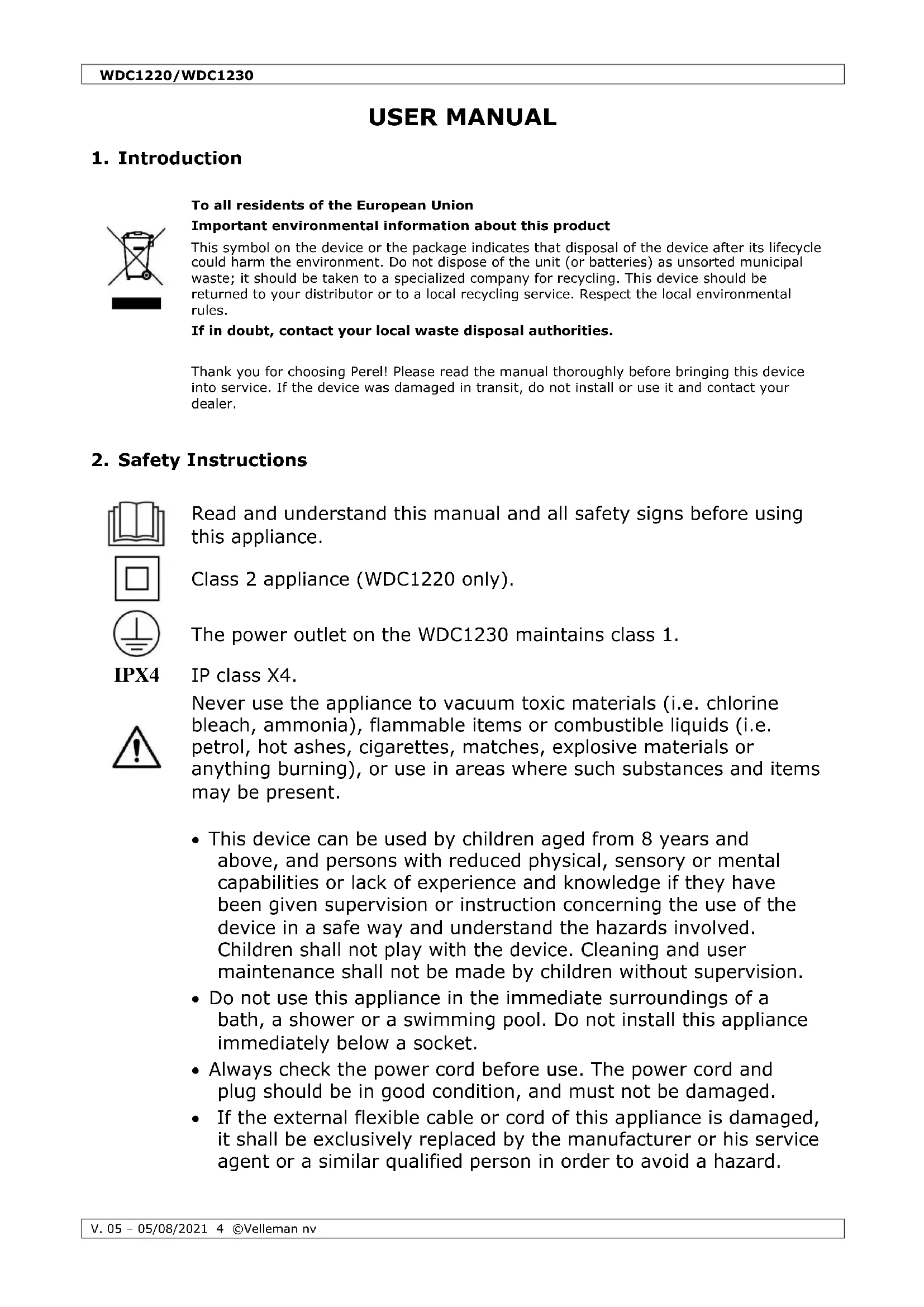

USER MANUAL WDC1220 Perel

To all residents of the European Union Important environmental information about this product This symbol on the device or the package indicates that disposal of the device after its lifecycle could harm the environment. Do not dispose of the unit (or batteries) as unsorted municipal waste; it should be taken to a specialized company for recycling. This device should be returned to your distributor or to a local recycling service. Respect the local environmental rules. If in doubt, contact your local waste disposal authorities.

Thank you for choosing Perel! Please read the manual thoroughly before bringing this device into service. If the device was damaged in transit, do not install or use it and contact your dealer.

Read and understand this manual and all safety signs before using this appliance.

Class 2 appliance (WDC1220 only).

The power outlet on the WDC1230 maintains class 1. IPX4 IP class X4.

Never use the appliance to vacuum toxic materials (i.e. chlorine bleach, ammonia), flammable items or combustible liquids (i.e. petrol, hot ashes, cigarettes, matches, explosive materials or anything burning), or use in areas where such substances and items may be present.

• This device can be used by children aged from 8 years and above, and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning the use of the device in a safe way and understand the hazards involved. Children shall not play with the device. Cleaning and user maintenance shall not be made by children without supervision.

• Do not use this appliance in the immediate surroundings of a bath, a shower or a swimming pool. Do not install this appliance immediately below a socket.

• Always check the power cord before use. The power cord and plug should be in good condition, and must not be damaged.

• If the external flexible cable or cord of this appliance is damaged, it shall be exclusively replaced by the manufacturer or his service agent or a similar qualified person in order to avoid a hazard.WDC1220/WDC1230

• Do not unplug the appliance by pulling on the power cable. To unplug, grasp the power plug.

• The use of an extension lead or multi-plug adaptor is not advised when connecting this appliance to the mains. Connection through these devices could lead to a risk of overloading, overheating and even fire at the extension lead or adaptor due to inadequate connection quality.

• Do not pull or carry the appliance by the power cable, use the power cable as a handle or pull the power cable around sharp edges or corners. Avoid running the appliance over the power cable.

• Do not handle or operate the appliance with wet hands and follow the electrical safety precautions at all times.

• Do not attempt to change an accessory while the appliance is plugged into the mains power supply. Switch off and remove the power plug first.

• Do not operate the appliance close to heaters, radiators and other hot surfaces.

• Do not operate or use the appliance without dust bag and/or filters installed.

• Before vacuuming, remove any large or sharp object from the floor or cleaning surface in order to prevent damage to the filter.

• If the hose inlet, accessory or metal tube is blocked, switch off the appliance and unplug from the mains power supply. Clear the blocked object before attempting to start the appliance again.

• Never leave the appliance unattended when it is connected to the mains power supply, even when switched off.

• Keep the hose, tube and other parts of the appliance away from your face and body.

• Refer to the Velleman

Service and Quality Warranty on the last pages of this manual.

• All modifications of the device are forbidden for safety reasons. Damage caused by user modifications to the device is not covered by the warranty.

• Only use the device for its intended purpose. Using the device in an unauthorised way will void the warranty.

• Damage caused by disregard of certain guidelines in this manual is not covered by the warranty and the dealer will not accept responsibility for any ensuing defects or problems.

• Nor Velleman nv nor its dealers can be held responsible for any damage (extraordinary, incidental or indirect) – of any nature (financial, physical…) arising from the possession, use or failure of this product.

Refer to the illustrations on page 2 of this manual.

stainless steel barrel

non-woven cloth filter

secondary pollution prevention

stainless steel barrel

non-woven cloth filter

secondary pollution prevention

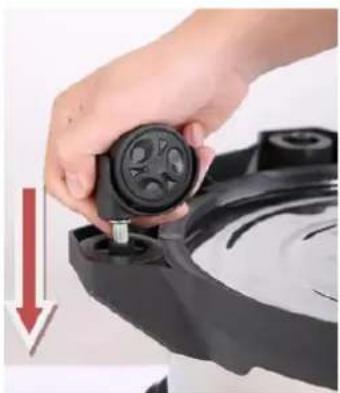

1. Assemble the wheels to the base of the appliance.WDC1220/WDC1230

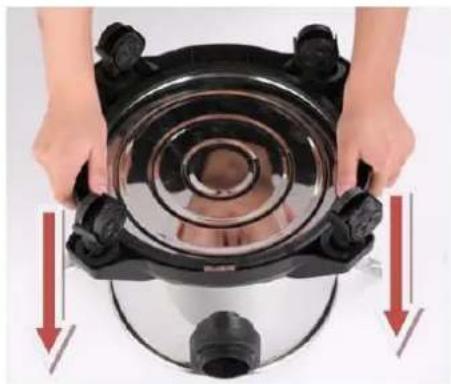

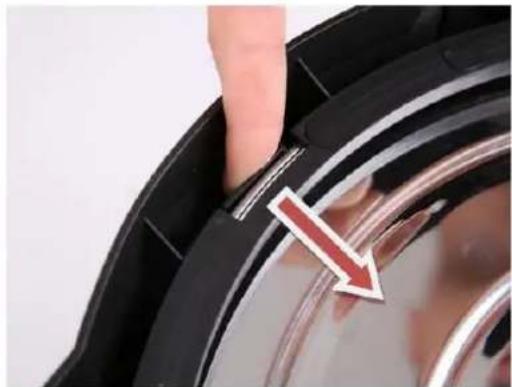

2. Assemble the base to the appliance and lock.

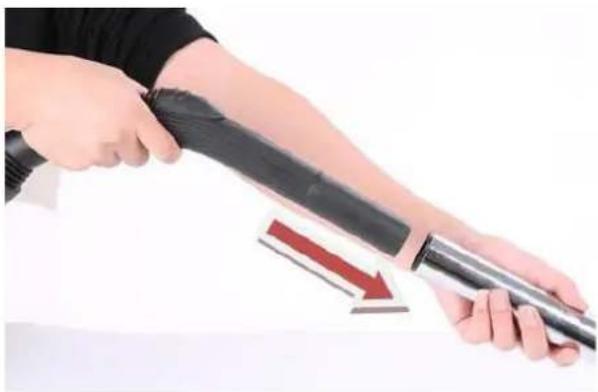

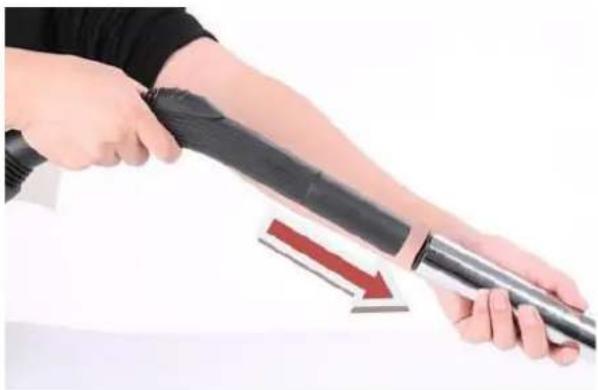

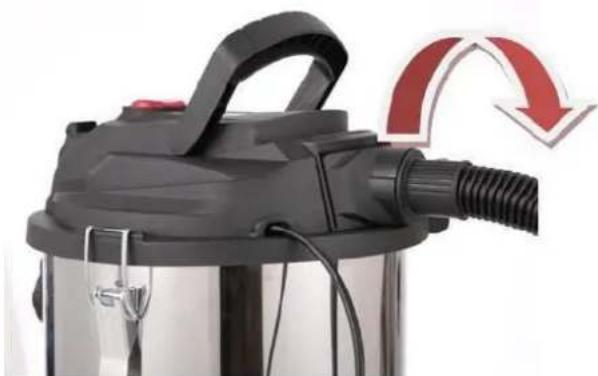

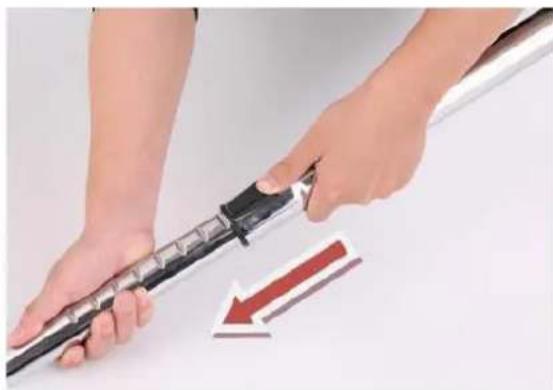

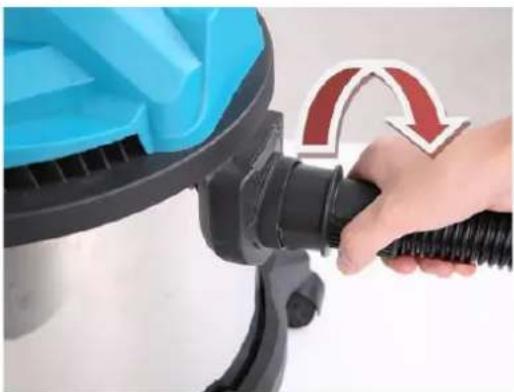

3. Connect the plastic hose end into the appliance. Connect the hose handle with the

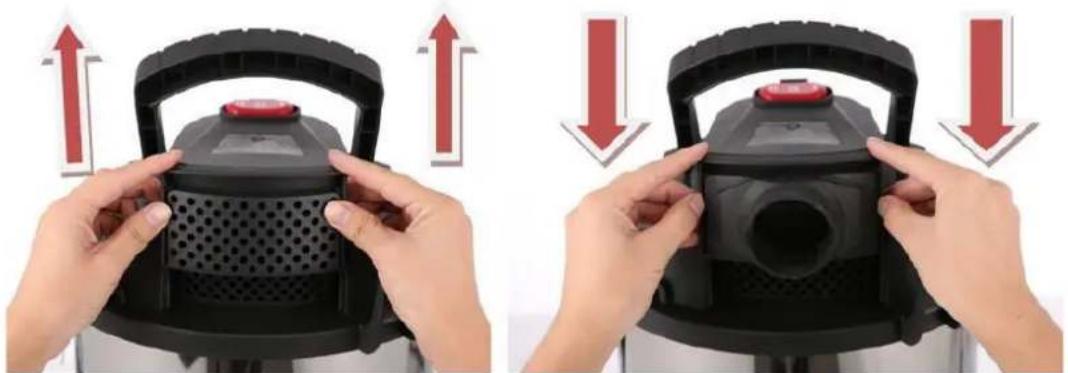

1. Replace the outlet board with the blowing board.

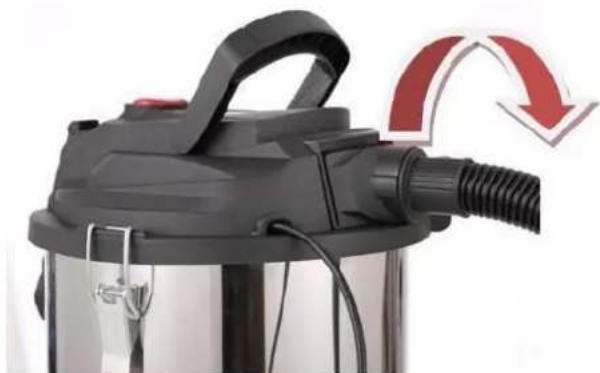

2. Connect the plastic hose end into the blowing board and fasten tightly.

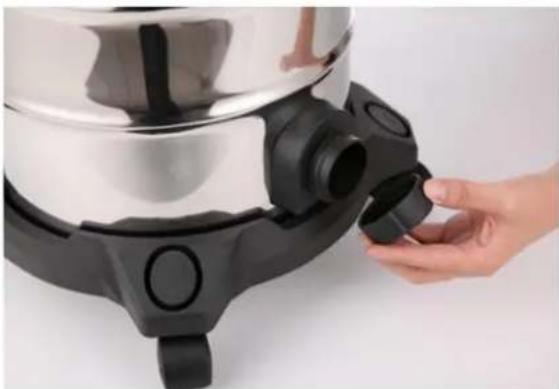

Screw the drainage cover to pour water from the tank.WDC1220/WDC1230

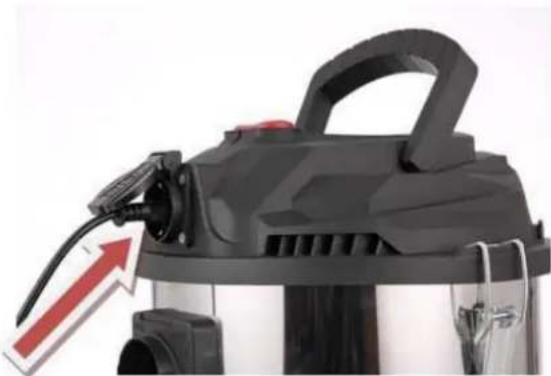

Power Socket (WDC1230 only)

The integrated power socket is perfect for connecting a power tool, so you can extract dust and debris as you sand or drill.

The maximum outlet power is 2000 W. Never exceed the maximum power allowed to avoid the appliance’s motor to burn out.

How does the integrated power socket work:

• when the I-0-II switch is on 0, the socket will be a power supply

• when the I-0-II switch is on I, the vacuum cleaner will work by itself and the socket is also a power supply

• when the I-0-II switch is on II, the vacuum cleaner will be controlled by the socket (connected with tools or appliances)

o turn on the connected tool, the vacuum cleaner will start to work immediately;

o turn off the connected tool, the vacuum cleaner will stop in 8 seconds.

This appliance can be used with either a dust bag (not included) or a cloth filter (not included).

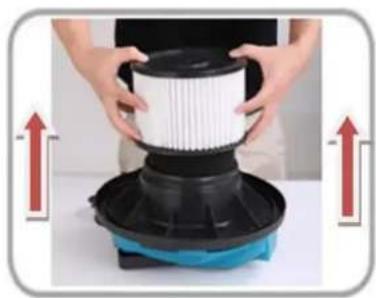

• Ensure to correctly fit the HEPA filter and/or dust bag/cloth filter before use. Also, install the sponge filter.

• Switch on the appliance and vacuum.

• Empty the tank and clean/replace the dust bag once the dust bag is full. Also, clean the cloth filter accordingly.WDC1220/WDC1230

• Ensure to fit the sponge filter correctly. The HEPA filter, dust bag and cloth filter should not be used and therefore removed.

• Switch on the appliance and vacuum.

• Clean the tank after each use. Avoid leaving dust or dirty water inside the tank. Regularly wipe the appliance inside out using only lukewarm water. Also, clean the used accessories.

I-0-II Switch (WDC1230 only)

• To use the appliance as a regular vacuum cleaner, switch the appliance to position I.

• To use the appliance with an extra electrical appliance, make sure that both appliances are switched off. Connect the extra appliance to the vacuum cleaner and flick the switch to the II position. The vacuum cleaner will start when the connected appliance starts.

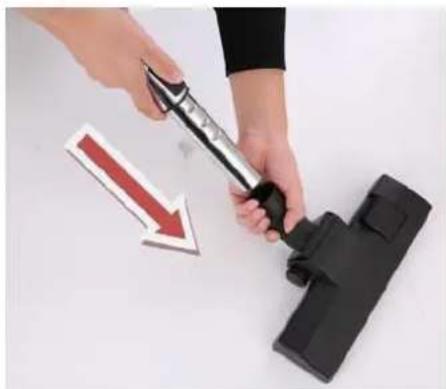

The floor brush is ideal for cleaning carpets and hard floors.

This brush is ideal for wet cleaning applications.

Use this brush for cleaning furniture, curtains and upholstery.

Slide the regulator on the handle to adjust the suction power. Just make sure it is closed for liquid pick-up.

8. Care and Maintenance

The plug must be removed from the socket outlet before cleaning or maintaining the appliance.

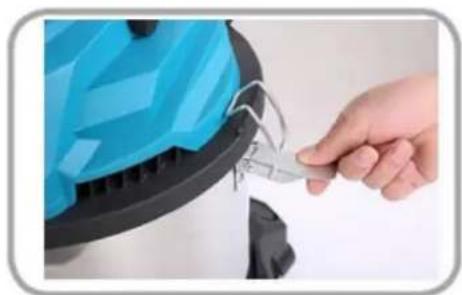

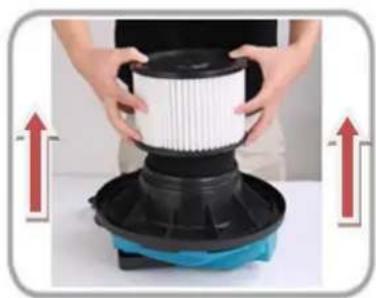

1. Release the latches and remove the top

2. Remove the HEPA filter (WDC1230 only).WDC1220/WDC1230

3. Remove the cloth filter.

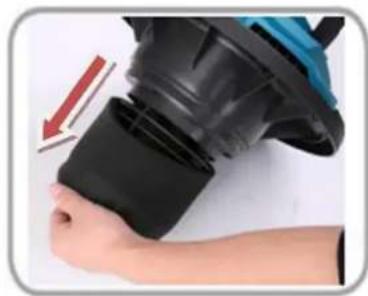

4. Remove the sponge filter.

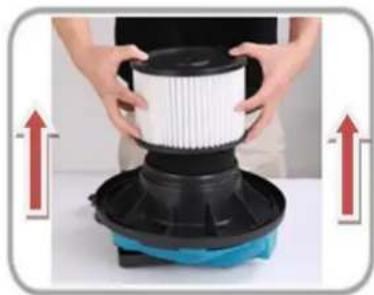

5. Carefully wash the HEPA and cloth filters

6. Air-dry for at least 24 hours.

7. Re-fit the filters into the machine.WDC1220/WDC1230

Use this device with original accessories only. Velleman nv cannot be held responsible in the event of damage or injury resulting from (incorrect) use of this device. For more info concerning this product and the latest version of this manual, please visit our website www.velleman.eu. The information in this manual is subject to change without prior notice.

The copyright to this manual is owned by Velleman nv. All worldwide rights reserved. No part of this manual may be copied, reproduced, translated or reduced to any electronic medium or otherwise without the prior written consent of the copyright holder.WDC1220/WDC1230

Interruptor I-0-II (solo WDC1230)

1. Solte as travas e retire a tampa superior.
