Product type	Built-in induction hob with integrated hood
Brand	Schneider
Model	SCVH651AS
Total power	7400 W
Energy consumption (EC hob)	180.5 Wh/kg
Number of cooking zones	Induction, 4 zones (including 2 combinable)
Power supply	230 V ~ 50 Hz (single-phase) or 400 V ~ 50 Hz (two-phase)
Main functions	Booster, Double Booster, Timer, Automatic cooking, Stop & Go, Keep warm, Bridge, Chef, Grill
Integrated hood	Yes, with touch control, variable suction power, booster function and timer

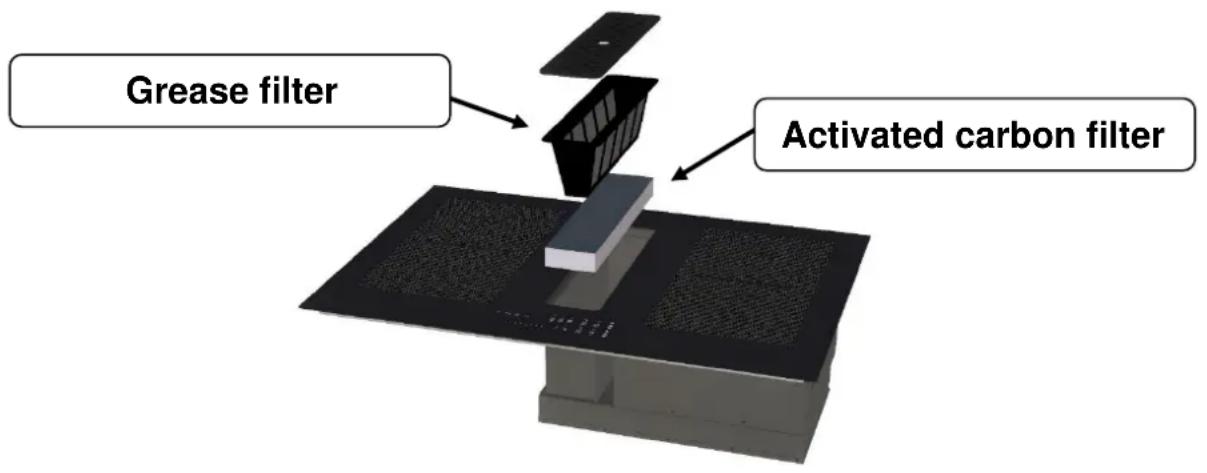

Hood filters	Washable grease filter, activated charcoal filter (replace every 6 months)
Pan detection	Yes, automatic, with [U] display if pan absent or unsuitable
Residual heat indicator	Yes, [H] symbol
Safety shut-off	Yes, in case of no pan, overheating, or forgotten switch-off
Control panel lock	Yes, activation within 10 seconds after start
Surface material	Ceramic glass
Care and cleaning	Clean with water and mild detergent after cooling; avoid abrasives

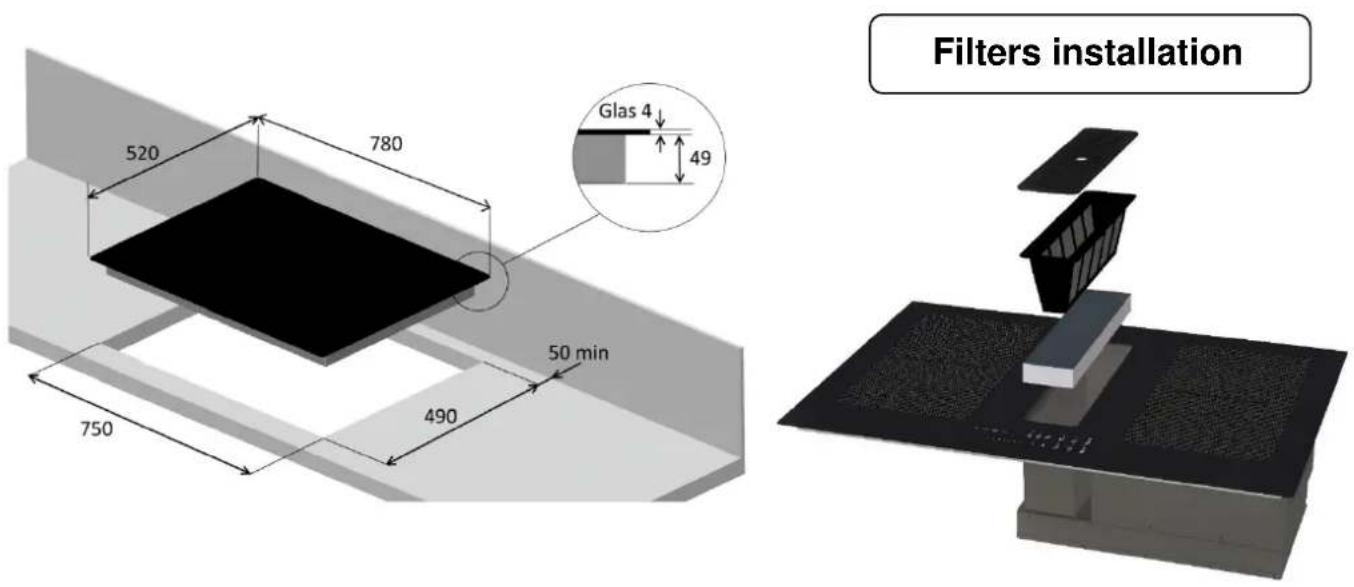

Installation	Flush mounting in worktop, minimum distance from wall 50 mm, hood above 760 mm
Warranty	2 years minimum in EEA, spare parts available for 4 years
After-sales service	Tel: [phone] (technical) / 01 61 44 02 70 (info and spare parts)
Country of origin	Imported by SCHNEIDER CONSUMER GROUP, France

Frequently Asked Questions - SCVH651AS SCHNEIDER

The hob or zones do not turn on, what to do?

First check the connection to the electrical network and the state of the fuse. Make sure the control panel lock is not activated. Clean the touch controls if they are covered with water or grease. Finally, remove any object placed on the keys.

The symbol [U] appears on the screen, what does it mean?

The symbol [U] indicates that no suitable container is detected on the cooking zone. Either there is no pan, or the pan is not induction compatible, or its diameter is too small. Use a ferromagnetic pan with sufficient diameter.

How to activate the booster on a zone?

Slide your finger to the end of the « SLIDER » or press directly on the end. The display shows [P]. For double booster, press again at the end of the slider. The booster function lasts 5 minutes at maximum power.

What to do if code [E] appears?

Code [E] indicates an electronic circuit fault. Disconnect the appliance from the network, wait a few moments, then reconnect. If the problem persists, contact the after-sales service at 04 88 78 59 99.

How to clean the ceramic glass hob?

Let the appliance cool down. Clean with a damp cloth and mild detergent or a special ceramic glass cleaner. Never use abrasive pads, sharp objects, or steam cleaners. Remove sugar or sweet foods immediately to avoid damaging the surface.

The hood does not stop after cooking, is that normal?

Yes, the cooling fan runs automatically to protect the electronics. It turns off by itself when the temperature is low enough. You can also turn it off manually by sliding the cursor to the left to [0].

What types of pans to use on an induction hob?

Use ferromagnetic containers: steel, cast iron, stainless steel with magnetic base, enameled. Check with a magnet. Avoid copper, aluminum, glass, ceramic, and non-magnetic stainless steel. The minimum bottom diameter should be about 110 mm.

How to lock the control panel?

After turning on the hob (press 2 seconds on [①]), hold the key of a zone for 3 seconds, then slide your finger on the Slider from left to right. The display shows [L]. To unlock, slide from right to left.

The Pause function (Stop & Go) does not work?

To activate pause, press 2 seconds on the [II] key. The screen shows [II] and the previous settings are suspended. Press again 2 seconds to resume cooking. If it doesn't work, check that the hob is on and a zone is active.

Where to find spare parts and what does the warranty cover?

Spare parts are available from the manufacturer for at least 4 years. Contact customer service at 01 61 44 02 70 or visit https://www.schneiderconsumer.com. The minimum warranty is 2 years in the EEA, covering manufacturing defects. It does not cover normal wear, accidental damage, or incorrect installation.

USER MANUAL SCVH651AS SCHNEIDER

INSTRUCTIONS FOR INSTALLATION AND USE

SCVH651AS

SCHNEIDER

SECURITE 3

PRECAUTIONS AVANT UTILISATION EN CUISSON 3
UTILISATION DE L'APPAREIL 4
PRECAUTIONS POUR NE PAS DETERIORER L'APPAREIL 5
PRECAUTIONS EN CAS DE DEFAILLANCE DE L'APPAREIL 6
AUTRES PROTECTIONS 6

DESCRIPTION DE L'APPAREIL 7

CHARACTERISTIQUES TECHNIQUES 7
7

UTILISATION DE L'APPAREIL 8

AFFICHAGE. 8
VENTILATION 8

Enclencher Appuyer 2 sec. sur [ ] [0] ①

Arreter Appuyer 2 sec. sur [ ] Aucun ou [H] ①

PRECAUTIONS BEFORE USING 26
USING THE APPLIANCE 27
PRECAUTIONS NOT TO DAMAGE THE APPLIANCE 28
PRECAUTIONS IN CASE OF APPLIANCE FAILURE 29
OTHER PROTECTIONS 29

DESCRIPTION OF THE APPLIANCE 30

TECHNICAL CHARACTERISTICS 30
CONTROL PANEL 30

USE OF THE APPLIANCE 31

DISPLAY 31
VENTILATION 31

STARTING-UP AND APPLIANCE MANAGEMENT 31

BEFORE THE FIRST USE 31
INDUCTION PRINCIPLE 31
SENSITIVE TOUCH 31
POWER SELECTION ZONE "SLIDER" AND TIMER SETTING ZONE. 32
STARTING-UP 32
PAN DETECTION 32
RESIDUAL HEAT INDICATION 33
BOOSTER AND DOUBLE BOOSTER FUNCTION 33
TIMER 33
AUTOMATIC COOKING 34
STOP&GO FUNCTION 34
RECALL FUNCTION 35
"KEEP WARM" FUNCTION 35
BRIDGE OR AUTOMATIC BRIDGE FUNCTION 35
CONTROL PANEL LOCKING 36
"CHEF" FUNCTION 36
GRILL FUNCTION 36

MAINTENANCE AND CLEANING OF THE HOOD 37

FILTER CLEANING INDICATOR 37

COOKING ADVICES 39

EXAMPLES OF COOKING POWER SETTING 40

MAINTENANCE AND CLEANING OF THE HOB 40

WHAT TO DO IN CASE OF A PROBLEM 40

ENVIRONMENT PRESERVATION 42

INSTALLATION INSTRUCTIONS 42

ELECTRICAL CONNECTION 45

Precautions before using

• Unpack all the materials.
• The installation and connecting of the appliance have to be done by approved specialists. The manufacturer can not be responsible for damage caused by building-in or connecting errors.
• To be used, the appliance must be well-equipped and installed in a kitchen unit and an adapted and approved work surface.
• This domestic appliance is exclusively for the cooking of food, to the exclusion of any other domestic, commercial or industrial use.
• Remove all labels and self-adhesives from the ceramic glass.
• Do not change or alter the appliance.
• The cooking plate can not be used as freestanding or as working surface.
• The appliance must be grounded and connected conforming to local standards.
• Do not use any extension cable to connect it.
• The appliance can not be used above a dishwasher or a tumble-dryer: steam may damage the electronic appliances.
• The appliance is not intended to be operated by means of external timer or separate remote control system.

Using the appliance

• Switch the heating zones off after using.
• Keep an eye on the cooking using grease or oils: that may quickly ignite.
• Be careful not to burn yourself while or after using the appliance.
• Make sure no cable of any fixed or moving appliance contacts with the glass or the hot saucepan.
• Magnetically objects (credit cards, floppy disks, calculators) should not be placed near to the engaged appliance.
• Metallic objects such as knives, forks, spoons and lids should not be placed on the hob surface since they can get hot.
• In general do not place any metallic object except heating containers on the glass surface. In case of untimely engaging or residual heat, this one may heat, melt or even burn.
• Never cover the appliance with a cloth or a protection sheet. This is supposed to become very hot and catch fire.
• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
  Children shall not play with the appliance.
• Cleaning and user maintenance shall not be made by children without supervision.

Precautions not to damage the appliance

• Raw pan bottoms or damaged saucepans (not enamelled cast iron pots,) may damage the ceramic glass.
• Sand or other abrasive materials may damage ceramic glass.
• Avoid dropping objects, even little ones, on the vitroceramic.
• Do not hit the edges of the glass with saucepans.
• Make sure that the ventilation of the appliance works according to the manufacturer's instructions.
• Do not put or leave empty saucepans on the vitroceramic hobs.
• Sugar, synthetic materials or aluminium sheets must not contact with the heating zones. These may cause breaks or other alterations of the vitroceramic glass by cooling: switch on the appliance and take them immediately out of the hot heating zone (be careful: do not burn yourself).
• WARNING: Unattended cooking on a hob with fat or oil can be dangerous and may result in fire.
• CAUTION: The cooking process has to be supervised. A short term cooking process has to be supervised continuously
• WARNING: Danger of fire: do not store items on the cooking surface.
• Never place any hot container over the control panel.
• If a drawer is situated under the embedded appliance, make sure the space between the content of the drawer and the inferior part of the appliance is large enough (2 cm). This is essential to guaranty a correct ventilation.
• Never put any inflammable object (ex. sprays) into the drawer situated under the vitroceramic hob. The eventual cutlery drawers must be resistant to heat.

Precautions in case of appliance failure

• If a defect is noticed, switch on the appliance and turn off the electrical supplying.
• If the ceramic glass is cracked or fissured, you must unplug the appliance and contact the after sales service.
• Repairing has to be done by specialists. Do not open the appliance by yourself.
• WARNING: If the surface is cracked, switch off the appliance to avoid the possibility of electric shock.

Other protections

• Note sure that the container pan is always centred on the cooking zone. The bottom of the pan must have to cover as much as possible the cooking zone.
• For the users of pacemaker, the magnetic field could influence its operating. We recommend getting information to the retailer or of the doctor.
• Do not to use aluminium or synthetic material containers: they could melt on still hot cooking zones.
• NEVER try to extinguish a fire with water, but switch off the appliance and then cover flame e.g. with a lid or a fire blanket.

THE USE OF EITHER POOR QUALITY POT OR ANY INDUCTION ADAPTOR PLATE FOR NON-MAGNETIC COOKWARE RESULTS IN A WARRANTY BREACH. IN THIS CASE, THE MANUFACTURER CANNOT BE HELD RESPONSIBLE FOR ANY DAMAGE CAUSED TO THE HOB AND/OR ITS ENVIRONMENT.

Technical characteristics

Type	SCVH651AS
Total power	7400 W
Energy consumption for the hob EChob**	180.5 Wh/kg
Heating zones	210 x 190 mm
Minimum detection	Ø 110 mm
Nominal level*	2100 W
Booster level*	2500 / 3000 W
Standardised cookware category**	A
Energy consumption ECcw**	186.4 Wh/kg
Standardised cookware category**	B (x2)
Energy consumption ECcw**	188 Wh/kg
Standardised cookware category**	C
Energy consumption ECcw**	159.5 Wh/kg

• The given power may change according to the dimensions and material of the pan.
  **Calculated according to the method of measuring performance (EN 60350-2).

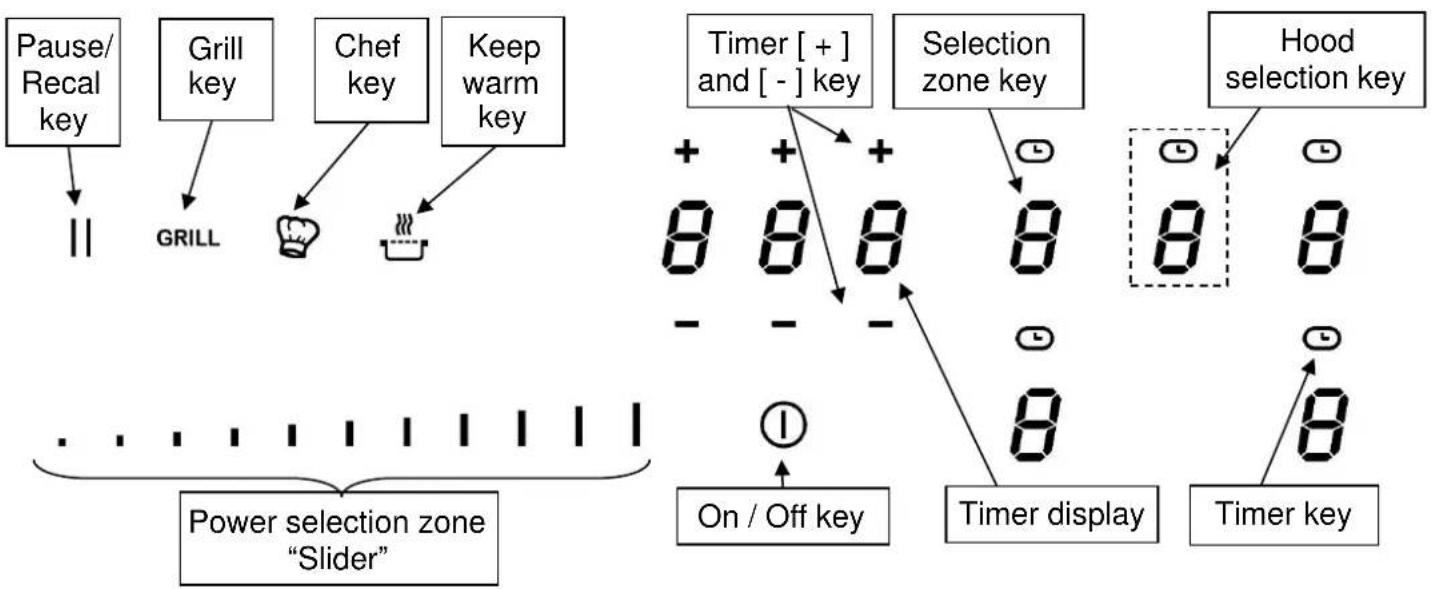

Control panel

Display

Display Designation Description

0 Zero The heating zone is activated.

1...9 Booster level Selection of the cooking level.

U No pan detection No pan or inadequate pan.

A Heat accelerator Automatic cooking.

E Error message Electronic failure.

H Residual heat The heating zone is hot.

P Booster The Booster is activated.

II Double Booster The Double Booster is activated.

u Keep warm Maintain automatically of 70°C.

II Stop&Go The hob is in pause.

Bridge 2 cooking zones are combined.

Grill Function The Grill Function is activated.

Ventilation

The cooling system is fully automatic. The cooling fan starts with a low speed when the calories brought out by the electronic system reach a certain level. The ventilation starts his high speed when the hob is intensively used. The cooling fan reduces his speed and stops automatically when the electronic circuit is cooled enough.

STARTING-UP AND APPLIANCE MANAGEMENT

Before the first use

Clean your hob with a damp cloth, and then dry the surface thoroughly. Do not use detergent which risks causing blue-tinted colour on the glass surface.

Induction principle

An induction coil is located under each heating zone. When it is engaged, it produces a variable electromagnetic field which produces inductive currents in the ferromagnetic bottom plate of the pan. The result is a heating-up of the pan located on the heating zone.

Of course the pan has to be adapted:

• All ferromagnetic pans are recommended (please verify it thanks a little magnet): cast iron and steel pans, enamelled pans, stainless-steel pans with ferromagnetic bottoms...
• Are excluded: cupper, pure stainless-steel, aluminium, glass, wood, ceramic, stoneware,... The induction heating zone adapts automatically the size of the pan. With a too small diameter the pan doesn't work. This diameter is varying in function of the heating zone diameter.

If the pan is not adapted to the induction hob the display will show [] .

Sensitive touch

Your ceramic hob is equipped with electronic controls with sensitive touch keys. When your finger presses the key, the corresponding command is activated. This activation is validated by a control light, a letter or a number in the display and/or a "beep" sound.

In the case of a general use press only one key at the same time.

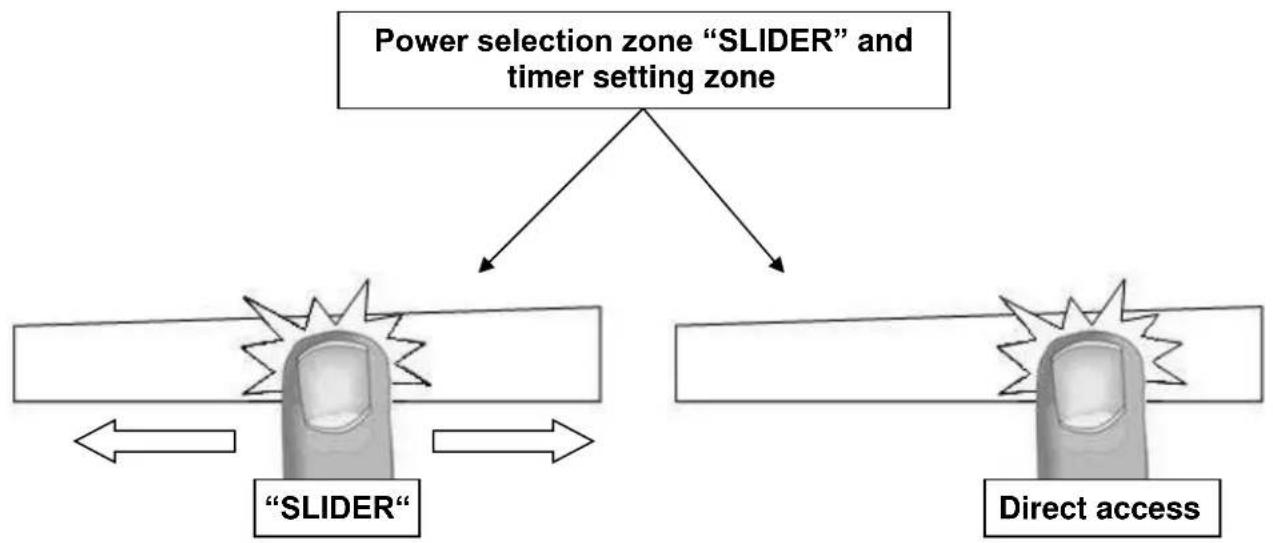

Power selection zone "SLIDER" and timer setting zone

To select the power with the slider, slide your finger on the "SLIDER" zone. You can already have a direct access if you put your finger directly on the chosen level.

Starting-up

• Start up / switch off the hob:

Action	Control panel	Display
To start	Press key [ ] for 2 sec	[0]①
To stop	Press key [ ] for 2 sec	nothing or [H]

• Start up / switch off a heating zone:

Action	Control panel	Display
To set	Slide on the "SLIDER" [1] to [P]
(adjust the power)	to the right or to the left
To stop	Slide to [0] on "SLIDER" [0] or [H]

If no action is made within 20 seconds the electronics returns in waiting position.

Pan detection

The pan detection ensures a perfect safety. The induction doesn't work:

• If there is no pan on the heating zone or if this pan is not adapted to the induction. In this case it is impossible to increase the power and the display shows [] . This symbol disappears when a pan is put on the heating zone.

• If the pan is removed from the heating zone the operation is stopped. The display shows [] . The symbol [] disappears when the pan is put back to the heating zone. The cooking continues with the power level set before.

After use, switch the heat element off: don't let the pan detection [ ] active.

Residual heat indication

After the switch off of a heating zone or the complete stop of the hob, the heating zones are still hot and indicates [H] on the display. The symbol [H] disappears when the heating zones may be touched without danger. As far as the residual heat indicators are on light, don't touch the heating zones and don't put any heat sensitive object on them. There are risks of burn and fire.

Booster and double booster function

Booster [P] and Double Booster [1] grant a boost of Power to the selected heating zone. If this function is activated the heating zones work during 5 minutes with an ultra high Power. This is foreseen for example to heat up rapidly big quantities of water, like nuddles

• Start up / Stop the booster:

Action Control panel Display

Start up the booster Slide to the end of the "SLIDER" [P]

or press directly on the end of

the "SLIDER"

Stop the booster Slide on the "SLIDER" [9] to [0]

• Start up / Stop double booster

Action Control panel Display

Start up the booster Slide to the end of the "SLIDER" [P]

or press directly on the end of

the "SLIDER"

Start up double booster Re-press on the end of the "SLIDER" [11 and P]

Stop the double booster Slide on the "SLIDER" [P] to [0]

Stop booster Slide on the "SLIDER" [9] to [0]

Power management:

The total cooking hob is equipped with an overall maximum of Booster power. When the Booster function is activated, the electronic system automatically regulates all "Boosters" selected to equalise the available power to each element selected for booster. The display is blinking on [9] for a few seconds and then shows the maximum of Booster allowed :

Heating zone selected The other heating zone: (example: power level 9)

[P] is displayed [9] goes to [8] and blinks

Timer

The timer is able to be used simultaneous with all heating zones and this with different time settings (from 0 to 1H59 minutes) for each heating zone.

• Setting and modification of the cooking time:

Action Control panel Display

Select a zone Press a zone [0] Select the power level Slide on the "SLIDER" [1] to [P]

Select theTimer Press key [ ] Timer display on

Decrease the time Press key [-] from the timer [60] to 59, 58...

Increase the time Press key [+ ] from the timer Time increase

After a few seconds, the [ ] display stops with blinking.

The time is confirmed and the timer starts.

- To stop the cooking time:

Action Control panel Display

Select the Timer Press key [ ] Timer display on

Stop the time Press key [-] from the timer [000]

If several timers are activated, repeat the process.

- Egg timer function:

Egg timer is an independent function. It stops as soon as a heating zone starts up. If the egg timer is on and the hob is switched off, the timer continues until time runs out.

Action Control panel Display

Activate the hob Press key [ ] for 2 sec. 0

Select the Timer Press [000] [000]

Decrease the time Press key [-] from the timer [60] to 59, 58...

Increase the time Press key [+ ] from the timer Time increase

After a few seconds, the [min] display stops with blinking. The time is confirmed and the timer starts.

Automatic stop at the end of the cooking time:

As soon as the selected cooking time is finished the timer displays blinking [000] and a sound rings.

To stop the sound and the blinking, press the key [-] and [+] .

Automatic cooking

All the cooking zones are equipped with an automatic cooking device. The cooking zone starts at full power during a certain time, and then reduces automatically its power on the pre-selected level.

- Start-up:

Action Control panel Display

Power level selection Slide on the "SLIDER" to [7] [7] is blinking with [A] (for example 7 ) and stay 3s

- Switching off the automatic cooking:

Action Control panel Display

Power level selection Slide on the "SLIDER" [0] to [9]

Stop&Go function

This function brakes all the hob's cooking activity temporarily and allows restarting with the same settings.

- Start up/stop the pause function:

Action Control panel Display

Engage pause Press [II] 2s

Stop the pause Press [II] 2s

[II] and control light on previous settings

Recall Function

After switching off the hob ( it is possible to recall the last settings.

• cooking stages of all cooking zones (Booster)
• minutes and seconds of programmed cooking zone-related timers
• Keep warm function
  Automatic cooking

The recall procedure is following:

Press the key [ for 2 sec.
- Then press [II] before the light stops blinking.

The previous settings are again active.

"Keep warm" Function

This function allows the reach and automatically maintains at the temperature of 70^ . This will avoid liquids overflowing and fast burning at the bottom of the pan.

To engage, to start the function « Keep warm »:

Action	Control panel	Display
Activate the Keep warm		Press on key [ ]		[ U]
To stop	Press on key [ ]	[0]

The maximum duration of keeping warm is 2 hours.

Bridge or Automatic Bridge Function

This function allows the use of 2 cooking zones at the same time with the same features as a single cooking zone. With this function the Booster function is allowed on the left zones

Action Control panel Display
Activate the hob Press key [ ] for 2 sec. 0]
Activate the bridge Place a pan on one of the two zones that will be bridged and press simultaneously the corresponding selection keys [0] and [n] or Automatically: put a great pan on the [n] blink 2 zones and press on the 2 "SLIDER" [n]
Increase bridge Slide on the "SLIDER"
stop the bridge witch indicates the power [1] to [9]
		Press simultaneously of the 2 cooking zones [0]

Control panel locking

To avoid modification of the setting of the cooking zones, in particular during cleaning, the control panel can be locked (with exception to the On/Off key [ ]

Action

Control panel

Display

[0]

Activate the hob

Press key [ ]

] for 2 sec.

area then [L]

Locking the hob

Hold for 3s

press the "Slider" which scrolls and swipe from left to right

Unlock the hob

Hold for 3s the

key of an area then [0] ou [H]

press the "Slider" which scrolls and swipe from left to right

"Chef" function

This function changes the hob in 3 preset zones.

• Start up/stop the chef function:

Action

Control panel

Display

Press [ ]

This function allows the optimal use of the grill plate with combining two areas and using appropriate powers.

• Start up/stop the grill function:

Action

Control panel

Display

Engage the grill function

Press [GRILL]

Stop the grill function

Press [GRILL]

[ ]

[0]

OPERATING THE HOOD

Starting the hood

• Start up/stop the hood:

Action

Activate the hood

Select the power level

Stop the hood

Control panel

Press on the hood selection key

Slide on the "SLIDER"

Slide on the "SLIDER" towards the left

Display

[0]

[1]à[9]

[0]

Booster function

When the function is activated, the hood operates at its maximum power level for 10 minutes.

• Start up/stop the booster function:

Action

Select the power level

Activate the booster

Control panel

Slide on the "SLIDER"

Slide until the end of the "SLIDER" or

Press directly at the end of the

"SLIDER"

Stop the booster

Slide on the "SLIDER"

Display

[1]à[9]
[P]

[1]à[9]

Timer function

This function allows to operate the hood for 15 minutes after the switch off of the hob.

- Start the timer:

Action

Activate the hood

Select the power level

Start the timer

Control panel

Press on the hood selection key

Slide on the "SLIDER"

Press [ ] above the hood selection key

Display

[0]

[1]à[P]

[ of the hood is on,

[015] on the timer display

- Stop the timer:

Action

Stop the timer

Control panel

Press [ ]above the hood selection

key

Display

Nothing

Automatic function

This function adjusts automatically the power level of the hood depending on the power level of the cooking zones.

- Activate/deactivate the automatic function:

Action

Activate the automatic function

Control panel

Press 3 seconds on the hood selection key

Display

[A]

deactivate the automatic

function

Press 3 seconds on the hood selection key

[0]

Note: it is possible to quickly change the power of the hood when the automatic function is activated, by sliding your finger on the "SLIDER".

This temporarily stops the automatic function.

The automatic function is reactivated the next time the hob is started.

MAINTENANCE AND CLEANING OF THE HOOD

Regular cleaning of the hood guarantees correct and error-free operation and extends the life of the hood. Be sure to clean the grease filters according to the manufacturer's recommendations.

Filter cleaning indicator

When the hood is on and the suction power is set to [0], the time remaining before cleaning the filter is displayed on the timer display.

The default setting is 30 hours, but you can change this setting if you want.

Show the remaining time:

Action

Activate the hood

Control panel

Press on the hood selection key

Display

[remaining time] on the timer display

- Grease filter cleaning indicator:

When the grease filters are to be cleaned, the timer display shows [00h] and a dot flashes on the hood selection key.

- Reset the time remaining before cleaning the hood filter

Action

Activate the hob

Control panel

Press key [ for 2 sec

Display

[0] and a dot flashes on the hood selection key

Select the hood

Press on the hood selection key

[0] and [00h] on the timer display

Reset the counter

Press on the timer key for 3 seconds

The last user-specified setting is activated

Confirm the setting

Press on the timer key again

- Change the time remaining before cleaning the hood filter

Action

Activate the hob

Control panel

Press key [ for 2 sec

Display

[0] and a dot flashes on the hood selection key [remaining time] on the timer display

Select the hood

Press on the timer key for 3 seconds adjust to press on the key [+ or [-]

[remaining time] on the timer display

Change the counter time

Press on the timer key again

Confirm the setting

Cleaning the grease filter in the dishwasher

The grease filter has to be placed vertically in the lower basket and washed at 60^ maximum with a mild detergent.

After cleaning, replace the grease filters in the hood.

Replacement of the activated carbon filter

The active carbon filter used for the recirculation and to catch the smells, must be replaced after 6 month of normal use.

Pan quality

Adapted materials : steel, enamelled steel, cast iron, ferromagnetic stainless-steel, aluminium with ferromagnetic bottom.

Not adapted materials : aluminium and stainless-steel without ferromagnetic bottom, cupper, brass, glass, ceramic, porcelain.

The manufacturers specify if their products are compatible induction. To check if pans are compatibles :

• Put a little water in a pan placed on an induction heating zone set at level [9]. This water must heat in a few seconds.
• A magnet stucks on the bottom of the pan.

Certain pans can make noise when they are placed on an induction cooking zone. This noise doesn't mean any failure on the appliance and doesn't influence the cooking operating.

Pan dimension

The cooking zones are, until a certain limit, automatically adapted to the diameter of the pan. However the bottom of this pan must have a minimum of diameter according to the corresponding cooking zone.

To obtain the best efficiency of your hob, please place the pan well in the centre of the cooking zone.

Examples of cooking power setting

(the values below are indicative)

1 to 2	Melting Reheating	Sauces, butter, chocolate, gelatine Dishes prepared beforehand
2 to 3	Simmering Defrosting	Rice, pudding, sugar syrup Dried vegetables, fish, frozen products
3 to 4	Steam	Vegetables, fish, meat
4 to 5	Water	Steamed potatoes, soups, pasta, fresh vegetables
6 to 7	Medium cooking Simmering	Meat, lever, eggs, sausages Goulash, roulade, tripe
7 to 8	Cooking	Potatoes, fritters, wafers
9	Frying, roosting Boiling water	Steaks, omelettes, fried dishes Water
P and	Frying, roosting Boiling water	scallops, steaks Boiling significant quantities of water

MAINTENANCE AND CLEANING OF THE HOB

Switch-off the appliance before cleaning.

Do not clean the hob if the glass is too hot because they are risk of burn.

• Remove light marks with a damp cloth with washing up liquid diluted in a little water. Then rinse with cold water and dry the surface thoroughly.
• Highly corrosive or abrasive detergents and cleaning equipment likely to cause scratches must be absolutely avoided.
• Do not ever use any steam-cleaning or pressure washer
• Do not use any object that may scratch the ceramic glass.
• Ensure that the pan is dry and clean. Ensure that there are no grains of dust on your ceramic hob or on the pan. Sliding rough saucepans will scratch the surface.
• Spillages of sugar, jam, jelly, etc. must be removed immediately. You will thus prevent the surface being damaged.

WHAT TO DO IN CASE OF A PROBLEM

The hob or the cooking zone doesn't start-up:

• The hob is badly connected on the electrical network.
  The protection fuse cut-off.
• The looking function is activated.
• The sensitive keys are covered of grease or water.
  An object is put on a key.

The control panel displays [U]:

There is no pan on the cooking zone.
- The pan is not compatible with induction.
- The bottom diameter of the pan is too small.

The control panel displays [E]:

• The electronic system is defective.
• Disconnect and replug the hob.
  Call after sales

One or all cooking zone cut-off:

• The safety system functioned.
• You forgot to cut-off the cooking zone for a long time.
  One or more sensitive keys are covered.
• The pan is empty and its bottom overheated.
• The hob also has an automatic reduction of Booster level and breaking Automatic overheating

Continuous ventilation after cutting off the hob:

• This is not a failure, the fan continuous to protect the electronic device.
• The fan cooling stops automatically.

The automatic cooking system doesn't start-up:

• The cooking zone is still hot [H].
• The highest Booster level is set [9].

The control panel displays [U]:

Refer to the chapter "Keep warm".

The control panel displays [II]:

Refer to the chapter "Stop&Go"

The control panel displays [or [Er03] :

• An object or liquid covers the control keys. The symbol disappear as soon as the key is released or cleaned.

The control panel displays [E2] or [EH]:

• The hob is overheated, let it cool and then turn it on again.

The control panel displays [E3]:

The pot is not adapted.

The control panel displays [E8]:

• The air inlet of the ventilator is obstructed, release it.

The control panel displays [E6]:

• The supply voltage is outside the permissible range (voltage and/or frequency). Check the connection and switch on the hob.

If no error code is displayed and the user interface does not respond to any key press, check the supply voltage for missing wires, missing bridges and incorrect connection to 400V .

If one of the symbols above persists, call the After-Sale Service.

ENVIRONMENT PRESERVATION

• The materials of packing are ecological and recyclable.

• The electronic appliances are composed of recyclable, and sometimes harmful materials for the environment, but necessary to the good running and the safety of the appliance.

• Don't throw your appliance with the household refuses

• Get in touch with the waste collection centre of your commune that is adapted to the recycling of the household appliances.

INSTALLATION INSTRUCTIONS

The installation must be performed by a qualified electrical contractor.

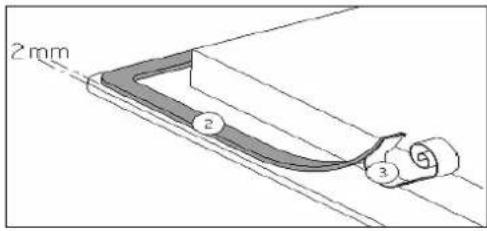

How to stick the gasket:

The gasket supplied with the hob prevents the intrusion of liquids into the cabinet below. It's installation has to be done carefully, in conformity with the following drawing.

Stick the gasket (2) two millimetres from the external edge of the glass, after removing the protection tape (3).

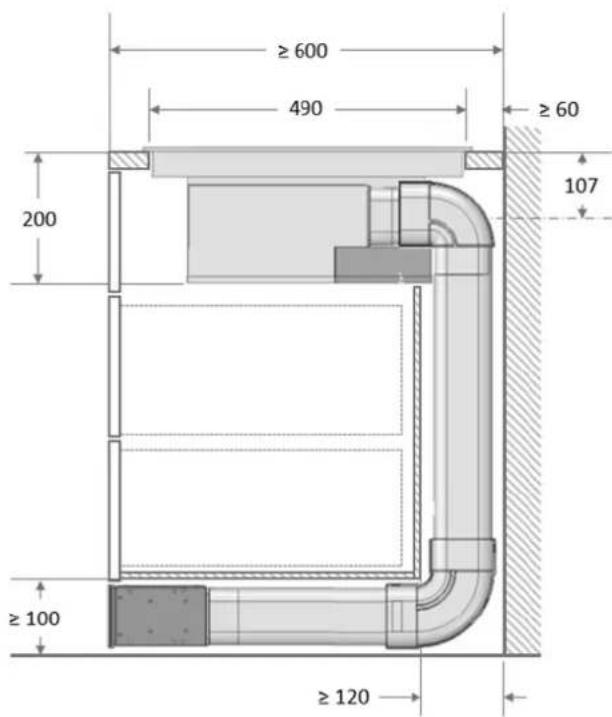

Fitting - installing:

The cut out sizes are:

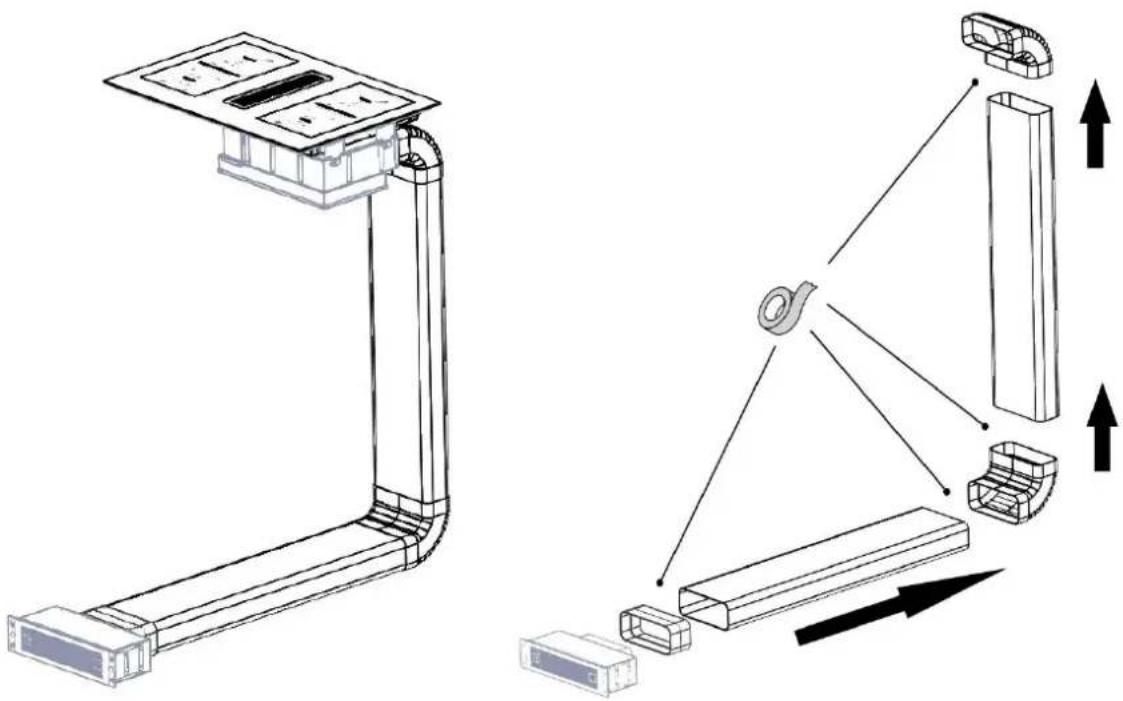

Connect the air duct components to each other and insert them into the outlet connection at the back of the cooktop.

Make sure that the components are joined together using the adhesive provided.

The pipes can be cut to the desired length depending on the size of the kitchen furniture.

• Ensure that there is a distance of 50mm between the hob and the wall or sides.
• The hobs are classified as "Y" class for heat protection. Ideally the hob should be installed with plenty of space on either side. There may be a wall at the rear and tall units or a wall at one side. On the other side, however, no unit or divider must stand higher than the hob.
• The piece of furniture or the support in which the hob is to be fitted, as well as the edges of furniture, the laminate coatings and the glue used to fix them, must be able to resist temperatures of up to 100^ .
• Do not install the hob at the top of a non ventilated oven or a dishwasher.
• Ensure under the bottom of the hob casing a space of 20mm to ensure good air circulation of the electronic device.
• If a drawer is placed under the hob, avoid putting into this drawer flammable objects (for example: sprays) or non heat-resistant objects.
• Materials which are often used to make worktops expand on contact with water. To protect the cut out edge, apply a coat of varnish or special sealant. Particular care must be taken when applying the adhesive joint supplied with the hob to prevent any leakage into the supporting furniture. This gasket ensures a good seal when used in conjunction with smooth work top surfaces.
• The safety gap between the hob and the cooker hood placed above must comply with the recommendations of the hood manufacturer. In the case of no instructions, a distance of 760mm minimum should apply.
• The connection cord should not be subjected to any mechanical constraint.
• Do not use inappropriate child safety shields or hob guards. These can cause accidents.

• WARNING: Use only hob guards designed by the manufacturer of the cooking appliance or indicated by the manufacturer of the appliance in the instructions for use as suitable or hob guards incorporated in the appliance. The use of inappropriate guards can cause accidents.

• The installation of this appliance and the connection to the electrical network should be entrusted only to an electrician perfectly to the fact of the normative regulations and which respects them scrupulously.

• Protection against the parts under tension must be ensured after the building-in.
• The data of connection necessary are on the stickers place on the hob casing near the connection box.
• The connection to the main must be made using an earthed plug or via an omnipolar circuit breaking device with a contact opening of at least 3mm .
• The electrical circuit must be separated from the network by adapted devices, for example: circuit breakers, fuses or contactors.
• If the appliance is not fitted with an accessible plug, disconnecting means must be incorporated in the fixed installation, in accordance with the installation regulations.
• The inlet hose must be positioned so that it does not touch any of the hot parts of the hob or oven.

Caution!

This appliance must only be connected to a network 230V 50 / 60Hz

Always connect the earth wire.

Respect the connection diagram.

The connection box is located underneath at the back of the hob casing. To open the cover use a medium screwdriver. Place it in the slits and open the cover.

Mains	Connection	Cable diameter	Cable	Protection calibre
230V~ 50/60Hz	1 Phase + N	3 x 2.5 mm²	H 05 VV - F H 05 RR - F	25 A *
400V~ 50/60Hz	2 Phases + N	4 x 1.5 mm²	H 05 VV - F H 05 RR - F	16 A *

• calculated with the simultaneous factor following the standard EN 60 335-2-6

Connection of the hob

For the various kinds of connection, use the brass bridges which are in the box next the terminal

Monophase 230V 1P + N

Put the 1^st bridge between terminal L1 and L2, the 2^nd between N1 and N2.

Attach the earth to the terminal "earth", the neutral N to terminal N1 or N2, the Phase L to one of the terminals L1 or L2.

Biphas230V\~2P:

Put a bridge between terminal L1 and L2 and between terminal N1 and N2.

Attach the earth to the terminal "earth", the Phase L2 to one of the terminals N1 or N2, the Phase L to one of the terminals L1 or L2.

Biphas 400V\~2P+N

Put a bridge between terminal 4 and 5.

Attach the earth to the terminal "earth", the neutral N to terminal N1 or N2, the Phase L1 to the terminals L1 and the Phase L2 to the terminal L2.

Ensure that the cables are correctly inserted and tightly screwed down.

4 weeks after installation, be sure to tighten again the screws in the terminal block.

We cannot be held responsible for any incident resulting from incorrect connection or which could arise from the use of an appliance which has not been earthed or has been equipped with a faulty earth connection.

The warranty does not cover wear parts of the product, nor problems or damage resulting from:

(1) surface deterioration due to normal wear and tear of the product;
(2) defects or deterioration due to contact of the product with liquids and due to corrosion caused by the presence of rust insects;
(3) any incident, abuse, misuse, modification, disassembly or unauthorized repair ;
(4) any improper maintenance operation, use not in accordance with instructions for the product or connection to a voltage incorrect;
(5) any use of accessories not supplied or approved by the manufacturer.

The warranty will be void if the plaque is removed identification and / or serial number of the product.

Product warranty and spare parts available

Under the terms of the manufacturer's warranty applicable to the location, the use Customer Service is free. The minimum warranty period (manufacturer's warranty for private consumers) in the Space European Economy is 2 years according to the warranty terms applicable instead. Warranty conditions do not affect others rights or claims held by you under the law local.

Detailed information on the warranty period and conditions of warranty in your country are available from customer service, from your reseller or our website. Original spare parts functional according to the corresponding Eco-design Directive can be obtained from customer service for a period of at least less than 4 years from the date your device was placed on the marketing the European Economic Area.

For more technical specifications on the repair agent and for order spare parts, please go to: https://www.schneiderconsumer.com

For technical intervention due to a malfunction, please call 04 88 78 59 99.

To get product information or order parts spare parts, please call 01 61 44 02 70 and choose the appropriate option.

SCHNEIDER
