D02X - Digital-to-Analog Converter Esoteric - Free user manual and instructions

Product type	Digital-to-analog converter (DAC)
Brand	Esoteric
Model	D-02X
Net weight	27 kg
Dimensions (W × H × D)	445 × 162 × 437 mm
Power supply	AC 120 V, 60 Hz (USA/Canada model) or 220-240 V, 50/60 Hz (Europe model)
Power consumption	26 W
Digital inputs	ES-LINK (HDMI), XLR (AES/EBU), RCA coaxial, optical, USB-B
Analog outputs	XLR (1 pair, pin 2 or 3 hot), RCA (1 pair)
Max PCM sampling rate	384 kHz
Max DSD sampling rate	11.2 MHz (DSD256)
External clock	BNC input (75 Ω, 44.1-192 kHz/22.5792/24.576 MHz) and 10 MHz (50 Ω); BNC output
Frequency response	5 Hz – 65 kHz (-3 dB)
Signal-to-noise ratio	121 dB (DSD 5.6 MHz, 1 kHz)
Harmonic distortion	0.0007% (1 kHz)
Number of channels	2 (stereo)
Included accessories	Power cord, HDMI cable, 4 felt pads, user manual, warranty card
Special features	Upsampling (2FS/4FS/8FS/DSD), DSD digital filter, external clock synchronization with PLL
Maintenance and cleaning	Use a dry, soft cloth. Do not use chemicals. Unplug before cleaning.
Safety	Do not expose to rain or moisture. Do not open the casing. Use only the supplied power cord.

Frequently Asked Questions - D02X Esoteric

How to connect the D-02X to a CD player?

Connect the digital output of the CD player to one of the digital inputs of the D-02X (ES-LINK, XLR, RCA, optical or USB). For optimal quality, use the ES-LINK connection if the player allows it. Make sure the HDMI cable used is dedicated for this purpose and not a standard HDMI port. Then select the corresponding input on the D-02X with the INPUT button.

What cables to use for the ES-LINK connection?

Use exclusively a standard commercial HDMI cable. Caution: the ES-LINK format is proprietary to Esoteric and is not compatible with HDMI connectors from other brands. Do not plug this cable into a television or other device.

How to set the upsampling?

Press the MENU button several times to display UPCONV. Use the -/+ buttons to choose from OFF, 2FS, 4FS, 8FS or DSD. The setting applies per input. Note that on the ES-LINK input, only OFF and DSD are available.

What to do if no sound comes out of the speakers?

Check that the selected input (INPUT button) matches the connected source. Make sure the cables are properly connected and the amplifier is on. Check the AOUT setting in the menu: choose XLR2, XLR3 or RCA according to the output used. Finally, check the amplifier volume.

How to synchronize the clock with an external generator?

Connect the output of the clock generator to the CLOCK SYNC IN (or 10MHz IN) input of the D-02X. In the menu, set CLK to IN or MCK IN depending on the clock type. Then select the correct frequency in CLKin (CLK or 10M). The CLOCK indicator should light solid once synchronized.

Can I use the D-02X with a computer?

Yes, via the USB port. First install the dedicated driver downloadable from the Esoteric website. Then plug in the USB cable, turn on the device, select the USB input and start playback with compatible software (e.g. ESOTERIC HR Audio Player). Supported frequencies go up to 384 kHz PCM and 11.2 MHz DSD.

How to reset to factory settings?

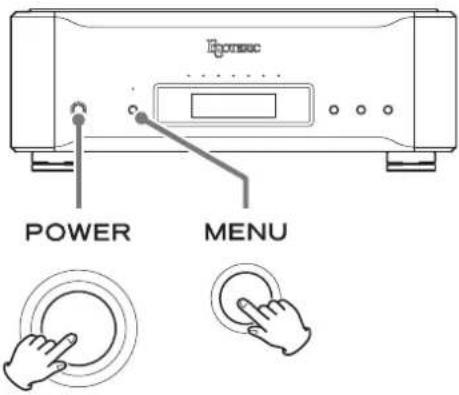

Turn off the device. Hold down the MENU button then press POWER. Release MENU when Setup CLR appears on the screen. All parameters return to their default values.

The CLOCK indicator flashes continuously, what to do?

This means the device cannot synchronize with the external clock signal. Check the BNC cable connections and frequency settings. If you are not using an external clock, set CLK to OFF in the menu.

What audio formats are supported via USB?

Linear PCM from 44.1 to 384 kHz (16-32 bits) and DSD 2.8/5.6/11.2 MHz. The DoP format (DSD over PCM) is also accepted on XLR, RCA and optical inputs. Note that Dolby Digital, DTS or AAC signals are not decoded.

How to clean the D-02X?

Use a soft, dry cloth. For stubborn stains, slightly dampen the cloth and wring it well. Never spray liquid directly on the device. Avoid chemicals, solvents or wet wipes. Always unplug the power cord before cleaning.

USER MANUAL D02X Esoteric

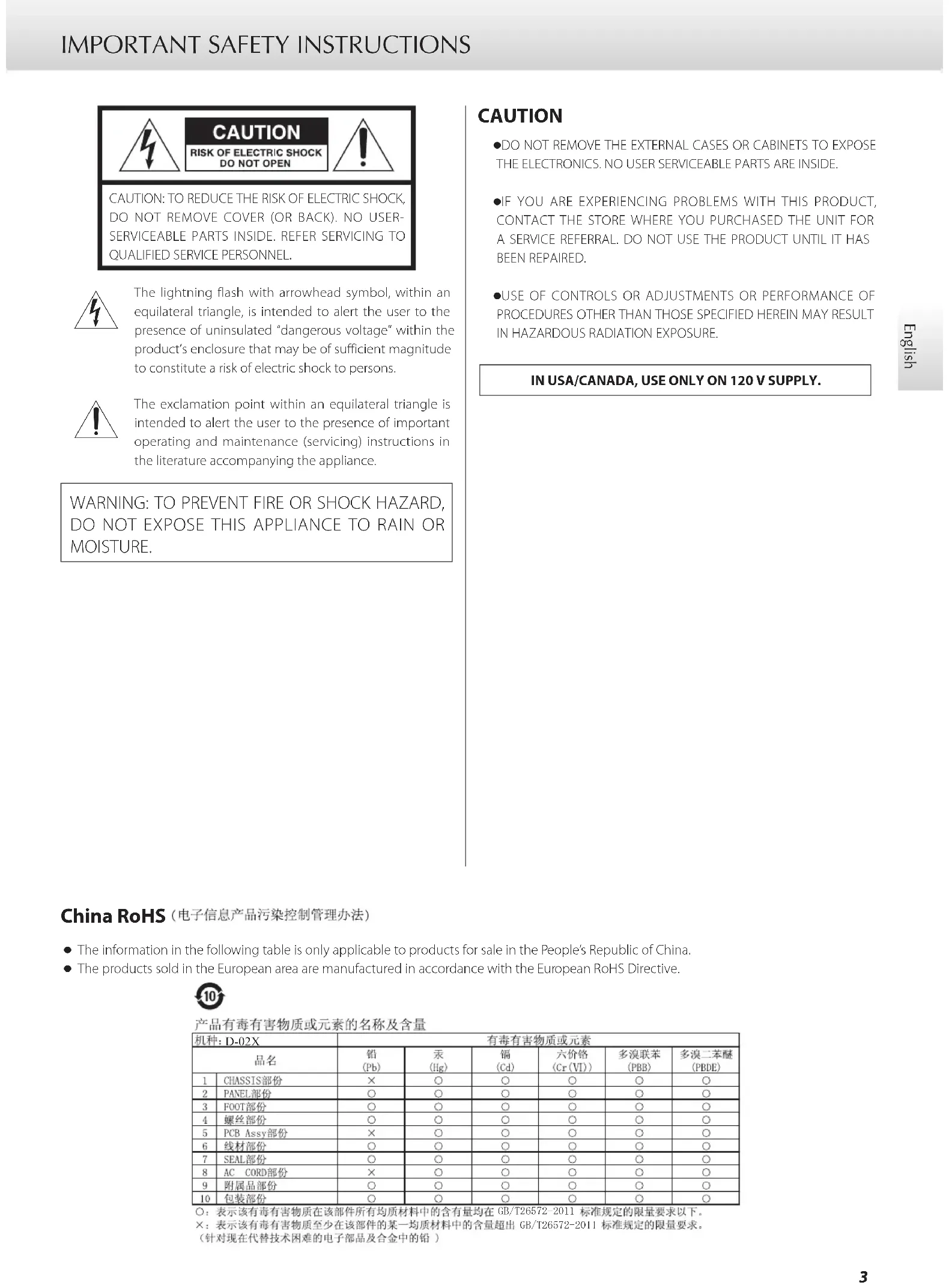

The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated "dangerous voltage" within the product's enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.

The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.

WARNING: TO PREVENT FIRE OR SHOCK HAZARD, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE.

CAUTION

●DO NOT REMOVE THE EXTERNAL CASES OR CABINETS TO EXPOSE THE ELECTRONICS. NO USER SERVICEABLE PARTS ARE INSIDE.
- IF YOU ARE EXPERIENCING PROBLEMS WITH THIS PRODUCT, CONTACT THE STORE WHERE YOU PURCHASED THE UNIT FOR A SERVICE REFERRAL. DO NOT USE THE PRODUCT UNTIL IT HAS BEEN REPAIRED.
- USE OF CONTROLS OR ADJUSTMENTS OR PERFORMANCE OF PROCEDURES OTHER THAN THOSE SPECIFIED HEREIN MAY RESULT IN HAZARDOUS RADIATION EXPOSURE.

IN USA/CANADA, USE ONLY ON 120 V SUPPLY.

• The information in the following table is only applicable to products for sale in the People's Republic of China.
  ● The products sold in the European area are manufactured in accordance with the European RoHS Directive.

产品有毒有害物质或元素的名称及含量

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the equipment and/or the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.

Model for Canada

Industry Canada's Compliance Statement:

This Class B digital apparatus complies with Canadian ICES-003.

Model for Europe

DECLARATION OF CONFORMITY

Hereby, TEAC Corporation declares that the product complies with the European Directives request and the other Commission Regulations.

CAUTION

Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

1) Read these instructions.

2) Keep these instructions.

3) Heed all warnings.

4) Follow all instructions.

5) Do not use this apparatus near water.

6) Clean only with dry cloth.

7) Do not block any ventilation openings. Install in accordance with the manufacturer's instructions.

8) Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.

9) Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.

10) Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.

11) Only use attachments/accessories specified by the manufacturer.

12) Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over.

13) Unplug this apparatus during lightning storms or when unused for long periods of time.
14) Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.

●The apparatus draws nominal non-operating power from the AC outlet with its POWER or STANDBY/ON switch not in the ON position.
- The mains plug is used as the disconnect device; the disconnect device shall remain readily operable.
- Caution should be taken when using earphones or headphones with the product because excessive sound pressure (volume) from earphones or headphones can cause hearing loss.

CAUTION

- Do not expose this apparatus to drips or splashes.

• Do not place any objects filled with liquids, such as vases, on the apparatus.
• Do not install this apparatus in a confined space such as a book case or similar unit.

●The apparatus should be located close enough to the AC outlet so that you can easily reach the power cord plug at any time.

• If the product uses batteries (including a battery pack or installed batteries), they should not be exposed to sunshine, fire or excessive heat.
• CAUTION for products that use replaceable lithium batteries: there is danger of explosion if a battery is replaced with an incorrect type of battery. Replace only with the same or equivalent type.

WARNING

Products with Class I construction are equipped with a power supply cord that has a grounding plug. The cord of such a product must be plugged into an AC outlet that has a protective grounding connection.

For European Customers

Disposal of electrical and electronic equipment and batteries and/or accumulators

a) All electrical/electronic equipment and waste batteries/accumulators should be disposed of separately from the municipal waste stream via collection facilities designated by the government or local authorities.
b) By disposing of electrical/electronic equipment and waste batteries/accumulators correctly, you will help save valuable resources and prevent any potential negative effects on human health and the environment.
c) Improper disposal of waste electrical/electronic equipment and batteries/accumulators can have serious effects on the environment and human health because of the presence of hazardous substances in the equipment.

d) The Waste Electrical and Electronic Equipment (WEEE) symbols, which show wheeled bins that have been crossed out, indicate that electrical/electronic equipment and batteries/accumulators must be collected and disposed of separately from household waste.

If a battery or accumulator contains more than the specified values of lead (Pb), mercury (Hg), and/or cadmium (Cd) as defined in the Battery Directive (2006/66/EC), then the chemical symbols for those elements will be indicated beneath the WEEE symbol.

e) Return and collection systems are available to end users. For more detailed information about the disposal of old electrical/electronic equipment and waste batteries/accumulators, please contact your city office, waste disposal service or the shop where you purchased the equipment.

Contents

Thank you for purchasing this Esoteric product.

Read this manual carefully to get the best performance from this product. After reading it, keep it in a safe place with the warranty card for future reference.

IMPORTANT SAFETY INSTRUCTIONS 3

Before use....6

What's in the box....6

Note about pinpoint feet....6

Maintenance....7

Precautions for use....7

Making connections....8

Names and functions of parts (main unit) 10

Names and functions of parts (display)....11

Basic operation....12

Setting mode....12

Meanings of items shown in setting mode....13

Upconversion setting....13

DSD digital filter setting 14

Clock setting 14

Clock input connector selection....15

Clock output settings....15

Dimmer setting....15

Analog output setting....16

Automatic display darkening setting....16

Automatic power saving setting....16

Connecting with a computer and playing back audio files ..... 17

Installing the driver....17

Playing audio files 17

Troubleshooting....19

Restoring factory settings....20

Messages....20

Specifications....21

Dimensional drawings....22

Before use

What's in the box

Check to be sure the box includes all the supplied accessories shown below. Please contact the store where you purchased this unit if any of these accessories are missing or have been damaged during transportation.

Power cord × 1

HDMI cable × 1

Felt pads × 4

Owner's manual (this document) × 1

Warranty card × 1

Note about pinpoint feet

High-precision metal pinpoint feet are attached firmly to the bottom plate of this unit.

Chassis Pinpoint foot (metal)

Foot-stand (metal) Screws that attach foot-stand

The stands for these feet are loose, but when the unit is placed in position, it is supported by these pinpoint feet, which will effectively disperse vibrations.

- Apply the included felt pads to the bottoms of the foot-stands to avoid scratching the surface where the unit is placed.

Maintenance

Use a soft dry cloth to wipe the surface of the unit clean.

For stubborn smudges, use a damp cloth that has been thoroughly wrung out to remove excess moisture.

Avoid allowing rubber or plastic materials to touch the unit for long periods of time because they could damage the cabinet. Never spray liquid directly on this unit. Do not use chemically-treated wipes, thinner or similar substances because they could damage the surface of the unit.

For safety, disconnect the power plug from the outlet before cleaning.

Precautions for use

- This unit is very heavy, so take care to avoid injury during installation.

- Do not install this unit in a location that could become hot. This includes places that are exposed to direct sunlight or near a radiator, heater, stove or other heating equipment. Moreover, do not place them on top of an amplifier or other equipment that generates heat. Doing so could cause discoloration or deformation.

- Avoid locations that are extremely cold or exposed to excessive humidity or dust.

- In order to enable good heat dissipation, leave at least 20 cm (8") between this unit and walls and other equipment when installing it. If you put it in a rack, take precautions to prevent overheating by leaving at least 5 cm (2") open above the top of the unit and at least 10 cm (4") open behind the unit. Failure to provide these gaps could cause heat to build up inside and result in fire.

- Place the unit in a stable location near the audio system that you will use with it.

- Do not place anything, not even CDs, CD-Rs, LP records or cassette tapes, on top of the unit. Doing so could cause damage.

- Do not put cloth on top of the unit or place it on top of bedding or thick carpet. Doing so could cause it to overheat or damage it.

- Supply voltage to the power unit that matches the voltage indicated on the rear panel. If you are in any doubt regarding this matter, consult an electrician.

- Do not move the unit during use.

- Do not open the body of the unit because this could result in damage to the circuitry or cause electric shock. If a foreign object should enter the unit, contact your dealer.

- When removing the power plug from an outlet, always pull directly on the plug. Never pull on the cord itself.

- Since ES-LINK is a format that is unique to ESOTERIC, do not connect the HDMI cable used for it to ordinary HDMI connectors on equipment made by other companies. They are not compatible.
    subgraph_Super_Audio_CD["Super Audio CD/CD transport (P-02X)"]
        direction TB
        A1["XLR digital cable"] --> B1["ES-LINK R"]
        B1 --> C1["CLOCK SYNC"]
        C1 --> D1["Digital OUT"]
        D1 --> E1["Digital output connectors"]
        E1 --> F1["CD player, digital tuner, etc."]
        F1 --> G1["Digital audio output connectors"]
        A2["XLR 2 R"] --> B2["ES-LINK R"]
        B2 --> C2["CLOCK SYNC"]
        C2 --> D2["Digital OUT"]
        D2 --> E2["Digital audio output connectors"]
        E2 --> F2["Digital audio output connectors"]
        F2 --> G2["Digital audio output connectors"]
        G2 --> H2["Digital audio output connectors"]
        H2 --> I2["Digital audio output connectors"]
        I2 --> J2["Digital audio output connectors"]
        J2 --> K2["Digital audio output connectors"]
        K2 --> L2["Digital audio output connectors"]
        L2 --> M2["Digital audio output connectors"]
        M2 --> N2["Digital audio output connectors"]
        N2 --> O2["Digital audio output connectors"]
        O2 --> P2["Digital audio output connectors"]
        P2 --> Q2["Digital audio output connectors"]
        Q2 --> R2["Digital audio output connectors"]
        R2 --> S2["Digital audio output connectors"]
        S2 --> T2["Digital audio output connectors"]
        T2 --> U2["Digital audio output connectors"]
        U2 --> V2["Digital audio output connectors"]
        V2 --> W2["Digital audio output connectors"]
        W2 --> X2["Digital audio output connectors"]
        X2 --> Y2["Digital audio output connectors"]
        Y2 --> Z2["Digital audio output connectors"]
    end

    subgraph D/A_presents["D/A converter (D-02X)"]
        B3["BNC coaxial cable"] --> C3["CLOCK OUT"]
        C3 --> D3["AUDIO IN (R) AUDIO IN (L)"]
        D3 --> E3["Wall socket"]
        E3 --> F3["Clock generator (G-01, G-02, etc.)"]
        F3 --> G4["Clock generator (G-01, G-02, etc.)"]
        G4 --> H5["Clock generator (G-01, G-02, etc.)"]
        H5 --> I6["Audio in (R) AUDIO in (L)"]
        I6 --> J6["Wall socket"]
        J6 --> K7["Clock generator (G-01, G-02, etc.)"]
        K7 --> L7["Audio in (R) AUDIO in (L)"]
        L7 --> M8["Audio in (R) AUDIO in (L)"]
        M8 --> N9["Audio in (R) AUDIO in (L)"]
        N9 --> O8["Audio in (R) AUDIO in (L)"]
        O8 --> P8["Audio in (R) AUDIO in (L)"]
        P8 --> Q8["Audio in (R) AUDIO in (L)"]
        Q8 --> R9["Audio in (R) AUDIO in (L)"]
        R9 --> S9["Audio in (R) AUDIO in (L)"]
        S9 --> T9["Audio in (R) AUDIO in (L)"]
        T9 --> U9["Audio in (R) AUDIO in (L)"]
        U9 --> V9["Audio in (R) AUDIO in (L)"]
        V9 --> W9["Audio in (R) AUDIO in (L)"]
        W9 --> X9["Audio in (R) AUDIO in (L)"]
        X9 --> Y9["Audio in (R) AUDIO in (L)"]
        Y9 --> Z9["Audio in (R) AUDIO in (L)"]
        Z9 --> AA9["Audio in (R) AUDIO in (L)"]
        AA9 --> AB7["Audio in (R) AUDIO in (L)"]
        AB7 --> AC7["Audio in (R) AUDIO in (L)"]
        AC7 --> AD7["Audio in (R) AUDIO in (L)"]
        AD7 --> AE7["Audio in (R) AUDIO in (L)"]
        AE7 --> AF7["Audio in (R) AUDIO in (L)"]
        AF7 --> AG7["Audio in (R) AUDIO in (L)"]
        AG7 --> AH7["Audio in (R) AUDIO in (L)"]
        AH7 --> AI7["Audio in (R) AUDIO in (L)"]
        AI7 --> AJ7["Audio in (R) AUDIO in (L)"]
        AJ7 --> AK7["Audio in (R) AUDIO in (L)"]
        AK7 --> AL7["Audio in (R) AUDIO in (L)"]
        AL7 --> AM7["Audio in (R) AUDIO in (L)"]
        AM7 --> AN7["Audio in (R) AUDIO in (L)"]
        AN7 --> AO7["Audio in (R) AUDIO in (L)"]
        AO7 --> AP7["Audio in (R) AUDIO in (L)"]
        AP7 --> AQ7["Audio in (R) AUDIO in (L)"]
        AQ7 --> AR7["Audio in (R) AUDIO in (L)"]
        AR7 --> AS7["Audio in (R) AUDIO in (L)"]
        AS7 --> AT7["Audio in (R) AUDIO in (L)"]
        AT7 --> AU7["Audio in (R) AUDIO in (L)"]
        AU7 --> AV7["Audio in (R) AUDIO in (L)"]
        AV7 --> AW7["Audio in (R) AUDIO in (L)"]
        AW7 --> AX7["Audio in (R) AUDIO in (L)"]
        AX7 --> AY7["Audio in (R) AUDIO in (L)"]
        AY7 --> AZ7["Audio in (R) AUDIO in (L)"]
        AZ7 --> BA7["Audio in (R) AUDIO in (L)"]
        BA7 --> BB7["Audio in (R) AUDIO in (L)"]
        BB7 --> BC7["Audio in (R) AUDIO in (L)"]
        BC7 --> CC7["Audio in (R) AUDIO in (L)"]
        CC7 --> CD7["Audio in (R) AUDIO in (L)"]
        CD7 --> CE7["Audio in (R) AUDIO in (L)"]
        CE7 --> CF7["Audio in (R) AUDIO in (L)"]
        CF7 --> CG7["Audio in (R) AUDIO in (L)"]
        CG7 --> CH7["Audio in (R) AUDIO in (L)"]
        CH7 --> CI7["Audio in (R) AUDIO in (L)"]
        CI7 --> CJ7["Audio in (R) AUDIO in (L)"]
        CJ7 --> CK7["Audio in (R) AUDIO in (L)"]
        CK7 --> CL7["Audio in (R) AUDIO in (L)"]
        CL7 --> CD8["Audio in the first two types of CD player, digital tuner, etc."]
    end

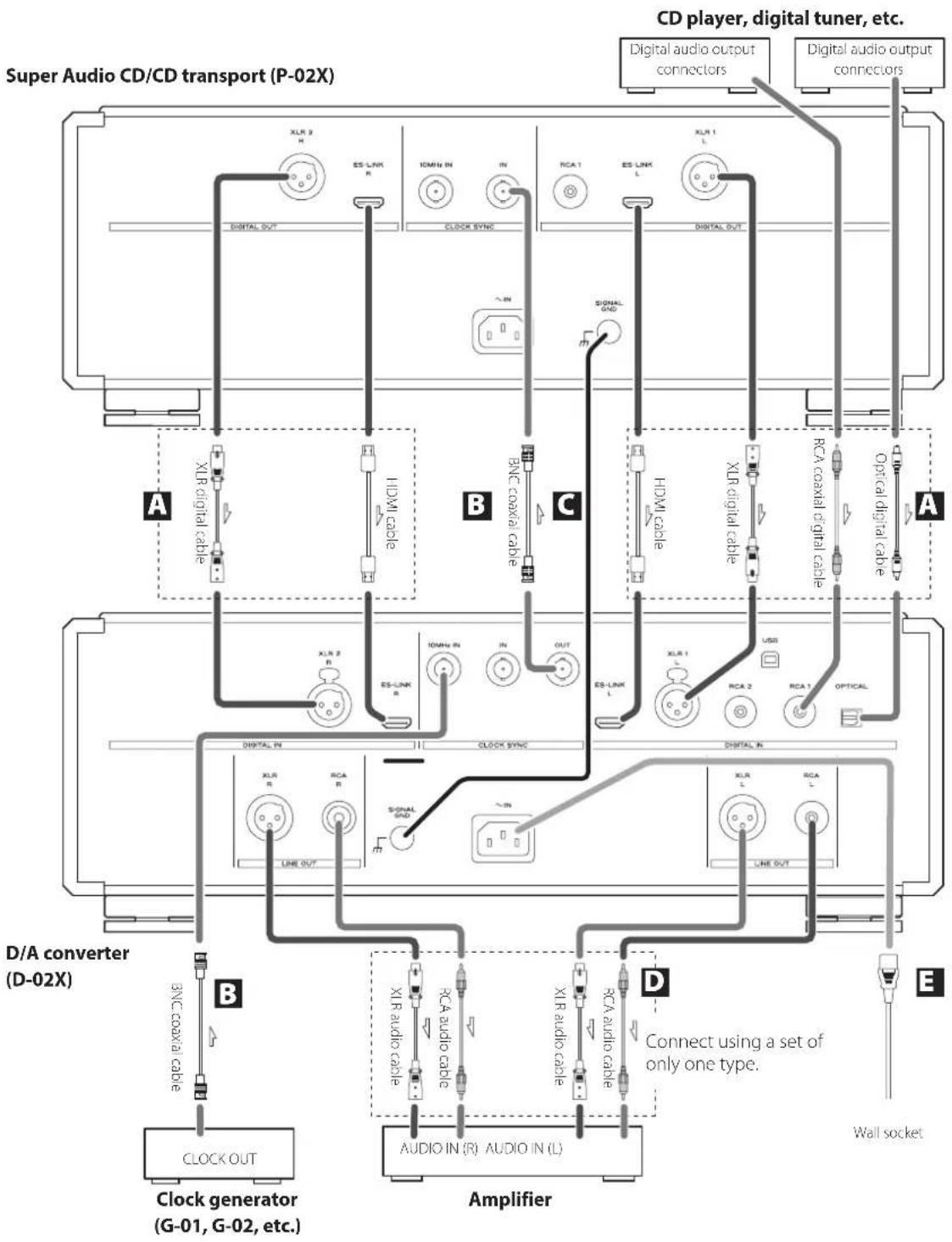

Precautions when making connections

● After completing all other connections, plug the power plug into a power outlet.
- Read the owner's manuals of all devices that will be connected, and follow their instructions.

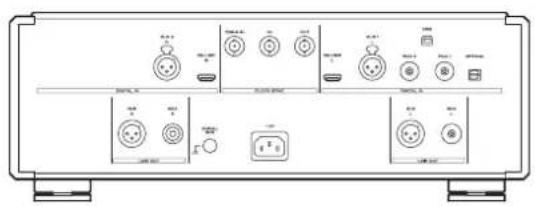

A Digital audio input connectors (DIGITAL IN)

Use these to input digital audio.

Connect these to the digital output connectors of digital devices (including the P1, P-01, P-02, P-03, P-05 and P-02X).

ES-LINK: HDMI cable

- Since ES-LINK is a format that is unique to ESOTERIC, do not connect the HDMI cable used for it to ordinary HDMI connectors on equipment made by other companies. They are not compatible.

Use commercially-available cables for the following connections.

XLR: XLR digital cable

RCA: RCA coaxial digital cable

OPTICAL: optical digital cable

- We recommend using ES-LINK when connecting to a P-02X.

●The XLR connectors support Dual AES. If the digital source device that you are using supports Dual AES, use two cables to connect the left channel unit XLR connector to the left digital output on the audio source device and the right channel unit XLR connector to the right digital output on the audio source device.

B CLOCK SYNC 10MHz IN, IN and OUT connectors

Use these to input and output clock synchronization signals.

When using a clock generator, connect its clock output connector to this unit's CLOCK SYNC IN connector.

When inputting a 10MHz oscillator sine wave signal, connect the output of the oscillator to this unit's CLOCK SYNC 10MHz IN connector.

Use the clock settings to select the active CLOCK SYNC input (page 14).

Connect the CLOCK SYNC OUT connector to a clock input connector on a digital audio source device.

Use commercially-available BNC coaxial cables for these connections.

CLOCK IN: 75 Ω

10MHz IN: 50 Ω

C Grounding terminal (SIGNAL GND)

Connecting this grounding terminal to the grounding terminal of an audio source device, amplifier or other equipment might improve the audio quality.

●This is not an electrical safety ground.

D Analog audio output connectors (LINE OUT)

These output analog audio.

If the amplifier has XLR audio input connectors, use commercially-available XLR audio cables to connect to them.

If the amplifier has RCA audio input connectors, use commercially-available RCA audio cables to connect to them.

E Power inlet (\~IN)

Connect the included AC power cord to this socket. After completing all other connections, plug the power plug into a power outlet.

Use only a genuine Esoteric power cord. Use of other power cords could result in fire or electric shock. Disconnect the power plug from the outlet if you will not use the unit for a long time.

At Esoteric, we use Esoteric MEXCEL stressfree cables for reference.

For detailed information, access the following website.

http://www.esoteric.jp/products/esoteric/accessory/indexe.html

ESOTERIC POWER CLOCK MENU CS-LINK XLR1 XLR2 RC4 RC5 OPTICAL USB D-02X INPUT ABCDEFGHIJKLMNOPQRSTUVWXYZ ABCDEFGHIJKLMNOPQRSTUVWXYZ ABCDEFGHIJKLMNOPQRSTUVWXYZ ABCDEFGHIJKLMNOPQRSTUVWXYZ ABCDEFGHIJKLMNOPQRSTUVWXYZ ABCDEFGHIJKLMNOPQRSTUVWXYZ ABCDEFGHIJKLMNOPQRSTUVWXYZ ABCDEFGHIJKLMNOPQRSTUVWXYZ ABCDEFGHIJKLMNOPQRSTUVWXYZ ABCDEFGHIJKLMNOPQRSTUVWXYZ ABCDEFGHIJKLMNOPQRSTUVWXYZ ABCDEFGHIJKLMNOPQRSTUVWXYZ ABCDEFGHIJKLMNOPQRSTUVWXYZ ABCDEFGHIJKLMNOPQRSTUVWXYZ ABCDEFGHIJKLMNOPQRSTUVWXYZ ABCDEFGHIJKLMNOPQRSTUVWXYZ ABCDEFGHIJKLMNOPQRSTUVWXYZ ABCDEFGHIJKLMNOPQRSTUVWXYZ ABCDEFGHIJKLMNOPQRSTUVWXYZ ABCDEFGHIJKLMNOPQRSTUVWXYZ ABCDEFGHIJKLMNOPQRSTUVWXYZ ABCDEFGHIJKLMNOPQRSTUVWXYZ ABCDEFGHIJKLMNOPQRSTUVWXYZ ABCDEFGHIJKLMNOPQRSTUVWXYZ ABCDEFGHIJKLMNOPQRSTUVWXYZ ABCDEFGHIJKLMNOPQRSTUVWXYZ ABCDEFGHIJKLMNOPQRSTUVWXYZ ABCDEFGHIJKLMNOPQRSTUVWXYZ ABCDEFGHIJKLMNOPQRSTUVWXYZ ABCDEFGHIJKLMNOPQRSTUVWXYZ ABCDEFGHIJKLMNOPQRSTUVWXYZ ABCDEFGHIJKLMNOPQRSTUVWXYZ ABCDEFGHIJKLMNOPQRSTUVWXYZ ABCDEFGHIJKLMNOPQRSTUVWXYZ ABCDEFGHIJKLMNOPQRSTUVWXYZ ABCDEFGHIJKLMNOPQRSTUVWXYZ ABCDEFGHIJKLMNOPQRSTUVWXYZ ABCDEFGHIJKLMNOPQRSTUVWXYZ ABCDEFGHIJKLMNOPQRSTUVWXYZ ABCDEFGHIJKLMNOPQRSTUVWXYZ ABCDEFGHIJKLMNOPQRSTUVWXYZ ABCDEFGHIJKLMNOPQRSTUVWXYZ ABCDEFGHIJKLMNOPQRSTUVWXYZ ABCDEFGHIJKLMNOPQRSTUVWXYZ ABCDEFGHIJKLMNOPQRSTUVWXYZ ABCDEFGHIJKLMNOPQRSTUVWXYZ ABCDEFGHIJKLMNOPQRSTUVWXYZ ABCDEFGHIJKLMNOPQRSTUVWXYZ ABCDEFGHIJKLMNOPQRSTUVWXYZ ABCDEFGHIJKLMNOPQRSTUVWXYZ abcdefghijklmnopqrstuvwxyz abcdefghijklmnopqrstuvwxyz abcdefghijklmnopqrstuvwxyz abcdefghijklmnopqrstuvwxyz abcdefghijklmnopqrstuvwxyz abcdefghijklmnopqrstuvwxyz abcdefghijklmnopqrstuvwxyz abcdefghijklmnopqrstuvwxyz abcdefghijklmnopqrstuvwxyz abcdefghijklmnopqrstuvwxyz abcdefghijklmnopqrstuvwxyz abcdefghijklmnopqrstuvwxyz abcdefghijklmnopqrstuvwxyz abcdefghijklmnopqrstuvwxyz abcdefghijklmnopqrstuvwxyz abcdefghijklmnopqrstuvwxyz abcdefghijklmnopqrstuvwxyz abcdefghijklmnopqrstuvwxyz abcdefghijklmnopqrstuvwxyz abcdefghijklmnopqrstuvwxyz abcdefghijklmnopqrstuvwxyz abcdefghijklmnopqrstuvwxyz abcdefghijklmnopqrstuvwxyz abcdefghijklmnopqrstuvwxyz abcdefghijklmnopqrstuvwxyz abcdefghijklmnopqrstuvwxyz abcdefghijklmnopqrstuvwxyz abcdefghijklmnopqrstuvwxyz abcdefghijklmnopqrstuvwxyz abcdefghijklmnopqrstuvwxyz abcdefghijklmnopqrstuvwxyz abcdefghijklmnopqrstuvwxyz abcdefghijklmnopqrstuvwxyz abcdefghijklmnopqrstuvwxyz abcdefghijklmnopqrstuvwxyz abcdefghijklmnopqrstuvwxyz

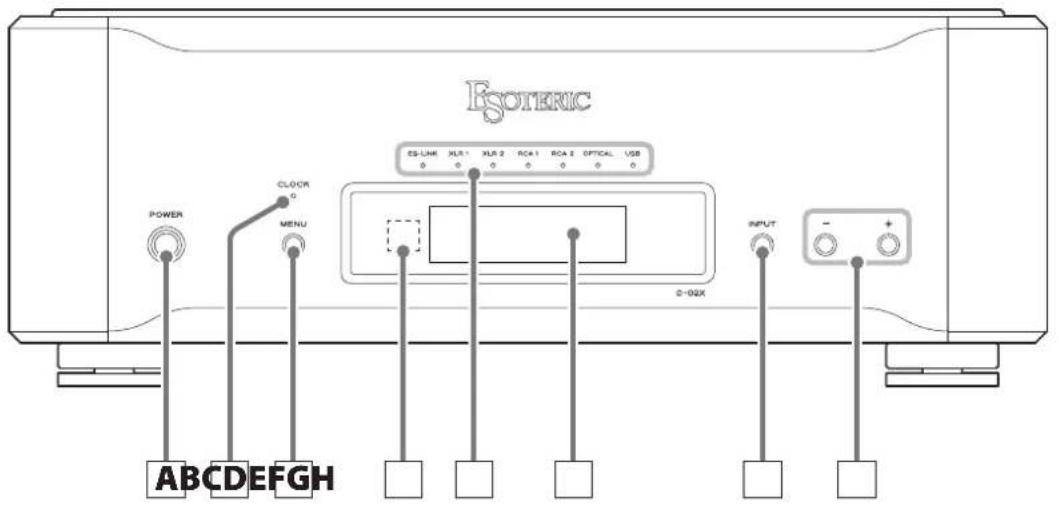

A POWER button

Use to turn the unit on and off.

When the unit is on, the ring around this button lights blue.

When the unit is off, it is unlit.

Turn the unit off when not using it.

B CLOCK indicator

This shows the clock synchronization status.

Lit blue

When the clock setting uses any synchronization other than PLL (CLK>OFF), the indicator blinks blue while the clock signal is being detected. The indicator stops blinking but stays lit when the signal is confirmed and synchronization starts.

Lit green

This lights when the unit is operating with the built-in oscillator during USB input.

C MENU button

Use to enter setting mode (page 12).

D Remote control signal receiver

This receives signals from the remote control. When using a remote control, point it toward this receiver when operating it.

●This unit does not include a remote control.

- The dimmer of this unit can be adjusted using a remote control included with a P-02X or other Esoteric product (page 15).

E Input source indicators

The indicator for the selected input connector lights.

F Display

This shows information about the selected input connector, for example.

G INPUT button

Use to change the digital input. Select a connector that has a digital source device connected. If no digital signal is being input, no sampling frequency will be shown to the right of the word "INPUT" on the display.

H Parameter adjustment (- / + ) buttons

Use to change parameters when in setting mode.

●You cannot change the volume with this unit.

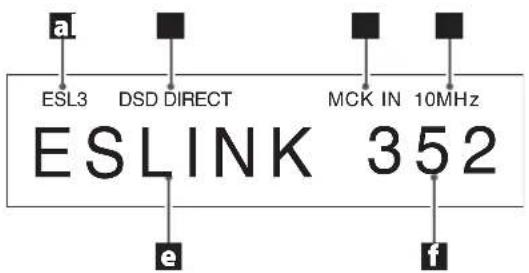

a ESL3 DSD DIRECT MCK IN 10MHz ESLINK 352 e f

a Input format

ESL1:

This appears when a DSD signal in ES-LINK1 format is being received.

ESL2:

This appears when a DSD signal in ES-LINK2 format is being received.

ESL3:

This appears when a 48-bit PCM signal in ES-LINK3 format is being received.

DoP:

This appears when a DSD signal in DoP (DSD Audio over PCM Frames) format is being received.

No indicator:

Nothing appears when ordinary S/PDIF signals are being received, when PCM signals are being received over a USB connection or during ES-LINK input.

b Upconversion setting

No indicator:

The upconversion function is not in use.

UPCONV 2Fs:

The upconverter circuit will upconvert the signal to 64, 88.2 or 96 kHz before digital to analog conversion.

UPCONV 4Fs:

The upconverter circuit will upconvert the signal to 128, 176.4 or 192 kHz before digital to analog conversion.

UPCONV 8Fs:

The upconverter circuit will upconvert the signal to 256, 352.8 or 384 kHz before digital to analog conversion.

UPCONV DSD:

The upconverter circuit will convert the PCM signal to a DSD signal before digital to analog conversion.

DSD DIRECT:

If DSD_F (DSD filter) is set to OFF, this appears when a DSD signal is input.

Notes about upconversion

• Even if the upconverter is set, the upconverter might not be usable depending on the input source sampling frequency conditions.
  ●You can make settings as you like for each input.
• When ES-LINK input is selected, upconversion can only be set to OFF or DSD.

G Clock mode

No indicator:

Shown when CLK is set to OFF.

CLK OUT:

Shown when CLK is set to OUT.

The frequency display area shows the output clock frequency.

CLK IN:

Shown when CLK is set to IN.

The frequency display area shows the input clock frequency.

MCK IN:

Shown when CLK is set to MCK IN.

The frequency display area shows the input clock frequency.

INTERNAL:

Shown when the internal clock is being used with USB input.

d Clock frequency

e Input

f Sampling frequency

1 Press the POWER button to turn the unit on.

Line drawing of a portable electronic device with no visible text or symbols

POWER

Press the POWER button in completely until it stops. When on, the ring around the POWER button lights blue.

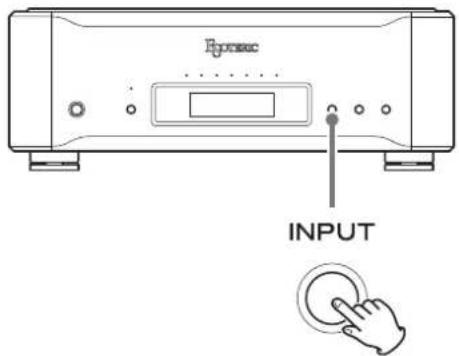

2 Press the INPUT button to select the source.

Line drawing of a portable electronic device with indicator lights and a central screen (no text or symbols)

INPUT

Each time you press the INPUT button, the active input changes in the following order and is shown on the display.

Select the input and start playback from the audio source device.

If no digital signal is detected, no sampling frequency will be shown to the right of the word "INPUT" on the display. Confirm the connections before turning connected devices on.

- When you are done using this unit, press the POWER button to turn it off.

1 Press the MENU button repeatedly to select the desired setting item.

Front view line drawing of a portable electronic device (no text or symbols visible)

MENU

Each time you press the MENU button, the item shown on the display changes.

Press the INPUT button or do nothing for 10 seconds to exit setting mode and return to the ordinary display.

2 Use the parameter adjustment (- / + ) buttons to change the settings.

Line drawing of a portable electronic device with ports and a central display (no text or symbols)

- + ◯

For information about settings, see pages13–16. Setting mode will end and the ordinary display will reappear if nothing is done for 10 seconds or the INPUT button is pressed once.

●Settings are retained even if the power plug is disconnected.

Meanings of items shown in setting mode

UPCONV>\*\*\*

This is the upconversion setting.

Use to select DSD or a multiplier of the input sampling frequency for upconversion (page 13).

DSD\_F>\*\*\*

This turns the DSD filter on and off (page 14).

CLK>\*\*\*

This is the clock setting.

Use this to set synchronization with an external clock or clock output to an audio source device that is being synchronized (page 14).

CLKin>\*\*\*

This selects the clock input connector (page 15).

CLK\_TH>\*\*\*

This sets the clock output during clock input mode (page 15).

DIMMER>\*\*\*

This sets the dimmer.

You can set the brightness of this unit's display and indicators to one of four levels (page 15).

AOUT>\*\*\*

This sets the analog output. Use this to select the analog output connector to be used (page 16).

DPaOFF>\*\*\*

This sets automatic display darkening (page 16).

APS>\*\*\*

This sets automatic power saving (page 16).

Upconversion setting

UPCONV>\*\*\*

When a PCM signal from a CD, for example, is input, you can use this setting to upconvert that signal or convert it to a DSD signal.

Each input connector can have a different setting.

By default, the setting is OFF.

●During ES-LINK input, only OFF or DSD can be selected.

OFF

Upconversion will not occur.

The original input signal will be sent as is directly to the D/A converter.

2Fs

The sampling frequency of the input source signal will be upconverted by a factor of 2 from 32, 44.1 or 48 kHz to 64, 88.2 or 96 kHz.

4Fs

The sampling frequency of the input source signal will be upconverted by a factor of 4 from 32, 44.1 or 48 kHz (or 2 from 88.2 or 96 kHz) to 128, 176.4 or 192 kHz.

8FS

The sampling frequency of the input source signal will be upconverted by a factor of 8 from 32, 44.1 or 48 kHz (or 4 from 88.2 or 96 kHz or 2 from 176.4 or 192 kHz) to 256, 352.8 or 384 kHz.

DSD

The digital format of the signal will be converted to DSD.

●The DSD signal of a Super Audio CD cannot be upconverted.

DSD digital filter setting

DSD\_F>\*\*\*

This setting turns the digital filter for DSD input signals sent to the D/A converter on or off.

By default, the setting is OFF.

OFF

The 50kHz cutoff digital filter is not used.

●"DSD DIRECT" appears on the display.

ON

The 50kHz cutoff digital filter is used.

- Use this setting if modulation noise, for example, occurs when set to OFF.

Clock setting

CLK>\*\*\*

Use this to set synchronization with an external clock or clock output to a Super Audio CD transport or other audio source device that supports clock.

By default, the setting is OFF.

- Set this to OFF when connected to a source device that does not support clock synchronization.

OFF

Clock synchronization is not used and the master clock used to follow the input digital signal is generated by the PLL circuit.

Operation following clock over a wide range is possible.

OUT44

44.1 kHz is output from the CLOCK SYNC OUT connector.

OUT88

88.2 kHz is output from the CLOCK SYNC OUT connector.

OUT176

176.4 kHz is output from the CLOCK SYNC OUT connector.

OUT48

48 kHz is output from the CLOCK SYNC OUT connector.

OUT96

96 kHz is output from the CLOCK SYNC OUT connector.

OUT192

192 kHz is output from the CLOCK SYNC OUT connector.

OUT22M

22.5792 MHz is output from the CLOCK SYNC OUT connector.

OUT24M

24.576 MHz is output from the CLOCK SYNC OUT connector.

• You can synchronize an audio source device to this unit using its high-precision crystal oscillator as a master clock by connecting that device's clock input connector to this unit's CLOCK SYNC OUT connector.
• The audio source device must be connected to this unit's CLOCK SYNC OUT connector and set to receive clock synchronization.

IN

In this mode, this unit can receive a clock signal through its CLOCK SYNC IN connector and operate with clock synchronization.

●The audio source device must also be connected to the clock generator or be connected to this unit's CLOCK SYNC OUT connector and set to receive clock synchronization.
- The clock frequencies that can be input are 44.1, 48, 88.2, 96, 176.4 and 192 kHz as well as 24.576 MHz. The input audio signal and the input clock signal must be synchronized.

MCK IN

In this mode, this unit can receive a master clock signal through its CLOCK SYNC IN or 10MHz IN connector from a clock generator and operate with clock synchronization. The master clock input can be 22.5792 MHz (512 × 44.1 kHz) or 24.576 MHz (512 × 48 kHz).

When 22.5792 MHz is input, the sampling frequencies of the input audio signals can be 44.1, 88.2, 176.4 or 352.8 kHz.

When 24.576 MHz is input, the sampling frequencies of the input audio signals can be 48, 96, 192 or 384 kHz.

●The audio source device must also be connected to the clock generator or be connected to this unit's CLOCK SYNC OUT connector and set to receive clock synchronization.
- Be aware that during music playback, if the clock generator is turned off or the clock connection is broken, causing the clock signal to stop, a loud noise could be emitted from the speakers.

Clock input connector selection

CLKin>\*\*\*

This selects the clock input connector. By default, the setting is CLK.

CLK

In this mode, this unit can receive a clock signal through its CLOCK SYNC IN connector from a clock generator and operate with clock synchronization.

●The input impedance of the CLOCK SYNC IN connector is 75 Ω, so TTL-level square wave signals can be input.

10M

In this mode, this unit can receive a 10MHz clock signal from a clock generator connected to its 10MHz IN connector and operate with clock synchronization.

●The audio source device must also be connected to the clock generator or be connected to this unit's CLOCK SYNC OUT connector and set to receive clock synchronization.

●The input impedance of the CLOCK SYNC 10MHz IN connector is 50 Ω, so sine wave signals with 0.5–1.0Vrms amplitude levels can be input.

Clock output settings

CLK\_TH>\*\*\*

This sets the clock output during clock input mode. By default, the setting is OFF.

OFF

No clock signal is output from the CLOCK SYNC OUT connector.

ON

Clock with the same frequency as the input clock is output from the CLOCK SYNC OUT connector.

Dimmer setting

DIMMER>\*\*\*

You can adjust the brightness of this unit's display and indicators. By default, the setting is 2.
    note right of B (normal brightness)

- The dimmer of this unit can be adjusted using the DIMMER button of a remote control included with a P-02X or other Esoteric product.

- Even when set to Dimmer1 or Off, a brighter setting (Dimmer2 or Dimmer3) will be used when displaying error messages and setting menus.

Analog output setting

AOUT>\*\*\*

Use this to select the analog output connectors to be used. By default, the setting is XLR2.

XLR2

Analog audio signals are output through the XLR connectors with pin 2 HOT.

XLR3

Analog audio signals are output through the XLR connectors with pin 3 HOT.

RCA

Analog audio signals are output through the RCA connectors.

Automatic display darkening setting

DPaOFF>\*\*\*

You can set the display to darken automatically after a set amount of time has elapsed. By default, the setting is ON.

ON

The display will automatically darken after 10 minutes elapse without any operation or change in the information shown.

OFF

The display will not automatically darken, but if nothing changes on it for 10 minutes, its brightness will be lowered to the level of Dimmer1 to reduce long-term display fading.

- We recommend setting this to "ON" because brightness irregularities might occur if the same information is shown without change on the display for a long time.

Automatic power saving setting

APS>\*\*\*

The unit can be set to turn off automatically if the set amount of time elapses without being able to lock to a digital signal from an input source. By default, the setting is 30.

30

The unit will automatically turn off if 30 minutes elapse without playback or other operation.

60

The unit will automatically turn off if 60 minutes elapse without playback or other operation.

90

The unit will automatically turn off if 90 minutes elapse without playback or other operation.

120

The unit will automatically turn off if 120 minutes elapse without playback or other operation.

OFF

The automatic power saving function is disabled.

Connecting with a computer and playing back audio files

Installing the driver

When using Mac OS X

This unit works with the following operating systems (as of January 2016).

Mac OS X Snow Leopard (10.6)

(OS X 10.6.4 or later)

OS X Lion (10.7)

OS X Mountain Lion (10.8)

OS X Mavericks (10.9)

OS X Yosemite (10.10)

OS X El Capitan (10.11)

This unit will work with the standard operating system driver, so there is no need to install a special driver.

When using Windows

Installing a driver on the computer

To play back audio files from a computer through this unit, you must first download the driver from our download page and install it on your computer.

Driver software download page

http://www.esoteric.jp/products/esoteric/usb/usb_driver_e.html

Install the dedicated driver software after downloading it from the above page.

This unit can be connected by USB and used with a computer running one of the following operating systems

Windows Vista (32-bit and 64-bit editions)

Windows 7 (32-bit and 64-bit editions)

Windows 8 (32-bit and 64-bit editions)

Windows 8.1 (32-bit and 64-bit editions)

Windows 10 (32-bit and 64-bit editions)

Operation with other operating systems cannot be assured.

IMPORTANT NOTICE

You must install the dedicated driver software before connecting this unit with a computer using a USB cable.

If you connect the unit to the computer by USB before installing the driver, it will not function properly.

For detailed instructions about installing the driver, please see our download page.

Depending on the composition of the computer hardware and software, operation might not be possible even with the above operating systems.

Note about transmission modes

This unit connects using asynchronous HIGH SPEED mode.

The sampling frequencies that can be used for transmission are 44.1, 48, 88.2, 96, 176.4, 192, 352.8 and 384 kHz as well as DSD 2.8, 5.6 and 11.2 MHz.

When connected correctly, you will be able to select "ESOTERIC USB AUDIO DEVICE" as the audio output for the operating system.

In asynchronous mode, the audio data transmitted from the computer will be processed using this unit's clock, enabling it to reduce jitter caused during data transmission.

Playing audio files

You can use ESOTERIC HR Audio Player to play audio files on a computer.

Please download this free application from the following URL.

http://www.esoteric.jp/products/esoteric/hr_audio/indexe.html

ESOTERIC HR Audio Player is a software audio player for Windows and Mac that supports high-quality playback of high-resolution audio sources. You can use it to enjoy the high-quality playback of high-resolution audio sources, including DSD, without needing to make complicated settings.

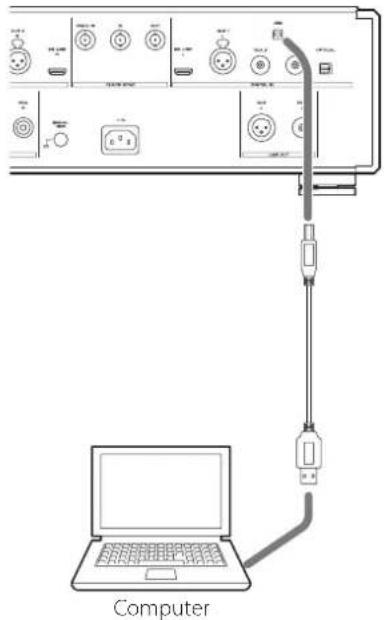

1 Connect this unit to the computer using a USB cable.

Use a commercially-available USB cable with a connector that matches that of this unit.

Computer

2 Turn the computer on.

Confirm that the operating system has started properly.

3 Press the POWER button to turn the unit on.

Line drawing of a portable electronic device with indicator lights and a central screen (no text or symbols)

POWER

4 Press the INPUT button to select USB.

Eptocsec ... INPUT

5 Start playback of an audio file on the computer.

For better audio quality, set the computer volume to its maximum and adjust the volume of the amplifier connected to this unit. Set the amplifier volume to the minimum when you start playback and gradually increase it.

●The computer cannot be used to control this unit, nor can this unit be used to control the computer.

●This unit cannot transmit audio files to the computer by USB.

- Do not do any of the following when playing back audio files over the USB connection. Doing so could cause the computer to malfunction. Always quit the audio playback software before conducting any of these operations.

- Unplug the USB cable

- Turn this unit off

- Change the input

●Computer operation sounds will also be transmitted when playing back audio files over the USB connection. To avoid outputting these sounds, make the necessary settings on your computer.

- If you start the audio playback software before connecting this unit with the computer or before setting the input to USB, audio files might not play back properly. If this occurs, restart the audio playback software or restart the computer.

If you experience a problem with this unit, please take a moment to review the following information before requesting service. Moreover, the problem might be caused by something other than this unit. Please also check the operation of the connected units. If this product still does not operate correctly, contact the retailer where you purchased it.

The unit does not turn on.

→Confirm that the power cord is securely connected to both the inlet on the back of this unit and a power outlet.

→ Confirm that power is being supplied to the outlet to which the power cord is connected by, for example, connecting another device to it.

No sound is output from the speakers. The sound is distorted.

In this case, turn the power off and check the connections with the digital audio source device, the amp and the speakers. (page 8).

→Change the input setting to the connector that is being used for input (page 12).

→ Set AOUT (analog output) according to the amp connection.

→Adjust the volume of the amplifier and other devices.

No sampling frequency is shown to the right of "INPUT" on the display.

→ Turn the device that is connected to the selected input connector on.
→Confirm that the device is properly connected to the selected input connector.

A beeping noise is output at a regular interval.

If a beeping noise is output at a regular interval when the unit is in clock sync mode, the connected device might not also be in clock sync mode. Check the connections of the clock sync input connectors and the clock sync setting of the connected device.

The CLOCK indicator does not stop blinking.

→Set CLK> to OFF when not using clock sync (page 14).
→A clock signal with which the unit cannot be synchronized might be being input. Check the connections of the clock input connectors and the settings of the connected device.

This unit uses a microprocessor, so noise and other external interference could cause it to stop functioning properly. In such a case, turn the unit off and wait about one minute before restarting operation from the beginning.

Troubleshooting (continued)

Restoring factory settings

POWER MENU

Settings are retained even if the power plug is disconnected.

Follow these procedures to restore all settings to their factory defaults and clear the unit's memory.

1 Turn the unit off.

If the power is on, press the POWER button and wait at least 30 seconds before proceeding.

2 Press the POWER button while pressing and holding the MENU button.

When "Setup CLR" (clear settings) appears on the display, release the MENU button.

Messages

“--” appears in the sampling frequency display area.

There is a problem with the input signal.

Do not input signals other than PCM or DSD.

Check the connection with the digital device.

This unit cannot decode signals in formats such as Dolby Digital, DTS and AAC. Have the playback device convert the signal to PCM before output.

No sampling frequency is shown to the right of "INPUT" on the display.

The digital signal cannot be locked. Press the INPUT button to select a connector that has a digital source device connected.

Turn the connected device on. Check the settings of the connected device.

CLOCK!

Check settings related to the clock.

If there is no input clock, “--” will appear in the clock frequency display area.

If the set mode and the input clock are incorrect, the clock frequency display area will blink.

Analog audio outputs

XLR connectors....1 pair (L/R)

RCA connectors....1 pair (L/R)

Output impedance XLR....140 Ω RCA....60 Ω

Maximum output level (when 1 kHz, full-scale signal input, 10kΩ load) XLR (when set to 0 dB)....5.0 Vrms RCA....2.5 Vrms

Frequency response (when 192kHz PCM signal input) 5 Hz – 65 kHz (-3 dB)

S/N ratio....121 dB (5.6MHz DSD, 1 kHz)

Distortion 0.0007% (1 kHz)

Digital audio inputs

ES-LINK connectors....1 pair (L/R)

Input signal format .... Linear PCM (ES-LINK4) 352.8/384 kHz, 48-bit DSD (ES-LINK4)

XLR connectors....1 pair (L/R) Input level ....5.0 Vp-p Input impedance ....110 Ω Input signal format (with DUAL connection)

32-384 kHz, 16-24 bit

Linear PCM (DUAL AES)

DSD (ES-LINK1, ES-LINK2, DoP)

Input signal format (without DUAL connection) 32–192 kHz, 16–24 bit Linear PCM (AES/EBU format) DSD (ES-LINK1, ES-LINK2, DoP)

RCA connectors....2 Input level....0.5 Vp-p

Input impedance 75 Ω

Input signal format....32–192 kHz 16-bit to 24-bit

Linear PCM (IEC 60958 format) DSD (DoP)

Optical digital connector....1 Input level ....-24.0 dBm to -14.5 dBm peak

Input signal format....32–192 kHz 16-bit to 24-bit

Linear PCM (IEC 60958 format) DSD (DoP)

USB port....1 (Type B) Input signal format....44.1–384 kHz

16-bit to 32-bit Linear PCM 2.8/5.6/11.2MHz DSD

Clock output

BNC connector....1

Output level ....TTL level equivalent (into 75 Ω)

Output frequencies 44.1 kHz, 88.2 kHz, 176.4 kHz, 48 kHz, 96 kHz, 192 kHz 22.5792 MHz, 24.576 MHz

Same as input frequency (when set to through output)

Output frequency precision...±0.5 ppm (when shipped from factory)

Clock input

BNC connectors....2

Input impedance IN....75 Ω 10MHz IN....50 Ω

Frequencies that can be input IN ....44.1 kHz, 88.2 kHz, 176.4 kHz, 48 kHz, 96 kHz, 192 kHz 22.5792 MHz, 24.576 MHz (±10 ppm) 10MHz IN ....10 MHz (±10 ppm)

Input level IN....TTL level equivalent 10MHz IN....sine wave, 0.5–1.0 Vrms

General

Power supply Model for Europe....AC 220–240 V, 50/60 Hz Model for USA/Canada....AC 120 V, 60 Hz Model for Hong Kong....AC 230 V, 50 Hz Model for Korea....AC 220 V, 60 Hz

Power consumption....26 W External dimensions (W × H × D, including protrusions) 445 × 162 × 437 (mm) (17 5/8" × 6 1/2" × 17 1/4") Weight....27 kg (59 5/8 lb)

Operating temperature....+5°C to +35°C Operating humidity....5% - 85% (no condensation) Storage temperature....-20°C to +55°C

Included accessories

Power cord × 1 HDMI cable × 1 Felt pads × 4 Owner's manual (this document) × 1 Warranty card × 1

- Specifications and appearance are subject to change without notice.

●Weight and dimensions are approximate.

● Illustrations in this Owner's Manual might differ slightly from production models.

EOTERIC 162 403 445

359 437

Front panel diagram of a device control unit with labeled buttons and ports

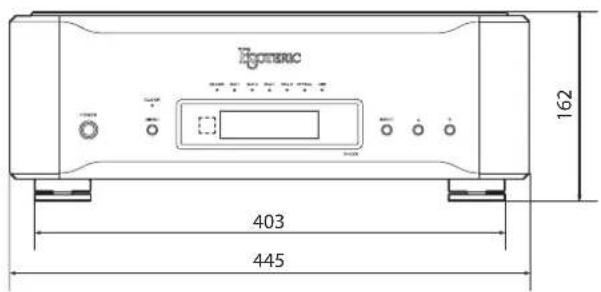

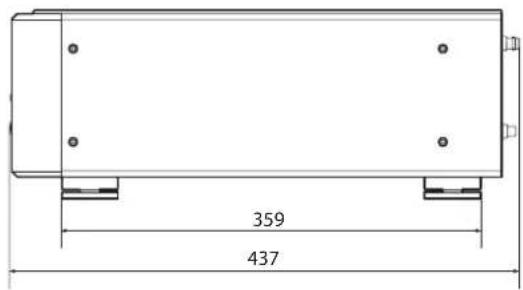

Dimensions in millimeters (mm)

CAUTION

RISK OF ELECTRIC SHOCK DO NOT OPEN

ATTENTION : POUR RÉDUIRE LE RISQUE D'ÉLECTROCUTION, NE RETIREZ PAS LE CAPOT (OU L'ARRIÈRE). AUCUNE PIÈCE INTERNE N'EST RÉPARABLE PAR L'UTILISATEUR. CONFIEZ TOUTE RÉPARATION À UN SERVICE APRÈS-VENTE QUALIFIÉ.

DÉCLARATION DE CONFORMITÉ

Line drawing of a portable electronic device with no visible text or symbols

POWER

Front view line drawing of a portable electronic device with buttons and a central screen (no text or symbols)

INPUT

Front view line drawing of a portable electronic device with buttons and a central display (no text or symbols)

MENU

Line drawing of a portable electronic device with ports and indicator lights (no text or symbols)

- + ◯

Front panel diagram of a device control panel with labeled buttons and ports

Symbolic icon of a person pushing a ladder inside a circle (no text or symbols)

XLR: cable digital XLR

RCA: cable digital coaxial RCA

OPTICAL: cable digital óptico

Line drawing of a portable electronic device with no visible text or symbols

POWER

Front view line drawing of a portable electronic device with no visible text or symbols

INPUT

Line drawing of a portable electronic device with ports and a central screen (no text or symbols)

MENU

Line drawing of a portable electronic device with ports and a central screen (no text or symbols)

Lineal PCM (formato IEC 60958)

DSD (DoP)

Puerto USB	1 (Tipo B)
Formato de señal de entrada	44,1–384 kHzde 16 bits a 32 bitsLineal PCM2,8/5,6/11,2 MHz DSD

Salida de reloj

Terminal BNC	1
Nivel de salida	equivalente a nivel TTL (a 75 Ω)

Front panel diagram of a device control panel with labeled buttons and ports

This appliance has a serial number located on the rear panel. Please record the serial number and retain it for your records.

Model name: D-02X Serial number
