Please read this guide first!

Dear Customer,

Thank you for choosing a Beko product. We would like you to achieve the optimal efficiency from this high quality product which has been manufactured with state of art technology. Please make sure you read and understand this guide and supplementary documentation fully before use and keep it as a reference. Include this guide with the unit if you hand it over to someone else. Observe all warnings and information herein and follow the instructions.

Symbols and their meanings

These symbols are used throughout this guide:

Important information and useful hints about usage.

WARNING: Warnings against dangerous situations concerning the security of life and property.

Electric shock protection rating

CONTENTS

ENGLISH	03-16
FRANÇAIS	17-30
ROMANIAN	31-48
ITALIANO	49-63
POLSKI	64-79
SPANISH	80-95
SRPSKI	96-108
RUSSIAN	109-128
FINNISH	129-141

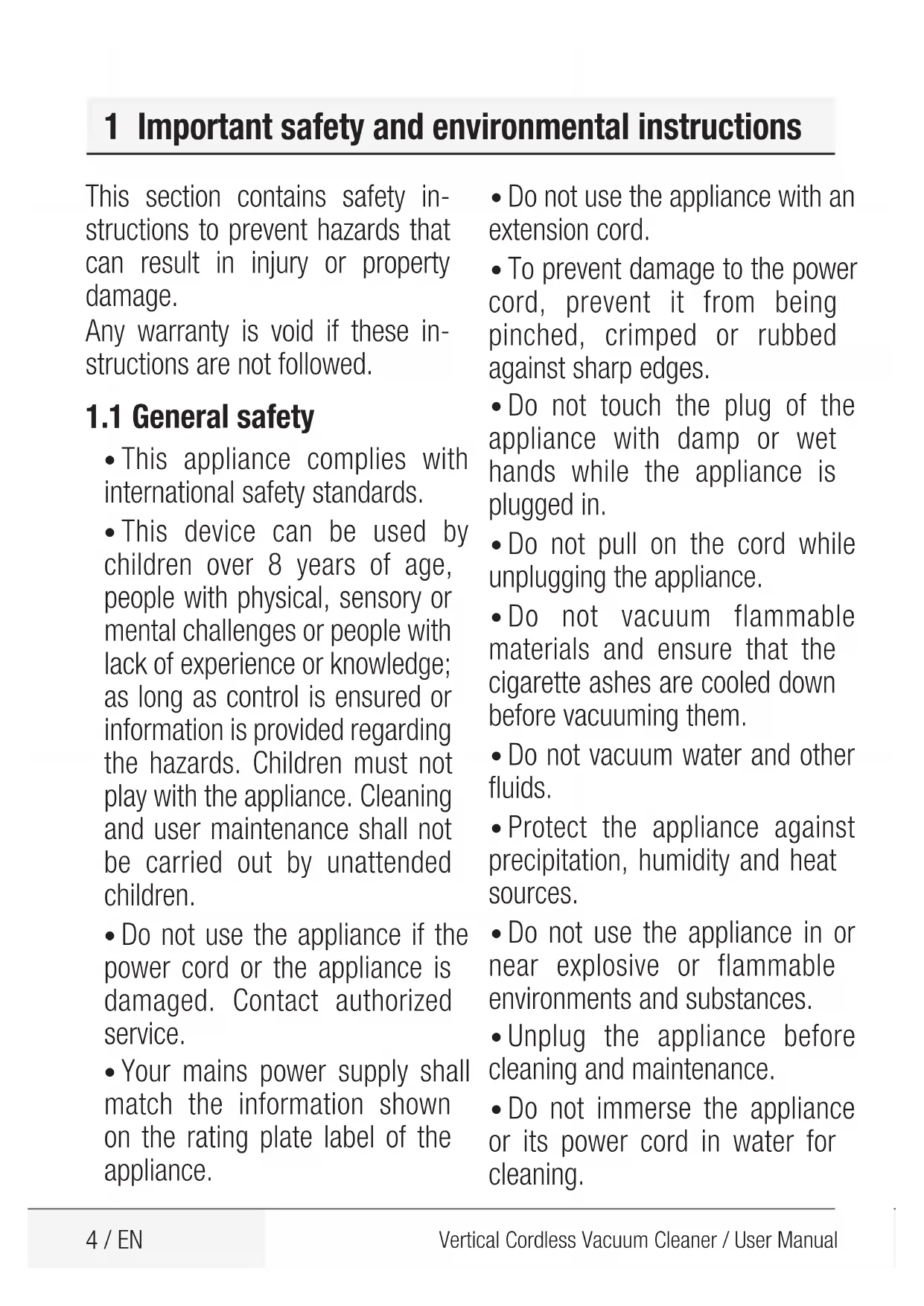

1 Important safety and environmental instructions

This section contains safety instructions to prevent hazards that can result in injury or property damage.

Any warranty is void if these instructions are not followed.

1.1 General safety

• This appliance complies with international safety standards.
• This device can be used by children over 8 years of age, people with physical, sensory or mental challenges or people with lack of experience or knowledge; as long as control is ensured or information is provided regarding the hazards. Children must not play with the appliance. Cleaning and user maintenance shall not be carried out by unattended children.

- Do not use the appliance if the power cord or the appliance is damaged. Contact authorized service.

- Your mains power supply shall match the information shown on the rating plate label of the appliance.

• Do not use the appliance with an extension cord.
• To prevent damage to the power cord, prevent it from being pinched, crimped or rubbed against sharp edges.

- Do not touch the plug of the appliance with damp or wet hands while the appliance is plugged in.

- Do not pull on the cord while unplugging the appliance.

- Do not vacuum flammable materials and ensure that the cigarette ashes are cooled down before vacuuming them.

- Do not vacuum water and other fluids.

- Protect the appliance against precipitation, humidity and heat sources.

- Do not use the appliance in or near explosive or flammable environments and substances.

- Unplug the appliance before cleaning and maintenance.

- Do not immerse the appliance or its power cord in water for cleaning.

1 Important safety and environmental instructions

• Do not disassemble the appliance.
• Use only original parts or parts recommended by the manufacturer.
• To prevent blockage of the filter or damage to the motor, do not vacuum cement, plaster or fragments of compressed paper.
• Use the appliance with the adapter delivered with the appliance only.
• Do not use the appliance without filters, it may get damaged.
• If you keep the packaging materials, keep them out of the reach of children.
• This appliance is not intended to be used by persons, including children, with physical, sensory and mental disabilities or those who have not adequate experience and knowledge regarding its use, unless they are under the supervision of a person responsible for their safety or they are informed about the operation of the appliance.
  • Children shall be supervised to prevent them from playing with the appliance.

- Unplug the adaptor and remove the battery pack before any cleaning or maintenance procedure.

- To avoid any risk of hazard, a damaged adaptor shall be replaced by the manufacturer, the authorized representative of the manufacturer or a similarly qualified technician.

- Keep your fingers, hair and loose clothes away from moving parts or clearances while vacuuming.

- Batteries shall be removed from the appliance before discarding the appliance.

- Disconnect the appliance from power supply before removing the battery.

- Please discard used batteries in accordance with local laws and regulations.

- The batteries included in this appliance may only be replaced with qualified persons.

• Appliance is not intended to be operated for commercial purposes. This appliance is not designed for commercial use, it

1 Important safety and environmental instructions

is intended for home use and in applications as follows:

• In the staff kitchens of the stores, offices and other working environments
• In farm houses;
• By customers in hotels, motels or other accommodation facilities
• In hostels or similar environments.

- WARNING: Use the HCX1501-3200450E (VRT 51225 VB-VRT50225 VB), HCX1501-2700500E (VRT 50121 VR-VRT 50121 VP) removable supply unit delivered with the appliance to charge to the battery.

- This appliance shall not be operated by children and people with limited physical, sensory and cognitive skills or people with lack of experience and knowledge unless they are under supervision or they are provided with the relevant instructions.

• Children shall be supervised to prevent them from playing with the appliance.

1.2 Compliance with the WEEE Directive and disposal of the waste product

This product complies with EU WEEE Directive (2012/19/EU). This product bears a classification symbol for waste electrical and electronic equipment (WEEE). This symbol indicates that this product shall not be disposed with other household wastes at the end of its service life. Used device must be returned to official collection point for recycling of electrical and electronic devices. To find these collection systems please contact to your local authorities or retailer where the product was purchased. Each household performs important role in recovering and recycling of old appliance. Appropriate disposal of used appliance helps prevent potential negative consequences for the environment and human health.

1.3 Packaging information

Packaging materials of the product are manufactured from recyclable materials in accordance with our National Environment Regulations.

Do not dispose of the packaging materials together with the domestic or other wastes. Take them to the packaging material collection points designated by the local authorities.

1.4 Information on waste batteries

This symbol on the packaging of the packaging related with rechargeable batteries indicates that the rechargeable battery shall not be disposed of with domestic waste. A chemical symbol may accompany this symbol on some rechargeable batteries.

And mercury (Hg) and lead (Pb) symbols may also be added if the rechargeable batteries contain more than \%0.0005 mercury and more than \%0.004 lead content.

Rechargeable batteries shall not be disposed of with household waste even if they do not contain heavy metals. Always discard the used batteries as per local environmental legislation. Investigate the waste disposal regulations in effect in your area of residence.

1 Important safety and environmental instructions

1.5 What to do for energy saving

• When using your appliance, adjust the speed settings according to the surface, in order to save energy.
• Normally, lower speeds are used when cleaning hard surfaces, curtains and sofas, while high speeds are used in for cleaning carpets.

1.6 Compliance with RoHS Directive

The product you have purchased complies with EU RoHS Directive (2011/65/EU). It does not contain harmful and prohibited materials specified in the Directive.

2 Overview

2.1 Controls and components

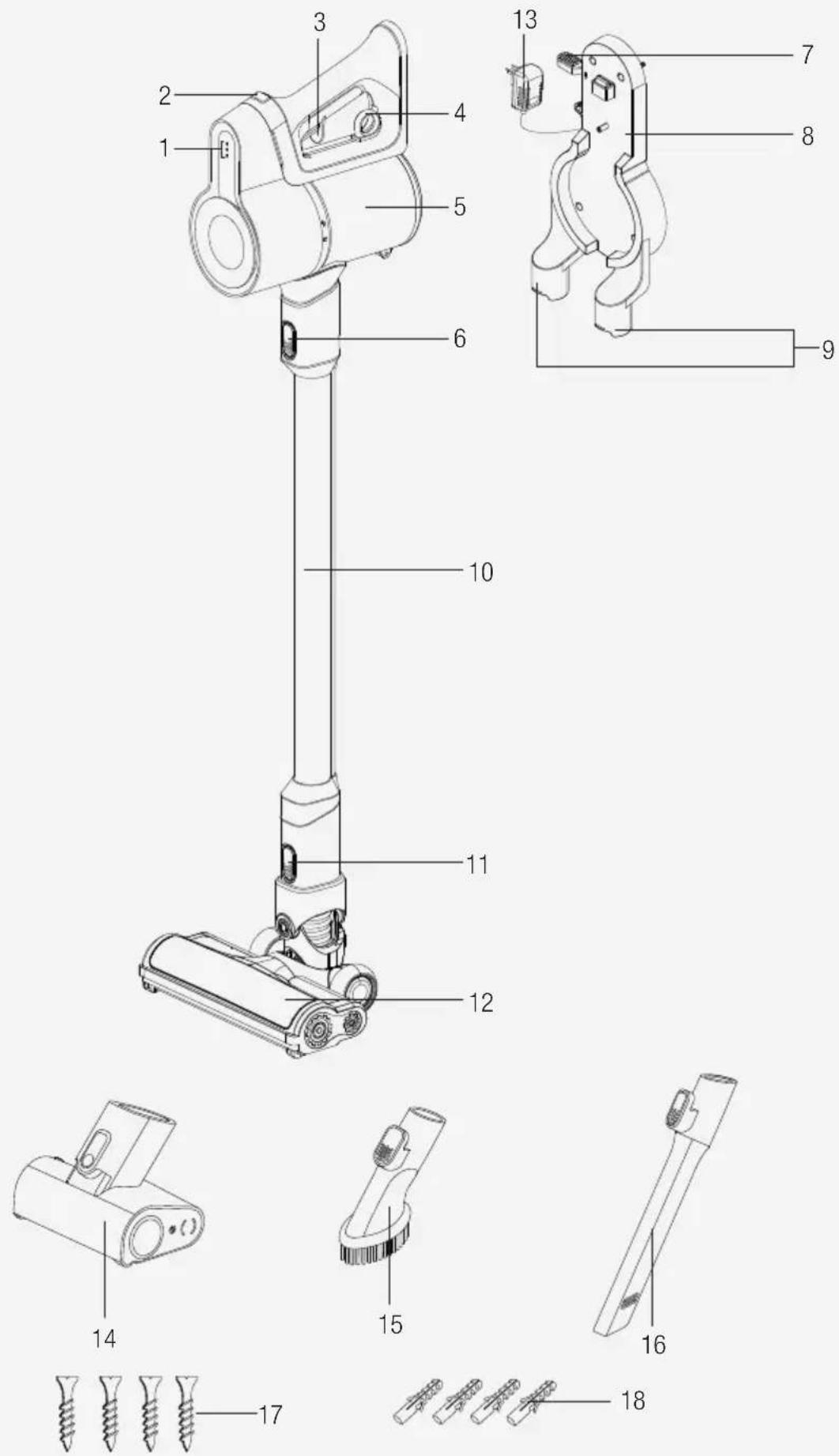

1. Charge indicator LED lights
2. Power Adjustment button
3. On/off button
4. Emptying dust container ring
5. Dust container
6. Tube release button
7. Appliance release button
8. Charging Dock
9. Accessory attachment parts
10. Tube
11. Brush release button
12. Electric turbo brush
13. Charging adaptor
14. Mini turbo brush (VRT 51225 VB)
15. Dust brush
16. Crevice attachment
17. Screw (4 pcs)
18. Dowel (4 pcs)

2.2 Technical data

	VRT 51225 VB - VRT 50225 VB	VRT 50121 VR- VRT 50121 VP
Nominal input power 150 W	110 W
Input 100 - 240 V~ 50-60 Hz	0,5 A
Output	32 V =0.45 A 27 V	0.5 A=
Charging time 4-6 hours
Runtime at max. power 17 mins
Runtime at min. power 45 mins

The rights to make technical and design changes are reserved.

The values provided with the appliance or its accompanying documents are laboratory readings in accordance with the respective standards. These values may differ depending on the use and ambient conditions.

External Power Supply Parameter

	VRT 51225 VB - VRT 50225 VB	VRT 50121 VR - VRT 50121 VP
Manufacturer: Guangdong	Huachuangxing Power Supply Co.,Ltd
Model ID: HCX1501-3200450E	HCX1501-2700500E
Input Voltage: 100-240V~
Input Frequency: 50-60Hz
Input Current: 0.5A
Output Voltage 32.0V 27.0V
Output Current 0.45A 0.5A
Output Power: 14.4W 13.5W
Average active efficiency:	85.5% 84.39%
Efficiency at low load (10%):	83.33%	70.65%
Power consumption under no load:	0.041W	0.071W

3 Installation

3.1 Intended use

This appliance is intended for household use and it is not suitable for industrial use.

3.2 Installation of the charging dock

112-114 cm

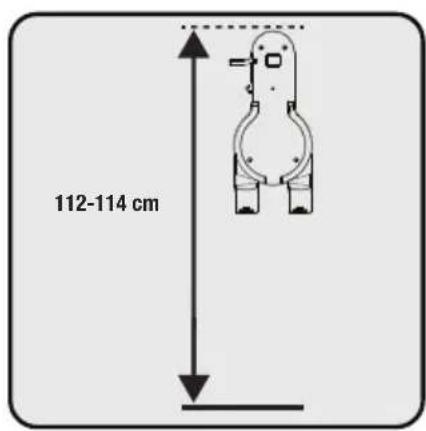

Position the charging dock (8) at a height of 112-114 cm from the ground.

Technical line drawing of a mechanical assembly with no visible text or symbols

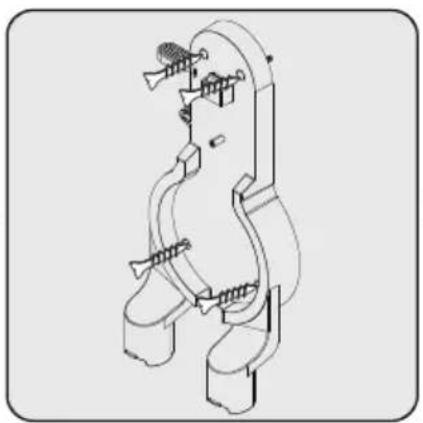

1- Fix four dowels (18) on the wall
2- Place four screws (17) into their locations on the charging dock (8) and mount on the dowels on the wall.

Diagram of a mechanical device with two outlets and a switch, showing an electrical connection (no text or symbols)

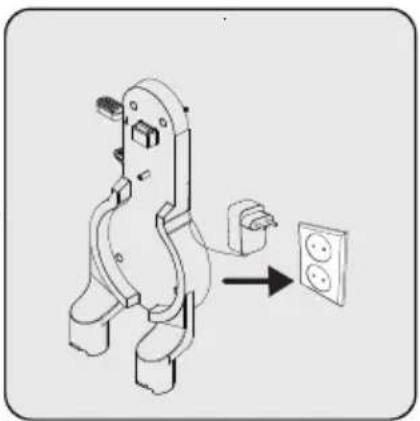

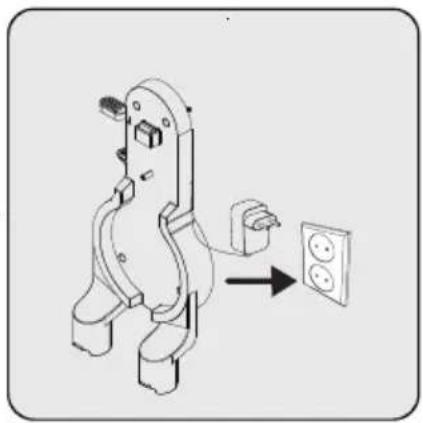

Plug the charging adaptor (13) to the socket.

3.3 Installation of the body and the brush

Technical line drawing of a mechanical device with arrows indicating assembly or motion (no text or symbols)

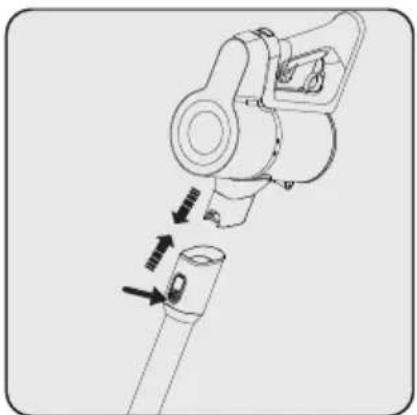

Push the tube (10) in the direction of arrow towards the body by pushing on the tube release button (6).

Diagram of a vacuum cleaner's internal structure with arrows indicating motion (no text or symbols)

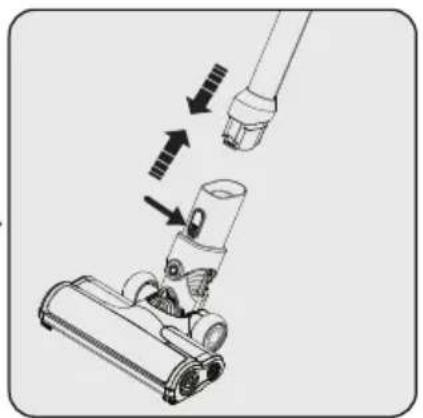

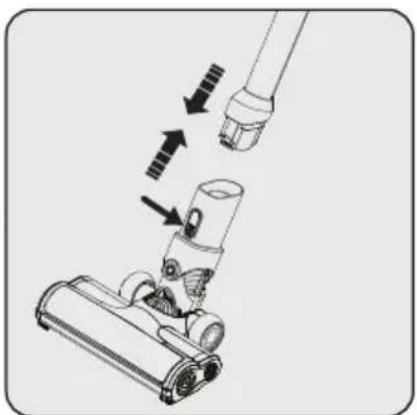

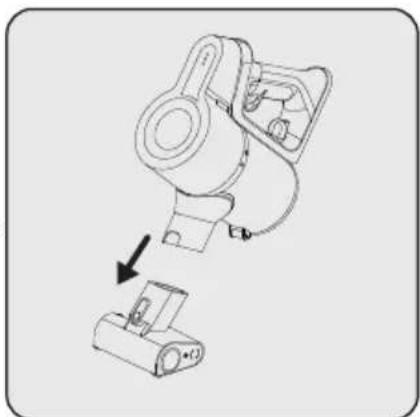

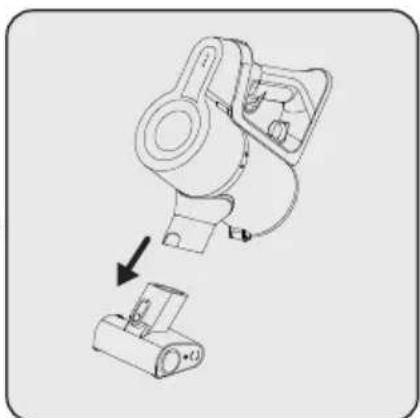

Press the electric turbo brush release button (11) on the electric turbo brush (12) and push it in the direction of arrow towards the tube.

Diagram showing a mechanical device before and after assembly, with no visible text or symbols

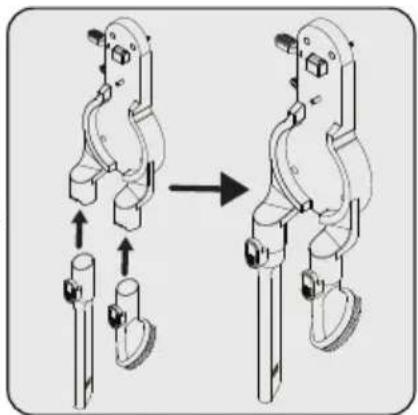

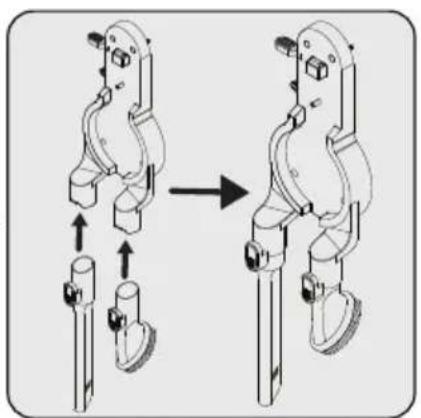

Attach crevice attachment (16) and dust brush (15) to the charging dock (8).

4 Operation

4.1 Charging the appliance

Technical line drawing of a mechanical device with directional arrow indicating motion (no text or symbols)

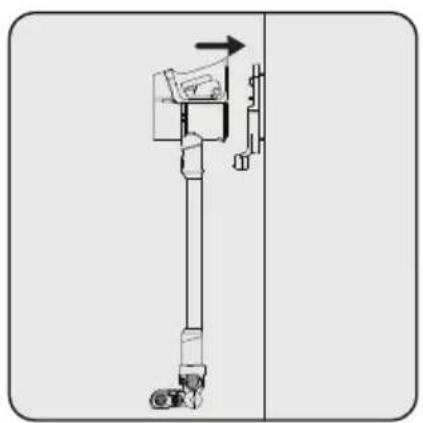

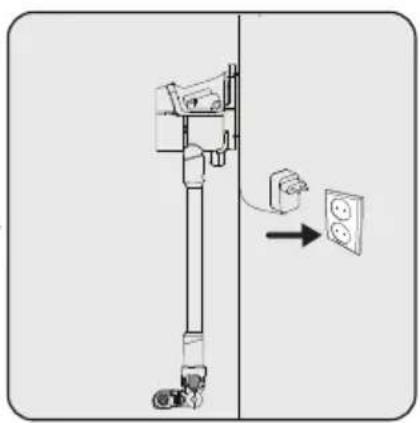

Place the appliance on the charging dock (8).

After placing dust container (5) on the charging dock (8), push the appliance towards the charging dock.

Diagram showing installation of a wall-mounted electrical outlet with a hand inserting a socket into the wall.

Plug the charging adaptor (13) to the socket.

Technical line drawing of a mechanical component with no visible text or symbols

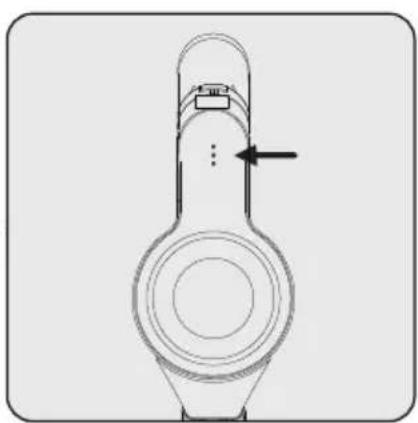

Flashing of the charge indicator LEDs (1) in white colour indicates that the appliance is being charged.

- When all levels of the charge indicator LEDs (1) are illuminated, this indicates that the charging of the appliance is completed.

It takes up to 4 to 6 hours to charge the appliance completely. The appliance shall not be operated while charging.

If the appliance is placed on the charging dock (8) while it is being operated, it shall be stopped automatically.

4.2 Usage

Technical diagram of a mechanical device with labeled parts 1 and 2, showing assembly or assembly steps.

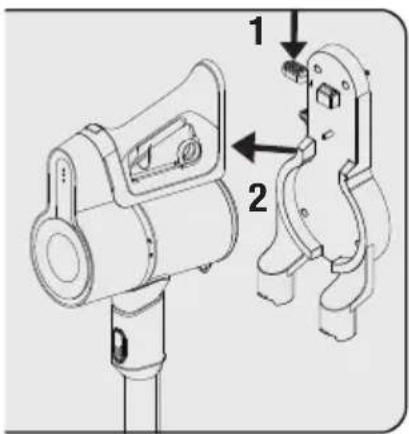

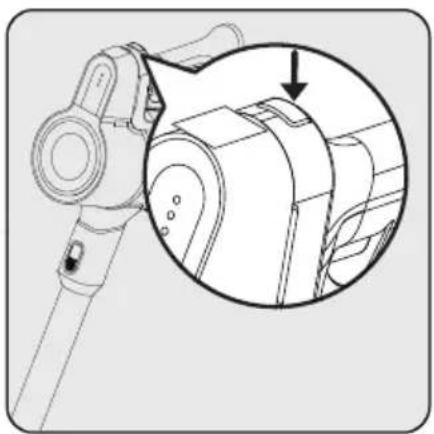

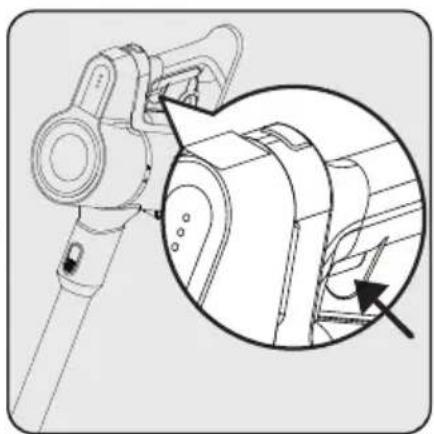

1- Push the appliance release button (7) on the charging dock (8) downward and pull the appliance towards yourself at the same time. 2- Remove the appliance from the charging dock (8).

Technical line drawing of a mechanical assembly with an inset close-up showing a component detail (no text or symbols)

Press the on/off button (3) to operate the appliance. The appliance starts operating with the minimum power when the on/off button is pressed.

Technical line drawing of a mechanical device with an inset circular detail showing internal components (no text or symbols)

To switch to the maximum power when operating in the minimum power, push the power adjustment button (2).

To switch to the minimum power when operating in the maximum power, push the power adjustment button (2) again.

4 Operation

The appliance may be placed for charging before the complete discharging of the battery. The appliance may be kept continuously as charging on the charging dock (8) until the next operation.

Technical line drawing of a mechanical component with no visible text or symbols

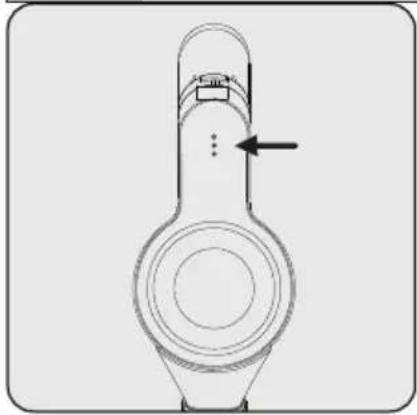

Pay attention to the power indicator LEDs (1) during operation. These indicators gradually turn off as the charge level is reduced, and when all indicators are turned off and only one indicator illuminates in red, then the charge of the appliance is about to run out. The appliance stops operating automatically after a short while when the red LED illuminates.

Line drawing of a vacuum cleaner with a hexagonal button and three vertical stripes below (no text or symbols)

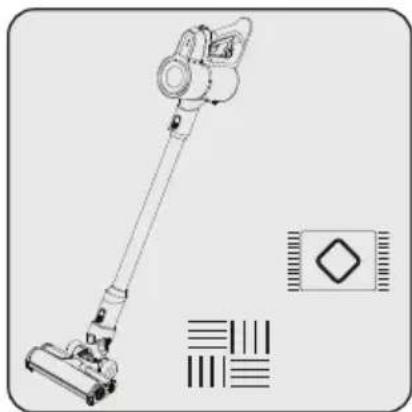

This appliance is suitable for use on carpets and hard floors.

4.3 Accessories

Technical line drawing of a mechanical device with a lever and handle, showing no text or symbols

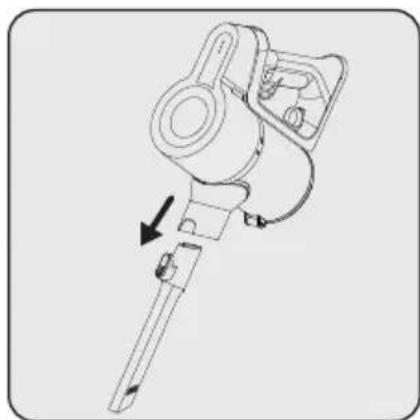

Crevice (16): Suitable for vacuuming the rear of the furnitures, hard to reach areas and narrow areas.

Line drawing of a robotic arm with a valve and plug, showing a step-down view (no text or symbols)

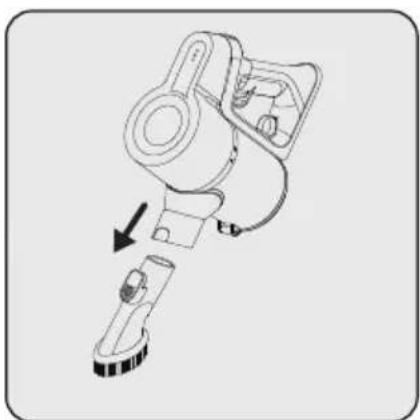

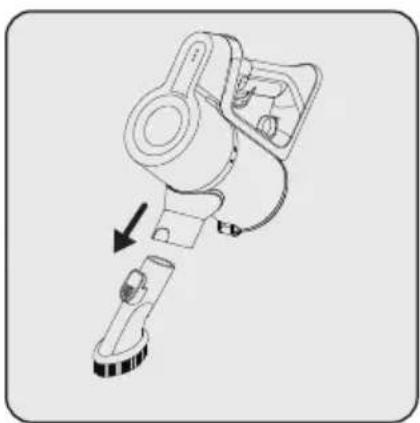

Dust brush (15): Suitable for vacuuming curtains, waxed furniture and delicate and fragile objects.

Diagram of a robotic arm with a battery and cable, showing a downward arrow indicating mechanical assembly (no text or symbols present)

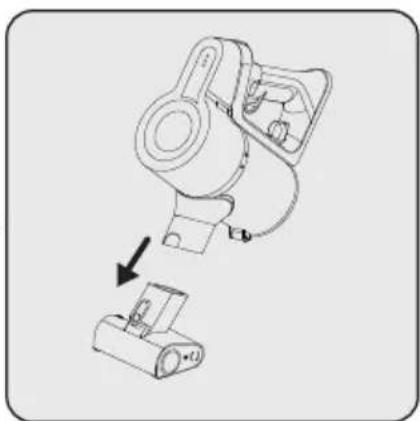

Mini turbo brush (14): Suitable for vacuuming floorings, stair steps, car interiors, sofas and seat, etc. It is also used for vacuuming pet hair on such surfaces.

5 Cleaning and maintenance

Turn off and unplug the appliance before cleaning.

WARNING: Never use gasoline, solvent, abrasive cleaners, metal objects or hard brushes to clean the appliance.

WARNING: Deformation may occur on the filters within time as a result of usage. It shall be replaced with a new one to prevent loss of performance. Contact with the customer services to buy a new one.

5.1 Cleaning the Dust container and Filters

WARNING: Do not wash the filters.

We recommend you to clean the dustbin (5) after each operation.

Hand cleaning a mechanical component with a cloth (no text or symbols visible)

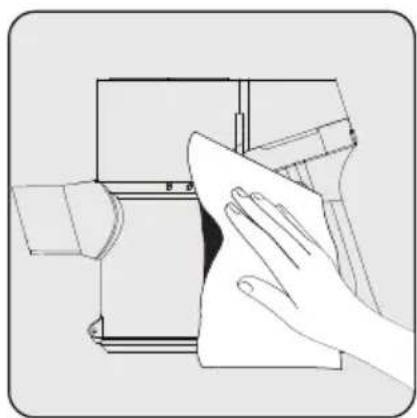

Wipe the surface of the body with a wet cloth.

Diagram of a mechanical device pouring liquid into a container with granular material (no text or symbols)

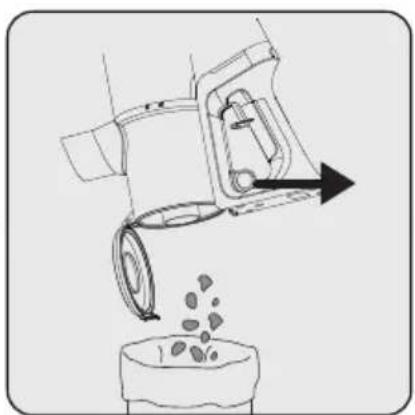

Pull the emptying dust container ring (4) to the last point. Dust container lid will be opened. Empty all the dust it contains.

Technical line drawing of a mechanical component with internal flow arrows (no text or symbols)

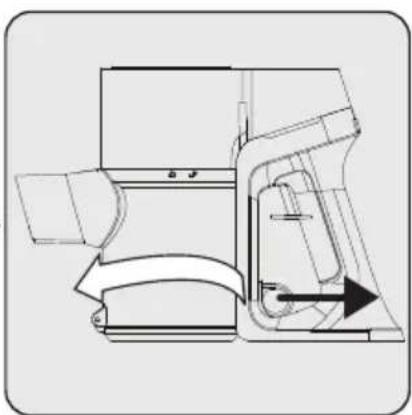

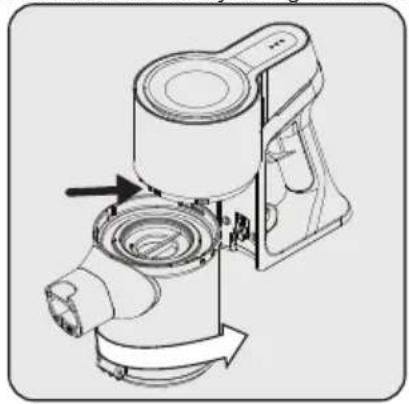

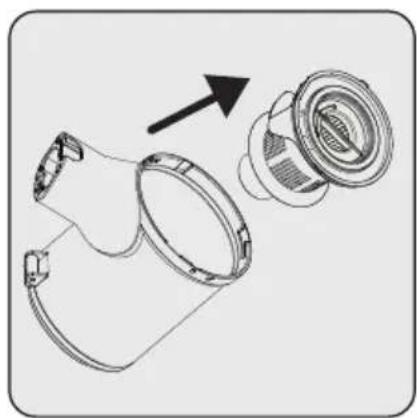

For a detailed cleaning of filters, remove the dust container by turning it clockwise while pulling dust container ring (4) lightly.

5 Cleaning and maintenance

Technical line drawing of a mechanical component with an arrow indicating direction (no text or symbols)

Pull EPA E10 and plastic filter holding from the EPA E10 handle.

Technical illustration of a mechanical component with a magnified inset showing internal structure (no text or symbols)

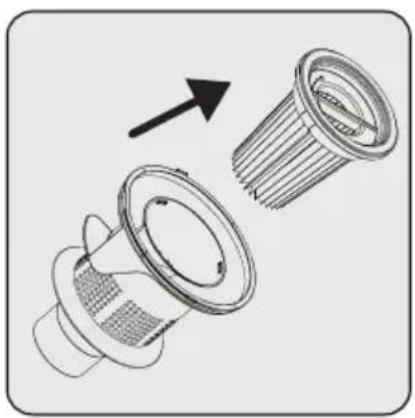

Seperate EPA E10 and plastic filter from each other.

Diagram of a mechanical component with arrows indicating direction (no text or symbols)

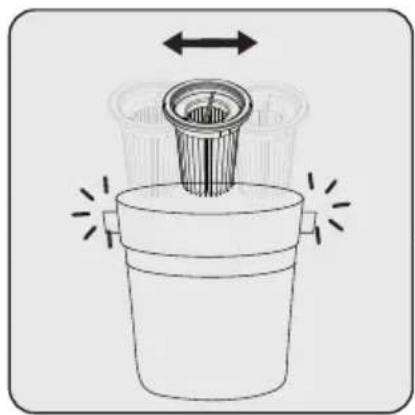

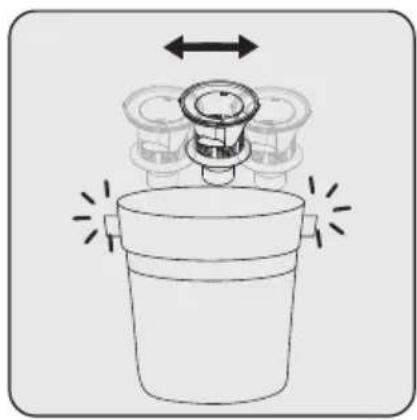

Remove the dust on the EPA E10 filter by tapping it on a hard surface such as a waste bin or by using a brush.

Diagram of a mechanical device with arrows indicating motion or force direction (no text or symbols)

Remove the dust on the plastic filter by tapping it on a hard surface such as a waste bin or by using a brush.

Diagram of a mechanical component with a downward arrow indicating a process or assembly (no text or symbols present)

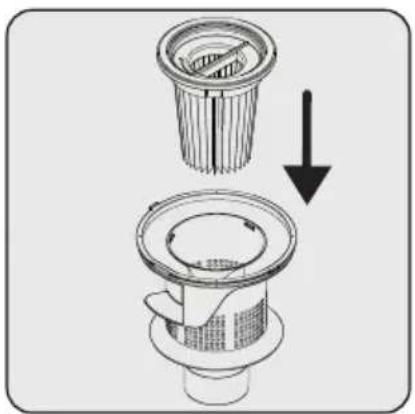

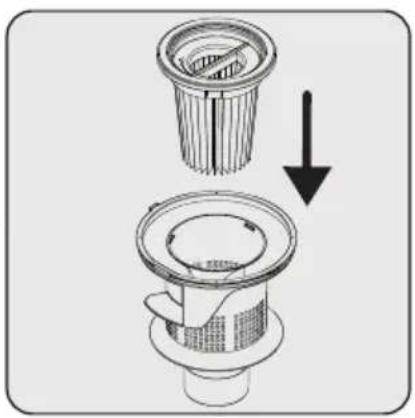

Attach EPA E10 filter to the plastic filter back.

Technical line drawing of a mechanical component with an arrow indicating direction (no text or symbols)

Attach plastic filter on the dustbin ring (5).

Technical illustration of a mechanical device with rotating components and directional arrows (no text or symbols)

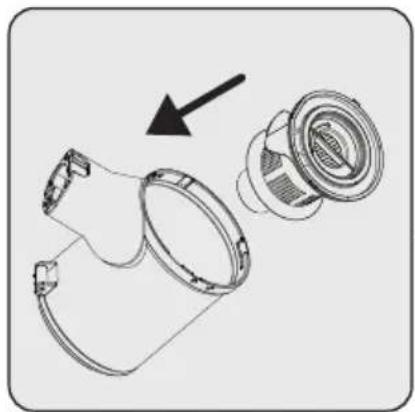

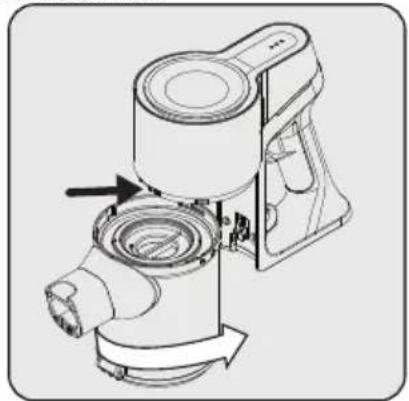

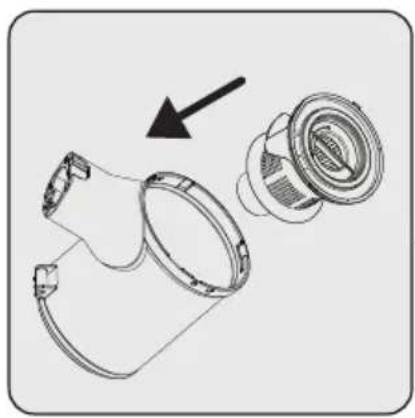

Fix the connector of dustbin to the holes on the body, then fix the dustbin by turning counter clockwise until you hear the click sound.

5 Cleaning and maintenance

5.2 Cleaning of the brush

WARNING: Do not wash the turbo brush (8) and the main roller.

Mechanical assembly diagram showing a belt drive system with pulleys and a gear mechanism (no text or labels)

Technical line drawing of a mechanical assembly with gears and shafts (no text or symbols)

Technical line drawing of a mechanical device with no visible text or symbols

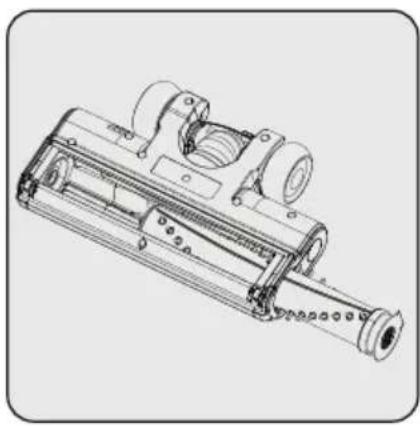

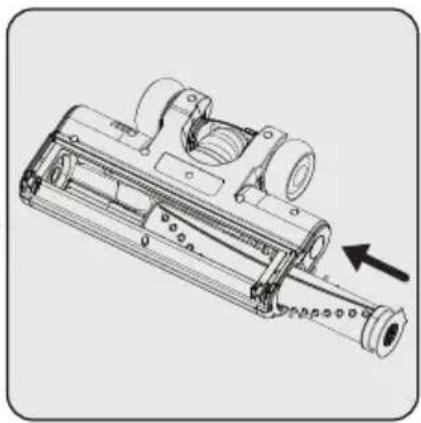

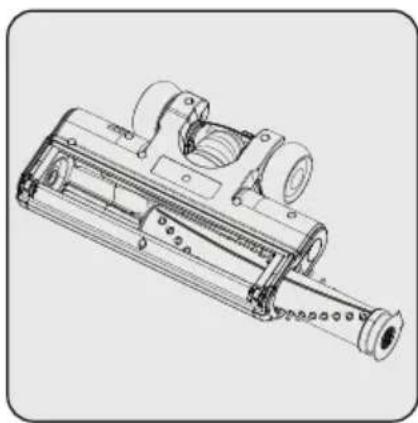

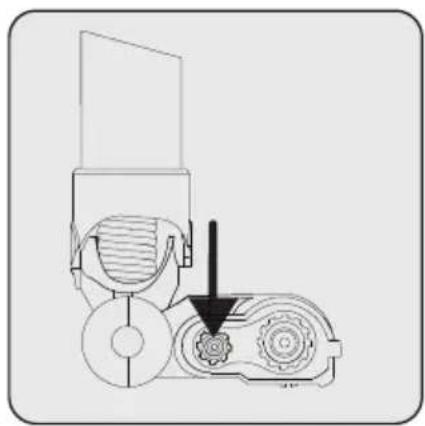

Press on the roller release button. Remove the dust on it by tapping it lightly to a hard surface or remove the dust with a brush. If any hair, etc. is tangled, remove it by cutting it off.

Fix the roller back to its place by pushing.

5.3 Storage

• If you do not intend to use the appliance for a long time, store it carefully.
• Unplug the appliance.
• Ensure that the appliance is kept out of reach of children.
• If you shall not be using the battery for a long period of time, please keep it in a cool and dry place at half charged condition. Do not charge or discharge completely.
• Store the battery on a non-conducting material, and do not allow the battery to contact metal directly. This shall damage the battery.

5.4 Transport and shipping

• During transport and shipping, carry the appliance with its original packaging. The packaging of the appliance will protect the appliance against physical damage.
• Do not put heavy objects on the appliance or its packaging. Otherwise the appliance may be damaged.
• If the appliance is dropped, the appliance may not operate or permanent damage may occur.

Technical diagram of a vacuum cleaner with numbered parts and exploded view, including screw base, clip, and housing components.

Technical line drawing of a mechanical assembly with no visible text or symbols

Diagram of a mechanical device with two outlets and a switch, showing an electrical outlet (no text or symbols present)

Technical line drawing of a mechanical device with arrows indicating motion or assembly (no text or symbols)

Diagram of a vacuum cleaner with arrows indicating motion, showing internal components and assembly (no text or symbols)

Diagram showing two mechanical device configurations with arrows indicating movement or assembly (no text or symbols present)

Technical line drawing of a mechanical device with directional arrow indicating motion (no text or symbols)

Diagram showing installation of a wall-mounted electrical outlet with a hand inserting a socket into the wall.

Technical line drawing of a mechanical component with no visible text or symbols

Technical diagram showing two mechanical components with numbered labels indicating parts of each.

Technical line drawing of a mechanical device with an inset close-up showing a component detail (no text or symbols)

Technical line drawing of a mechanical device with an inset close-up showing a component detail (no text or symbols)

Technical line drawing of a mechanical component with no visible text or symbols

Line drawing of a vacuum cleaner with attached circuit symbols (no text or labels)

Technical line drawing of a mechanical device with a lever and handle, showing motion direction (no text or symbols)

Line drawing of a robotic arm with a valve and handle, showing a mechanical assembly (no text or symbols)

Diagram of a robotic arm with a battery and cable, showing a downward arrow indicating mechanical assembly (no text or symbols present)

Hand cleaning a mechanical component with a cloth (no text or symbols visible)

Diagram of a mechanical device pouring liquid into a container with granular material (no text or symbols)

Technical line drawing of a mechanical component with internal flow arrows (no text or symbols)

Diagram of a mechanical component with an arrow indicating direction, showing internal parts and a final assembly (no text or symbols)

Technical illustration of a mechanical component with a magnified inset showing internal structure (no text or symbols)

Diagram of a mechanical component with arrows indicating motion or force direction (no text or symbols)

Diagram of a water pump with directional arrows indicating flow or movement (no text or symbols)

Diagram of a mechanical component with a downward arrow indicating a process or assembly (no text or symbols present)

Technical illustration of a mechanical component with a highlighted section and arrow (no text or symbols)

Technical illustration of a mechanical device with internal components and directional arrows (no text or symbols)

Mechanical assembly diagram showing a belt drive system with pulleys and a gear mechanism (no text or labels)

Technical line drawing of a mechanical assembly with gears and shafts (no text or symbols)

Technical line drawing of a mechanical device with no visible text or symbols

Technical line drawing of a mechanical assembly with no visible text or symbols

Diagram of a mechanical device with two outlets and a switch, showing an electrical outlet (no text or symbols present)

Technical line drawing of a mechanical device with directional arrows indicating movement or assembly (no text or symbols)

Diagram of a vacuum cleaner with arrows indicating motion, showing internal components and assembly (no text or symbols)

Diagram showing two mechanical device configurations with arrows indicating movement or assembly (no text or symbols present)

Technical line drawing of a mechanical device with directional arrow indicating motion (no text or symbols)

Diagram showing installation of a wall-mounted electrical outlet with a hand inserting a socket into the wall.

Technical line drawing of a mechanical component with no visible text or symbols

Technical diagram of a mechanical device with labeled parts 1 and 2, showing assembly or assembly steps.

Technical line drawing of a mechanical assembly with an inset close-up showing a component detail (no text or symbols)

Technical line drawing of a mechanical device with an inset circular detail showing internal components (no text or symbols)

Technical line drawing of a mechanical component with no visible text or symbols

Line drawing of a vacuum cleaner with attached circuit symbols (no text or labels)

Technical line drawing of a mechanical device with a lever and handle, showing no text or symbols

Line drawing of a robotic arm with a cable and adjustment knob, showing no text or symbols

Diagram of a robotic arm with a battery and cable, showing a mechanical assembly (no text or symbols)

Accesoriu pentru spatii inguste

Hand cleaning a mechanical component with a cloth (no text or symbols visible)

Diagram of a mechanical device pouring liquid into a container with granular material (no text or symbols)

Technical line drawing of a mechanical component with internal flow arrows (no text or symbols)

Technical line drawing of a mechanical component with an arrow indicating direction (no text or symbols)

Technical illustration of a mechanical component with a magnified inset showing internal structure (no text or symbols)

Diagram of a mechanical component with arrows indicating direction (no text or symbols)

Diagram of a water pump with directional arrows indicating flow or movement (no text or symbols)

Diagram of a mechanical component with a downward arrow indicating a process or assembly (no text or symbols present)

Technical line drawing of a mechanical component with an arrow indicating direction (no text or symbols)

Technical illustration of a mechanical device with directional arrows indicating motion or flow (no text or symbols)

Mechanical assembly diagram showing a belt drive mechanism with a downward arrow indicating motion (no text or symbols)

Technical line drawing of a mechanical assembly with no visible text or symbols

Technical line drawing of a mechanical device with no visible text or symbols

□ Radiator electric □ □ Convector electric

Model / Serie:

VÂNZĂTOR

Nr. factură:....Data:....

Technical line drawing of a mechanical assembly with no visible text or symbols

Diagram of a mechanical device with two outlets and a switch, showing an electrical connection (no text or symbols)

Diagram of a mechanical device with directional arrows indicating movement or force (no text or symbols present)

Diagram of a vacuum cleaner with arrows indicating motion, showing mechanical components and airflow direction (no text or symbols)

Diagram showing two mechanical device configurations with arrows indicating movement or assembly (no text or symbols present)

Technical line drawing of a mechanical device with directional arrow indicating motion (no text or symbols)

Diagram showing installation of a wall-mounted electrical outlet with a hand inserting a socket into the wall.

Technical line drawing of a mechanical component with no visible text or symbols

Technical diagram of a wind turbine with labeled parts 1 and 2, showing mechanical components and assembly.

Technical line drawing of a mechanical assembly with an inset close-up showing a component detail (no text or symbols)

Technical diagram of a mechanical device with an inset close-up showing a component detail (no text or symbols)

Technical line drawing of a mechanical component with no visible text or symbols

Line drawing of a vacuum cleaner with attached circuit symbols (no text or labels)

Technical line drawing of a mechanical device with a lever and adjustment arrow (no text or symbols)

Line drawing of a robotic arm with a valve and adjustment knob, showing mechanical assembly (no text or symbols)

Diagram of a robotic arm with a battery and cable, showing a downward arrow indicating mechanical assembly (no text or symbols present)

Hand cleaning a mechanical component with a cloth (no text or symbols visible)

Pulire la superficie del corpo con un panno umido.

Diagram of a mechanical device pouring liquid into a container with granular material (no text or symbols)

Technical line drawing of a mechanical component with internal flow arrows (no text or symbols)

Technical illustration of a mechanical component with an arrow indicating direction (no text or symbols present)

Technical illustration of a mechanical component with a magnified inset showing internal structure (no text or symbols)

Diagram of a mechanical component with arrows indicating motion or force direction (no text or symbols)

Diagram of a mechanical device with arrows indicating motion or force direction (no text or symbols)

Diagram of a mechanical component with a downward arrow indicating a process or transformation (no text or symbols present)

Technical line drawing of a mechanical component with an arrow indicating direction (no text or symbols)

Technical line drawing of a mechanical device with internal components and directional arrows (no text or symbols)

Mechanical assembly diagram showing a belt drive mechanism with a downward arrow indicating motion (no text or symbols)

Technical line drawing of a mechanical assembly with no visible text or symbols

Technical line drawing of a mechanical device with no visible text or symbols

Technical line drawing of a mechanical device with no visible text or symbols

Technical illustration of a mechanical clamp or bracket with an arrow pointing to a wall socket (no text or symbols present)

Technical line drawing of a mechanical device with directional arrows indicating movement or assembly (no text or symbols)

Diagram showing a vacuum cleaner with arrows indicating motion, no text or symbols present

Diagram showing two mechanical device configurations with arrows indicating movement or assembly (no text or symbols present)

Technical line drawing of a mechanical device with directional arrow (no text or symbols)

Diagram showing installation of a wall-mounted electrical outlet with a hand inserting a socket into the wall.

Technical line drawing of a mechanical component with no visible text or symbols

Technical diagram showing two mechanical components with numbered labels indicating parts of each.

Technical line drawing of a mechanical assembly with an inset close-up showing a component detail (no text or symbols)

Technical line drawing of a mechanical device with an inset circular detail showing a component (no text or symbols)

Technical line drawing of a mechanical component with no visible text or symbols

Line drawing of a vacuum cleaner with attached circuit symbols (no text or labels)

Technical line drawing of a mechanical device with a lever and handle, showing motion direction (no text or symbols)

Line drawing of a robotic arm with a valve and handle, showing a mechanical assembly (no text or symbols)

Diagram of a robotic arm with a battery and cable, showing a mechanical assembly (no text or symbols)

Hand cleaning a mechanical component with a cloth (no text or symbols visible)

Illustration of a mechanical device pouring liquid into a container with granular material (no text or symbols)

Technical line drawing of a mechanical component with internal flow arrows (no text or symbols)

Technical line drawing of a mechanical component with an arrow indicating direction (no text or symbols)

Technical illustration of a mechanical component with a magnified inset showing internal structure (no text or symbols)

Diagram of a mechanical component with arrows indicating direction (no text or symbols)

Diagram of a mechanical device with arrows indicating motion or force direction (no text or symbols)

Diagram of a mechanical component with a downward arrow indicating a process or transformation (no text or symbols present)

Technical illustration of a mechanical component with an arrow indicating direction (no text or symbols present)

Technical illustration of a mechanical device with directional arrows indicating flow or movement (no text or symbols)

Mechanical assembly diagram showing a belt drive system with pulleys and a gear mechanism (no text or labels)

Technical line drawing of a mechanical device with cylindrical components and mounting holes (no text or symbols)

Technical line drawing of a mechanical device with no visible text or symbols

Technical line drawing of a mechanical assembly with no visible text or symbols

Diagram showing a mechanical device with a power plug and a wall-mounted socket, indicating electrical connection or installation.

Technical line drawing of a mechanical device with directional arrows indicating movement or assembly (no text or symbols)

Diagram showing a vacuum cleaner being inserted into a device, with arrows indicating motion direction (no text or symbols present)

Diagram showing two mechanical assembly states with arrows indicating movement or force direction (no text or symbols)

Technical line drawing of a mechanical device with directional arrow (no text or symbols)

Diagram showing installation of a wall-mounted electrical outlet with a hand inserting a socket into the wall.

Technical line drawing of a mechanical component with no visible text or symbols

Technical diagram showing two mechanical components with numbered labels indicating parts of each.

Technical line drawing of a mechanical assembly with an inset close-up showing a component detail (no text or symbols)

Technical line drawing of a mechanical device with an inset circular detail showing a component (no text or symbols)

Technical line drawing of a mechanical component with no visible text or symbols

Line drawing of a vacuum cleaner with a circuit symbol and warning symbol (no text or labels)

Technical line drawing of a mechanical device with a lever and handle, showing motion direction (no text or symbols)

Line drawing of a robotic arm with a sensor and mechanical component, showing a downward motion arrow (no text or symbols)

Diagram of a robotic arm with a battery and cable, showing a downward arrow indicating mechanical assembly (no text or symbols present)

Hand cleaning a mechanical component with a cloth (no text or symbols visible)

Diagram of a mechanical device pouring liquid into a container with granular material (no text or symbols)

Technical line drawing of a mechanical component with internal flow arrows (no text or symbols)

Diagram of a mechanical component with an arrow indicating direction, showing internal structure and assembly (no text or symbols)

Technical illustration of a mechanical component with a magnified inset showing internal structure (no text or symbols)

Diagram of a mechanical component with arrows indicating direction (no text or symbols)

Diagram of a water pump with directional arrows indicating flow or movement (no text or symbols)

Diagram of a mechanical component with a downward arrow indicating a process or transformation (no text or symbols present)

Technical illustration of a mechanical component with an arrow indicating direction (no text or symbols present)

Technical line drawing of a mechanical device with rotating components and directional arrows (no text or symbols)

Mechanical assembly diagram showing a belt drive mechanism with a downward arrow indicating motion (no text or symbols)

Technical line drawing of a mechanical assembly with no visible text or symbols

Technical line drawing of a mechanical device with no visible text or symbols

Technical line drawing of a mechanical assembly with no visible text or symbols

1- Pričvrstite četiri tipla (18) na zid 2- Postavite četiri vijka (17) na njihova mesta na priključnoj stanici za punjenje (8) i montirajte ih na tiple na zidu.

Diagram of a mechanical device with two outlets and a switch, showing an electrical outlet (no text or symbols present)

Technical line drawing of a mechanical device with directional arrows indicating movement or assembly (no text or symbols)

Gurajte štapić (10) u smeru strelice prema telu pritiskajući dugme za otpuštanje štapića (6).

Diagram of a vacuum cleaner's internal components being processed, showing motion arrows (no text or symbols)

Pritisnite dugme za otpuštanje električne turbo četke (11) koje se nalazi na električnoj turbo četki (12) i pritisnite ga u smeru strelice prema cevi.

Diagram showing a mechanical assembly before and after motion, with no visible text or symbols

Pričvrstite usku mlaznicu (16) i četku (15) na priključnoj stanici za punjenje (8).

Technical line drawing of a mechanical device with directional arrow (no text or symbols)

Diagram showing installation of a wall-mounted electrical outlet with a hand inserting a socket into the wall.

Technical line drawing of a mechanical component with no visible text or symbols

Treperenje belih LED lampica (1) indikatora napunjenosti pokazuje da se uređaj puni.

- Kada sve LED lampice indikatora (1) napunjenosti, to znači da je punjenje uređaja završeno.

Technical diagram showing two mechanical components with numbered labels indicating parts of each.

1- Pritisnite prekidač za otpuštanje uređaja (7) na priključnoj stanici za punjenje (8) nadole i istovremeno povucite uređaj prema sebi.

2- Uklonite aparat sa priključne stanice za punjenje (8).

Technical line drawing of a mechanical device with an inset close-up showing a component detail (no text or symbols)

Technical line drawing of a mechanical device with an inset close-up showing a component detail (no text or symbols)

Da biste prešli na maksimalnu brzinu kada radite na minimalnoj brzini, pritisnite dugme za podešavanje brzine (2).

Da biste prešli na minimalnu brzinu kada radite u maksimalnoj brzini, ponovo pritisnite dugme za podešavanje brzine (2).

4 Rad

Technical line drawing of a mechanical component with no visible text or symbols

Line drawing of a vacuum cleaner with attached circuit symbols (no text or labels)

Technical line drawing of a mechanical device with a lever and handle, showing no text or symbols

Line drawing of a robotic arm with a valve and plug, showing a step-down view (no text or symbols)

Diagram of a robotic arm with a battery and cable, showing a downward arrow indicating mechanical assembly (no text or symbols present)

Hand cleaning a mechanical component with a cloth (no text or symbols visible)

Unutrašnjost uređaja obrišite vlažnom krpom.

Diagram of a mechanical device pouring liquid into a container with granular material (no text or symbols)

Technical line drawing of a mechanical component with internal flow arrows (no text or symbols)

Da biste detaljno očistili filtere, uklonite telo posude za prašinu okretanjem u smeru kazaljke na satu dok lagano povlačite prsten posude za prašinu (4).

Diagram of a mechanical component with an arrow indicating direction, showing internal parts and a final assembly (no text or symbols present)

Technical illustration of a mechanical component with a magnified inset showing internal structure (no text or symbols)

Odvojite EPA E10 i plastični filter jedan od drugog.

Diagram of a mechanical component with arrows indicating direction (no text or symbols)

Diagram of a mechanical component with arrows indicating motion or force direction (no text or symbols)

Uklonite prašinu sa metalnog filtera tapkajući ga o tvrdu površinu kao što je kanta za smeće ili to uradite pomoću četke.

Diagram showing a mechanical component with an arrow indicating downward motion (no text or symbols present)

Pričvrstite EPA E10 filter na plastični filter nazad.

Technical illustration of a mechanical component with an arrow indicating direction (no text or symbols present)

Pričvrstite plastični filter na posudu za prašinu (5).

Technical line drawing of a mechanical device with directional arrows indicating motion (no text or symbols)

Provucite nazubljeni deo posude za prašinu do rupa na telu, a zatim podesite posudu okretanjem suprotno od kazaljke na satu dok ne čujete zvuk klika.

Mechanical assembly diagram showing a belt drive system with pulleys and a gear mechanism (no text or labels)

Pritisnite dugme za otpuštanje roločetke.

Technical line drawing of a mechanical assembly with no visible text or symbols

Technical line drawing of a mechanical device with no visible text or symbols

5.4 Transport i otprema

• Za vreme transporta i otpreme, uređaj nosite u originalnom pakovanju. Ambalaža uređaja ga štiti od fizičkih oštećenja.
• Nemojte stavljati teške predmete na uređaj ili njegovu ambalažu. U suprotnom, uređaj se može oštetiti.
• Ako uređaj padne, uređaj možda neće raditi ili može doći do trajnih oštećenja.

beko

Simple line drawing of a decorative pattern with circular motifs inside a square frame (no text or symbols)

VRT 51225 VB - VRT 50225 VB - VRT 50121 VR

RU

Technical line drawing of a mechanical device with no visible text or symbols

Diagram of a mechanical device with two outlets and a switch, showing an electrical connection (no text or symbols)

Diagram of a robotic arm with directional arrows indicating movement or force (no text or symbols present)

Diagram of a vacuum cleaner's internal components being processed, showing motion arrows (no text or symbols)

Diagram showing two mechanical device configurations with arrows indicating movement or assembly (no text or symbols present)

Technical line drawing of a vertical mechanical device with directional arrow (no text or symbols)

Diagram showing a vertical pipe mounted on a wall with an outlet connected to a wall-mounted power socket (no text or symbols present)

Technical line drawing of a mechanical component with no visible text or symbols

Technical diagram of a mechanical device with labeled parts 1 and 2, showing assembly or assembly steps.

Technical line drawing of a mechanical assembly with an inset close-up showing a component detail (no text or symbols)

Technical line drawing of a mechanical component with an inset circular detail showing internal structure (no text or symbols)

Technical line drawing of a mechanical component with no visible text or symbols

Line drawing of a vacuum cleaner with attached circuit board and warning symbol (no text or labels)

Technical line drawing of a mechanical device with a lever and handle, showing no text or symbols

Line drawing of a robotic device with a handle and cable, showing a step-down view (no text or symbols)

Diagram of a robotic arm with a battery and cable, showing a mechanical assembly (no text or symbols)

Illustration of a hand cleaning a mechanical component with a cloth (no text or symbols)

Diagram of a mechanical device pouring liquid into a container with granular material (no text or symbols)

Technical line drawing of a mechanical component with internal flow arrows (no text or symbols)

Technical line drawing of a mechanical component with an arrow indicating direction (no text or symbols)

Technical illustration of a mechanical component with a magnified inset showing internal structure (no text or symbols)

Diagram of a mechanical component with arrows indicating direction (no text or symbols)

Diagram of a water pump with directional arrows indicating flow or movement (no text or symbols)

Diagram of a mechanical component with a downward arrow indicating a process or assembly (no text or symbols present)

Technical line drawing of a mechanical component with an arrow indicating direction (no text or symbols)

Technical line drawing of a mechanical device with rotating components and directional arrows (no text or symbols)

Mechanical assembly diagram showing a motor and gear mechanism with no visible text or symbols

Technical line drawing of a mechanical assembly with cylindrical components and mounting holes (no text or symbols)

Technical line drawing of a mechanical device with no visible text or symbols

The image contains no legible text or symbols.

Тымфон

Features, Max, Geometric

Technical line drawing of a mechanical assembly with no visible text or symbols

Diagram of a mechanical device with two outlets and a switch, showing an electrical outlet (no text or symbols present)

Technical line drawing of a mechanical device with directional arrows indicating movement or assembly (no text or symbols)

Diagram of a vacuum cleaner's internal components being processed, showing motion arrows (no text or symbols)

Diagram showing a mechanical assembly before and after motion, with no visible text or symbols

Technical line drawing of a mechanical device with directional arrow indicating motion (no text or symbols)

Diagram showing installation of a wall-mounted electrical outlet with a hand inserting a socket into the wall.

Technical line drawing of a mechanical component with no visible text or symbols

Technical diagram showing two mechanical components with numbered labels 1 and 2 indicating parts of a device.

Technical line drawing of a mechanical device with an inset close-up showing internal components (no text or symbols)

Technical line drawing of a mechanical device with an inset close-up showing a component detail (no text or symbols)

Technical line drawing of a mechanical component with no visible text or symbols

Line drawing of a vacuum cleaner with attached circuit symbols (no text or labels)

Technical line drawing of a mechanical device with a lever and handle (no text or symbols)

Line drawing of a robotic arm with a valve and adjustment knob, showing no text or symbols

Hand cleaning a mechanical component with a cloth (no text or symbols visible)

Diagram of a mechanical device pouring liquid into a container with granular material (no text or symbols)

Technical line drawing of a mechanical component with internal flow arrows (no text or symbols)

Technical line drawing of a mechanical component with an arrow indicating direction (no text or symbols)

Technical illustration of a mechanical component with a magnified inset showing internal structure (no text or symbols)

Diagram of a mechanical component with arrows indicating direction (no text or symbols)

Diagram of a water spray gun with arrows indicating airflow direction (no text or symbols)

Diagram of a mechanical component with a downward arrow indicating a process or assembly (no text or symbols present)

Technical illustration of a mechanical component with an arrow indicating direction (no text or symbols present)

Technical line drawing of a mechanical device with no visible text or symbols

Mechanical assembly diagram showing a belt drive system with pulleys and a gear mechanism (no text or labels)

Paina vapautuspainiketta.
rullaharjan

Technical line drawing of a mechanical assembly with no visible text or symbols

Technical line drawing of a mechanical device with no visible text or symbols
