USER MANUAL Oslo 2500 Fuave

Illustration of a white solar power heater with multiple cooling fans and control panel (no text or symbols)

FUAVE Oslo 2500

Oliekachel

including remote control with CR2025 battery

Ölradiator

This device is only suitable for well insulated spaces or occasional use.

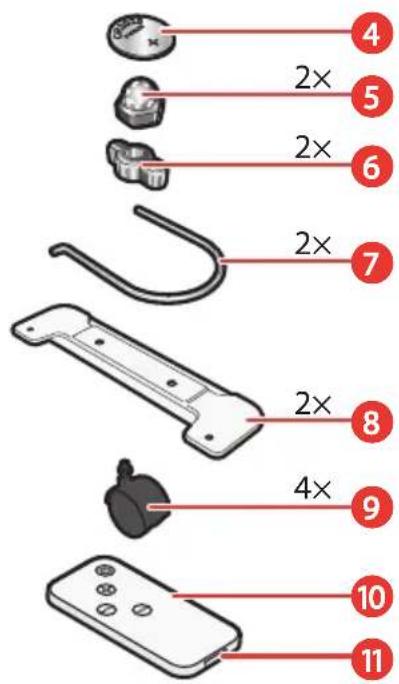

2. INFORMATIE OVER HET APPARAAT

Diagram of a white electronic device with labeled parts including a control panel, indicator lights, and a plug.

4 2× 5 2× 6 2× 7 2× 8 4× 9 10 11

AfbeeldingB

1Kachel
2Handvat
3Voedingskabel
4CR2025batterij
5Dopmoer
6Vleugelmoer

7U-beugel
8Voetstuk
9Zwenkwiel
qAfstandsbediening
wBatterijcompartiment

3.3.Hetapparaatassembleren

LETOP

Diagram illustrating the assembly of a heat exchanger with labeled parts and directional arrows indicating process steps.

AfbeeldingC

7. PROBLEEMOPLOSSING

This user manual contains all information for correct, efficient and safe use of the device.

This user manual is intended for the end user and/or buyer of this device.

Please make sure that you have completely read and understood the instructions in this manual before you install or use the device. Keep this document for future use as long as you are using and/or are in possession of this device.

Coolblue B.V. cannot be held responsible in any way for immaterial damage to you or others, or material damage to the device, your property or the property of others caused by not or not correctly following the instructions in this manual.

You can find the latest version of this user manual on www.coolblue.nl/en when you search for "Fuave Oslo 2500" or "FVODW25W22".

Original instructions

This user manual was originally written in Dutch. All other languages are translated documents. In case of translation errors, the Dutch version shall prevail.

Used symbols

Symbol Description
	Indicates a hazardous situation which, if not avoided, could result in serious immaterial damage to you or others.
	Indicates a hazardous situation which, if not avoided, could result in light immaterial damage to you or others.
	Indicates a situation related to material damage.

Copyright

The data displayed in this manual, including text, photographs, graphic drawings, graphic brands, (trade) names and logos are the property of Coolblue B.V. and are protected by copyright, trademark law and/or any other intellectual property right, unless these data belong to a third party. You are never permitted to reproduce, transfer, distribute, store, or make available to third parties for payment, the contents of this user manual in its entirety or partially without prior written permission from Coolblue B.V. and/or the third party the data belongs to.

TABLE OF CONTENT

1. Safety 28

1.1. Safety symbols and labels on the device 28
1.2. Safety warnings and regulations 28

2. Information about the device 32

2.1. Description of the device 32
2.2. Intended use and foreseeable unintended use 32
2.3. General specifications 33
2.4. Type plate 34

3. Installation 34

3.1. Removing packaging material and checking 34
3.2. Main parts 35
3.3. Assembling the device 36
3.4. Placing the battery in the remote control 37

4. Use 38

4.1. Operating panel 38
4.2. Using the device 38
4.3. Setting the heat settings 39
4.4.Manually setting the temperature 39
4.5. Setting Celsius or Fahrenheit 39
4.6. Setting the timer 40
4.7. After use 40

5. Cleaning and maintenance 41

1. Storage 41
2. Troubleshooting 42
3. Disposal 42
4. Warranty 42

1. SAFETY

1.1. Safety symbols and labels on the device

Symbol Description
	Do not cover the device with clothing or other objects to prevent overheating.

1.2. Safety warnings and regulations

Please make sure that you have completely read and understood the safety instructions, before you install, use or perform maintenance on the device. This will prevent possible material damage and immaterial damage to you or others, the device, your other property or the property of others.

WARNING

Fire hazard due to short circuit:

• Never leave the device unattended when in use. Turn off and unplug the device when you leave the room.
• Never wind the power cable around the device. Completely unwind the power cable before use.
• Do not use extension cords or power strips with this device.
• Before using the device, check that the voltage indicated on the type plate matches the voltage of the wall socket. Connect the device to a grounded wall socket only.
• When inserting the batteries into the remote control, please make sure that the plus (+) and minus (-) marks on the battery match the plus (+) and minus (-) marks on the device.
• Never use a battery that is not designed for use with the remote control.

Fire hazard due to highly flammable materials:

- Never place the device near flammable materials. Please make sure that the distance between the device and flammable materials is a minimum of 1 metre.

Fire hazard due to overheating:

• Never use the device on top of or nearby other heat sources.
  • Never cover the device.
• Do not block the air flow to the air inlets or outlets of the device.
• Never use a timer or separate remote control that turns the device on automatically.

Fire hazard due to instability:

• Always place the device on a flat and stable surface.

Danger of chemical burns from battery acid:

- Always keep batteries out of the reach of children to prevent the risk of swallowing the batteries. Examine the remote control regularly and make sure that the battery compartment is properly secured. Immediately seek medical attention when you suspect that a battery has been swallowed. Do not allow the child to eat or drink and do not induce vomiting if the battery has been swallowed.

• If the battery is leaking, avoid contact with the battery acid.
• In case of contact with the battery acid in the eyes: Rinse the eyes directly with water for a minimum of 10 minutes. Consult a doctor immediately.
• In case of contact with the battery acid with the skin: Rinse the skin directly with water.

Explosion hazard due to heat radiation:

- Never use the device near explosive materials.

Explosion hazard due to flammable materials:

• Do not dispose of the device in the household waste. When disposing of the device, follow the national and local regulations regarding the environmentally friendly disposal of the device.
• Never disassemble, open or shred batteries.

Electrocution hazard due to short circuit:

• Never use the device if a part is damaged or faulty. Replace a damaged or faulty device immediately. Disconnect the power cable from the wall socket and contact customer service.
• Never open the device. The device may only be opened for maintenance by an authorised service technician.
• Never place the device directly under a wall socket. The power cable could touch the heating element, this can cause the plastic insulation to melt.
• Never submerge the device in water or other fluids.
• Never operate the device with wet hands.
• Always place the device on a dry and moisture-resistant surface.
• Never use the device in a damp space, like a bathroom, or nearby a bath, shower or swimming pool.
• Never use the device if the power cable is damaged. The power cable may only be replaced by an authorised service technician.

Danger of suffocation due to lack of oxygen:

• Never allow children to play with the packaging material. Keep the packaging material out of the reach of children.
• Only use the device in a well ventilated space.
• Never use the device in small rooms, where there are persons who are not able to leave the room on their own, unless there is constant supervision.

CAUTION

Tripping hazard due to loose cables:

- Never leave the power cable hanging out in a way that someone might trip over it or accidentally pull it.

Risk of burns from heat:

- Let the device cool down completely and pull the plug out of the wall socket before you clean the device.

- Never touch the hot parts of the device. Only touch the operating panel or wait until the device is cooled down completely.

• Always place the device on a heat-resistant surface.

- Always supervise children when the device is in use to ensure they do not play with the device.

- This device is filled with a precise amount of special oil. Never repair or modify the device yourself. For maintenance please contact the supplier.

QOTICE

Risk of damage to the device:

- Never clean the device with aggressive chemical cleaning agents that could damage the device.

- Never drop the device and avoid bumping it. Excessive vibration may cause loose connections and affect the proper functioning of the device. Never use the device if the device has been dropped.

- Keep the batteries clean and dry. Clean the batteries with a clean dry cloth when the batteries have become dirty.

- Please make sure you have fully assembled the device before using it.

2. INFORMATION ABOUT THE DEVICE

2.1. Description of the device

The Oslo 2500 is an oil heater that is suitable for heating well ventilated spaces. The built-in thermostat measures the current ambient temperature and turns the device off automatically when the set temperature has been reached. When the temperature in the space drops below the set temperature, the device will be turned back on automatically.

2.2. Intended use and foreseeable unintended use

This device is intended for indoor use only.

This device is not intended for use in damp spaces, like a bathroom, or nearby a bath, shower or swimming pool.

This device is intended for use in domestic and similar applications, like:

• staff kitchen areas in shops, offices and other working environments;
• farms;
• use by customers in hotels, motels and other residential areas;
• "bed and breakfast"-like environments.

This device is not meant for use by persons (including children) with limited physical, sensory or mental capacity or with lack of experience and knowledge, unless they are under supervision or received instruciton regarding the use of the device from someone who is responsible for their safety.

Any use of the device other than described in the user manual is considered unintended use and may result in property damage and non-material damage to you or others, the device, your other property or property of others, and may void the warranty.

2.3. General specifications

Article number FVODW25W22
Dimensions (l x w x h) 51 × 23 × 60 cm
Weight 10.4 kg
Power supply CA 220 - 240 V~ 50/60 Hz
Maximum electrical capacity 2500 W
Battery type remote control CR2025
Heat output
- Nominal heat output 2.5 kW
- Minimal heat output 1.0 kW
- Maximum continuous heat output	2.5 kW
Additional electricity consumption
- At nominal heat output 0 kW
- At minimal heat output 0 kW
- In standby mode	0.001 kW
Type heat output/ room temperature control	Two or more manually adjustable stages, no room temperature control

2.4. Type plate

The most important information of the device can also be found on the type plate.

Fuave Oslo 2500 Model Number: FVODW25W22 220-240V~ 50/60Hz 1000/1500/2500 W Fuave is a registered trademark. Weena 664, 3012CN, Rotterdam NL

Image A

3. INSTALLATION

3.1. Removing packaging material and checking

WARNING

Danger of suffocation due to lack of oxygen:

- Never allow children to play with the packaging material. Keep the packaging material out of the reach of children.

1. Remove the packaging material from the device.

NOTE

- Keep the packaging material for storage purposes.

1. Check the contents of the packaging against the image B.

NOTE

- If any parts are missing or damaged, please contact Coolblue.

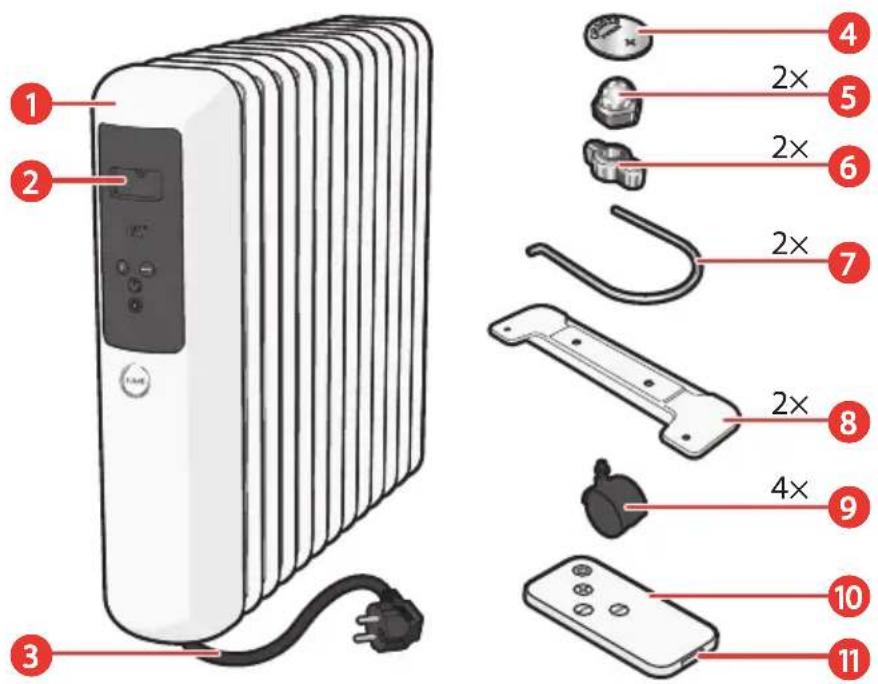

3.2.Mainparts

1 2 3 4 5 2X 6 2X 7 2X 8 4X 9 10 11

ImageB

1Heater
2Handle
3Powercord
4CR2025battery
5Capnut
6Wingnut

7U-shapedbracket
8Base
9Castorwheel
qRemotecontrol
wBatterycompartment

3.3.Assemblingthedevice

NOTICE

Risk of damage to the device:

- Please make sure you have fully assembled the device before using it.

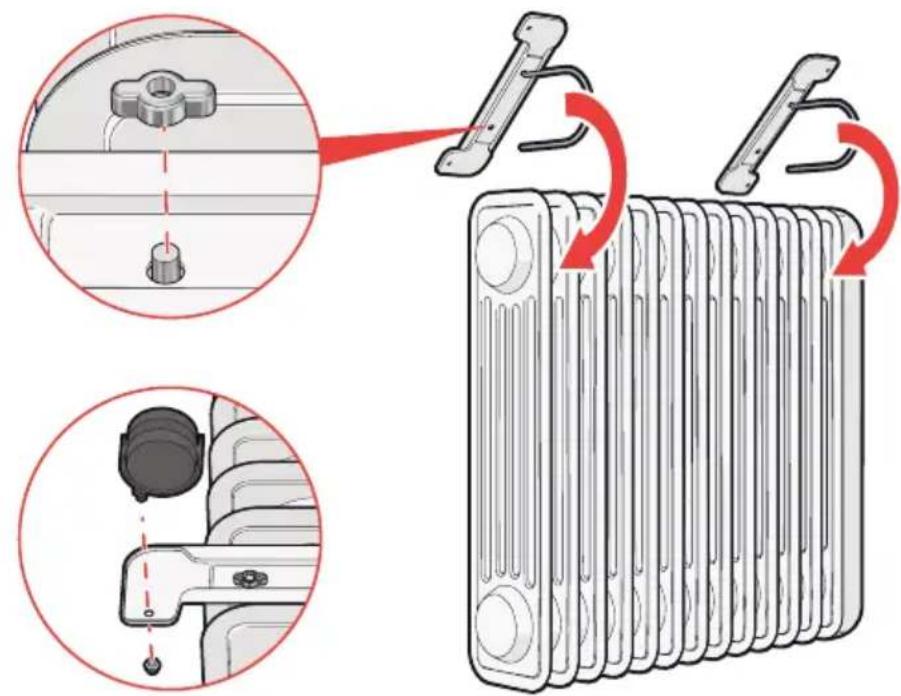

Diagram illustrating the assembly of a heat exchanger with labeled parts and directional arrows indicating process steps.

ImageC

1. Placetheheater 1 upside down on a fl at, stable, surface.

NOTE

- Place a soft cloth under the heater 1 to avoid damage.

1. SlidetheU-shapedbrackets of the bases 8. 7 through one of the inner holes

NOTE

- Please note the orientation of the bases. See image C.

3 .HooktheU-shapedbrackets 7 through the outer bars of the heater.

1. SlidetheU-shapedbrackets 7 through one of the inner holes of the base8.

5 .ScrewtheU-shapedbrackets 7 into the bases8 using a wingnut 6.

1. Placethecastorwheels 9 in the outer holes of the bases8.

2. Screwthecapnuts 5 onto the castors9.

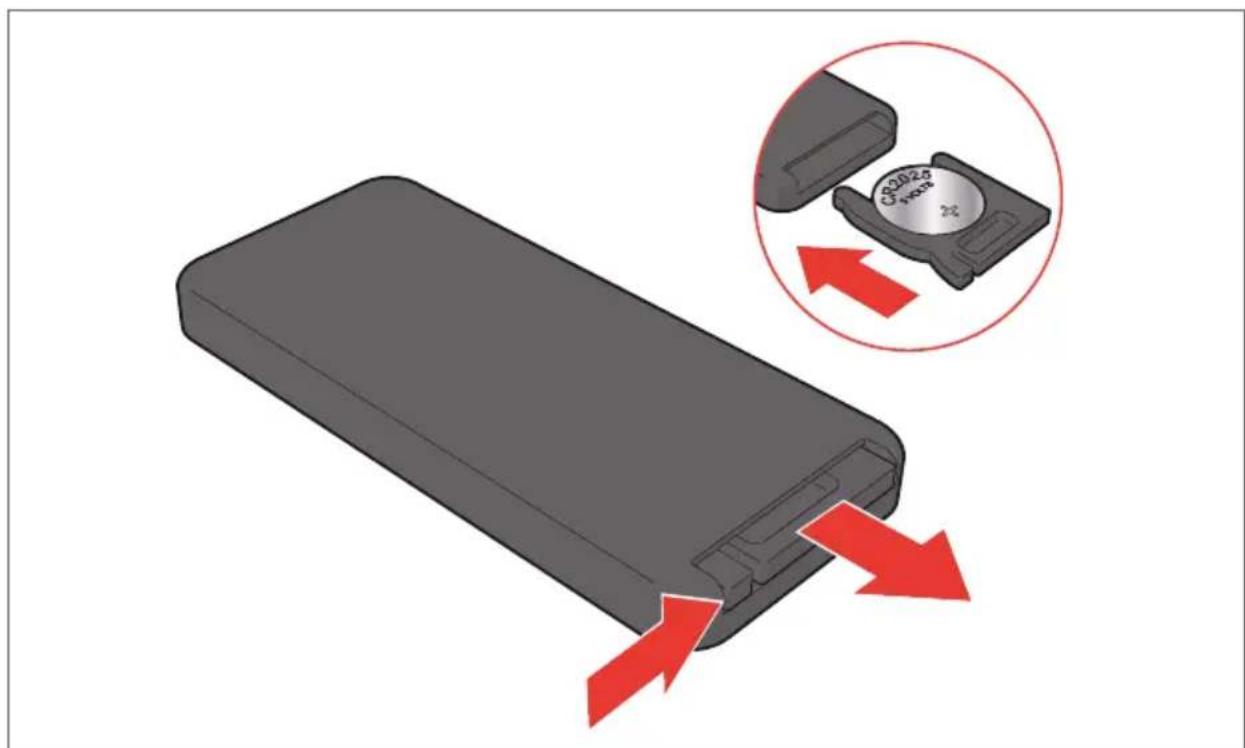

3.4.Placingthebatteryintheremotecontrol

CP402.3 Foors

ImageD

1. Press on the tab of the battery compartment w and pull out the battery compartment w.

2. Place the battery in the battery compartment w with the plus side facing up.

3. Slide the battery compartment w back into the remote control q.

4.USE

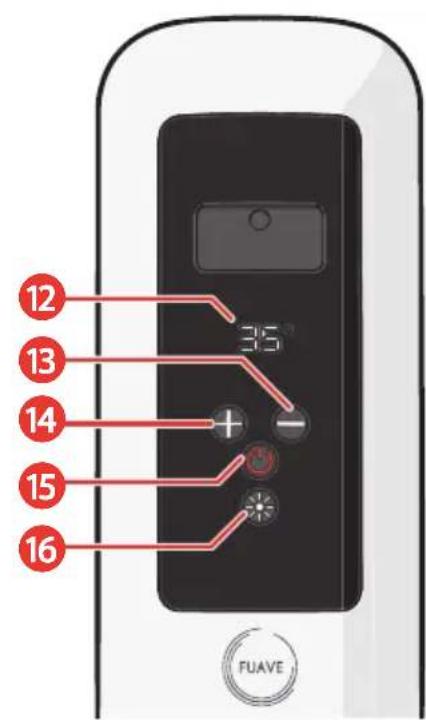

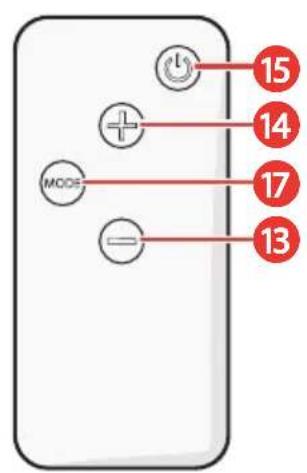

4.1.Operatingpanel

12 35° 13 14 + - 15 16 FUAVE

MODES 15 14 17 13

ImageE

eDisplay

rMinusbutton

tPlusbutton

yOn/Offswitch

uTemperatureindicatorLED

iModebutton

4.2.Usingthedevice

1. Always place the device on a flat, heat and moisture resistant surface.

2. Plug the power cable 3 into a wall socket.

3. Press the on/off switch y to set the device in standby mode. The control panel briefy lights up. An audible signal sounds. Afterwards, only the on/offswitch y remains lit up.

4. Press the on/off switch y again to restart the device. The control panel lights up. An audible signal sounds. The display e fl ashes.

4.3. Setting the heat settings

1. Press the mode button i. The display e flashes.

2. Press the plus button t or the minus button r to select the capacity.

3. P1: 1000 W

4. P2: 1500 W

5. P3: 2500 W

6. Wait 3 seconds. After 3 seconds your choice is confirmed.

4.4. Manually setting the temperature

1. Press the mode button i twice. The display e flashes.

2. Press the plus button t or the minus button r to set the temperature.

NOTE

- The temperature can be set between 10^ - 35^ / 50^ 95^ .

Wait 5 seconds. After 5 seconds your choice is confirmed.

1. The display e indicates the current temperature

NOTE

- The set temperature is reached when the temperature indicator LED u lights up.

4.5. Setting Celsius or Fahrenheit

Hold down the mode button i to switch between Celsius and Fahrenheit.

4.6. Setting the timer

1. Press the mode button i three times.

The display e flashes.

1. Press the plus button t or the minus button r to set the timer time.

NOTE

- The timer time can be set between 1 – 24 hours.

Wait 5 seconds. After 5 seconds your choice is confirmed. The device switches off automatically after the set amount of hours.

NOTE

- The display switches every 5 seconds between displaying the current temperature and the remaining hours of the timer.

- Restart the device to turn off the timer.

4.7. After use

1. Press the on/off switch y to switch off the device.

The operating panel turns off. Only the on-/off switch y remains lit up.

1. Press the on-/off switch y again to completely switch off the device.

2. Let the device cool down.

3. Pull the power cable 3 from the wall socket.

NOTE

- The device remembers the set temperature for the next use.

5. CLEANING AND MAINTENENCE

WARNING

Electrocution hazard due to short circuit

- Never submerge the device in water or other fluids.

CAUTION

Risk of burns from heat:

- Let the device cool down completely and pull the plug out of the wall socket before you clean the device.

NOTICE

Risk of damage to the device:

- Never clean the device with aggressive chemical cleaning agents that could damage the device.

Clean the device once every three months

1. Clean the outside of the device with a soft, damp cloth.
2. Dry all parts with a soft cloth.

6. STORAGE

When you are not using the device, store the device in the original packaging in a dry space.

7. TROUBLESHOOTING

Error code Potential solution

E0 Reset the device.

E1/ E2 An authorised service technician is required to solve the problem. Contact Coolblue.

8. DISPOSAL

This symbol indicates that the device must not be disposed of with other household waste within the EU. By disposing of the device properly, you help to prevent possible dangers to the environment and human health. The recycling of materials contributes to the conservation of natural resources. Therefore, do not dispose of discarded electronic devices with household waste. When disposing of the device, follow the national and local regulations regarding the environmentally friendly disposal of electronic equipment. You can also contact Coolblue when you no longer want to use the device or you can return the device to a Coolblue store of your choice.

9. WARRANTY

The device comes with a warranty period of 2 years after purchase. In order to be entitled to the warranty, you must have the purchase receipt with the date of purchase and/or delivery. For more information on the warranty terms please visit: www.coolblue.nl/en

VORWORT

Diagram of a white electronic device with labeled parts including a control panel, indicator lights, and a plug.

4 2× 5 2× 6 2× 7 2× 8 4× 9 10 11

AbbildungB

Diagram illustrating the assembly of a heat exchanger with labeled parts and directional arrows indicating process steps.

AbbildungC

1 2 3 4 2× 5 2× 6 2× 7 2× 8 4× 9 10 11

ImageB

Diagram illustrating the assembly of a heat exchanger with labeled parts and directional arrows indicating process steps.

ImageC

CD20/2.5 Hertz 2.5

ImageD

Red curved shape on white background (no text or symbols)
