USER MANUAL Helsinki 1500 Fuave

This device is only suitable for well insulated spaces or occasional use.

2. INFORMATIE OVER HET APPARAAT

This user manual contains all information for correct, efficient and safe use of the device.

This user manual is intended for the end user and/or buyer of this device.

Please make sure that you have completely read and understood the instructions in this manual before you install or use the device. Keep this document for future use as long as you are using and/or are in possession of this device.

Coolblue B.V. cannot be held responsible in any way for immaterial damage to you or others, or material damage to the device, your property or the property of others caused by not or not correctly following the instructions in this manual.

You can find the latest version of this user manual on www.coolblue.nl/en when you search for "Fuave Helsinki 1500" or "FVBW15W22".

Original instructions

This user manual was originally written in Dutch. All other languages are translated documents. In case of translation errors, the Dutch version shall prevail.

Used symbols

Symbol Description
! WARNING	Indicates a hazardous situation which, if not avoided, could result in serious immaterial damage to you or others.
CAUTION	Indicates a hazardous situation which, if not avoided, could result in light immaterial damage to you or others.
NOTICE	Indicates a situation related to material damage.
NOTE Indicates useful, additional information.

Copyright

The data displayed in this manual, including text, photographs, graphic drawings, graphic brands, (trade) names and logos are the property of Coolblue B.V. and are protected by copyright, trademark law and/or any other intellectual property right, unless these data belong to a third party. You are never permitted to reproduce, transfer, distribute, store, or make available to third parties for payment, the contents of this user manual in its entirety or partially without prior written permission from Coolblue B.V. and/or the third party the data belongs to.

TABLE OF CONTENT

1. Safety 22

1.1. Safety symbols and labels on the device 22
1.2. Safety warnings and regulations 22

1. Information about the device 25

2.1.Description of the device 25
2.2. Intended use and foreseeable unintended use 25
2.3. General specifications 26
2.4.Type plate 27

3.Use 28

3.1. Removing packaging material and checking 28
3.2. Main parts 29
3.3.Operating panel 30
3.4.Using the device 30
3.5. Tilt protection 31
3.6. Overheating protection 31
3.7.After use 32

1. Cleaning and maintenance 32
2. Storage 33
3. Disposal 33
4. Warranty 33

1. SAFETY

1.1. Safety symbols and labels on the device

Symbol Description

Do not cover the device with clothing or other objects to prevent overheating.

1.2. Safety warnings and regulations

Please make sure that you have completely read and understood the safety instructions, before you install, use or perform maintenance on the device. This will prevent possible material damage and immaterial damage to you or others, the device, your other property or the property of others.

WARNING

Fire hazard due to short circuit:

• Never leave the device unattended when in use. Turn off and unplug the device when you leave the room.
• Never wind the power cable around the device. Completely unwind the power cable before use.
• Do not use extension cords or power strips with this device.
• Before using the device, check that the voltage indicated on the type plate matches the voltage of the wall socket. Connect the device to a grounded wall socket only.

Fire hazard due to highly flammable materials:

• Never place the device near flammable materials. Please make sure that the distance between the device and flammable materials is a minimum of 1 metre.

Fire hazard due to overheating:

• Never use the device on top of or nearby other heat sources.
• Never cover the device.
• Do not block the air flow to the air inlets or outlets of the device.
• Never use a timer or separate remote control that turns the device on automatically.
• Clean the ventilation openings regularly to avoid dust accumulation.

Fire hazard due to instability:

Always place the device on a flat and stable surface.

Explosion hazard due to heat radiation:

• Never use the device near explosive materials.

Electrocution hazard due to short circuit:

• Never use the device if a part is damaged or faulty. Replace a damaged or faulty device immediately. Disconnect the power cable from the wall socket and contact customer service.
• Never open the device. The device may only be opened for maintenance by an authorised service technician.
• Never insert objects into the ventilation openings.
• Never place the device directly under a wall socket. The power cable could touch the heating element, this can cause the plastic insulation to melt.
• Never submerge the device in water or other fluids.
• Never operate the device with wet hands.
• Always place the device on a dry and moisture-resistant surface.
• Never use the device in a damp space, like a bathroom, or nearby a bath, shower or swimming pool.
• Never use the device if the power cable is damaged. The power cable may only be replaced by an authorised service technician.

Danger of suffocation due to lack of oxygen:

• Never allow children to play with the packaging material. Keep the packaging material out of the reach of children.
• Only use the device in a well ventilated space.
• Never use the device in small rooms, where there are persons who are not able to leave the room on their own, unless there is constant supervision.

CAUTION

Tripping hazard due to loose cables:

• Never leave the power cable hanging out in a way that someone might trip over it or accidentally pull it.

Risk of burns from heat:

• Let the device cool down completely and pull the plug out of the wall socket before you clean the device.
• Never touch the hot parts of the device. Only touch the operating panel or wait until the device is cooled down completely.
  Always place the device on a heat-resistant surface.
• Always supervise children when the device is in use to ensure they do not play with the device.

QOTICE

Risk of damage to the device:

• Never clean the device with aggressive chemical cleaning agents that could damage the device.
• Never drop the device and avoid bumping it. Excessive vibration may cause loose connections and affect the proper functioning of the device. Never use the device if the device has been dropped.

2. INFORMATION ABOUT THE DEVICE

2.1. Description of the device

The Helsinki 1500 is a fan heater that is suitable for heating well ventilated spaces. Thanks to the swivel function, the device heats the entire room efficiently and evenly. The built-in thermostat measures the current ambient temperature and turns the device off automatically when the set temperature has been reached. When the temperature in the space drops below the set temperature, the device will be turned back on automatically.

2.2. Intended use and foreseeable unintended use

This device is intended for indoor use only.

This device is not intended for use in damp spaces, like a bathroom, or nearby a bath, shower or swimming pool.

This device is intended for use in domestic and similar applications, like:

• staff kitchen areas in shops, offices and other working environments;
  farms;
• use by customers in hotels, motels and other residential areas;
• "bed and breakfast"-like environments.

This device is not meant for use by persons (including children) with limited physical, sensory or mental capacity or with lack of experience and knowledge, unless they are under supervision or received instruciton regarding the use of the device from someone who is responsible for their safety.

Any use of the device other than described in the user manual is considered unintended use and may result in property damage and non-material damage to you or others, the device, your other property or property of others, and may void the warranty.

2.3. General specifications

Article number FVBW15W22
Dimensions (l x w x h) 23.7 × 17.5 × 12.8 cm
Weight 1.5 kg
Power supply CA 220 - 240 V~ 50/60 Hz
Maximum electrical capacity 1500 W
Sound level 58 - 60 dB
Turning circle/swivel function	90°
Heat output
- Nominal heat output 1.5 kW
- Minimal heat output	0.8 kW
- Maximum continuous heat output	1.5 kW
Additional electricity consumption
- At nominal heat output	0 kW
- At minimal heat output	0 kW
- In standby mode	0.000 kW
Type heat output/ room temperature control	With mechanical control of the room temperature by thermostat

2.4. Type plate

The most important information of the device can also be found on the type plate.

Image A

3. USE

3.1. Removing packaging material and checking

WARNING

Danger of suffocation due to lack of oxygen:

• Never allow children to play with the packaging material. Keep the packaging material out of the reach of children.

• Remove the packaging material from the device.

NOTE

• Keep the packaging material for storage purposes.

• Check the contents of the packaging against the image B.

NOTE

• If any parts are missing or damaged, please contact Coolblue.

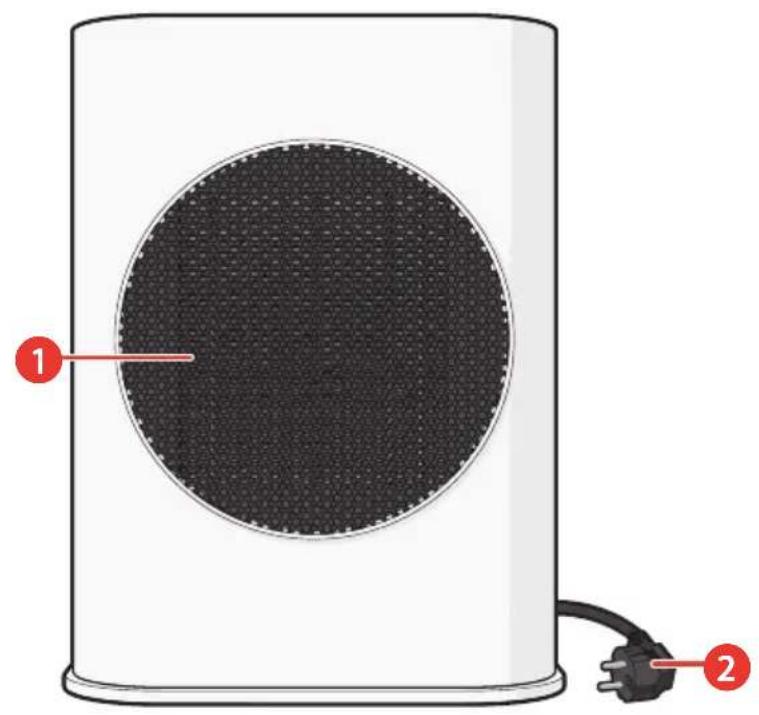

3.2.Mainparts

ImageB

1 Ventilationopening

2Powercord

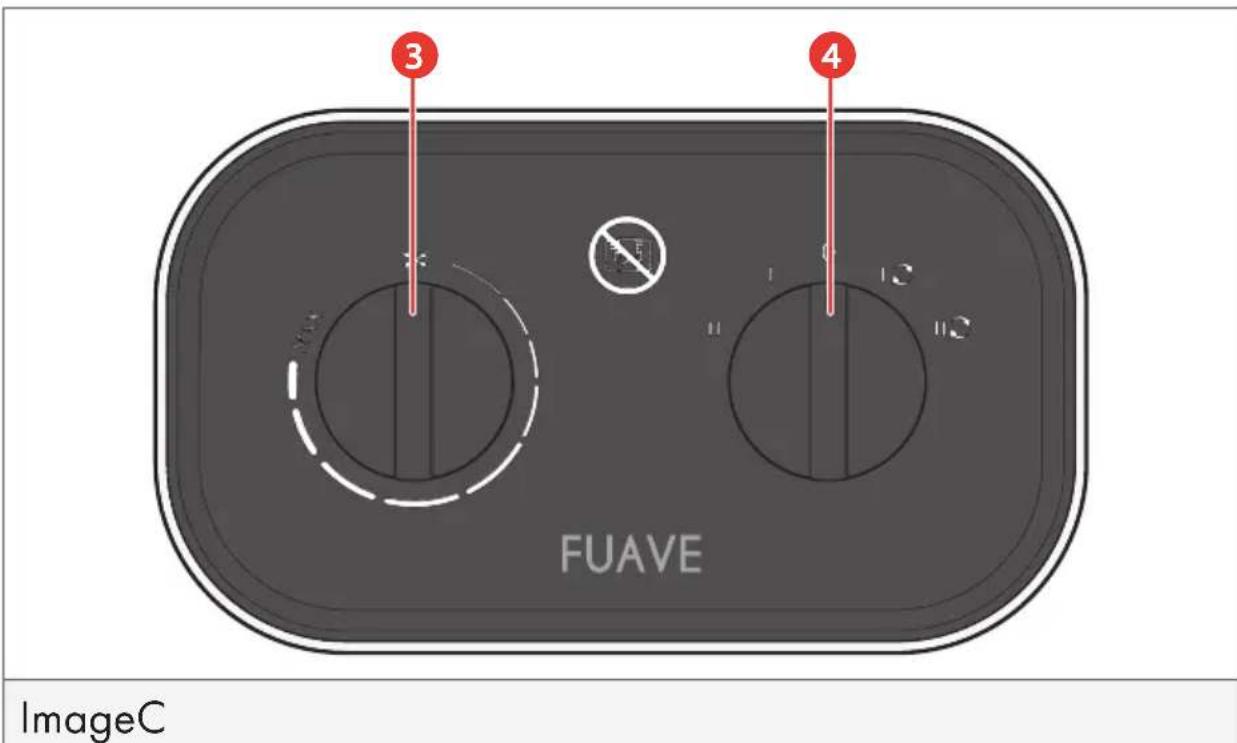

3.3.Operatingpanel

3Thermostatswitch

4Powerswitch

3.4.Usingthedevic

1. Always place the device on a flat, heat and moisture resistant surface.
   2.Plugthepowercable 2 into a wall socket.
2. Turnthepowerswitch 4 to select a heating mode:

Symbol	Description
I	Low heating mode
II	High heating mode
O	Off
IS	Low heating mode with swivel function
IIS	High heating mode with swivel function

4.Turnthethermostatswitch 3 to MAX.

1. When the room temperature feels comfortable, slowly turn the thermostat switch 3 backwards until the device is turned off.

The heating temperature is now set to the current room temperature.

The device will automatically heat the room to the set temperature.

3.5. Tilt protection

This device is secured with tilt protection that automatically switches off the device when the device falls over. When the tilt protection is engaged, the device has to be reset:

1. Turn the power switch 4 to 0.
2. Let the device cool down.
3. Pull the power cable 2 from the wall socket.
4. Remove the cause that made the device fall over.
5. Wait at least 5 minutes before resuming use of the device.

3.6. Overheating protection

This device is secured with overheating protection that automatically switches off the device in case of overheating. When the overheating protection is engaged, the device has to be reset:

1. Turn the power switch 4 to 0.
2. Let the device cool down.
3. Pull the power cable 2 from the wall socket.
4. Remove possible blockades from the ventilation opening 1.
5. Wait at least 20 minutes before resuming use of the device.

3.7. After use

1. Turn the power switch 4 to 0.
2. Let the device cool down.
3. Pull the power cable 2 from the wall socket.

4. CLEANING AND MAINTENENCE

WARNING

Electrocution hazard due to short circuit

• Never submerge the device in water or other fluids.

CAUTION

Risk of burns from heat:

• Let the device cool down completely and pull the plug out of the wall socket before you clean the device.

NOTICE

Risk of damage to the device:

• Never clean the device with aggressive chemical cleaning agents that could damage the device.

Clean the device once every three months

1. Clean the outside of the device with a soft, damp cloth.
2. Dry all parts with a soft cloth.
3. Clean the fan opening 1 with a vacuum cleaner or with a soft, dry cloth.

5. STORAGE

When you are not using the device, store the device in the original packaging in a dry space.

6. DISPOSAL

This symbol indicates that the device must not be disposed of with other household waste within the EU. By disposing of the device properly, you help to prevent possible dangers to the environment and human health. The recycling of materials contributes to the conservation of natural resources. Therefore, do not dispose of discarded electronic devices with household waste.

When disposing of the device, follow the national and local regulations regarding the environmentally friendly disposal of electronic equipment. You can also contact Coolblue when you no longer want to use the device or you can return the device to a Coolblue store of your choice.

7. WARRANTY

The device comes with a warranty period of 2 years after purchase. In order to be entitled to the warranty, you must have the purchase receipt with the date of purchase and/or delivery. For more information on the warranty terms please visit: www.coolblue.nl/en
