DO8146 - Fan DOMO - Free user manual and instructions
Find the device manual for free DO8146 DOMO in PDF.
| Product Type | Pedestal Fan |
| Brand | DOMO |
| Model | DO8146 |
| Power | 50 W (estimated) |
| Speeds | 3 (low, medium, high) |
| Oscillation | Yes, oscillation button |
| Adjustable tilt | Yes, via tilt knob |
| Adjustable height | Yes, telescopic tube with knob |
| Main material | Plastic and metal |
| Dimensions (max height) | 120 cm (estimated) |
| Weight | 3 kg (estimated) |
| Power supply | 220-240 V, 50 Hz |
| Protective grille | Yes, front and rear |
| Warranty | 2 years |
| Cleaning | Damp cloth and mild detergent |
| Spare parts | Available online on Domo website |
| Usage | Household and light commercial |
| Automatic shutdown | No |
Frequently Asked Questions - DO8146 DOMO
User questions about DO8146 DOMO
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Fan in PDF format for free! Find your manual DO8146 - DOMO and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. DO8146 by DOMO.
USER MANUAL DO8146 DOMO

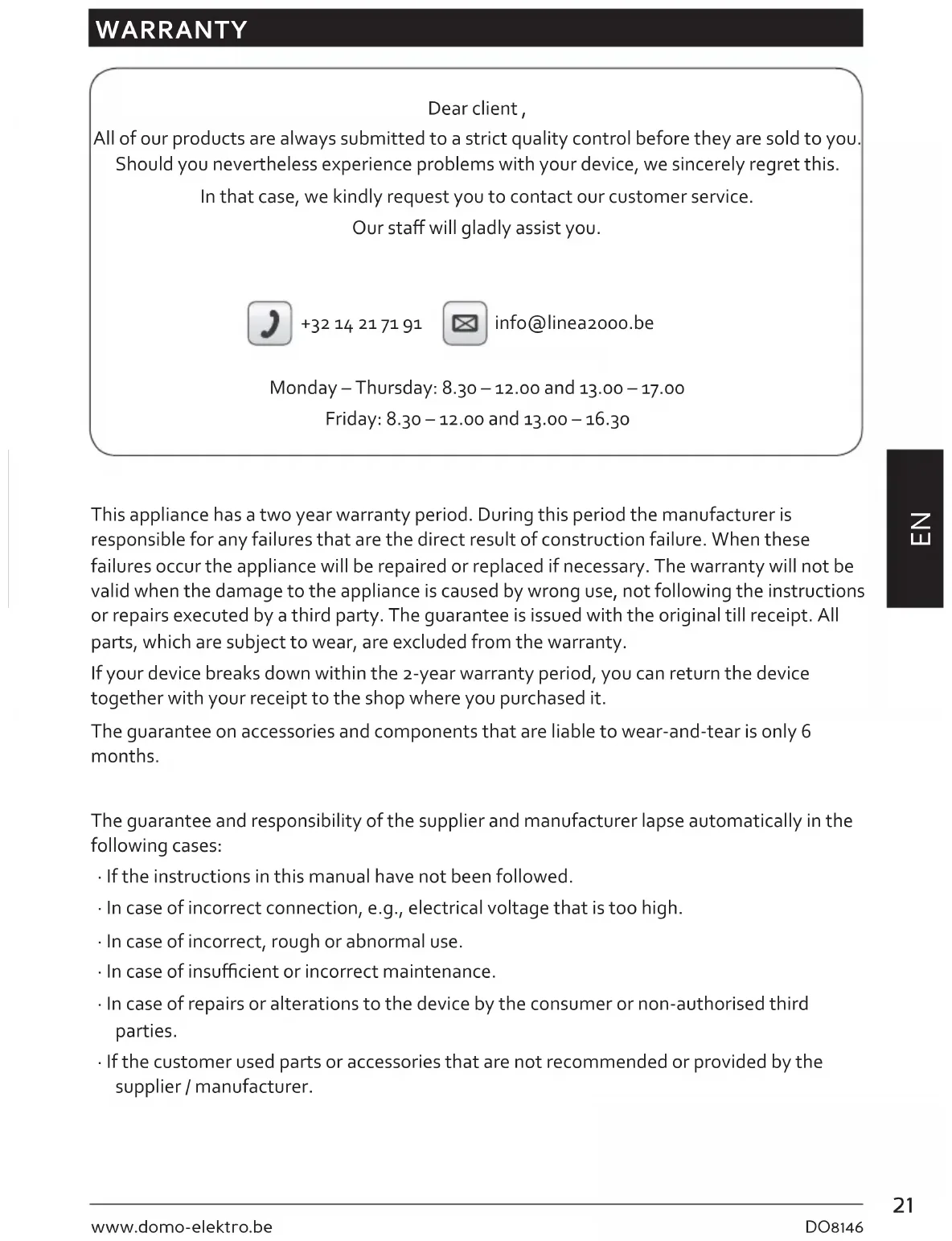

All of our products are always submitted to a strict quality control before they are sold to you. Should you nevertheless experience problems with your device, we sincerely regret this.
In that case, we kindly request you to contact our customer service.
Our staff will gladly assist you.
+3214217191
info@linea2000.be
Monday-Thursday:8.30-12.00 and 13.00-17.00
Friday: 8.30 - 12.00 and 13.00 - 16.30
This appliance has a two year warranty period. During this period the manufacturer is responsible for any failures that are the direct result of construction failure. When these failures occur the appliance will be repaired or replaced if necessary. The warranty will not be valid when the damage to the appliance is caused by wrong use, not following the instructions or repairs executed by a third party. The guarantee is issued with the original till receipt. All parts, which are subject to wear, are excluded from the warranty.
If your device breaks down within the 2-year warranty period, you can return the device together with your receipt to the shop where you purchased it.
The guarantee on accessories and components that are liable to wear-and-tear is only 6 months.
The guarantee and responsibility of the supplier and manufacturer lapse automatically in the following cases:
- If the instructions in this manual have not been followed.
In case of incorrect connection, e.g., electrical voltage that is too high.
In case of incorrect, rough or abnormal use.
In case of insufficient or incorrect maintenance. - In case of repairs or alterations to the device by the consumer or non-authorised third parties.
- If the customer used parts or accessories that are not recommended or provided by the supplier / manufacturer.
SAFETYINSTRUCTIONS
When using electrical appliances, basic safety precautions should always be taken, including the following:
READ ALL INSTRUCTIONS.
- This appliances is intended for use in household environment and commercial purposes such as:
In shops, offices and other similar working environments;
In farm houses;
- By clients in hotels, motels and other residential environments;
- In bed and breakfast type environments.
- This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
Children should be supervised to ensure that they do not play with the appliance. - This appliance can be used by children aged from 16 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.
- The appliance must be disconnected from its power source when not in use, during service and when replacing parts.
- If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
- CAUTION: In order to avoid a hazard this appliance must not be supplied through an external switching device, such as a timer, or connected to a circuit that is regularly switched on and off by the utility.
- Ensure that the fan is switched off from the supply mains before removing the guard.
- Do not operate this appliance with a damaged cord or plug or in the event the appliance malfunctions or has been damaged in any manner. Return the appliance to the DOMO Service Department or its service agent for examination, repair, or electrical or mechanical adjustment.
- To protect against electrical shock or burns, do not immerse unit, cord, or plug in water or other liquid.
- Do not let power cord supply hang over the edge of counter, or touch hot surfaces.
- Do not use this appliance for other than intended use.
- Never leave the appliance unattended while it is functioning.
- Do not place on or near a hot gas or electric burner, or in a heated oven.
- Do not use or store this appliance outdoors.
-
Do not move the appliance while in use.
-
Failure to maintain this appliance in a clean condition could adversely affect the life of the appliance and possibly result in a hazardous situation.
SAVE THESE INSTRUCTIONS.

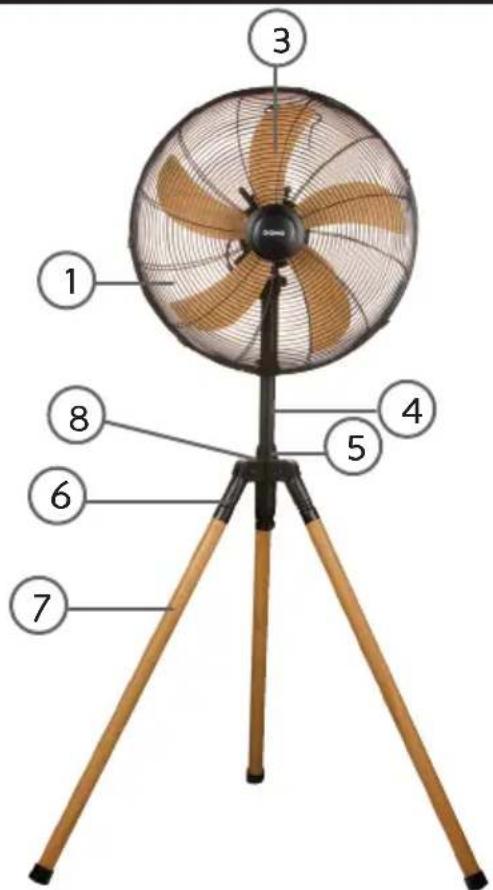

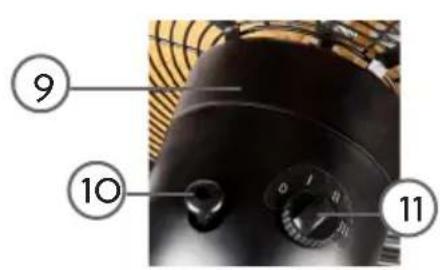

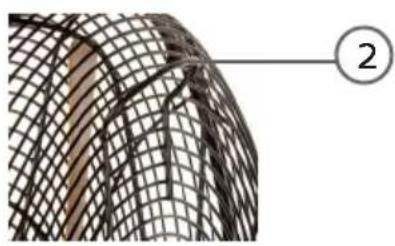

PARTS
- Grill
- Handle
- Fan blades
- Telescopic tube
- Clamp
- Base
- Stand
- Knob for adjusting height
- Motor
- Oscillation button
- Knob for setting speed
- Knob for tilting grill
ASSEMBLY
To assemble the fan, the following steps are recommended:
- Place the extended feet in the base mount.

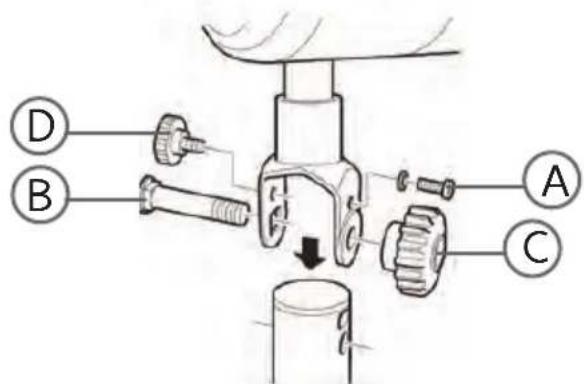

- Place the motor on the base and fasten it with the small grey screw (A) in the opening provided.
- Place the large screw (B) and nut (C) in the openings provided.
- Fasten the small turn screw (D) on the unit.
- To mount the grill, position the back of the grill on the base. Make sure the handle is located at the top. Fasten the back of the grill with 4 small black screws.
- To fasten the fan blades to the fan, turn the protruding pin so that the flat side is up. Fasten the fan blades with a screw.
- Finally, mount the front of the grill on the fan. Make sure that the clip is at the top and the opening for the screw is at the bottom. Position the screw in the opening provided and tighten it with the nut at the back, so that the front and back of the grill fit together correctly. Fasten the halves of the grill together with the clips.
USE
Put the plug in the socket. The button for the speed settings allows you to turn the fan on and off. There are 3 speeds to choose from (low - medium - high). To switch the appliance off again, turn the button back to o.
OSCILLATION
To allow the fan to oscillate, push in the oscillation button. To stop the fan from oscillating, pull the button up. When it is switched on, it will alternately turn to left and right to better spread the air.
DIRECTING THE AIR FLOW
To direct the air flow up or down, loosen the knob for tilting the grill to adjust the direction up or down. Once the fan is pointed in the right direction, tighten the knob again.
ADJUSTING THE HEIGHT
The height of the fan can be adjusted by loosening the knob and lengthening or shortening the telescopic tube. Then tighten the knob again. The blocking ring on the tube ensures that the fan cannot be lowered too far, which would cause the rotation of the fan to be blocked.
CLEANING AND MAINTENANCE
- This fan requires very little maintenance. Never try to repair the fan yourself. If it is defective, have it checked and/or repaired by a qualified person.
- Prior to assembling the fan or cleaning it, remove the plug from the outlet.
- Keep the rear grill free of dust and other substances in order to allow free circulation of the air around the motor. Do not disassemble the fan to remove dust from the motor.
- You may clean the exterior of the machine with a soft moist cloth and a mild detergent. Carefully dry the machine afterwards.
- Never use corrosive or abrasive products to clean the machine.
- Make sure that no water gets into the motor of the machine.
ENVIRONMENTAL GUIDELINES
This symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it must be brought to the applicable collection point for recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product.
The packaging is recyclable. Please treat the packaging ecologically.
GARANTIA
OHLED NA ZÍVOTNÍ PROSTřEDÍ
