Product type	Table fan with base
Brand	Ardes
Model	AR5A50
Power supply	220-240 V ~ 50 Hz
Number of speeds	3 (low, medium, high)
Tilt adjustment	Manual, vertical
Control	Rotary knob (0-3)
Assembly required	Yes, attaching support brackets (L and R)
Intended use	Indoor only
Cleaning	Soft dry cloth; do not immerse
Maintenance	Do not disassemble; no solvents
Storage	Dry place, original packaging if long non-use
Child safety	Do not let children play; cleaning by adult
Warranty	24 months from date of purchase
Disposal	Do not dispose with household waste (WEEE)

Frequently Asked Questions - AR5A50 ARDES

How to assemble the AR5A50 fan?

Turn the fan over on a soft surface. Slide the support brackets marked "L" (left) and "R" (right) onto the main body until they stop. The "FRONT" inscription must face forward. Do not plug in before completing assembly.

How to turn on and choose the speed?

Turn the rotary knob: position 0 to turn off, 1 for low speed, 2 for medium speed, 3 for high speed.

How to tilt the fan head?

Manually tilt the fan head up or down to the desired angle. The movement is manual and vertical.

Can I use the fan outdoors?

No, this fan is designed only for indoor use, away from rain, direct sunlight, and dust.

How to clean the fan?

First unplug the appliance. Use a soft dry cloth for the exterior. Never immerse the fan in water and do not use solvents or chemicals.

What to do if the fan stops working?

First check that the plug is properly inserted and the circuit breaker has not tripped. If the problem persists, do not disassemble the appliance. Contact an authorized service center for repair.

Can I disassemble the fan myself?

No, the fan is not disassemblable. Do not attempt to open the housing or grille. Any unauthorized intervention voids the warranty.

How to store the fan in winter?

Clean it, unplug it, and if possible put it back in its original packaging. Store it in a dry place away from dust.

Is the warranty still valid if I buy second-hand?

The 24-month warranty applies from the original purchase date and requires a receipt. It is not transferable unless the original seller provides the documents.

How to dispose of the fan at end of life?

Do not throw it away with household waste. According to the WEEE directive (2012/19/EU), deposit it at a separate collection center for electrical and electronic waste.

USER MANUAL AR5A50 ARDES

Close-up of a black circular device knob with numbered dial (0–7) and a textured center, no readable text or symbols beyond numbers.

Black industrial fan with a curved blade and mounting base, showing airflow direction (no text or symbols)

Manutenzione

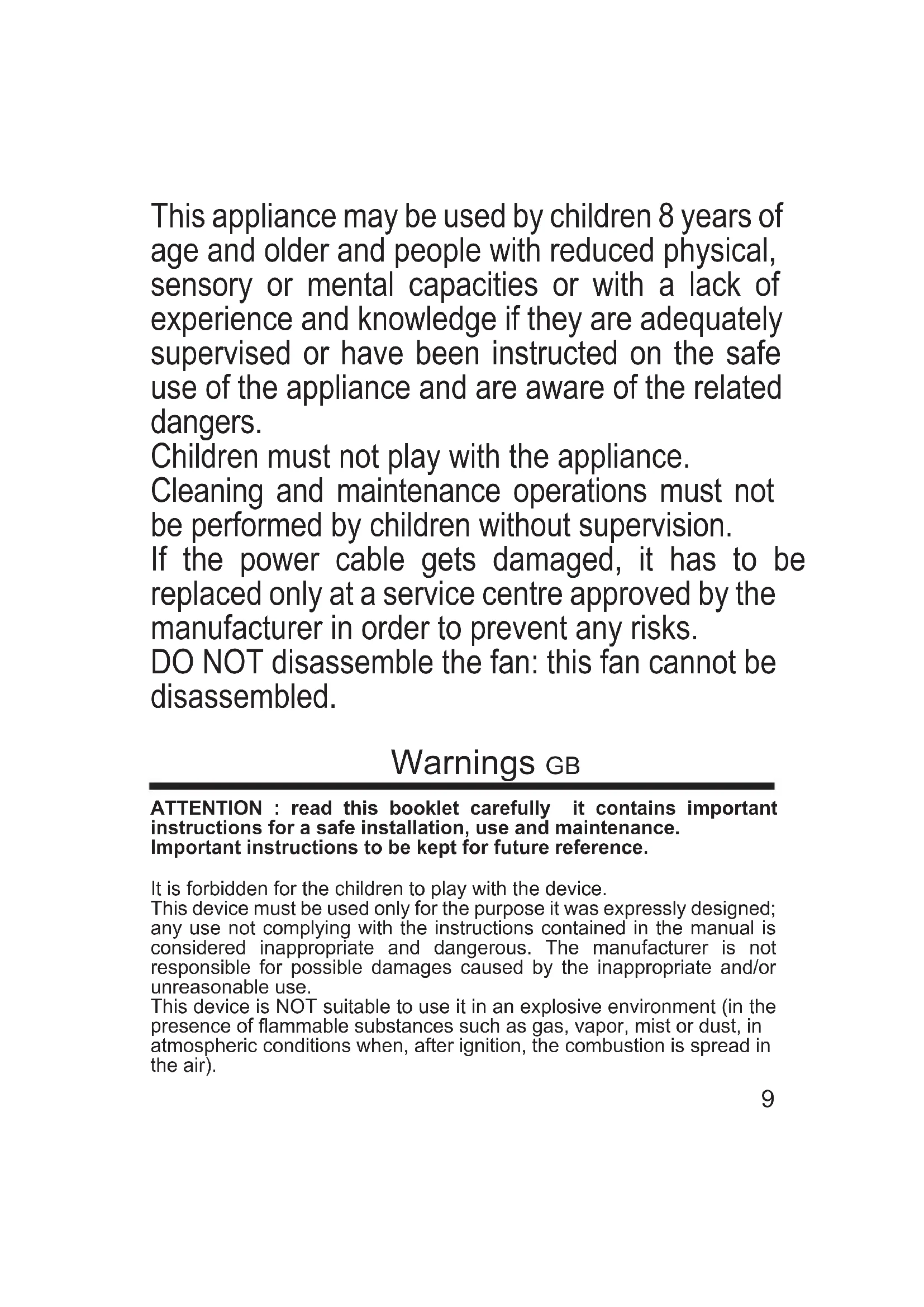

This appliance may be used by children 8 years of age and older and people with reduced physical, sensory or mental capacities or with a lack of experience and knowledge if they are adequately supervised or have been instructed on the safe use of the appliance and are aware of the related dangers.

Children must not play with the appliance.

Cleaning and maintenance operations must not be performed by children without supervision.

If the power cable gets damaged, it has to be replaced only at a service centre approved by the manufacturer in order to prevent any risks.

DO NOT disassemble the fan: this fan cannot be disassembled.

Warnings GB

ATTENTION : read this booklet carefully it contains important instructions for a safe installation, use and maintenance. Important instructions to be kept for future reference.

It is forbidden for the children to play with the device.

This device must be used only for the purpose it was expressly designed; any use not complying with the instructions contained in the manual is considered inappropriate and dangerous. The manufacturer is not responsible for possible damages caused by the inappropriate and/or unreasonable use.

This device is NOT suitable to use it in an explosive environment (in the presence of flammable substances such as gas, vapor, mist or dust, in atmospheric conditions when, after ignition, the combustion is spread in the air).

The packing materials (plastic bags, expanded polystyrene, etc.) must be kept out of the reach of children or disabled persons since they represent potential sources of danger.

The installation/assembly of the device will be made/ or according to the indications of the manufacturer. A wrong procedure may cause damages to persons, animals or objects, for which the manufacturer cannot be considered responsible.

Place and use the device on a horizontal and stable surface.

Before use check the integrity of the device and power cable. In case you are not sure contact a qualified person.

Before powering the device make sure the rating (voltage and frequency) corresponds to the grid and the socket is suitable for the plug of the device.

Make sure the power system is equipped with proper protection according to the law in force.

DO NOT power the device using multiple sockets.

If possible, avoid the use of adapters and/or extension cables; if their use is absolutely necessary, use only materials in compliance with the current safety regulations and according to the electrical parameters of the adapters.

The device must not be switched on using external timers and/or other remote control devices which are not specified in this manual.

DO NOT use or store the device near heat sources (heaters, stoves etc.).

DO NOT dip the device in water or other liquids; in case the accidental fall in the water DO NOT try to take it out, but first of all unplug immediately the power cable from the socket.

If you use the device for the first time, make sure to remove any label or protective sheet which blocks its proper functioning.

Plug and unplug the power cable with dry hands and hold it firmly.

Before plugging make sure the start button of the device is in the "OFF" position (turned off).

Always unplug the power cable to avoid the overheating and avoid stretching it (do not pull it, tug it or use it to drag the device to which is connected).

Avoid placing the power cable on abrasive or sharp surfaces or in positions where it can be damaged easily.

DO NOT obstruct totally nor partially the air vents or inserts objects inside.

During the functioning do not touch the device with wet body parts, and in any case it is recommended to have between you and the standing surface, an isolating element (for example wearing shoes with rubber soles).

During the use the device must be keep at a safety distance from any object and/or flammable or potentially explosive substance.

In case of malfunction or anomalies during the functioning, switch off the device immediately, turn off the power and check the cause of the anomalies, if possible, with the support of a qualified person. Avoid carrying out operations which are not specified in this manual (such as disassembling and/or altering).

Always remember to unplug the power cable of the device if it is not used for a long period, before storing, cleaning or performing any maintenance operation.

Store and use the device only indoor or in any case protected from weathering such as rain, direct radiation of the sun and dust. The device is not design for the external use or storage.

The cleaning and maintenance of the device MUST NOT be done by children without the supervision of an adult.

Before unplugging the device, switch it off, using the proper command on the control panel.

DO NOT hang the fan on the wall or ceiling unless this type of installation is provided and explained in this manual.

Place the device at a proper distance from the objects or surrounding walls making sure that its functioning will not cause accidental damages.

DO NOT use the device near gas stoves or open flames in general.

DO NOT use the device near curtains or textiles.

DO NOT hang the fan on the wall or ceiling unless this type of installation is provided and explained in this manual.

DÔ NOT cover the device during functioning.

DO NOT insert objects or body parts inside the protection grille of the fan.

DO NOT leave the device unsupervised for a long period during functioning.

DO NOT expose yourself for a long period to the air flow generated by the device because it can cause damage to the health.

If the fan must be stored for a long period and is not used regularly, place the fan in its original packaging in a dry place. When you use it for the first time after a long period of inactivity, make sure the fan is clean and the motor blades turn feely (with the device not powered) without any restraint.

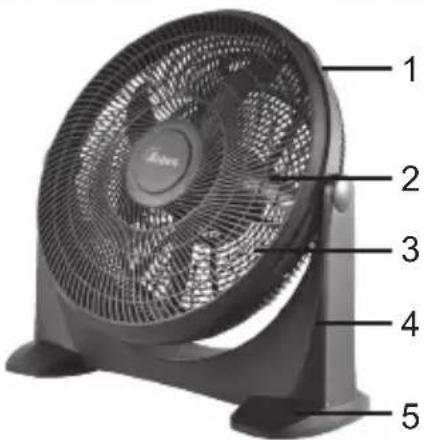

Technical informations

1 - On / Off / Speed knob
2 - Blades
3 - Grid
4 - Main body
5 - Supports

Instructions for use

Support assembly.

Caution! The fan should always be switched off and does not connected to the mains supply, if you mounting the fan.

To fix the supports to the main body:

- set the fan gently on the head. Use a soft surface to not damage the top of the product.

- take care on the indication of the supports: "L" is the left support, "R" is the right support. The "FRONT" indicator with the arrow on both supports indicates the front side;

- slide the supports on the main body.

Pay attention that all the parts are correct and firmly connected with each other.

Caution! Connect to the mains supply only after the fan has been fully assembled. The fan must not be used without supports.

Place the fan on a dry and stable surface, make sure the on/off/speed knob is in off position (0) and insert the plug on the socket.

Turn the on/off/speed knob to select the desired speed:

0 - Off

1: Low speed
2: Middle speed
3: High speed

Close-up of a black circular device knob with numbered dial (0 to 7) and a textured center (no readable text or symbols beyond numbers)

You can vertically point the head of the fan choosing the desired angle manually. It is sufficient to move the front of the fan up or down according to the desired slope.

Close-up of a black desktop fan with a curved top and side-mounted base, showing airflow direction (no text or symbols)

Maintenance

Before carrying out the regular cleaning operations turn off the fan and unplug it.

DO NOT disassemble the fan: this fan cannot be disassembled.

For external cleaning use a soft and dry cloth.

DO NOT dip the device in water, or splash it with any other liquids.

DO NOT use solvents or any other chemical products for cleaning it.

When you do not use it, after cleaning it, store the fan in a dry place.

GUARANTEE

Terms and Conditions

The guarantee is valid for 24 months.

This guarantee applies only if it has been duly filled in and is submitted with the receipt showing the date of purchase.

The guarantee covers the replacement or repair of parts making up the appliance which were faulty at source due to manufacturing faults.

After the guarantee has expired, the appliance will be repaired against payment.

The manufacturer declines any responsibility for damage to persons, animals or property due to misuse of the appliance and failure to observe the directions contained in the instructions.

Limits

All rights under this guarantee and any responsibility on our part will be voided if the appliance has been:

- mishandled by unauthorized persons

- improperly used, stored or transported.

The guarantee does not cover damage to the outward appearance or any other that does not prevent regular operation.

If any faults should be found despite the care taken in selecting the materials and in creating the product, or if any information or advice are required, please contact your local dealer.

DISPOSAL

USER INFORMATION

"Implementation of Directive 2012/19/EU on Waste Electrical and Electronic Equipment (WEEE)", pertaining to reduced use of hazardous substances in electrical and electronic equipment, as well as to waste disposal.

The symbol of the crossed-out wheelie bin on the equipment or on its packaging indicates that the product must be disposed of separately from other waste at the end of its service life.

The user must therefore take the dismissed equipment to suitable separate collection centres for electrical and electronic waste.

For more details, please contact the appropriate local authority.

Suitable segregated collection of the equipment for subsequent recycling, treatment or environmentally-friendly disposal helps prevent damage to the environment and to human health, and encourages the re-use and/or recycling of the materials that make up the equipment.

Abusive disposal of the product by the user shall result in the application of administrative fines in accordance with the laws in force.
