Product Type	Portable Cassette Toilet
Brand	SereneLife
Model	SLCATL520
Fresh Water Tank Capacity	17 liters (4.5 gallons)
Waste Water Tank Capacity	24 liters (6.3 gallons)
Dimensions (L x W x H)	530 x 395 x 480 mm (20.8 x 15.6 x 18.9 inches)
Construction Material	High Density Polyethylene
Flush Type	Manual piston pump (integrated tank) or button flush (with water supply)
Drain Type	Splash-free rotating spout
Waste Tank Level Indicator	Yes (turns red when full)
Ventilation Button	Yes (releases pressure to prevent spills)
Estimated Number of Flushes	Over 120 (with full water tank)
Water Supply Connection	Possible (water inlet at rear)
Winter Use	Only in heated environment; drain completely if freezing
Maintenance	Regular cleaning of flush valve seal; periodic lubrication with silicone spray
Box Contents	Cassette toilet (base model)

Frequently Asked Questions - SLCATL520 SereneLife

How do I flush the toilet?

To flush, operate the piston pump up and down several times. If connected to a water supply, press the orange flush button for a few seconds.

How do I empty the waste water tank?

When the level indicator turns red, pull the removable tank out of the toilet. Press the ventilation button to release pressure, remove the drain spout cap, and empty into a regular toilet or legal disposal site.

What should I do if the level indicator is red?

The red indicator means the waste water tank is full and must be emptied immediately. Do not let the tank become too full to avoid leaks.

How do I use the toilet in winter?

Use the toilet only in a heated location. Otherwise, completely empty the flush water tank by operating the pump until dry, then empty the waste water tank and remove the cap to allow drying.

What product should I use in the waste water tank?

Add 1 camping toilet treatment tablet and 1 liter of water to the tank before use. This helps break down waste and avoid odors.

How do I maintain the toilet?

Regularly clean the flush valve seal and periodically lubricate it with silicone spray or lubricating paste. Rinse the waste water tank after each emptying.

Can I connect a water hose?

Yes, the water inlet at the rear of the toilet can be connected to a water supply system. In that case, use the orange flush button to flush.

Why should I press the ventilation button?

The ventilation button releases air pressure inside the waste water tank before opening the flush valve or emptying. This prevents splashes and spills.

Is the toilet portable?

Yes, it is compact and lightweight with dimensions of 530 x 395 x 480 mm. The removable waste water tank has wheels for easy transport.

What is the flush capacity?

With the 17-liter water tank, the toilet allows over 120 flushes before needing to refill.

USER MANUAL SLCATL520 SereneLife

Exterior view of a modern white rice cooker with open lid and internal compartments (no visible text or symbols)

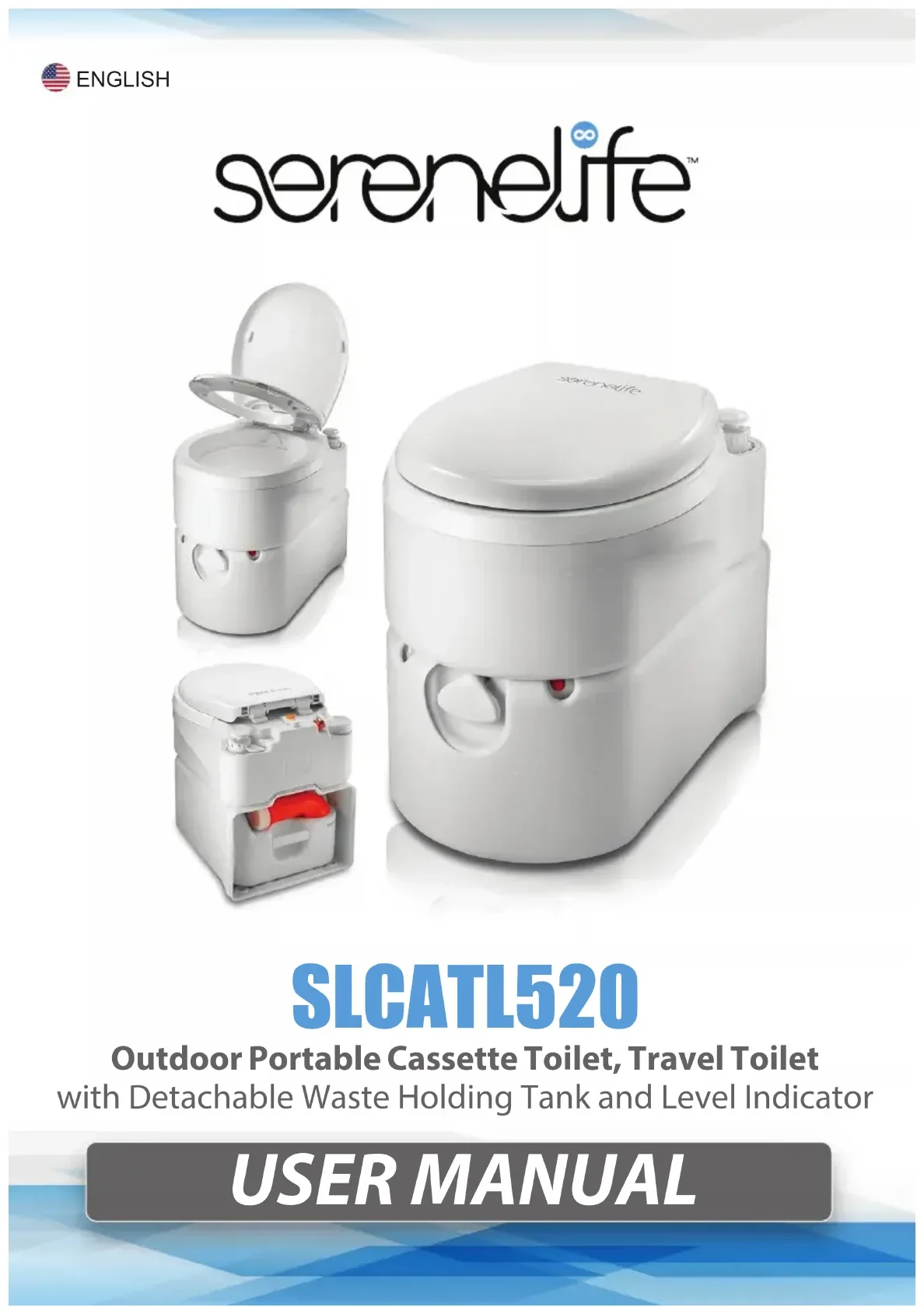

SLCATL520

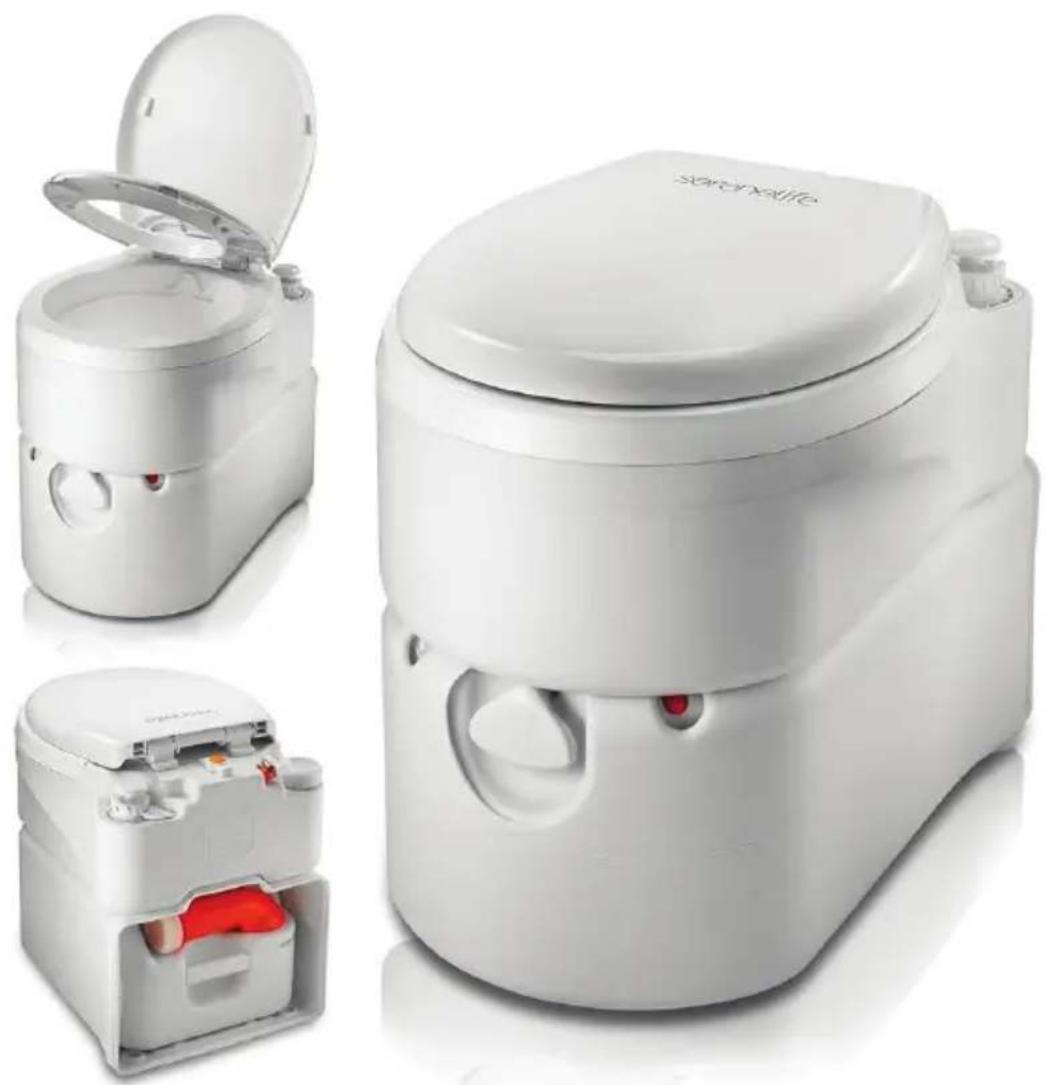

Outdoor Portable Cassette Toilet, Travel Toilet

with Detachable Waste Holding Tank and Level Indicator

USER MANUAL

MAIN FEATURES

- Powerful flush: Improved pressurized T-type 3 way flush flow creates high-speed, full bowl rinsing.

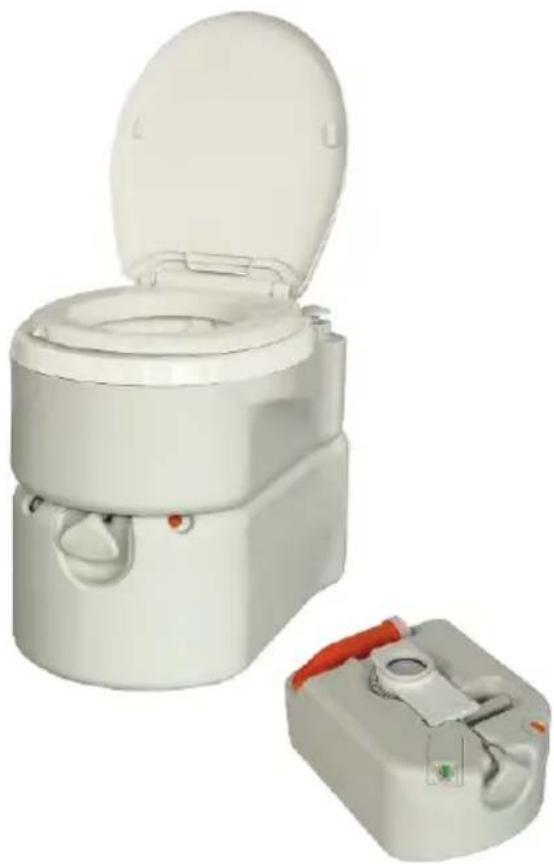

Two flush types available

1. Push button flush: Connect the water inlet of the toilet to a water supply system if available. Flush the toilet by pressing the orange flush button.

2. Manual piston pump flush: Each of our cassette toilet has a built-in 17L flush tank. Through the water fill cap, you can add clean water into the flush tank. To flush the toilet, just move the piston pump up and down several times.

- Scratch-resistant plastic inlay. High gloss finish, easy to clean.

- Removable wheeled waste water tank with level indicator, vent button and emptying spout.

White portable toilet with open lid and side-mounted device (no text or symbols visible)

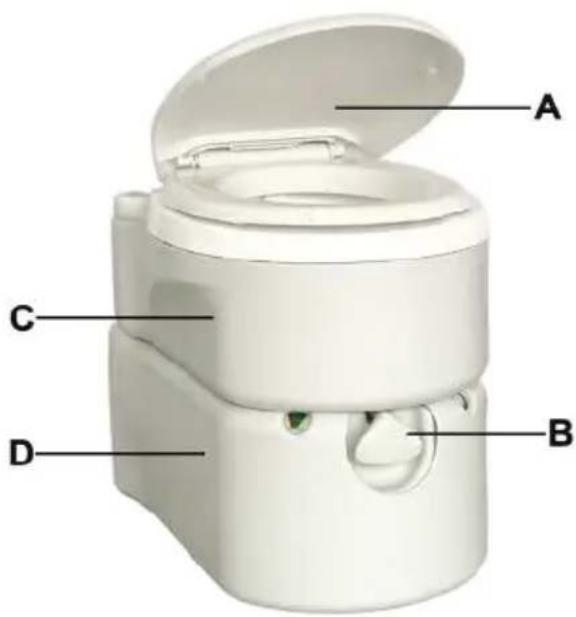

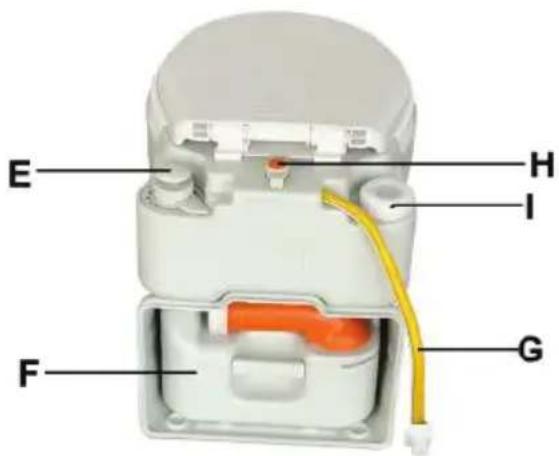

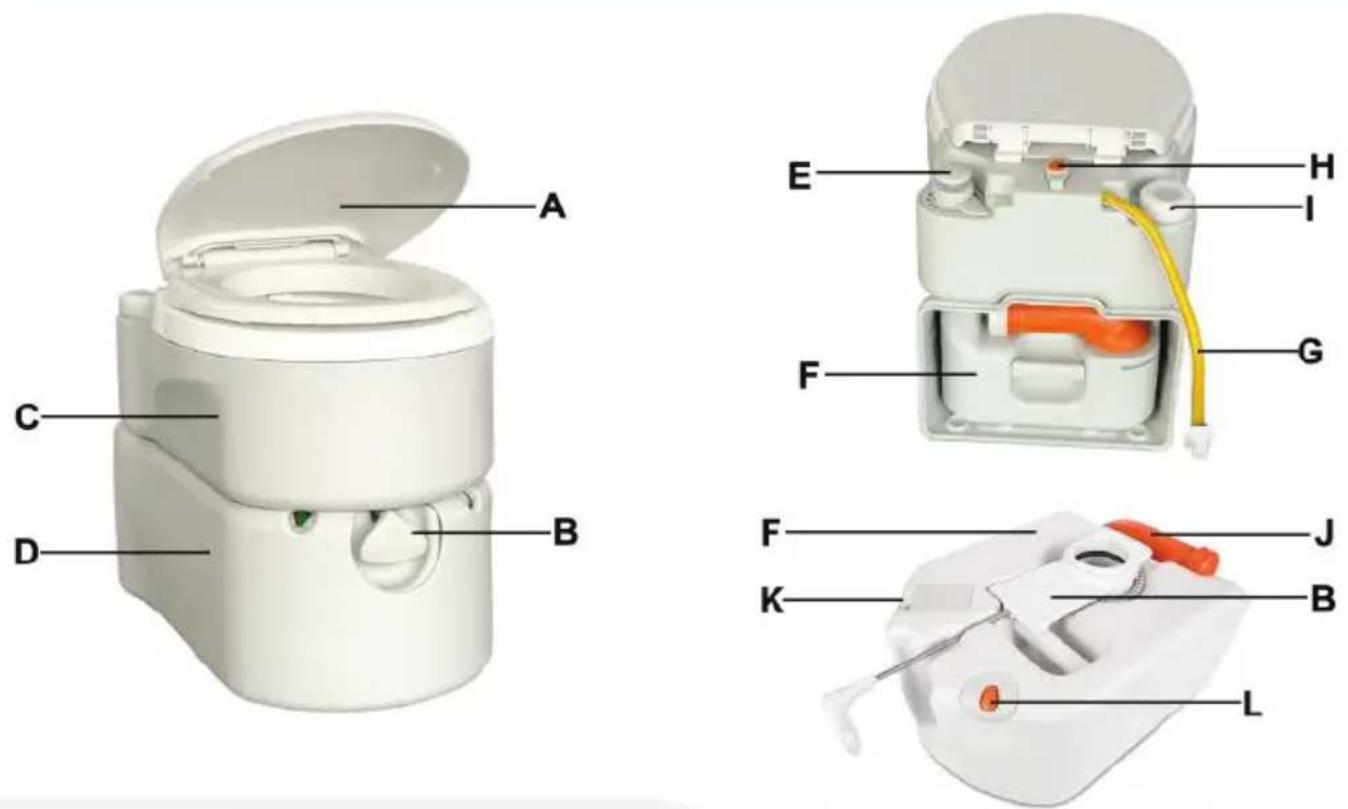

PARTS AND FUNCTIONS

A C D B

E H I F G

F K J B L

A. Seat & lid.
B. Flush valve.
C. Flush water tank.
D. Toilet base

E. Flush piston pump: the toilet flushes when the piston pump is moved up and down (water from the self-contained flush tank, capacity: 17L).

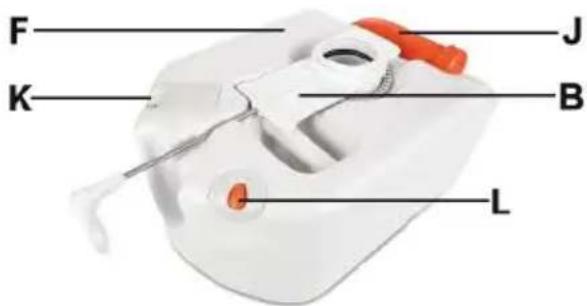

F. Removable waste water tank, capacity: 24L

G. Water inlet (can connect to a water supply system when available)

H. Manual flush button when the toilet is connected to water supply system.

I. Cap of flush water tank.

J. Rotating emptying spout: ensures that the waste tank can be easily and hygienically emptied.

K. Level indicator: when it turns red, the waste tank requires emptying.

L. Vent button: Always press the vent button to release air pressure inside the waste holding tank to avoid waste spills before opening the flush valve. When emptying the waste tank, press the vent button to prevent splashing.

INTRODUCTION

1. Cassette toilet is made up of two parts: a permanently toilet frame and a waste holding tank that is removeable from the back side. The removable waste tank is located under the toilet and can be pulled out for emptying and cleaning.

PREPARING FOR USE

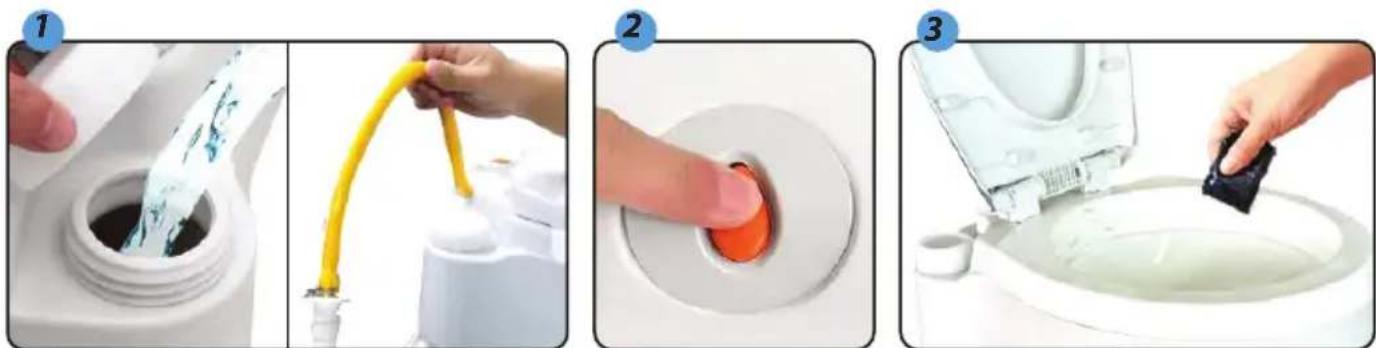

1. Fill the flush tank with clean water or connect the water inlet at the rear of the toilet to a water supply system. (Fig 1)

2. Press the vent button to release air pressure inside the waste holding tank to avoid waste spills before opening the flush valve. (Fig 2)

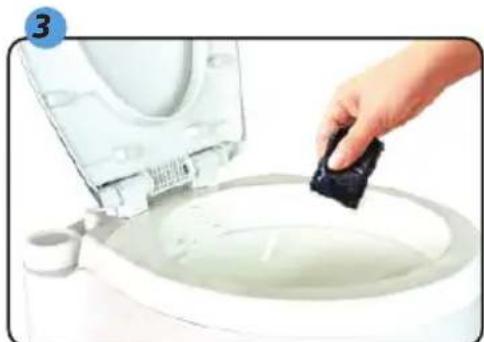

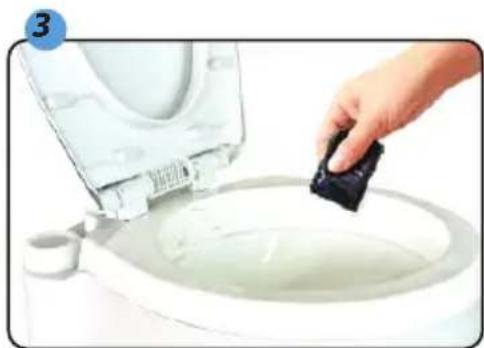

3. Pull out the flush valve. Drop 1 toilet treatment pod & add 1 liter water into the waste holding tank through the opening. (Fig 3)

- Any brand of RV toilet treatment pod is working. It helps to break down waste, avoid unpleasant smells in the waste tank and keeps the inside of the waste tank clean*

USE

1. Pull out the flush valve to use the toilet. (Fig 4)

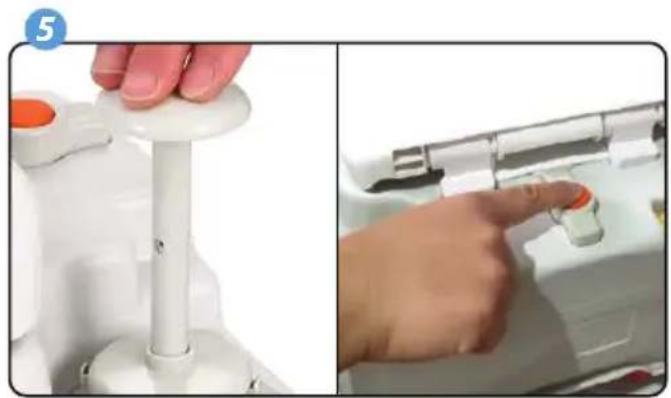

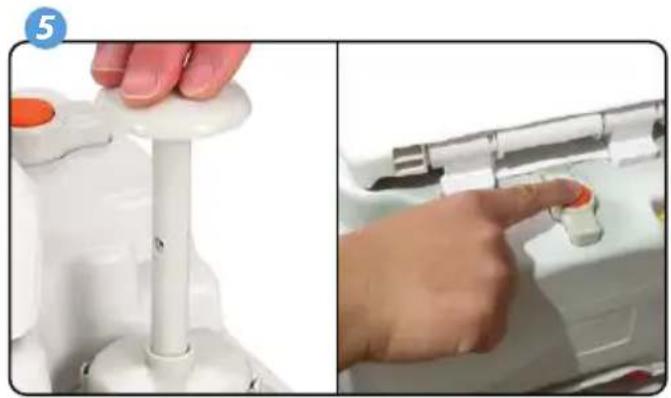

2. After use, flush the toilet by moving the piston pump up and down or by pressing the orange flush button for seconds when water supply is connected. (Fig 5)
3. Close the flush valve after flushing. (Fig 6)

Close-up of a hand holding a white plastic soap dispenser with a handle, partially inserted into a white container (no text or symbols visible)

Two-step photo showing a hand operating a white mechanical device with a handle and a close-up of the button being pushed (no text or symbols visible)

Close-up of a hand pressing a white plastic bag on a white surface (no text or symbols visible)

EMPTYING

The waste holding tank must be emptied when the indicator turns red. It is advisable to empty the waste holding tank earlier.

Note!

Do not allow the waste holding tank to become too full.

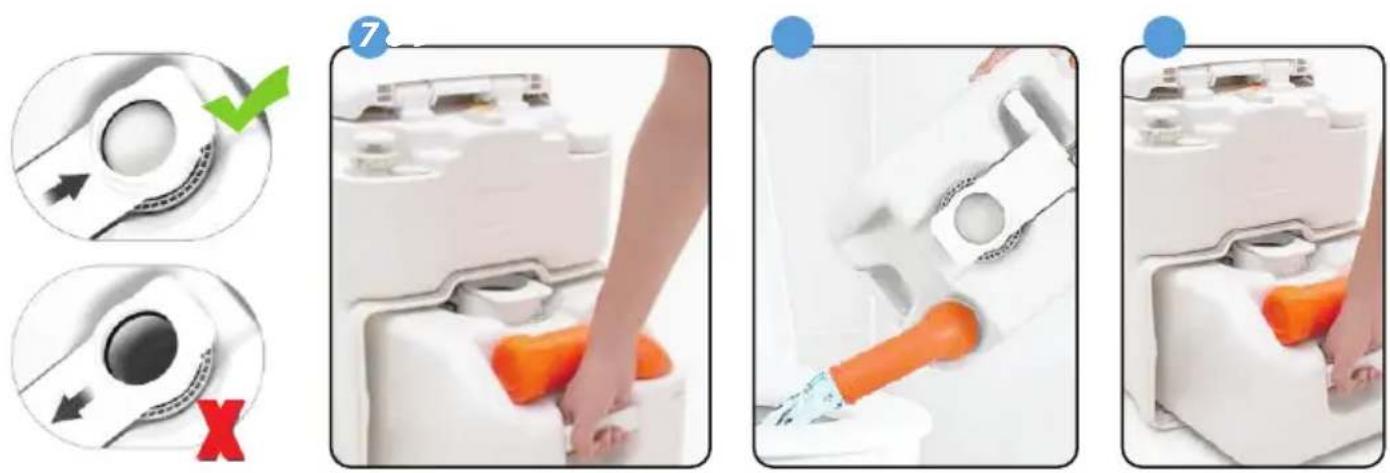

1. Make sure that the flush valve is closed. Pull the waste tank out from the toilet. (Fig 7)
2. Carry the holding tank to a normal toilet or to a legal waste disposal site.
3. Remove the emptying spout cap. Empty the waste. (Fig 8)
4. After emptying, flush the waste holding tank and clean the flush valve thoroughly with water. Slide the waste tank back into the toilet. (Fig 9)

MAINTENANCE

The flush valve seal must be cleaned regularly.

Lubricate the seal periodically with silicone spray or paste lubricant.

WINTER USE AND STORAGE

You can continue to use the cassette toilet in cold weather, as long as the toilet is situated in a heated location. If not, there is a risk of freezing. In this case we advise that the toilet is drained by the following procedures.

1. Empty the flush water tank by moving the flush piston pump up and down or by pressing the flush button. Flush the tank until it is empty and no more water is being pumped out.
2. Empty the waste holding tank. To allow the tank to dry, do not place the cap back on the emptying spout of the waste tank.

FEATURES:

• Compact, Portable & Comfortable
  • Home-like Comfort: Ergonomic Toilet Seat
  • Water-Saving T-type Water Outlet for Full-bowl Flush Coverage
• Flushes and Rinses Bowl with Fresh Water Reserve
• Extra Large Detachable Waste Water Tank with Level Indication & Air Release Vent Button
• Rugged & Durable Construction
  • Corrosion-Resistant & Easy-to-Clean
• Button-Styled Pump Flusher with A Water Supply System to Flush
  • Water Tank Capacity for Up to 120+ Flushes
• Easy Access Waste Tank for Quick Disposal
• Double-Sealed Drain Valve Protects Against Leaks & Odors

WHAT'S IN THE BOX:

- Cassette Toilet

TECHNICAL SPECS:

• Waste Holding Tank Capacity: 6.3 Gallon
• Fresh Water Tank Capacity: 4.5 Gallon
• Flush Pump Type I: Piston Pump with Fresh Water Reserve
• Flush Pump Type II: Button-Styled Pump Flusher with A Water Supply System
  • Empty Type: Rotating No-Splash Pour Spout
• Construction Material: High-Density Polyethylene
• Product Dimensions (L x W x H): 20.8" x 15.6" x 18.9" -inches
