Product Type	Self-contained Portable Toilet
Brand	SereneLife
Model	SLCATL320
Material	High Density Polyethylene
Fresh Water Tank Capacity	10 liters
Waste Tank Capacity	20 liters
Autonomy (number of flushes)	Up to 50 flushes per full water tank
Power Supply	None (manual piston pump)
Flush System	Piston pump with anti-splash rotating nozzle
Drainage	Double-seal drain valve with slide gate
Level Indicator	Yes, for waste tank (turns red)
Dimensions (approx.)	40 x 40 x 45 cm
Weight (approx.)	5 kg
Maintenance	Periodically lubricate the slide gate with silicone spray; clean exterior with mild non-abrasive cleaner
Storage Temperature	Avoid temperatures above 50°C and prolonged sun exposure
Spare Parts	Seat, piston pump, tanks, valve, gaskets, rotating nozzle (all user-replaceable)
Deodorizer Compatibility	All brands (add only to waste tank)
Safety	Do not lean on lid; handle with care; depressurize before opening valve

Frequently Asked Questions - SLCATL320 SereneLife

How to fill the fresh water tank?

Place the toilet upright, remove the cap on the rear right side of the fresh water tank, fill to the top and tighten the cap firmly. Do not add deodorizer to this tank.

How to add deodorizer?

Place the unit on its front, remove the waste tank cap (lower rear), add deodorizer according to package instructions, then screw the cap back on. Avoid contact with the fresh water tank.

How to empty the waste tank?

Ensure the slide gate is fully closed. Separate the tanks by pulling the side latches outward and lift the water tank. Use the handle to carry the waste tank, remove the spout cap, and pour slowly. Rinse with fresh water, close the cap and shake, then empty the rinse water.

When should I empty the waste tank?

Empty the tank when the level indicator turns red or the contents reach about 2 cm below the slide gate.

How to clean the toilet?

Clean the exterior with a mild non-abrasive cleaner. For the interior, rinse the waste tank with clean water after each emptying. Do not use abrasive products or solvents.

How to maintain the slide gate?

Periodically lubricate the slide gate seals with silicone spray or white grease. To remove the valve, unscrew it counterclockwise.

Can I use any deodorizer?

Yes, the unit is compatible with all brands of chemicals and deodorizers for portable toilets. Add them only to the waste tank, never to the fresh water.

How to store the toilet when not in use?

Completely empty both tanks. Press the pump several times to remove residual water. Store away from direct sunlight and temperatures above 50°C.

What if pressure builds up in the tank?

Atmospheric pressure and temperature changes may increase pressure in the lower tank. Be very careful when first opening the slide gate: open slowly to release pressure safely.

How to use the flush pump?

Press the piston pump to add water to the bowl. After use, operate the pump to flush. Then close the slide gate by pushing it fully.

USER MANUAL SLCATL320 SereneLife

Exterior view of a gray portable water filter unit with open lid and red button (no visible text or symbols)

SLCATL320

Portable Toilet

USER MANUAL

ASSEMBLY & CARE INSTRUCTIONS

IMPORTANT

Before using our product, please familiarise yourself with the components.

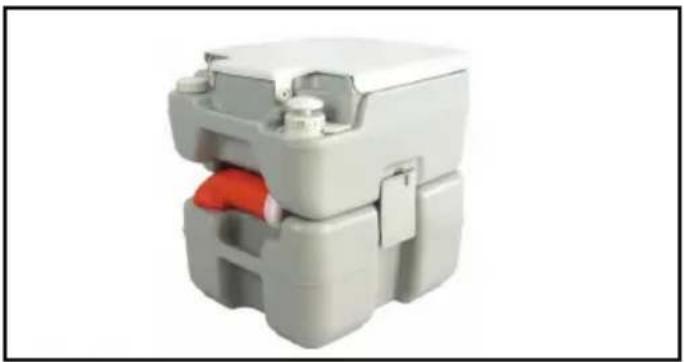

Exterior view of a gray plastic mechanical device with a red handle (no text or symbols visible)

Features:

• High density polyethylene construction.

• Completely self contained.

- No external connections required.

- Secure clamps and latches.

- All parts are easily replaced by end users.

- 20L waste holding tank.

- 10L fresh water tank.

- Easy to carry and clean.

• Adult sized seat and lid are well constructed.

• Always flushes with clean water, no water is re-circulated.

- Completely self-contained. No external water or power connections.

- Fresh water capacity provides up to 50 flushes.

- Attractive matt finish conceals marks, and allows scrubbing without damage.

- Double sealed drain valve protects against leakage and odour.

- Heavy duty, corrosion resistant side latches lock tanks together.

- Detached waste holding tank is easy to empty.

- Both tanks are single piece construction with no leaking seams.

- Waste level indicator tells you when to empty.

- Innovative T-type 3 way flush nozzle ensures a full bowl coverage.

- Upgraded piston pump works more efficiently.

- Selectable bracket can increase the height.

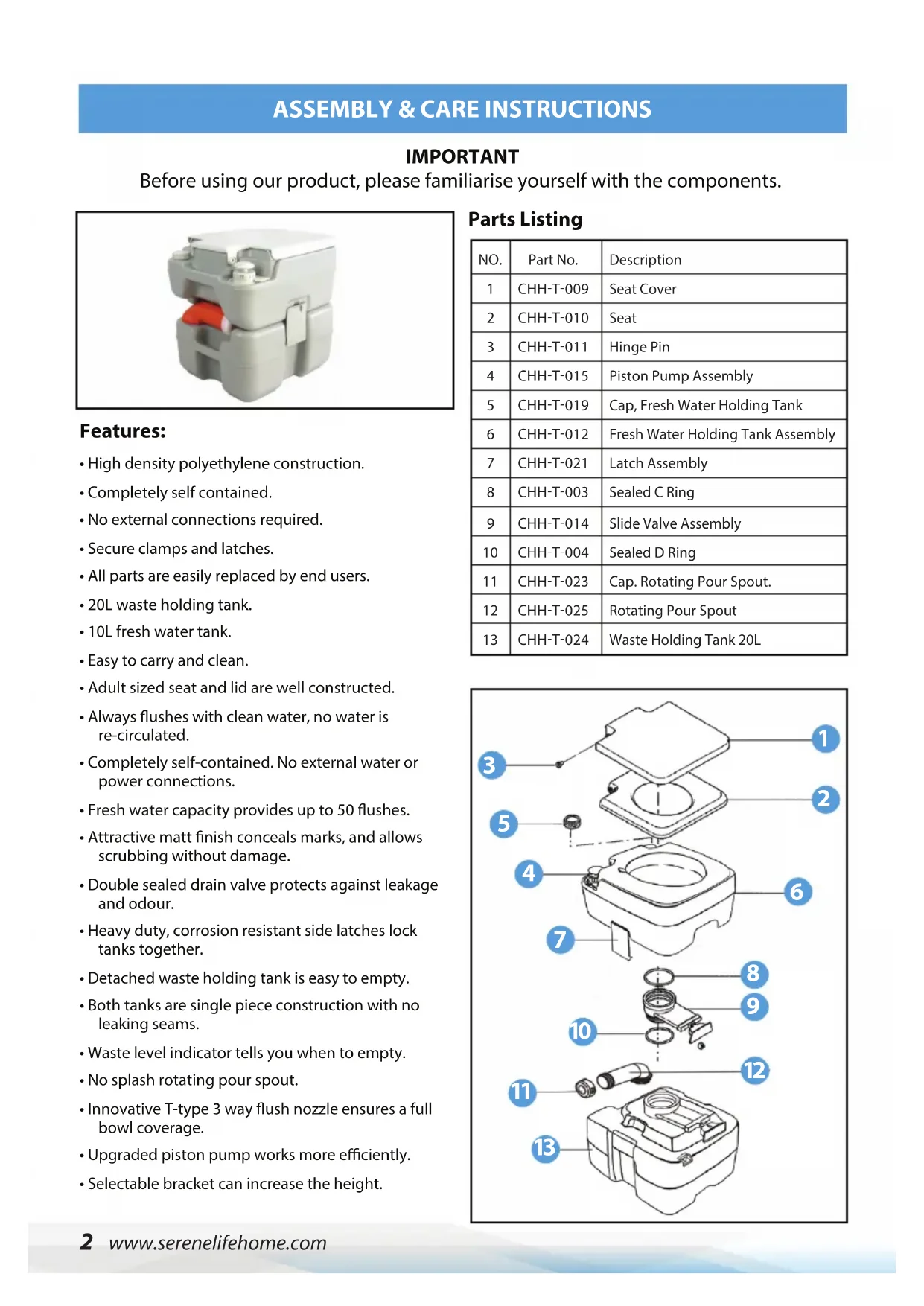

Parts Listing

NO.	Part No.	Description
1	CHH-T-009	Seat Cover
2	CHH-T-010	Seat
3	CHH-T-011	Hinge Pin
4	CHH-T-015	Piston Pump Assembly
5	CHH-T-019	Cap, Fresh Water Holding Tank
6	CHH-T-012	Fresh Water Holding Tank Assembly
7	CHH-T-021	Latch Assembly
8	CHH-T-003	Sealed C Ring
9	CHH-T-014	Slide Valve Assembly
10	CHH-T-004	Sealed D Ring
11	CHH-T-023	Cap. Rotating Pour Spout.
12	CHH-T-025	Rotating Pour Spout
13	CHH-T-024	Waste Holding Tank 20L

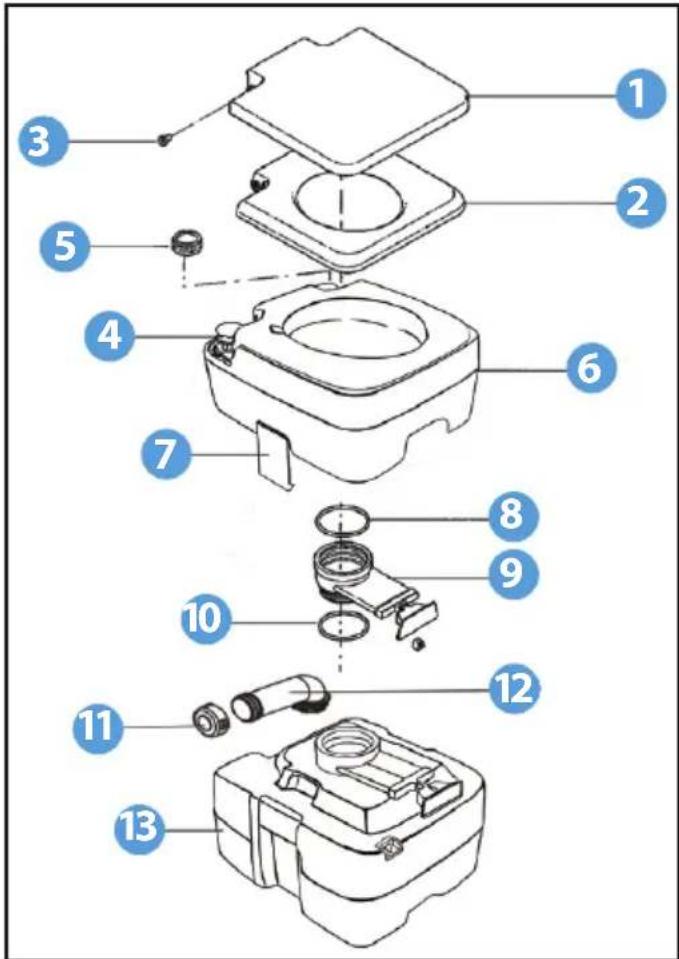

Exploded view diagram of a mechanical assembly with numbered parts for identification

ASSEMBLY & CARE INSTRUCTIONS

PREPARING FOR USE

1. Set the SLCATL320 on its front side so that the cap on the waste holding tank is in a vertical position. Remove the cap and add deodoriser following instructions on the deodoriser container. Tighten the cap firmly.

2. Set the toilet in an upright position and remove the cap located on the right rear side of the fresh water tank. Fill with fresh water up to the top of the fresh water tank. Then tighten the cap firmly.

CAUTION:

A. Do not add deodoriser to top fresh water tank.

B. Avoid adding holding tank deodoriser through bowl. Use cap on the bottom rear tank if possible. Rinse off any spilled or splashed deodoriser immediately.

C. Atmospheric pressure and temperature changes may cause pressure build up in lowerholding tank. Caution should be used when first opening the slide valve.

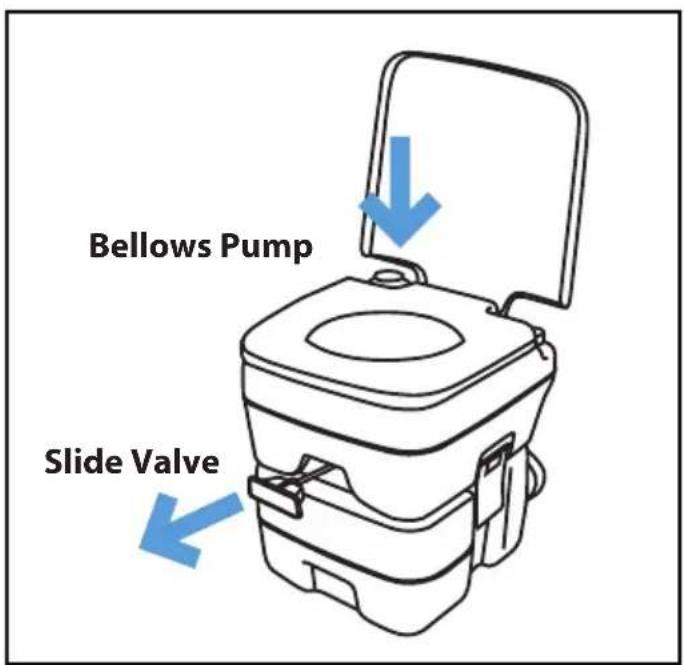

USE AND OPERATION

1. Depress Flush Pump to add water to the bowl.
2. After use, pull Slide Valve handle out.
3. Depress Flush Pump again to rinse the bowl.
4. Close Slide Valve by pushing in fully.

Bellows Pump Slide Valve

EMPTYING WASTE HOLDING TANK

The SLCATL320 has a 20L waste holding tank. It should be emptied when contents reaches approximately 2cm below Slide Valve, or the level indicator turns to red.

1. Separate tanks by pulling outward on side latches, then lifting upward on water tank. Make sure slide valve is completely closed.
2. Use moulded handle to carry the holding tank.
3. Remove pour spout cap while it is pointing upward.
4. To avoid splashing, slowly pour contents out of the tank. Add fresh water, close cap and shake tank to rinse.
5. Remove cap and pour rinse water out of the tank. Close cap firmly and assemble fresh water tank and waste holding tank together again.
6. Prepare for continued use by following steps 1 and 2 of "Preparing for Use".

SAFETY INSTRUCTION

1. Handle with care.
2. Avoid exposure to direct sunlight for extended periods of time.
3. Avoid high temperatures over 50°C.
4. To avoid injury DO NOT lean against lid when being used.
5. Ensure waste tank is cleaned regularly.
6. Suitable for use with any brand of portable toilet chemicals and deodorisers.

MAINTENANCE

1. Lubricate Slide Valve seals periodically with silicone spray or white grease lubricant.
2. The Slide Valve may be removed for cleaning or inspection by simply unscrewing in a counter clockwise direction.
3. Clean exterior of toilet with a mild, non-abrasive bathroom cleaner.

STORAGE

To store our Portable Toilet when not in use:

1. Empty the top tank and waste holding tank.
2. Make sure all water is cleared from the bellows pump by depressing pump several times.
3. Stored away from direct sunlight.

Note: A small amount of water may remain in the top tank but will be harmless during storage.

serenelife™

Questions? Comments?

We are here to help!

(1) 718-535-1800

[e-mail]

serenelife™

Exterior view of a gray portable toilet with open lid and red button (no visible text or symbols)

SLCATL320

Inodoro portátil

MANUAL DEL USUARIO

INSTRUCCIONES DE MONTAJE Y CUIDADO

IMPORTANTE

White plastic electrical connector with red socket (no text or symbols visible)

Características

Exploded view diagram of a mechanical assembly with numbered parts for identification

INSTRUCCIONES DE MONTAJE Y CUIDADO

Note: A small amount of water may remain in the top tank but will be harmless during storage.
