Product type	Portable outdoor toilet
Brand	SereneLife
Model	SLCATL360
Material	High-density polyethylene (HDPE)
Fresh water tank capacity	12 liters (3.2 gallons) – up to 100 flushes
Waste holding tank capacity	22 liters (5.8 gallons)
Flush pump type	Piston pump
Drain spout	Rotating anti-splash
Waste level indicator	Yes (green/red)
Dimensions (L x W x H)	42 x 37 x 43.5 cm
Box contents	Portable toilet, Oxford carrying bag, hand sprayer
Key features	Rugged construction, integrated handles, adult-sized, self-contained (no external connections), matte finish hides marks, double-sealed leak-proof and odor-proof valve, corrosion-resistant side latches, detachable tank, three-way rinsing nozzle, level indicator, rotating anti-splash spout, durable carrying bag
Safety	Do not lean on the lid while in use; avoid prolonged sun exposure; always press the vent button before opening the slide valve to release pressure
Maintenance	Periodically lubricate the slide valve seals with silicone spray; clean the exterior with a mild non-abrasive cleaner
Storage	Empty the top and holding tanks; drain water from the pump by operating it several times; store away from direct sunlight

Frequently Asked Questions - SLCATL360 SereneLife

How to use the SLCATL360 portable toilet?

Fill the fresh water tank with water. Pull the slide valve handle before use (first press the vent button to release pressure). Flush by operating the piston pump 2-3 times, then push the handle back.

What is the fresh water tank capacity?

The fresh water tank has a capacity of 12 liters (3.2 gallons), allowing up to 100 flushes.

How to drain the waste holding tank?

When the level indicator turns from green to red, close the slide valve, disengage the side latches, carry the holding tank to a permanent toilet, remove the cap of the rotating drain spout and empty the contents while pressing the vent button to avoid splashes.

How to clean and maintain the toilet?

Clean the exterior with a mild non-abrasive cleaner. Periodically lubricate the slide valve seals with silicone spray. Rinse the holding tank thoroughly after each emptying.

Does the toilet require external installation?

No, the toilet is completely self-contained: it requires no external water or electrical connections. It operates with a manual pump.

How many flushes can you get with a full tank?

With a 12-liter fresh water tank, you can perform up to 100 flushes, depending on the amount of water used per flush.

How to store the toilet when not in use?

Empty the top tank and holding tank. Ensure all water is drained from the flush pump by pressing it several times. Store it away from direct sunlight.

What to do if the level indicator turns red?

The level indicator turning red means the waste holding tank is full. You must empty the tank as soon as possible by following the emptying procedure.

What are the important safety instructions?

Do not lean on the lid while in use. Avoid prolonged sun exposure. Before opening the slide valve, always press the vent button to release the air pressure inside the holding tank.

What is in the box?

The box contains: the portable toilet, an Oxford carrying bag, and a hand sprayer for hygienic cleaning.

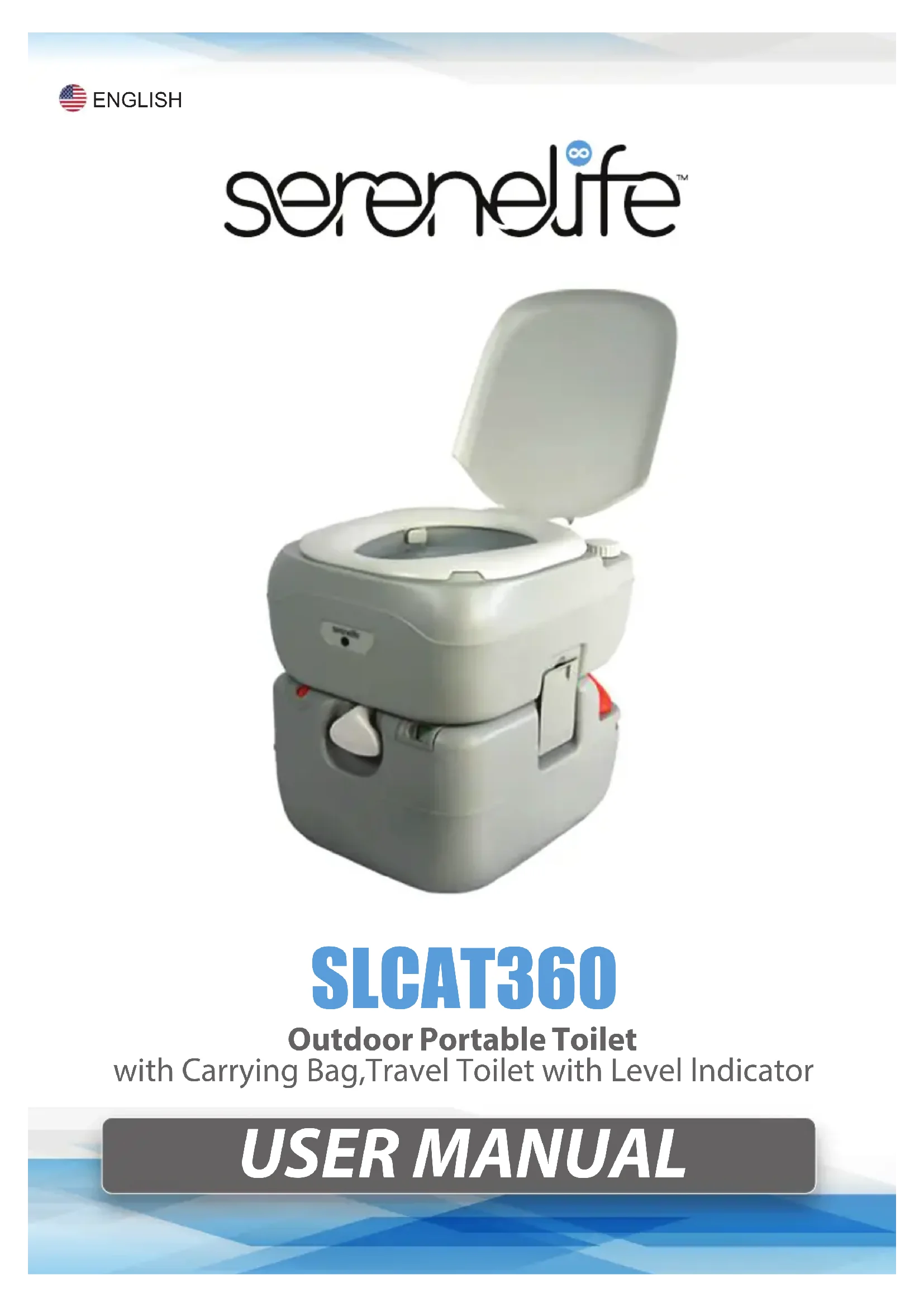

USER MANUAL SLCATL360 SereneLife

Exterior view of a white outdoor water heater with open lid and side panel (no text or symbols visible)

SLCAT360

Outdoor Portable Toilet

with Carrying Bag, Travel Toilet with Level Indicator

USER MANUAL

Introduction

The portable toilet provides simple operation and convenient disposal of waste. Before using your portable toilet, we recommend that you read this manual completely. Become familiar with your portable toilet and its components parts. As with any quality product, proper use and operation eliminates unnecessary maintenance.

Features:

• High-Density Polyethylene Construction
• Built-in Carry Handles for EasyTransport
• Well-Constructed Adult Sized Seat and Lid
• Completely Self-Contained
- No External Water or Power Connections Needed
- Attractive Matte Finish Conceals Marks and Allows Scrubbing without Damage
- Double Sealed Drain Valve Protects Against Leakage and Odor
• Heavy-Duty, Corrosion Resistant Side Latches Lock Tanks Together
• Detached Waste Holding Tank is Easy to Empty
• Enhanced T-type 3 Directional Flush Nozzle Guaranties a Full Bowl Coverage
- Waste Level Indicator tells when to Empty
• Non-Splash Rotating Empty Spout
• Durable carry bag for easy transport & storage
- Useful Toilet Hand Sprayer helps to clean toilet, more hygienic

What's in the Box:

• Portable Toilet
  • Oxford Carrying Bag
• Toilet Hand Sprayer

Technical Specs:

• Waste Holding Tank Capacity: 5.8 Gallon
- Fresh Water Tank Capacity: 3.2 Gallon, up to 100 Flushes
- Flush Pump Type: Piston Pump
- EmptyType: Rotating No-Splash Pour Spout
• Construction Material: High-Density Polyethylene
- Product Dimensions (L x W x H): 16.S"x 14.6"x 17.1"-inches

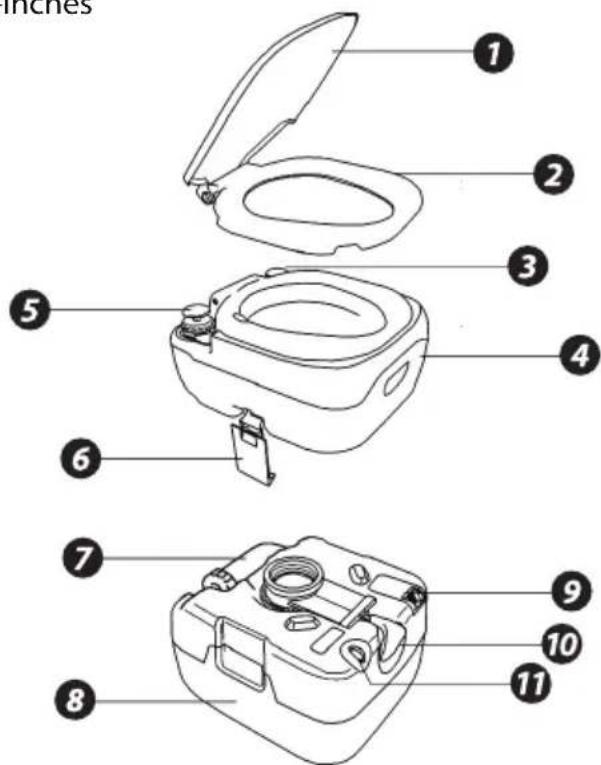

Parts Listing:

	Part No.No.	Description
1	CHH-T-009	Seat Cover
2	CHH-T-010	Seat
3	CHH-T-011	Cap, Fresh Water Holding Tank
4	CHH-T-015	Fresh Water Holding Tank Assembly
5	CHH-T-019	Piston Pump Assembly
6	CHH-T-012	Side Latch Assembly
7	CHH-T-021	Rotating Empty Spout
8	CHH-T-003	Waste Holding Tank: 22L
9	CHH-T-024	Level Indicator
10	CHH-T-004	Slide Valve Assembly
11	CHH-T-023	Vent Button

inches 1 2 3 4 5 6 7 8 9 10 11

Safety Instructions

1. Handle with care.
2. Avoid exposure to direct sunlight for extended periods of time.
3. To avoid injury, DO NOT lean against lid when being used.
4. Ensure waste tank is cleaned regularly.

Maintenance

1. Lubricate Slide Valve seals periodically with silicone spray or white grease lubricant.
2. Clean exterior of toilet with a mild, non-abrasive bathroom cleaner.

Operation/How to use:

Close-up of a hand pouring liquid into a white plastic container (no text or symbols visible)

Hand holding a white plastic bulb inside a container, with no visible text or symbols

Close-up of a hand holding a white plastic bag attached to a white appliance (no text or symbols visible)

Hand holding a white funnel-shaped object with a handle, next to a white container (no text or symbols visible)

1. Fill upper water tank with clean water (Fig.1)
2. Pull out slide valve handle before use. (Fig. 2)
3. Caution: Always press the vent button to release air pressure inside the waste holding tank to avoid waste spills before opening the slide valve.
4. 1. Flush the toilets by depressing piston pump up and down 2 or 3 times. (Fig. 3)
      5.4. After flush, push the handle back in. (Fig. 4)

To empty holding tank:

1. Empty the waste holding tank when the level indicator turns from green to red. (Fig.S)
2. Make sure the slide valve is closed and separate two tanks by disengaging side latches. (Fig.6)
3. Carry holding tank to permanent toilet facility. (Fig.7)
4. Remove the cap of rotating empty spout.
5. Empty contents into permanent toilet (*Press the vent button to avoid splash) (Fig.8)
6. Rinse tank thoroughly. Reassemble unit and prepare for next use.

Close-up of a white funnel-shaped object with a green and red gradient fill, no visible text or symbols

Person using a red bottle to handle a container (no text or symbols visible)

Close-up of a hand holding an orange tool above a white mechanical device with a circular button (no text or symbols visible)

Hand holding a gray handheld device with a red handle, no visible text or symbols

Storage:

To store Portable Toilet when not in use:

1. Empty the top tank and waste holding tank.
2. Make sure all water is cleared from the flush pump by depressing pump several times.
3. Stored away from direct sunlight.

Note: A small amount of water may remain in the top tank but will be harmless during storage.

serenelife™

QR code image containing encoded data, no visible human-readable text

Questions? Comments?

We are here to help!

https://serenelifehome.com/pages/contact-us

serenelife™

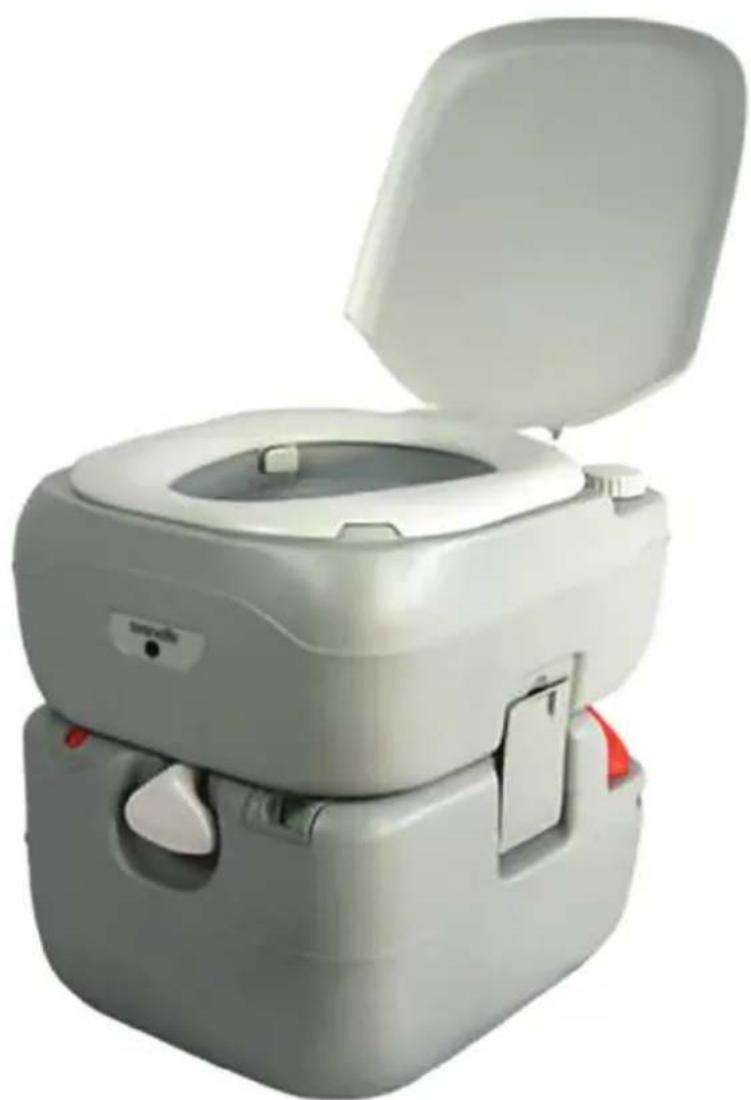

Exterior view of a white outdoor water heater with open lid and side-mounted buttons (no text or symbols visible)
