USER MANUAL XTREME MX1000R Waring Pro

1. Place the box containing your Waring Pro

blender on a at sturdy surface before unpacking.

2. Open corrugated aps.

3. Remove instruction book and any printed materials from top

4. Pull up corrugation and remove. Remove jar and padding.

CAUTION: Sharp blade inside blender jar.

5. Remove corrugated insert. Remove blender base from box

6. Replace all corrugated inserts in the gift box and save the

box for repacking. REPACKING INSTRUCTIONS

1. Place blender on a large, sturdy at surface.

2. Carefully place blender base in bottom of box.

3. Place long corrugated insert over base.

4. Insert blender jar and padding.

5. Close and seal box for shipping.

IMPORTANT SAFEGUARDS When using electrical appliances, basic safety precautions should always be followed including the following:

2. Unplug from outlet when not in use, before putting on or

taking off parts, and before cleaning.

3. To protect against electrical hazards, do not immerse the

blender base in water or other liquid.

4. Do not use carbonated liquids in the blender jar, or any

blending container. Using carbonated liquids in the blender jar or any blending container may result in injury.

5. Close supervision is necessary when any appliance is used by

6. Avoid coming into contact with moving parts.

7. Do not operate any appliance with a damaged cord or plug

or after the appliance malfunctions or is dropped or damaged in any manner. Return appliance to the nearest authorized service facility for examination, repair, or electrical or mechanical adjustment.

8. The use of attachments including canning jars not recommended

by the appliance manufacturer may cause hazards.

9. Do not use outdoors.

11. Keep hands and utensils out of container while blending, to

prevent the possibility of severe personal injury and/or damage to the blender. A rubber scraper may be used, but must be used only when the blender is not running.

12. Blades are sharp. Handle carefully.

13. Always operate blender with lid in place.

14. When blending hot liquids, remove center piece of two-piece lid.

See Hot Blending instructions.

15. The use of ear protection is recommended during extended

16. See Cleaning and Sanitizing instructions for all Waring Pro

Blenders. NOT FOR WATERJET CLEANING.

17. Do not operate your appliance in an appliance garage or under a

wall cabinet. When storing in an appliance garage, always unplug the unit from the electrical outlet. Not doing so could create a risk of re, especially if the appliance touches the walls of the garage or the door touches the unit as it closes.

SAVE THESE INSTRUCTIONS

MX1000R (Model: MXMPBKP6) BLENDER SPECIFICATIONS

• Capacity: 64 oz. working capacity

• Switch Settings: (2 Speeds) Hi Low Pulse

• Speed (RPMs) 30,000 26,000 30,000

• Bearing: High Precision Ball Bearing

• Cord: 6-Foot Three-Conductor Ground Cord With Strain Relief in Base

• Overall Height: 19 inches

• For your protection, this appliance is equipped with a 3-conductor cord set.

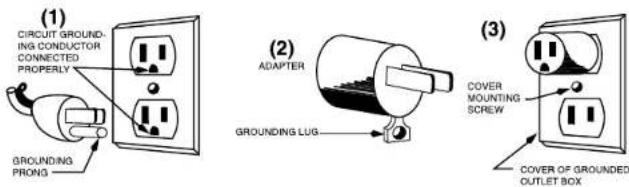

• 120 Volt units are supplied with a molded 3-prong grounding- type plug (NEMA 5-15P) and should be used in combination with a properly connected grounding type outlet as shown in Figure A. If a grounding type outlet is not available, an adapter, as shown in Figure B, may be utilized to enable a 2-slot wall outlet to be used with a 3-prong plug (except in Canada and Europe). As shown in Figure C, the adapter must be grounded by attaching its grounding lug under the screw of the outlet cover plate. Caution: Before using an adapter, you must be sure that the outlet cover plate screw is properly grounded. If in doubt, consult a licensed electrician. Never use an adapter unless you are sure it is properly grounded. Note: Use of an adapter is not permitted in Canada and Europe. Green/Yellow: Earth/Ground. Blue: Neutral. Brown: Live. Note: User-installed cord set plugs are not permitted in Europe. This appliance is for 120 Volts only and should not be used with a converter. MX1000R (Model: MXMPBKP6) OPERATION

1. Before starting, make sure that the

blender is unplugged.

2. With the unit in OFF position, place

container on blender base. Be sure container is fully seated and that drive coupling is properly engaged. Plug blender cord into outlet.

3. Put ingredients into container and

cover it. Do not ll above MAX line.

4. CAUTION: DO NOT use carbonated liquids in the blender

jar or any blending container. Using carbonated liquids in the blender jar or any blending container may result in injury.

5. This blender has 2 speed settings: HI and LOW. Press paddle

switch to desired position. To crush ice quickly, use HI speed setting.

6. When nished blending, set paddle switch to OFF position.

7. This blender is equipped with a pulse option. Hold paddle

switch in the lower position to engage PULSE function. Unit will run on HI speed until the paddle switch is released.

8. Allow motor to come to a complete stop before removing

container from blender base. Never place the container on the motor base or remove it from the motor base while motor is running.

9. Always hold container with one hand when starting and while

blending. Never operate without jar lid.

10. Wash and dry container after each use. See Cleaning and

Sanitizing instructions. IMPORTANT

HOT BLENDING INSTRUCTIONS

To minimize the possibility of being scalded when blending hot materials, the following precautions and procedure must be observed.

• Hot materials are those that are 100°F (38°C) or hotter.

• Limit the amount of materials processed to 1 pint.

• Completely remove the center portion of the two-piece container lid before starting motor (this will allow venting of the rapidly heated and expanding air inside the container when blender is running).

• Always start blending on lowest speed setting, and then progress to desired speed.

• Never stand directly over blender when it is being started or while it is running.6

CLEANING AND SANITIZING INSTRUCTIONS

THE CONTAINER MUST BE CLEANED AND DRIED AFTER EACH USE OF THE BLENDER ACCORDING TO THE FOLLOWING INSTRUCTIONS. FAILURE TO DO SO MAY ALLOW RESIDUES OF PROCESSED MATERIAL TO COLLECT ON THE INTERNAL SEALS OF THE BLADE ASSEMBLY, RENDERING THEM INEFFECTIVE.

• Wash, rinse, sanitize and dry container prior to initial use and whenever it will not be used again within a period of 1 hour.

• Wash and rinse container after each use.

• Clean and sanitize motor base prior to initial use and after each use.

• Washing solutions based on non-sudsing detergents and chlorine-based sanitizing solutions having a minimum chlorine concentration of 100 PPM are recommended. The following washing, rinsing, and sanitizing solutions, or their equivalents, may be used.

SOLUTION PRODUCT DILUTION IN WATER TEMPERATURE

Washing Diversy Wyandotte 4 Tablespoons Hot 115˚F ( 46˚C ) *Diversol® BX/a or CX/A /Gallon Rinsing Plain Water Warm 95˚F (35˚C) Sanitizing **Clorox® 1 Tablespoon/Gallon Cold 50-70˚F Institutional Bleach ( 10-21˚C) *Diversol is a registered trademark owned by the Diversey Wyandotte Corp.**Clorox is a registered trademark owned by the Clorox Company.

• In repetitive batch-processing applications, frequent cleaning of the container will prolong the life of the blade assembly. In no case should actual running time between cleanings exceed ½ hour.

• Do not use container to store processed foods or beverages. To wash and rinse container:

1. REMOVE CONTAINER FROM MOTOR BASE. Remove lid.

Rinse container interior and lid under running water. Add washing solution to container. Scrub and ush out the container interior and lid to dislodge and remove as much food residue as possible. Empty container. IMPORTANT NOTE: IN ORDER TO MINIMIZE POSSIBILITY OF SCALDING, TEMPERATURE OF WASHING SOLUTION AND RINSE WATER MUST NOT EXCEED 115˚F (46˚C), AND QUANTITY USED MUST NOT EXCEED ¼-CONTAINER FULL. IF HIGHER TEMPERATURES OR LARGER QUANTITIES ARE USED, OBSERVE ALL PRECAUTIONS GIVEN IN THE OPERATING

MANUAL UNDER “HOT BLENDING INSTRUCTIONS.”

To sanitize and dry container:

1. Wipe down exterior of container with a soft cloth or sponge

dampened with sanitizing solution.

2. Fill container with sanitizing solution, cover, place on motor

base, and run on high speed for two (2) minutes. Empty container. Dislodge any residual moisture from blade assembly by placing empty container on motor base and running on high speed for two (2) seconds.

3. Sanitize lid and lid insert by immersing in sanitizing solution for

4. Do not rinse container, lid, or lid insert after sanitizing is

completed. Allow parts to air-dry. To clean and sanitize motor base:

1. UNPLUG POWER CORD. Wipe down exterior surfaces of

motor base with soft cloths or sponges dampened with washing solution, rinse water, and sanitizing solution. Prevent liquid from running into motor base by wringing all excess moisture from cloths or sponges before using them. DO NOT IMMERSE MOTOR BASE IN WASHING SOLUTION, RINSE WATER OR SANITIZING SOLUTION.

2. Allow motor base to air-dry before using.

Any other servicing should be performed by an authorized service representative.

2. Wipe down exterior of container with a soft cloth or sponge

dampened with washing solution. Wash lid and lid insert in fresh washing solution. Fill container ¼ full with fresh washing solution, cover (with lid only but without center piece), place on motor base and run on HI for two (2) minutes. Empty container.

3. Repeat step (2) using clean rinse water in place of washing
