HQPL11003 - Outdoor Lighting HQ Power - Free user manual and instructions

Brand	HQ Power
Model	HQPL11003
Product type	Outdoor light chain
Number of sockets	50 x E27
Total length	25 m
Distance plug-first socket	1,55 - 1,6 m
Power supply	230 V~, 50 Hz
Cable color	Black
Splash protection	Splash resistant (outdoor use possible)
Use	Indoor and outdoor (protected outdoor socket recommended)
Installation	Suspended or fixed every meter, without sharp tools
Bulb type	E27 (maximum 40 W per socket, not specified but standard)
Replacing bulbs	Unscrew, remove the gasket, screw in new one, replace gasket
Maintenance	Check monthly: cable, insulation, sockets
Cleaning	Wipe with a dry cloth; do not immerse
Safety	Do not use if damaged; do not plug in while in packaging
Minimum age of use	8 years (under supervision)
Warranty	24 months (general public) according to Velleman conditions
Standards	Compliant with EU requirements

Frequently Asked Questions - HQPL11003 HQ Power

Can I use this light chain in the rain?

The light chain is splash resistant but not waterproof. Do not use it in the rain or in adverse weather conditions. Plug into a protected outdoor socket.

How many bulbs can I replace at the same time?

You can replace one or more bulbs, but always with the same type (E27, same wattage). Unplug the light chain before any handling.

Can the light chain be shortened?

No, it is forbidden to cut the cable or modify the light chain. Any modification voids the warranty and poses a safety risk.

Can I connect multiple light chains together?

No, do not electrically connect this light chain to another light chain. Use only one light chain per socket.

How to know if a bulb is defective?

If one or more lamps do not light up, unplug the light chain, remove the suspect bulb and visually check its filament. Replace it with a new one of the same type.

What is the weight of the light chain?

The weight is not specified in the manual, but for 50 E27 bulbs and 25 m of cable, expect about 2 to 3 kg. Use appropriate fasteners.

Can I install the light chain in a closet?

No, the light chain is not suitable for installation in confined spaces such as closets or ceilings. Risk of overheating.

How to clean the light chain?

Unplug it and wipe it with a dry or slightly damp cloth. Never immerse in water.

What to do if the cable is damaged?

If the cable, plug or insulation is damaged, do not use the light chain anymore. Contact your supplier or a qualified technician for replacement.

Can I leave the light chain plugged in permanently?

It is recommended to unplug the light chain when not in use, especially during prolonged absence, to avoid any electrical risk.

USER MANUAL HQPL11003 HQ Power

To all residents of the European Union Important environmental information about this product

This symbol on the device or the package indicates that disposal of the device after its lifecycle could harm the environment. Do not dispose of the unit (or batteries) as assorted municipal waste; it should be taken to a specialized company for recycling. This device should be returned to your distributor or to a local recycling service. Respect the local environmental rules.

If in doubt, contact your local waste disposal authorities.

Thank you for choosing HQPower™! Please read the manual thoroughly before bringing this device into service. If the device was damaged in transit, do not install or use it and contact your dealer.

2. Safety Instructions

Refer to and read the instruction manual/booklet.

• This device can be used by children aged from 8 years and above, and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning the use of the device in a safe way and understand the hazards involved. Children shall not play with the device. Cleaning and user maintenance shall not be made by children without supervision.
• If the supply cord is damaged, it must be replaced by the manufacturer, its service agent, or similarly qualified persons in order to avoid any hazard.
• Do not connect the chain to the power supply while it is still in the packing.
• Do not connect this lighting chain electrically to another chain.
• Make sure that the available voltage does not exceed the voltage stated in the specifications in this manual.

HQPL11001/HQPL11002/HQPL11003

• Ensure that all lamp holders are fitted with a lamp.
• Do not remove or insert lamps while the chain is connected to the power supply.
• Replacement lamps must be of the exact same type as stated in the specifications in this manual.
• This lighting chain must not be used without all gaskets correctly in place.
• This splash-proof chain is suitable for indoor and outdoor use. When using outdoors, make sure to connect the chain to a splash-proof power socket approved for outdoor use. If in any doubt, contact a qualified electrician.
• For outdoor use, do not install the chain or replace lamps during rain or other inclement weather conditions.
• The device is not waterproof. Do not submerge in water or any other liquid. Not suitable for installation under water.
• Not suitable for installation in cabinets, ceilings, or other enclosures.

3. General Guidelines

• Refer to the Velleman® Service and Quality Warranty on the last pages of this manual.
• All modifications of the device are forbidden for safety reasons. Damage caused by user modifications to the device is not covered by the warranty.
• Only use the device for its intended purpose. Using the device in an unauthorised way will void the warranty.
• Damage caused by disregard of certain guidelines in this manual is not covered by the warranty and the dealer will not accept responsibility for any ensuing defects or problems.
• Nor Velleman Group NV nor its dealers can be held responsible for any damage (extraordinary, incidental or indirect) – of any nature (financial, physical...) arising from the possession, use or failure of this product.
• Keep this manual for future reference.

4. Installation

4.1 Inspection before Installation

1. Take the chain out of the box and unroll it fully.

2. Make sure that the power plug is disconnected from the power supply.

3. Check the plug, cable, insulation, lamp holders, and lamps for damage:

Replace any damaged lamps. See Fitting or

Replacing Lamps for detailed instructions.

If you notice any other damage, do not use the chain and contact your dealer.

1. Make sure that the lamp holders are dry and clean on the inside and outside.

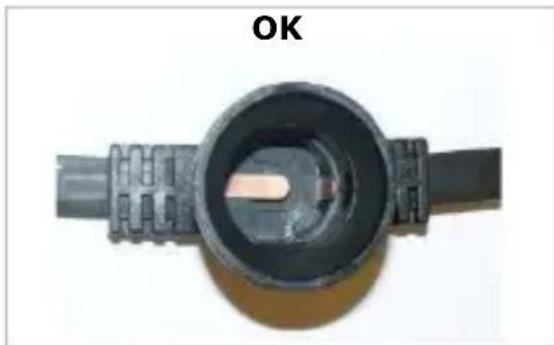

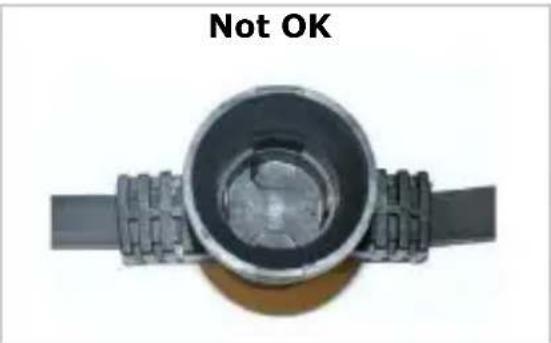

2. Check if the electrical connectors in the lamp holders are in the correct position. One shall be flat at the bottom of the socket, the other shall point upwards, as shown in the image. If you find a socket with both connectors pointing upwards, bend one down to match the other sockets.

Only do this when the power is disconnected.

4.2 Fitting/Replacing Lamps

1. Make sure that the power plug is disconnected from the power supply. Do not replace lamps during rain or other inclement weather conditions.

2. To replace a lamp, carefully unscrew the faulty lamp.

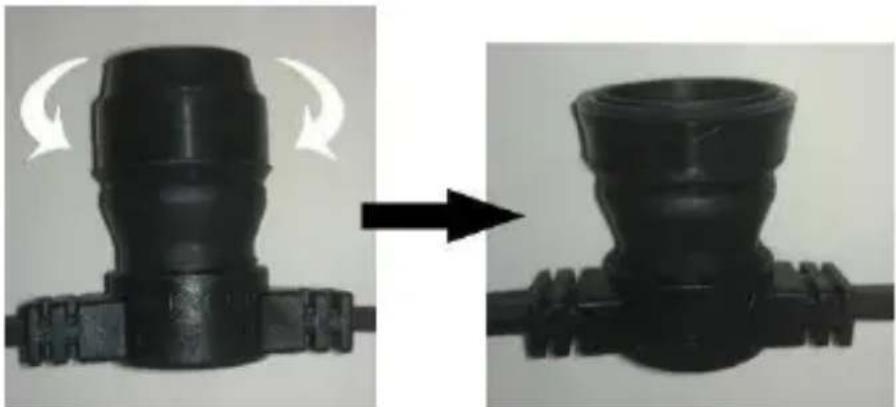

3. Fold down the rubber gasket over the lamp holder. This makes it easy to fit the lamp.

HQPL11001/HQPL11002/HQPL11003

1. With the gasket folded down, screw the lamp into the lamp holder.

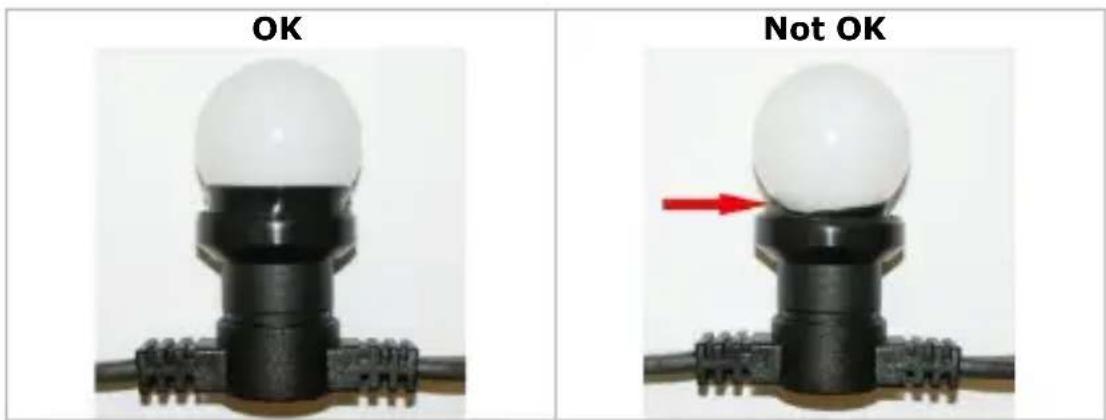

2. Fold the gasket back up around the base of the lamp. Make sure that the gasket fits evenly. The gasket must not be crinkled.

4.3 Testing

When each lamp holder has a lamp fitted and the gaskets are correctly placed, test the chain before installing it.

1. Plug the chain into a suitable power socket.
2. Check if all lamps are working.

o If yes, you can proceed with the installation.
- If no, disconnect the chain from power and replace any faulty lamps.

If the problem persists, do not use the chain and contact your dealer.

4.4 Installation

There must be a lamp fitted in each lamp holder, and each lamp must be sealed correctly with its gasket. It is not safe to use the chain with missing or incorrectly placed lamps or gaskets.

To install the chain after testing, proceed as follows:

1. Choose a suitable mounting spot. Make sure that the chain cannot get damaged, for example by sharp edges, swinging windows, doors, etc. Also make sure that the chain cannot cause hazardous situations if it accidentally comes loose. For example, avoid crossing passageways. Not suitable for installation in cabinets, ceilings, or other enclosures. Not suitable for installation under water.
2. To mount the chain, start at the side of the power plug. Position the power plug near a mains outlet, but do not plug it in yet. Make sure to leave enough power cable to easily plug into the mains outlet without stress on the cable.
3. Start mounting the chain in the desired location.

Make sure not to damage the insulation during installation. Do not use sharp tools to install the chain. Do not fix the chain to buildings or other supports using nails, staples, or other sharp, conducting materials.
4. It is recommended to fix the chain to a support at least every metre.

4.5 Use

1. Plug the chain into a suitable mains outlet to switch it on.
2. Unplug it from the mains to switch off.

5. Cleaning and Maintenance

• Once a month, inspect the plug, cable, insulation, and lamp holders for degradation due to weather, UV light, or other damage. If you notice any deterioration, stop using the chain and dispose of it.
• If a lamp is not working, unplug the chain immediately and replace the lamp. See Fitting or Replacing Lamps for detailed instructions. Use only replacement lamps of the exact same type as stated in the specifications in this manual.

6. Technical Specifications

power supply. 230 V\~, 50 Hz

colour.. black

IP rating IP44

plug to first socket 1.55-1.6 m

socket type

HQPL11001 10xE27

HQPL11002 20x E27

HQPL11003 50xE27

length

HQPL11001 5m

HQPL11002 10 m

HQPL11003 25 m

Use this device with original accessories only. Velleman Group nv cannot be held responsible in the event of damage or injury resulting from (incorrect) use of this device. For more info concerning this product and the latest version of this manual, please visit our website www.hqpower.eu. The information in this manual is subject to change without prior notice.

© COPYRIGHT NOTICE

The copyright to this manual is owned by Velleman Group nv. All worldwide rights reserved. No part of this manual may be copied, reproduced, translated or reduced to any electronic medium or otherwise without the prior written consent of the copyright holder.

HANDLEIDING

1. Inleiding

```c index IP ..... IP44

Velleman® Service and Quality Warranty

Since its foundation in 1972, Velleman® acquired extensive experience in the electronics world and currently distributes its products in over 85 countries.

All our products fulfil strict quality requirements and legal stipulations in the EU. In order to ensure the quality, our products regularly go through an extra quality check, both by an internal quality department and by specialized external organisations. If, all precautionary measures notwithstanding, problems should occur, please make appeal to our warranty (see guarantee conditions).

General Warranty Conditions Concerning Consumer Products (for EU):

• All consumer products are subject to a 24-month warranty on production flaws and defective material as from the original date of purchase.

• Velleman® can decide to replace an article with an equivalent article, or to refund the retail value totally or partially when the complaint is valid and a free repair or replacement of the article is impossible, or if the expenses are out of proportion.

You will be delivered a replacing article or a refund at the value of 100% of the purchase price in case of a flaw occurred in the first year after the date of purchase and delivery, or a replacing article at 50% of the purchase price or a refund at the value of 50% of the retail value in case of a flaw occurred in the second year after the date of purchase and delivery.

Not covered by warranty:

• all direct or indirect damage caused after delivery to the article (e.g. by oxidation, shocks, falls, dust, dirt, humidity...), and by the article, as well as its contents (e.g. data loss), compensation for loss of profits;

• consumable goods, parts or accessories that are subject to an aging process during normal use, such as batteries (rechargeable, non-rechargeable, built-in or replaceable), lamps, rubber parts, drive belts... (unlimited list);

• flaws resulting from fire, water damage, lightning, accident, natural disaster, etc....;

• flaws caused deliberately, negligently or resulting from improper handling, negligent maintenance, abusive use or use contrary to the manufacturer's instructions;

• damage caused by a commercial, professional or collective use of the article (the warranty validity will be reduced to six (6) months when the article is used professionally);

• damage resulting from an inappropriate packing and shipping of the article;

• all damage caused by modification, repair or alteration performed by a third party without written permission by Velleman®.

• Articles to be repaired must be delivered to your Velleman® dealer, solidly packed (preferably in the original packaging), and be completed with the original receipt of purchase and a clear flaw description.

• Hint: In order to save on cost and time, please reread the manual and check if the flaw is caused by obvious causes prior to presenting the article for repair. Note that returning a non-defective article can also involve handling costs.

• Repairs occurring after warranty expiration are subject to shipping costs.

• The above conditions are without prejudice to all commercial warranties.

The above enumeration is subject to modification according to the article (see article's manual).
