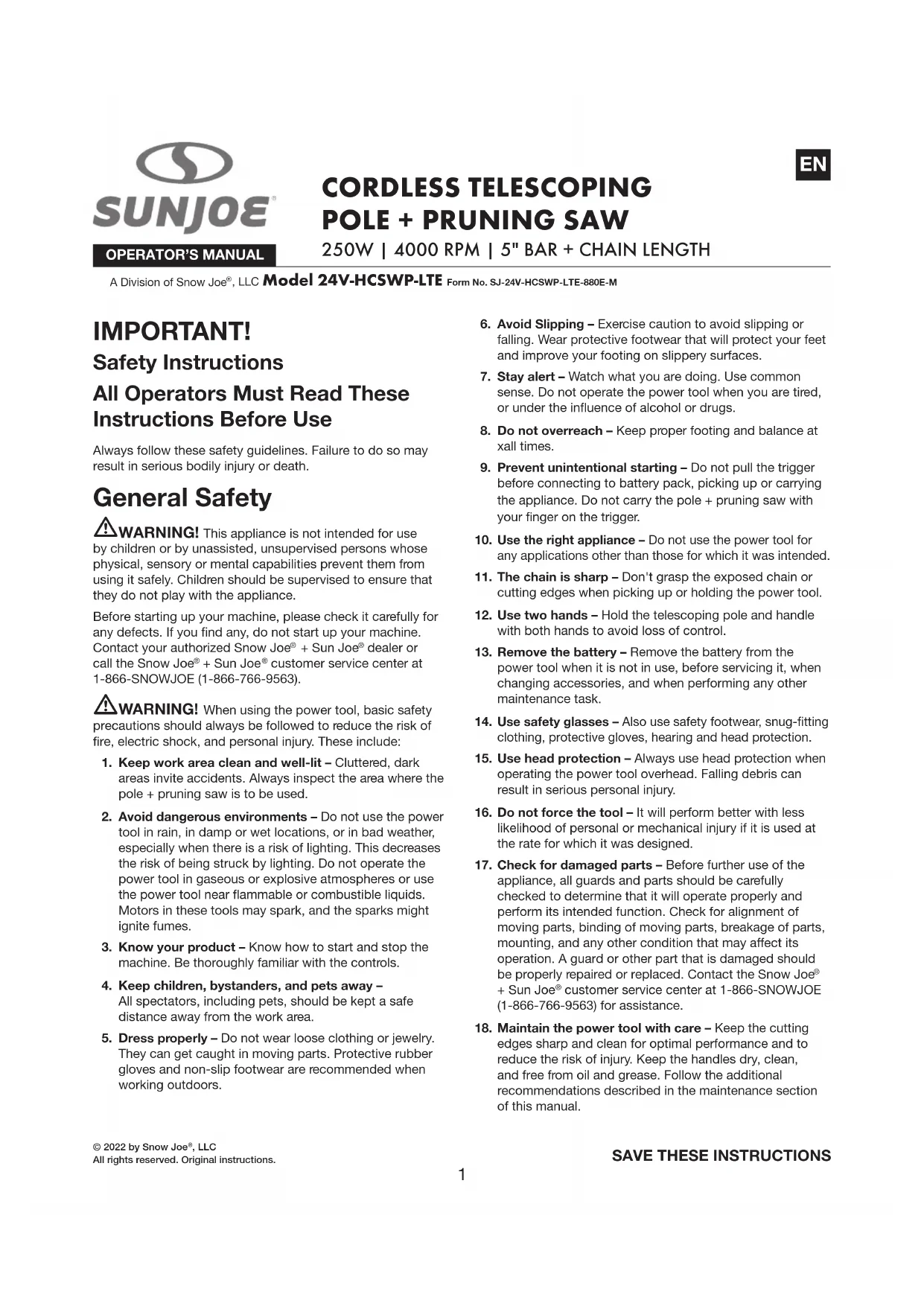

USER MANUAL 24VHCSWPLTE Sun Joe

© 2022 by Snow Joe , LLCAll rights reserved. Original instructions.

SAVE THESE INSTRUCTIONS

A Division of Snow Joe

IMPORTANT! Safety Instructions All Operators Must Read These Instructions Before Use Always follow these safety guidelines. Failure to do so may result in serious bodily injury or death. General Safety

WARNING! This appliance is not intended for use by children or by unassisted, unsupervised persons whose physical, sensory or mental capabilities prevent them from using it safely. Children should be supervised to ensure that they do not play with the appliance. Before starting up your machine, please check it carefully for any defects. If you nd any, do not start up your machine. Contact your authorized Snow Joe

dealer or call the Snow Joe

customer service center at 1-866-SNOWJOE (1-866-766-9563). mWARNING! When using the power tool, basic safety precautions should always be followed to reduce the risk of re, electric shock, and personal injury. These include:

1. Keep work area clean and well-lit – Cluttered, dark

areas invite accidents. Always inspect the area where the pole + pruning saw is to be used.

2. Avoid dangerous environments – Do not use the power

tool in rain, in damp or wet locations, or in bad weather, especially when there is a risk of lighting. This decreases the risk of being struck by lighting. Do not operate the power tool in gaseous or explosive atmospheres or use the power tool near ammable or combustible liquids. Motors in these tools may spark, and the sparks might ignite fumes.

3. Know your product – Know how to start and stop the

machine. Be thoroughly familiar with the controls.

4. Keep children, bystanders, and pets away –

All spectators, including pets, should be kept a safe distance away from the work area.

5. Dress properly – Do not wear loose clothing or jewelry.

They can get caught in moving parts. Protective rubber gloves and non-slip footwear are recommended when working outdoors.

6. Avoid Slipping – Exercise caution to avoid slipping or

falling. Wear protective footwear that will protect your feet and improve your footing on slippery surfaces.

7. Stay alert – Watch what you are doing. Use common

sense. Do not operate the power tool when you are tired, or under the inuence of alcohol or drugs.

8. Do not overreach – Keep proper footing and balance at

9. Prevent unintentional starting – Do not pull the trigger

before connecting to battery pack, picking up or carrying the appliance. Do not carry the pole + pruning saw with your nger on the trigger.

Use the right appliance – Do not use the power tool for any applications other than those for which it was intended.

11. The chain is sharp – Don't grasp the exposed chain or

cutting edges when picking up or holding the power tool.

12. Use two hands – Hold the telescoping pole and handle

with both hands to avoid loss of control.

13. Remove the battery – Remove the battery from the

power tool when it is not in use, before servicing it, when changing accessories, and when performing any other maintenance task.

Use safety glasses – Also use safety footwear, snug-tting clothing, protective gloves, hearing and head protection.

15. Use head protection – Always use head protection when

operating the power tool overhead. Falling debris can result in serious personal injury.

16. Do not force the tool – It will perform better with less

likelihood of personal or mechanical injury if it is used at the rate for which it was designed.

17. Check for damaged parts – Before further use of the

appliance, all guards and parts should be carefully checked to determine that it will operate properly and perform its intended function. Check for alignment of moving parts, binding of moving parts, breakage of parts, mounting, and any other condition that may aect its operation. A guard or other part that is damaged should be properly repaired or replaced. Contact the Snow Joe

18. Maintain the power tool with care – Keep the cutting

edges sharp and clean for optimal performance and to reduce the risk of injury. Keep the handles dry, clean, and free from oil and grease. Follow the additional recommendations described in the maintenance section of this manual.2

19. Store indoors – When not in use, the power tool should

be stored indoors in a dry and high or locked-up place out of the reach of children.

20. Do not use the power tool if the trigger does not turn it

on and o. Any power tool that cannot be controlled is dangerous and must be repaired.

21. Keep all parts of the body away from the chain. Do not

remove cut material or hold material to be cut while the chain is moving. Make sure the switch is o when clearing jammed material. The chain will continue moving for a while after the tool is turned o. A moment of inattention while operating the power tool may result in serious personal injury.

22. Carry the power tool by the handle with the chain

stopped. When transporting or storing the power tool, always keep the chain and guide bar in the bar sheath. Proper handling of the pole + pruning saw will reduce the chance of personal injury.

23. Hold the product by insulated surfaces only. In the event

that the chain comes into contact with hidden wiring, exposed metal parts of the product may become “live” and give the operator an electric shock.

24. The unit has not been designed to provide protection

from electric shock in the event of contact with overhead electric lines. Never use the power tool near any electrical power lines. Contact with or use near power lines may cause serious injury or electric shock resulting in death. Maintain a minimum clearance of 50 ft (15 m) from all power lines. mWARNING! Before inspecting, cleaning, or servicing the machine, remove the battery and wait for all moving parts to stop. Failure to follow these instructions can result in serious personal injury or property damage. mWARNING! Do not use this appliance without reading this instruction manual. mWARNING! Do not use the appliance within range of persons unless they are wearing protective clothing. mWARNING! Do not operate the cordless power tool in a tree, on a ladder, or on scaolding. Using the tool under such circumstances is extremely dangerous. mWARNING! Do not let familiarity with this type of tool prevent you from taking all necessary precautions. Remember that a careless fraction of a second is sucient to inict serious injury. mWARNING! The cordless pole + pruning saw must be fully assembled before operation! Do not use the tool that is only partly assembled or assembled with damaged parts! mWARNING! Starting, stopping, and restarting an electric motor repeatedly within a few seconds can generate a great deal of heat and damage the motor. To protect the life of your cordless power tool, always wait at least ve seconds after stopping before restarting the unit. mWARNING! Electrical Shock Hazard – Before starting up your machine, please check it carefully for any defects. If you nd any, do not start up your machine and contact your distributor. NOTE: Take care of small parts that are removed during assembly or when making adjustments. Keep them secure to avoid loss. Please contact an authorized Snow Joe

dealer or call the Snow Joe

customer service center at 1-866-SNOWJOE (1-866-766-9563) for all maintenance or operations not foreseen in this manual. Any operation performed in an unauthorized service center or by unqualied personnel will completely invalidate the warranty. mWARNING! For your safety and that of others:

• Correct maintenance is essential to maintain the original eciency and safety of the machine over time.

• Keep all nuts, bolts, and screws tight to be sure the equipment is in safe working condition.

• Never use the machine with worn or damaged parts. Damaged parts are to be replaced and never repaired. mWARNING! Always wear protective gloves during maintenance operations. mWARNING! Use only original manufacturer’s replacement parts, accessories and attachments. Failure to do so can cause possible injury and poor performance. To order genuine replacement parts or accessories for the Sun Joe

iON+ cordless pole + pruning saw, please visit sunjoe.com or contact the Snow Joe

customer service center at 1-866-SNOWJOE (1-866-766-9563). Cleaning the Tool mWARNING! Never let any liquid get inside the motor housing and NEVER immerse any part of the housing in liquid.

1. Stop the motor and remove the battery.

2. Clean dirt and debris from the body of the tool, using a

damp cloth with a mild detergent. NOTE: Do not use any strong detergents on the plastic housing or the handle, as they can be damaged by certain aromatic oils such as pine and lemon, and by solvents such as acetone. Storage

WARNING! Do not at any time let brake uids, gasoline, petroleum-based products, penetrating oils, solvents, etc., come in contact with plastic parts. Chemicals can damage, weaken, or destroy plastic which may result in serious personal injury.

1. Stop the motor and remove the battery.

2. Clean the pole + pruning saw thoroughly before storing.3

3. Always place the bar sheath on the guide bar before

storing or transporting the pole + pruning saw. Use caution to avoid the sharp chain.

4. Store the pole + pruning saw indoors, in a dry place that is

inaccessible to children. Keep away from corrosive agents such as garden chemicals and de-icing salts.

5. We recommend using the original package for storage or

covering the product with a suitable cloth or enclosure to protect it against dust. Specic Safety Warnings for Pole + Pruning saw

1. Only the pole + pruning saw operator should be in the

2. Do not use the pole + pruning saw to cut down trees.

3. Always use two hands when operating the pole + pruning

saw. Grip the pole + pruning saw securely with one hand on the trigger and the other hand on the pole.

4. Before starting the pole + pruning saw, make sure that the

saw chain is not in contact with any object.

5. Do not allow the pole + pruning saw to make contact with

grounded objects such as pipes, fences, and metal posts.

6. Do not force the pole + pruning saw while cutting. Apply

light pressure. It will perform more eectively and safely if it is used at the rate for which it was designed.

7. Use extreme caution when cutting a limb that is under

tension. When wood tension is released, the limb could spring back and strike the operator, causing severe injury or death.

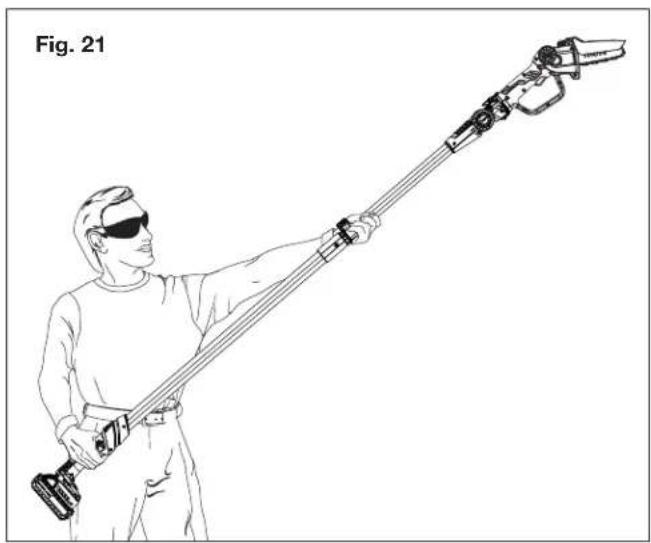

8. During transport, hold the pole at its balance point, with

the guide bar and chain facing to the rear.

9. Do not cut small brush and saplings with the pole +

pruning saw. Small branches may catch in the chain and be whipped towards the operator, which could pull the operator o balance.

10. Never stand directly under the limb you are trimming.

Always position yourself outside the path of falling debris.

11. Keep a rm, steady pressure on the pole + pruning saw

while cutting. Do not try to cut limbs larger in diameter than the length of the guide bar.

12. Keep other people and pets away from the cutting end of

the pole + pruning saw and at a safe distance away from the work area. Kickback mWARNING! Kickback may occur when the nose or tip of the guide bar touches an object, or when the wood closes in and pinches the saw chain in the cut. AVOID CONTACTING THE GUIDE BAR TIP WITH ANY OBJECT. In some cases, when the tip makes contact with an object, the saw may rapidly kick up and back towards the operator. Material pinching the chain may also push the saw back rapidly towards the operator. Either of these reactions may cause you to lose control of the pole + pruning saw, which could result in serious personal injury. Follow the necessary precautions indicated below to avoid kickbacks.

• Always use two hands when operating the pole + pruning saw, one hand gripping the trigger and the other hand gripping the pole. Use a rm grip. Thumbs and ngers must wrap around the trigger and the pole.

• Keep all guards in place on the pole + pruning saw. Make sure they are in proper working order.

• Do not overreach or extend arms above shoulder height.

• Keep solid footing and balance at all times.

• Never try cutting through two branches at the same time. Only cut one at a time.

• Do not bury the guide bar nose or try to cut by boring the guide bar nose into the wood.

• Watch for shifting of wood or other forces that may pinch the chain.

• Use extreme caution when re-entering a previous cut.

• Use the chain and guide bar supplied with this pole + pruning saw. Only use genuine Snow Joe

replacement parts designed specically for use with this pole + pruning saw.

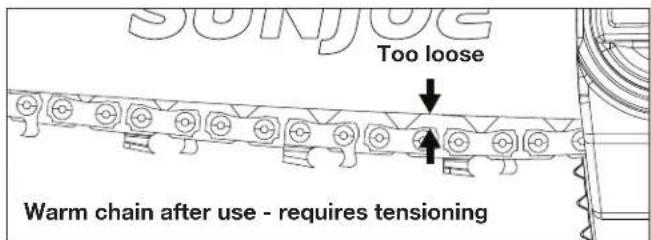

• Never use a dull or loose chain. Keep the chain sharp and properly tensioned. Battery & Charger Safety Instructions We pay a great deal of attention to the design of every battery pack to ensure that we supply you with batteries that are safe, durable and have a high energy density. The battery cells have a wide range of safety devices. Each individual cell is initially formatted and its electrical characteristic curves are recorded. This data is then used exclusively to be able to assemble the best possible battery packs. Despite all the safety precautions, caution must always be exercised when handling batteries. The following points must be obeyed at all times to ensure safe use. Safe use can only be guaranteed if undamaged cells are used. Incorrect handling of the battery pack can cause cell damage. IMPORTANT! Analyses conrm that incorrect use and poor care of high-performance batteries are the main factors responsible for personal and/or product damage. mWARNING! Use only approved replacement batteries; other batteries may damage the power tool and cause it to malfunction, which can lead to serious personal injury.4 mWARNING! Do not use a battery pack or appliance that is damaged or modied. Damaged or modied batteries may exhibit unpredictable behavior resulting in re, explosion or risk of injury. Have your battery pack serviced by a qualied repair person using only identical replacement parts. This will ensure that the safety of the battery pack is maintained. mCAUTION! To reduce the risk of injury, use only ocial iON+ 24V designated chargers with the iON+ 24V battery pack. The use of other batteries or chargers poses a risk of re, personal injury and damage. Do not wire a battery pack to a power supply plug or car cigarette lighter, such misuse will permanently disable or damage the battery pack.

• Avoid dangerous environments – Do not charge the battery pack in rain, snow or in damp or wet locations. Do not use the battery pack or charger in the presence of explosive atmospheres (gaseous fumes, dust or ammable materials) because sparks may be generated when inserting or removing the battery pack, which could lead to a re.

• Charge in a well-ventilated area – Do not block the charger vents. Keep them clear to allow for proper ventilation. Do not allow smoking or open ames near a charging battery pack. Vented gases may explode. NOTE: The safe temperature range for the battery is 41°F – 105ºF (5°C – 40.5°C). Do not charge the battery outside in freezing weather; charge it at room temperature.

• Maintain charger cord – When unplugging the charger, pull the plug, not the cord, from the receptacle to reduce the risk of damage to the electrical plug and cord. Never carry the charger by its cord or yank it by the cord to disconnect it from the receptacle. Keep the cord away from heat, oil and sharp edges. Make sure the cord will not be stepped on, tripped over or subjected to damage or stress when the charger is in use. Do not use the charger with a damaged cord or plug. Replace a damaged charger immediately.

• Do not use an extension cord unless it is absolutely necessary – Using the wrong, damaged or improperly wired extension cord poses a risk of re and electric shock. If an extension cord must be used, plug the charger into a properly wired 16 gauge or larger extension cord with the female plug matching the male plug on the charger. Make sure that the extension cord is in good electrical condition.

• Charger XZ2600-0450 is rated for 100 – 240 volt AC only – The charger must be plugged into an appropriate receptacle.

• Do not use an electrical adapter – Use of an adapter is not recommended or sold by the battery charger or battery pack manufacturer.

• Unplug charger when not in use – Make sure to remove battery packs from unplugged chargers. mWARNING! To reduce the risk of electric shock, always unplug the charger before performing any cleaning or maintenance. Do not allow water to ow into the charger. Use a Ground Fault Circuit Interrupter (GFCI) to reduce shock hazards.

• Do not burn or incinerate battery packs – Battery packs may explode, causing personal injury or damage. Toxic fumes and materials are created when battery packs are burned.

• Do not crush, drop or damage battery packs – Do not use the battery pack or charger if they have sustained a sharp blow, been dropped, run over or have been damaged in any way (i.e. pierced with a nail, hit with a hammer, stepped on, etc.).

• Do not disassemble – Incorrect reassembly may pose a serious risk of electric shock, re or exposure to toxic battery chemicals. If the battery or charger are damaged, contact an authorized Snow Joe

dealer or call the Snow Joe

• Battery chemicals cause serious burns – Never let a damaged battery pack contact the skin, eyes or mouth. If damaged, battery chemicals will react violently with air, use rubber or neoprene gloves to safely dispose of it. If skin is exposed to battery chemicals, wash the aected area with soap and water. If eyes are exposed to battery chemicals, immediately ush with water for 20 minutes and seek medical attention. Remove and dispose of contaminated clothing.

• Do not short circuit – When battery pack is not in use, keep it away from other metal objects, like paper clips, coins, keys, nails, screws or other small metal objects, that can make a connection from one terminal to another. Shorting the battery terminals together may cause burns or a re.

• Store your battery pack and charger in a cool, dry place – Do not store the battery pack or charger where temperatures may exceed 105ºF (40.5ºC), such as in direct sunlight or inside a vehicle or metal building during the summer. Information about the battery

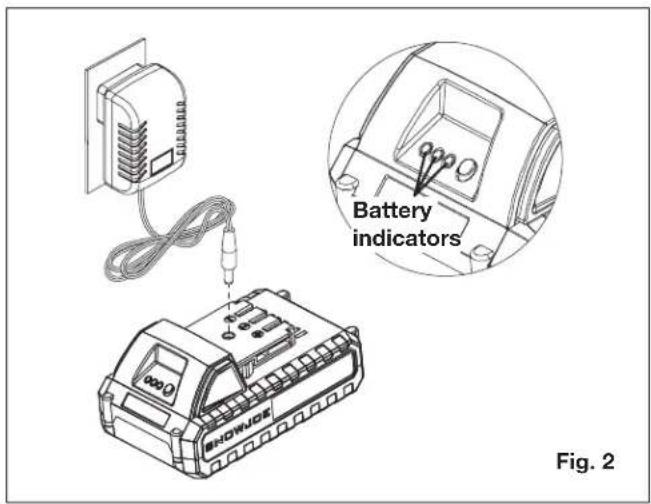

1. The battery pack supplied with your cordless power tool is

only partially charged. The battery pack has to be charged completely before you use the tool for the rst time.

2. For optimum battery performance, avoid low discharge

cycles by charging the battery pack frequently.

3. Store the battery pack in a cool place, ideally at 77°F

(25°C) and charged to at least 40%.

4. Lithium-ion batteries are subject to a natural aging

process. The battery pack must be replaced at the latest when its capacity falls to just 80% of its capacity when new. Weakened cells in an aged battery pack are no5 longer capable of meeting the high power requirements needed for the proper operation of your cordless pole + pruning saw, and therefore pose a safety risk.

5. Do not throw battery packs into an open re as this poses

a risk of explosion.

6. Do not ignite the battery pack or expose it to re.

7. Do not exhaustively discharge batteries. A complete

discharge will damage the battery cells. The most common cause of exhaustive discharge is lengthy storage. Stop working as soon as the performance of the battery falls noticeably or the electronic protection system triggers. For optimum battery performance, charge the battery pack frequently. Place the battery pack in storage only after it has been fully charged.

8. Protect batteries and the tool from overloads. Overloads

will quickly result in overheating and cell damage inside the battery housing even if this overheating is not apparent externally.

Avoid damage and shocks. Immediately replace batteries that have been dropped from a height of more than 3 feet (1 meter) or those that have been exposed to violent shocks, even if the housing of the battery pack appears to be undamaged. The battery cells inside the battery may have suered serious damage. In such instances, please read the waste disposal information for proper battery disposal.

10. If the battery pack suers overloading and overheating,

the integrated protective cuto will switch o the equipment for safety reasons. IMPORTANT! Do not press the ON/OFF trigger switch any more if the protective cut-o has been activated. This may damage the battery pack.

11. Recharge only with the charger specied by the

manufacturer. A charger that is suitable for one type of battery pack may create a risk of re when used with another battery pack.

12. Use appliances only with specically designated battery

packs. Use of any other battery packs may create a risk of injury and re.

13. Under abusive conditions, liquid may be ejected from

the battery; avoid contact. If contact accidentally occurs, ush with water. If liquid contacts eyes, additionally seek medical help. Liquid ejected from the battery may cause irritation or burns.

14. Do not use a battery pack or appliance that is damaged

or modied. Damaged or modied batteries may exhibit unpredictable behavior resulting in re, explosion or risk of injury.

15. Do not expose a battery pack or appliance to re or

excessive temperature. Exposure to re or temperature above 266ºF (130°C) may cause explosion.

16. Follow all charging instructions and do not charge the

battery pack or appliance outside of the temperature range specied in the instructions. Charging improperly or at temperatures outside of the specied range may damage the battery and increase the risk of re. Information about the charger and the charging process

1. Please check the data marked on the rating plate of the

battery charger. Be sure to connect the battery charger to a power supply with the voltage marked on the rating plate. Never connect it to a dierent mains voltage.

2. Protect the battery charger and its cord from damage.

Keep the charger and its cord away from heat, oil and sharp edges. Have damaged cords repaired without delay by a qualied technician at an authorized Snow Joe

dealer or call the Snow Joe

the plug in any way. Do not use any adapter plugs with grounded appliances. Unmodied plugs and matching outlets will reduce the risk of electric shock.

4. Keep the battery charger, battery pack(s) and the cordless

tool out of the reach of children.

5. Do not use the supplied battery charger to charge other

6. During periods of heavy use, the battery pack will become

warm. Allow the battery pack to cool to room temperature before inserting it into the charger to recharge.

7. Do not overcharge batteries. Do not exceed the maximum

charging times. These charging times only apply to discharged batteries. Frequent insertion of a charged or partially charged battery pack will result in overcharging and cell damage. Do not leave batteries in the charger for days on end.

Never use or charge batteries if you suspect that it has been more than 12 months since the last time they were charged. There is a high probability that the battery pack has already suered dangerous damage (exhaustive discharge).

9. Charging batteries at a temperature below 41°F (5°C) will

cause chemical damage to the cells and may cause a re.

10. Do not use batteries that have been exposed to heat

during the charging process, as the battery cells may have suered dangerous damage.

11. Do not use batteries that have suered swelling or

deformation or those that exhibit other atypical symptoms (gassing, hissing, cracking, etc.).6 Protection from environmental inuences

1. Wear suitable work clothes. Wear safety goggles.

2. Protect your cordless tool and the battery charger from

moisture and rain. Moisture and rain can cause dangerous cell damage.

3. Do not use the cordless tool or the battery charger near

vapors and ammable liquids.

4. Use the battery charger and cordless tools only in dry

conditions and at an ambient temperature of 41ºF – 105°F (5°C – 40.5°C).

5. Do not keep the battery charger in places where the

temperature is may to reach over 105°F (40.5°C). In particular, do not leave the battery charger in a car that is parked in the sunshine.

6. Protect batteries from overheating. Overloads,

overcharging and exposure to direct sunlight will result in overheating and cell damage. Never charge or work with batteries that have been overheated – replace them immediately, if possible.

7. Store the charger and your cordless tool only in dry

locations with an ambient temperature of 41ºF – 105°F (5°C – 40.5°C). Store your lithium-ion battery pack in a cool, dry place at a temperature of 77°F (25°C). Protect the battery pack, charger and cordless tool from humidity and direct sunlight. Only place fully charged batteries in storage (charged to at least 40%).

8. Prevent the lithium-ion battery pack from freezing. Battery

packs that were stored below 32°F (0°C) for more than 60 minutes must be discarded.

9. When handling batteries, be wary of electrostatic charge.

Electrostatic discharges can damage the electronic protection system and the battery cells. To avoid electrostatic discharges never touch the battery terminals.7 Safety Symbols The following table depicts and describes safety symbols that may appear on this product. Read, understand, and follow all instructions on the machine before attempting to assemble and operate. Symbols Descriptions Symbols Descriptions

MANUAL – Read, understand, and follow all instructions in the user manual before attempting to assemble and operate. SAFETY ALERT – Indicates a precaution, a warning, or a danger.

WEAR EYE AND HEARING

PROTECTION – For protection against injury, wear ear defenders and safety goggles. WARNING! Do not expose the unit to rain or wet conditions. Keep dry. Wear protective gloves and non-slip footwear when using the machine and handling debris.

CAUTION! Avoid contact between the tip of the guide bar with any object. Contact with the tip of the guide bar may cause the chain saw to kickback, which may cause serious injury to the user. The moving part will continuously run for several seconds after you turn o the machine. Correct direction of cutters. 50 ft (15 m)

WARNING! SHOCK HAZARD –

Keep at least 50 ft (15 m) away from power lines. Do not overreach. Keep proper footing and balance at all times.

DANGER! ROTATING BLADES

– Keep hands and feet away from openings while the saw is running. Only use the battery charger indoors. Keep bystanders a minimum distance of 50 ft (15 m) away from the work area.8 Know Your Cordless Pole + Pruning Saw Read the owner’s manual and safety instructions carefully before operating the cordless pole + pruning saw. Compare the illustration below to the cordless pole + pruning saw in order to familiarize yourself with the location of the various controls and adjustments. Save this manual for future reference.

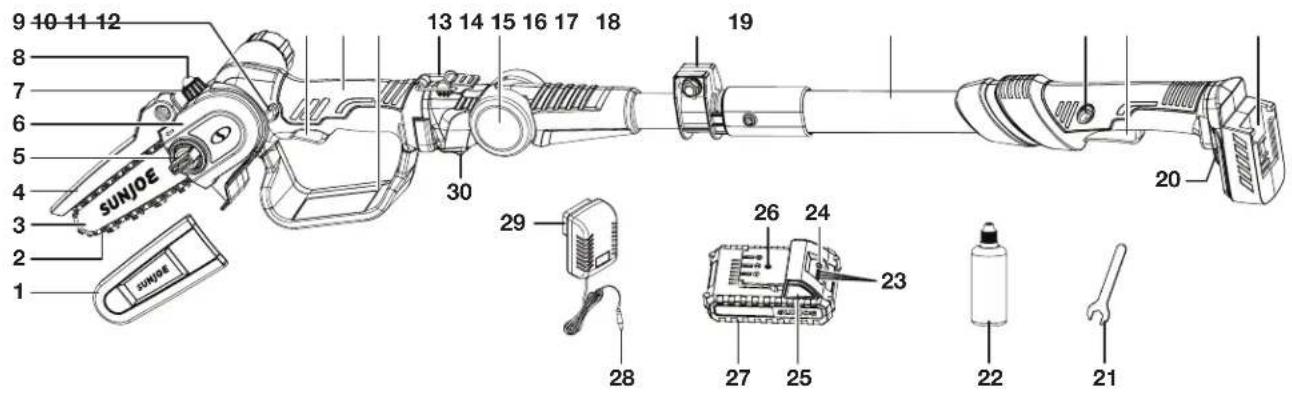

2. 5 in. (12.7 cm) chain

9. Safety lock (pruning saw)

10. Trigger (pruning saw)

19. Removable battery

(removable battery compartment)

22. Bar and chain oil

battery (24VBAT-LTE) featuring exclusive EcoSharp

*Initial no-load voltage, when fully charged, peaks at 24 volts; nominal voltage under typical load is 21.6 volts.9 Unpacking Carton Contents

• Pruning saw + removable battery compartment

• Manual with registration card

1. Carefully remove the cordless pole + pruning saw and

check to see that all of the above items are supplied.

2. Inspect the product carefully to make sure no breakage or

damage occurred during shipping. If you nd damaged or missing parts, DO NOT return the unit to the store. Please call the Snow Joe

customer service center at 1-866-SNOWJOE (1-866-766-9563). NOTE: Do not discard the shipping carton and packaging material until you are ready to use your new cordless pole + pruning saw. The packaging is made of recyclable materials. Properly dispose of these materials in accordance with local regulations. IMPORTANT! The equipment and packaging material are not toys. Do not let children play with plastic bags, foils or small parts. These items can be swallowed and pose a suocation risk! Battery Pack Operation The equipment is powered by a lithium-ion battery. The battery pack is completely sealed and maintenance free. Battery Charge Level Indicator The battery pack is equipped with a push button for checking the charge level. Simply press the push button to read o the battery charge level from the LEDs of the battery indicator: Lights Light Indicators Charge level button The battery is at 30% capacity The battery is at 60% capacity The battery is fully charged NOTE: If the battery indicator button does not appear to be working, charge the battery. NOTE: Immediately after using the battery pack, the battery indicator button may display a lower charge than it will if checked a few minutes later. The battery cells “recover” some of their charge after resting. Charger Operation mWARNING! Only charge Sun Joe

24V lithium-ion battery pack with compatible Sun Joe

24V lithium-ion chargers. Other types of chargers may cause personal injury and damage. To reduce the risk of electric shock, do not allow water to enter into the charger. Charging the Battery

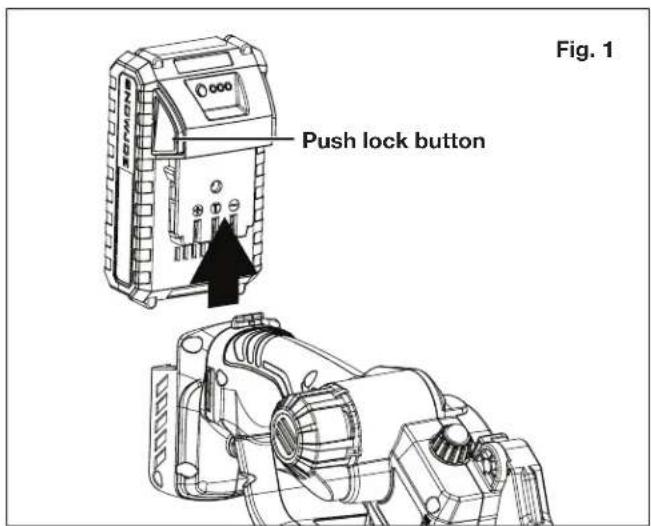

1. Push the push lock buttons on either side of the battery

pack to pull it out from the battery compartment (Fig. 1)

2. Check that the mains voltage is the same as that marked

on the rating plate of the battery charger. Then plug the charger into an appropriate AC power outlet. Connect the charger plug into the charging socket of the battery to start charging (Fig. 2). Fig. 1 Push lock button Fig. 2 Battery indicators10

3. The battery will take approximately 5 hours to charge. The

battery indicator LEDs will cycle on one by one during the charging process. Unplug the charger immediately when all 3 LEDs are illuminated. mCAUTION! FIRE HAZARD. When disconnecting the charger from the battery, be sure to unplug the charger from the outlet rst, then disconnect the battery from the charger. mWARNING! This charger does not automatically turn o when the battery is fully charged. Please take care not to leave the battery plugged into the charger. Switch o or unplug the charger at the mains when charging is complete.

4. Timely recharging of the battery will help prolong the

battery's life. Recharge the battery pack when you notice a drop in the equipment's power. IMPORTANT! Never allow the battery pack to become fully discharged as this will cause irreversible damage to the battery. Assembly This cordless pruning saw comes completely assembled with the guide bar and chain pre-installed. Users simply have to congure the unit as a hand-held pruning saw or a pole pruning saw before operation. Follow the instructions below to connect the machine. mCAUTION! Make sure the battery is not inserted and the chain are covered by the sheath before assembly. Hand-held Pruning Saw Assembly

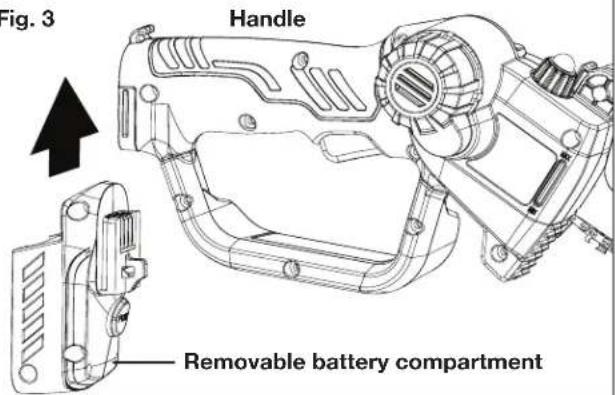

To congure the machine as a hand-held pruning saw, align the small ridge on the removable battery compartment with the guide slot on the handle, then slide the removable battery compartment upward into the handle until it clicks into position (Fig. 3).

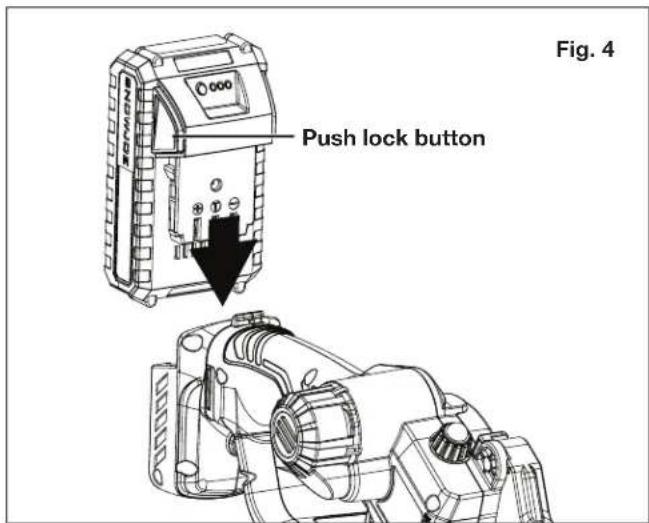

2. Insert the battery into the removable battery compartment

until the push lock buttons click into place (Fig. 4). Removable battery compartment Fig. 3 Handle

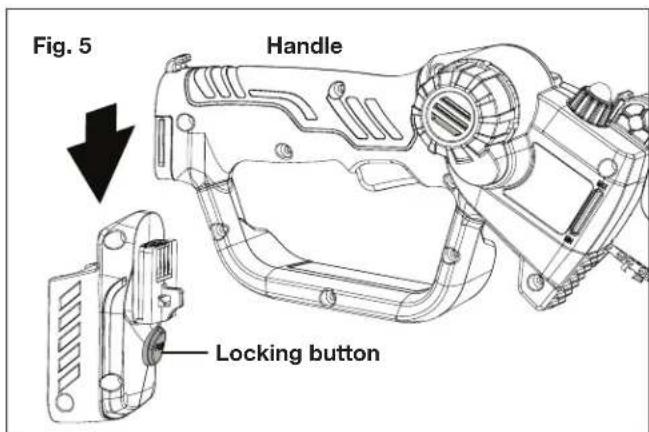

3. To take the removable battery compartment o of the

hand-held pruning saw, press the locking button on the removable battery compartment and slide it out of the handle (Fig. 5). Pole Pruning Saw Assembly

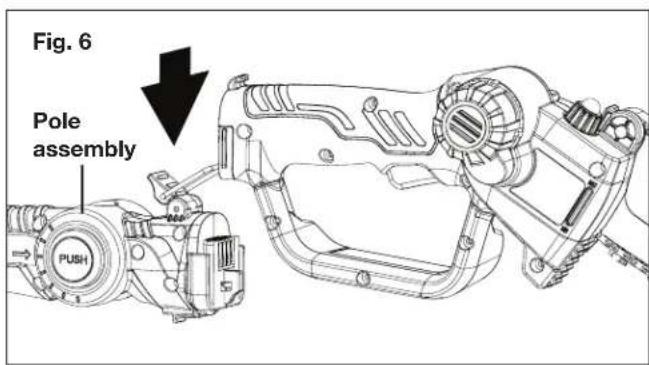

1. To install the pole, align the small ridge on the end of the

pole assembly with the guide slot on the handle, slide the pruning saw downward into the pole assembly until it clicks into position (Fig. 6). Fig. 4 Push lock button Locking button Fig. 5 Handle Pole assembly Fig. 611

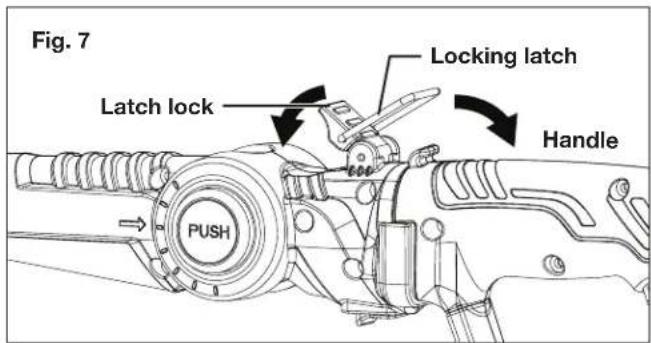

2. Latch the locking latch over the hook on the end of the

handle, then press the latch lock down to secure the connection (Fig. 7).

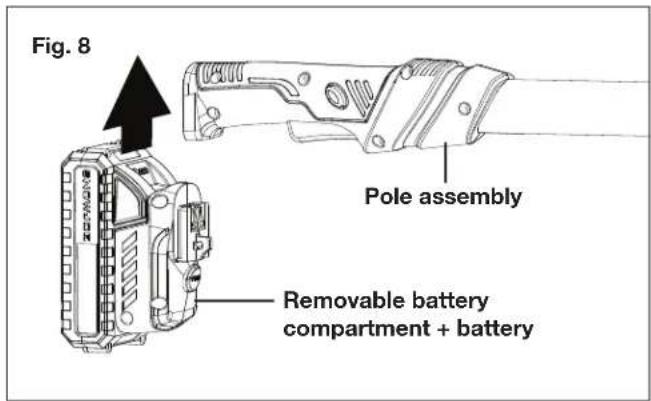

3. Slide the removable battery compartment and battery into

the end of the pole assembly, until it clicks into position (Fig. 8).

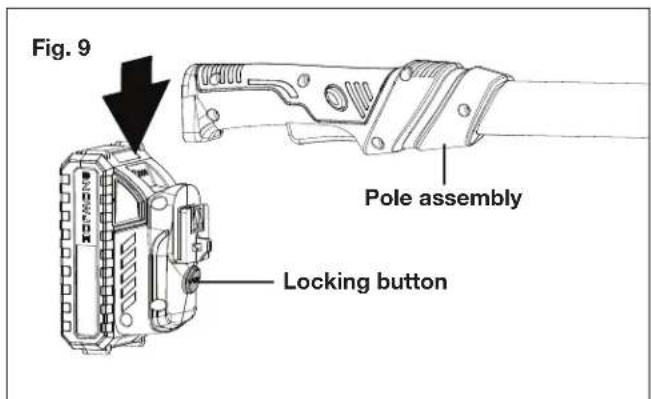

4. To disassemble the pole pruning saw, press down the

locking button on the removable battery compartment and slide it out of the pole assembly (Fig. 9).

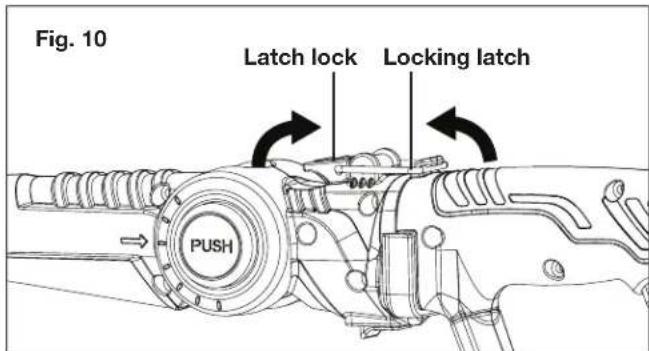

5. Flip up the latch lock and locking latch to unlock the saw

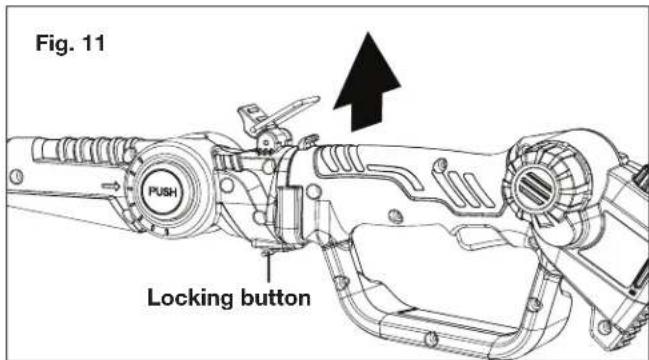

handle (Fig. 10), then press the locking button on the bottom of the pole assembly and slide the pruning saw out of the pole assembly (Fig. 11). Locking latch Handle Fig. 7 Latch lock Fig. 8 Removable battery compartment + battery Pole assembly Fig. 9 Locking button Pole assembly Preparation Adjusting Chain Tension mWARNING! Use protective gloves when handling the bar and chain.

1. Make sure the pruning saw is o and the battery is

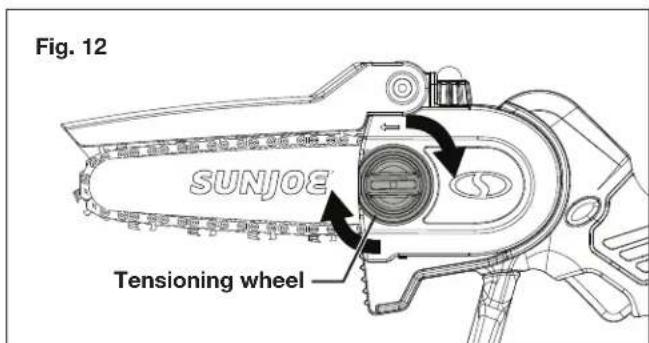

2. To tighten the chain, turn the tensioning wheel clockwise

until you meet some resistance. Prior to use, a cold chain should have no slack on the underside of the guide bar, while still allowing you to rotate the chain by hand without binding. Be aware that a chain tensioned while warm, may be too tight upon cooling. (Fig. 12). Fig. 10 Latch lock Locking latch Fig. 11 Locking button

3. To check the chain tension, lightly pull the chain 1/8"

(3 mm) away from bottom of guide bar. If the chain snaps back into place upon release, the tension is correct. During normal operation, the chain will heat up and expand causing the chain sag slightly by approximately

0.05 in. (~1.25 mm) (Fig. 13).

NOTE: A new chain will stretch. Check the tension of a new chain frequently during the rst two hours of operation, after disconnecting the battery and allowing the chain to cool down.

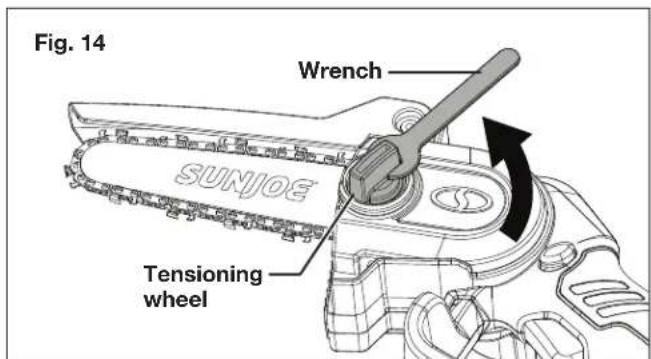

4. Using the included wrench, turn the tensioning wheel

counter-clockwise to loosen the chain (Fig. 14). Chain Lubrication mWARNING! Failure to lubricate the chain will cause damage to the bar and chain. Only use a good quality bar and chain oil designed specically for use with chain saws. Do not use oil containing impurities. IMPORTANT! The bar and chain oil is bio-degradable. The use of mineral oil or engine oil can have a serious impact on the environment. It is essential that you use good quality oil to lubricate the cutting parts eectively. Used or poor quality oil does not guarantee good lubrication and reduces the lifespan of the chain and bar.

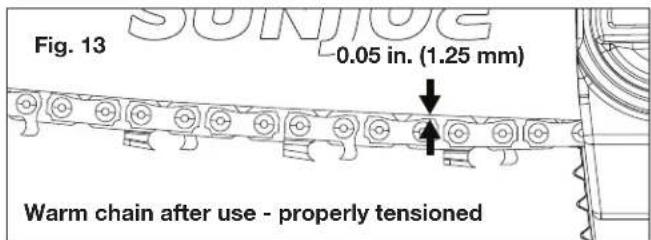

Fig. 13 Warm chain after use - properly tensioned

Too loose Warm chain after use - requires tensioning

Wrench Tensioning wheel Fig. 14

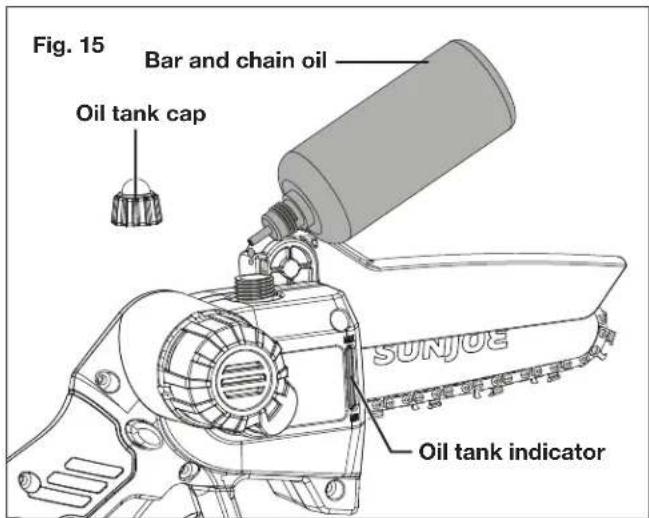

1. Take o the oil tank cap from the top of the pruning saw.

Then ll the oil tank up to top of the oil tank indicator marked with the word "MAX" (Fig. 15).

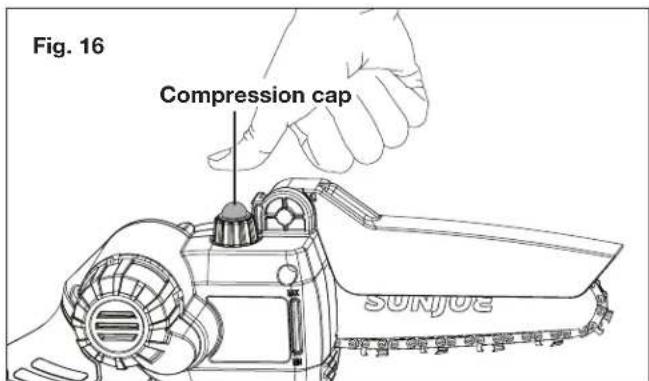

2. During operation, press the compression cap 3-4 times

every 30 minutes to lubricate the chain (Fig. 16). NOTE: Before storing the unit, press the compression cap 3-4 times and run the saw for 30 seconds to lubricate the chain evenly to prevent corrosion. Breaking-in your Pruning Saw It is recommended to break-in your pruning saw every time a new chain is installed.

1. Remove the battery and adjust the chain tension.

2. Insert the battery and switch on the pruning saw and leave

the motor running idle for approximately 5 minutes.

3. Remove the battery and check the chain tension again. If

necessary, re-tighten the chain.

4. Afterwards make only easy cuts for approximately 30

minutes. Always ensure sucient lubrication of the saw chain! Only use the pruning saw for heavier cuts and greater cutting depths after the break-in period.

Fig. 15 Oil tank cap Bar and chain oil Oil tank indicator Fig. 16 Compression cap13 Safety Checklist To help maintain your cordless pruning saw for optimum performance and safety, we recommend you complete this checklist prior to each work session. mWARNING! Do not insert the battery until you have completed all of the checks.

• Inspect for any visible damage to the chain, guide bar, or motor housing.

• Check that all the screws on the machine and guide bar are tightly fastened.

• Clean the guide bar and chain of any debris.

• Make sure any ventilation slots are free of sawdust or debris.

• Check that the chain is tensioned correctly and sharp.

• Check that the trigger remains locked until the safety lock is pressed. Operation

CAUTION! Repeatedly starting and stopping an electric motor within a few seconds can generate a great deal of heat and damage the motor. To protect the life of your cordless pruning saw, always wait at least ve seconds after stopping before restarting the saw. mWARNING! Be sure that the chain is not in contact with any object when you start the motor. mWARNING! Keep hands away from chain. Keep hand on handle. Do not overreach. mWARNING! Maintain a rm grip. Do not let go of the saw while it is in operation. mWARNING! Do not operate the cordless pruning saw in a tree, on a ladder, or on scaolding. Using the tool under such circumstances is extremely dangerous. mCAUTION! The chain will continue to run for several seconds after turning o the tool. mCAUTION! Do not use the pruning saw under wet conditions. Use extreme caution when cutting small brush, saplings, or branches under tension. Such material may spring back towards you or get caught on the saw which may result in throwing you o balance, or pushing the saw out of control. mWARNING! Do not allow familiarity with this type of tool to cause you to ignore necessary precautions. Remember that a careless fraction of a second is sucient to inict serious injury. mWARNING! Do not cut branches near electrical wires. Hand-held Pruning Saw Operation

1. Insert the battery as shown in (Fig. 4).

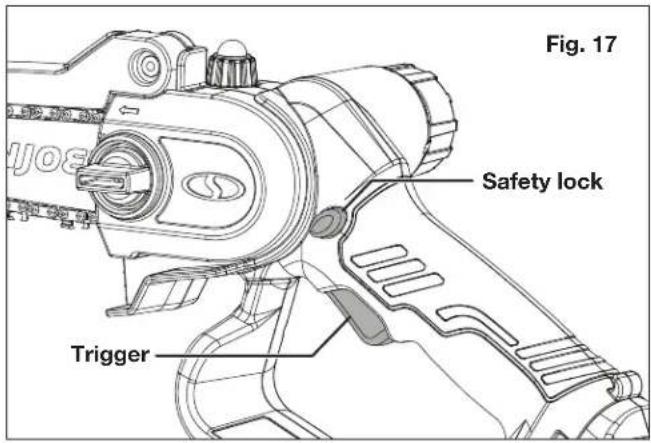

2. To turn on the tool, rmly grip the pruning saw handle

and press the safety lock to deactivate the safety. Then squeeze the trigger to activate the saw (Fig. 17). NOTE: Do not squeeze the trigger until you are ready to make a cut.

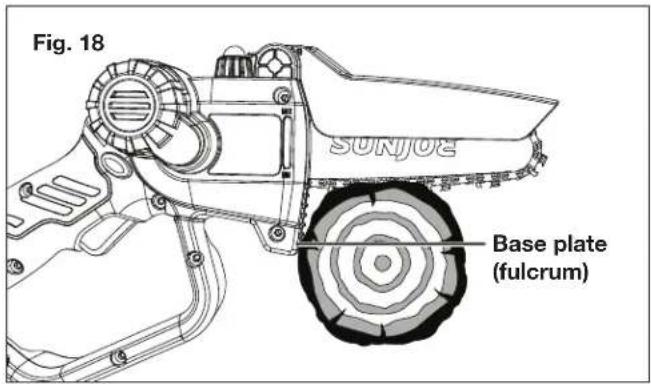

3. With the pruning saw running, butt the base plate up

against the branch you wish to cut and let the saw do all the cutting (Fig. 18). Apply only light pressure on the saw. NOTE: The base plate helps to stabilize the saw and signicantly reduce vibrations. It also acts as a fulcrum, allowing you to pivot the saw while cutting for better control.

4. Release the trigger to stop the saw.

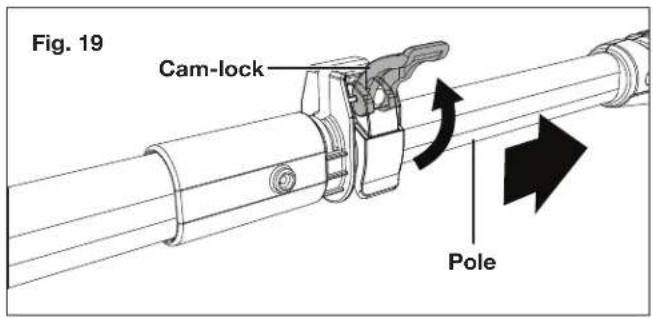

1. To extend the pole assembly, lift the cam-lock and extend

the pole to the desired length (Fig. 19). Close the cam-lock to secure the pole in position.

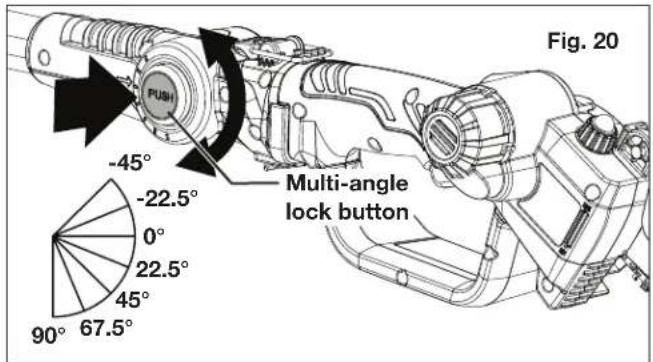

2. The pruning saw can be adjusted into 7 dierent angles

(-45º | -22.5º | 0º | 22.5º | 45º | 67.5º | 90º) to allow for greater exibility and control. To adjust the cutting angle, push the multi-angle lock button. Then pivot the pruning saw to your desired angle and release the button. The saw will click into position and be locked at that angle (Fig. 20).

3. Insert the battery as shown in (Fig. 8).

4. Hold the pole pruning saw with one hand on the handle

and the other on the pole. Always cut adjacent to the material and never underneath to avoid injury from falling branches. Adjust the length and angle accordingly (Fig. 21). NOTE: Do not raise your bottom hand above chest height in order to maintain control of the saw in the event of a kickback. Fig. 19 Pole Cam-lock Fig. 20 Multi-angle lock button -45°

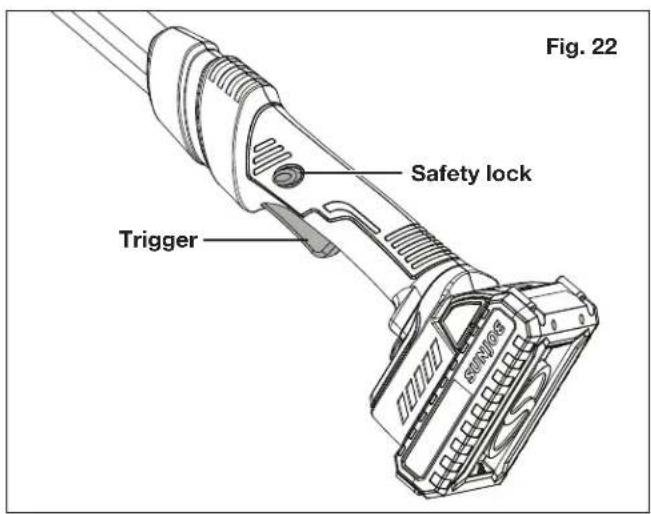

5. To turn on the tool, rmly grip the pruning saw handle

and press the safety lock to deactivate the safety. Then squeeze the trigger to activate the saw (Fig. 22). NOTE: Do not squeeze the trigger until you are ready to make a cut.

6. Release the trigger to stop the saw.

Maintenance Please contact an authorized Snow Joe

dealer or call the Snow Joe

customer service center at 1-866-SNOWJOE (1-866-766-9563) for all maintenance operations not foreseen in this manual. Any operation performed in an unauthorized service center or by unqualied personnel will completely invalidate the warranty. mWARNING! For your safety and that of others:

• Keep all nuts, bolts, and screws tight to be sure the equipment is in safe working condition. Fig. 21 Fig. 22 Safety lock Trigger15

• Never use the machine with worn or damaged parts. Damaged parts are to be replaced and never repaired.

replacement parts. Parts that are not of the same quality can seriously damage the equipment, compromise safety, and invalidate the warranty.

• Remove the battery and wait at least ve minutes for the saw to cool before servicing or storing your unit.

• If you drop the saw, carefully inspect it for damage. If the guide bar is bent, the housing is cracked, the handle is broken, or if you see any other damage that may aect the saw’s operation, do not use the tool. mWARNING! Always remove the battery before performing any adjustments, maintenance, or repairs to your cordless pruning saw.

• Use protective gloves when handling the bar and chain.

• Keep the bar encased in its sheath, except when working directly on the bar or the chain.

• Never dispose of oils or other polluting materials in unauthorized places. mCAUTION! If you notice anything unusual, such as excessive vibrations or odd noises, shut the saw OFF immediately. Remove the battery and check the saw for any damage. mCAUTION! To avoid overheating and damage to the motor, always keep the ventilation slots clean and free of sawdust and debris. General Cleaning It's recommended to clean the pruning saw after each use for best performance. Use a cloth, brush or compressed air to remove saw dust and splinters from the ventilation slots. Only clean the housing of the pruning saw with mild soap and a damp cloth. Never use strong cleaning agents or solvents to clean the tool. Never immerse any part of the saw or allow liquids to get inside the cordless power tool. Storage

• To prevent corrosion, press the compression cap 3-4 times and run the saw for 30 seconds to lubricate the chain evenly before storage.

• Place the bar sheath over the guide bar before storing.

• Do not store cordless pruning saw near chemicals, such as fertilizers or other harsh solvents. Do not expose the plastic parts of the unit to brake uids, gasoline, petroleum-based products, penetrating oils, or the like. These products are often highly corrosive and may cause permanent damage to the plastic parts of your unit.

• When not in use, your machine should be stored indoors in a dry place, out of the reach of children. Replacing the Guide Bar + Chain mWARNING! Make sure the battery is not inserted and the chain is covered by the sheath before replacing the guide bar and chain. The operation should be completed on a at and stable surface, with adequate space for moving the machine and its components. mWARNING! Always wear heavy-duty gloves when handling the bar and chain. Mount the bar and chain very carefully so as not to impair the safety and ecacy of the machine. If in doubt, contact an authorized Snow Joe

dealer or call the Snow Joe

• There is excessive wear or obstructions inside the groove of the guide bar.

• The guide bar is bent

• The guide bar is cracked NOTE: It is normal to see burring on the edges of the guide bar. You can smooth down any burrs with a le instead of replacing it. Refer to the table below for the specications of the chain. You should replace the chain if: Drive Links Chain Pitch Chain Gauge

• There is too much play between the links and rivets

• There are cracks in the chain

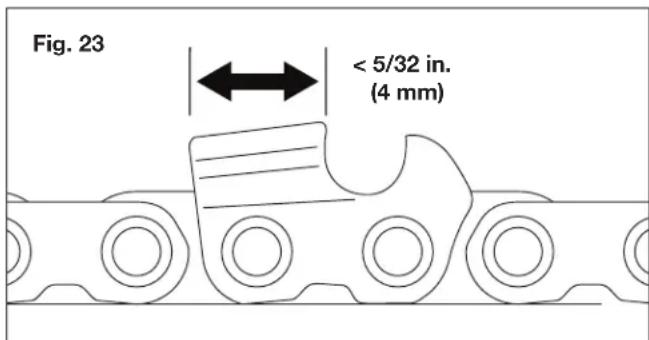

• Length of cutting edge has worn down to 5/32 in. (4 mm) or less (Fig. 23). Fig. 23 < 5/32 in. (4 mm)16

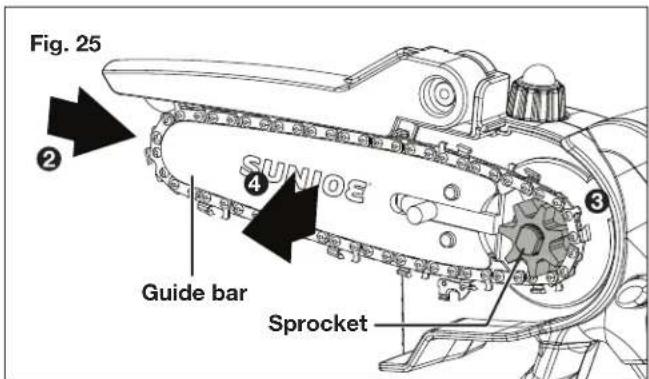

1. Loosen the tensioning wheel using the wrench and

inwards towards the sprocket to relieve the tension and create some slack on the chain (Fig. 25).

3. Keeping the guide bar pushed in, pull the chain o the

The guide bar should spring back slightly allowing you to remove the chain and guide bar from the saw (Fig. 25).

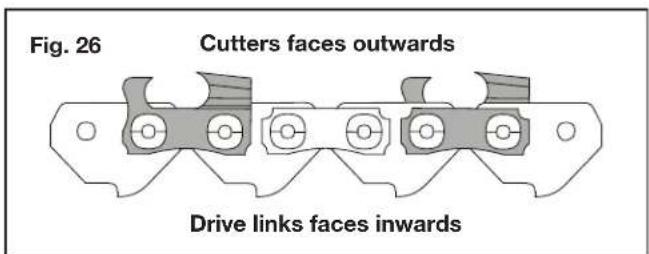

5. Lay out the new chain in a loop with the cutters facing

outwards and the drive links facing inwards. If necessary, ip the chain and straighten any kinks (Fig. 26). NOTE: Replace the chain with an ocial Sun Joe

replacement 5-inch chain (model SWJ-5CHAIN), and the guide bar with an ocial Sun Joe

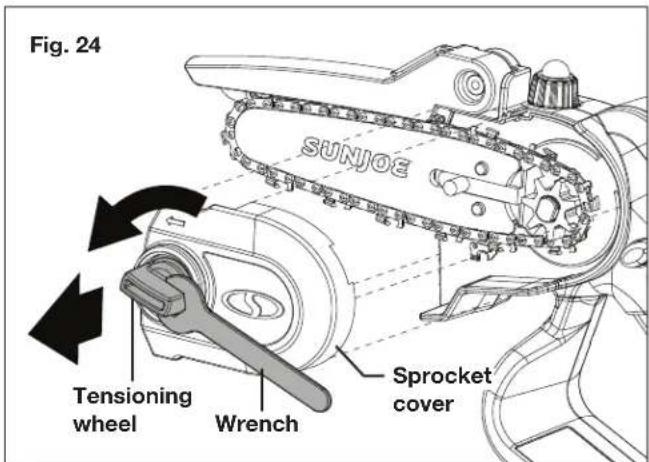

Fig. 24 Wrench Tensioning wheel Sprocket cover

Cutters faces outwards Drive links faces inwards

6. Starting from the tip, place the new chain into the groove

of the guide bar. Ensure that the groove is free of any obstructions and that the cutters on the top edge are facing towards the tip of the guide bar, and the cutters on the bottom edge are facing away from the tip of the guide bar. If backwards, turn the chain around. The chain will only loosely t until secured onto the sprocket (Fig. 27). NOTE: Make certain of the chain's direction. If the chain is mounted backwards, the saw will vibrate abnormally and will not cut.

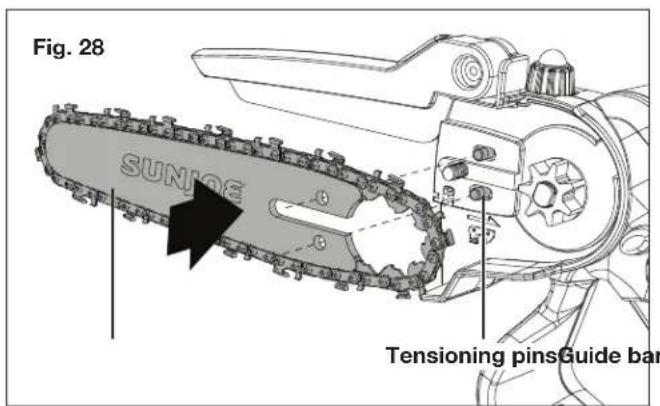

7. Secure the guide bar onto the tensioning pins (Fig. 28).

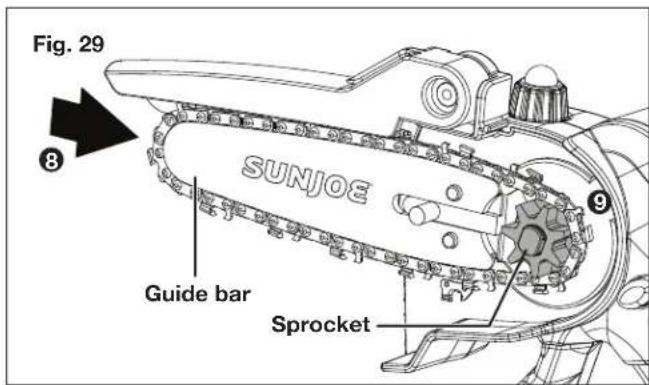

8. At this point, the chain is not yet able to be tted onto the

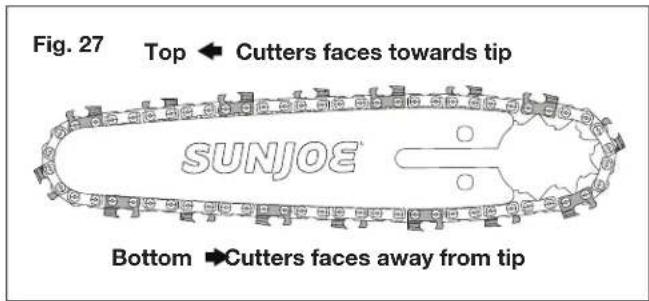

Bottom Cutters faces away from tip

10. Let go of the guide bar once the chain is securely tted

onto the sprocket. The guide bar should spring back slightly creating some tension on the chain and guide bar.

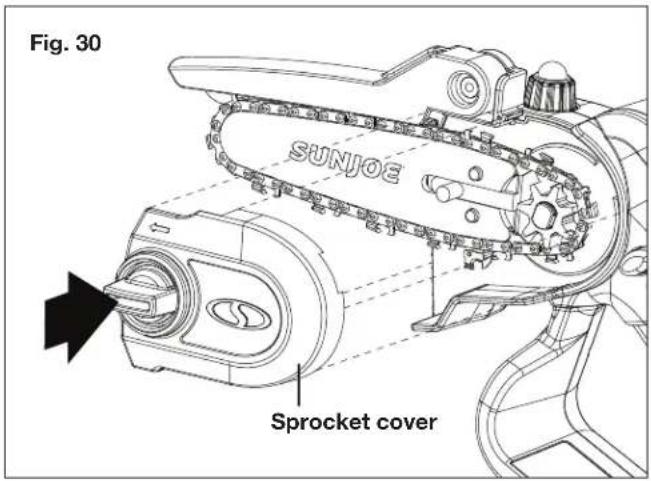

11. Reinstall the sprocket cover (Fig. 30).

12. Follow the earlier instructions to properly tighten (Fig. 12)

and lubricate the chain (Fig. 16). Chain Sharpening mWARNING! To ensure that the saw works safely and eectively, it is essential that the cutting components are well-sharpened. It is highly recommended to replace the chain once it loses its ability to cut cleanly and safely. It is however, possible to sharpen the existing chain if carefully performed. Any work on the chain and bar requires specic experience and special tools. For safety purposes, we recommend you contact an authorized Snow Joe

dealer or call the Snow Joe

• Cutting becomes dicult

• The saw does not cut straight

• There are excessive vibrations A professional service center will sharpen the chain using the right tools to ensure minimum removal of material and even sharpness on all the cutting edges. If you decide sharpen the chain by yourself, it's recommended to purchase the Sun Joe

24V-CSSHRP-LTE chain saw sharpener, which can be powered by the same iON+ 24V battery that comes with this cordless pruning saw. Visit sunjoe.com or call the Snow Joe

Fig. 30 Sprocket cover Manual Chain Sharpening Tools (not included) To sharpen the chain manually, you will require the following tools.

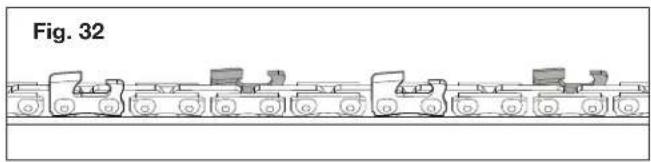

2. Mark one of the cutters on the top of the guide bar with a

felt-tip marker to indicate where you started.

3. Insert your round le into the le guide.

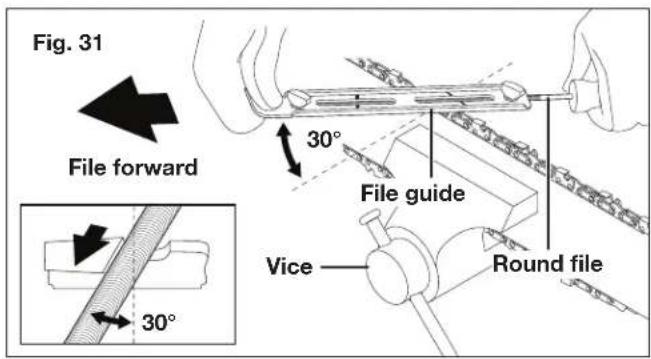

4. Place the le and le guide into the cutter at a 30° angle.

Then le in a forward motion in 5-6 even strokes, while maintaining the le at the correct angle and parallel to the ground until the cutting edge of the cutter is shiny (Fig. 31). NOTE: Most le guides have 30° and 35° angles etched on their upper side to help you preserve the angle as you le.

5. File every cutter on one side of the chain until you reach

the one you marked before turning the saw over on the other side to sharpen the rest. Use gloves or a screwdriver to advance the chain as you progress from one cutter to the other (Fig. 32). NOTE: File the cutter on the opposite side of the chain if right handed or le the cutter on your side if left handed. Fig. 31 Round le File guide 30° 30° Vice File forward Fig. 3218

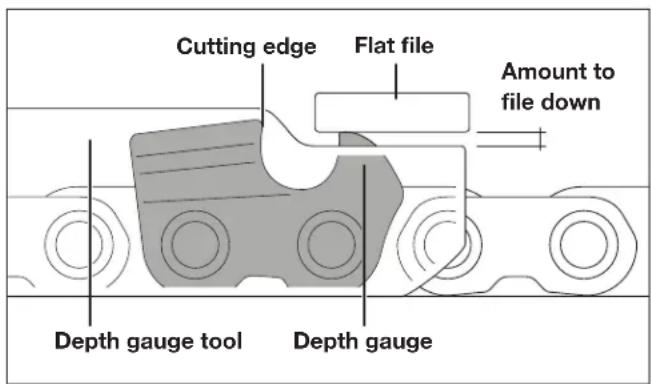

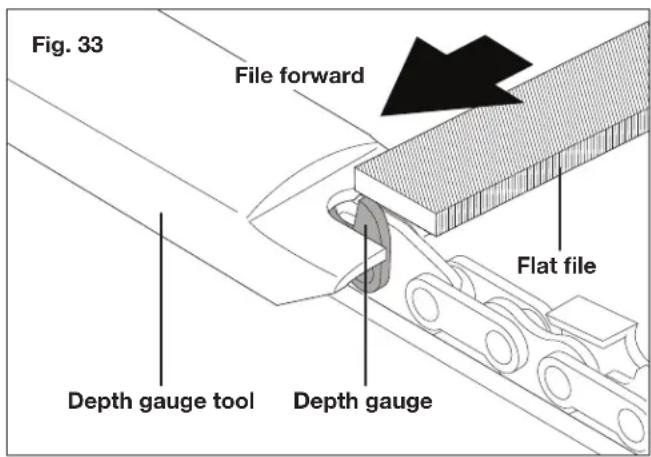

6. Depth gauges are small teeth on the cutter which protrude

in front of the cutting edge. In order for the chain to cut eectively, the depth gauge must be lower than the cutting edge. Therefore, after heavy use or multiple sharpenings the depth gauge may require ling down. Place the depth gauge tool over the chain. Ensure that a depth gauge is exposed and protruding from the slot on the tool. Using the at le, le down the depth gauge until ush with the tool in a forward motion (Fig. 33).

7. Remove the depth gauge tool and round o the edge of

the depth gauge with your le.

8. Repeat for all cutters on both sides of the chain.

9. After sharpening, clean the saw of any metal lings or

dust, then tighten (Fig. 12) and lubricate the chain (Fig. 16). Battery Caution + Disposal Always dispose of your battery pack according to federal, state, and local regulations. Contact a recycling agency in your area for recycling locations. mCAUTION! Even discharged battery packs contain some energy. Before disposing, use electrical tape to cover the terminals to prevent the battery pack from shorting, which could cause a re or explosion. Fig. 33 Flat le Depth gauge File forward Depth gauge tool Flat le Depth gauge Depth gauge tool Amount to le down Cutting edge mWARNING! To reduce the risk of injury or explosion, never burn or incinerate a battery pack even if it is damaged, dead, or completely discharged. When burned, toxic fumes and materials are emitted into the surrounding environment.

• Batteries vary according to device. Consult your manual for specic information.

• Install only new batteries of the same type in your product (where applicable).

• Failure to insert batteries in the correct polarity, as indicated in the battery compartment or manual, may shorten the life of the batteries or cause batteries to leak.

• Do not mix old and new batteries.

• Do not mix Alkaline, Standard (Carbon-Zinc), or Rechargeable (Nickel Cadmium, Nickel Metal Hydride, or Lithium-Ion) batteries.

• Do not dispose of batteries in re.

• Batteries should be recycled or disposed of as per state and local guidelines. Recycling + Disposal The product comes in a package that protects it against damage during shipping. Keep the package until you are sure that all parts have been delivered and the product is functioning properly. Recycle the package afterwards or keep it for long-term storage. WEEE symbol. Waste electrical products should not be disposed of with household waste. Please recycle where facilities exist. Check with your local authority or local store for recycling regulations. Service + Support If your Sun Joe

24V-HCSWP-LTE cordless pruning saw requires service or maintenance, please call 1-866-SNOWJOE (1-866-766-9563) for assistance. Model + Serial Numbers When contacting the company, reordering parts, or arranging service from an authorized dealer, you will need to provide the model and serial numbers, which can be found on the decal located on the housing of the unit. Copy these numbers into the space provided below. Record the following numbers from the housing or handle of your new product:Model #:Serial #:

P - L T E19 Troubleshooting

• Remove the battery and wait at least ve minutes for the saw to cool before carrying out maintenance on the machine or when checking that its parts are in proper working order.

• Consult the following table before contacting customer service with any mechanical issues. Problems Possible Cause Possible Solution The motor fails to start

• Battery is not inserted correctly

• Battery is out of charge

• Reinsert the battery

• Check the charge status and recharge the battery The saw stops during operation

• Battery is out of charge

• The machine is overloaded/overheated

• Check the charge status and recharge the battery

• Wait ve minutes for the saw to cool The saw runs, but the chain speed is low

• The chain is too tight • Loosen and retighten the chain Bar and chain are running hot and smoking

• The chain is too tight

• The chain lacks lubrication

• Loosen and retighten the chain

• Press the compression cap to lubricate the chain with the oil; rell if necessary. The motor runs, but the chain is not moving

• The chain is too tight

• The guide bar, chain or sprocket is damaged

• Loosen and retighten the chain

Inspect and replace the damaged part20 Optional Accessories

WARNING! ALWAYS use only authorized Snow Joe

replacement parts and accessories. NEVER use replacement parts or accessories that are not intended for use with this saw. Contact Snow Joe

if you are unsure whether it is safe to use a particular replacement part or accessory with your saw. The use of any other attachment or accessory can be dangerous and could cause injury or mechanical damage. Accessories Item Model iON+ 24V 2.0 Ah Lithium-Ion Battery 24VBAT-LTE iON+ 24V 2.5 Ah Lithium-Ion Battery 24VBAT-LT iON+ 24V 4.0 Ah Lithium-Ion Battery 24VBAT iON+ 24V 5.0 Ah Lithium-Ion Battery 24VBAT-XR iON+ 24V lithium-ion Battery Quick Charger 24VCHRG-QC iON+ 24V lithium-ion Dual-port Battery Charger 24VCHRG-DPC

5-inch replacement bar SWJ-5BAR Sun Joe

5-inch replacement chain SWJ-5CHAIN

Accessories Item Model Bar and chain oil SWJ-OIL Sold online at sunjoe.com or you can purchase equivalent bar and chain oil at your local hardware store

iON+ 24V Cordless Chain Saw Sharpener 24V-CSSHRP-LTE NOTE: Accessories are subject to change without any obligation on the part of Snow Joe

to provide notice of such changes. Accessories can be ordered online at sunjoe.com or via phone by contacting the Snow Joe

CUSTOMER PROMISE OUR WARRANTY: Snow Joe warrants new, genuine, powered and non-powered Products to be free from defects in material or workmanship when used for ordinary household use for a period of two years from the date of purchase by the original, end-user purchaser when purchased from Snow Joe or from one of Snow Joe’s authorized sellers with proof of purchase. Because Snow Joe is unable to control the quality of its Products sold by unauthorized sellers, unless otherwise prohibited by law, this Warranty does not cover Products purchased from unauthorized sellers. If your Product does not work or there’s an issue with a specic part that is covered by the terms of this Warranty, Snow Joe will elect to either (1) send you a free replacement part, (2) replace the Product with a new or comparable product at no charge, or (3) repair the Product. How cool is that! This Warranty gives you specific legal rights, and you may also have other rights which vary from State to State. PRODUCT REGISTRATION: Snow Joe strongly encourages you to register your Product. You can register online at snowjoe.com/register, or by printing and mailing in a registration card available online from our website, or by calling our Customer Service Department at 1-866-SNOWJOE (1-866-766-9563), or by e-mailing us at [e-mail]. Failure to register your Product will not diminish your warranty rights. However, registering your Product will allow Snow Joe to better serve you with any of your customer service needs. WHO CAN SEEK LIMITED WARRANTY COVERAGE: This Warranty is extended by Snow Joe to the original purchaser and original owner of the Product. WHAT IS NOT COVERED? This Warranty does not apply if the Product has been used commercially or for non-household or rental applications. This Warranty also does not apply if the Product was purchased from an unauthorized seller. This Warranty also does not cover cosmetic changes that do not aect performance. Wearing parts like belts, augers, chains and tines are not covered under this Warranty, and can be purchased at snowjoe.com or by calling 1-866-SNOWJOE (1-866-766-9563). ABOVE ALL ELSE, Snow Joe, LLC (“Snow Joe”) is dedicated to you, our customer. We strive to make your experience as pleasant as possible. Unfortunately, there are times when a Snow Joe

product (“Product”) does not work or breaks under normal operating conditions. We think it’s important that you know what you can expect from us. That’s why we have a Limited Warranty (“Warranty”) for our Products.

CUSTOMER PROMISE OUR WARRANTY: Snow Joe warrants new, genuine, powered and non-powered Products to be free from defects in material or workmanship when used for ordinary household use for a period of two years from the date of purchase by the original, end-user purchaser when purchased from Snow Joe or from one of Snow Joe’s authorized sellers with proof of purchase. Because Snow Joe is unable to control the quality of its Products sold by unauthorized sellers, unless otherwise prohibited by law, this Warranty does not cover Products purchased from unauthorized sellers. If your Product does not work or there’s an issue with a specic part that is covered by the terms of this Warranty, Snow Joe will elect to either (1) send you a free replacement part, (2) replace the Product with a new or comparable product at no charge, or (3) repair the Product. How cool is that! This Warranty gives you specific legal rights, and you may also have other rights which vary from State to State. PRODUCT REGISTRATION: Snow Joe strongly encourages you to register your Product. You can register online at snowjoe.com/register, or by printing and mailing in a registration card available online from our website, or by calling our Customer Service Department at 1-866-SNOWJOE (1-866-766-9563), or by e-mailing us at [e-mail]. Failure to register your Product will not diminish your warranty rights. However, registering your Product will allow Snow Joe to better serve you with any of your customer service needs. WHO CAN SEEK LIMITED WARRANTY COVERAGE: This Warranty is extended by Snow Joe to the original purchaser and original owner of the Product. WHAT IS NOT COVERED? This Warranty does not apply if the Product has been used commercially or for non-household or rental applications. This Warranty also does not apply if the Product was purchased from an unauthorized seller. This Warranty also does not cover cosmetic changes that do not aect performance. Wearing parts like belts, augers, chains and tines are not covered under this Warranty, and can be purchased at snowjoe.com or by calling 1-866-SNOWJOE (1-866-766-9563). ABOVE ALL ELSE, Snow Joe, LLC (“Snow Joe”) is dedicated to you, our customer. We strive to make your experience as pleasant as possible. Unfortunately, there are times when a Snow Joe

product (“Product”) does not work or breaks under normal operating conditions. We think it’s important that you know what you can expect from us. That’s why we have a Limited Warranty (“Warranty”) for our Products.
